Vevor Diamond Core Drill with Stand-Mount 4 Bits 2-Speed Wet Dry Drilling 1800W New
Product Overview
This core drill packs an 1800W motor with adjustable dual speeds (1075/2300 RPM) to handle both small and large holes with ease. With a max drilling diameter of 8", it delivers fast, efficient performance. Designed for versatility, it comes with 4 drill bits and supports both wet and dry drilling. Wet drilling flushes out debris, cools the bit, and minimizes dust; ideal for cleaner, smoother results during indoor renovation projects. This core drill can cut through concrete, brick, marble, and more.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Powerful & Fast Drilling: This core drill boasts a robust 1800W motor and dual-speed settings (1075 RPM/2300 RPM), delivering fast, efficient drilling. It handles holes up to 8 in (200 mm) with a 1/4-7 in threaded output shaft—ideal for tough tasks
- Superior Hole Quality: Our diamond core drilling machine features both wet and dry drilling. The wet drilling option flushes out debris and cools the bit with water, reducing dust and improving hole smoothness—great for indoor renovation work

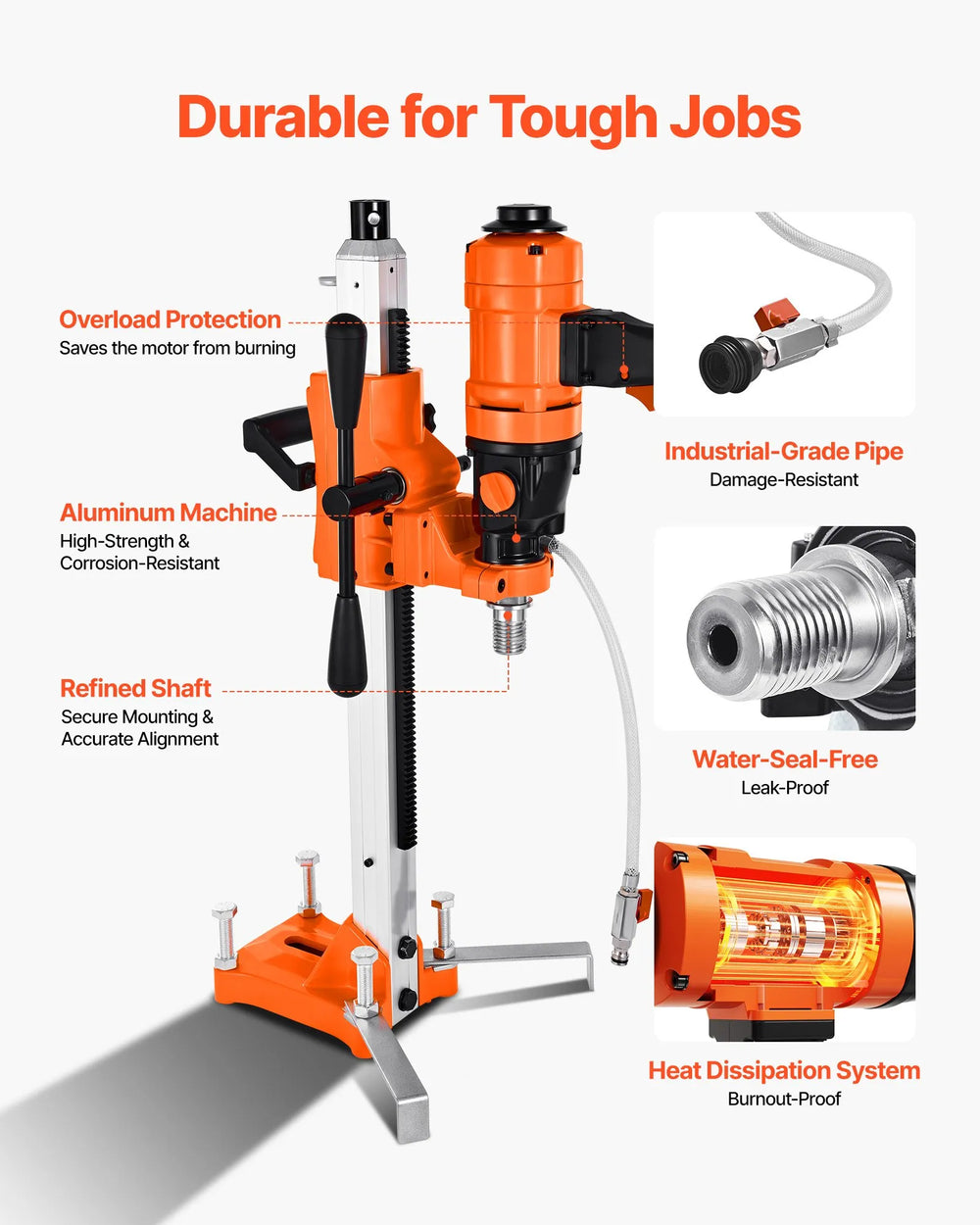

- Enhanced Security & Stability: The built-in clutch automatically stops the drill when it hits hard resistance to save you and the core drill machine. Plus, the water-seal-free design avoids common water seal failures and keeps your workflow steady
- Built to Last: Crafted with a lightweight yet tough aluminum body, this core drill rig resists wear and tear while keeping fatigue low. The reinforced PVC water hose is crack-resistant, and the steel output shaft delivers consistent accuracy
- Professional Kit: Comes fully loaded. This concrete core drill includes four premium drill bits (1 in, 2 in, 3 in, 4 in) that cut through reinforced concrete, brick, marble, and more. It is ideal for all your drilling needs
Specifications
| Item Model Number | Z1Z-CF03-80S |

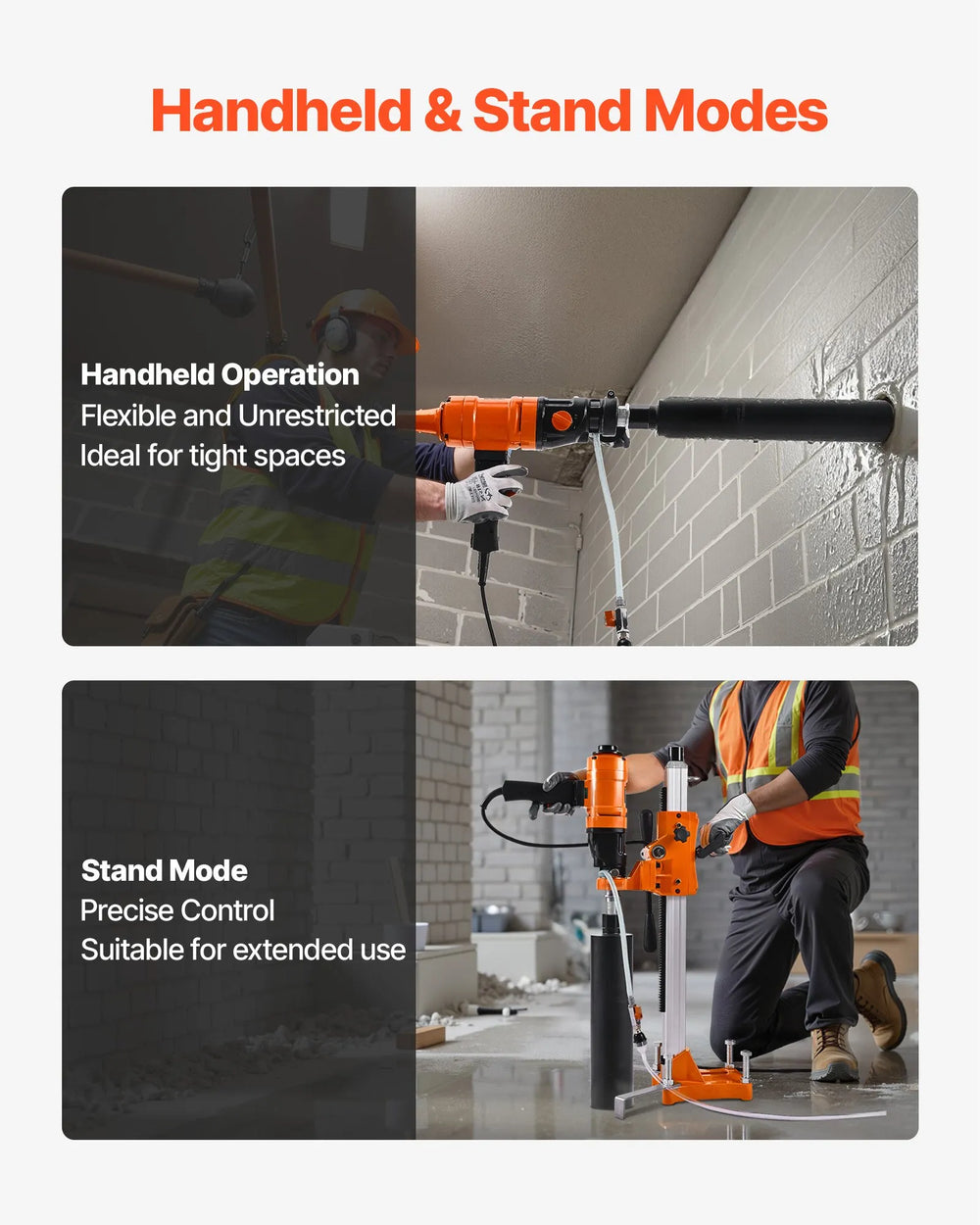

| Type | Handheld & Stand Combo |
| No-Load Power | 700W |
| Max Load Power | 1800W |
| No-Load Speed | 2-Speed Adjustable—1075 RPM (1st), 2300 RPM (2nd) |
| Stroke | 15.7 in/400 mm |
| Max Drill Bit Diameter | Φ7.9 in/202 mm (No Interference with Stand) |
| Output Shaft Size | UNC1 1/4-7 External Thread |
| Water Inlet Size | Mesh Tube Fitting, OD 0.6 in/16 mm |
| Included Drill Bits | 4 Pieces |
| Brick Drilling Capacity | Max 8 in/200 mm |
| Concrete Drilling Capacity | Max 3.1 in/80 mm |
| Product Dimensions (L x W x H) | 14.4 x 8.3 x 31.7 in |
| Net Weight (Machine Only) | 35.9 lbs (With Stand) |

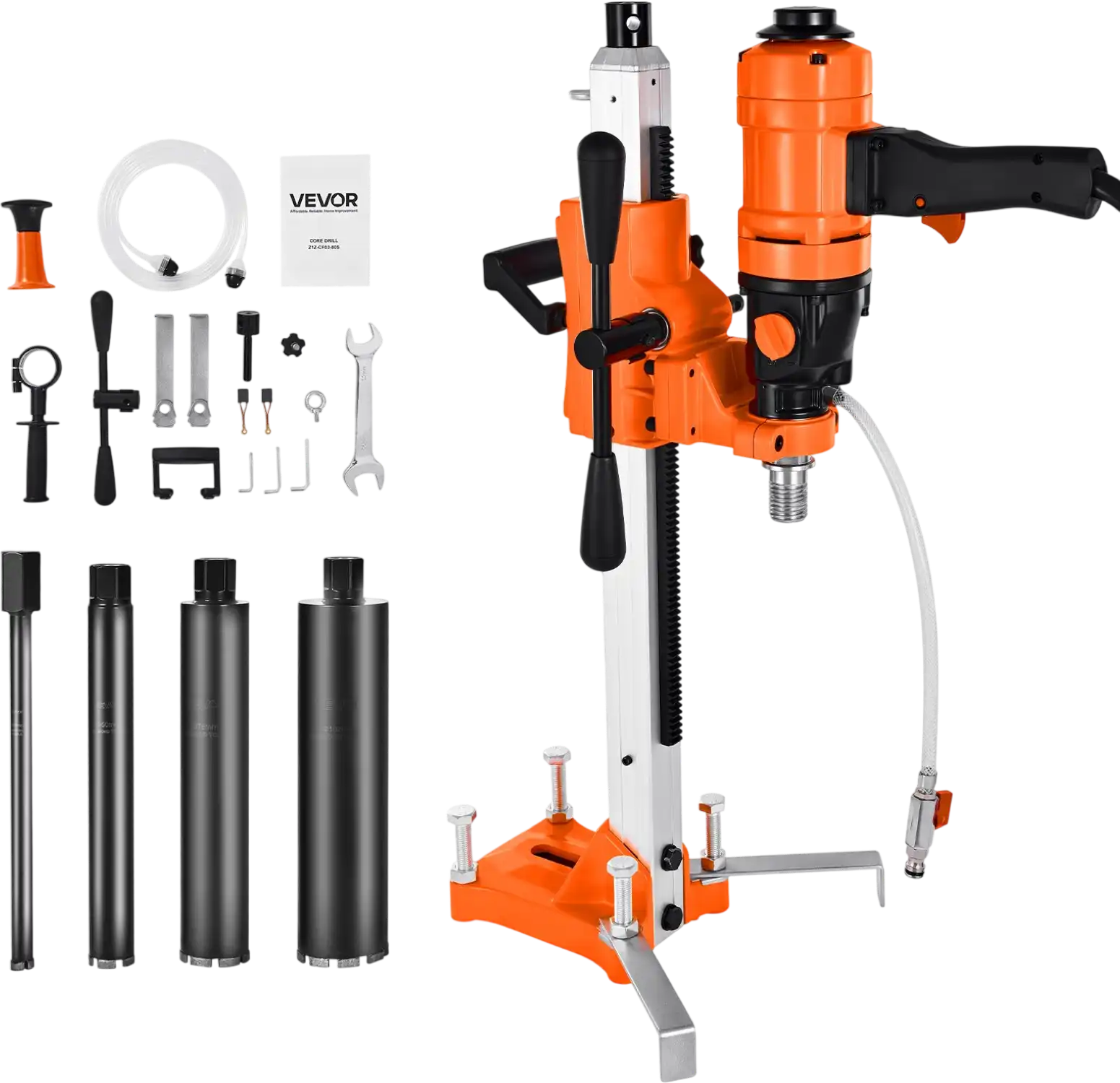

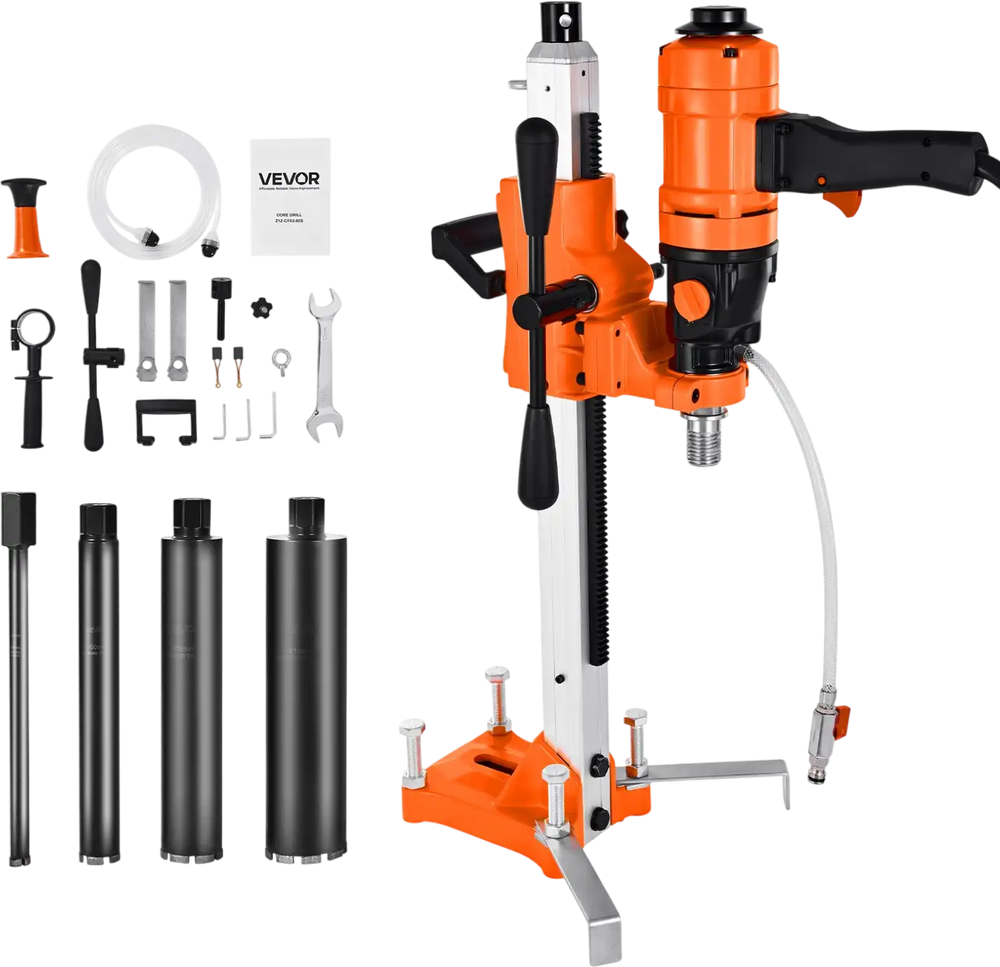

Package Contents
Vevor Diamond Core Drill Rig
(4) Drill Bits
Handle + Rocker
Set of Tools
User Manual
Warranty
This item comes with a 1 year factory warranty.
