Vevor Cylinder Head Assembly 1.4L Turbo for 2011-2019 Chevy Cruze Sonic Trax and 2013-2019 Buick Encore New
Manufacturer: Vevor
SKU: GGZC201120192D4NF001V0
Customized engine Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$750.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Train Horn Kit 4 Trumpet 150dB Air Horn with 12V Compressor and 0.8 Gal Tank New
-
Vevor Universal Forklift Tractor Seat Suspension 3 Level Shock Absorption Micro Switch Seatbelt B...
-
Vevor Strut Spring Compressor Hydraulic Coil Spring Removal Tool New
-
Vevor Seat Suspension Kit Universal Slider Track Dust Cover Lawn Mower New
-
Vevor Hydraulic Hose 3/8" x 100' Coiled 5000 PSI Rubber Hydraulic Oil Hose New
-
Vevor Air Compressor 12V 1.6 Gal Onboard Train Horn Tank System New
-
Vevor Forklift Suspension Seat Foldable with Adjustable Backrest and Headrest Universal Fit New
-
Vevor Automotive Smoke Machine Leak Detector EVAP Vacuum Diagnostic Tester with Built-in Air Pump...
-
Vevor Strut Spring Compressor Heavy Duty MacPherson Coil Spring Tool Set New
-
Vevor Inner Tie Rod Tool Installation Kit with 12 Crowfoot Adapters New
-
Vevor Magnetic Induction Heater Kit Portable Hand Held with 10 Coils New
-
Vevor Air Suspension Compressor Kit 12V 100 PSI Single Path System New
-
Vevor Injector Tester Diesel Fuel Nozzle Pressure Gauge Kit New
-
Vevor Magnetic Induction Heater Kit with 4 Coils 1800W 110V New
-
Vevor Tractor Seat Universal Lawn Replacement High Back Black Vinyl New
-
Vevor Exhaust Tip Chrome Turn Down Elbow 4" Inlet 6" Outlet 23" Length New
-
Vevor Jeep Tube Doors 4-Door Off-Road Front & Rear Tubular Half Doors for 2007-2018 Jeep Wrangler...
-
Vevor Hard Top Remover Lift Jeep Hardtop Removal and Storage System New
-
Vevor Carburetor Synchronizer Tool Kit 4-Gauge Vacuum Gauge Set with Rubber Hose New
Vevor Cylinder Head Assembly 1.4L Turbo for 2011-2019 Chevy Cruze Sonic Trax and 2013-2019 Buick Encore New
Product Overview

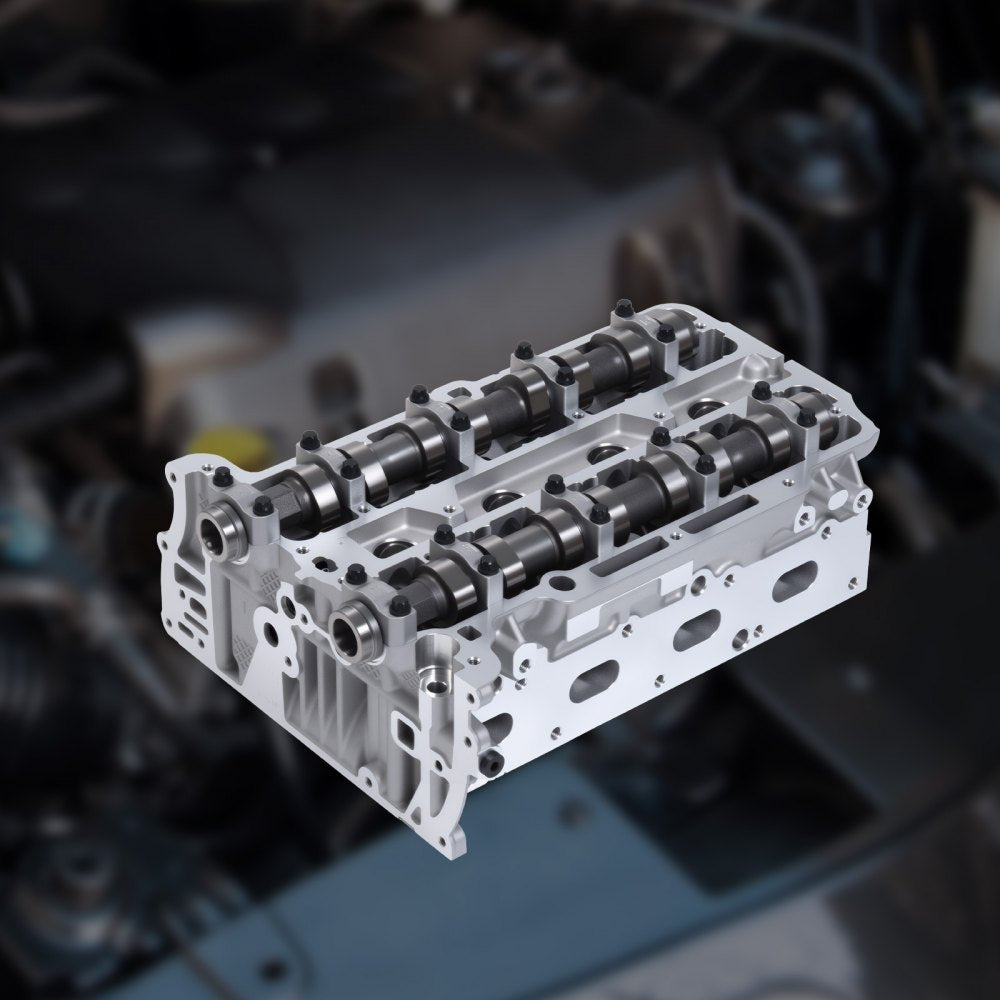

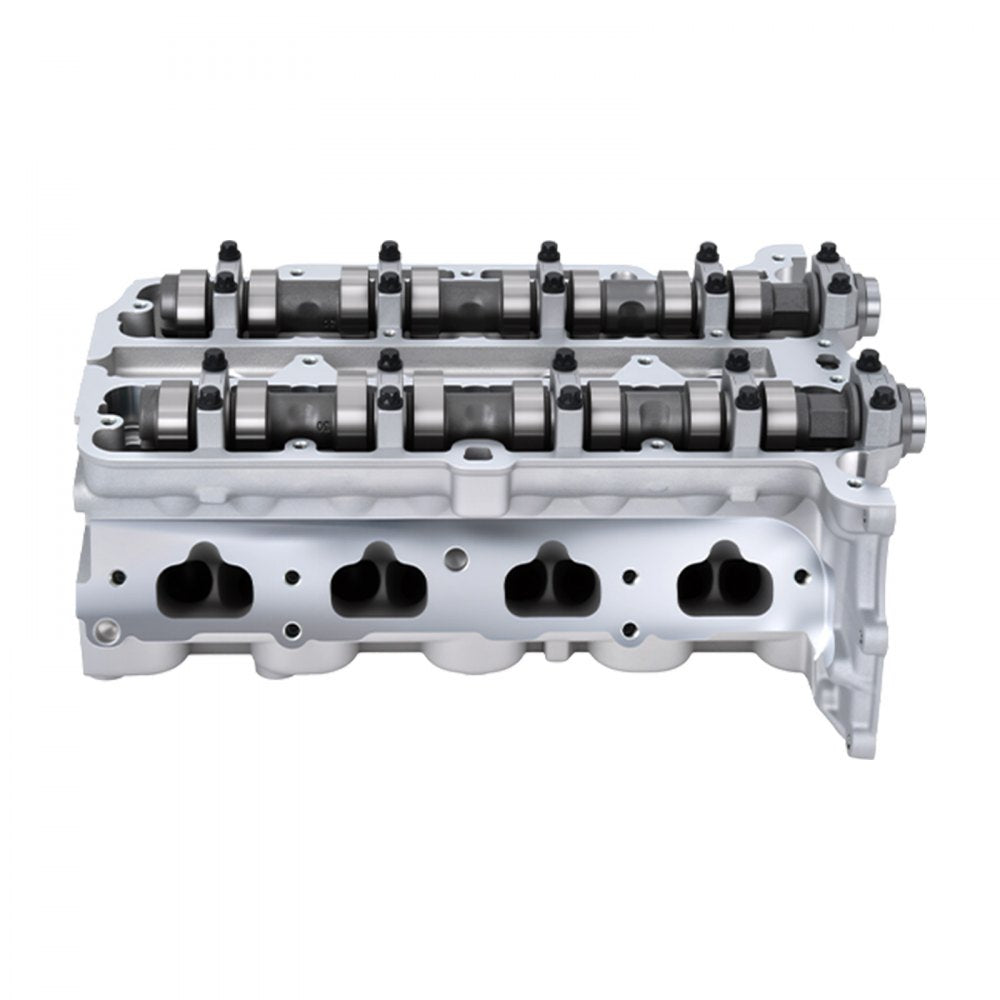

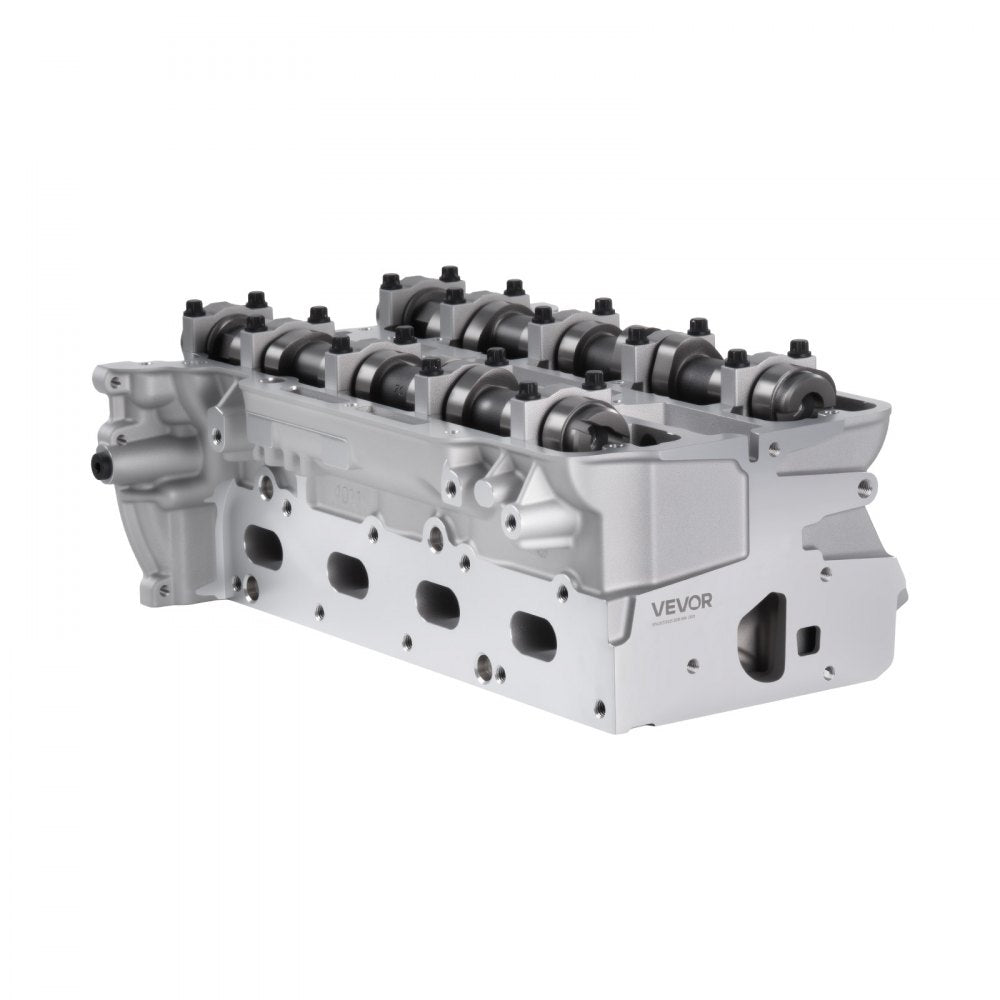

This complete cylinder head assembly is designed for select 2011-2019 Chevy Cruze, Sonic, and Trax 1.4L turbo engines as well as 2013-2019 Buick Encore 4-cylinder 1.4L engines. Built to OEM-standard dimensions, it is made for direct-fit replacement and dependable sealing performance. The assembly comes pre-installed with key valvetrain components to help reduce installation steps. Its aluminum alloy construction supports durability, heat dissipation, and stable engine operation. It is intended to help restore compression, combustion efficiency, and overall engine performance.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Precision Fit: Direct replacement for OEM part numbers 55573669, 55565291, etc. The cylinder head assembly is precisely engineered for 2011-2019 Chevy Cruze, Sonic, and Trax 1.4L turbo engines. Please confirm your engine type and model before purchase

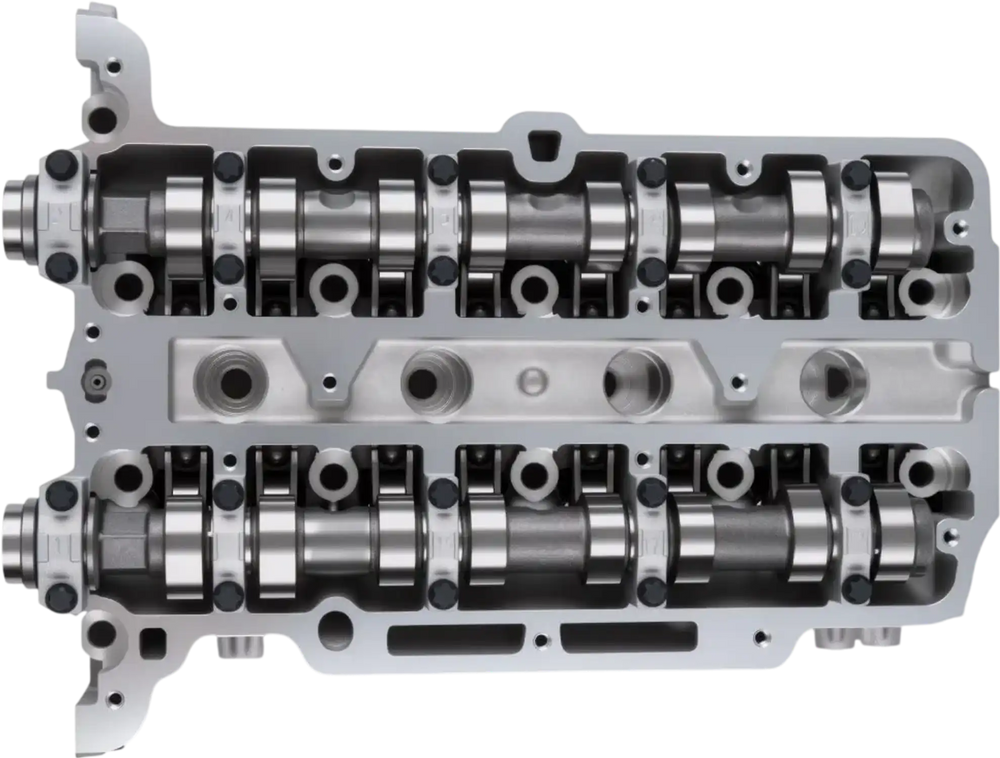

- Complete Kit: This engine cylinder head assembly comes as a complete pre-installed solution. It includes intake and exhaust camshafts, sixteen valves with springs, rocker arms, and lifters, reducing the risk of installation errors

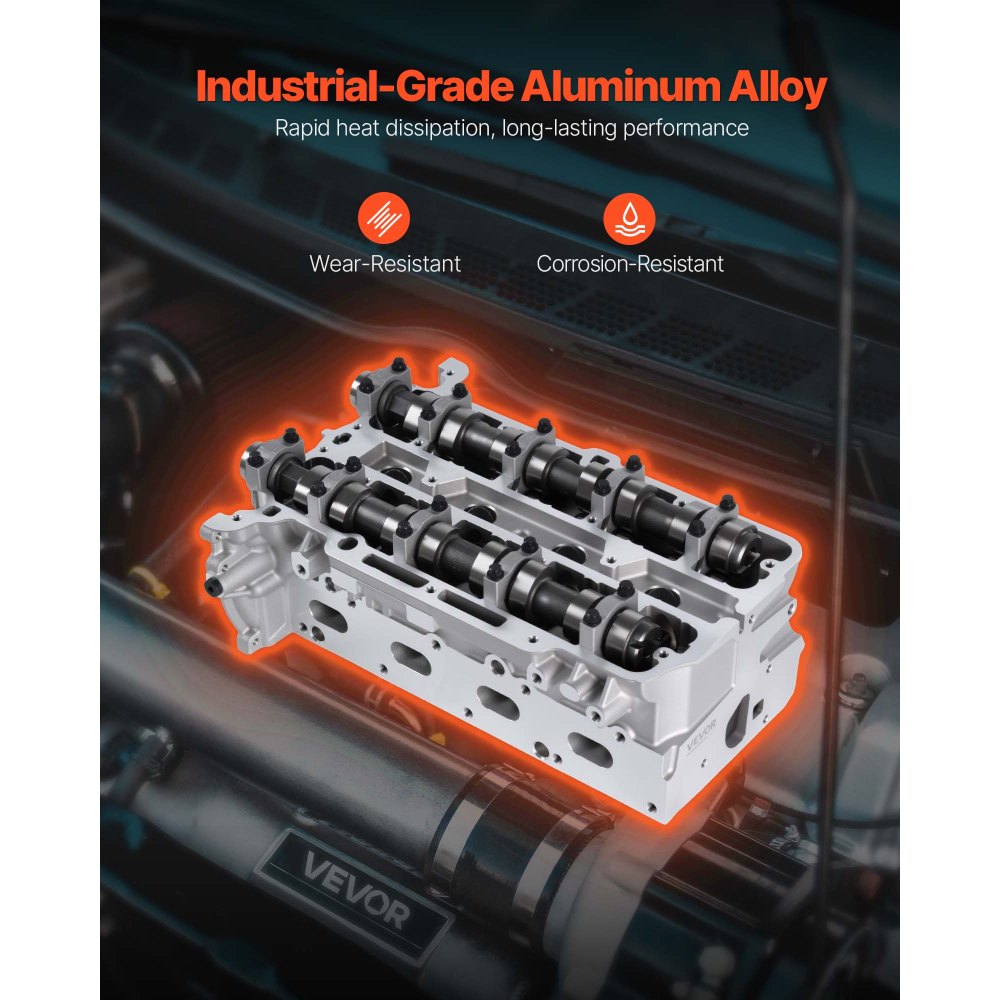

- Industrial-Grade Aluminum Alloy: Built from high-rigidity aluminum alloy for rapid heat dissipation, our complete cylinder head withstands extreme temperature and pressure. It delivers long-lasting durability even under frequent use

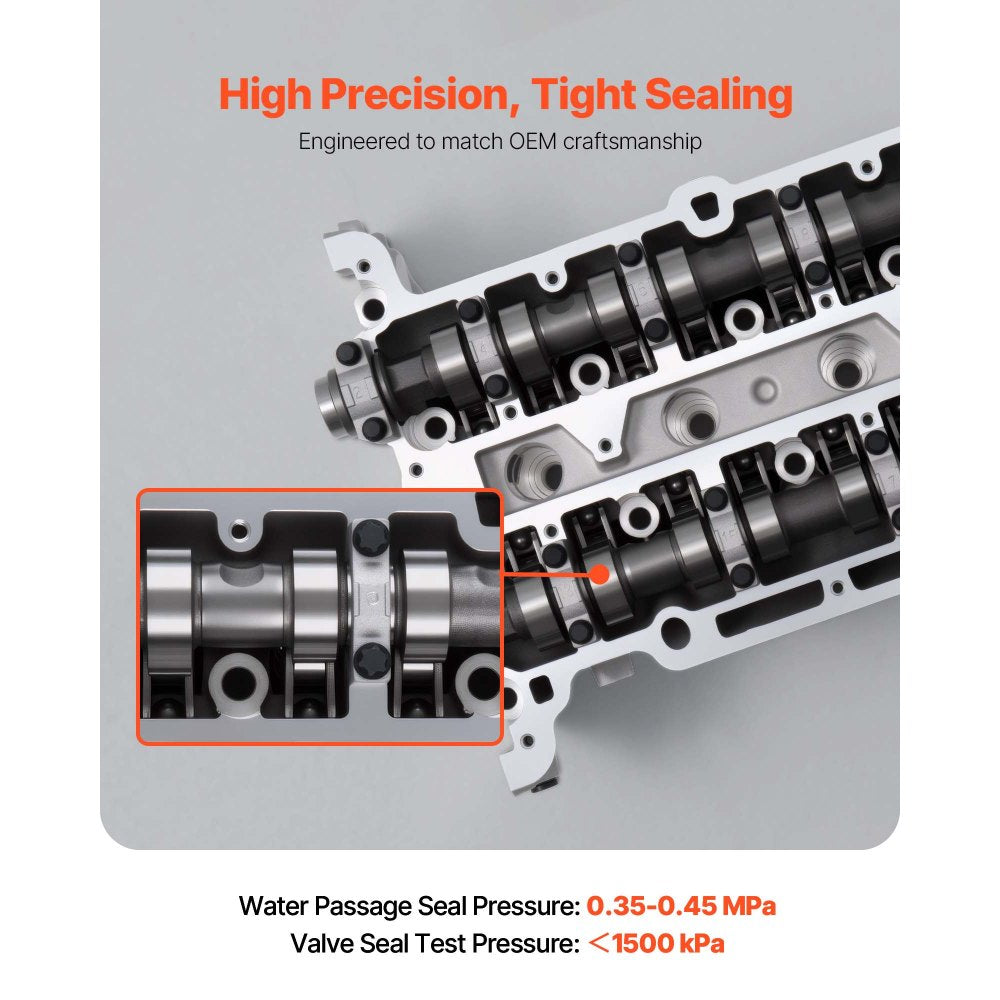

- Strict Quality Testing: Each cylinder head is built to match OEM parameters and undergoes rigorous factory testing, including 0.35-0.45 MPa water passage pressure and 1500 kPa valve guide sealing tests. It ensures reliable operation from the first startup
- Restore Engine Performance: This complete cylinder head assembly is designed to restore your engine's performance. It provides optimal compression ratio, efficient combustion, and recovered power output for smooth, dependable driving

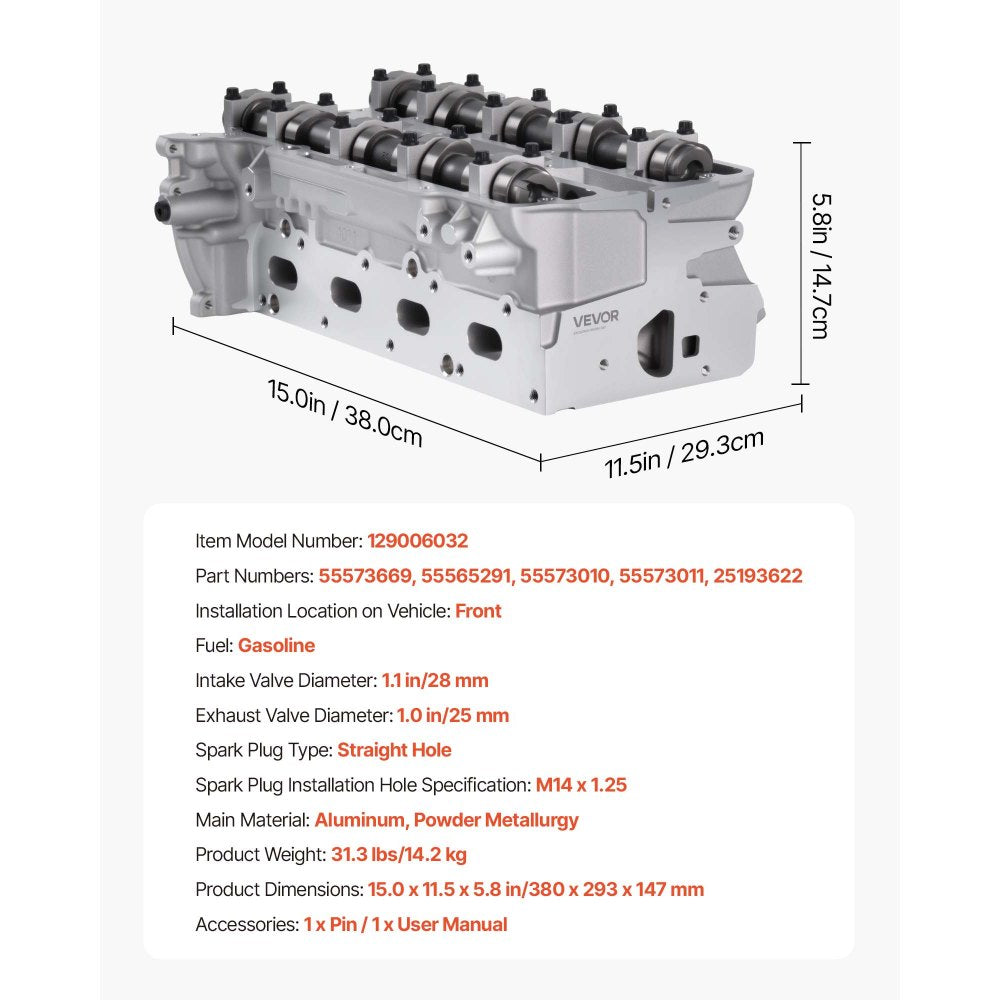

Specifications
| Item Model Number | 129006032 |
| Part Numbers | 55573669, 55565291, 55573010, 55573011, 25193622 |
| Installation Location on Vehicle | Front |
| Fuel | Gasoline |
| Intake Valve Diameter | 1.1 in / 28 mm |
| Exhaust Valve Diameter | 1.0 in / 25 mm |
| Spark Plug Type | Straight Hole |
| Spark Plug Installation Hole Specification | M14 x 1.25 |
| Main Material | Aluminum, Powder Metallurgy |
| Product Weight | 31.3 lbs / 14.2 kg |
| Dimensions | 15.0 x 11.5 x 5.8 in / 380 x 293 x 147 mm |

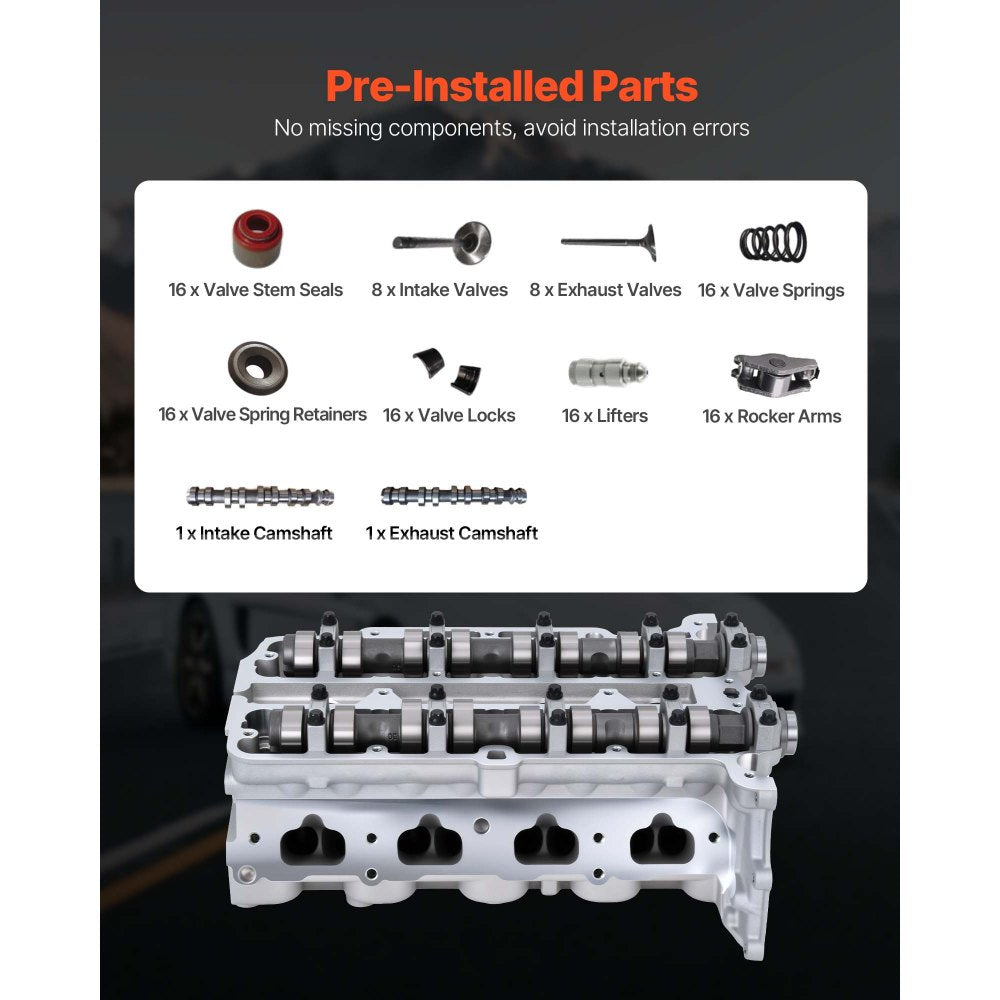

Package Contents
Cylinder head assembly
Intake camshaft
Exhaust camshaft
16 valves with springs
Rocker arms
Lifters
Warranty
This item comes with a 1 year factory warranty.
