Vevor Core Drill Rig Diamond Core Drilling Machine with 12 Drill Bits Tiltable Stand & Wheeled Base 0.8-12" New
Manufacturer: Vevor
SKU: QXZKQXZJDLZ1VC4LE001V1
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$2,193.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Vevor Core Drill Rig Diamond Core Drilling Machine with 12 Drill Bits Tiltable Stand & Wheeled Base 0.8-12" New
Product Overview

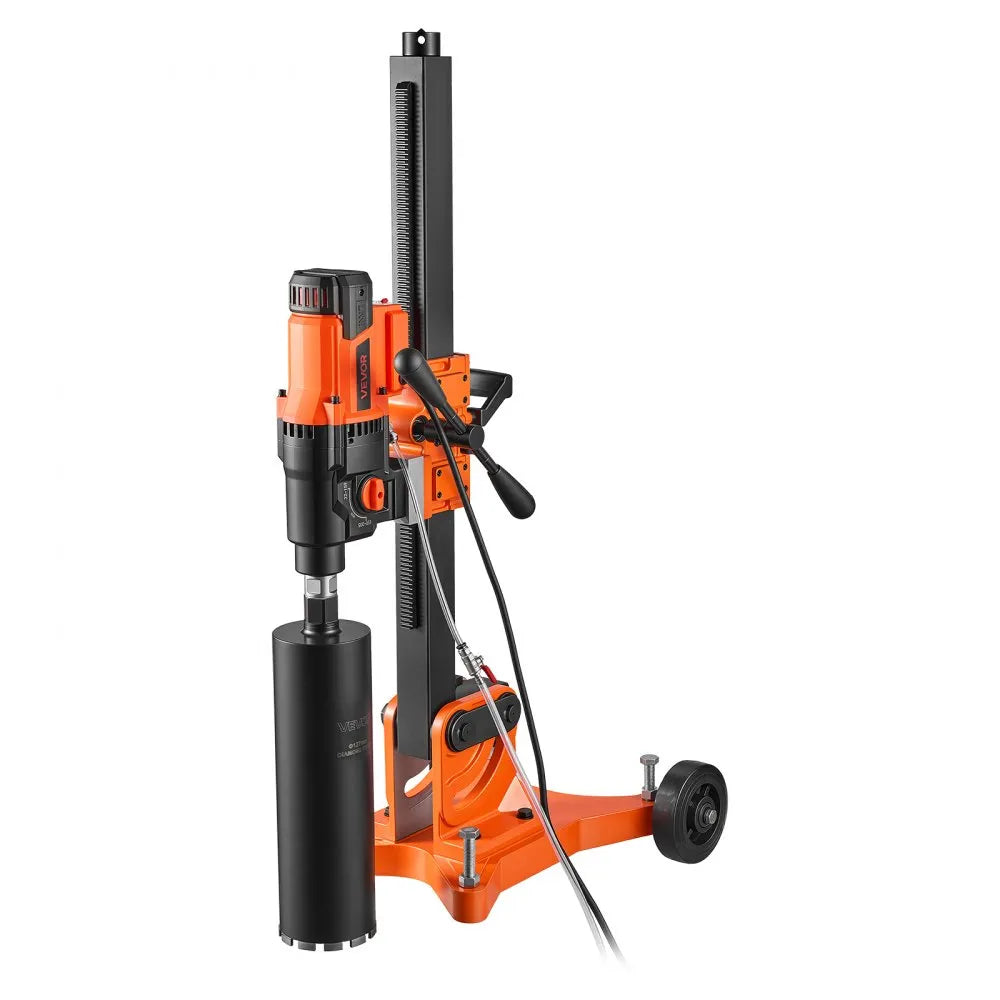

The Vevor diamond core drilling machine is built for wet and dry drilling in concrete, brick, stone, ceramic tile, asphalt, marble, walls, and floors. It delivers 3200W max load power with 2-speed operation at 800 and 430 RPM for efficient performance across demanding applications. The tiltable stand and widened wheeled base help improve drilling flexibility, stability, and mobility on the jobsite. A heavy-duty metal body and built-in mechanical friction clutch support safer, more stable operation. It also includes 12 drill bits covering a wide range of drilling sizes.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Powerful & Efficient Drilling: This diamond core drilling machine comes with 12 drill bits covering 0.8 to 12 in drilling diameters. It delivers 3200W max load power and features two adjustable no-load speeds of 800 and 430 RPM for powerful, efficient drilling

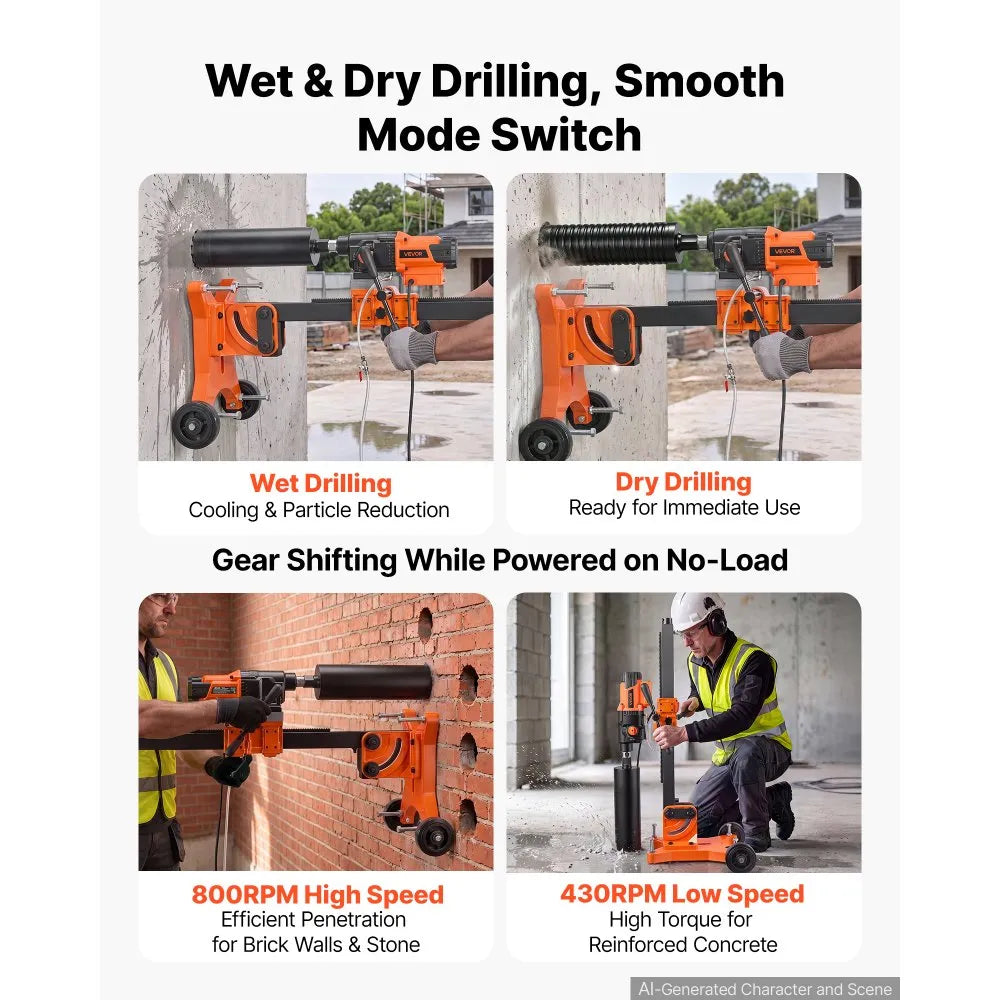

- Wet & Dry Drilling: Features an adjustable faucet and a 2.5 m extended water hose. Wet drilling mode helps cool the bit, reduce dust, and protect the machine, while the dry drilling mode is ready to use for faster, more convenient operation

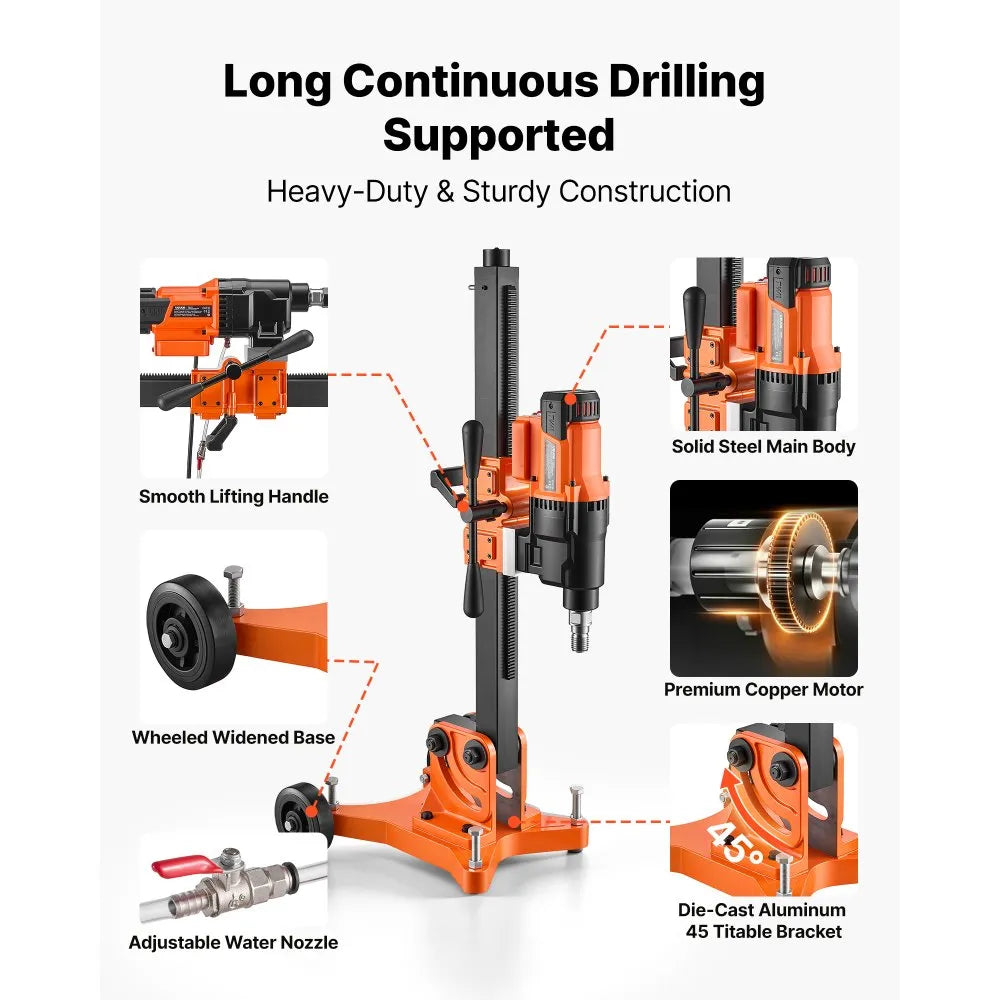

- Tiltable Stand & Rolling Base: The tilting stand provides flexible angle adjustment for drilling deep into corners, while the widened wheeled base improves stability and enables smoother movement, reducing manual handling and heavy lifting
- Enhanced Security & Stability: A heavy-duty metal body improves durability and drilling stability. The built-in mechanical friction clutch automatically stops operation when excessive resistance occurs, helping reduce operating risks and protect the machine
- Versatile Drilling: Designed for wet and dry drilling through a variety of hard materials, this concrete core drill rig handles concrete, stone, ceramic tile, brick, asphalt, marble, walls, and floors with ease and efficiency

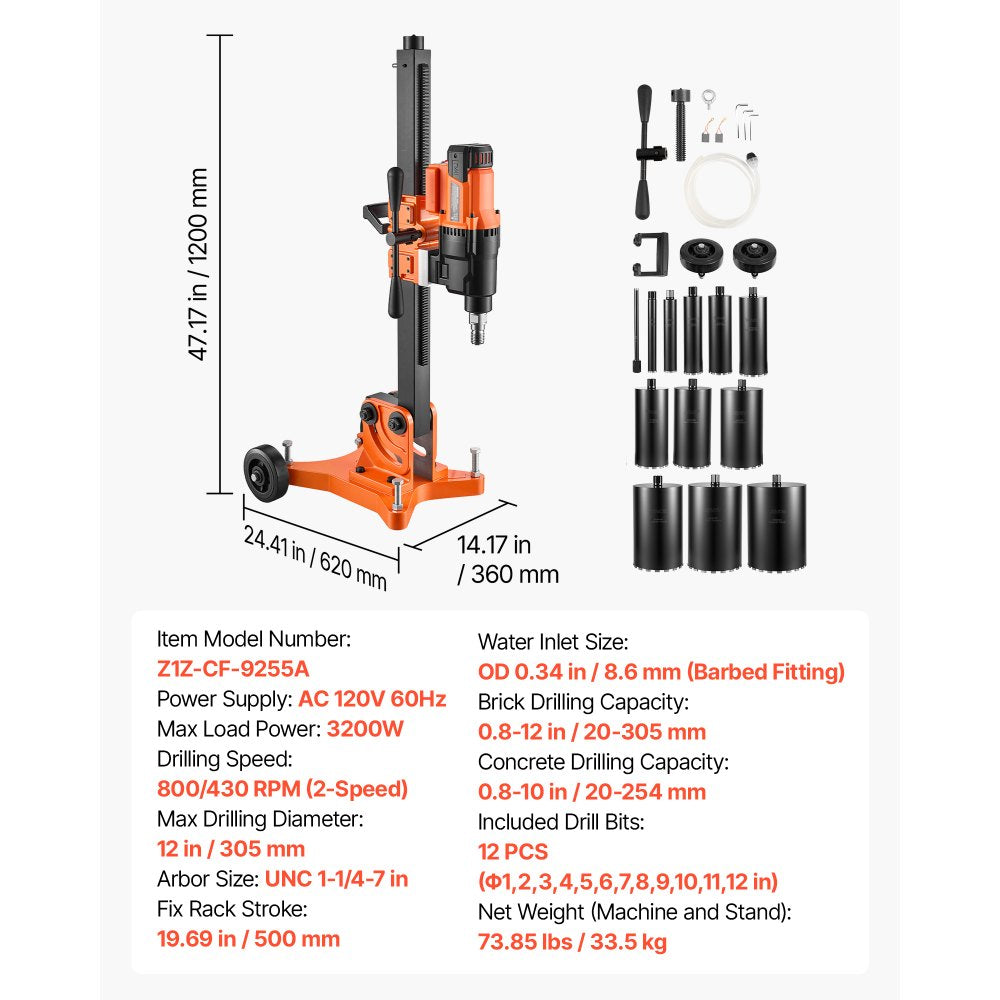

Specifications
| Item Model Number | Z1Z-CF-9255A |
|---|---|
| Power Supply | AC 120V 60Hz |
| Max Load Power | 3200W |
| Drilling Speed | 800/430 RPM 2-Speed |
| Max Drilling Diameter | 12" / 305 mm |
| Arbor Size | UNC 1-1/4-7" |
| Fix Rack Stroke | 19.69" / 500 mm |
| Water Inlet Size | OD 0.34" / 8.6 mm Barbed Fitting |
| Brick Drilling Capacity | 0.8-12" / 20-305 mm |
| Concrete Drilling Capacity | 0.8-10" / 20-254 mm |
| Included Drill Bits | 12 pcs 1", 2", 3", 4", 5", 6", 7", 8", 9", 10", 11", 12" |
| Net Weight Machine and Stand | 73.85 lbs / 33.5 kg |
|---|---|
| Dimensions | 24.41 x 14.17 x 47.24" / 620 x 360 x 1200 mm |

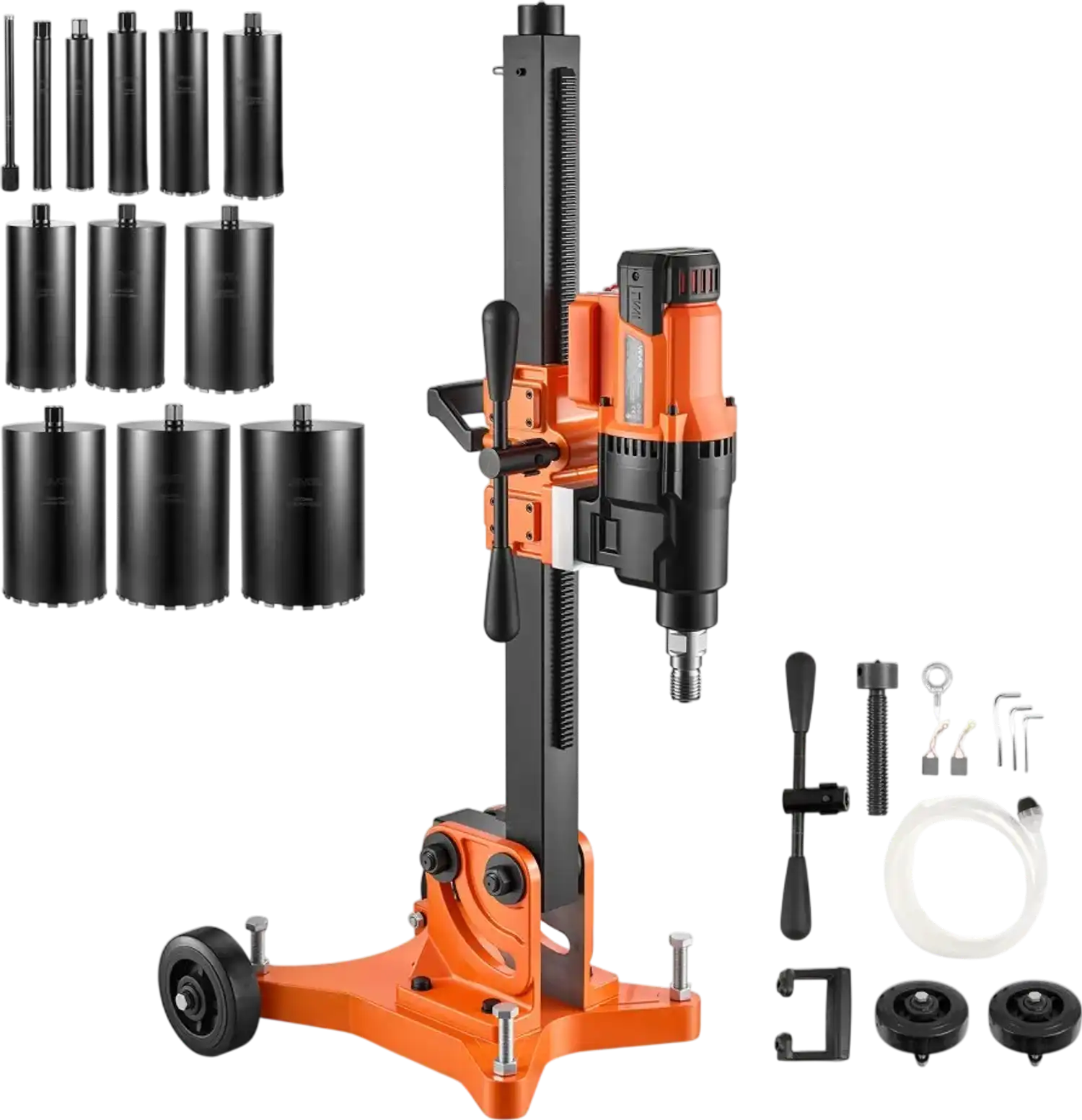

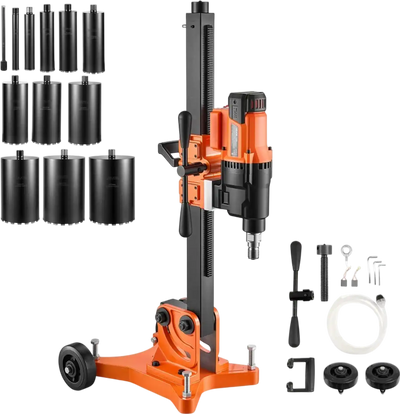

Package Contents
Diamond core drilling machine
Tiltable stand
Wheeled base
12 drill bits
2.5 m water hose
Warranty
This item comes with a 1 year factory warranty.
