Vevor Core Drill Rig Diamond Core Drilling Machine Dry and Wet 0.8"-8" with Stand 1800W
Manufacturer: Vevor
SKU: QXZLHJZJ8YCWFMEWI001V1
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$559.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Core Drill Rig Diamond Core Drilling Machine Dry and Wet 0.8"-8" with Stand 1800W
Product Overview

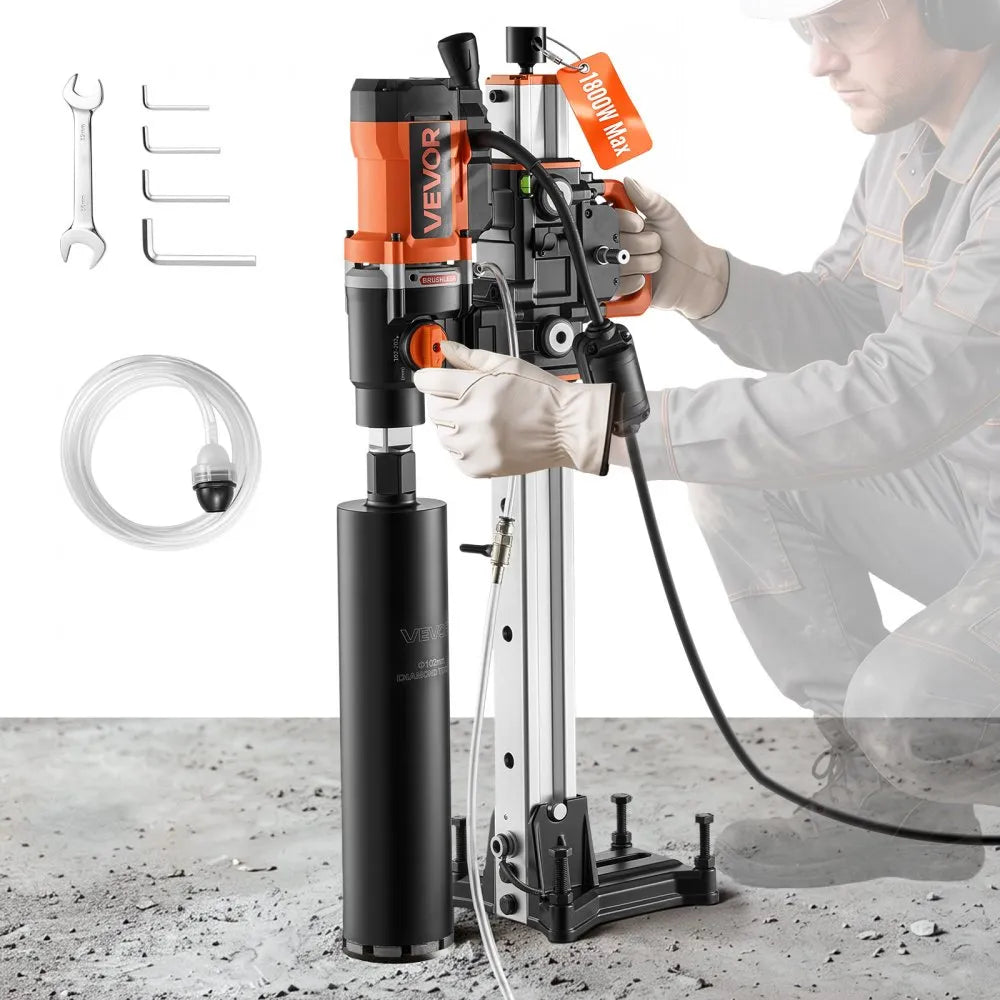

The Vevor diamond core drilling machine is designed for wet and dry drilling through concrete, brick, stone, tile, asphalt, and marble. It features a brushless 1800W motor with dual-speed operation for strong, efficient drilling performance. The included stand provides stable, precise drilling support, while overload protection and a mechanical clutch help improve safety during operation. An adjustable faucet and extended water hose support wet drilling to reduce dust and cool the bit. This setup is built for demanding drilling jobs with greater control and accuracy.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Powerful & Efficient Drilling: This diamond core drilling machine includes one 4.25 in wet core bit and is compatible with core bits from 0.8 to 8 in. Powered by a strong 1800W brushless motor with dual speeds of 810 and 1340 RPM for powerful drilling
- Wet & Dry Drilling: Features an adjustable faucet and an extended water hose. Wet drilling mode helps cool the bit, reduce dust, and protect the machine, while the dry drilling mode is ready to use for faster, more convenient operation
- Dual Security Protection: Combines electronic load monitoring with a mechanical clutch to provide double protection against overload and jamming, helping safeguard the machine for more secure and reliable operation
- More Enhanced Designs: Features an easy-fit stand that locks directly into the base for quick assembly, an aviation-grade aluminum alloy structure for stable lifting and precise drilling. Lifting lock knob prevents sudden drops for secure operation, and the upgraded gearbox allows smooth gear shifting
- Multi-Scenario Use: Designed for wet and dry drilling through a variety of hard materials, this diamond core drill handles concrete walls, stone, ceramic tile, brick, asphalt, marble floors with ease and efficiency
Specifications
| Item Model Number | CF-JDC08BL |
|---|---|
| Motor Type | Brushless Motor |
| Max Load Power | 1800W |
| No-Load Speed | Gear-1 |
| Max Compatible Bit Diameter | 8 in / 202 mm |
| Included Bits Wet Type | 4.25 in / 107 mm |
| Stand Material | Aluminum Alloy |
| Fix Rack Stroke | 16.54 in / 420 mm |
| Arbor Size | UNC 1-1/4-7 |
| Brick Drilling Capacity | 0.8" - 8" / 20 - 202 mm |
| Concrete Drilling Capacity | 0.8" - 6.4" / 20 - 162 mm |
|---|---|
| Net Weight | 29.32 lbs / 13.3 kg with stand |
| Product Weight With Accessories | 36.82 lbs / 16.7 kg |
Package Contents
Diamond core drilling machine
Stand
4.25" wet drill bit
Extended water hose
Warranty
This item comes with a 1 year factory warranty.
