Product Overview

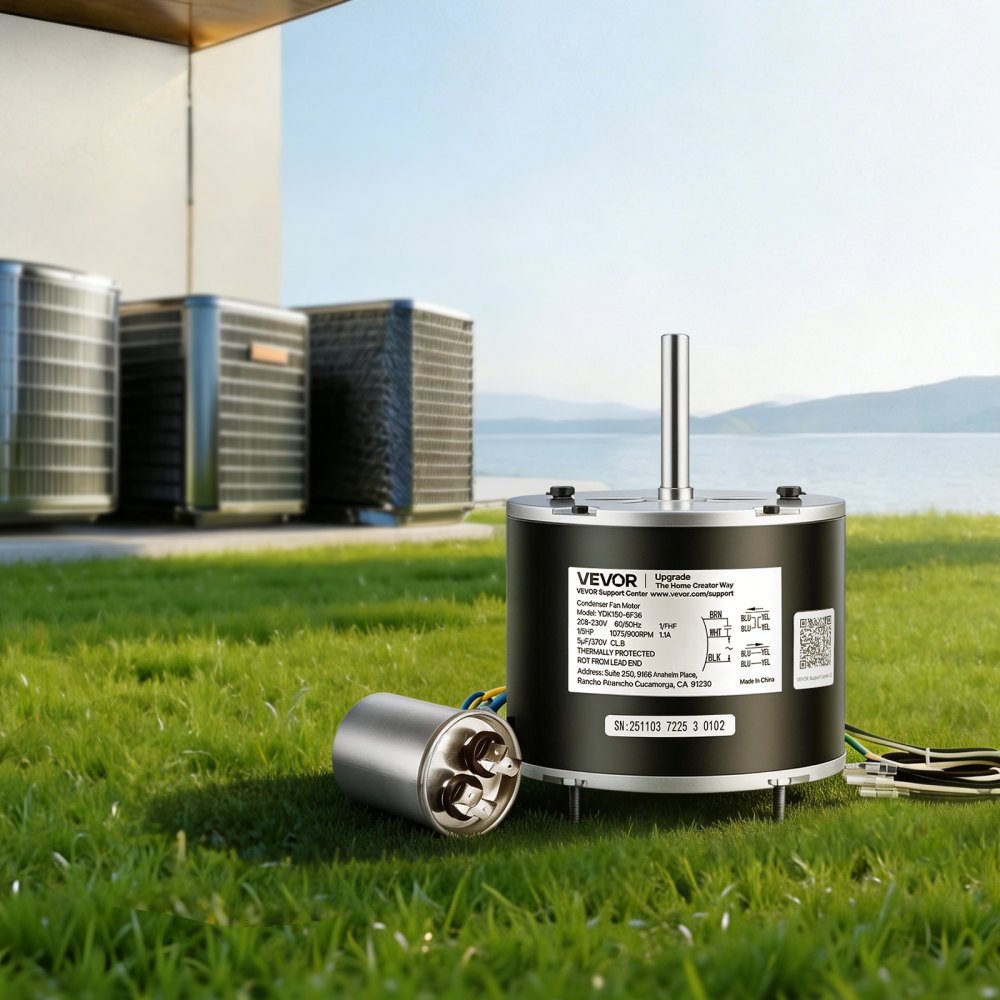

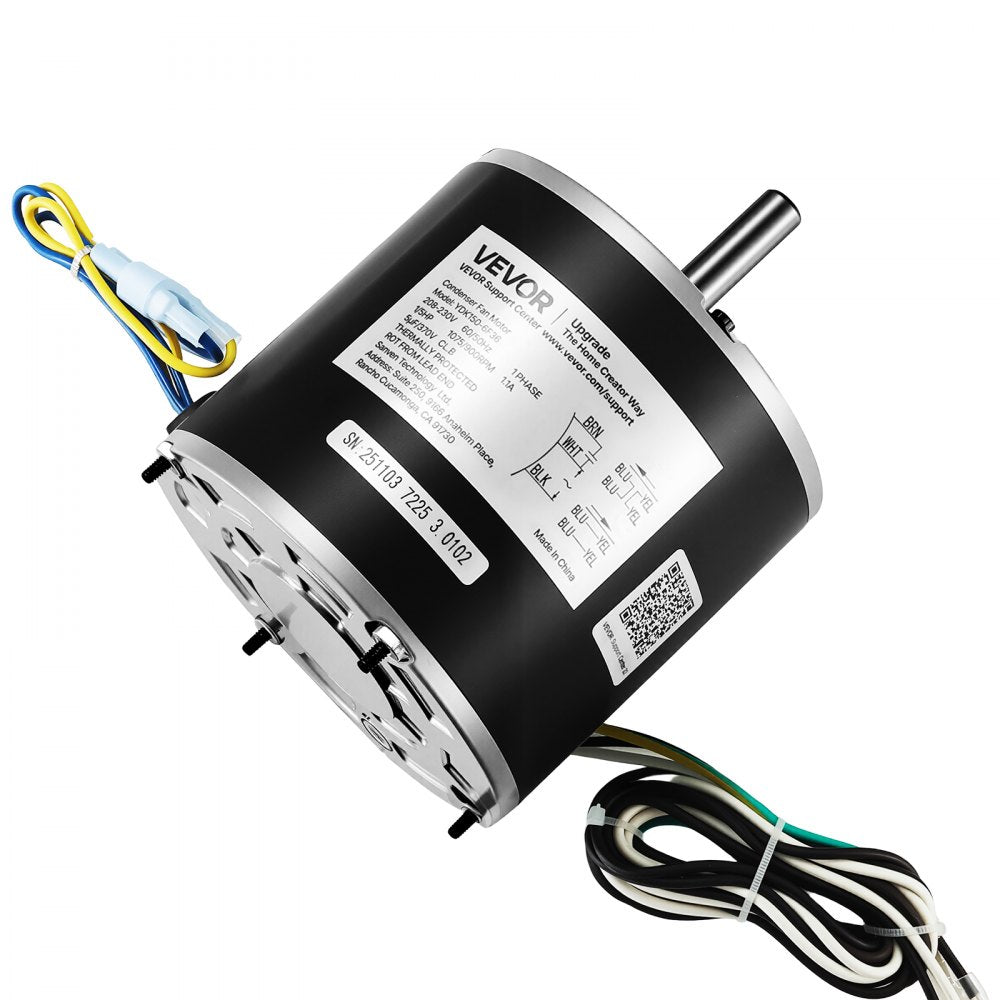

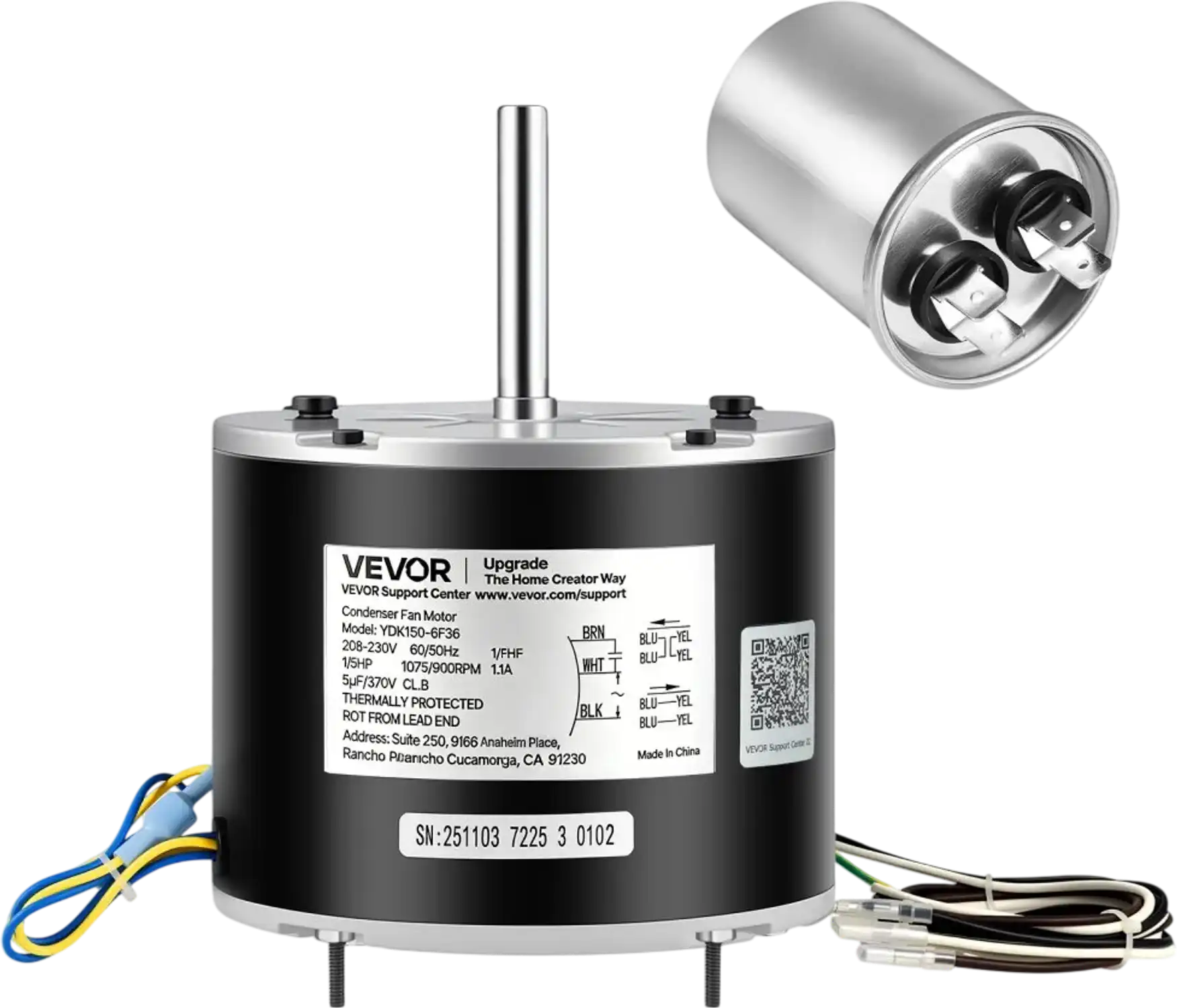

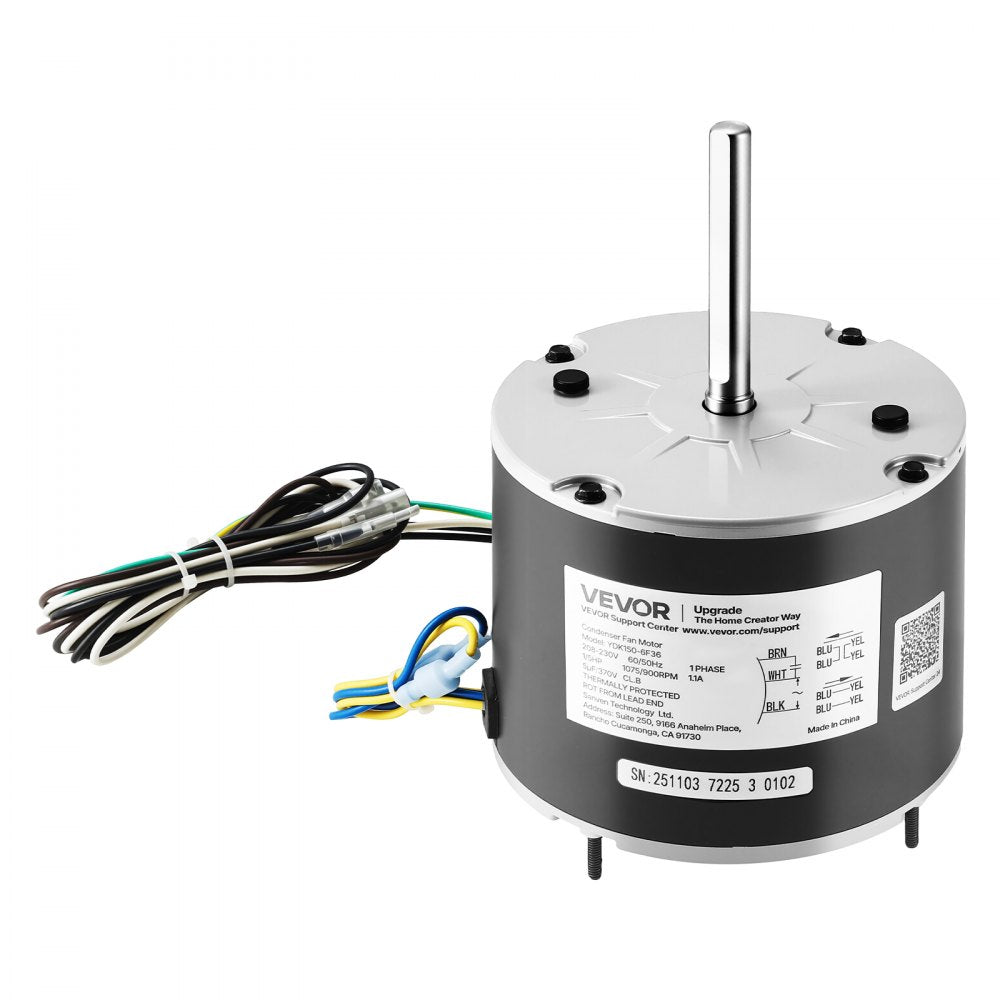

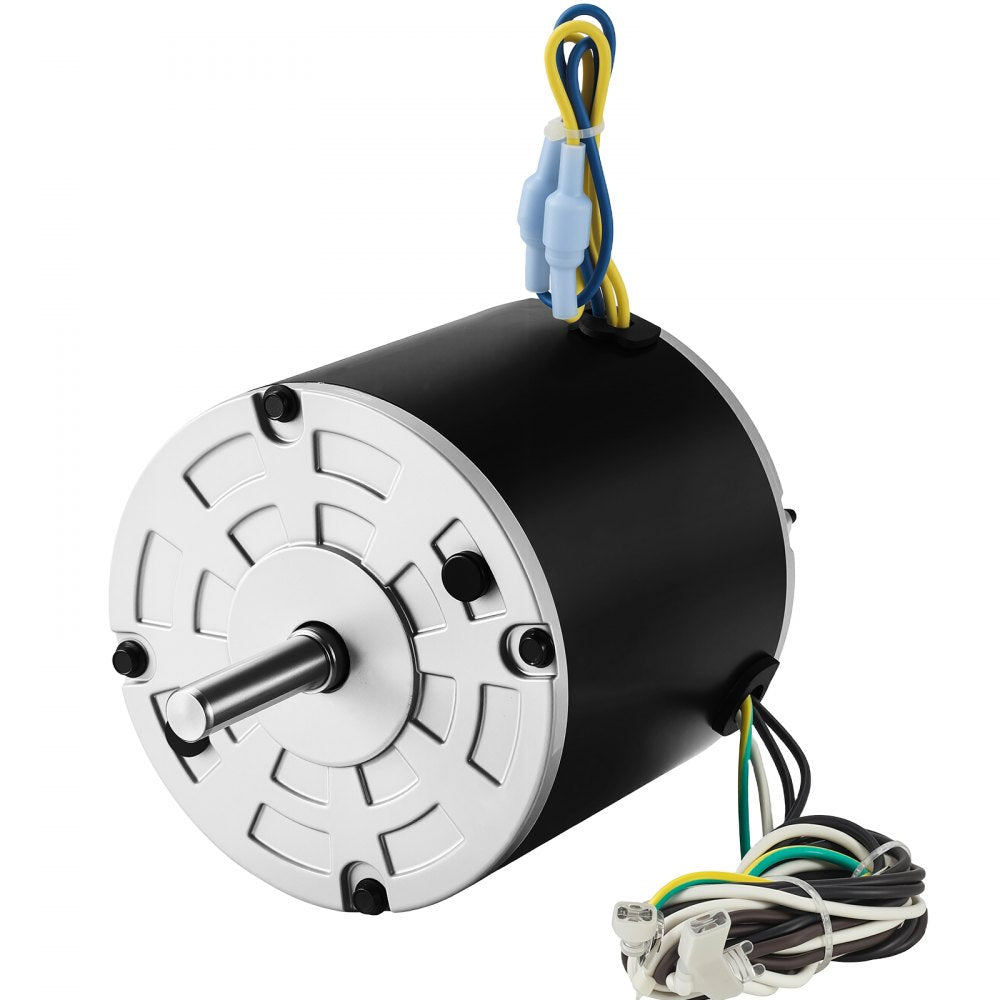

The Vevor condenser fan motor with capacitor is designed as a replacement motor for compatible HVAC condenser fan applications. It features 1/5 HP output, 1075/900 RPM operation, 208-230V input, and single-phase performance for dependable cooling system operation. The motor supports reversible CCW/CW rotation and includes a capacitor for convenient installation. Its 42Y frame, 2" shaft length, and 0.5" shaft diameter help it fit a range of compatible replacement needs.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- OEM Standard Quality: 1/5HP (60HZ) 1/6HP (50Hz), AC208-230V, 1075 / 900RPM, 1.1A Rated Current, Single Phase

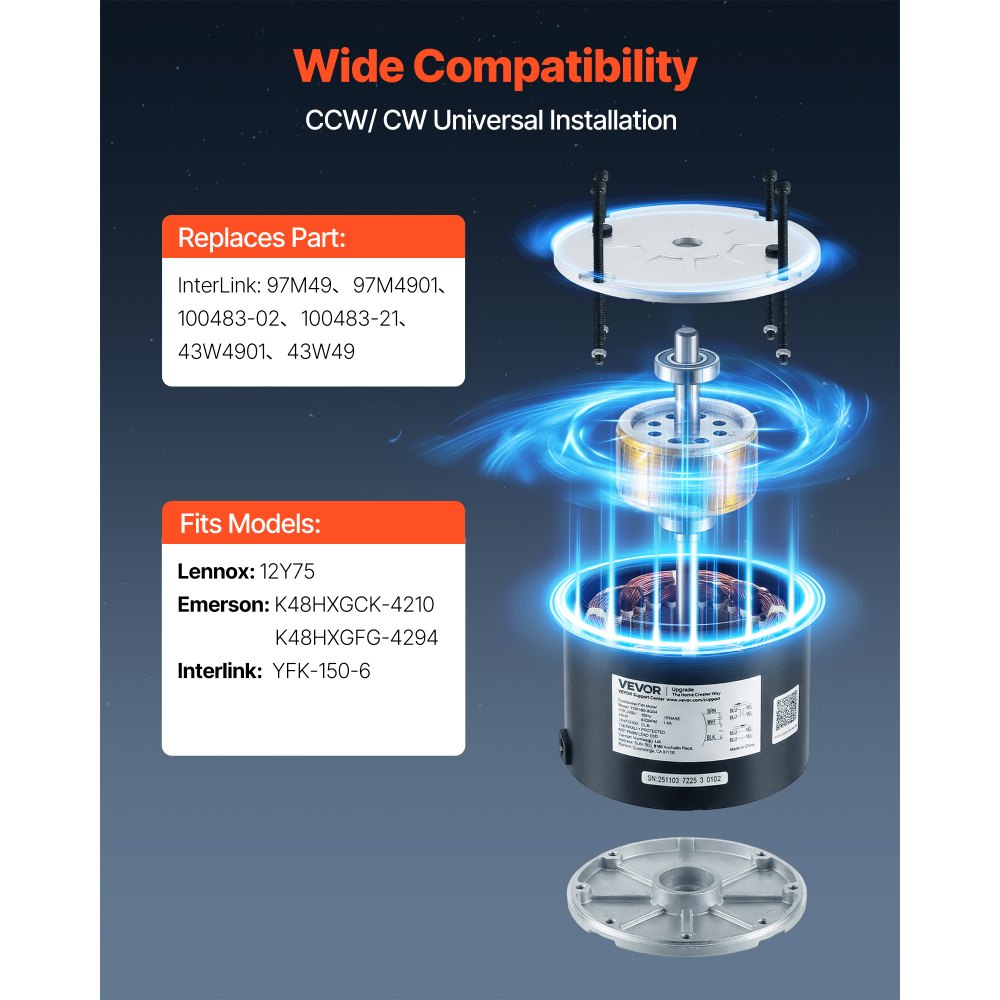

- Replacement & Compatibility: Replacement for Lennox 12Y75 and Interlink 97M49, 97M4901, 100483-02, 100483-21, 43W4901, and 43W49. Compatible with Emerson K48HXGCK-4210, K48HXGFG-4294, and Interlink YFK-150-6 condenser fan motor models

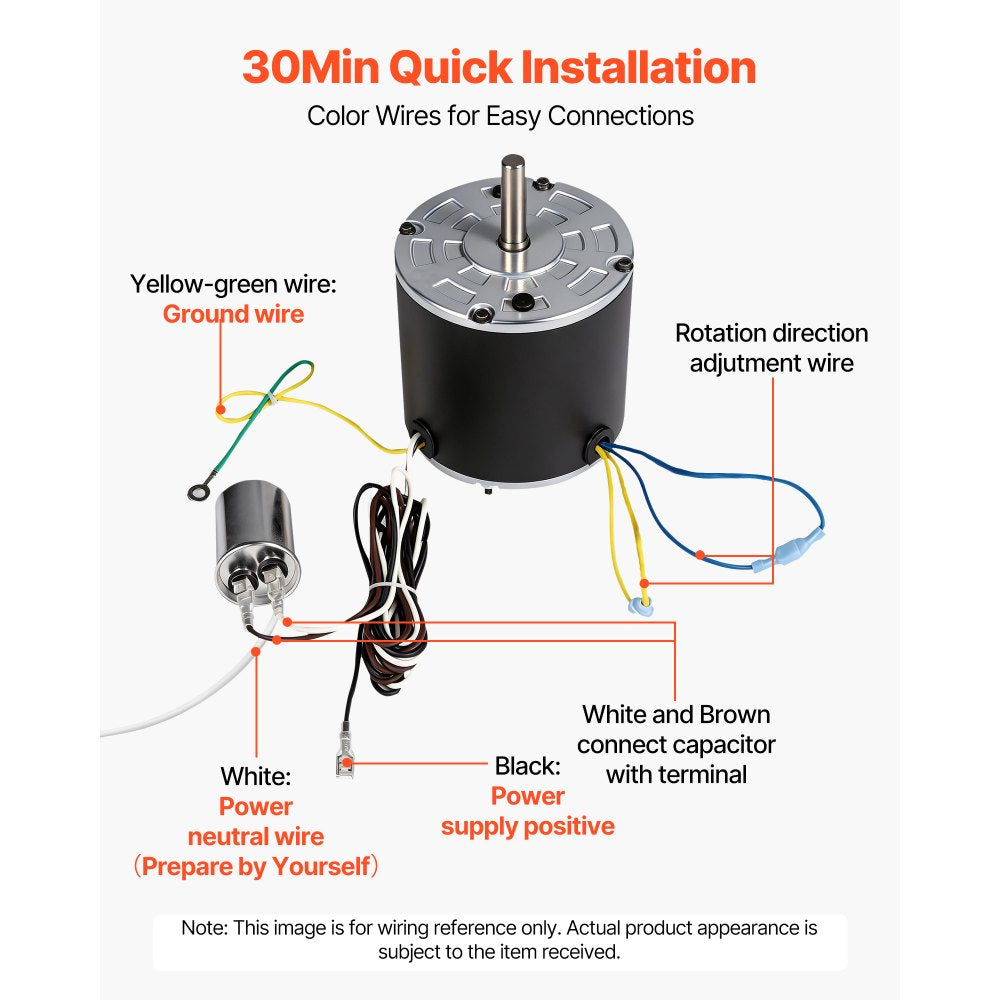

- Easy Installation: 42Y Frame, Shaft Length: 2 inch, Shaft Diameter: 0.5 inch. This condenser fan motor supports reversible rotation (CCW / CW), and includes a 47" cut-to-length wire for easier wiring and quick installation

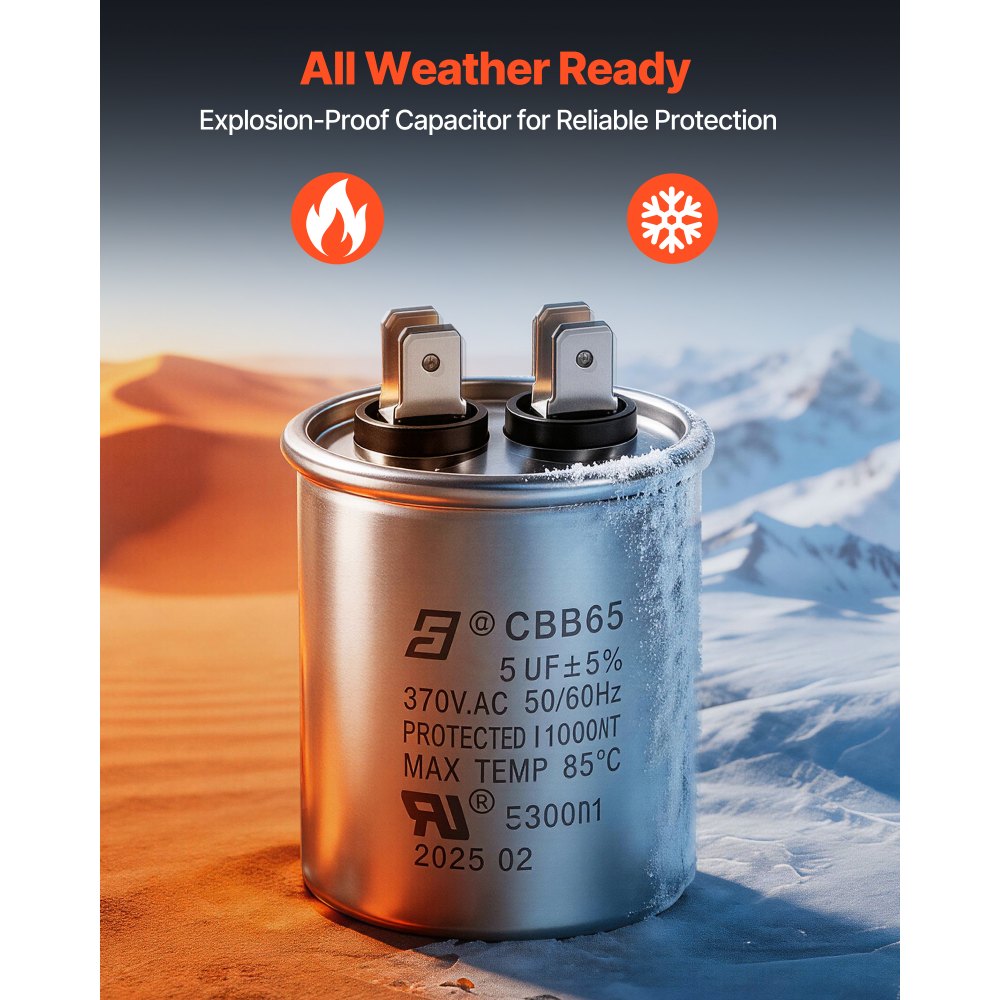

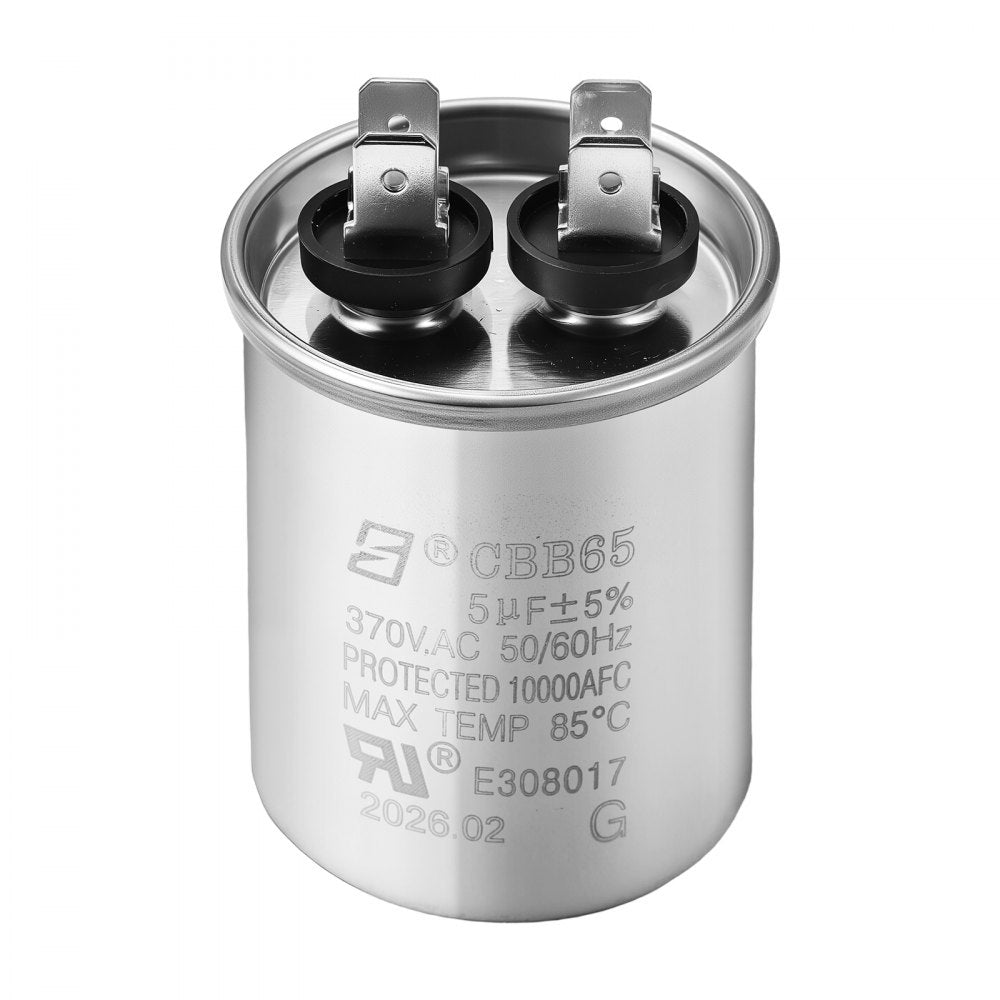

- Includes Capacitor: Replacing the motor also requires replacing the capacitor. Includes 1 explosion-proof capacitor for fast starts—no extra purchase needed, install and use right away

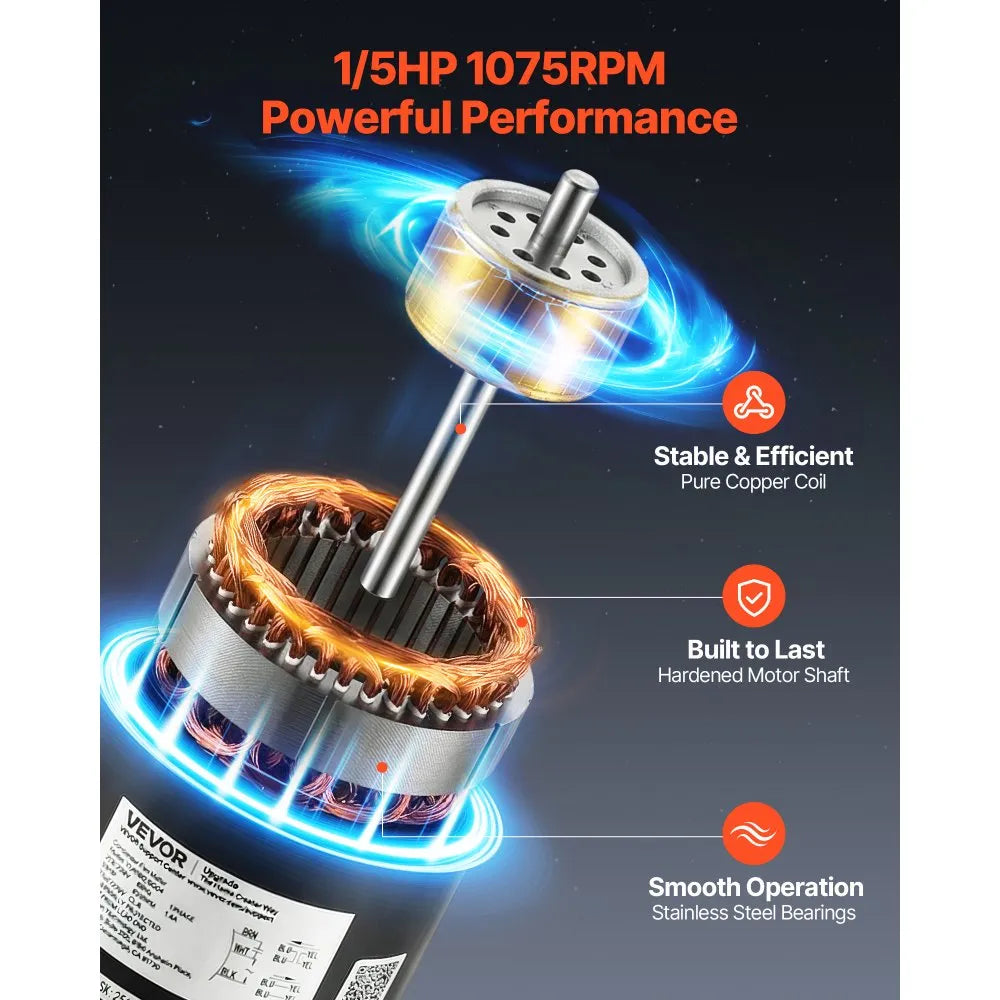

- Secure and Durable: Built with a pure copper coil and stainless steel bearings for reliable performance. Features overload protection with automatic reset and is designed for all-weather durability in ambient temperatures up to 40°C

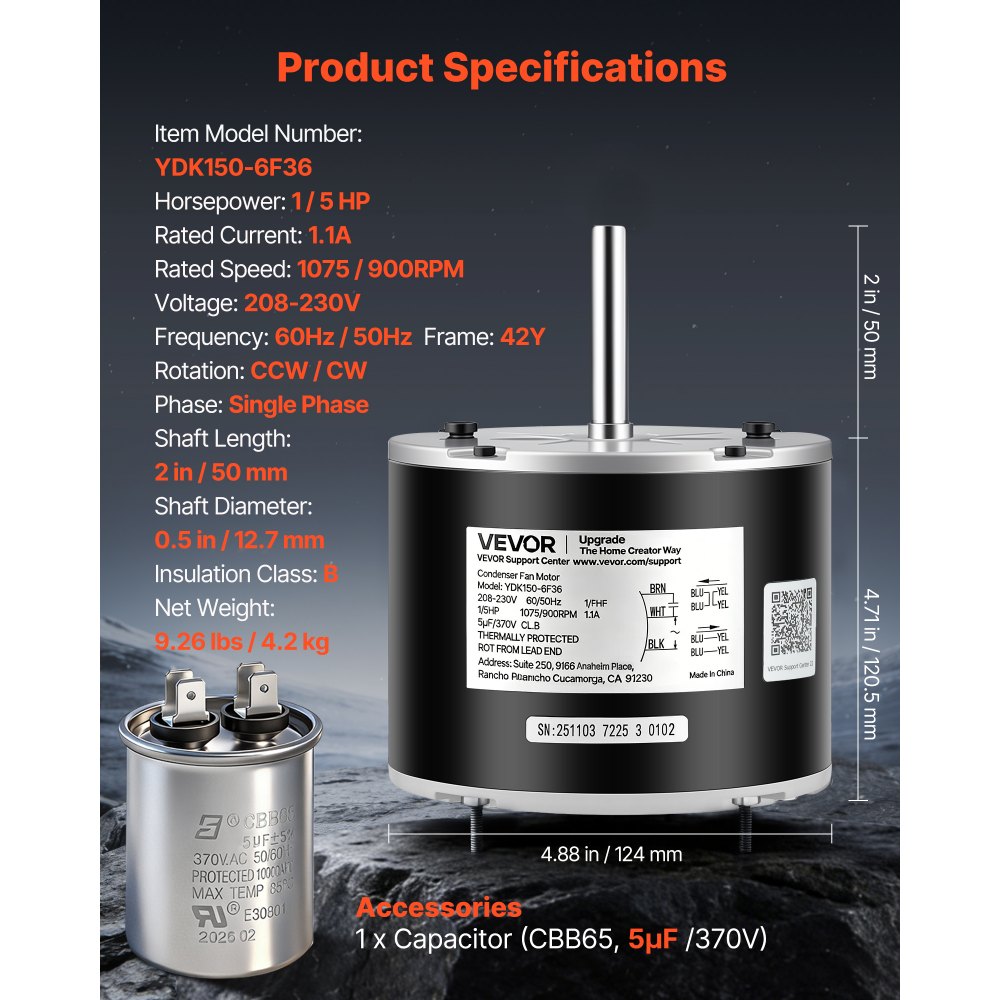

Specifications
| Item Model Number | YDK150-6F36 |
| Product Type | Condenser Fan Motor with Capacitor |
| Horsepower | 1/5 HP |
| Rated Current | 1.1A |
| Rated Speed | 1075/900 RPM |
| Voltage | 208-230V |
| Frequency | 60Hz/50Hz |
| Frame | 42Y |
| Rotation | CCW / CW |
| Phase | Single Phase |
| Shaft Length | 2" |
| Shaft Diameter | 0.5" |
| Insulation Class | B |
| Net Weight | 9.26 lbs |
| Dimensions | 4.88 x 4.88 x 6.71" |
Package Contents
Condenser fan motor
Capacitor
Warranty
This item comes with a 1 year factory warranty.
