Vevor Compressed Air Dryer Refrigerated 85 CFM for 15-20 HP Compressors New
Product Overview

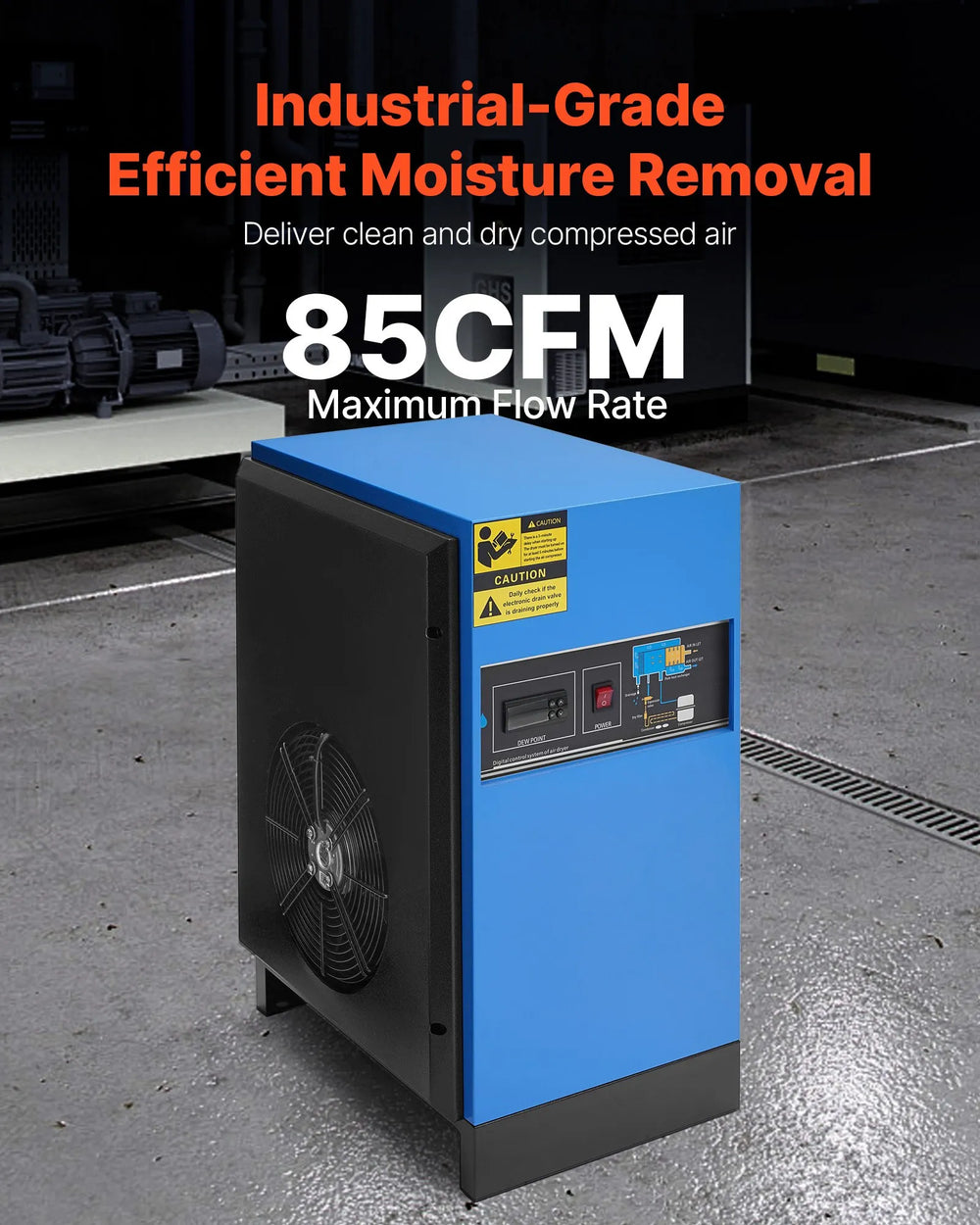

This Vevor compressed air dryer, with an 85 CFM flow rate, combines efficient moisture removal, powerful heat dissipation, and smart control. Compatible with 15-20 HP air compressors, it's an ideal solution for delivering dry, clean, high-quality air in industrial environments. The electronic drain valve significantly reduces air loss and eliminates the need for frequent checks, minimizing drainage failures. This refrigerated air dryer is equipped with a color screen panel for intuitive operation and clear status visibility at a glance.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Key Specifications: Voltage: 110-120V 60Hz; Flow Rate: 85 CFM; Working Pressure: 87 - 232 PSI; Dew Point Temperature: 35.6 - 50 °F; Inlet Air Temperature: 59 - 149 °F; Compatible Air Compressors: 15 HP & 20 HP; Refrigerant Type: R134a, Connection Size: RC 3/4"
- Efficient Moisture Removal: This VEVOR compressed air dryer handles up to 85 CFM air flow rate, effectively removing moisture, oil, and impurities from compressed air—an ideal solution for efficient, energy-saving air drying in industrial applications

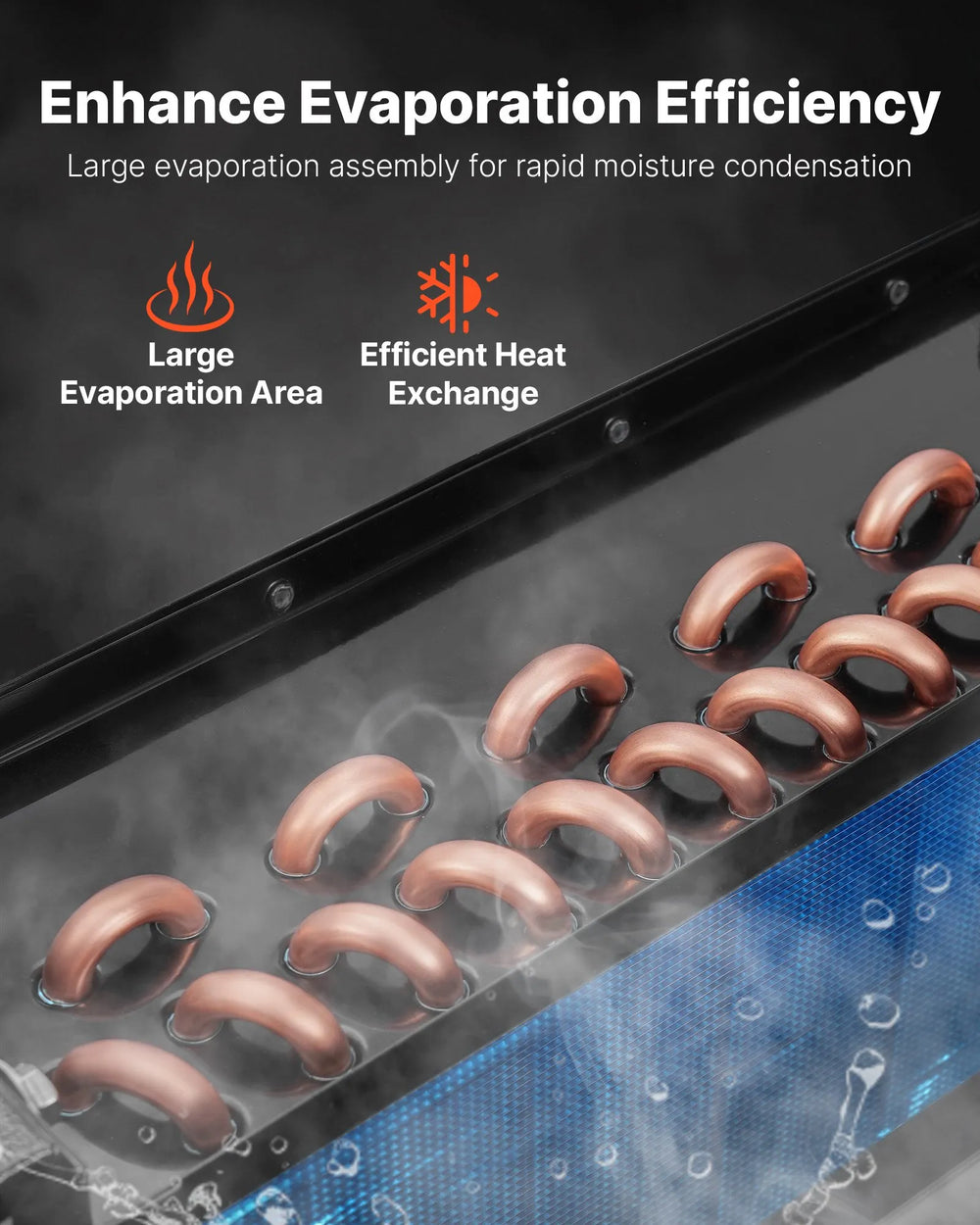

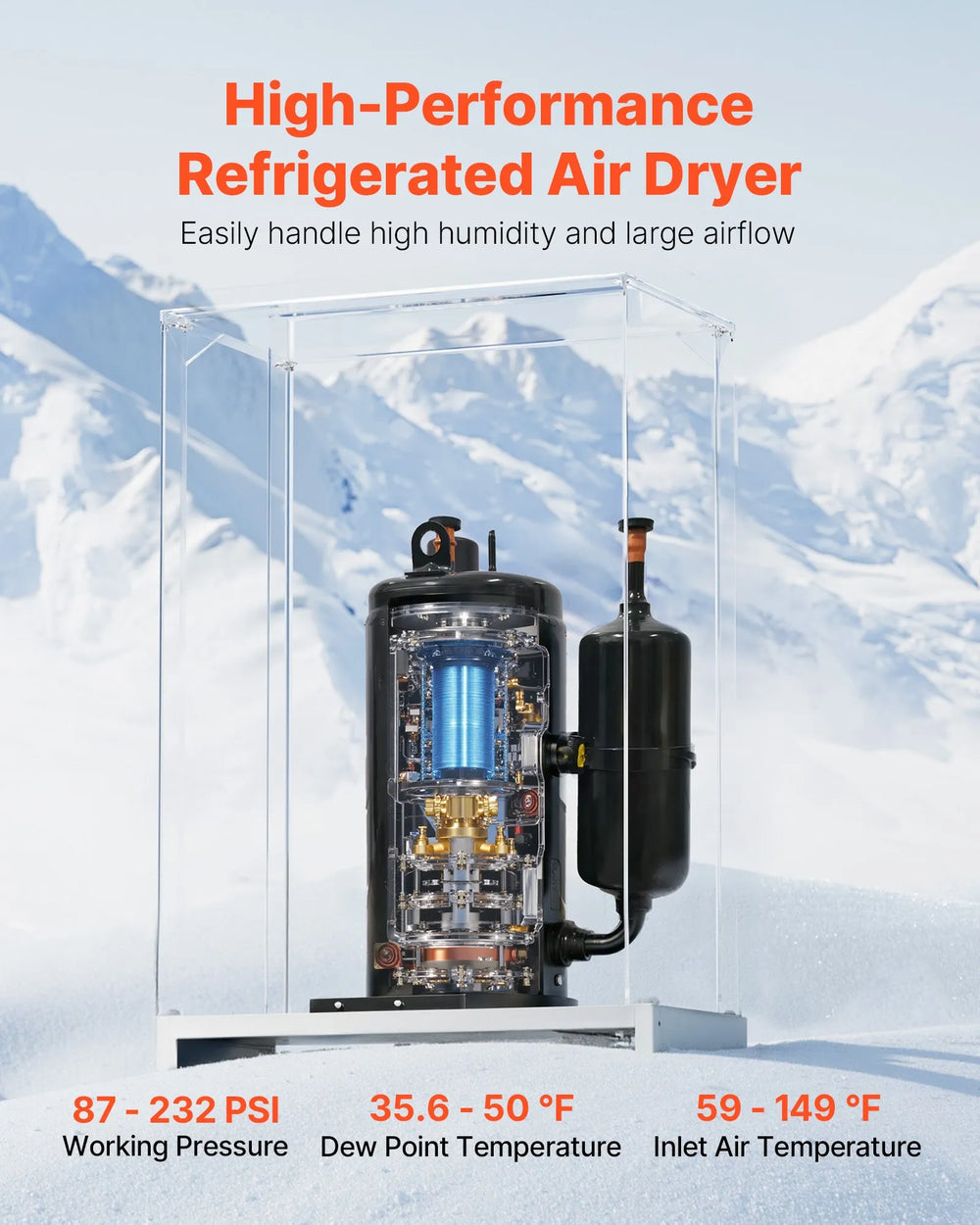

- High Performance: Equipped with a refrigeration compressor and a large-area evaporator assembly, our refrigerated air dryer ensures efficient heat exchange and fast moisture condensation for rapid, reliable moisture removal

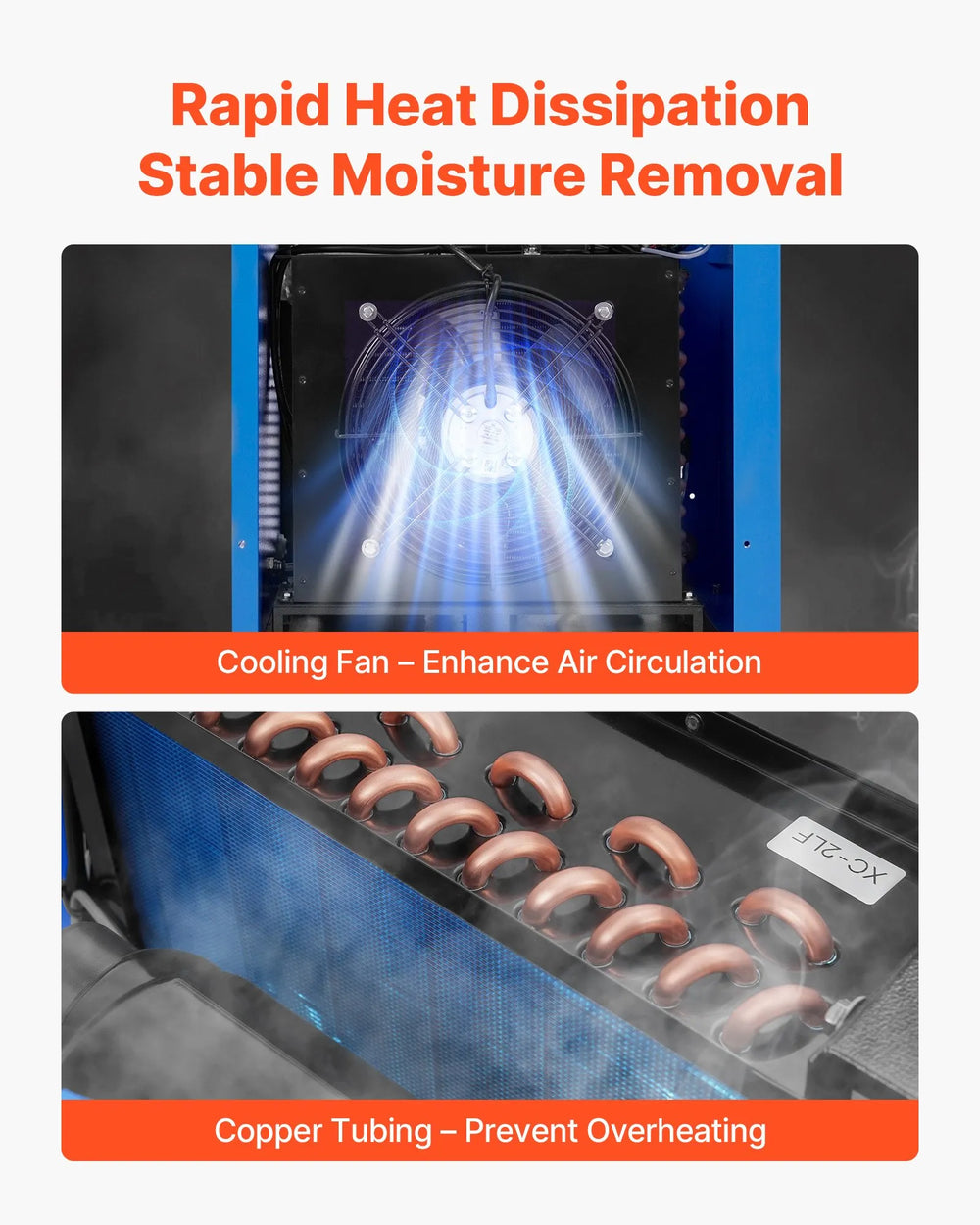

- Rapid Heat Dissipation: Featuring a high-efficiency cooling fan and premium copper tubing, our refrigerated air drying system enhances airflow and effectively prevents overheating - ensuring your compressed air system runs smoothly under demanding conditions
- Easy to Operate: The compressed air dryer features a color screen control panel for simple operation and real-time monitoring of the air-drying system. Paired with an electronic drain valve, it ensures efficient and automatic drainage

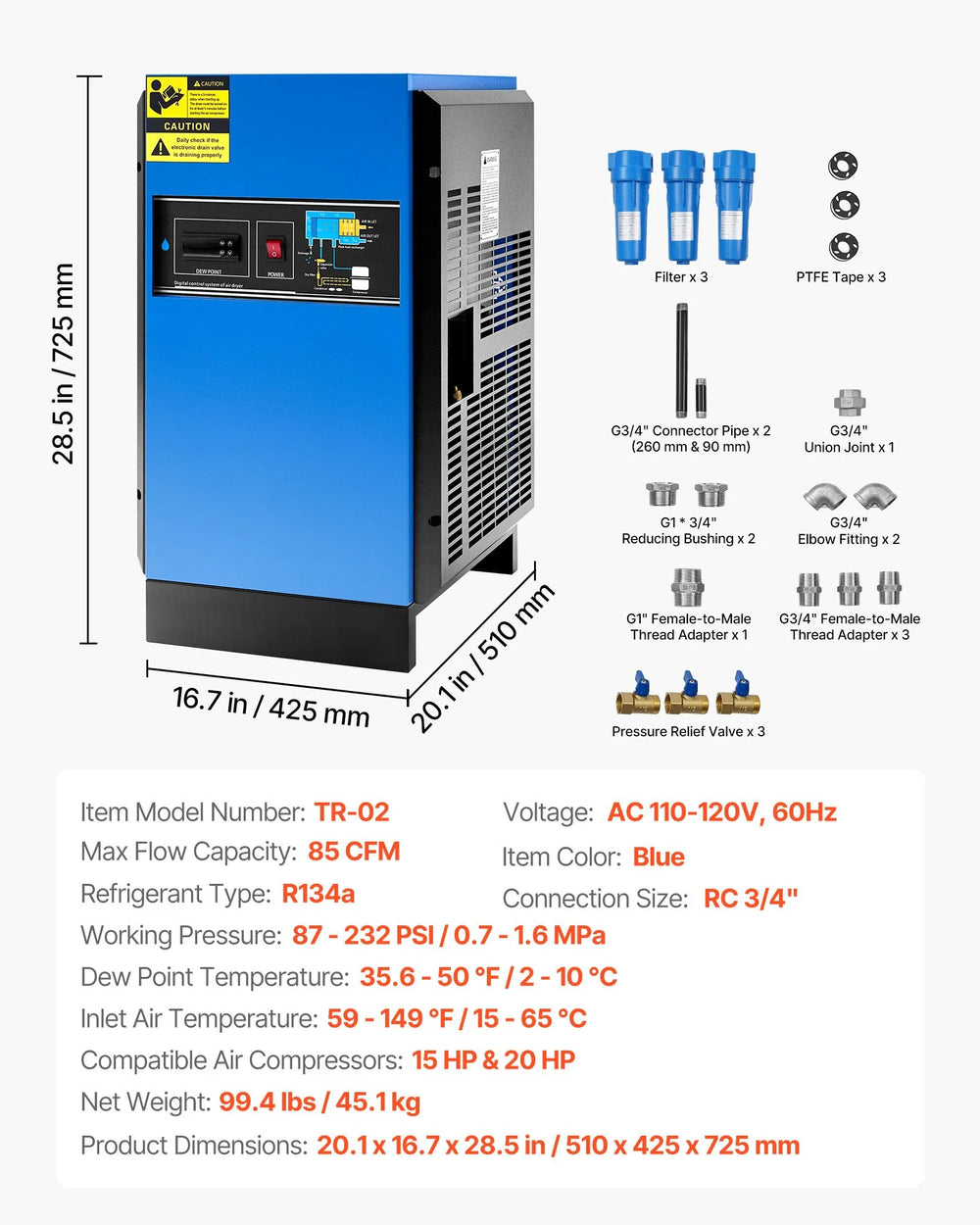

Specifications
| Item Model Number | TR-02 |
| Voltage | AC 110-120V, 60Hz |
| Max Flow Capacity | 85 CFM |
| Item Color | Blue |
| Working Pressure | 87 - 232 PSI / 0.7 - 1.6 MPa |
| Dew Point Temperature | 35.6 - 50 °F / 2 - 10 °C |
| Inlet Air Temperature | 59 - 149 °F / 15 - 65 °C |
| Compatible Air Compressors | 15 HP & 20 HP |
| Refrigerant Type | R134a |
| Connection Size | RC 3/4" |
| Net Weight | 99.43 lbs |
| Product Dimensions | 20.1 x 16.7 x 28.5 in |

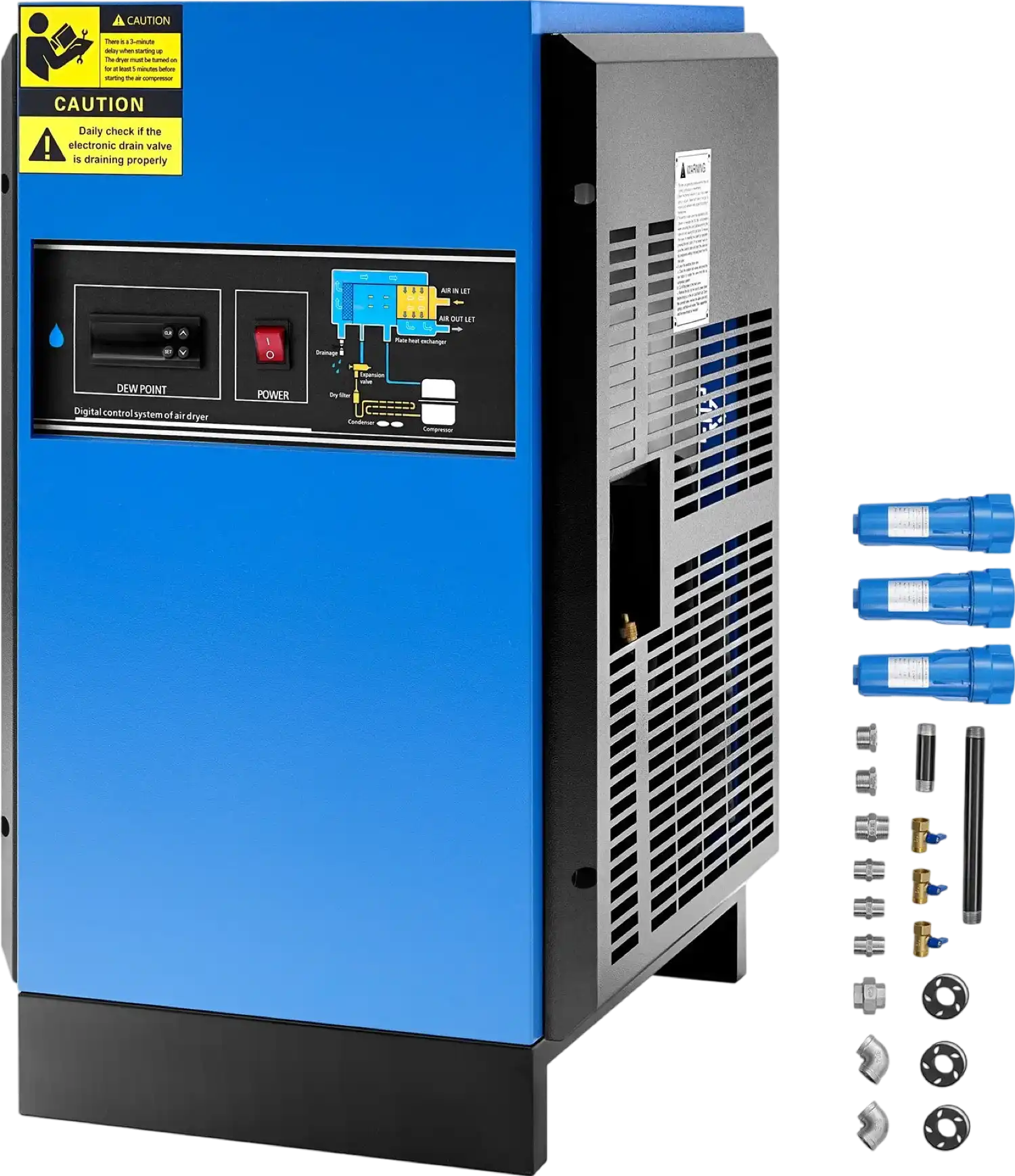

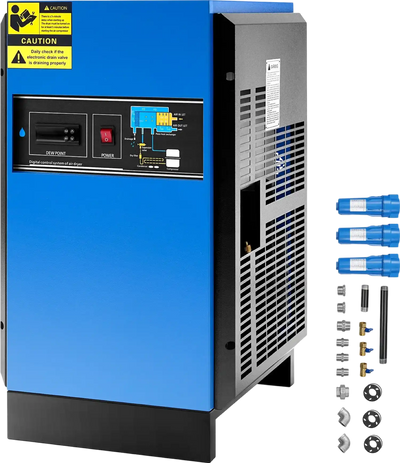

Package Contents
Vevor Compressed Air Dryer
(3) Filter
(3) Pressure Relief Valve
(3) PTFE Tape
(4) Thread Adapters
(2) Elbow Fittings
(2) Reducing Bushings
Union Joint
(2) Connection Pipe
User Manual
Warranty
This item comes with a 1 year factory warranty.
