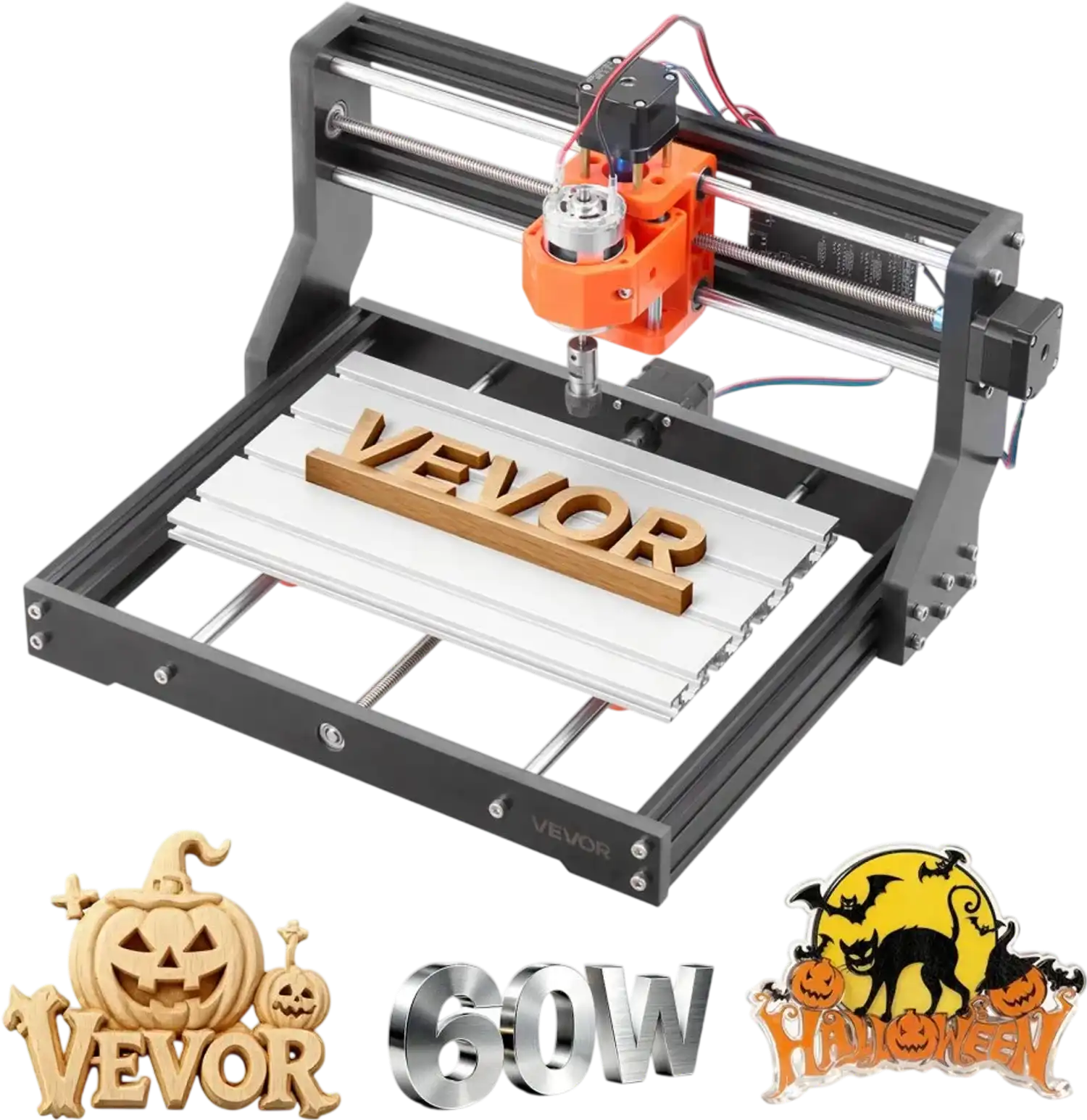

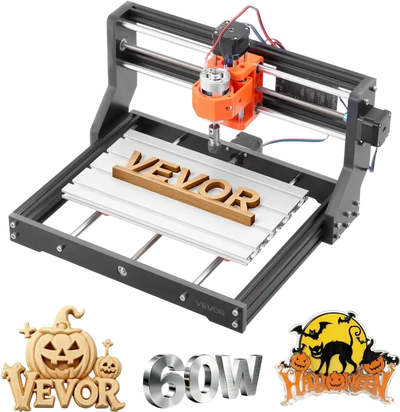

Vevor CNC Router Machine 60W 3-Axis Wood Engraving Milling Machine New
Product Overview

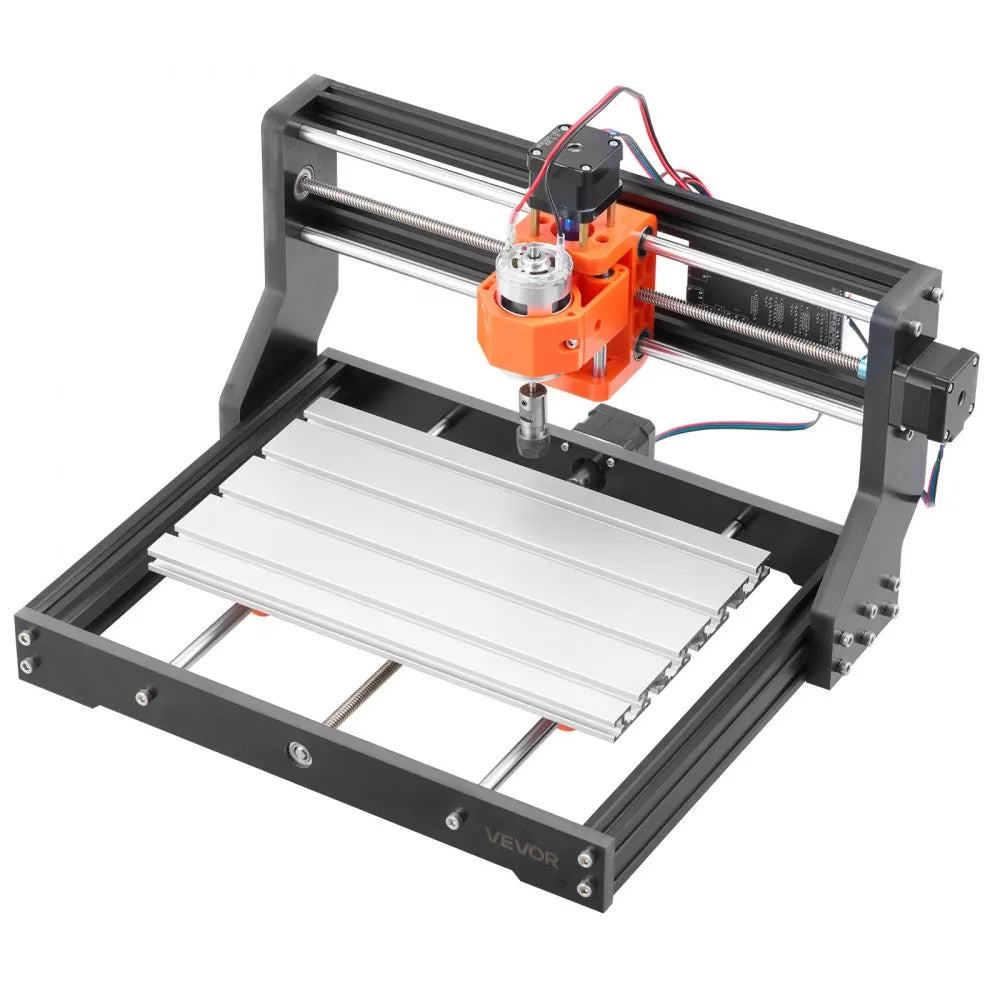

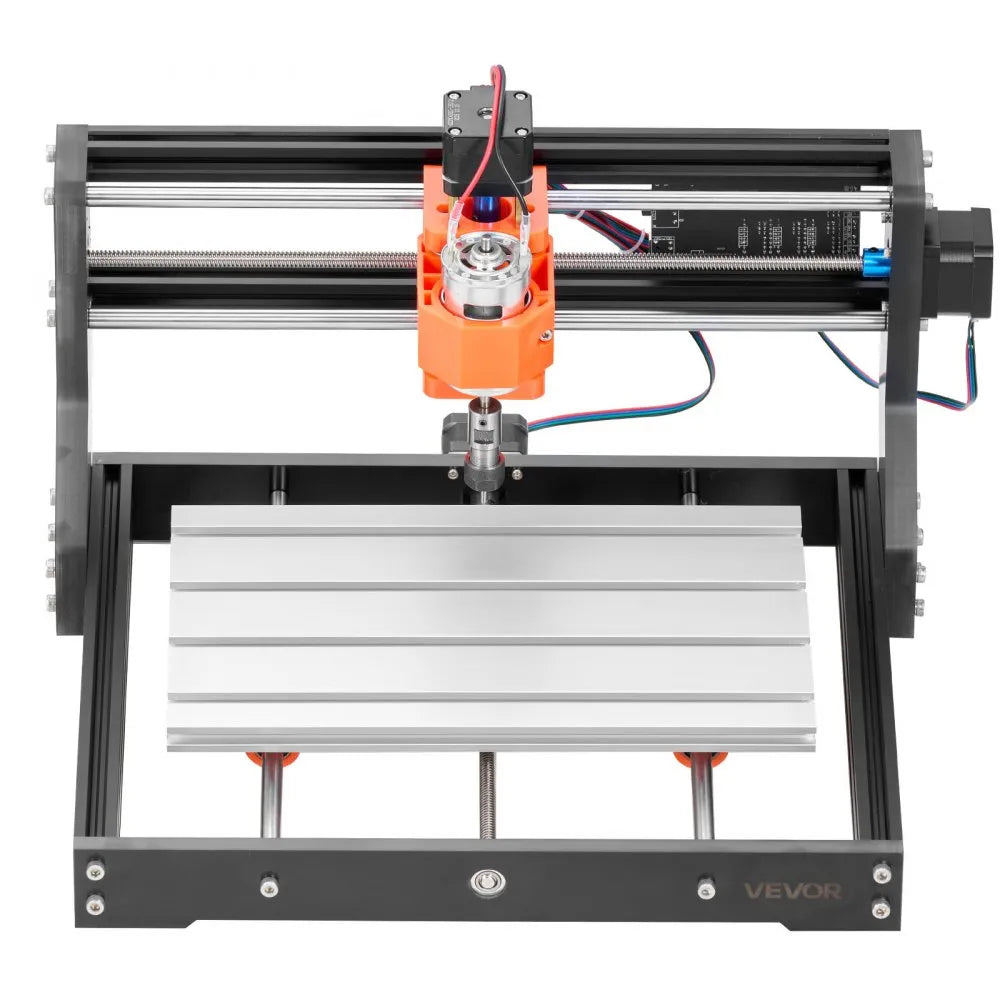

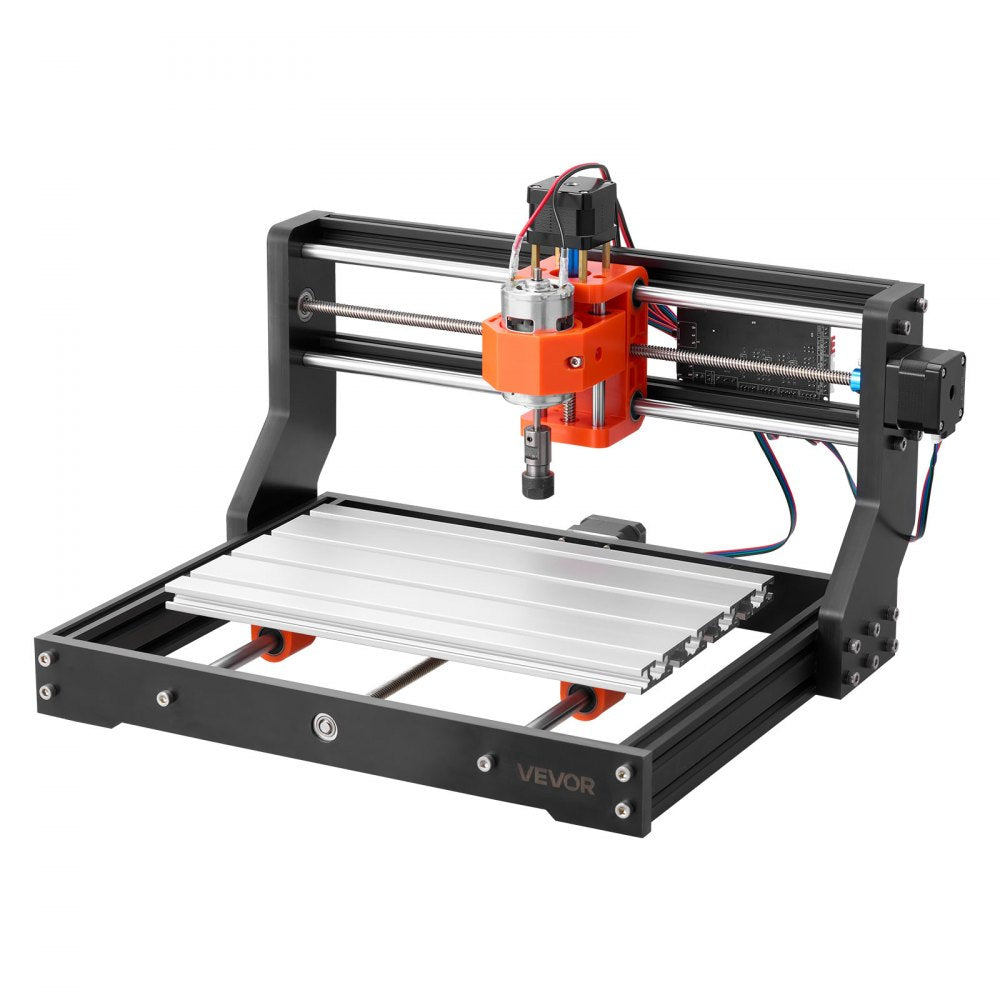

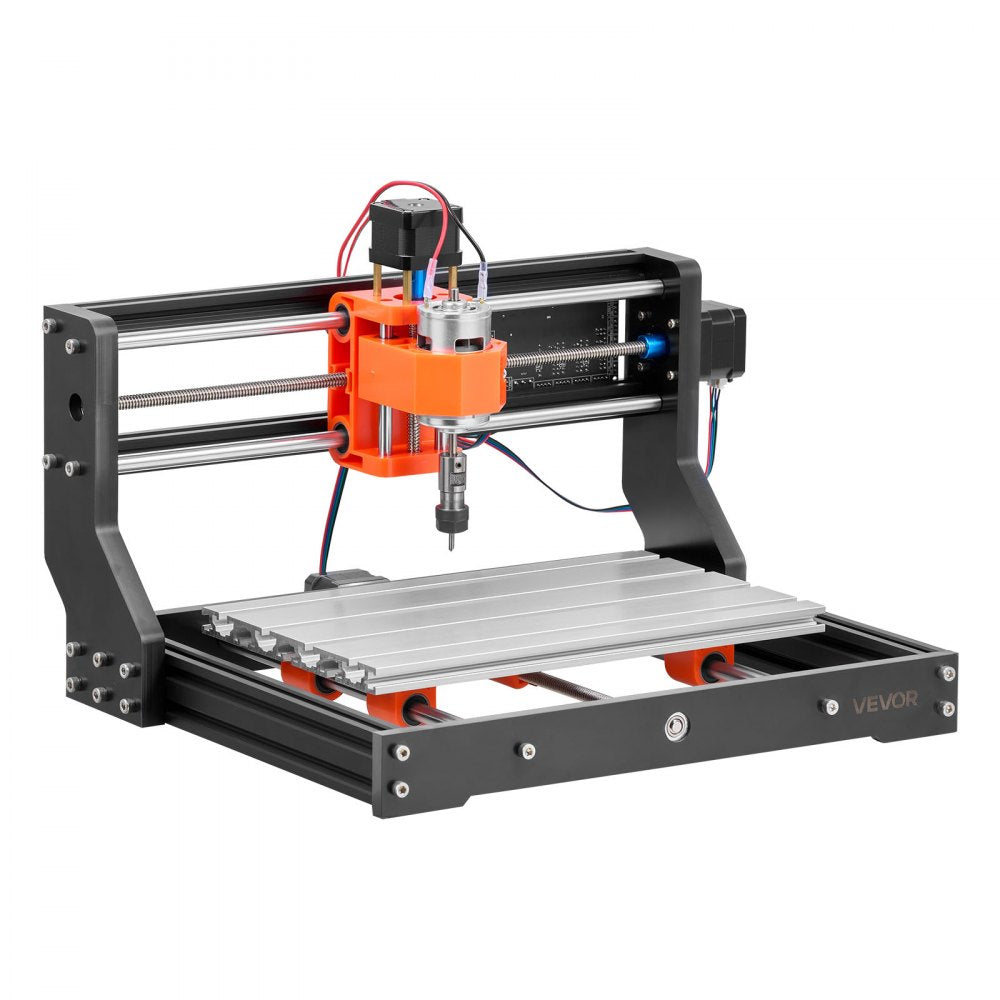

The Vevor CNC router machine is designed for engraving, cutting, and drilling across materials such as wood, acrylic, leather, vinyl, and soft metals. It features a 60W spindle, a stable aluminum alloy frame, and a 32-bit control board for precise operation. The machine offers an 11.81 x 7.08 x 1.57" working area and supports GRBL f1.1-compatible software, including Candle and Easel. Its stepper motor and heavy-duty base help provide smooth, quiet, and reliable performance. An offline controller and USB computer connection add convenience for setup and use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

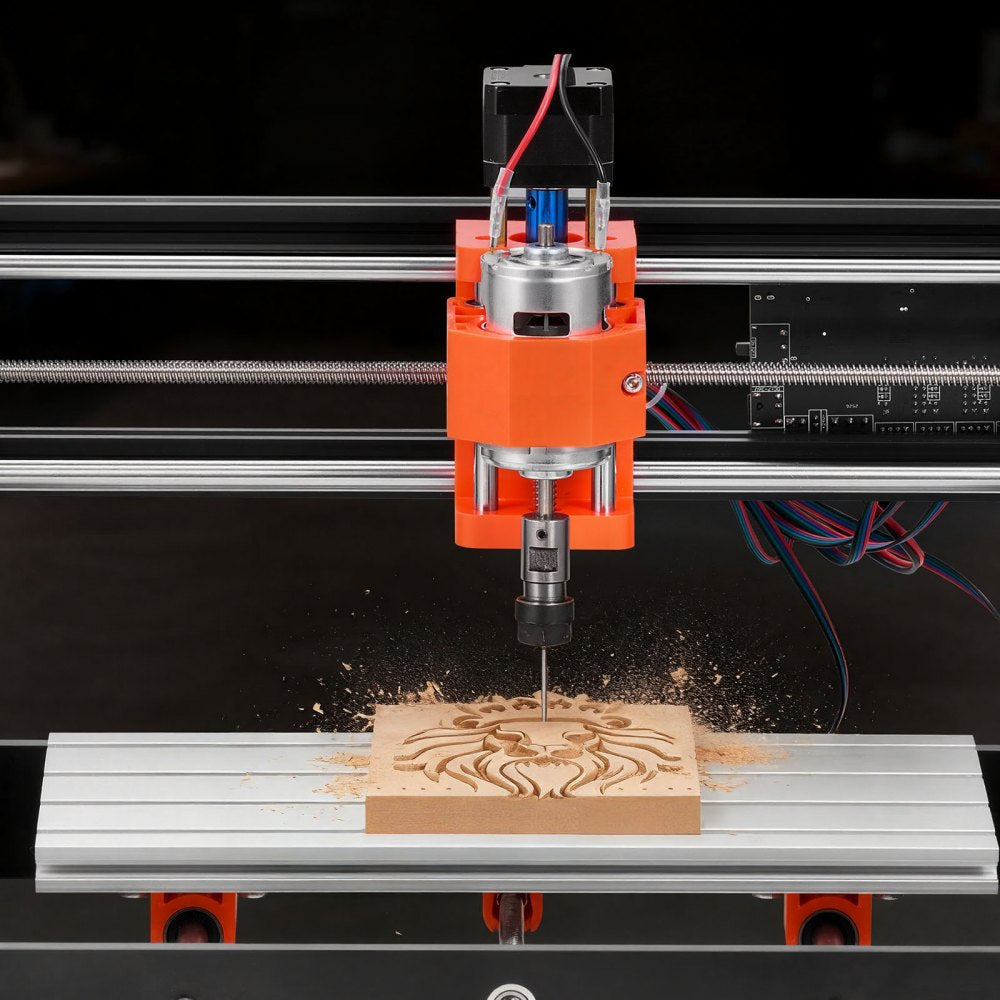

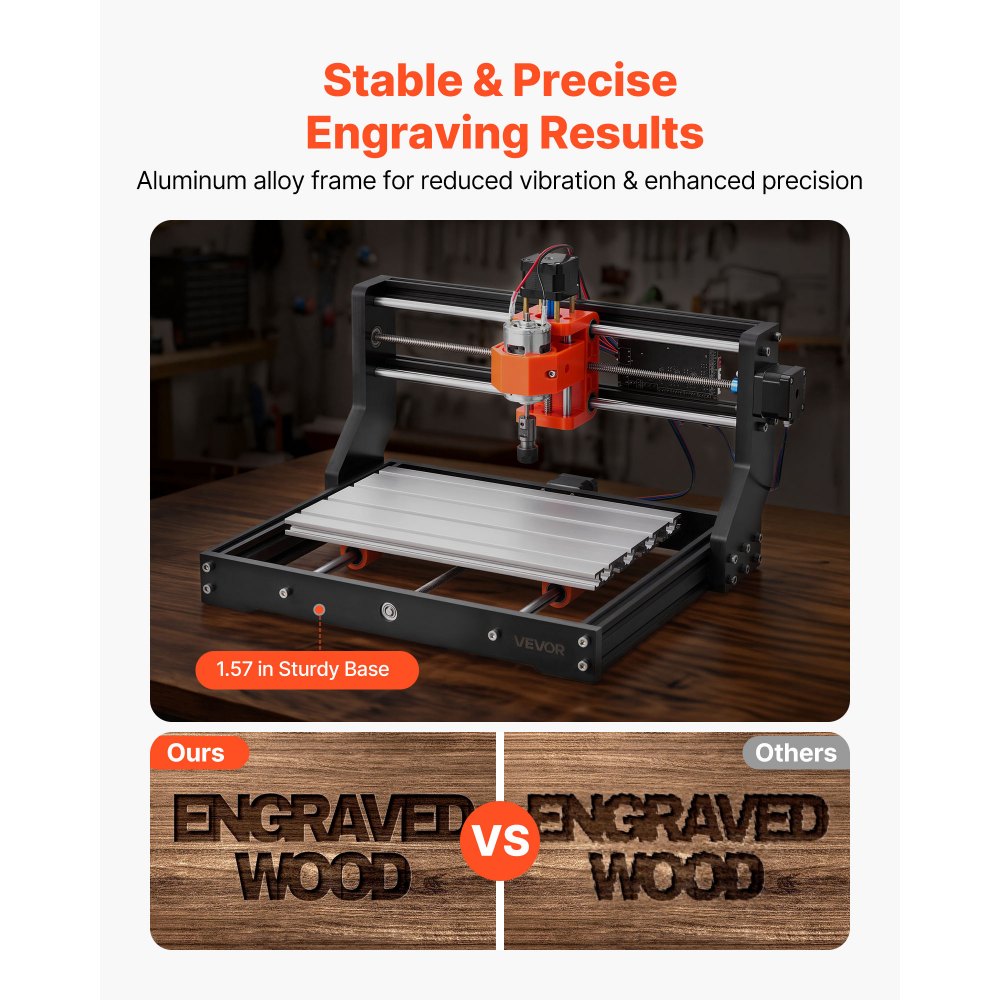

- High-Precision Engraving: The CNC router machine features an aluminum alloy body and a 1.57 in (4 cm) heavy-duty base for stability and reduced vibration. The 60W spindle and 32-bit control board deliver ≤0.07 mm repeat positioning accuracy

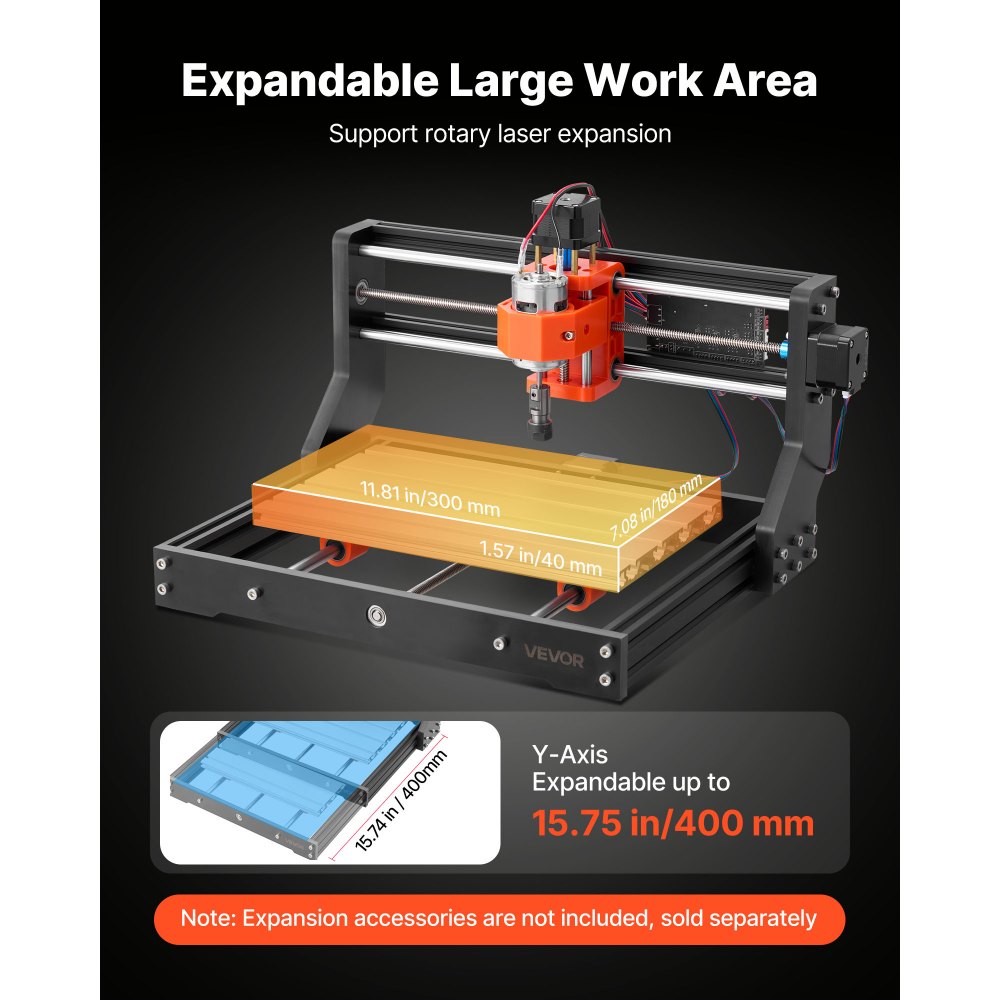

- Large Work Area & Expandability: Enjoy an 11.81 x 7.08 x 1.57 (300 x 180 x 40 mm) work area, expandable up to 15.75 in (400 mm) on the Y-axis.

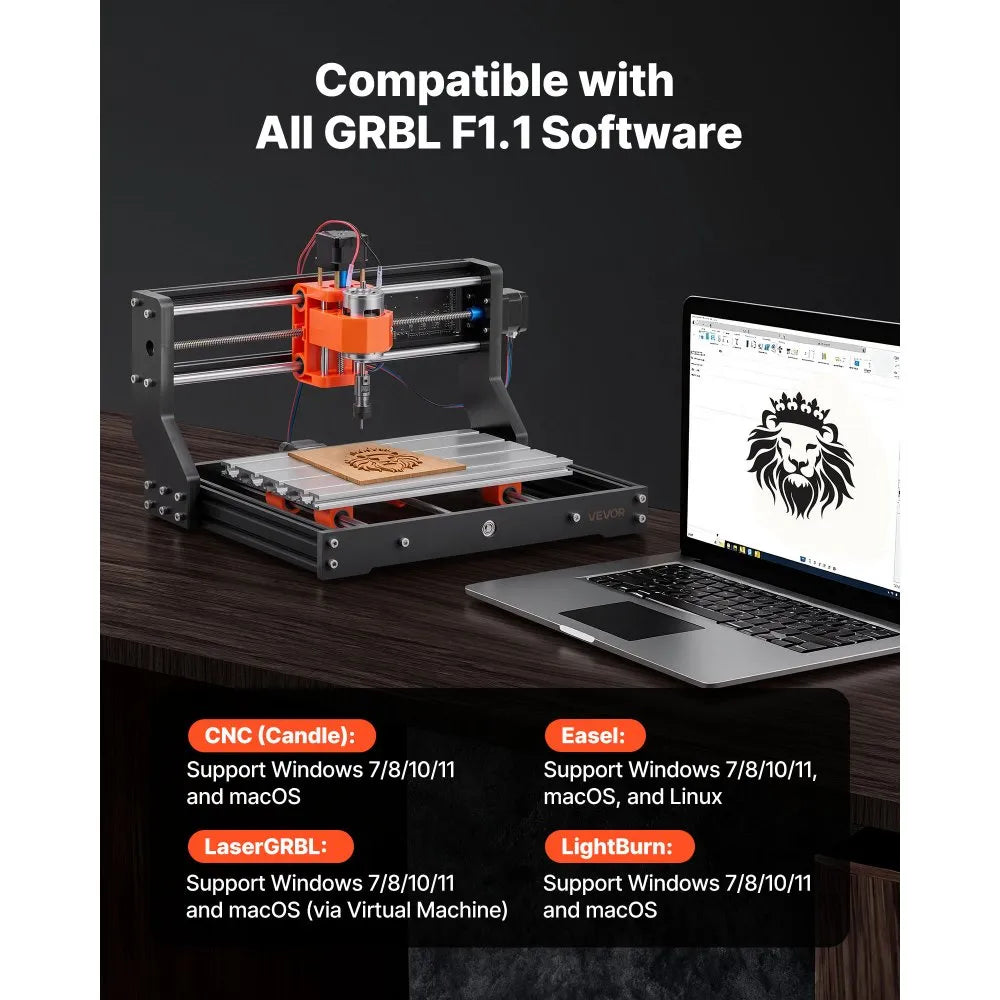

- Wide Software Compatibility: This CNC wood router is compatible with all software that supports GRBL f1.1 firmware. Includes Candle software for easy setup. It works with Mac/Windows/Linux systems and supports CNC (Candle) and Easel
- Easy Assembly & Operation: Quick setup with detailed instructions. This CNC router machine is built with a rotary knob, providing precise spindle control for effortless engraving.

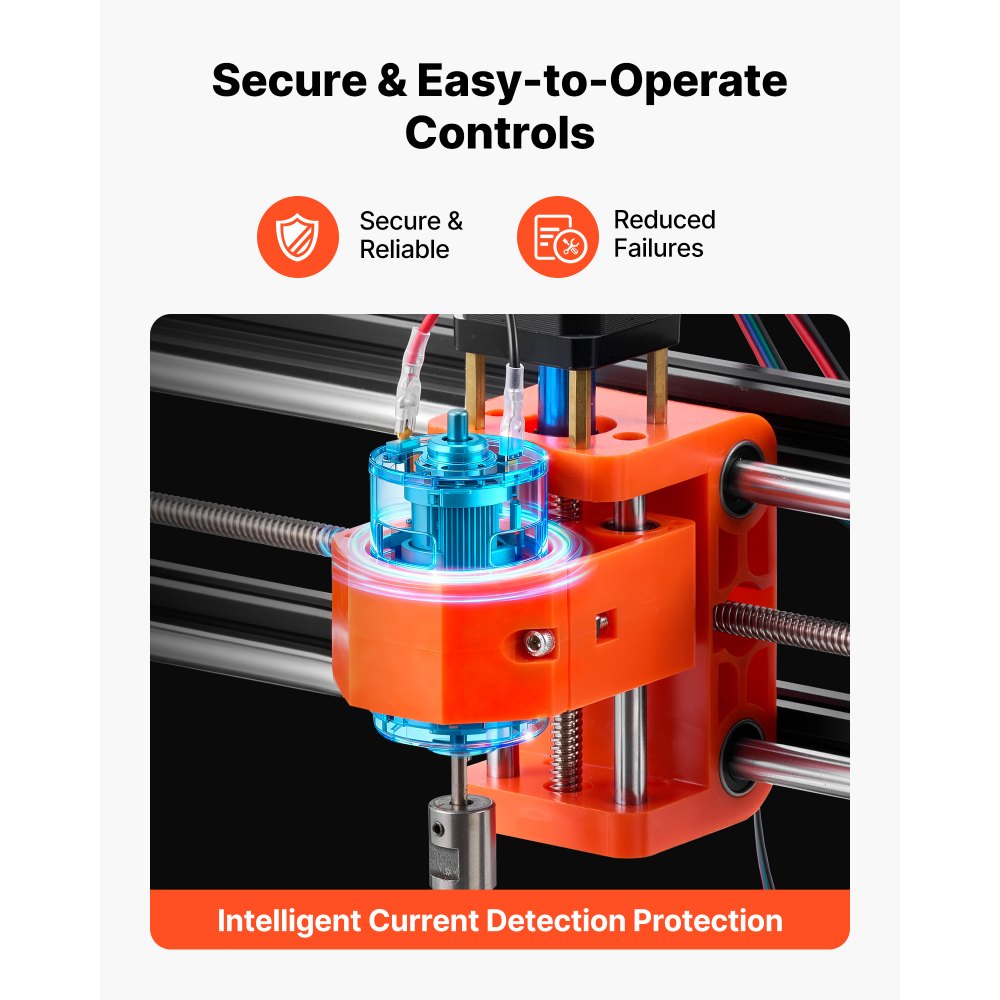

- Secure & Durable Build: Equipped with a stepper motor, this CNC wood router ensures smooth and quiet operation (≤75 dB). The spindle features a current detection protection, reducing faults and extending lifespan up to 5000 hours of reliable use

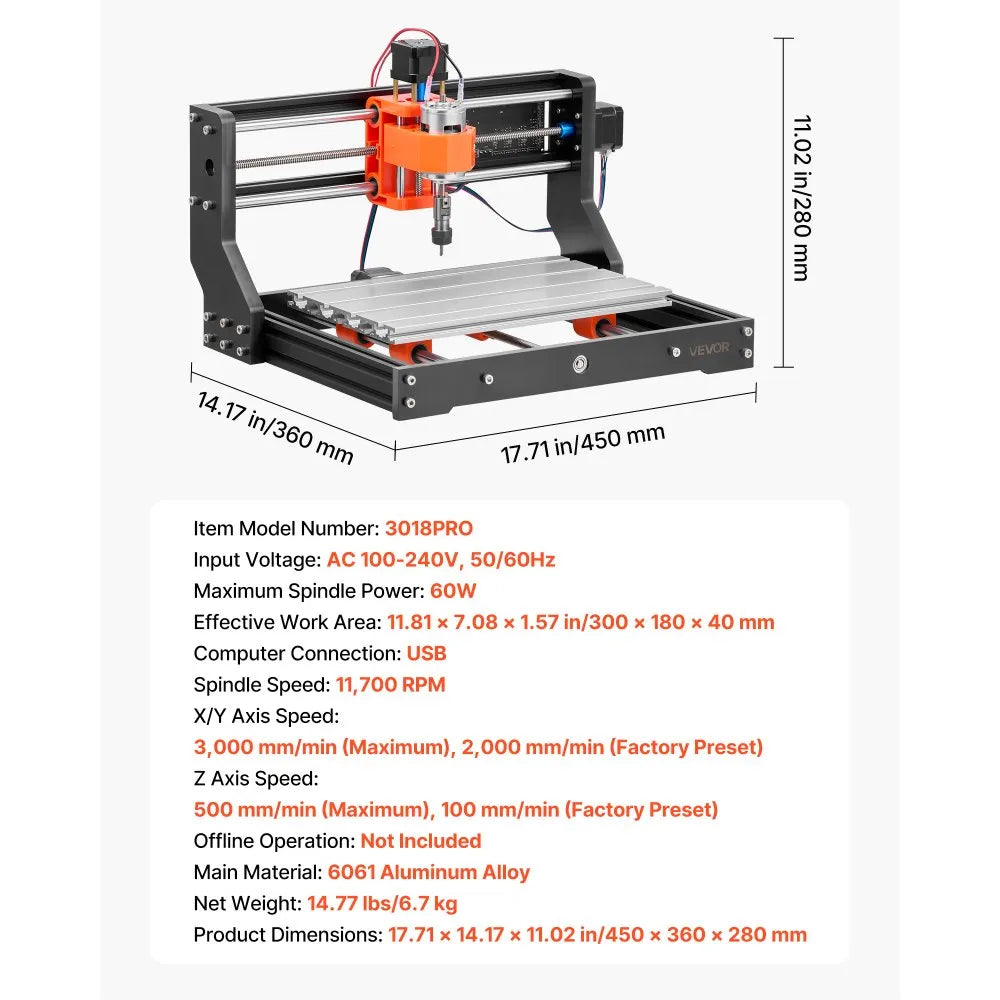

Specifications
| Item Model Number | 3018PRO |
| Input Voltage | AC 100-240V, 50/60Hz |
| Maximum Spindle Power | 60W |
| Effective Work Area | 11.81 x 7.08 x 1.57 in / 300 x 180 x 40 mm |
| Computer Connection | USB |

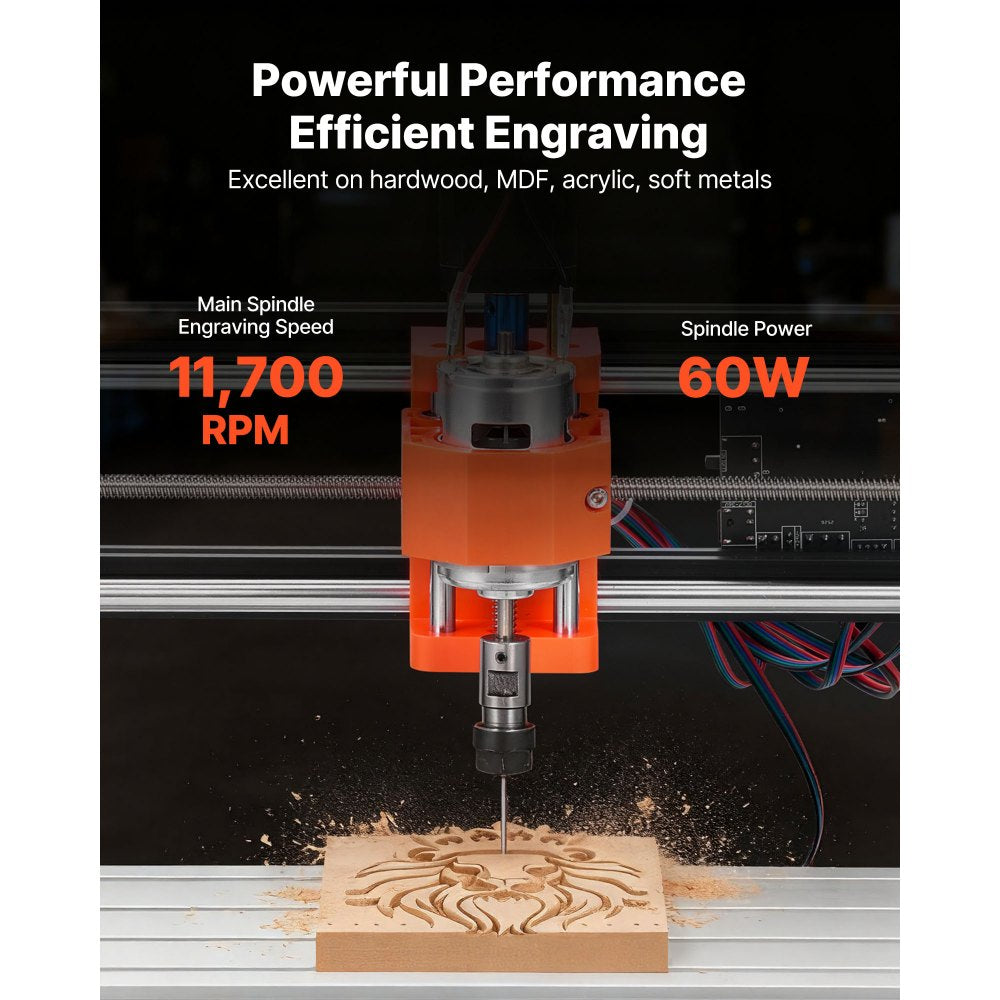

| Spindle Speed | 11,700 RPM |
| X/Y Axis Speed | 3,000 mm/min maximum, 2,000 mm/min factory preset |
| Z Axis Speed | 500 mm/min maximum, 100 mm/min factory preset |
| Main Material | 6061 Aluminum Alloy |
| Base Thickness | 1.57 in / 4 cm |
| Repeat Positioning Accuracy | ≤0.07 mm |
| Maximum Noise Level | ≤75 dB |
| Spindle Lifespan | Up to 5000 hours |
| Y-Axis Expandability | Up to 15.75 in / 400 mm |
Package Contents
CNC router machine
Offline controller
Necessary accessories
Warranty
This item comes with a 1 year factory warranty.
