Vevor CNC Router Machine 3-Axis Wood Engraving 500W Spindle 11.8 x 7.1 in. Work Area New
Product Overview
This VEVOR CNC router machine is a 3-axis engraving and milling machine built for carving, cutting, and drilling across materials such as wood, acrylic, plastic, leather, vinyl, and soft metals. It features a 500W spindle, a 11.8 x 7.08 x 3.15 in working area, and a 1.8-inch offline controller for PC-free operation. The machine is designed with an aluminum alloy frame, limit switches, and an emergency stop for stable and secure use. It also supports GRBL f1.1 compatible software and offers expansion capability for the Y-axis and laser module.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

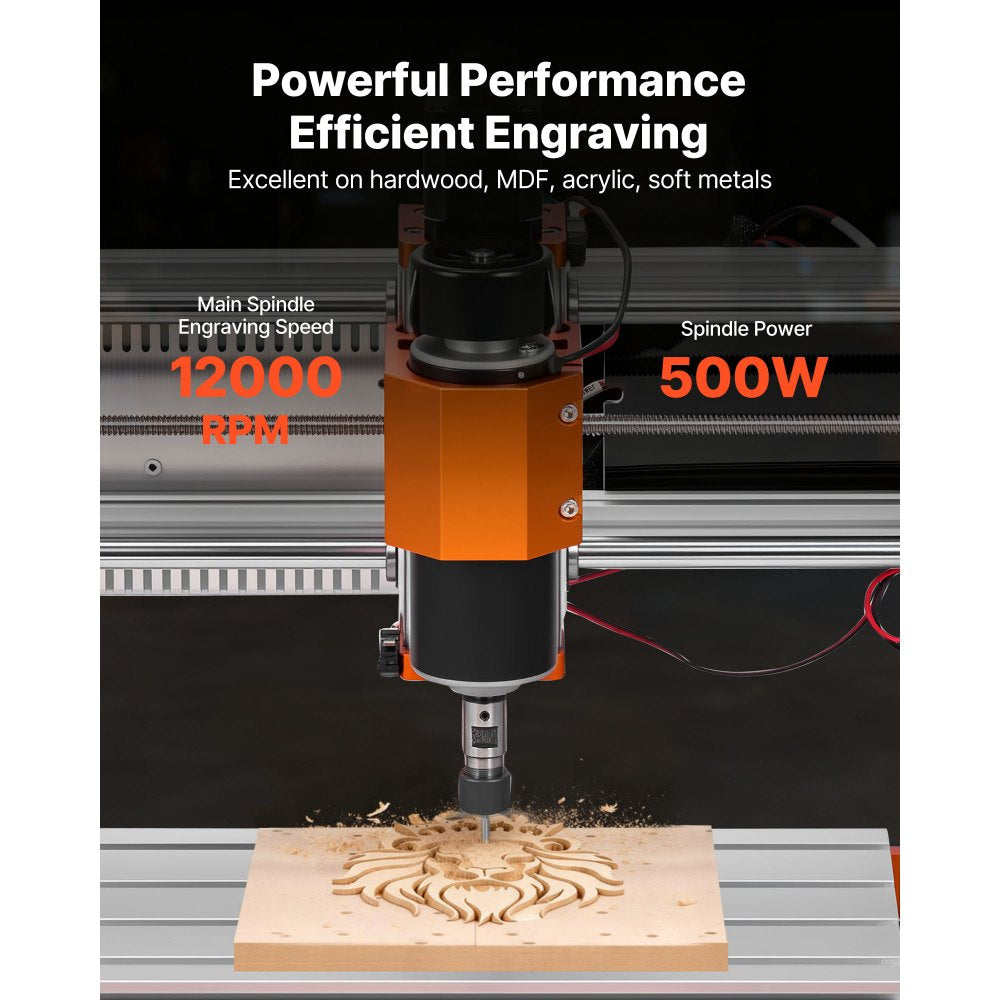

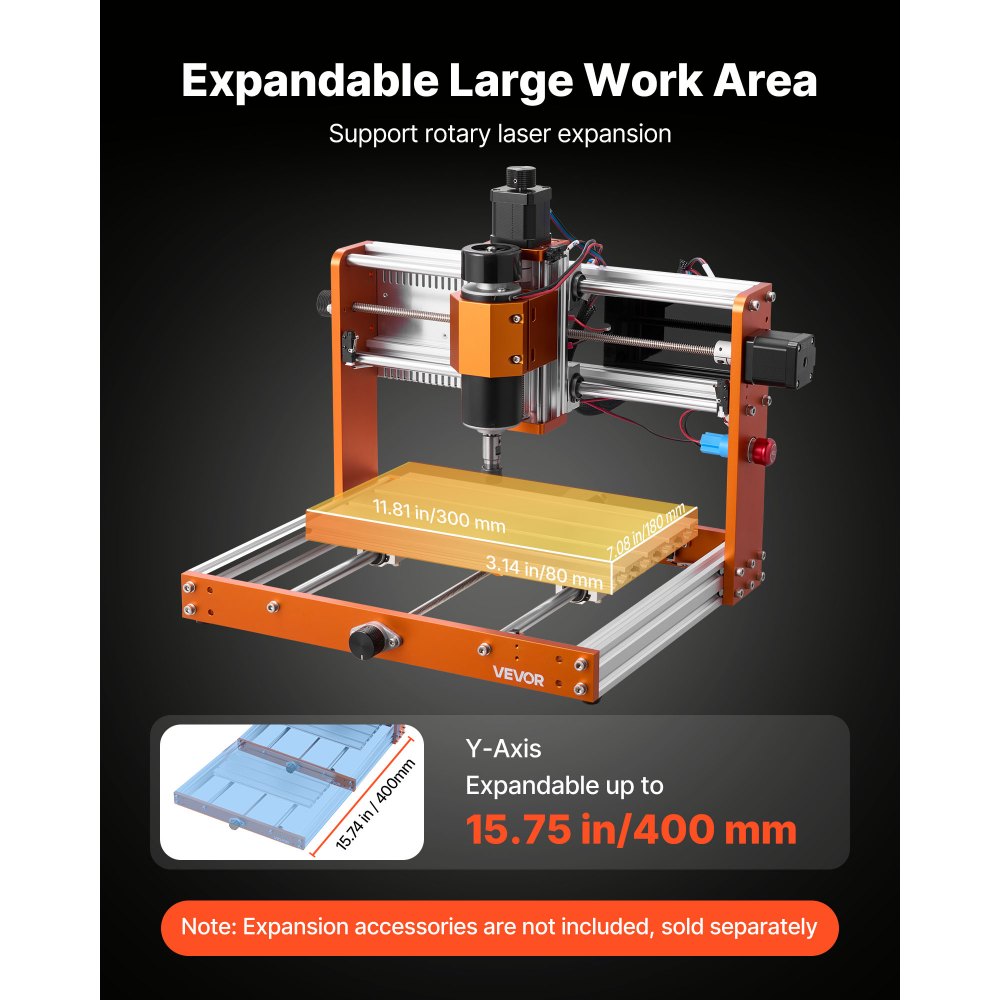

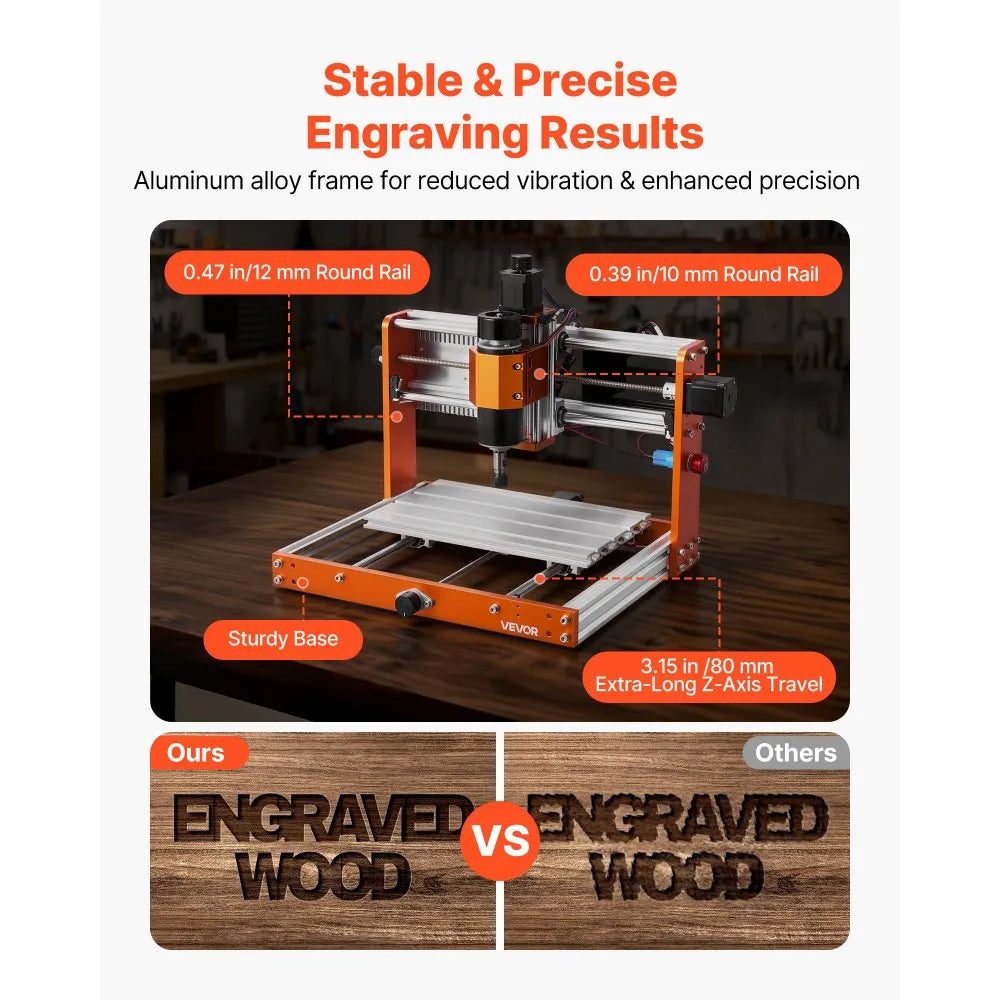

- High-Precision Engraving: The CNC router machine features an 11.81 x 7.08 x 3.15 in (300 x 180 x 80 mm) work area, expandable up to 15.75 in (400 mm) on the Y-axis. Plus a 500W spindle, aluminum alloy frame, and ≤ 0.06 mm repeatable positioning accuracy
- Extra-Long Z-Axis Stroke: Equipped with an 80 mm Z-axis stroke and 12 mm reinforced linear optical axis, this CNC wood router provides precise linear motion, enabling stable deep cutting and high-relief engraving for thick wood, large stamps, etc

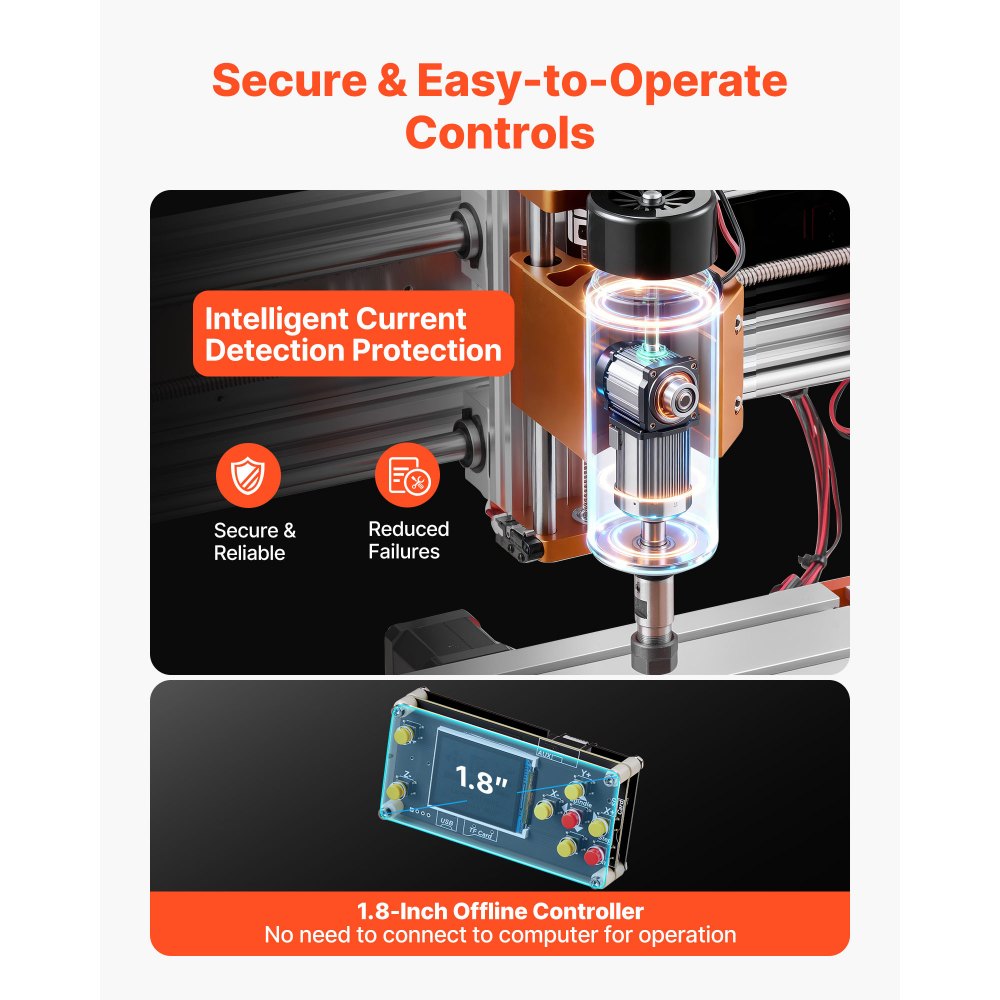

- Secure & Durable Build: The spindle features a current detection protection, reducing faults and extending lifespan up to 5000 hours. The CNC router machine includes 6 limit switches, an emergency stop, and handwheels on XYZ axes for precise operation

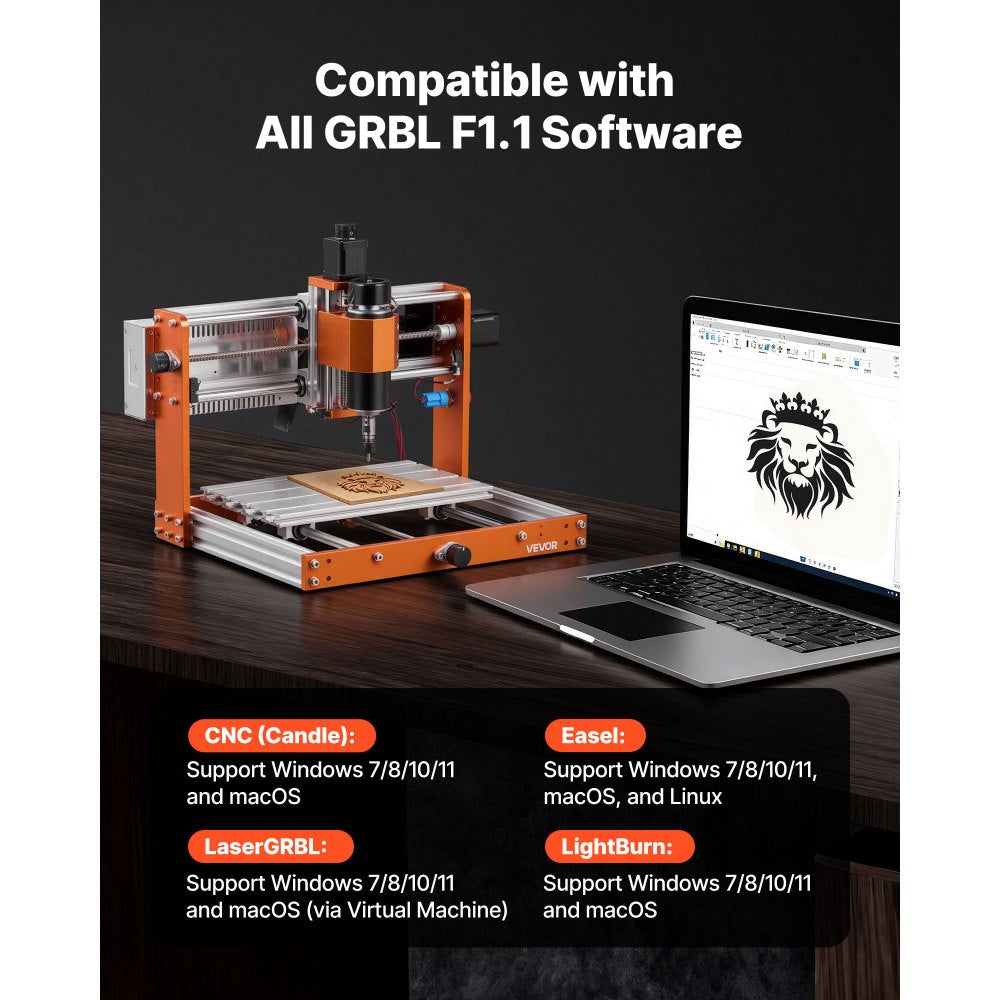

- Wide Software Compatibility: Compatible with all software supporting GRBL f1.1 firmware. Includes Candle software, it works with Mac/Windows/Linux and supports CNC (Candle) and Easel. The 1.8-inch offline controller allows PC-free operation
- Easy Assembly, Dual-Mode Design: Pre-assembled and pre-wired main components simplify your setup. This CNC router machine effortlessly switches between cutting, carving, and marking without changing machines

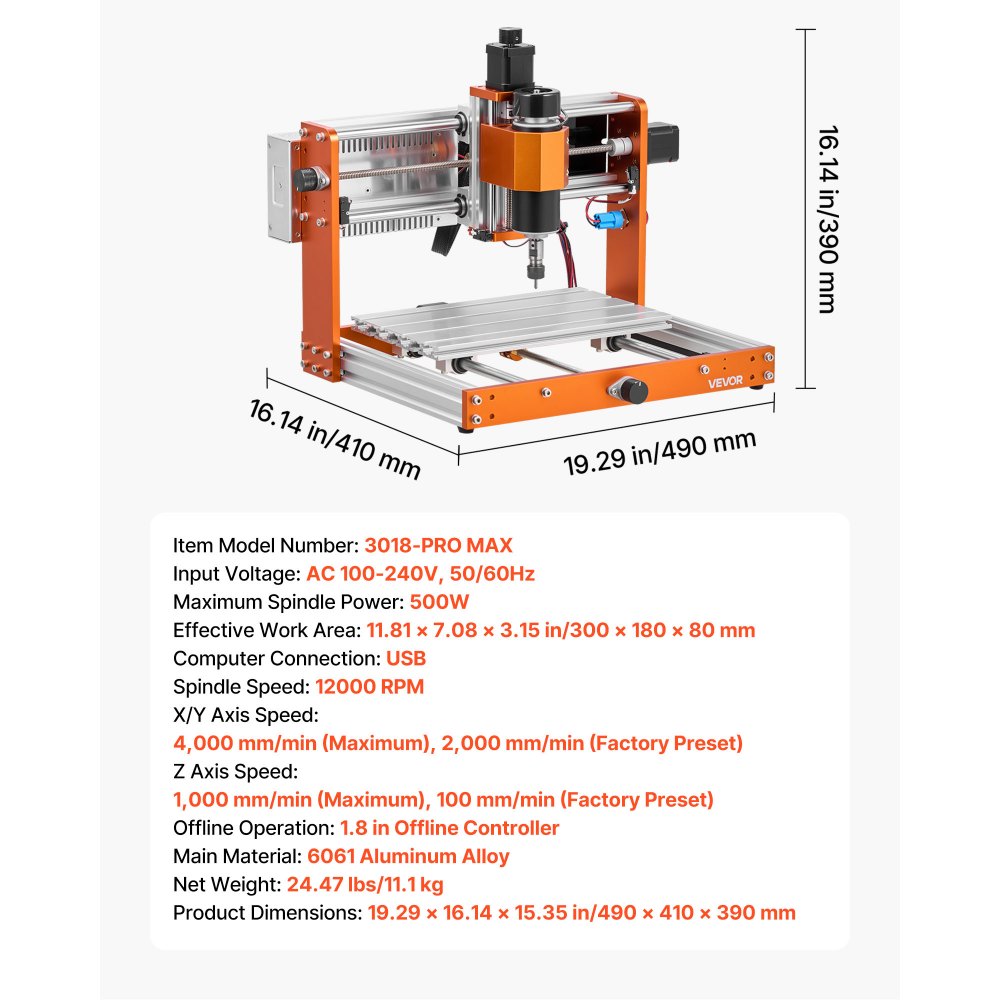

Specifications
| Item Model Number | 3018-PRO MAX |
| Input Voltage | AC 100-240V, 50/60Hz |
| Max Spindle Power | 500W |
| Effective Work Area | 11.81 x 7.08 x 3.15 in/300 x 180 x 80 mm |
| Computer Connection | USB |
| Offline Operation | 1.8 in Offline Controller |
| Spindle Speed | 12000 RPM |
| X/Y Axis Speed | 4,000 mm/min (Maximum), 2,000 mm/min (Factory Preset) |
| Z Axis Speed | 1,000 mm/min (Maximum), 100 mm/min (Factory Preset) |
| Main Material | 6061 Aluminum Alloy |
| Product Dimensions | 19.29 x 16.14 x 15.35 in |
| Net Weight | 24.47 lbs |
Package Contents
CNC Router Machine
Offline Controller
User Manual
Warranty
This item comes with a 1 year warranty.
