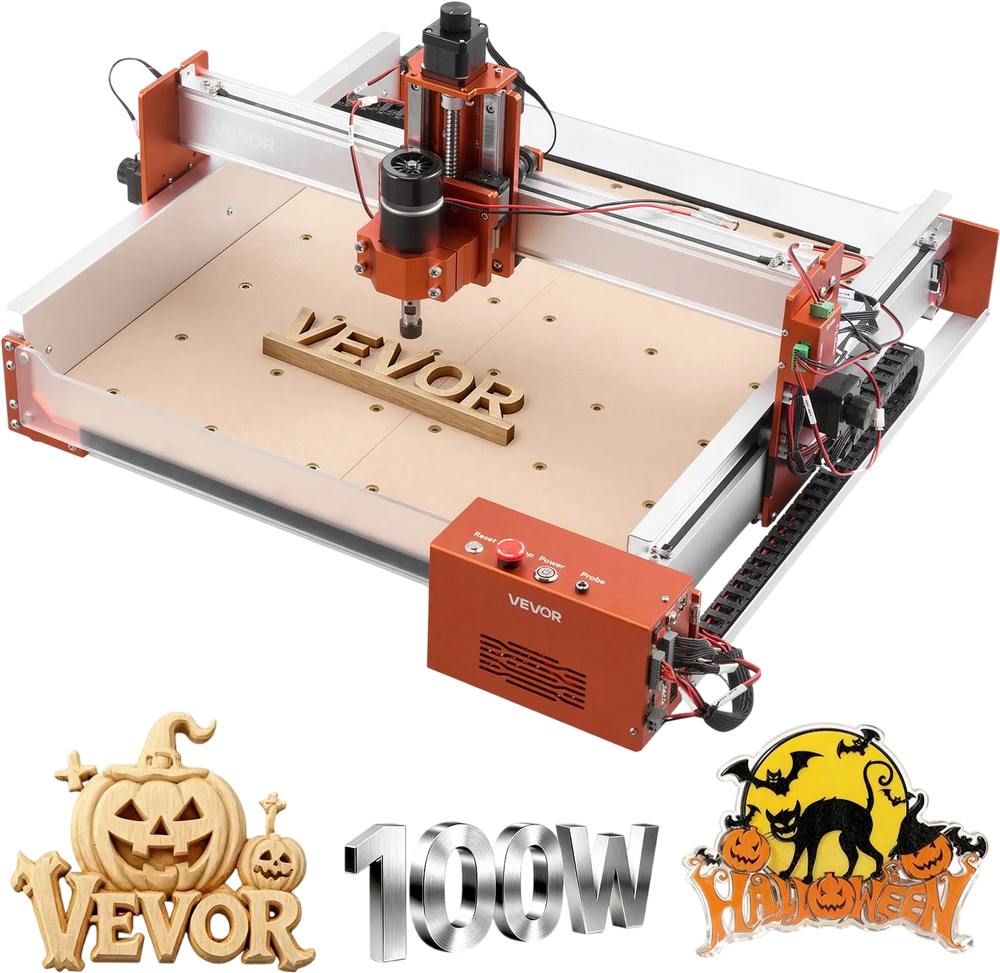

Vevor CNC Router Machine 3-Axis Wood Engraving 100W Spindle 15.75 x 15.75 in. New
Product Overview
This VEVOR CNC router machine is designed for wood, acrylic, MDF, leather, and soft metal engraving and cutting. It features a 100W spindle motor, a 15.75 x 15.75 x 3.74 inch working area, and an aluminum alloy structure for stable operation. The machine uses a 32-bit control board, USB computer connection, and GRBL f1.1 compatible software for flexible workflow support. It also includes LED lighting, a dust guard, and support for rotary axis and laser module expansion. Includes Candle software and pre-assembled, pre-wired key components for easier setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

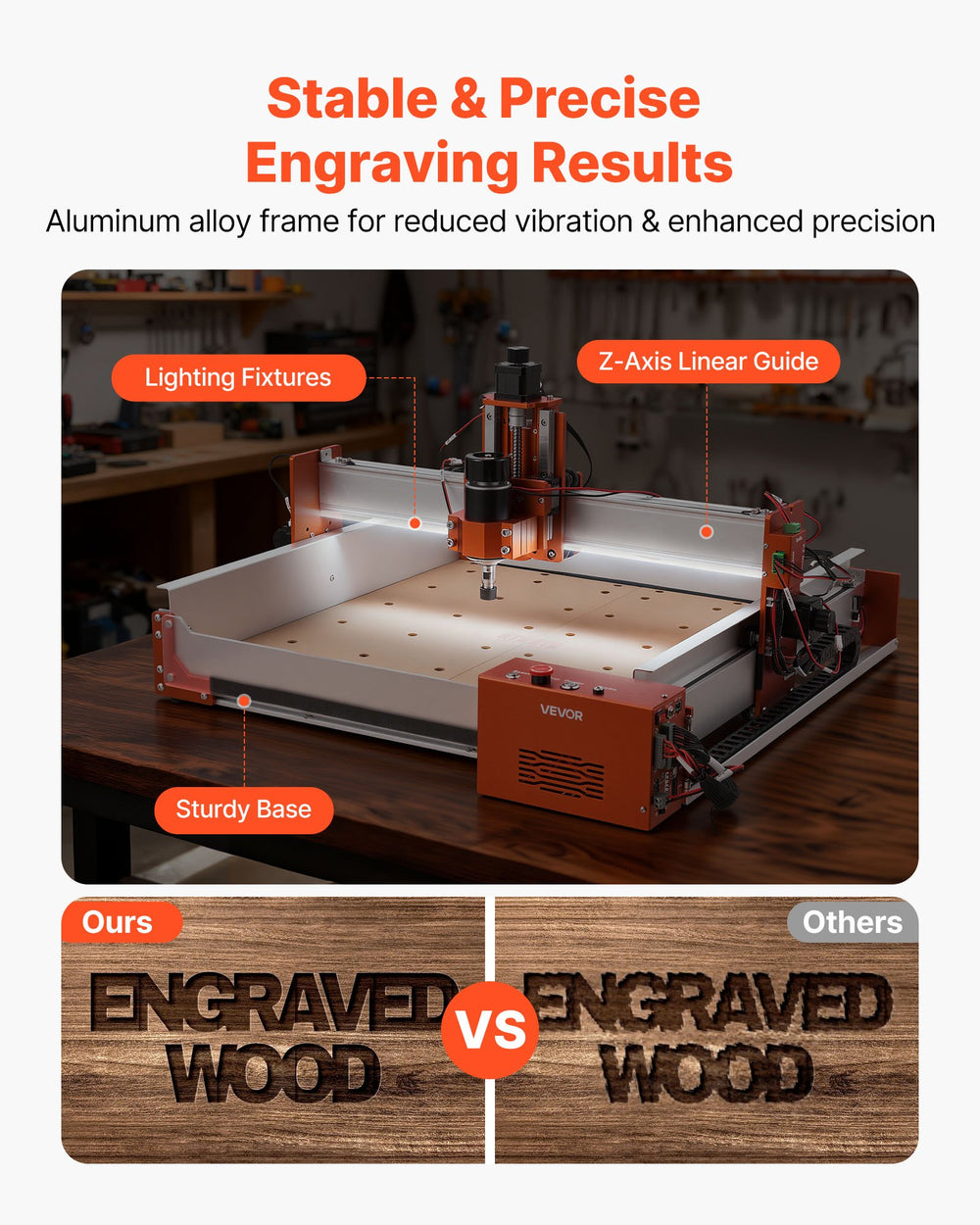

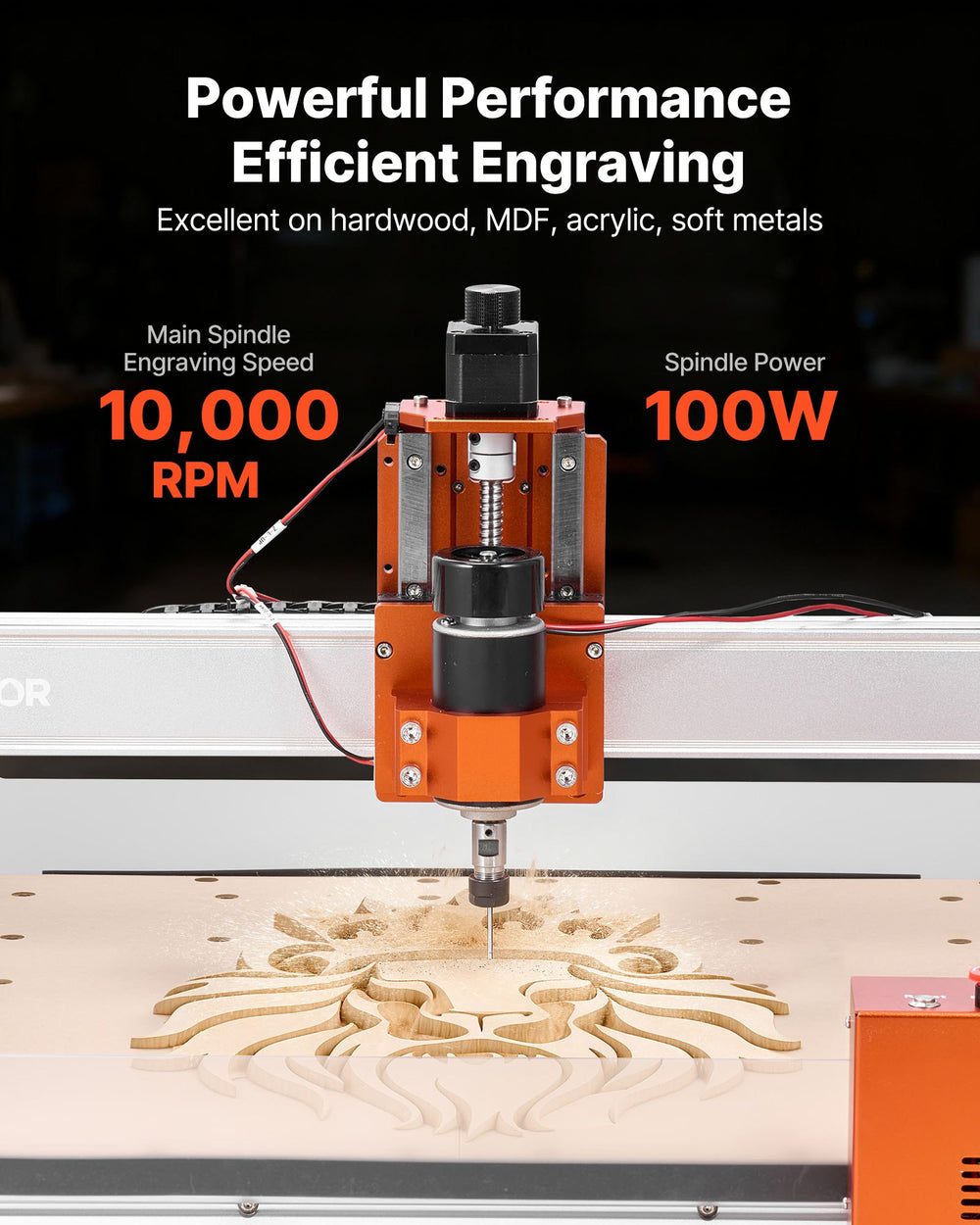

- High-Precision Engraving: The CNC router machine features an aluminum alloy frame, Z-axis linear rail, 100W spindle motor, and 32-bit control board, easily engraving wood, acrylic, MDF, leather, soft metals, etc. Repeat positioning accuracy ≤ 0.05 mm

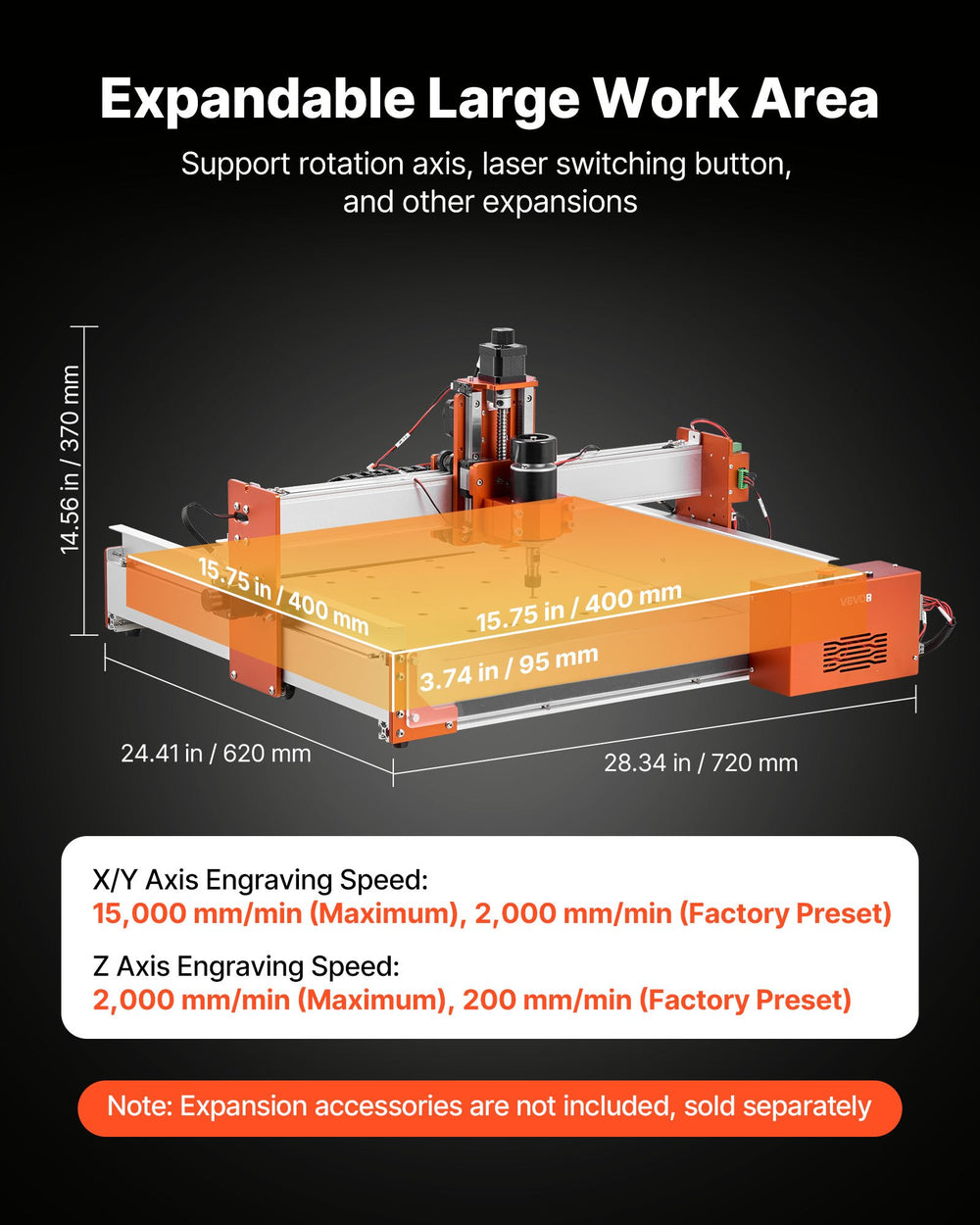

- Large Work Area & Expandability: Create without limits on the 15.75 x 15.75 x 3.74 in (400 x 400 x 95 mm) work area. With 52 mm and 65 mm collets for various spindle types. Supports rotary axis expansion. Note: Expansion accessories are not included, sold separately

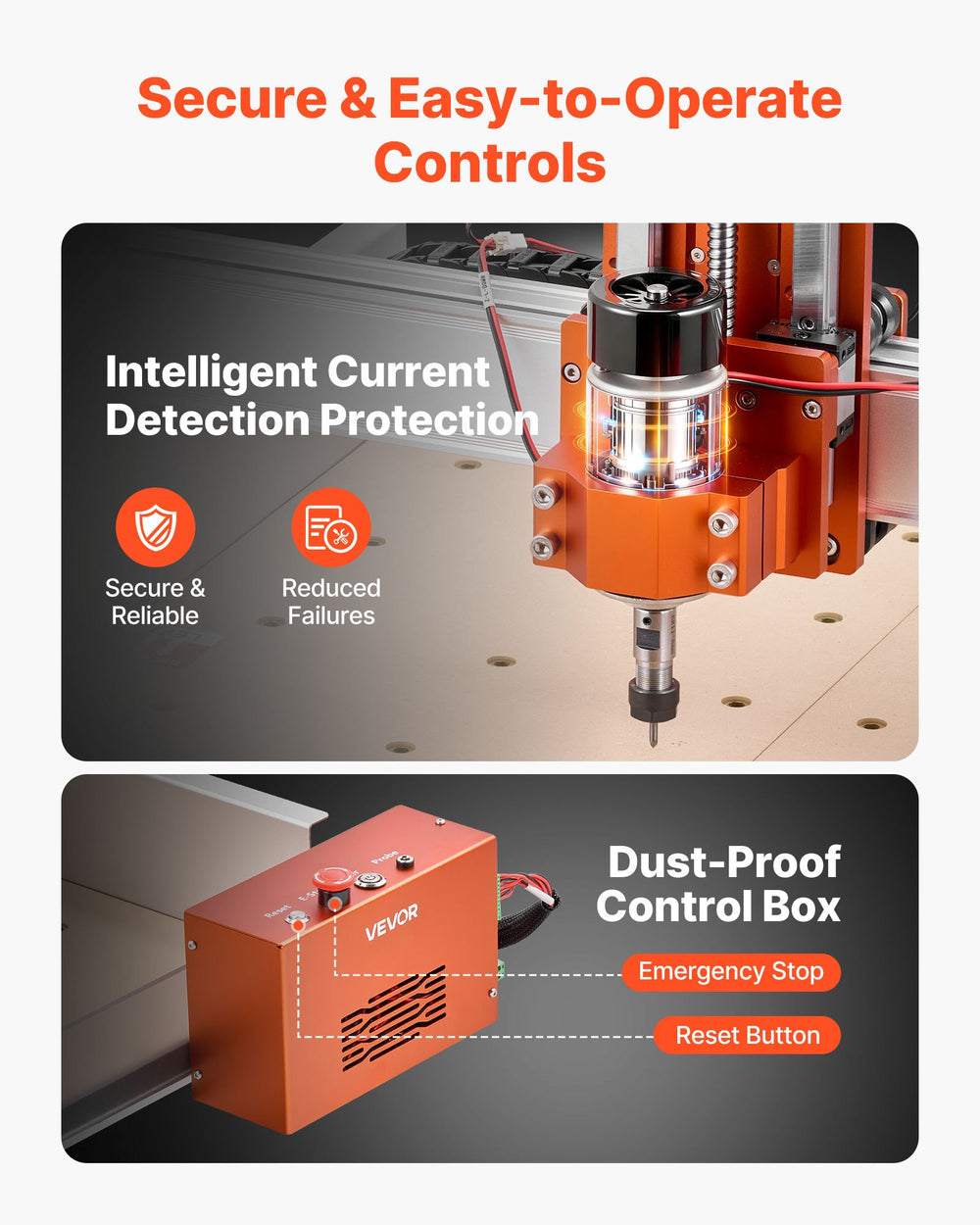

- Secure & Durable Build: Featuring a spindle motor with current detection protection, this CNC wood machine extends service life up to 5,000 hours. The dust guard keeps debris contained, while the control box comes with emergency stop and home buttons

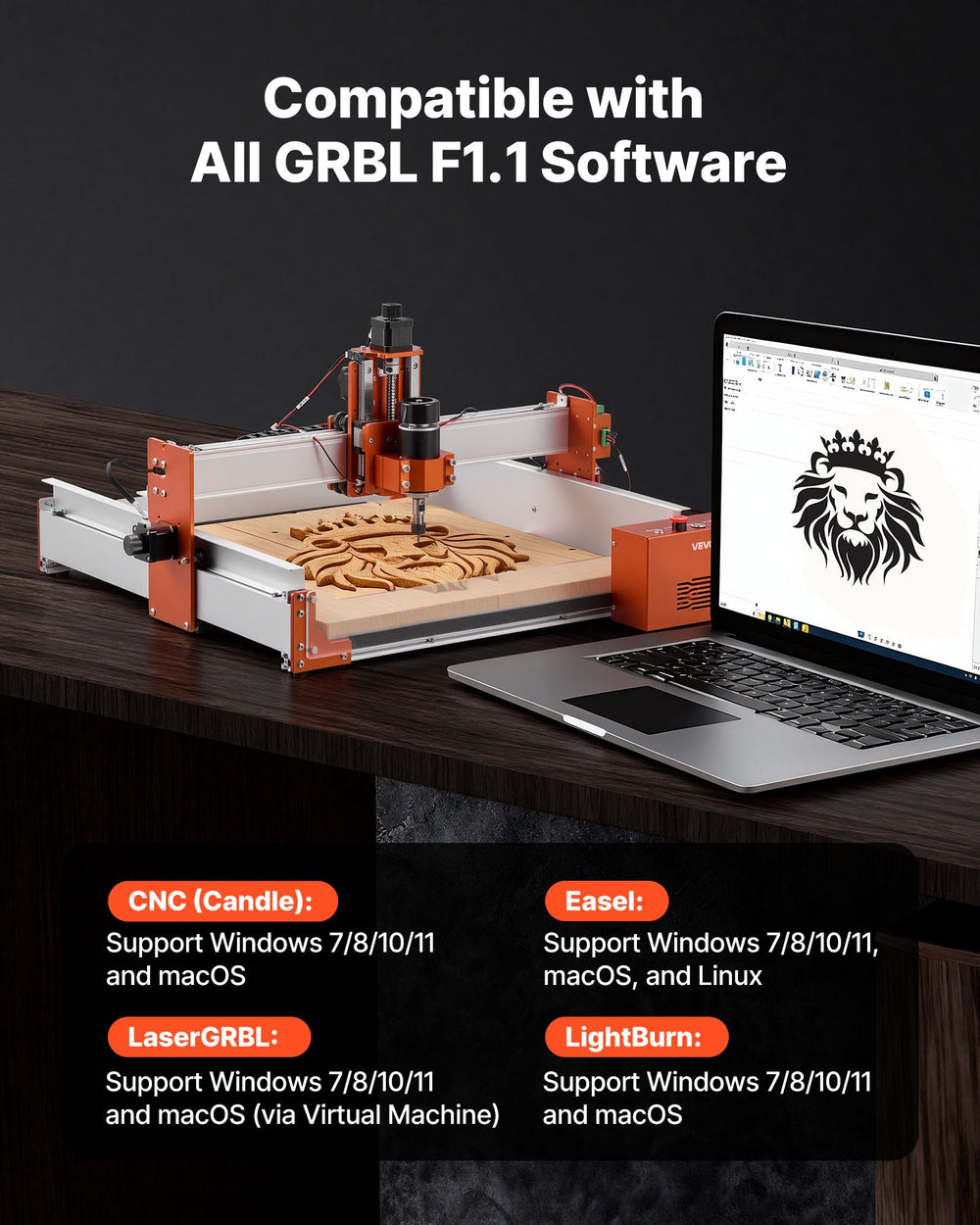

- Wide Software Compatibility: This CNC wood router is compatible with all software that supports GRBL f1.1 firmware. Includes Candle software for easy setup. It works with Mac/Windows/Linux systems and supports CNC (Candle) and Easel
- Easy Assembly & Operation: Key components come pre-assembled and pre-wired for quick setup. This CNC router machine is built with LED lighting to reduce Z-axis shadows for clearer visibility, while the rotary knob provides precise spindle control with ease

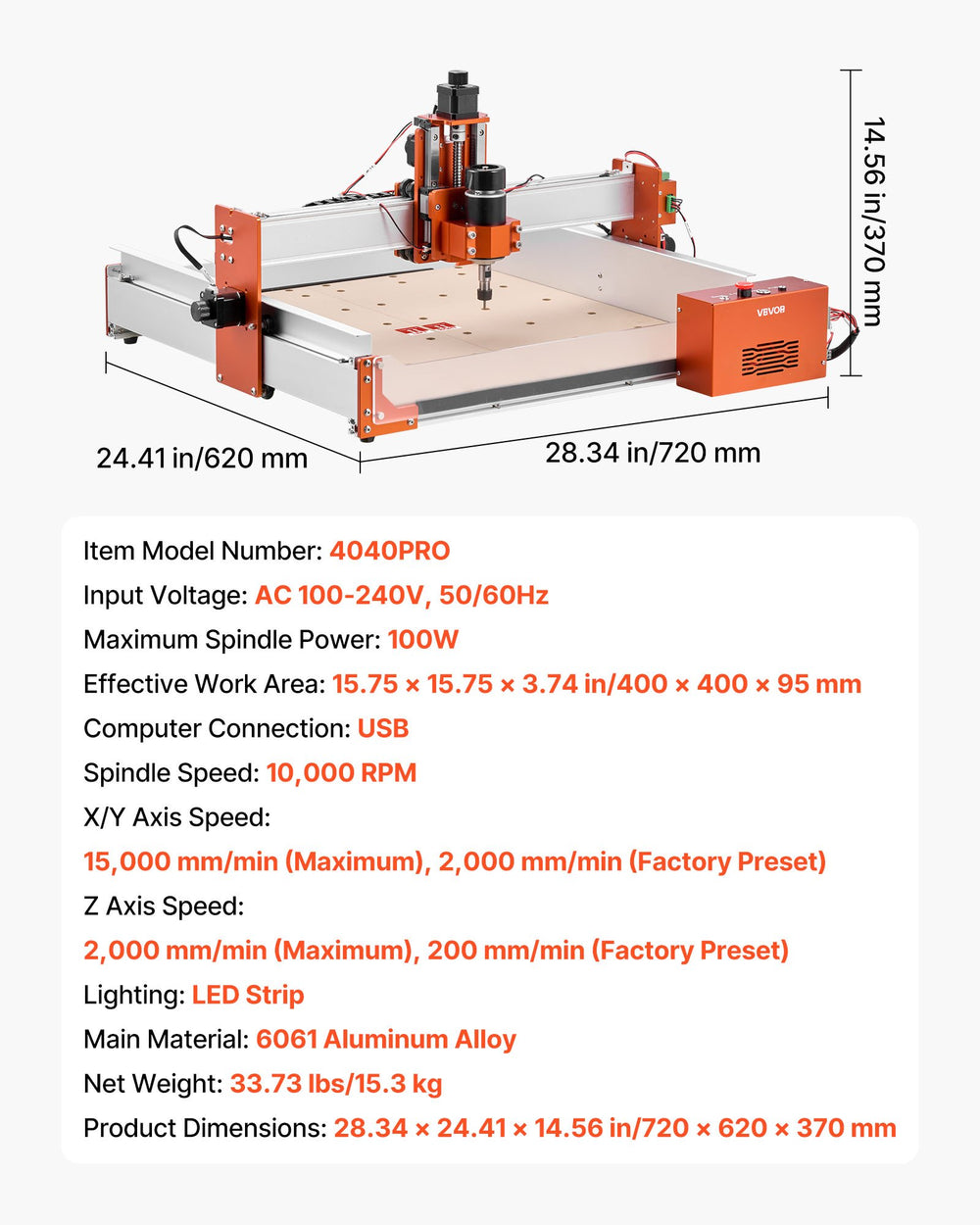

Specifications
| Item Model Number | 4040PRO |
|---|---|
| Input Voltage | AC 100-240V, 50/60Hz |
| Maximum Spindle Power | 100W |
| Effective Work Area | 15.75 x 15.75 x 3.74 in/400 x 400 x 95 mm |
| Computer Connection | USB |
| Spindle Speed | 10,000 RPM |
| X/Y Axis Speed | 15,000 mm/min (Maximum), 2,000 mm/min (Factory Preset) |
| Z Axis Speed | 2,000 mm/min (Maximum), 200 mm/min (Factory Preset) |
| Lighting | LED Strip |
| Main Material | 6061 Aluminum Alloy |
|---|---|
| Product Dimensions | 28.34 x 24.41 x 14.56 in |
| Net Weight | 33.73 lbs |
Package Contents
CNC Router Machine
Candle Software
User Manual
Warranty
This item comes with a 1 year warranty.
