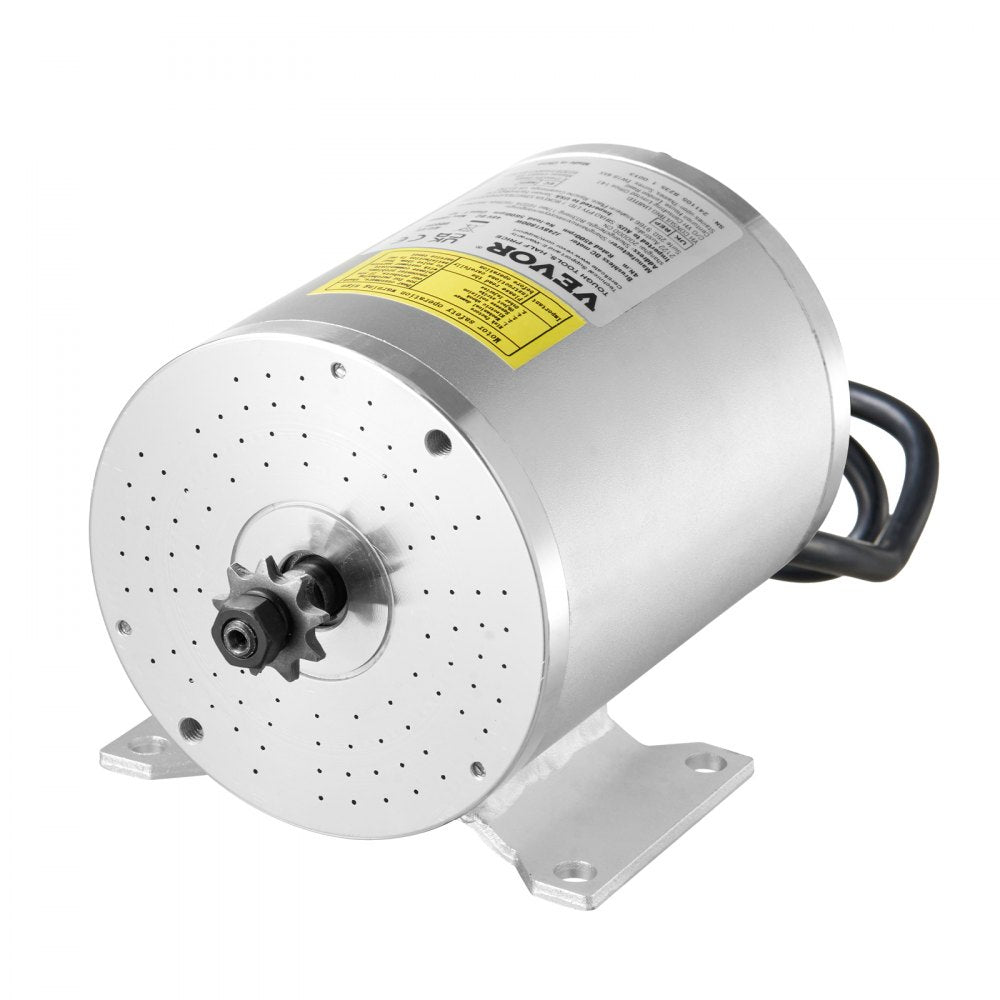

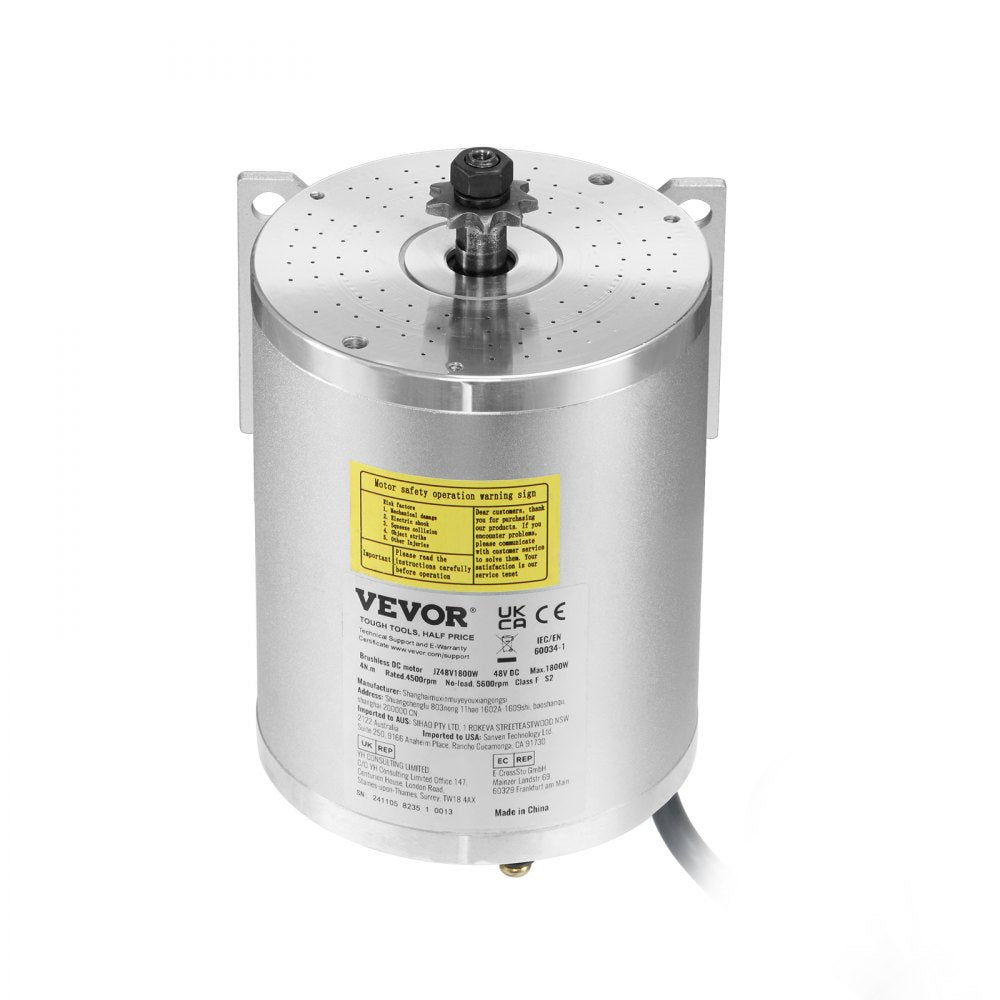

Vevor Brushless DC Motor Kit 1800W 48V 4500 RPM Electric Motor with Upgraded Controller New
Manufacturer: Vevor
SKU: ZLWSDJTJ18007TVWHV9
Pedals Options
with handle or not ? Options
With Power Adapter Options
QTY
(888) 999-1522
C
$175.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
$57.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$86.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$129.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Brushless DC Motor Kit 48V 2000W 4300 RPM with Speed Controller and Throttle Grip New
-
Vevor Motor Kit 2000W 48V 4300 RPM Brushless DC Electric Motor with Speed Controller and Throttle...
-
Vevor Brushless DC Motor Kit 2000W 48V 4300 RPM with Upgraded Speed Controller New
-
Vevor Brushless DC Motor Kit 48V 1800W 4500 RPM with Controller and Foot Pedal Throttle New
-
Vevor Electric Bike Motor Kit 450W 36V 3000 RPM with Upgraded Speed Controller and Thumb Throttle...
-
Vevor Electric Bike Conversion Kit 26" Front Wheel Hub Motor 48V 1000W 420 RPM New
-
Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
-
Vevor Brushed DC Motor Kit 24V 250W 2700 RPM with Speed Controller New
-
Vevor Brushed DC Motor Kit 450W 36V 3000 RPM with Controller and Twist Throttle New
-
Vevor Reverse Gearbox Go Kart Forward Reverse Gear Box New
-
Vevor Brushless DC Motor 3000W 72V 4900 RPM Electric Bike Dirt Bike DIY New
-
Vevor Electric Motor 0.5 HP 1725 RPM Air Compressor Single-Phase TEFC 56 Frame New
-
Vevor Electric Motor 5 HP 1725 RPM Air Compressor Single-Phase ODP 230V 184T New
-
Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New
-
Vevor Electric Motor 1 HP 1725 RPM Air Compressor New
-
Vevor Electric Brushless DC Motor Kit 48V 1800W 4500 RPM with Upgraded Speed Controller New
-
Vevor Electric Scooter Battery 48V 10Ah Lithium Battery Pack with 30A BMS New
-
Vevor Lithium Battery Pack 48V 20Ah 30A BMS 4800W for Electric Scooters eBikes New
-
Vevor Electric Scooter/Bike Battery 72V 20Ah Lithium with 50A BMS for 7200W Motors New
-
Vevor Electric Scooter Battery 24V 8Ah Lithium Battery Pack New
Vevor Brushless DC Motor Kit 1800W 48V 4500 RPM Electric Motor with Upgraded Controller New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: Our brushless DC motor delivers 1800W of output power and operates efficiently with ≥85% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 36.7 MPH at rated speed, and a no-load speed of 46 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 4N·m ensures reliable performance even on steep inclines and rough terrains. (This motor adopts intelligent soft-start technology, ensuring a smooth and safe startup process that maximally protects both the motor and the rider's safety, without compromising the stability or power output during actual riding.)

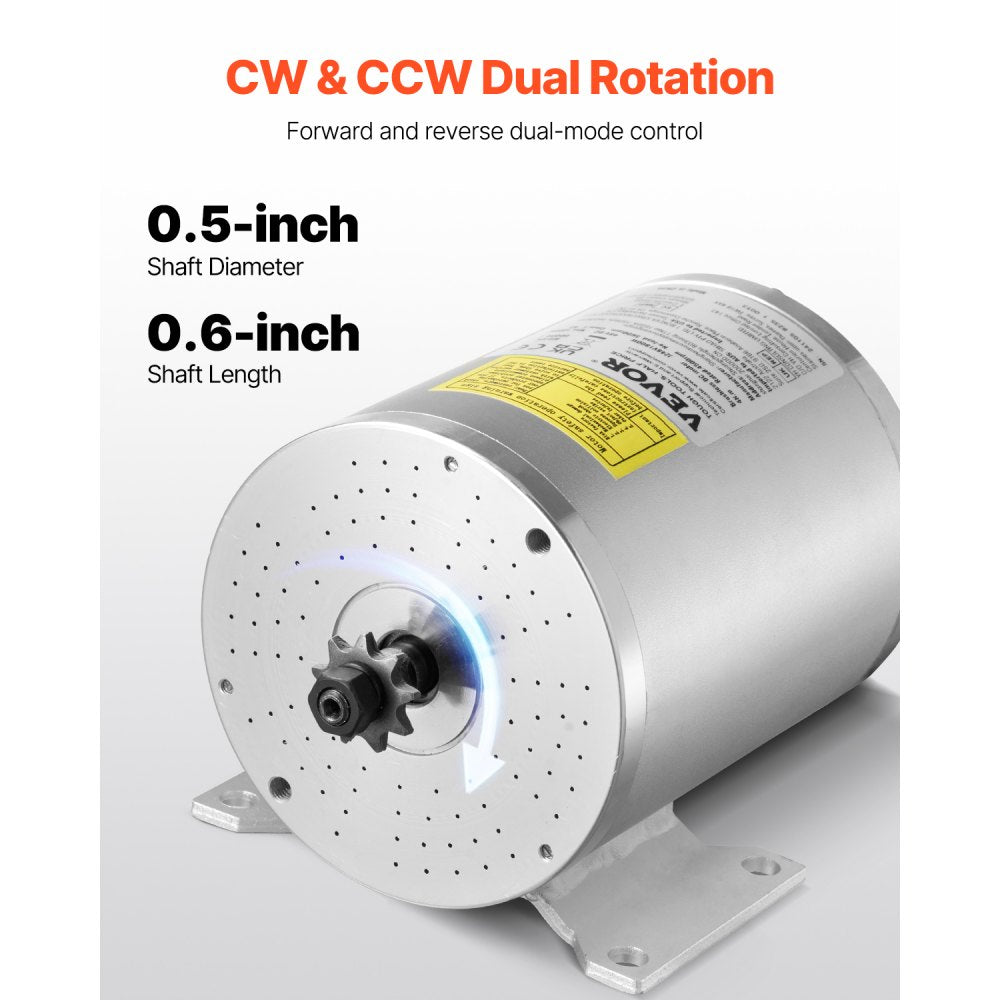

- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. It also features CW & CCW dual-direction control, enabling easy switching between forward and reverse for added versatility in tight spaces.

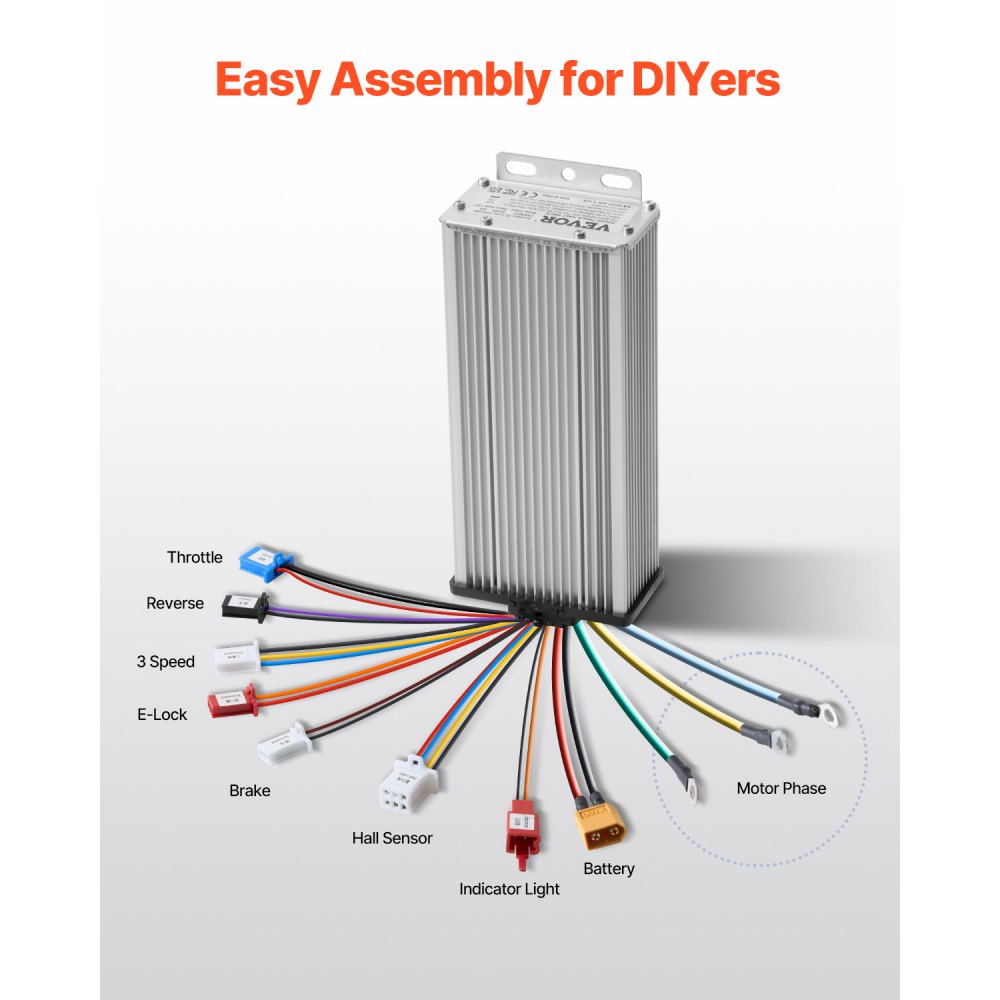

- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control, braking, reverse, and slow start for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.
- Easy DIY Installation: Package includes: 1 x 48V 1800W Brushless Motor, 1 x Motor Controller, 1 x Twistgrip Throttle, 1 x Set of Assembly Hardware, and 1 x User Manual. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

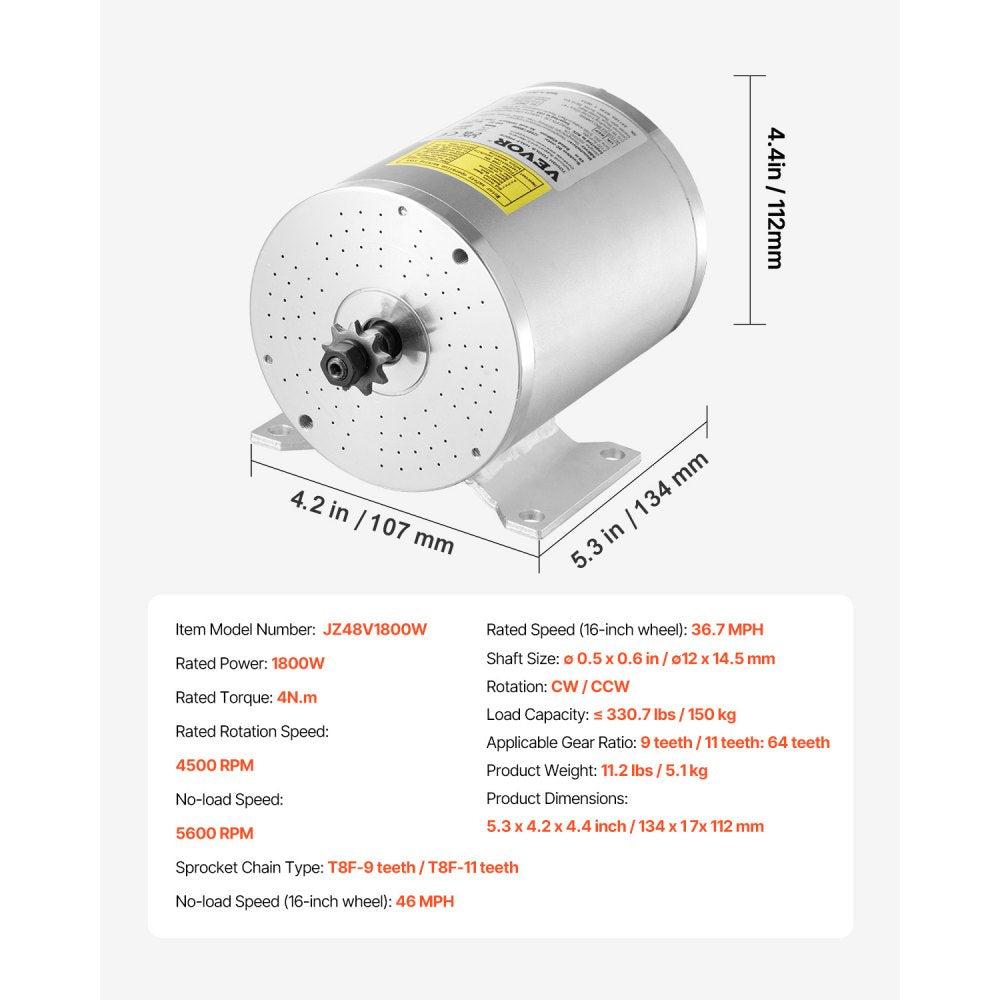

Specifications
| Item Model Number | JZ48V1800W |
| Rated Power | 1800W |
| Voltage | 48V |
| Rated Torque | 4 N·m |
| Rated Rotation Speed | 4500 RPM |
| No-load Rotation Speed | 5600 RPM |
| Rotation | CW/CCW |
| Load Capacity | ≤ 330.7 lbs / 150 kg |
| Noise | 70 dB |
| Applicable Gear Ratio | 9 teeth / 11 teeth |
| Product Weight | 11.2 lbs / 5.1 kg |
| Product Dimensions | 5.3 x 4.2 x 4.4" / 134 x 107 x 112 mm |
| Shaft Diameter | 12 mm |

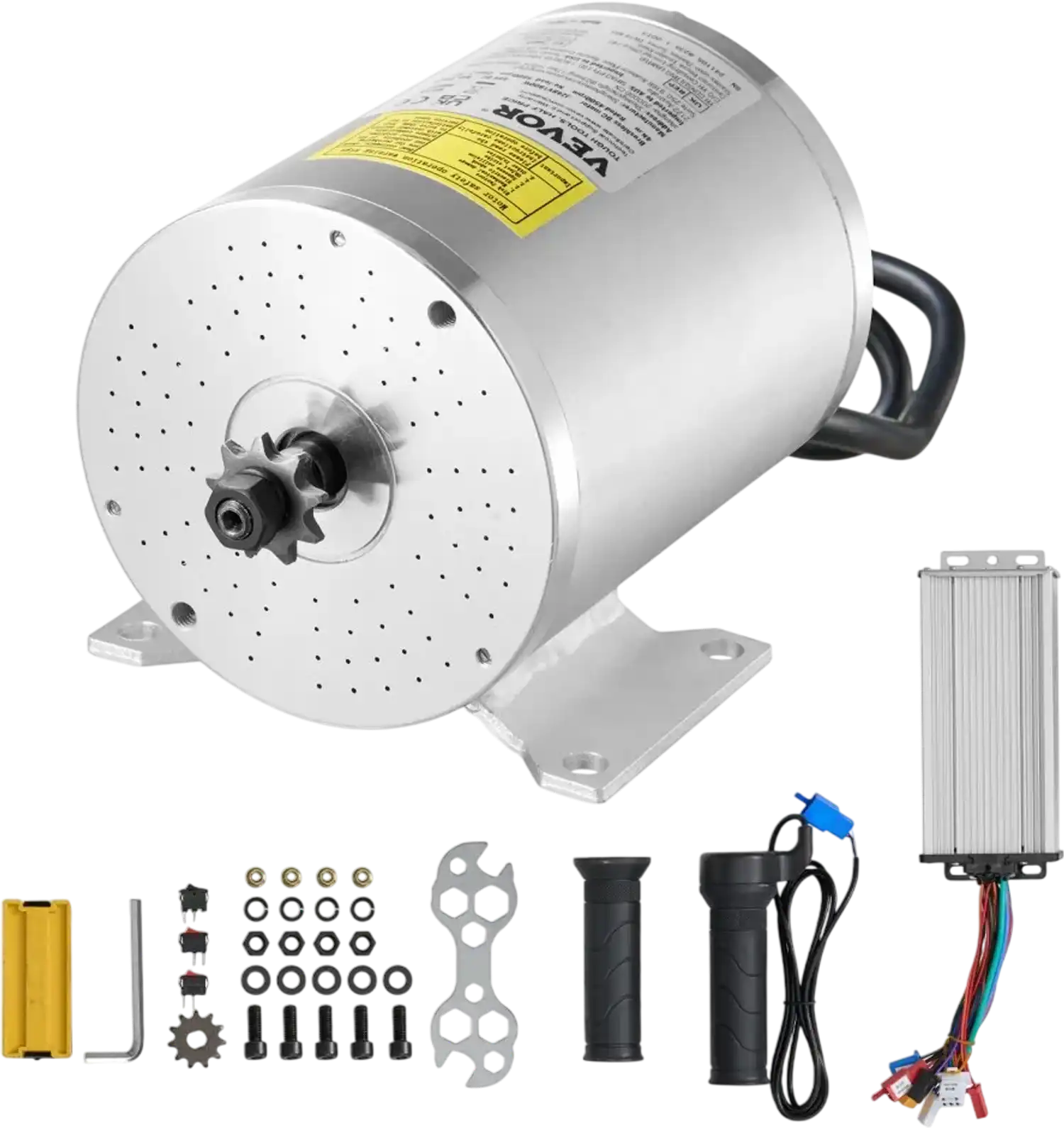

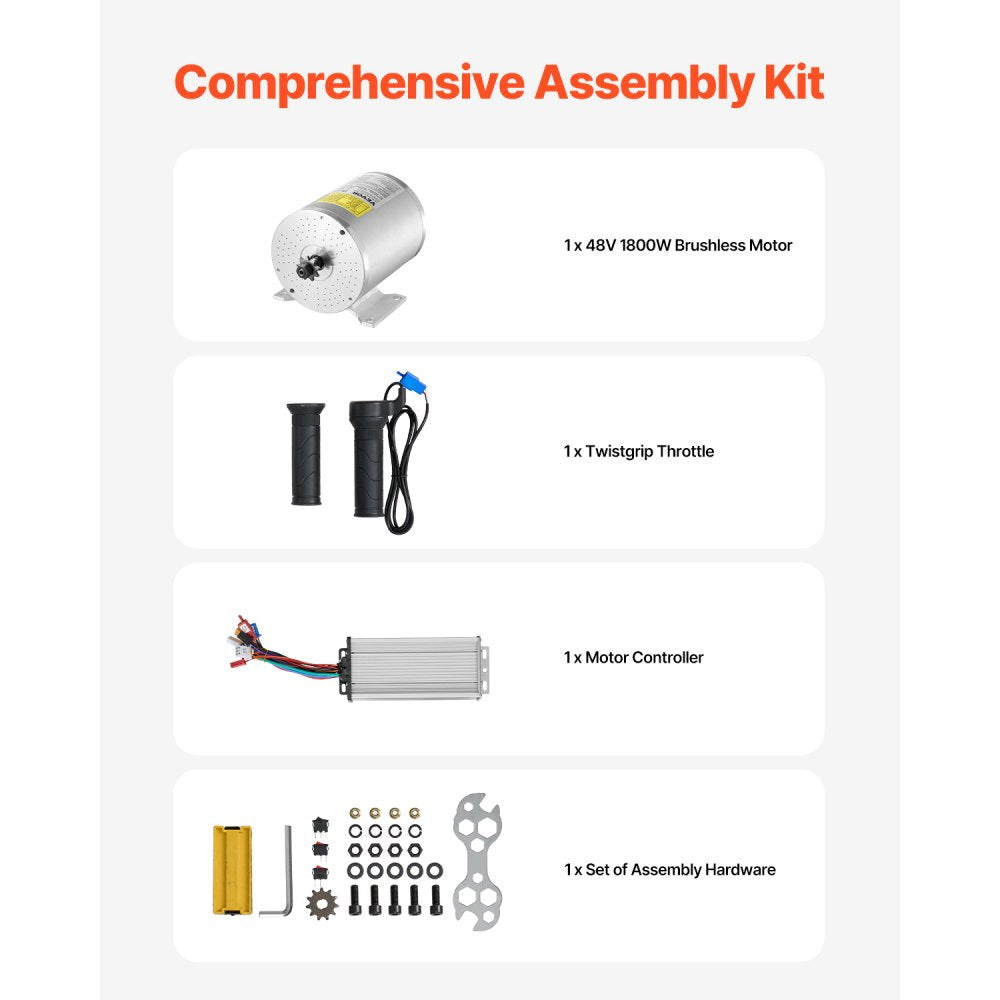

Package Contents
1 x 48V 1800W Brushless Motor
1 x Motor Controller
1 x Twistgrip Throttle
1 x Set of Assembly Hardware
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
