Product Overview

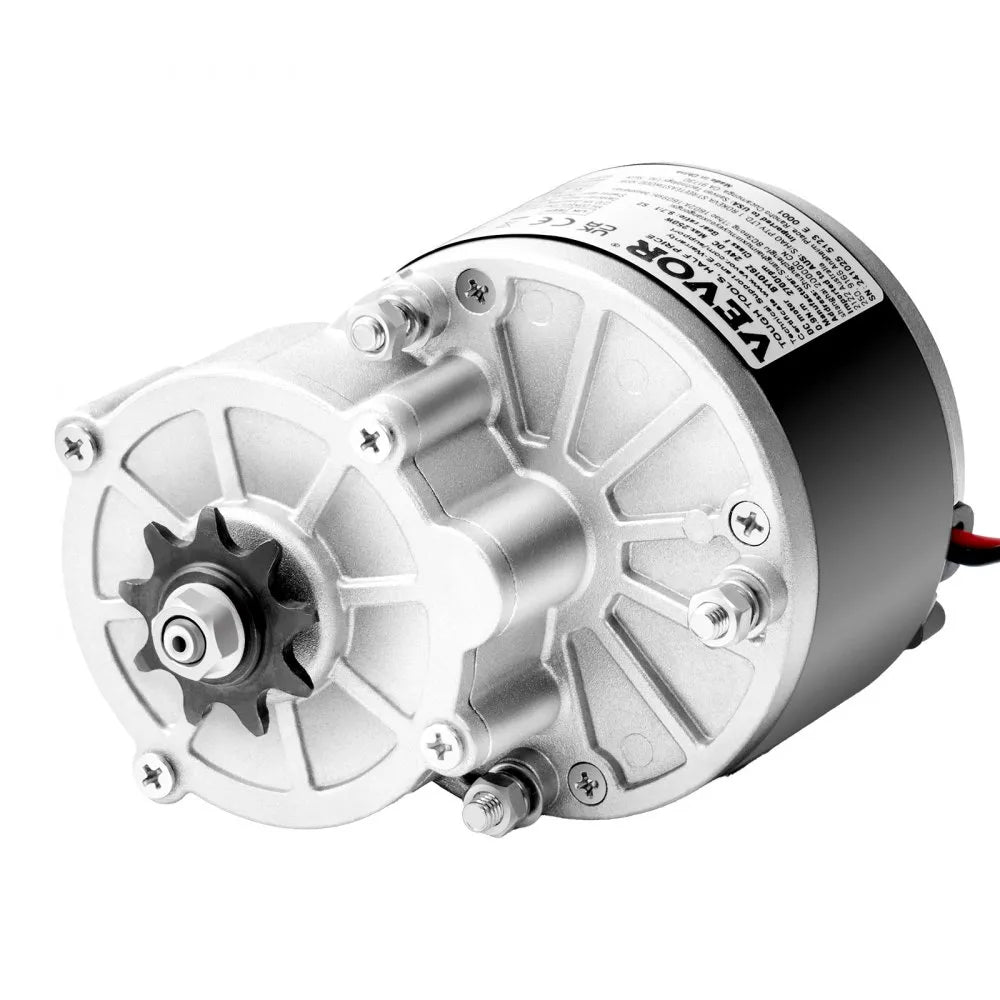

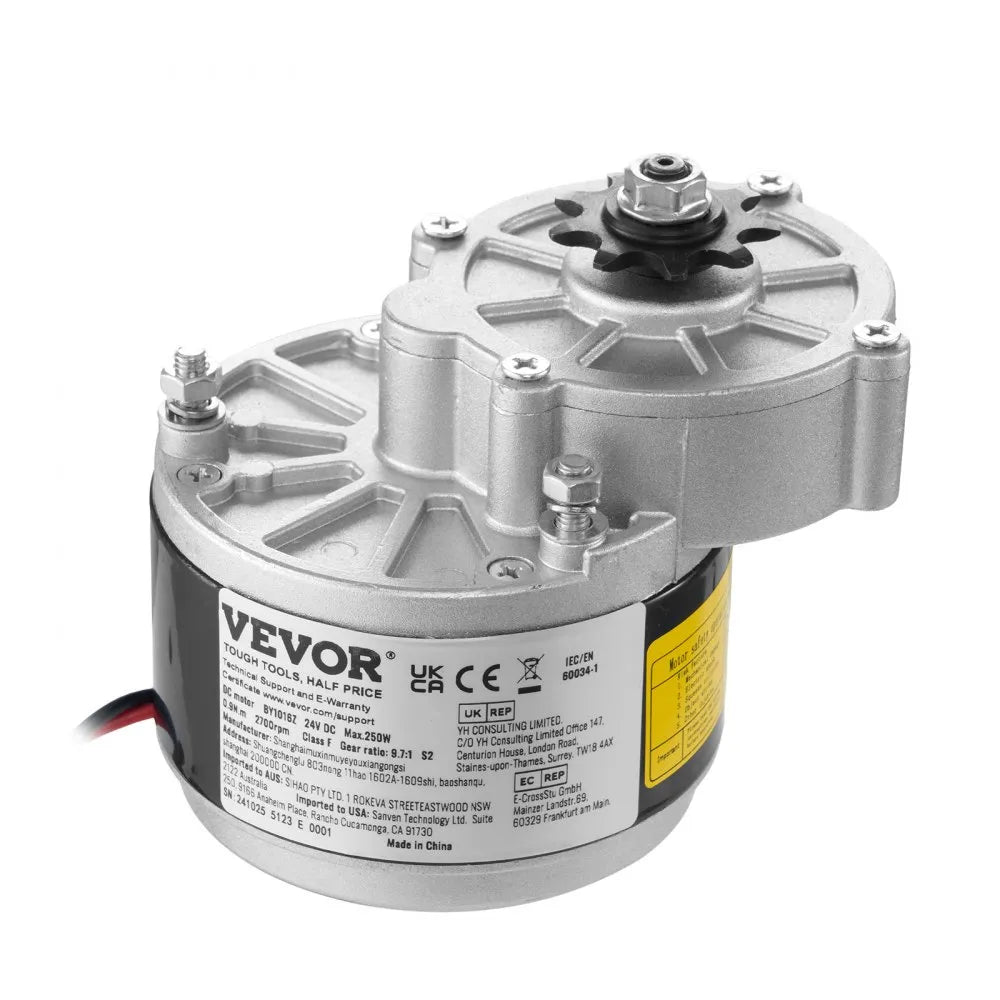

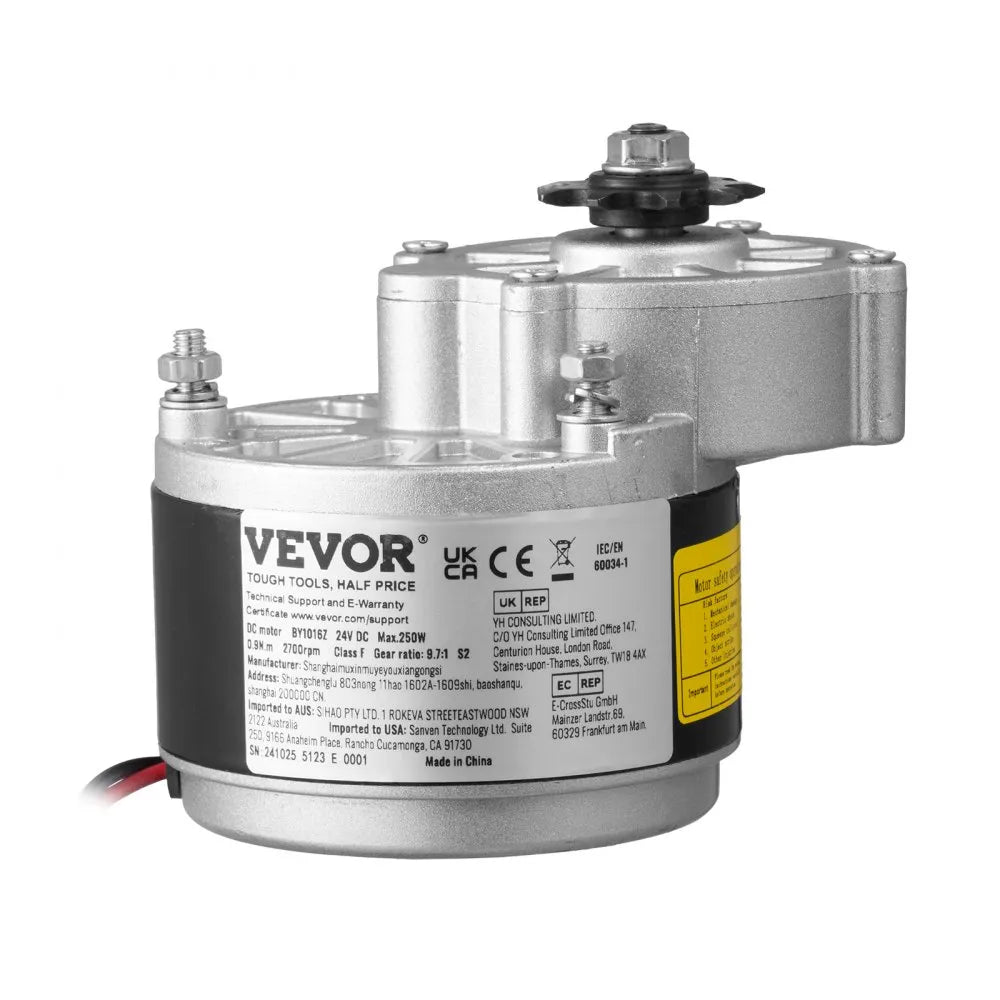

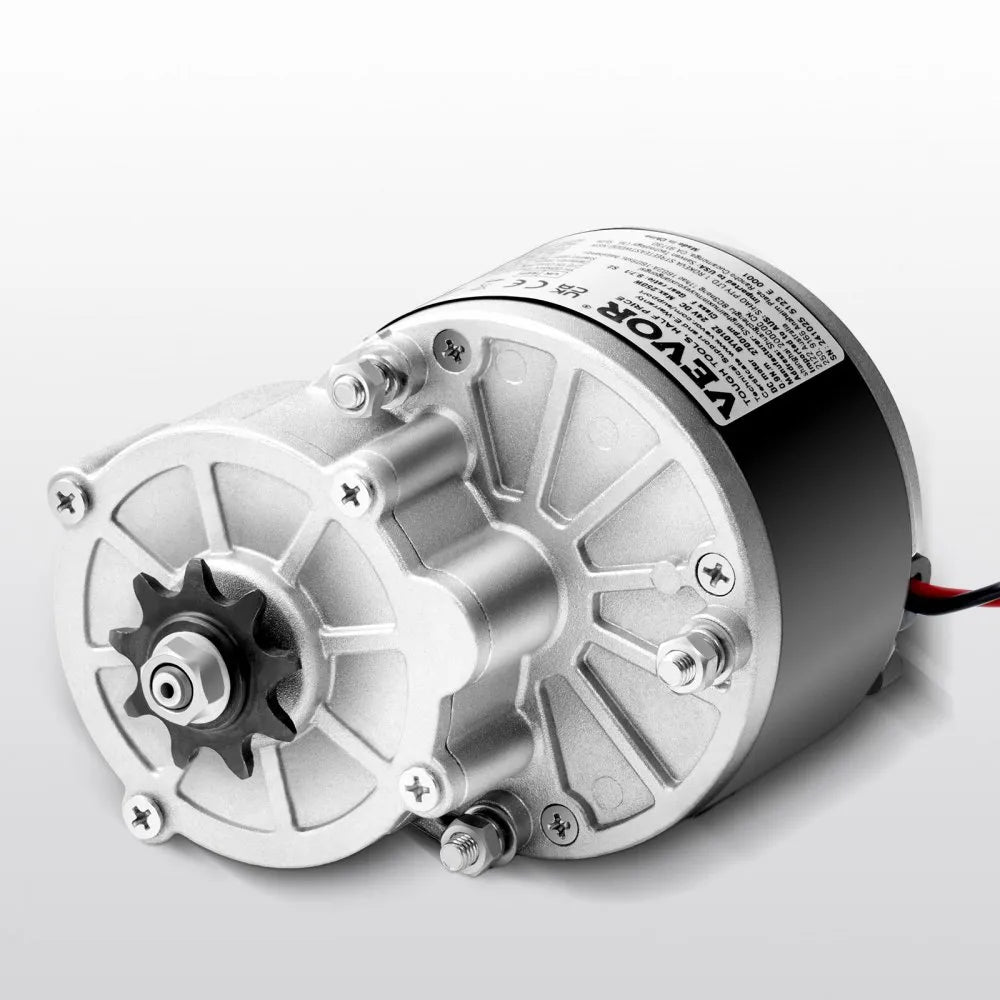

The Vevor brushed DC motor kit is a 24V, 250W power solution designed for electric bikes, scooters, go-karts, and other DIY electric vehicle projects. It features a brushed motor, upgraded speed controller, twist-grip throttle, and sprocket with flywheel for a complete installation setup. With rated speed of 2700 RPM, 0.9 N·m torque, and quiet 70 dB operation, it delivers dependable everyday performance. The copper core motor is built for stable operation in demanding conditions, while the controller adds speed control, braking, and multiple protection functions. This kit is a practical choice for custom builds and replacement motor applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: Our powerful brushed DC motor delivers 250W of output power and operates efficiently with ≥78% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 7.5 MPH at rated speed, and a no-load speed of 8.1 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 0.9N.m ensures reliable performance even on steep inclines and rough terrains.

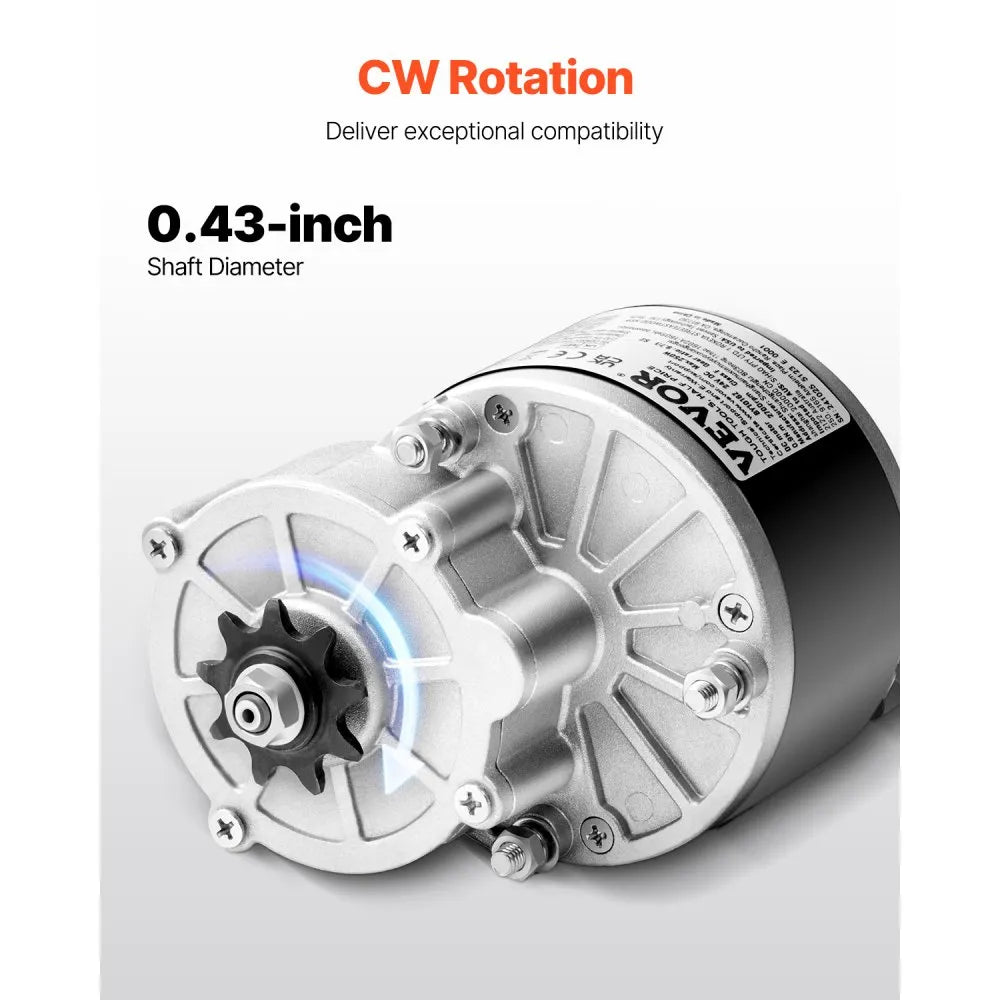

- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. Designed with CW rotation, it ensures smooth and efficient compatibility with a wide range of electric vehicles.

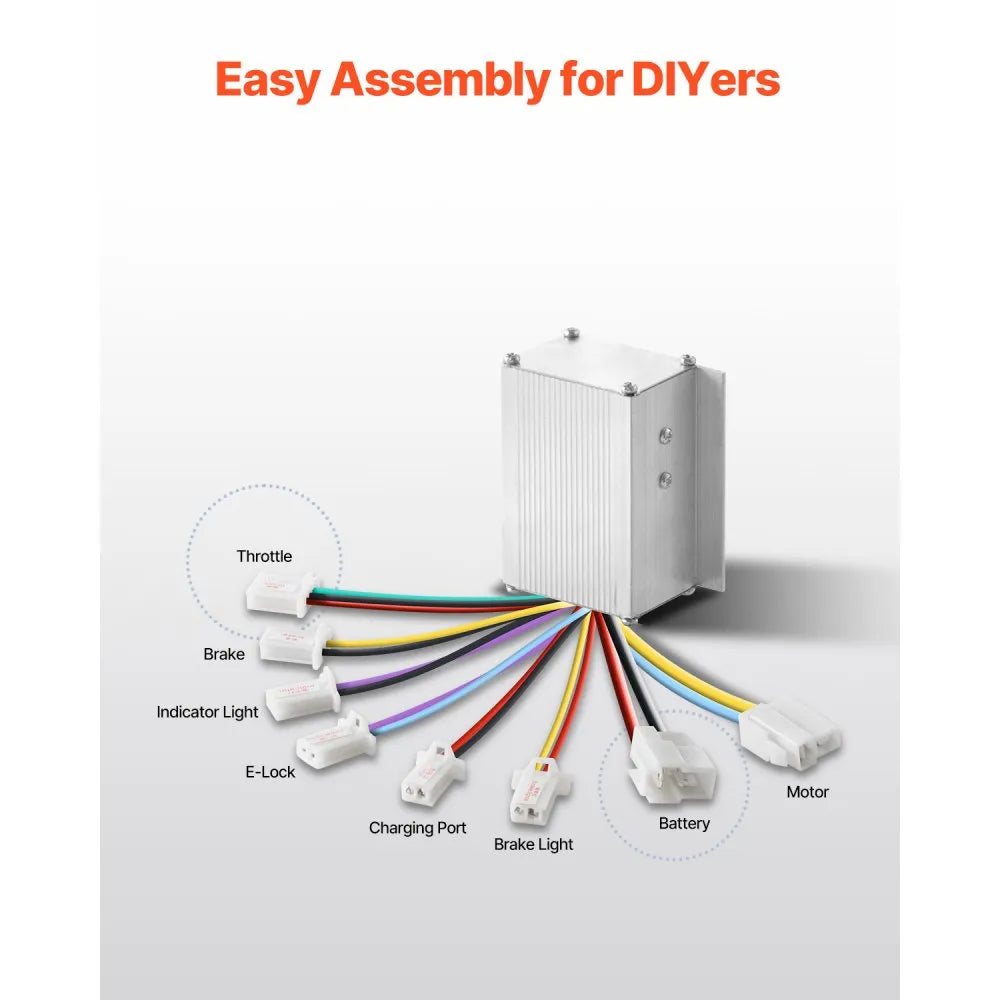

- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.
- Easy DIY Installation: Package includes: 1 x 24V 250W Powerful Brushed DC Motor, 1 x Motor Controller, 1 x Twistgrip Throttle, 1 x 410-16 Tooth Sprocket with Flywheel, and 1 x Set of Assembly Hardware. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

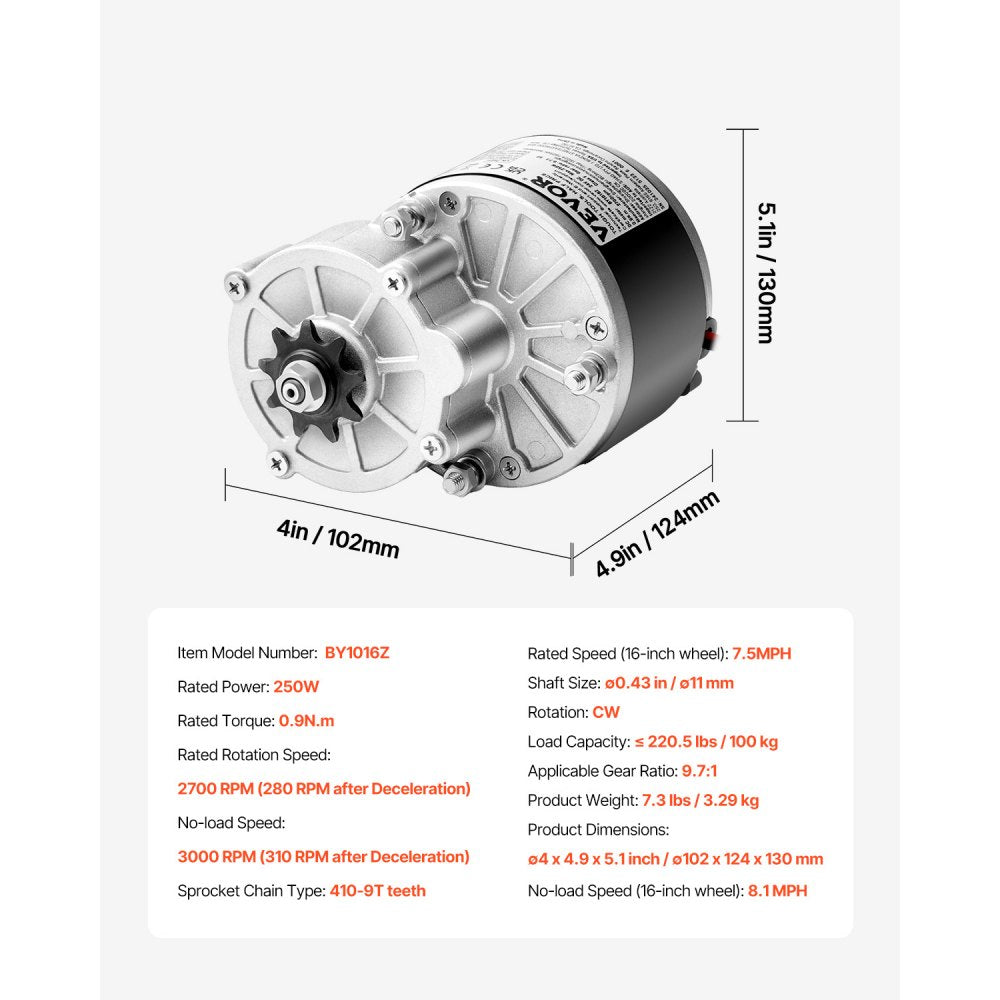

Specifications
| Item Model Number | BY1016Z |
| Rated Power | 250W |
| Rated Torque | 0.9 N·m |
| Rated Rotation Speed | 2700 RPM 280 RPM after deceleration |
| No-load Rotation Speed | 3000 RPM 310 RPM after deceleration |
| Rotation | CW |
| Load Capacity | 220.5 lbs |
| Noise | 70 dB |
| Applicable Gear Ratio | 9.7 |
| Product Weight | 7.3 lbs |
| Product Dimensions | 4.02 x 4.88 x 5.12 in |

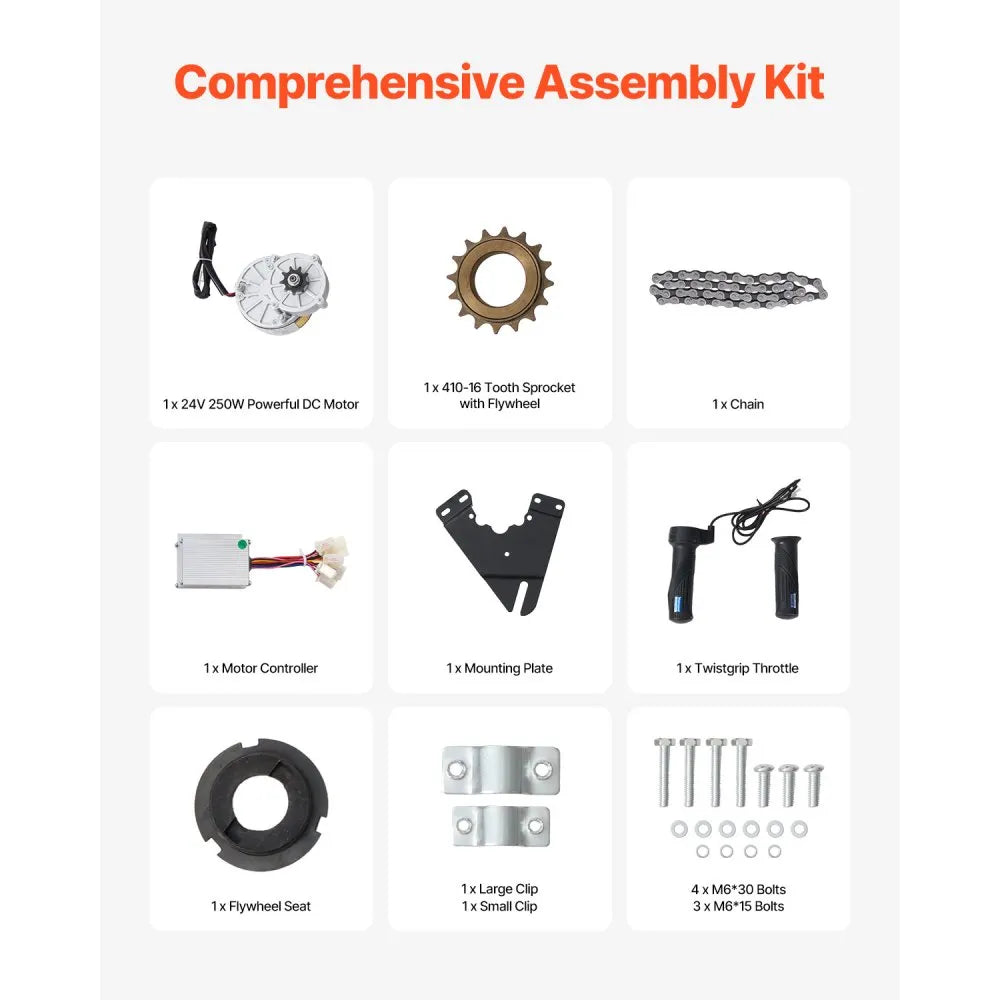

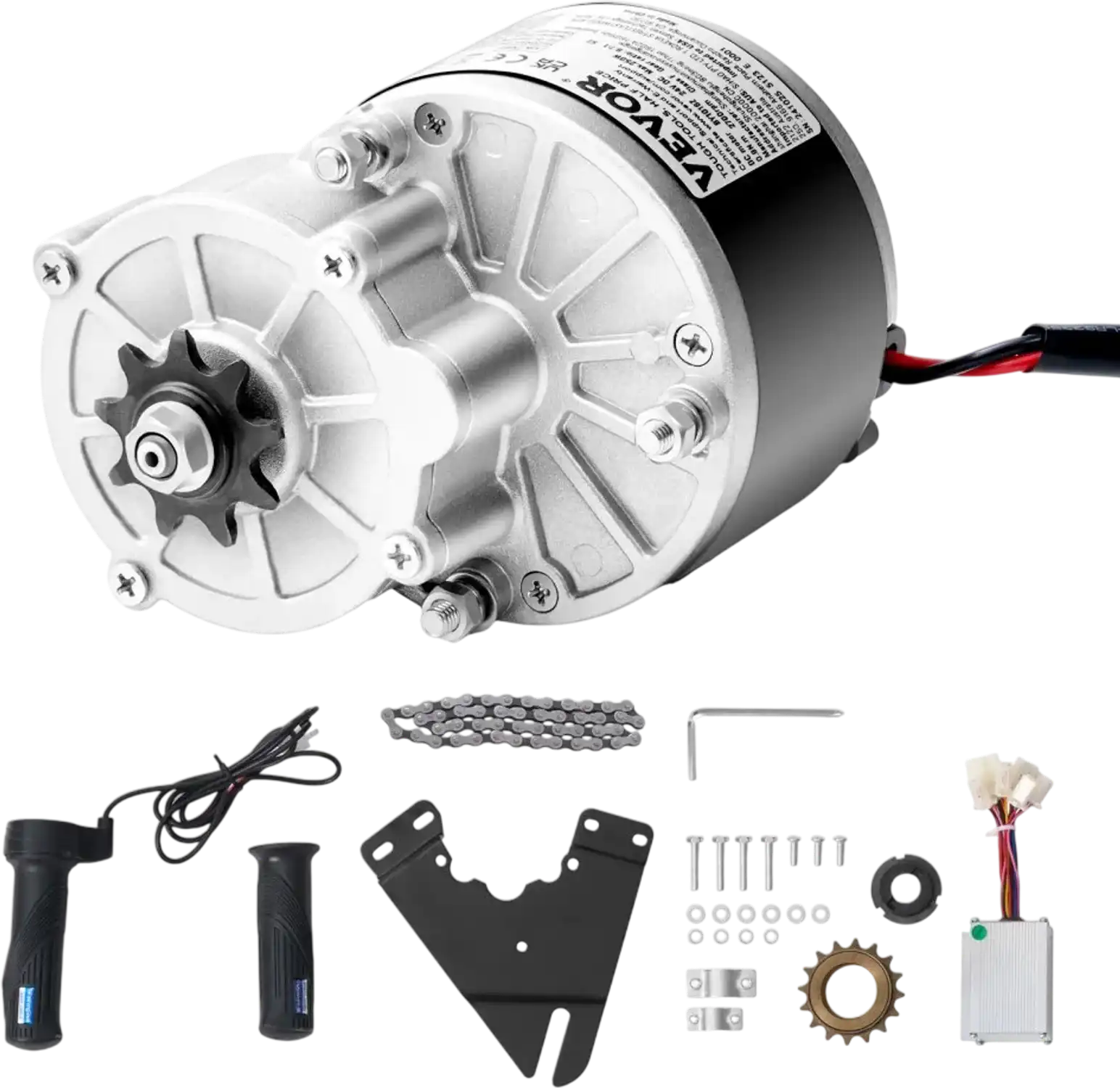

Package Contents
1 x 24V 250W Powerful Brushed DC Motor
1 x Motor Controller
1 x Twistgrip Throttle
1 x 410-16 Tooth Sprocket with Flywheel
1 x Set of Assembly Hardware
Warranty
This item comes with a 1 year factory warranty.
