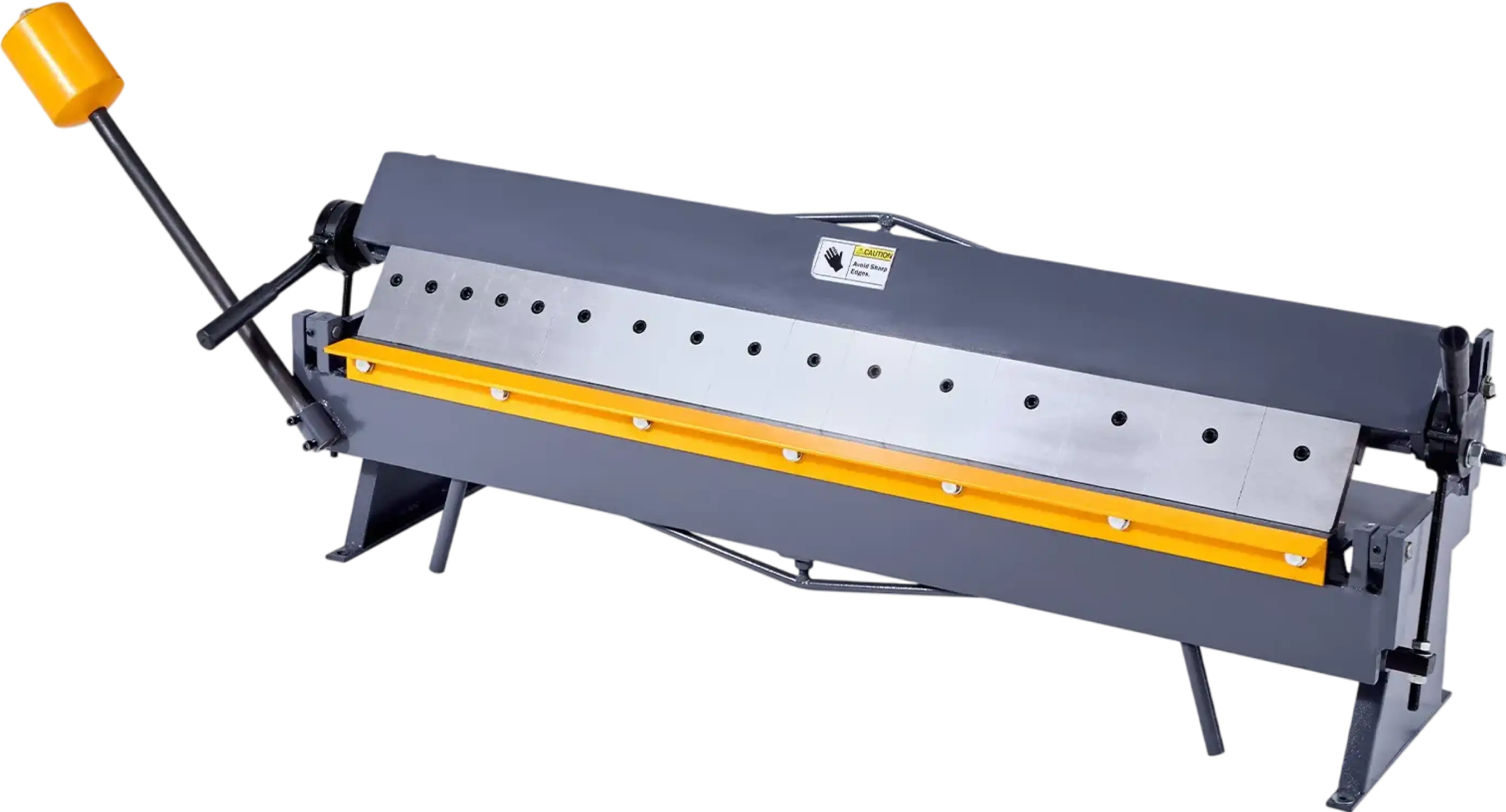

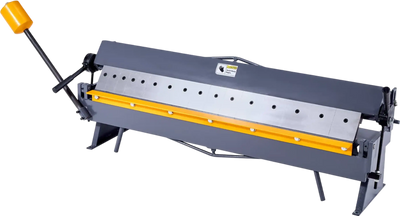

Vevor Box and Pan Brake 50" Sheet Metal Bender 16-Gauge Capacity with 16 Fingers 0-135° New
Product Overview
Bend metal like a pro with this 50-inch sheet metal brake. Ideal for workshops, the box and pan brake handles 16 gauge steel, supports multiple materials, and features modular fingers for complex bends. It includes 16 removable fingers in multiple sizes that can be freely arranged to avoid obstructions in the workpiece. This sheet bender is enhanced with a balancing weight to offset the force during clamping, minimizing deformation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

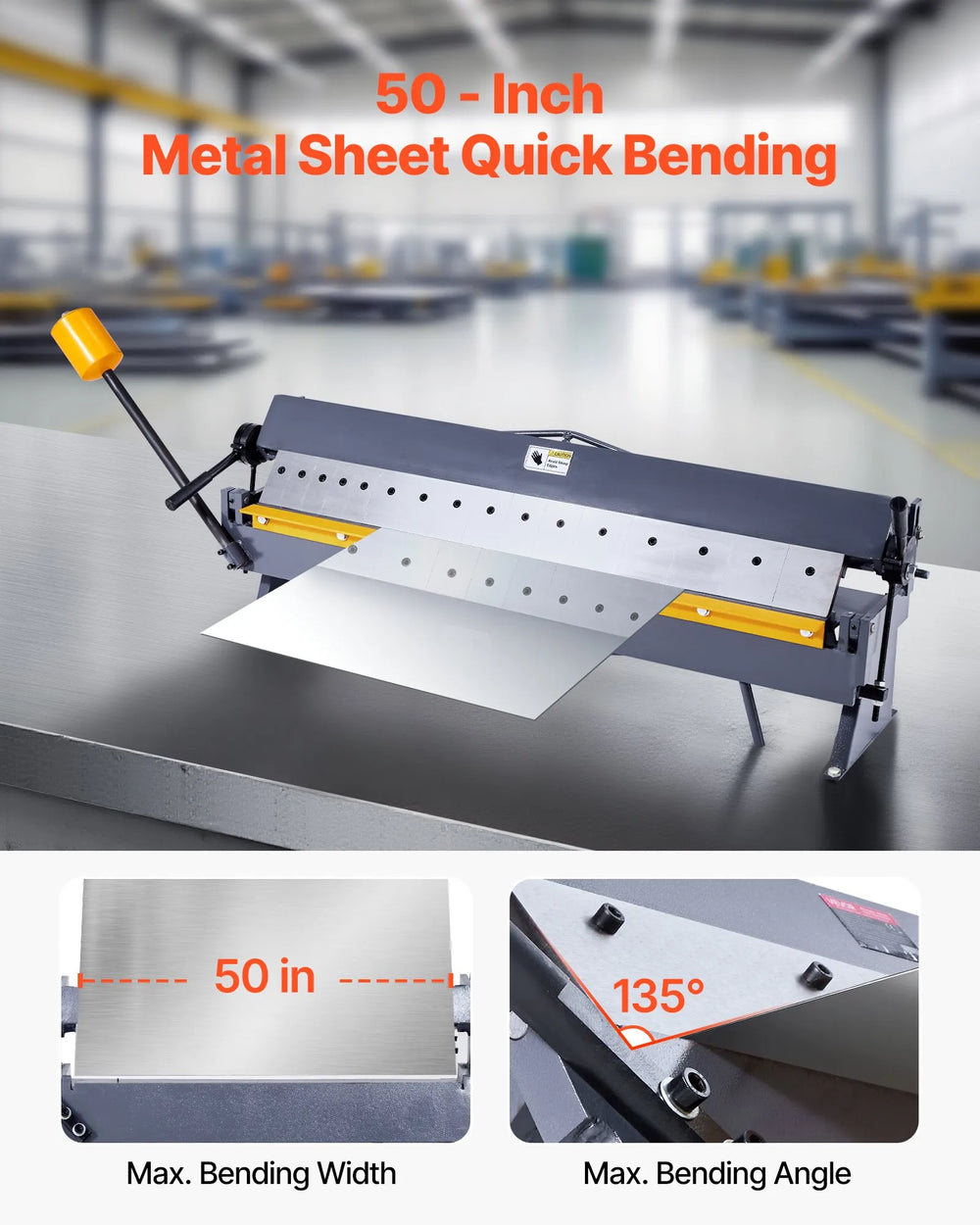

- 50-Inch Bending Capacity: This sheet metal brake is designed to bend metal sheets up to 50 in wide with bending angles ranging from 0° to 135°. Perfect for large custom fabrication projects.
- Versatile Material Compatibility: Our box and pan brake supports various materials such as mild steel, stainless steel, copper, and aluminum. Capable of bending 16 gauge (1.5 mm) mild steel sheets with ease.

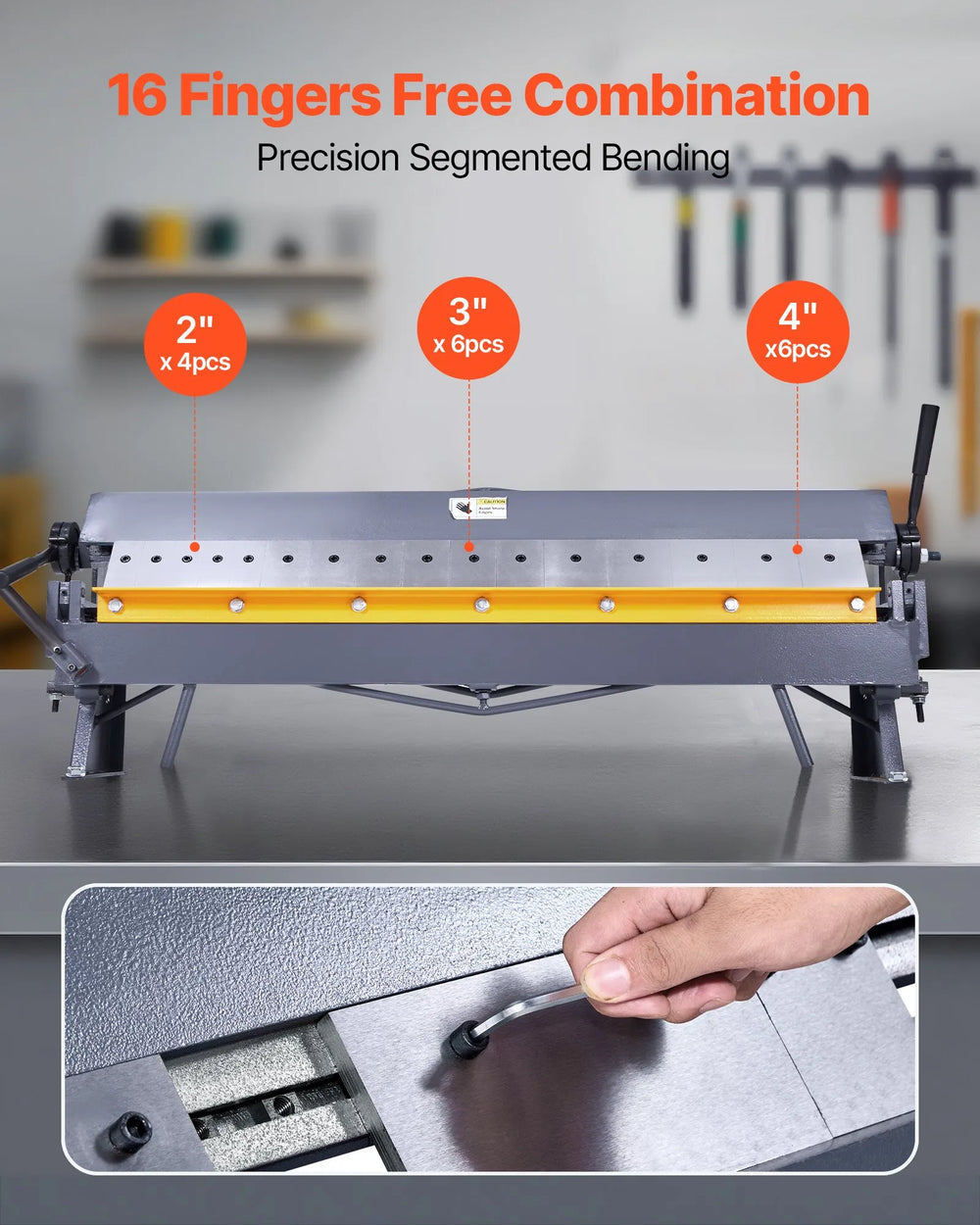

- Modular Bending Dies: Equipped with 16 segment fingers (2" x 4 pcs, 3" x 6 pcs, 4" x 6 pcs) that can be freely combined for segmented bending. The sheet metal bender is ideal for fabricating complex structures such as electrical enclosures, instrument housings, and ventilation ducts.

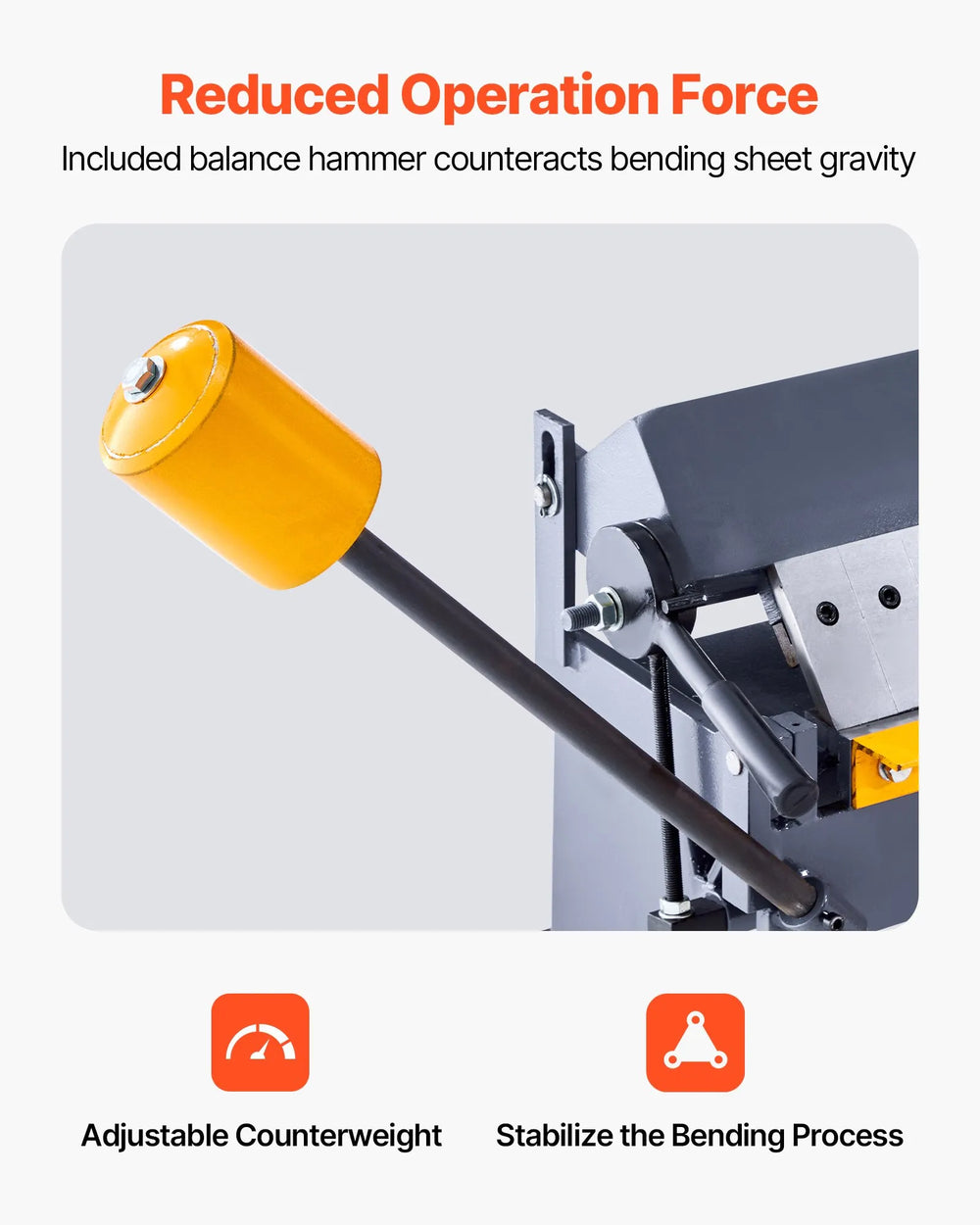

- Effortless and Stable Operation: The sheet metal bender features a single balancing hammer that ensures secure clamping, reducing the force required for bending and improving overall efficiency. Pre-drilled holes in the base allow for easy mounting on a workbench or floor to prevent shifting.
- Easy Operation: It is easy to operate the aluminum brake bender. Lift the clamping handle, place the sheet metal, and lower the handle to clamp it securely. Then, slowly raise the lever to the desired angle. Manual angle adjustment is required, and be aware that all metal bending experiences springback (e.g., for a 90° bend, set the angle to 92°).
Specifications
| Item Model Number | W1.5×1270Z |
| Auxiliary Bending Method | Single Balance Hammer |
| Max. Bending Width | 50 in (1270 mm) |
| Max. Bending Thickness | 16 Ga (1.5 mm) Low Carbon Steel |
| Max. Bending Angle | 135° |
| Mounting Type | Desktop-Mounted, Manual Flanging |
| Press Plate Mechanism | Manual |
| Segments | 16 (2" x 4pcs, 3" x 6pcs, 4" x 6pcs) |
| Material | Low Carbon Steel |
| Weight | 432.1 lbs (196.0 kg) |
| Frame Dimensions | 61.9 x 15.7 x 18.9 in (1571 x 400 x 480 mm) |
| Product Dimensions (with Balance Hammer) | 61.9 x 15.7 x 21.3 in (1571 x 400 x 540 mm) |
Package Contents
Vevor Box and Pan Brake 50"
Balance Hammer
User Manual
Warranty
This item comes with a 1 year factory warranty.
