Product Overview
Bend metal like a pro with this 48-inch sheet metal brake. Ideal for workshops, the box and pan brake handles 16 gauge steel, supports multiple materials, and features modular fingers for complex bends. It includes 16 removable fingers in multiple sizes that can be freely arranged to avoid obstructions in the workpiece. This sheet bender is enhanced with a balancing weight to offset the force during clamping, minimizing deformation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

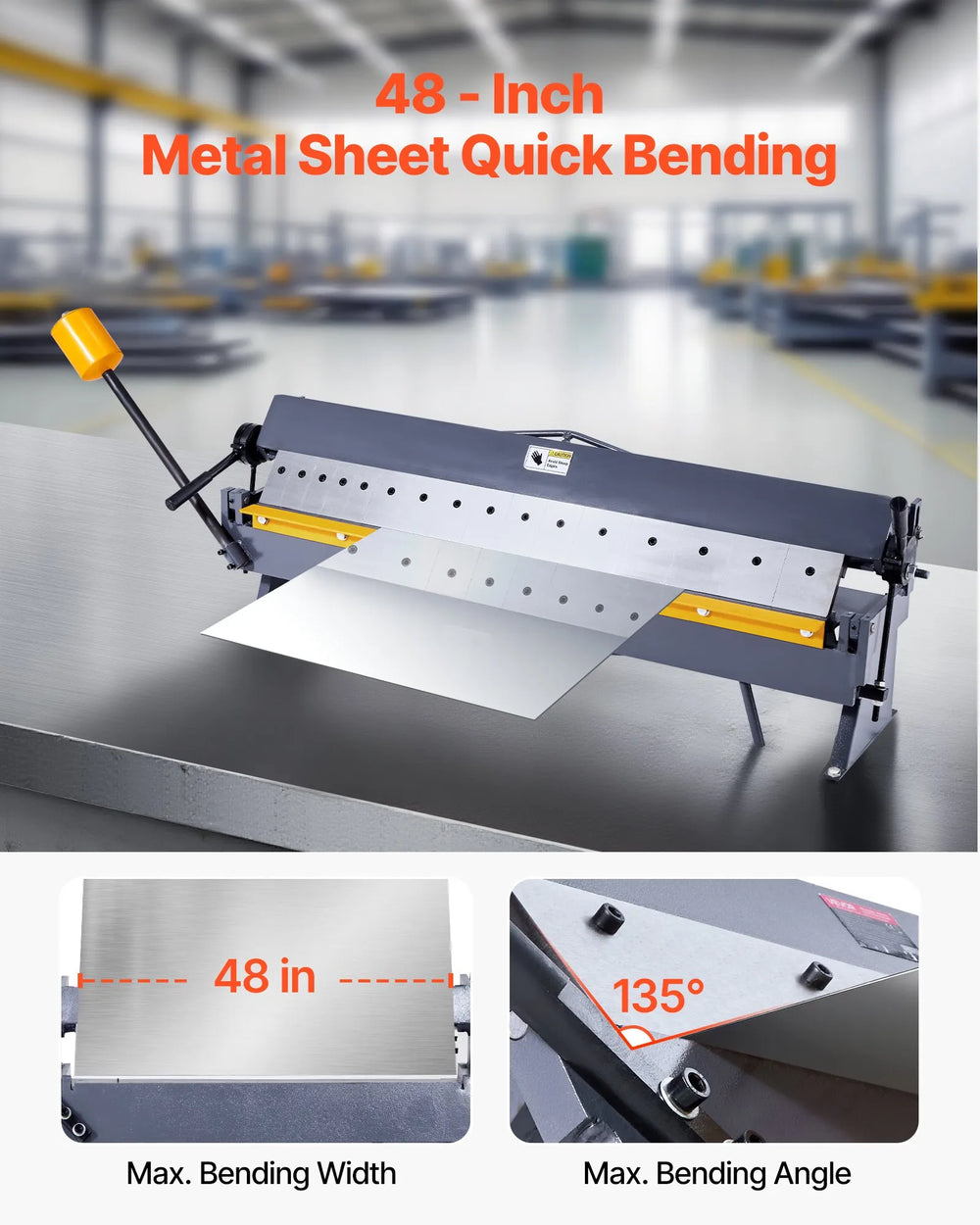

- 48-Inch Bending Capacity: This sheet metal brake can easily bend metal sheets up to 48 in wide with bending angles ranging from 0° to 135°, ideal for medium to large-scale workpieces in mid-sized sheet metal fabrication plants.
- Versatile Material Compatibility: Our box and pan brake supports a variety of materials, including mild steel, stainless steel, copper, and aluminum. It can efficiently bend 16 gauge (1.5 mm) mild steel sheets.

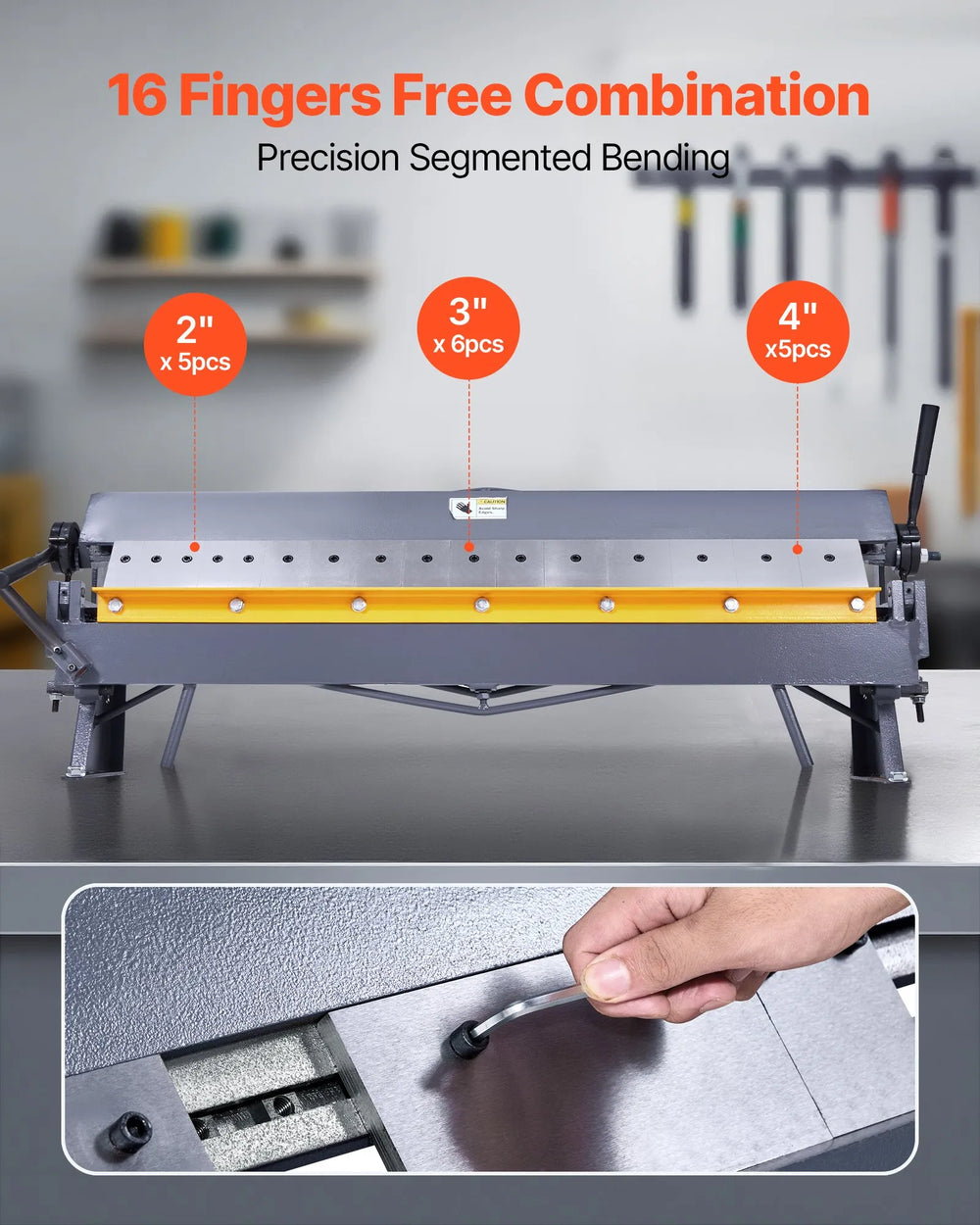

- Modular Bending Dies: Equipped with 16 segment fingers (2" x 5pcs, 3" x 6pcs, 4" x 5pcs), the sheet metal bender allows for customizable bending to handle complex projects like electrical enclosures, instrument housings, and ventilation ducts.

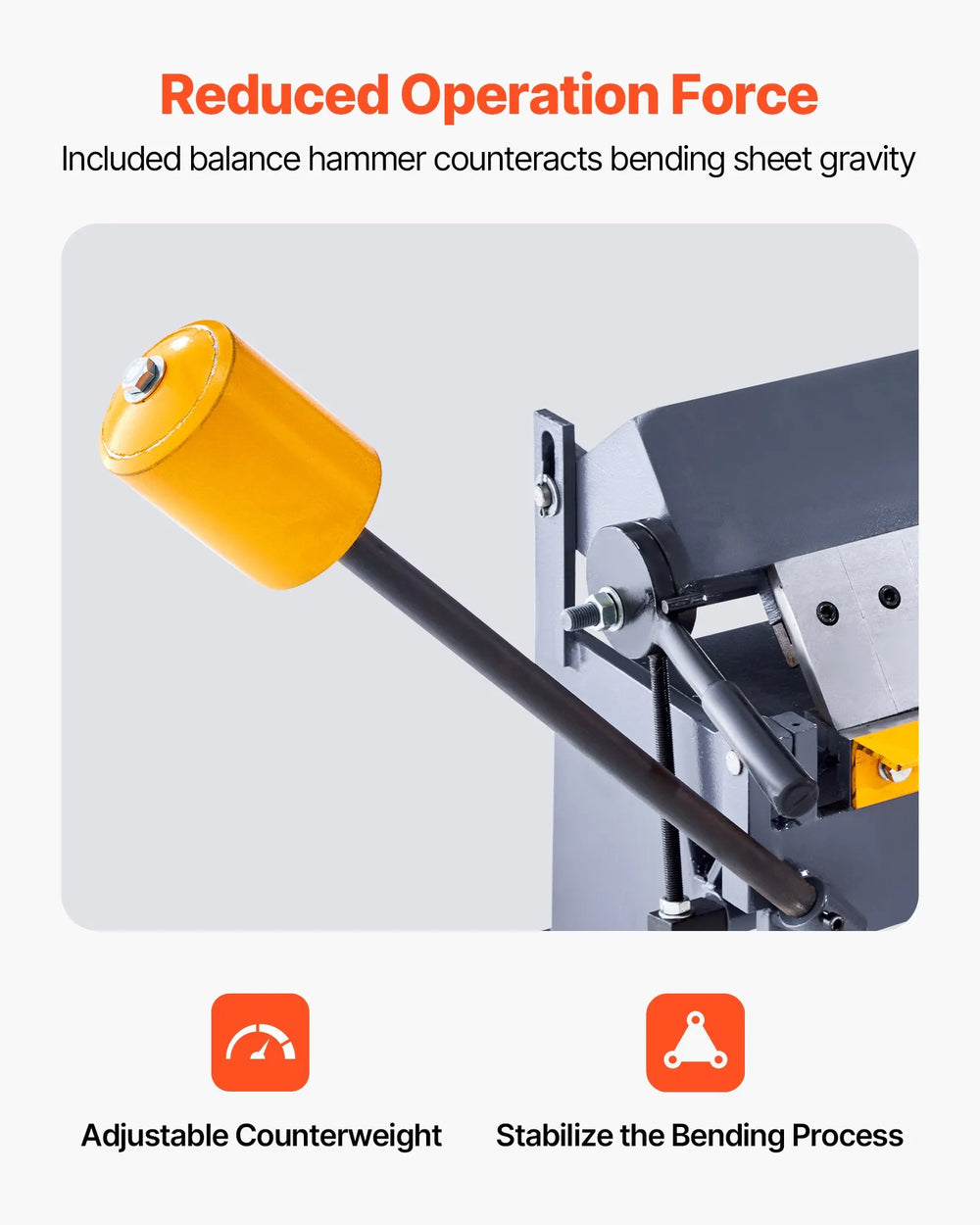

- Effortless and Stable Operation: The metal bending machine features a single balancing hammer for secure clamping, reducing the force needed for bending and improving work efficiency. The pre-drilled holes at the base allow for easy mounting on a workbench or floor.

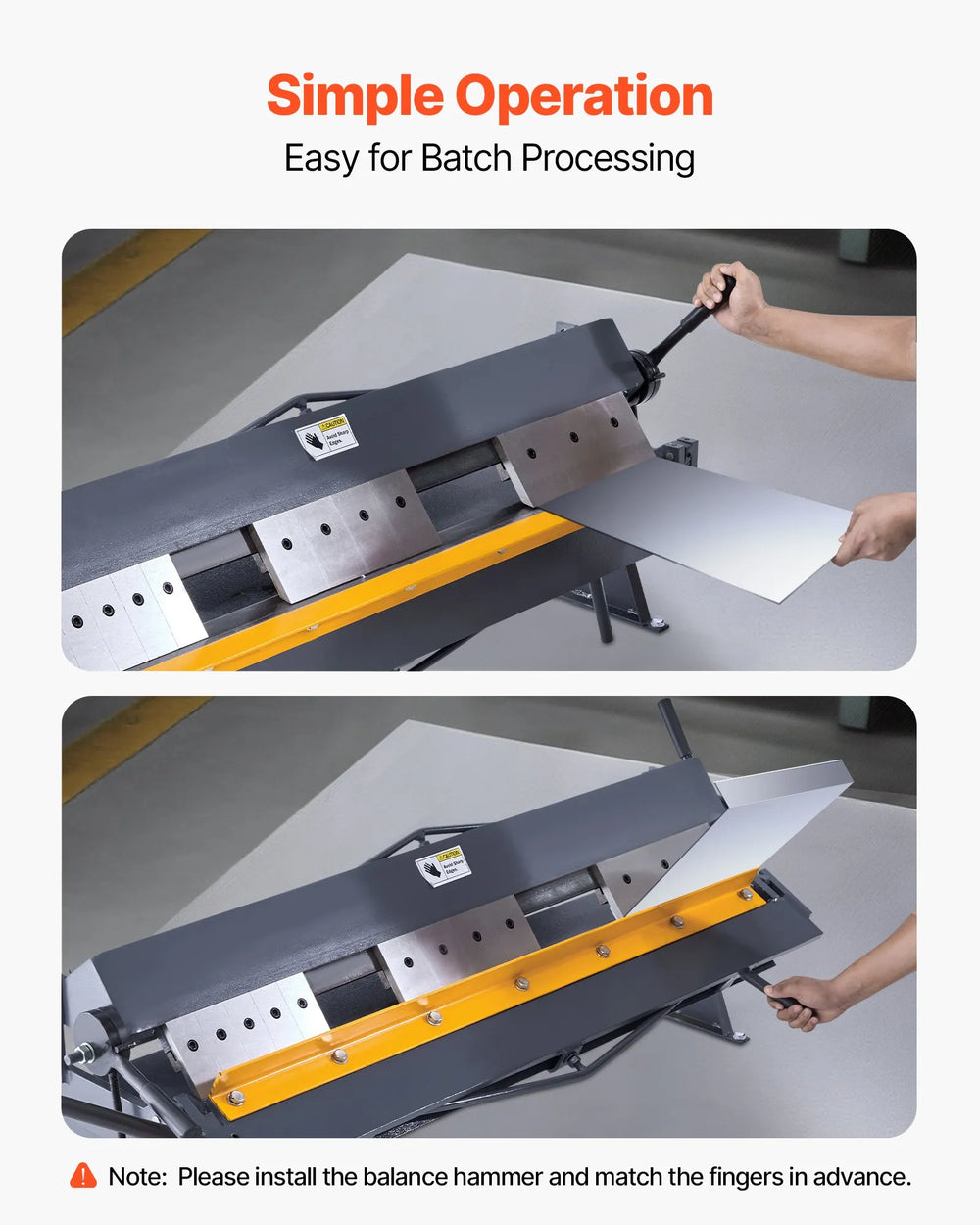

- Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).

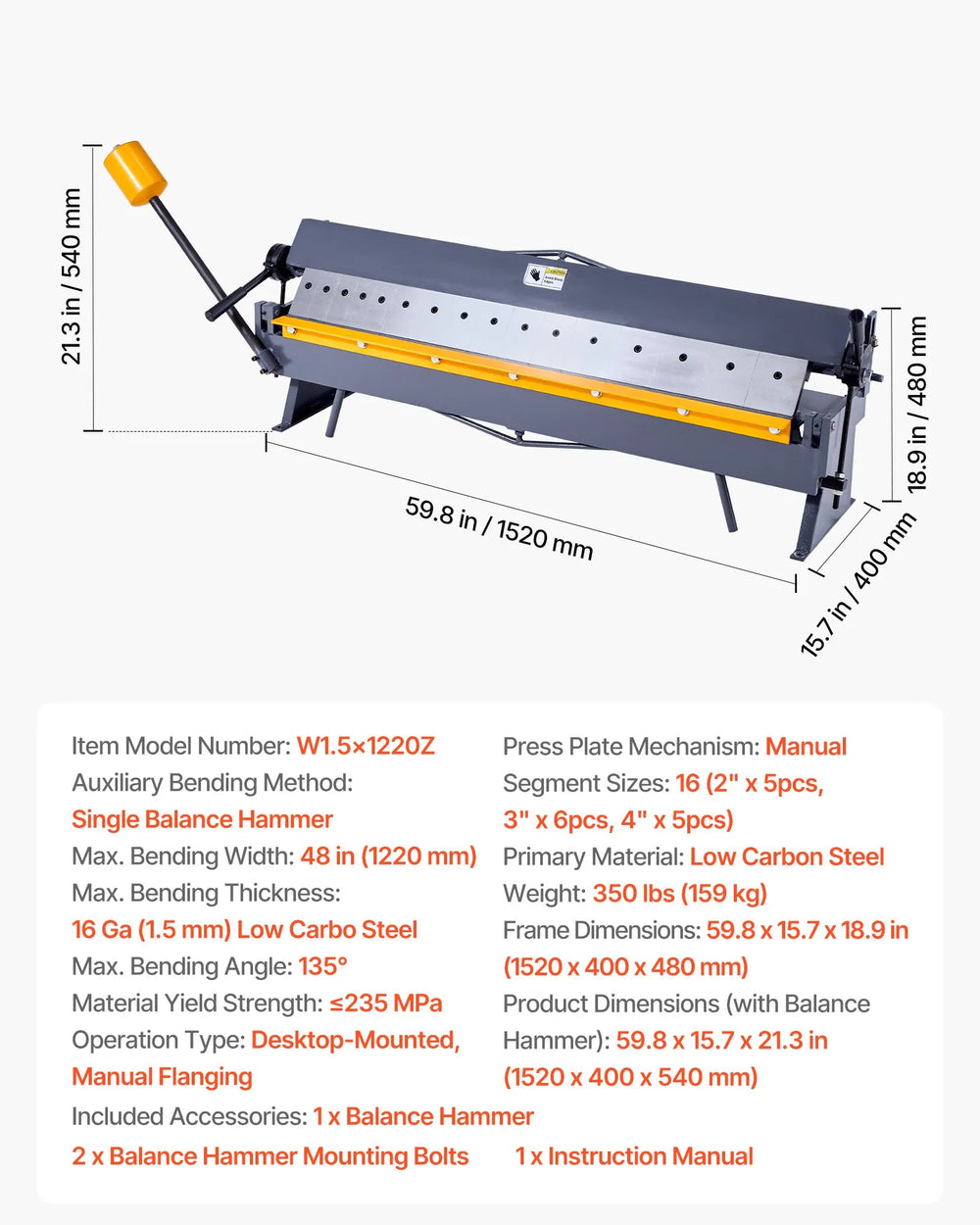

Specifications
| Item Model Number | W1.5×1220Z |
| Auxiliary Bending Method | Single Balance Hammer |
| Max. Bending Width | 48 in (1220 mm) |
| Max. Bending Thickness | 16 Ga (1.5 mm) Low Carbon Steel |
| Max. Bending Angle | 135° |
| Mounting Type | Desktop-Mounted, Manual Flanging |
| Press Plate Mechanism | Manual |
| Segments | 16 (2" x 5pcs, 3" x 6pcs, 4" x 5pcs) |
| Material | Low Carbon Steel |
| Weight | 350 lbs |
| Frame Dimensions | 59.8 x 15.7 x 18.9 in (1520 x 400 x 480 mm) |
| Product Dimensions (with Balance Hammer) | 59.8 x 15.7 x 21.3 in (1520 x 400 x 540 mm) |
Package Contents
Vevor Box and Pan Brake 48"
Balance Hammer
User Manual
Warranty
This item comes with a 1 year factory warranty.
