Vevor Box and Pan Brake 48" Sheet Metal Bender 12-Gauge Capacity with 8 Fingers 0-135° New
Product Overview

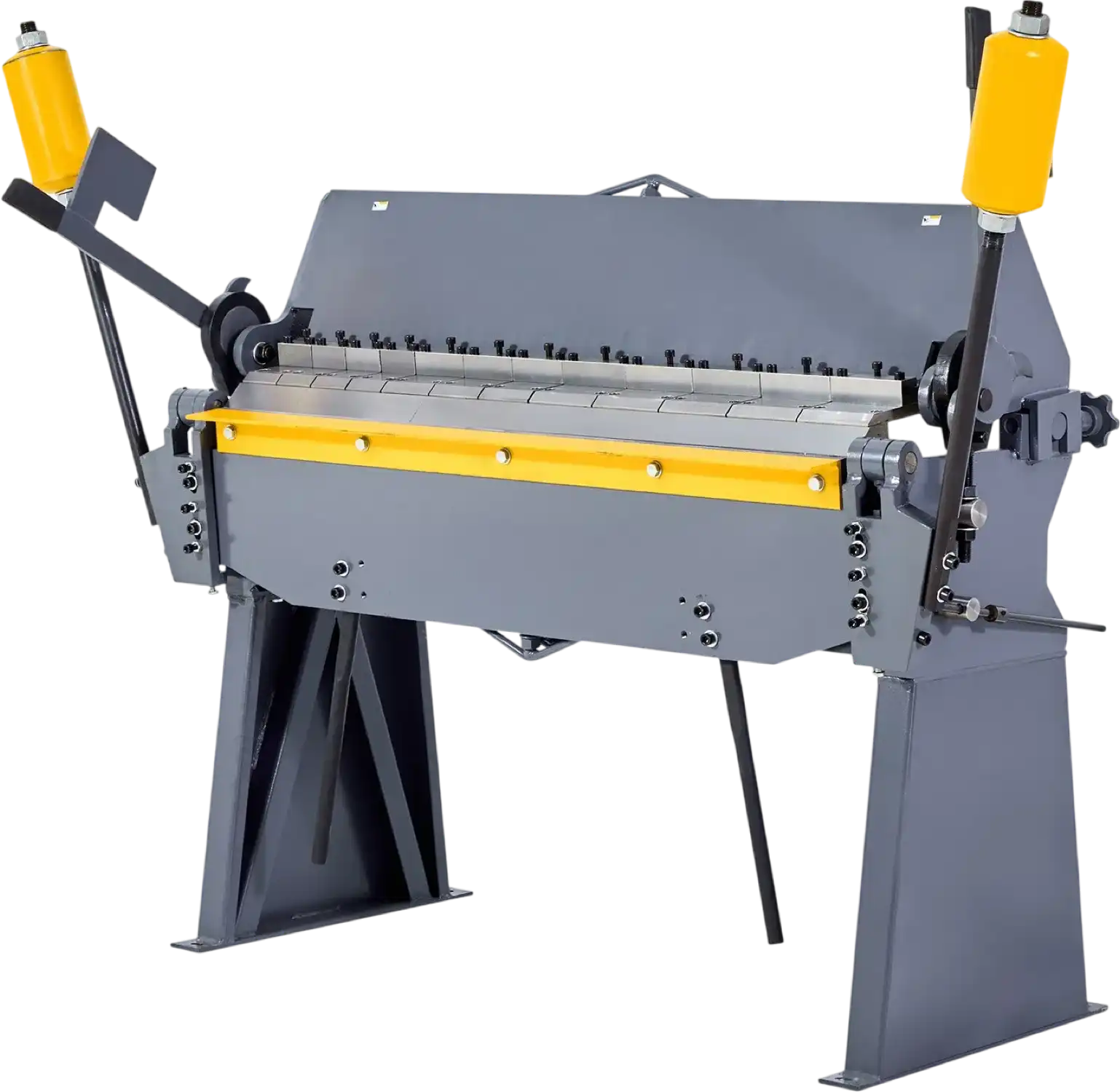

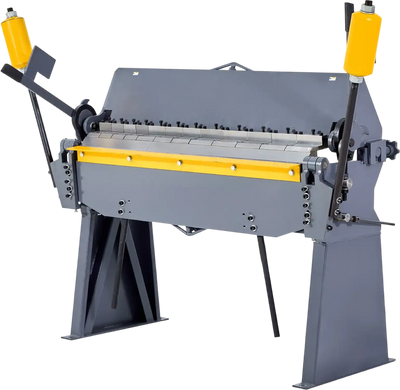

Bend metal like a pro with this 48-inch sheet metal brake. Ideal for workshops, the box and pan brake handles 12 gauge steel, supports multiple materials, and features modular fingers for complex bends. It includes 8 removable fingers in multiple sizes that can be freely arranged to avoid obstructions in the workpiece. This sheet bender is enhanced with a balancing weight to offset the force during clamping, minimizing deformation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

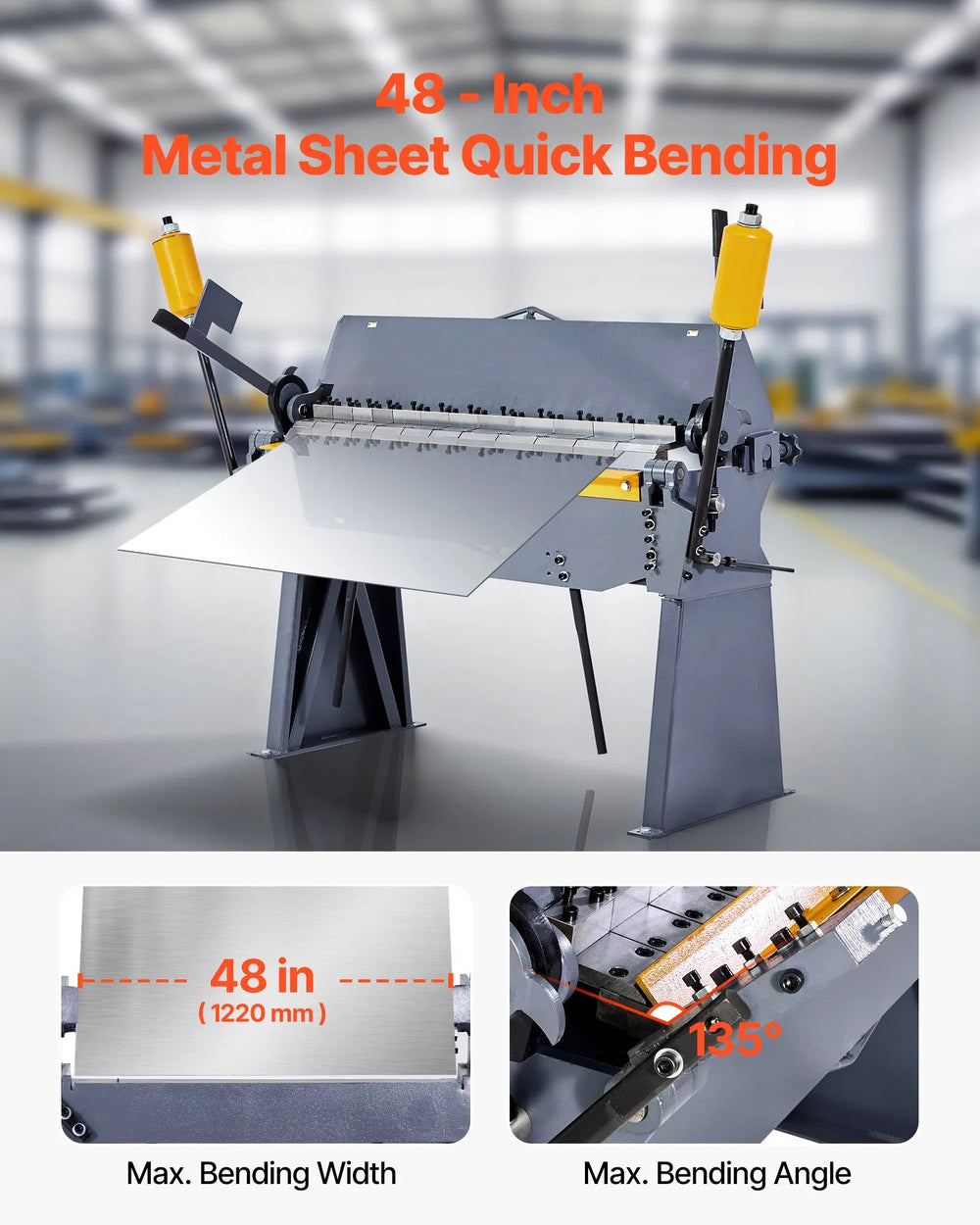

- 48-Inch Heavy-Duty Bending: This sheet metal brake handles metal sheets up to 48" wide with bending angles from 0° to 135°, making it ideal for medium-size fabrication shops and heavy-gauge projects.
- Versatile Material Compatibility: Our box and pan brake is compatible with mild steel, stainless steel, copper, and aluminum. Capable of bending 12-gauge (2.5 mm) mild steel—built for demanding jobs.

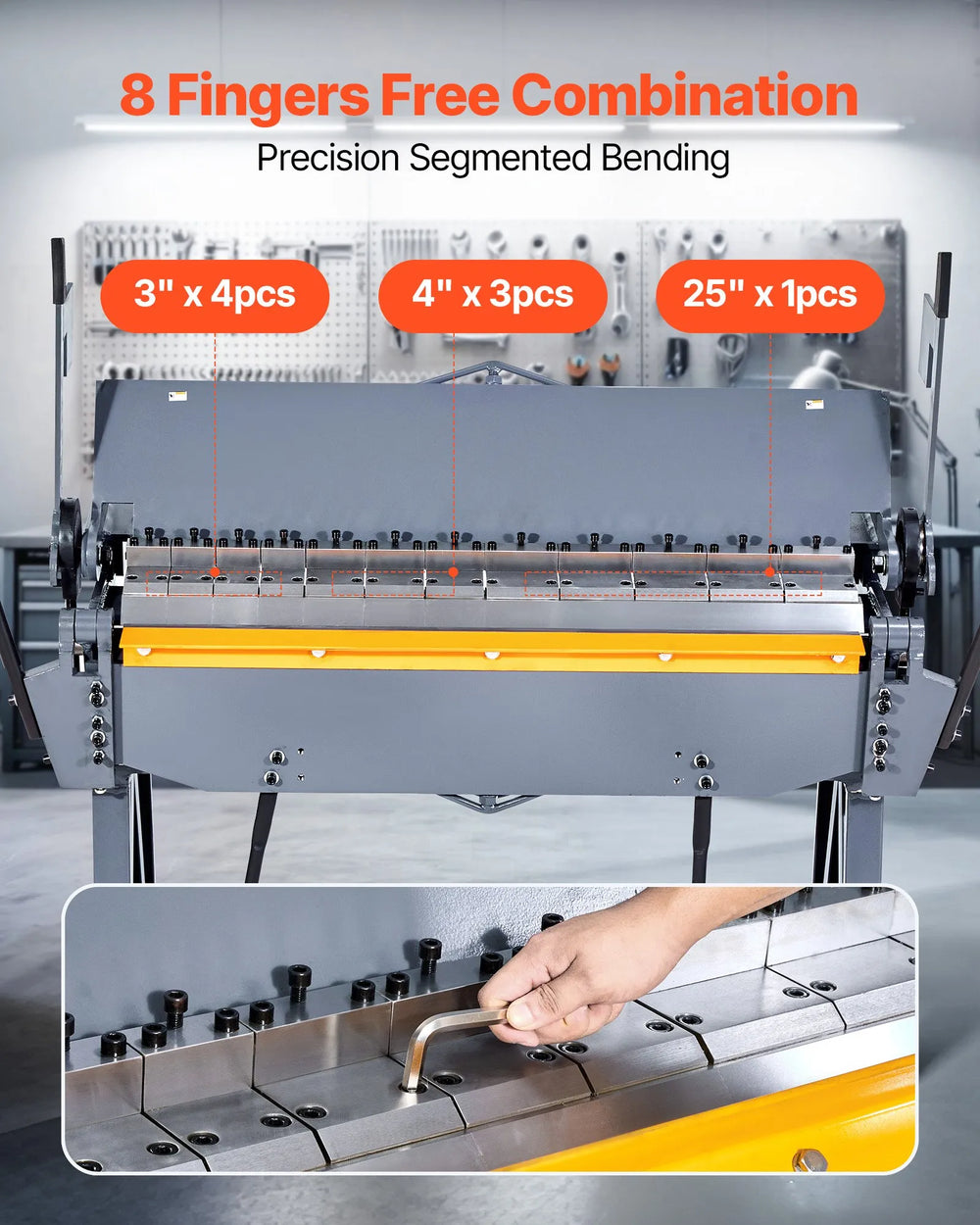

- Customizable Die Setup: This sheet metal bender includes 8 segmented fingers (3" x 4 pcs, 4" x 3 pcs, 25" x 1 pc) that can be freely arranged for precise, segmented bends. Perfect for fabricating electrical enclosures, casings, HVAC components, and complex flanged panels.

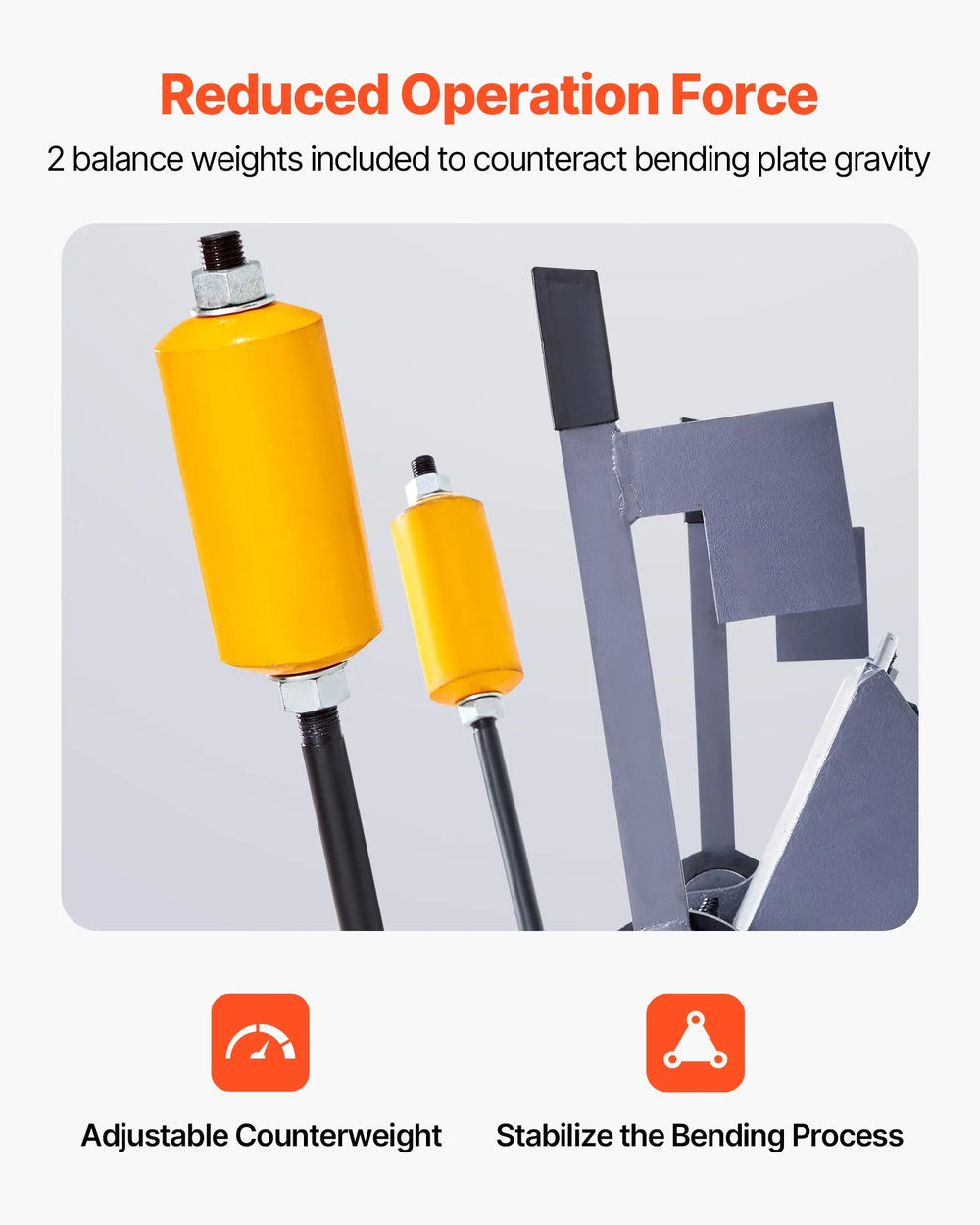

- Dual Counterweights for Stability: Designed with dual balancing hammers, this metal bending machine offers stronger, more stable clamping of large sheets while reducing operator effort—ideal for heavy-duty bending tasks.

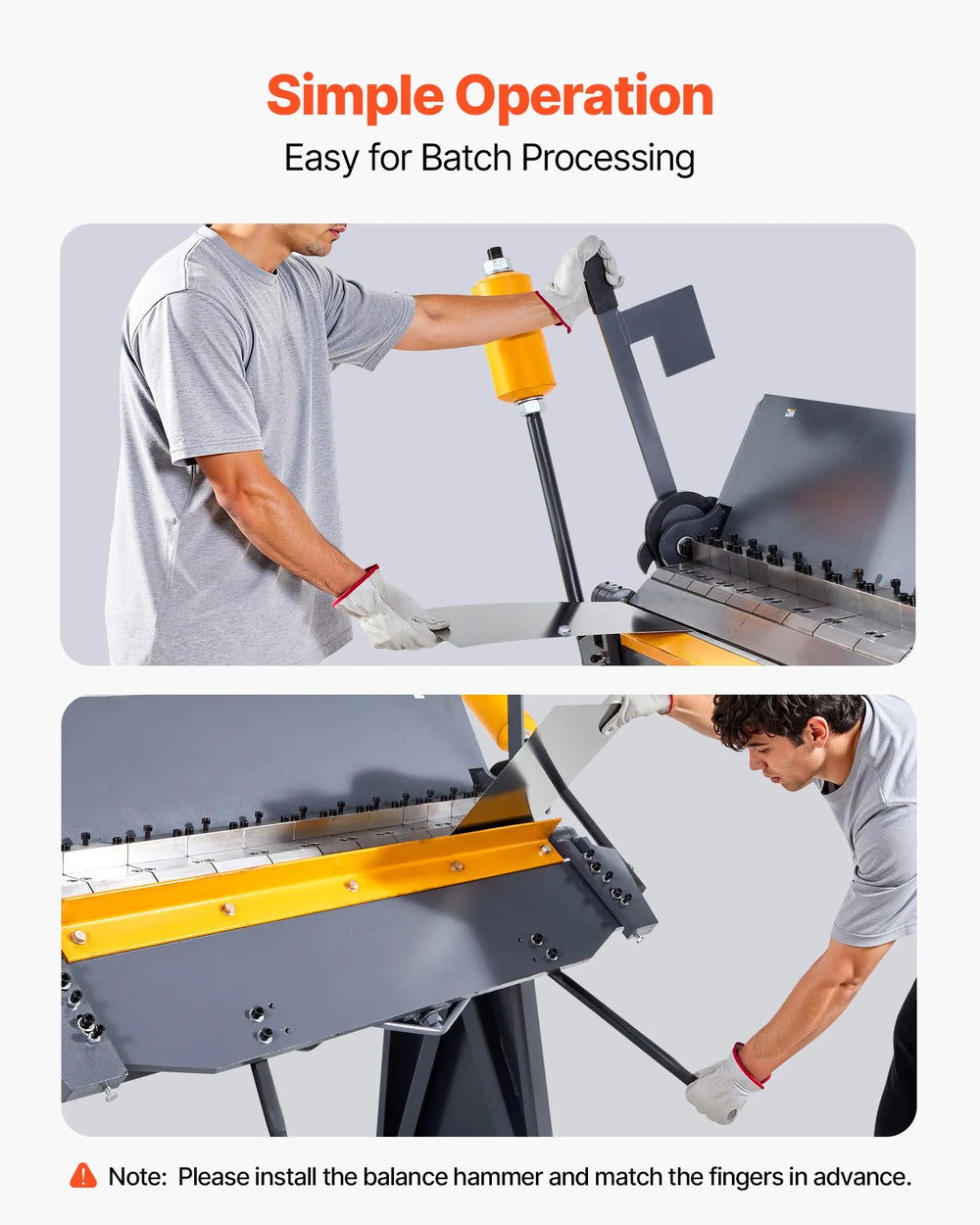

- Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).

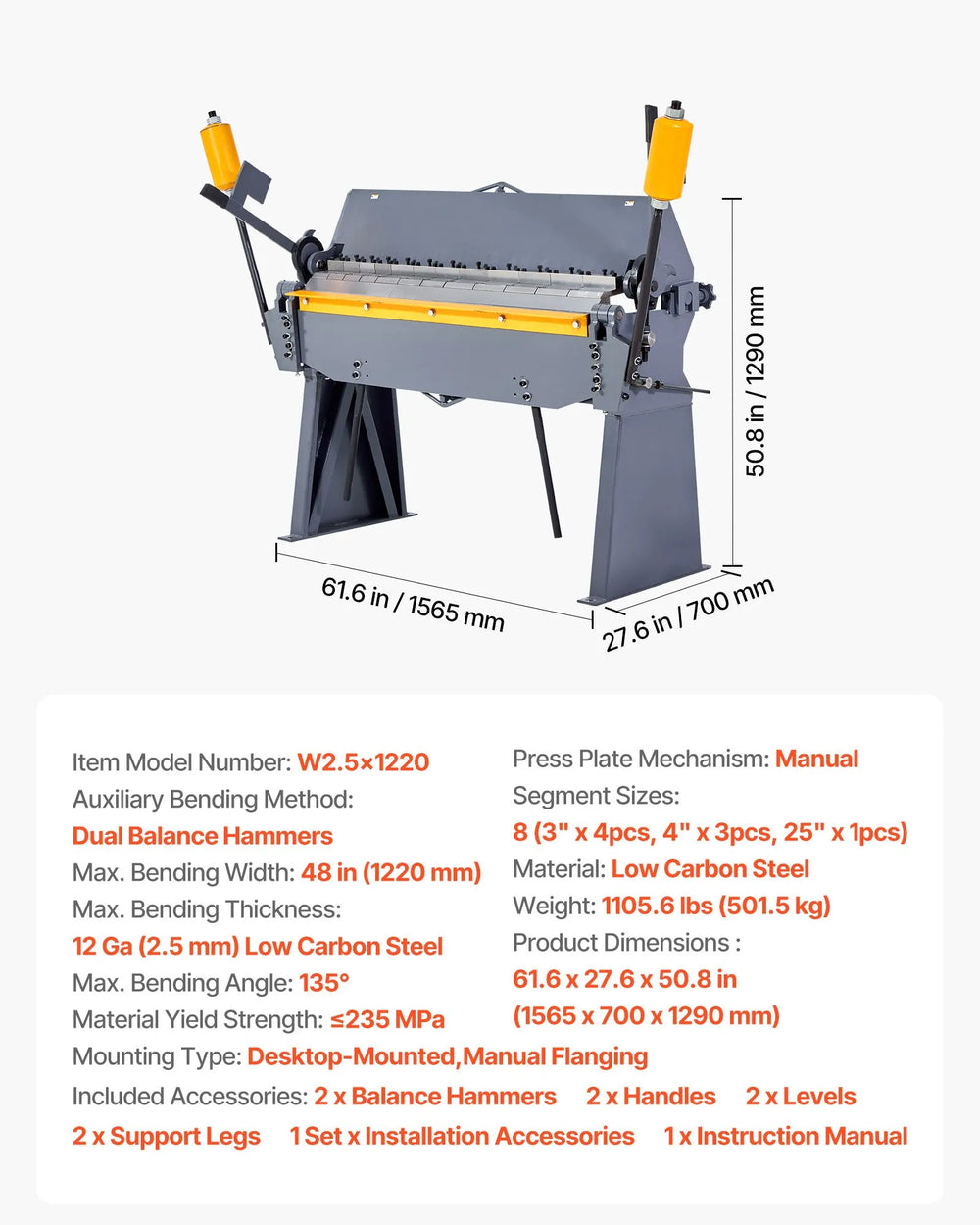

Specifications
| Item Model Number | W2.5×1220 |
|---|---|
| Auxiliary Bending Method | Dual Balance Hammers |
| Max. Bending Width | 48 in (1220 mm) |
| Max. Bending Thickness | 12 Ga (2.5 mm) Low Carbon Steel |
| Max. Bending Angle | 135° |
| Mounting Type | Desktop-Mounted, Manual Flanging |
| Press Plate Mechanism | Manual |
| Segments | 8 (3" x 4pcs, 4" x 3pcs, 25" x 1pcs) |
| Material | Low Carbon Steel |
| Weight | 1105.6 lbs |
| Product Dimensions (with Balance Hammer) | 61.6 x 27.6 x 50.8 in |
|---|
Package Contents
Vevor Box and Pan Brake 48"
(2) Balance Hammers
(2) Handles
(2) Levels
Installation Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
