Vevor Bolt-On Tooth Bar Attachment for 66" Bucket 8 Teeth 9.84" Spacing 23TF New
Manufacturer: Vevor
SKU: CDZTSW-66INCHUF1UV0
Size Options
Number of Teeth Options
QTY
(888) 999-1522
C
$344.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Vevor Bolt-On Tooth Bar Attachment for 66" Bucket 8 Teeth 9.84" Spacing 23TF New
Product Overview

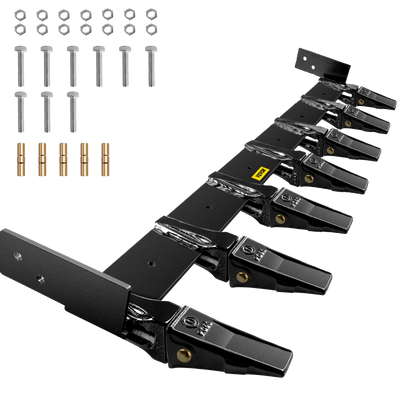

The Vevor 66 in. Bucket Tooth Bar is designed for versatile performance and durability. Featuring a bolted design, it fits most loaders with a 66-inch inside width, secured by 5/8-inch set screws adjustable with a 5/16-inch hex wrench. The bar includes eight replaceable teeth with a 9.84-inch clearance, allowing for easy maintenance by replacing only the broken tips. Its surface is treated with a metal protective coating to resist wear, rust, and corrosion, extending its service life. Made from Q345 steel alloy, it offers superior strength and effective penetration of compacted soil. Ideal for digging loose soil, loading sand, turf, gravel, and more, it is perfect for urban construction, mining, railways, roads, and hydropower projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Bolted Design: Tractor bucket teeth' s inside width is 66 in., suitable for most loaders. It uses bolted design and plays the role of connection and fixation. Each handle and socket is equipped with a 5/8 in. set screw, you can use a 5/16 in. hexagon wrench to set the screw.
- Replaceable Tooth: The bucket tooth bar is equipped with 8 teeth, the clearance is 9.84 in., which is replaceable and interchangeable. Generally, the broken part of the bucket tooth is a tooth tip, which means that you can replace a broken tooth instead of buying a brand new track.
- Protective Coating: The surface of the bucket tooth bar is treated with a metal protective coating, which insulates the metal from the air and prevents other substances from reacting with the metal. It resists wearing, rusting, and corrosion, thus extending the service life.
- Q345 Steel Alloy: The loader bucket tooth bar adopts Q345 steel material, also known as alloy steel, which has higher strength than carbon steel. Its low carbon content and low alloying element content effectively penetrate compacted soil and other materials.
- Wide Application: The tooth bar for the tractor bucket is widely used in digging loose soil and loading sand, turf, gravel, and other working environments. They are usually fit for urban construction, mining, railway lines, roads, hydropower projects, and other buildings.
Specifications
| Item Model # | CDZTSWJC-66 |
| Material | Alloy Steel |
| Tooth Bar Length | 66 in. (1.68 m) |
| Number of Teeth | 8 |
| Tooth Part | 23 TF |
| Tooth Dimensions | 2.9 x 5.9 in. (74 x 150 mm) |
| Teeth Spacing | 9.84 in. (250 mm) |
| Bolt Diameter | 5/8 in. |
| Side Plate Dimensions | 8.07 x 2.95 x 0.37 in. (20.5 x 7.5 x 0.95 cm) |
| Net Weight | 102.96 lbs. (46.7 kg) |
Package Contents
Vevor Bolt-On Tooth Bar Attachment for 66 in. Bucket
(8) Bucket Tooth
(8) Bolt
User Manual
Warranty
This item comes with a 1 year factory warranty.
