Product Overview

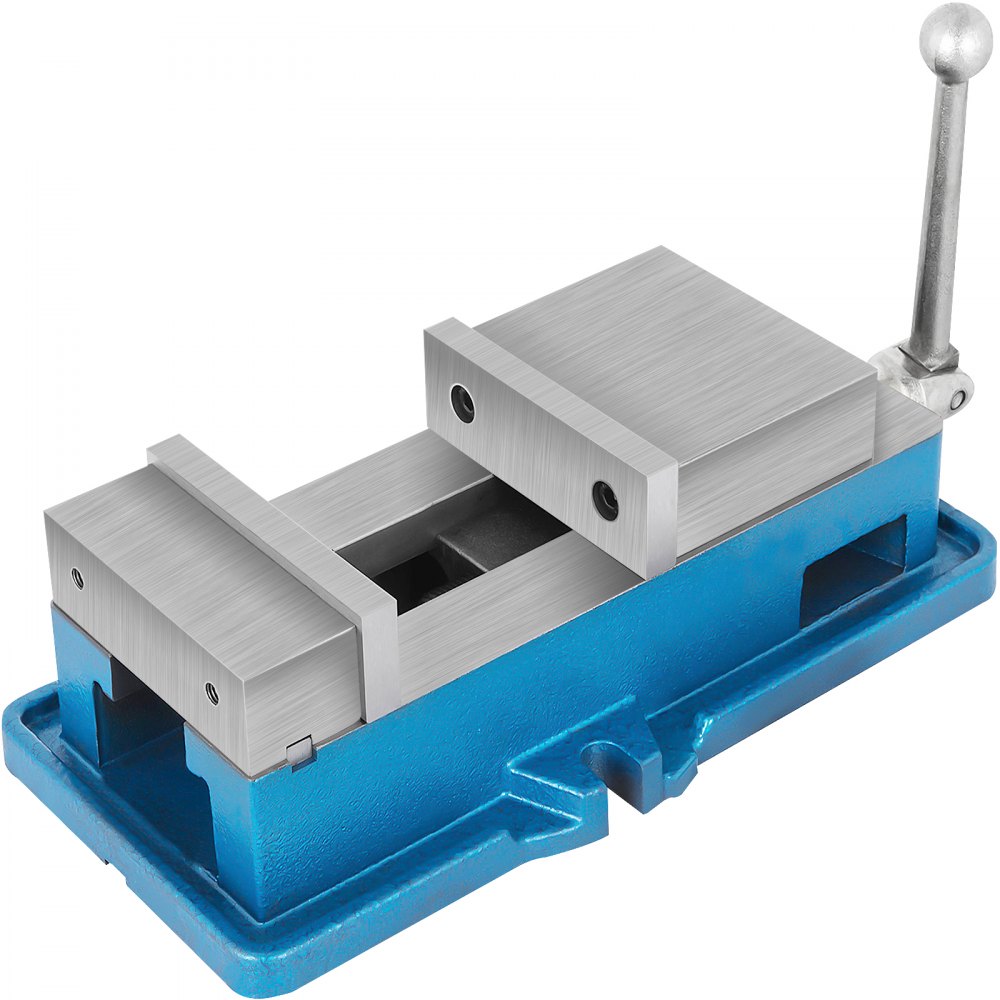

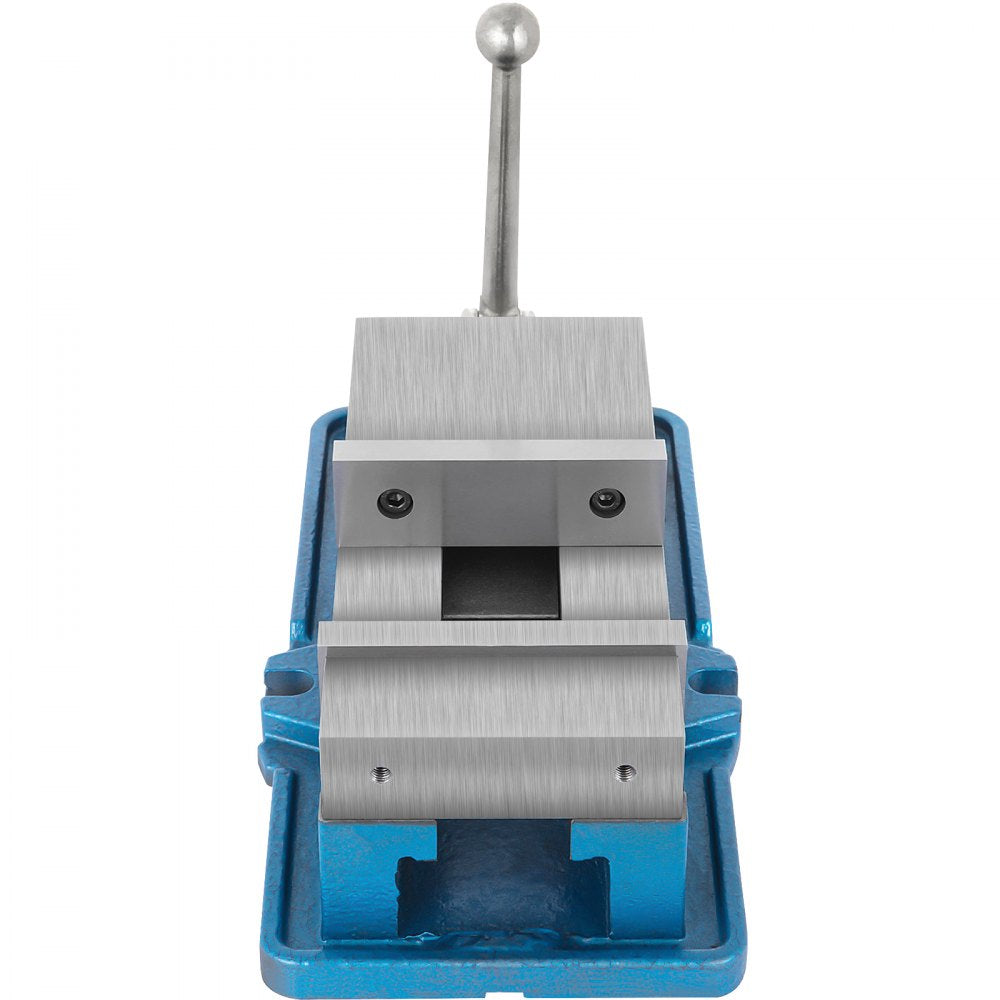

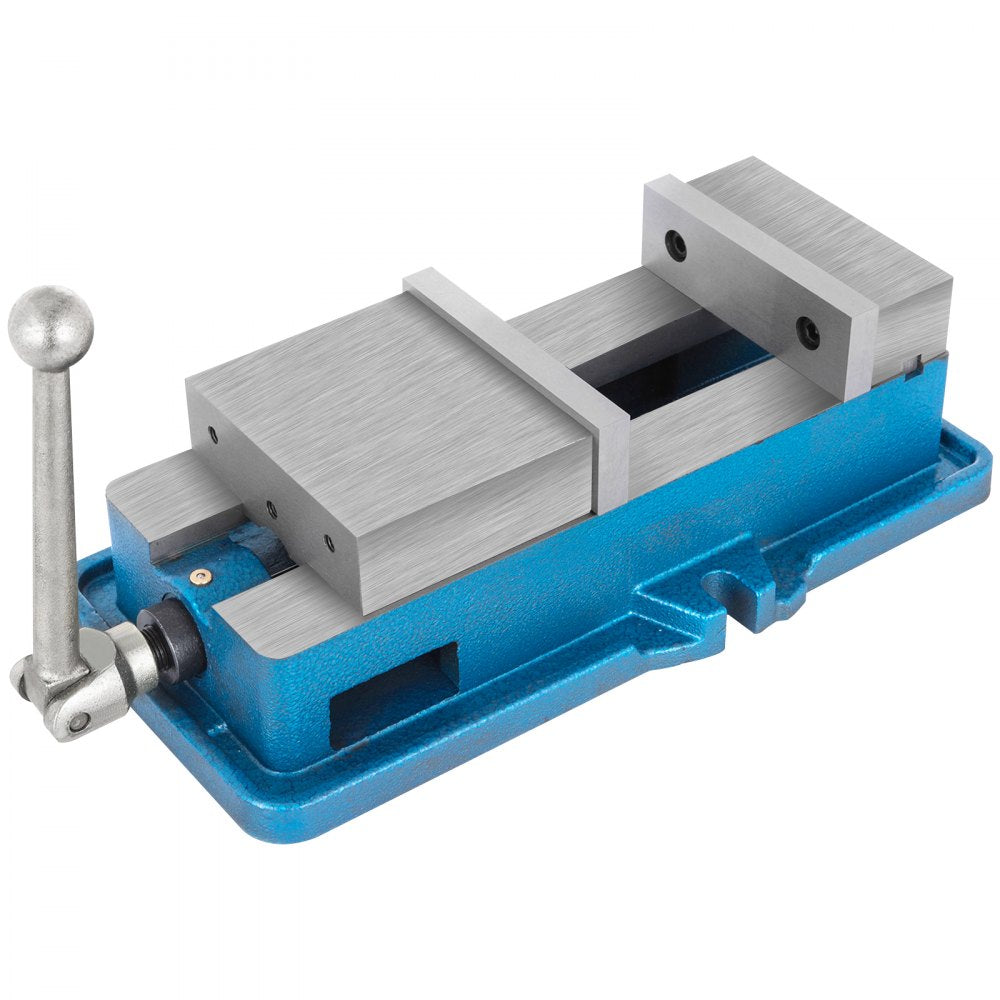

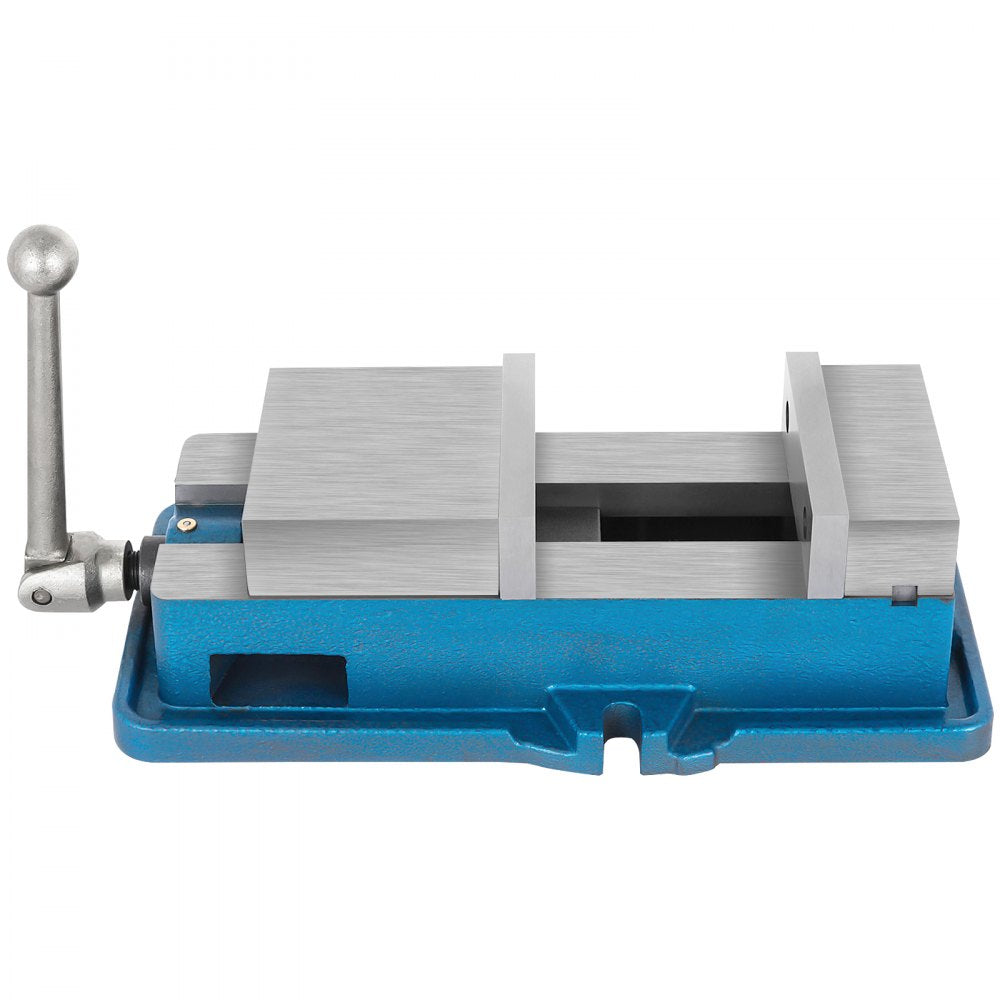

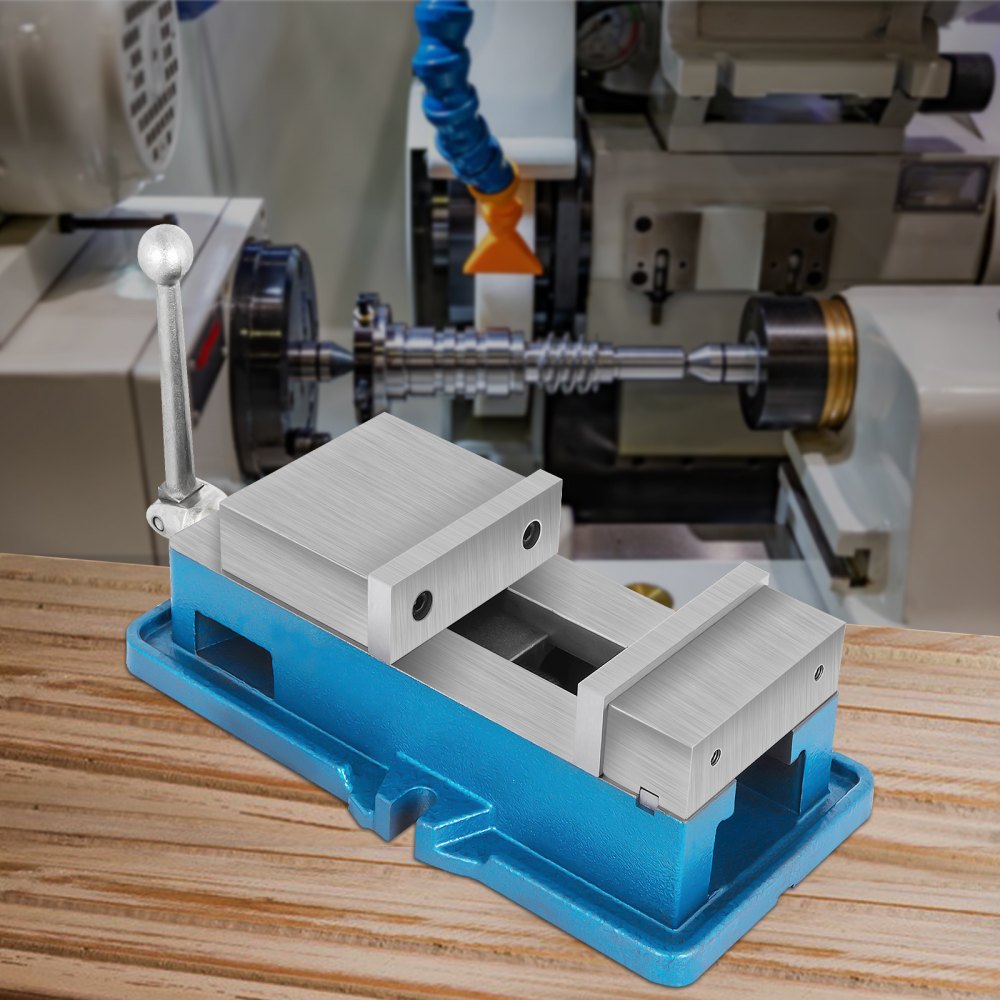

The Vevor 5-inch lock-down bench vise is built for NC/CNC machines and precision milling or drilling applications. It features a heavy-duty cast iron body, hardened steel jaws, and a high-accuracy screw design for stable, precise clamping. With up to 24 kN of clamping force, it is designed to securely hold a variety of workpieces. The detachable jaw design and universal joint handle make operation flexible and convenient. Its compact footprint makes it suitable for both workshop and benchtop use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

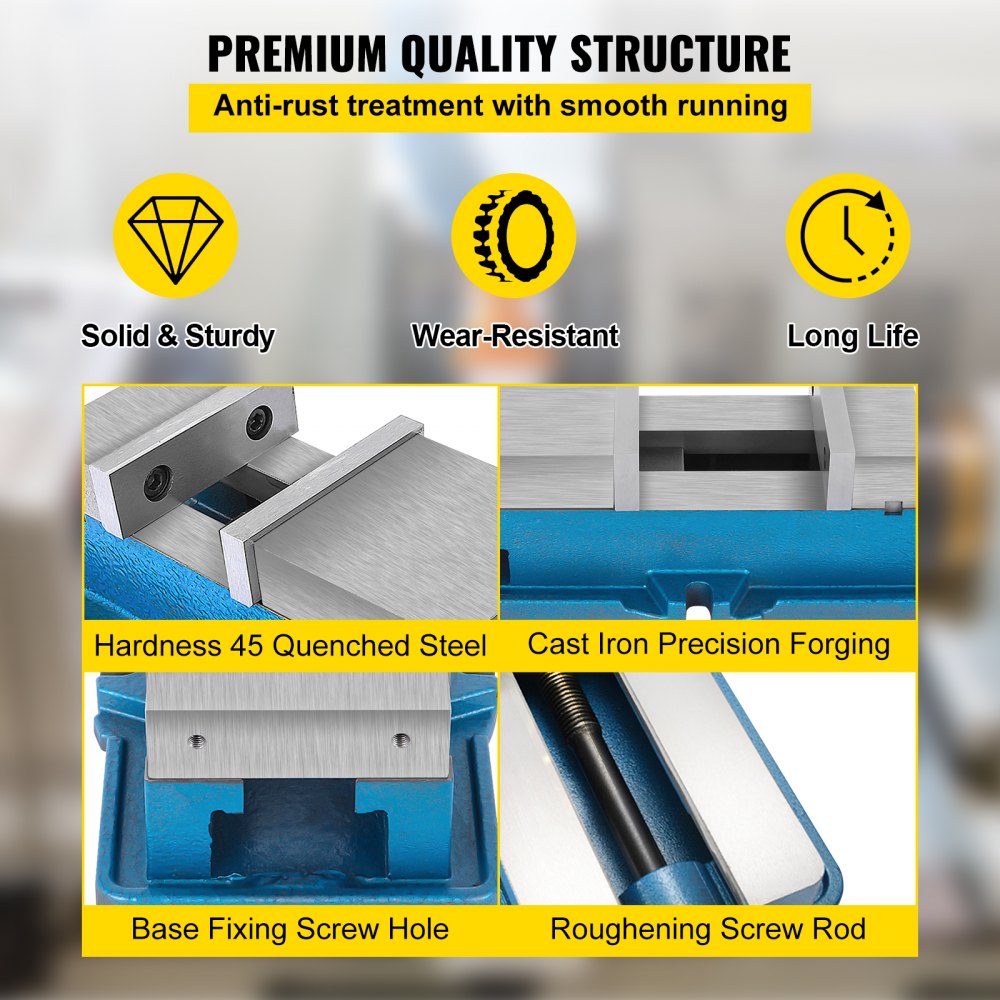

- Premium Quality Structure: The jaw of the bench vise is made of 45# steel. After high-frequency quenching, the wear resistance of the jaw is improved and the service life is prolonged. The vise body is HT250 high-quality cast iron forging with good toughness, high strength, and durability.

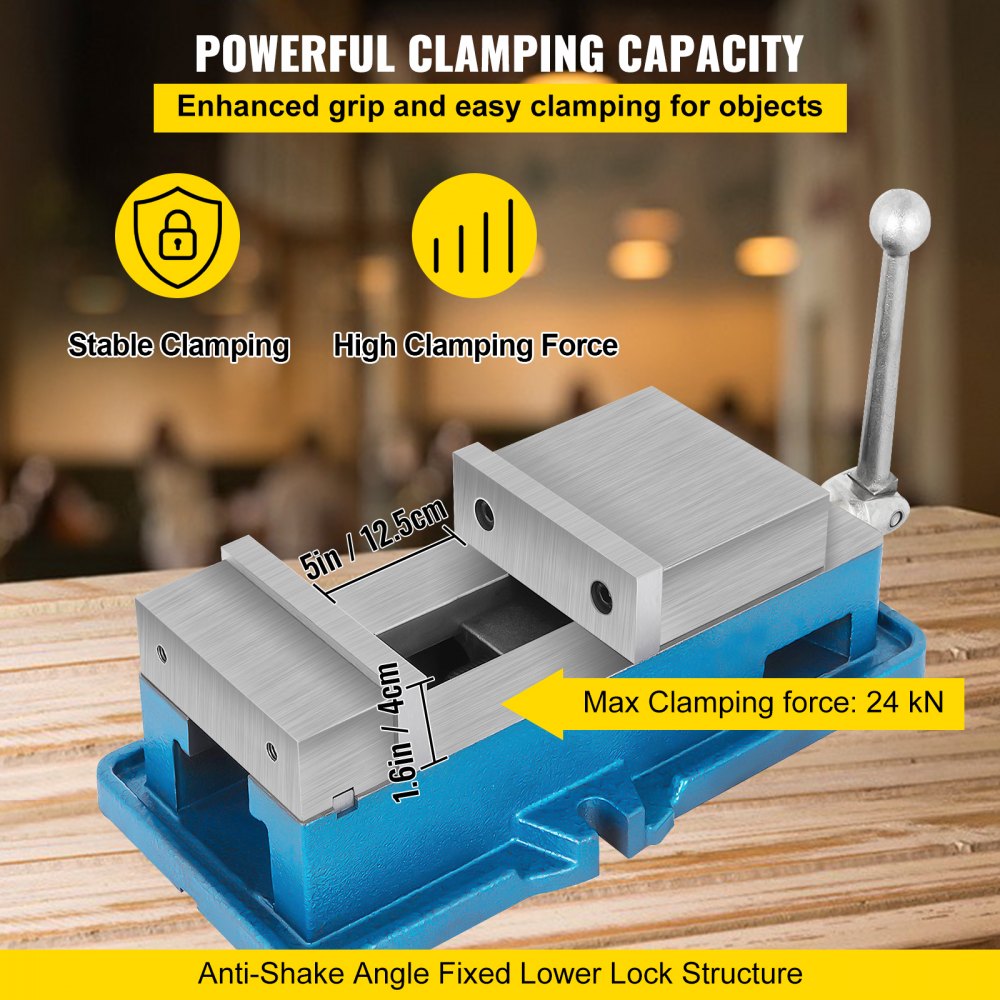

- Powerful Clamping Force: Vise guide surfaces are finely polished and smooth. When clamping the workpiece, the movement is stable, the positioning is accurate. Jaw Width: 5" / 12.5 cm, Jaw Opening: 5" / 12.5 cm. The clamping force can reach up to 24 kN, which is suitable for different sizes of goods.

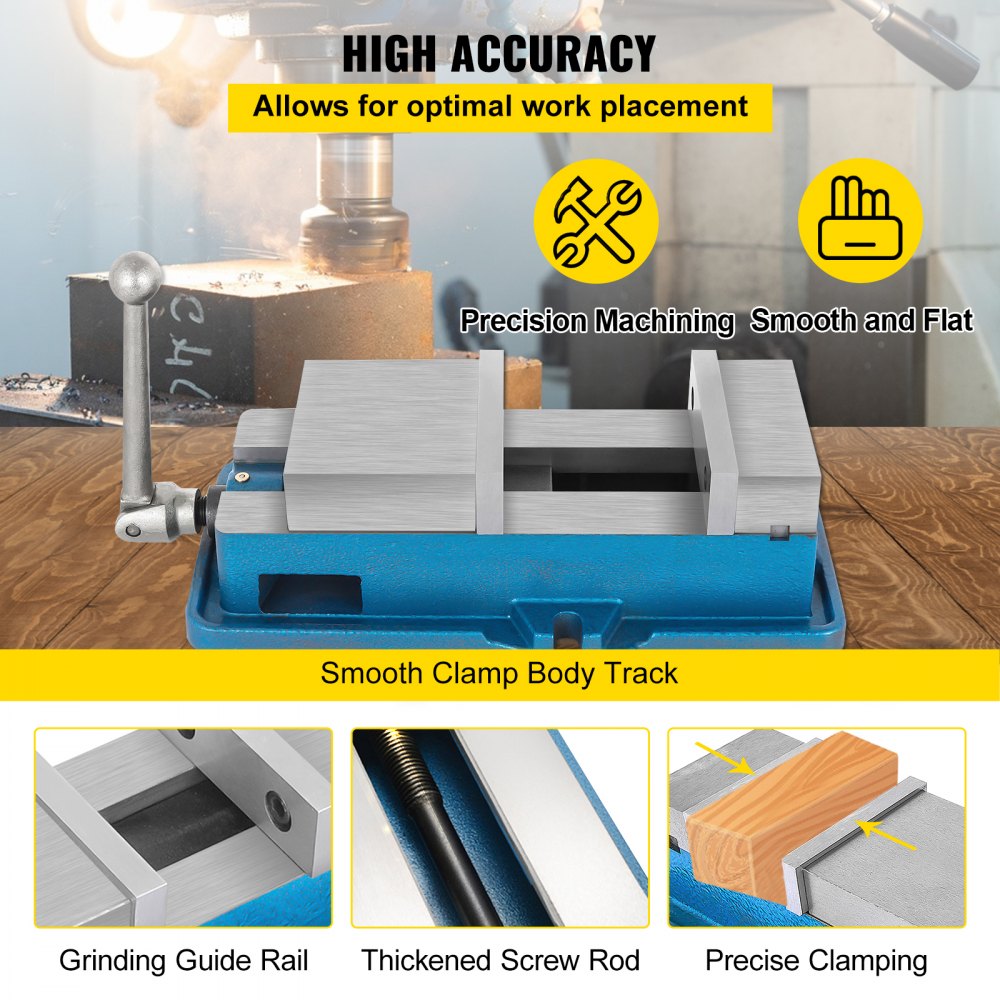

- High Accuracy Screw: The closed design protects the screw rod and prevents the entry of iron pins and other debris, convenient for maintenance and cleaning. Our screw is of high quality and is not easily damaged. The parallelism and perpendicularity are accurate to 0.002".

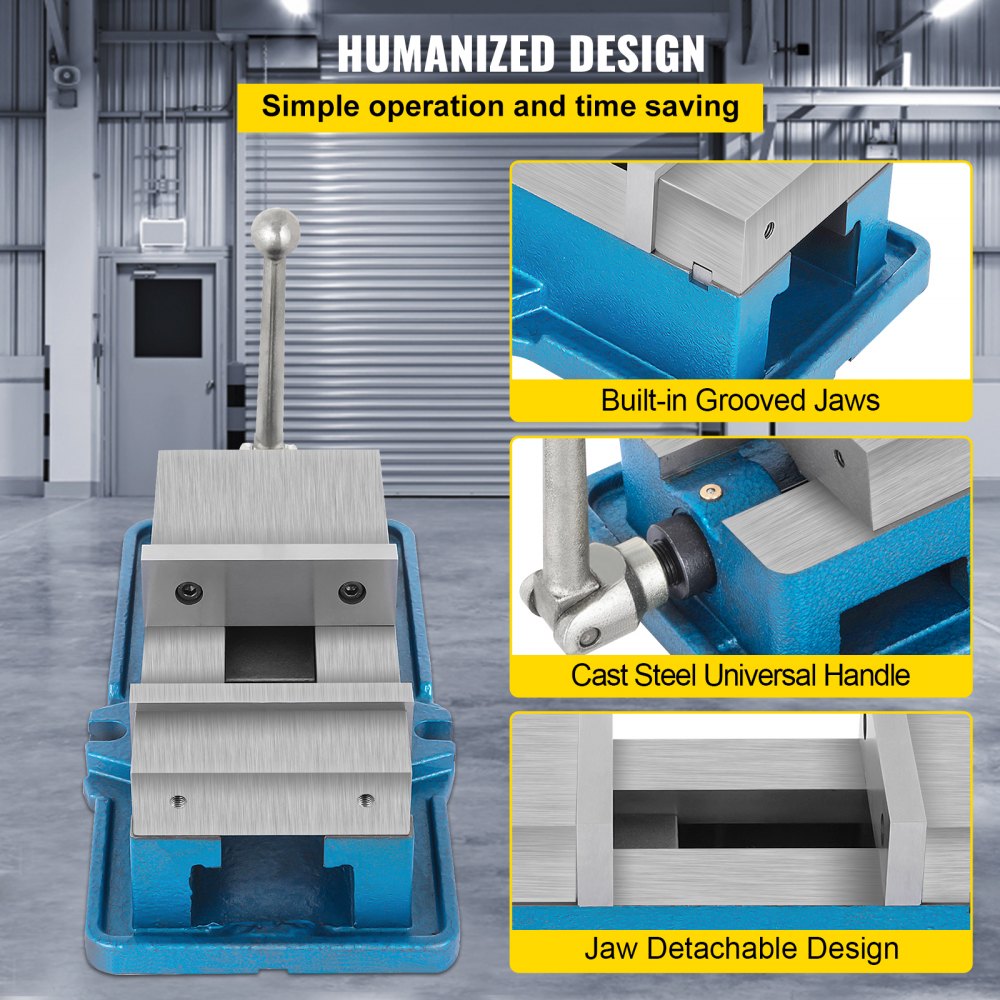

- Humanized Design: Our vises are detachable and can be replaced quickly. The unique downward pressure design protects the workpiece from escaping float when clamped. The hardened swivel handle is a universal joint structure, easy operation, flexible, and convenient to use.

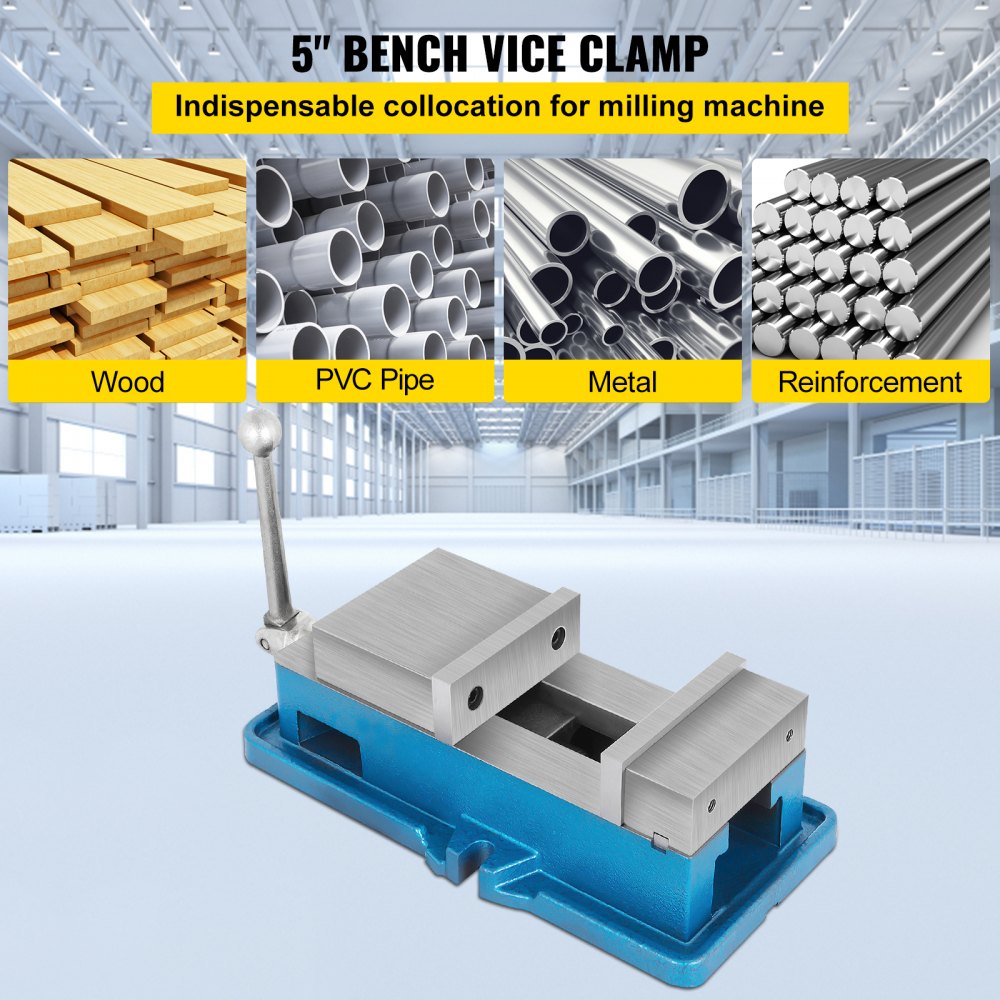

- Multifunctional Tool: A milling vise is an essential tool for fitters. Most of the fitters' work is running by using the clamping vise such as sawing, filing, chiseling, and some assembly and removal jobs.
Specifications
| Type | Bench Vise |
| Jaw Height | 1.6" / 4 cm |
| Jaw Width | 5" / 12.5 cm |
| Jaw Opening | 5" / 12.5 cm |
| Jaw Material | 45# Steel |
| Body Material | HT250 Gray Cast Iron |
| Wrench Material | QT500 Ductile Iron |
| Vise Height | 4.3" / 11 cm |
| Max Clamping Force | 24 kN |
| Net Weight | 40 lbs / 18 kg |

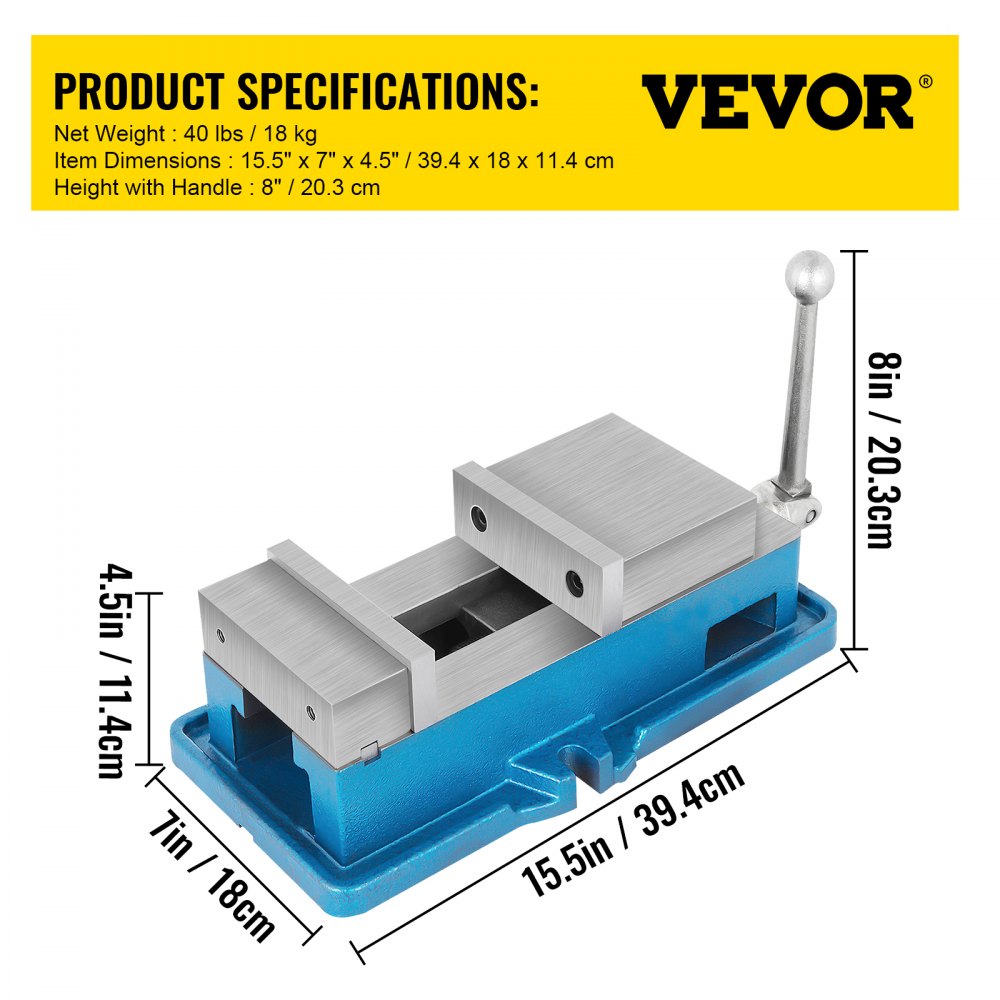

| Item Dimensions | 15.5" x 7" x 4.5" / 39.4 x 18 x 11.4 cm |
| Height with Handle | 8" / 20.3 cm |
| Package Dimensions | 16" x 11" x 6" / 41 x 27 x 15 cm |
| Vise Type | Lock-Down Fixed |
| Verticality and Parallelism | Within 0.025 mm / 100 mm |

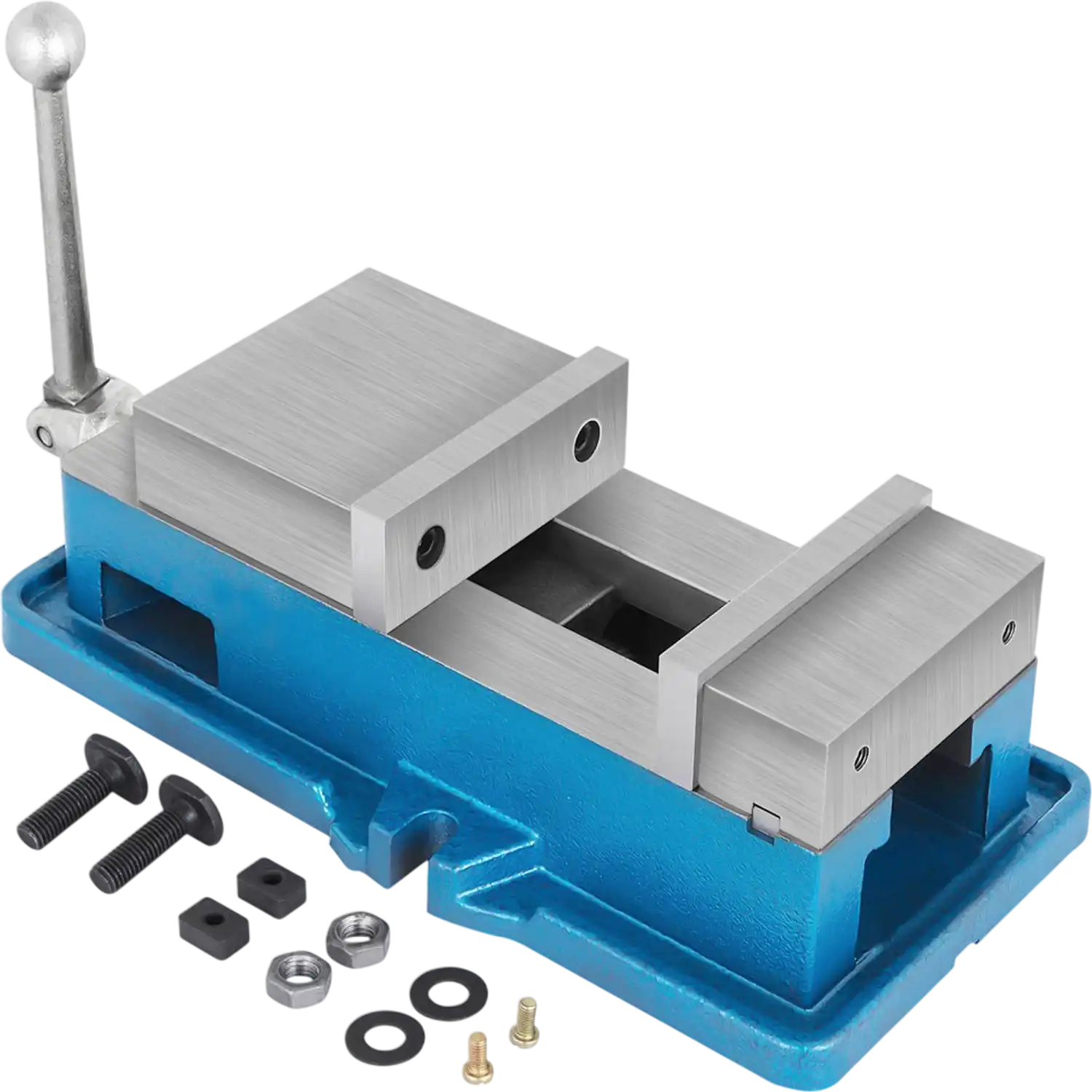

Package Contents
1 x 5" Bench Clamp Vise
1 x Set of Screws
1 x Set of Nuts
2 x Pads
1 x Manual
Warranty
This item comes with a 1 year factory warranty.
