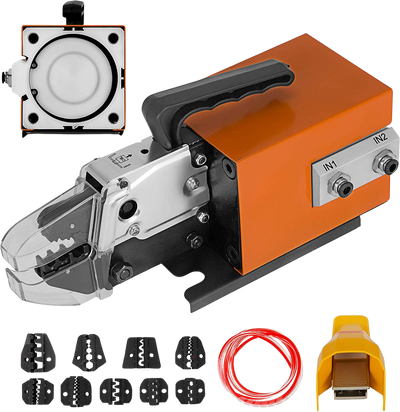

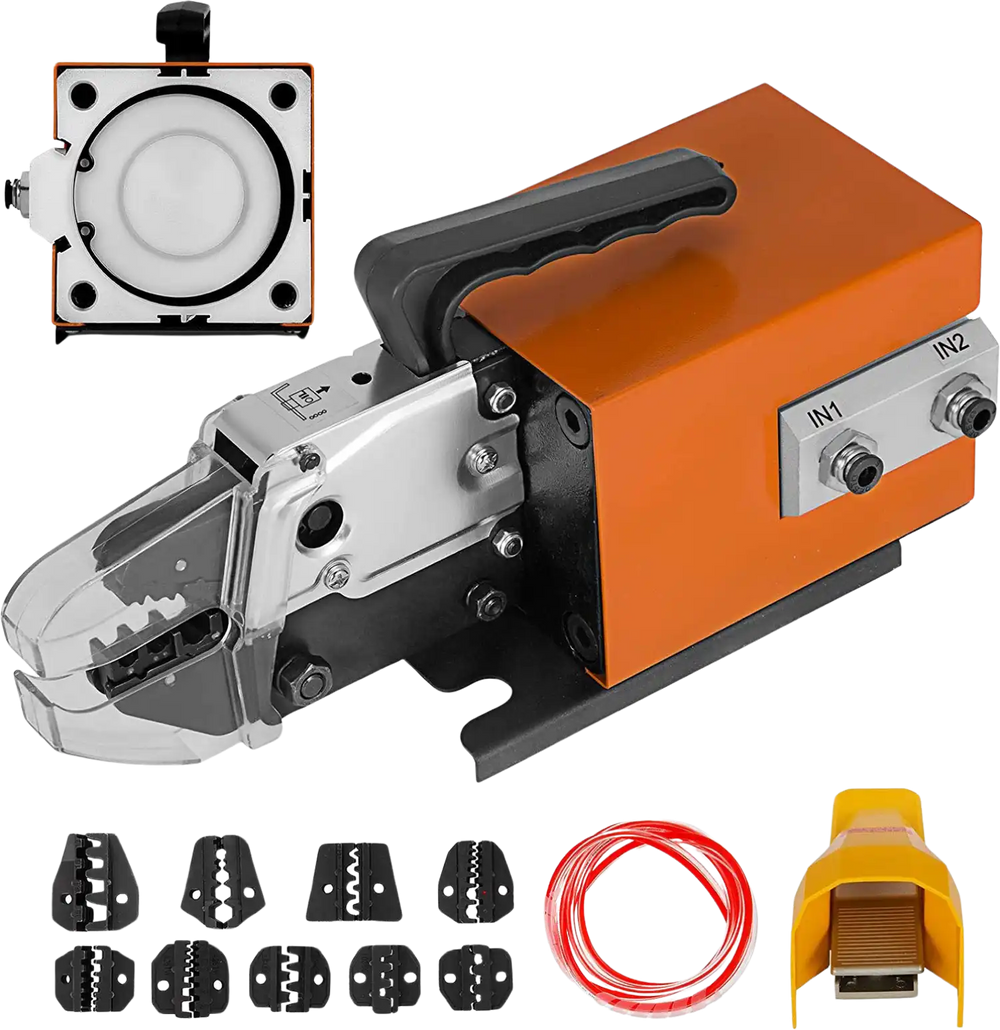

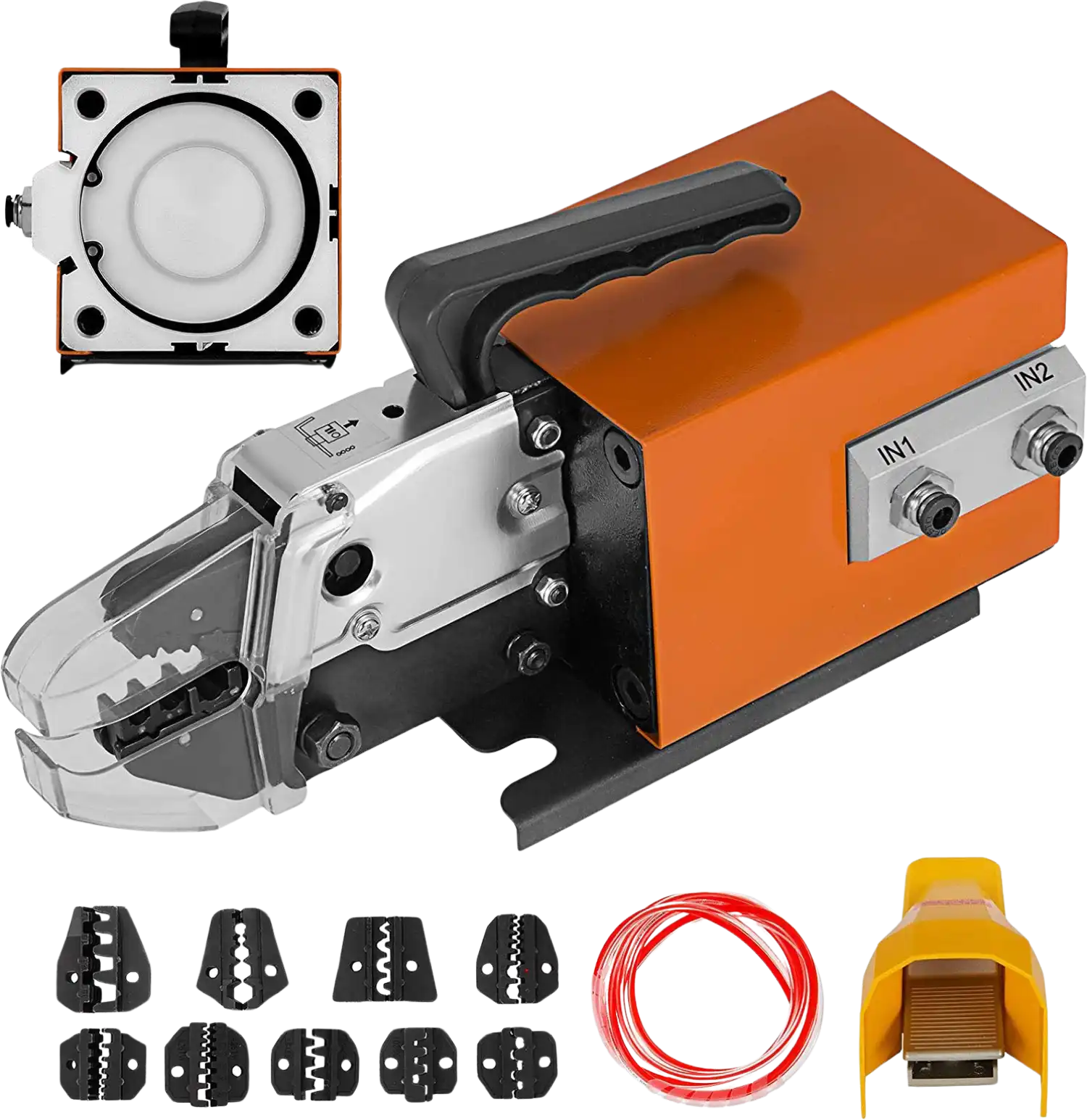

Vevor AM-10 Pneumatic Crimping Tool Air Powered for Wire Terminals with Die Sets New
Manufacturer: Vevor
SKU: YJJG1010135KNQWR8V0
Number of Inverters Options
QTY
(888) 999-1522
C
$275.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
$58.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$87.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$131.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Mechanics Tool Set 1/4", 3/8", 1/2" Drive 450-Pc SAE and Metric Socket Set with Storage Cas...
-
Vevor Ratchet Wrench Set Flex-Head 12-Piece SAE Cr-V Steel with Roll Up Pouch New
-
Vevor Impact Socket Set 1/2" Drive 23-Piece SAE & Metric 6-Point Cr-V Alloy Steel New
-
Vevor Wrench Set Flex-Head Ratcheting SAE and Metric 30-Piece New
-
Vevor Wrench Set 30-Piece Ratcheting Combination SAE & Metric with Organizer Rack New
-
Vevor Torpedo Level 6-Piece Magnetic Set with Bubble Vials New
-
Vevor Pliers Set 8-Piece High Carbon Steel with Adjustable Wrench and Tool Bag New
-
Vevor Socket Organizer Set Magnetic 8-Piece Metric SAE Trays Blue Red New
-
Vevor Impact Socket Set 3/4" to 2 1/2" 29 Pieces 6 Point CR-M0 New
-
Vevor Rivet Nut Tool 16" Semi-Auto Rivnut Tool Kit New
-
Vevor Bolt Extractor Set 29-Piece Bolt and Nut Remover with Storage Case New
-
Vevor Nut Driver Set 80-Piece Magnetic Impact Metric & SAE with Storage Box New
-
Vevor Pocket Hole Jig Kit 34 Pcs Adjustable Woodworking Joinery System with 11" C-Clamp New
-
Vevor Impact Socket Set 1/2" Drive 65-Piece 6-Point SAE & Metric with Storage Case New
-
Vevor Rotary Laser Level 2000' Manual Self-Leveling Mode 360° 5 Rotation Speeds 4 Scanning Angles...
-
Vevor Needle Nose Pliers Set 5-Piece 11" Long Professional Set with Storage Bag New
-
Vevor Torque Wrench 1/2" Drive Click Adjustable 10-150 ft-lb New
-
Vevor Tap and Die Set 116-Piece Metric and SAE Bearing Steel Threading Tool Kit New
-
Vevor Rotary Laser Level Kit 984 ft 360-Degree Self Leveling with Tripod Scale Remote Control New
Vevor AM-10 Pneumatic Crimping Tool Air Powered for Wire Terminals with Die Sets New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Durable Material: The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.
- High Efficient: This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work. Besides, we provide you with an extra 10 sets of dies for free!
- Comfortable Operation: Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.
- Easy to Use: After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain. NOTE: You need to prepare an 8mm (5/16 inch) air hose yourself to connect the air source to the product's foot pedal.
- Wide Applications: The pneumatic crimping tool is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². We provide 15 additional sets of dies to meet various terminal interface requirements.
Specifications
| Item Model Number | AM-10 |
| Material | Tool Steel |
| Output Force | 1.3 T |
| Air Pressure | 0.5-0.7 Mpa |
| Max. Operating Pressure | 1.0 Mpa |
| Non-Insulated Terminals | ≤ 16 mm² |
| Rre-Insulated Terminals | ≤ 6 mm² |
| Tube Terminals | ≤ 35 mm² |
| Foot Pedal Dimensions | 9.6" x 4.9" x 5.5" |
| Product Dimensions | 11" x 3.8" x 4.2" |
| Weight | 7.7 lbs |
Package Contents
Vevor AM-10 Pneumatic Crimping Tool
Foot Air Valve
Air Pipes (2)
Extra Die Sets (10 or 15)
User Manual
Warranty
This item comes with a 1 year factory warranty.
