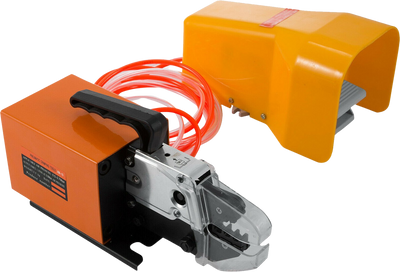

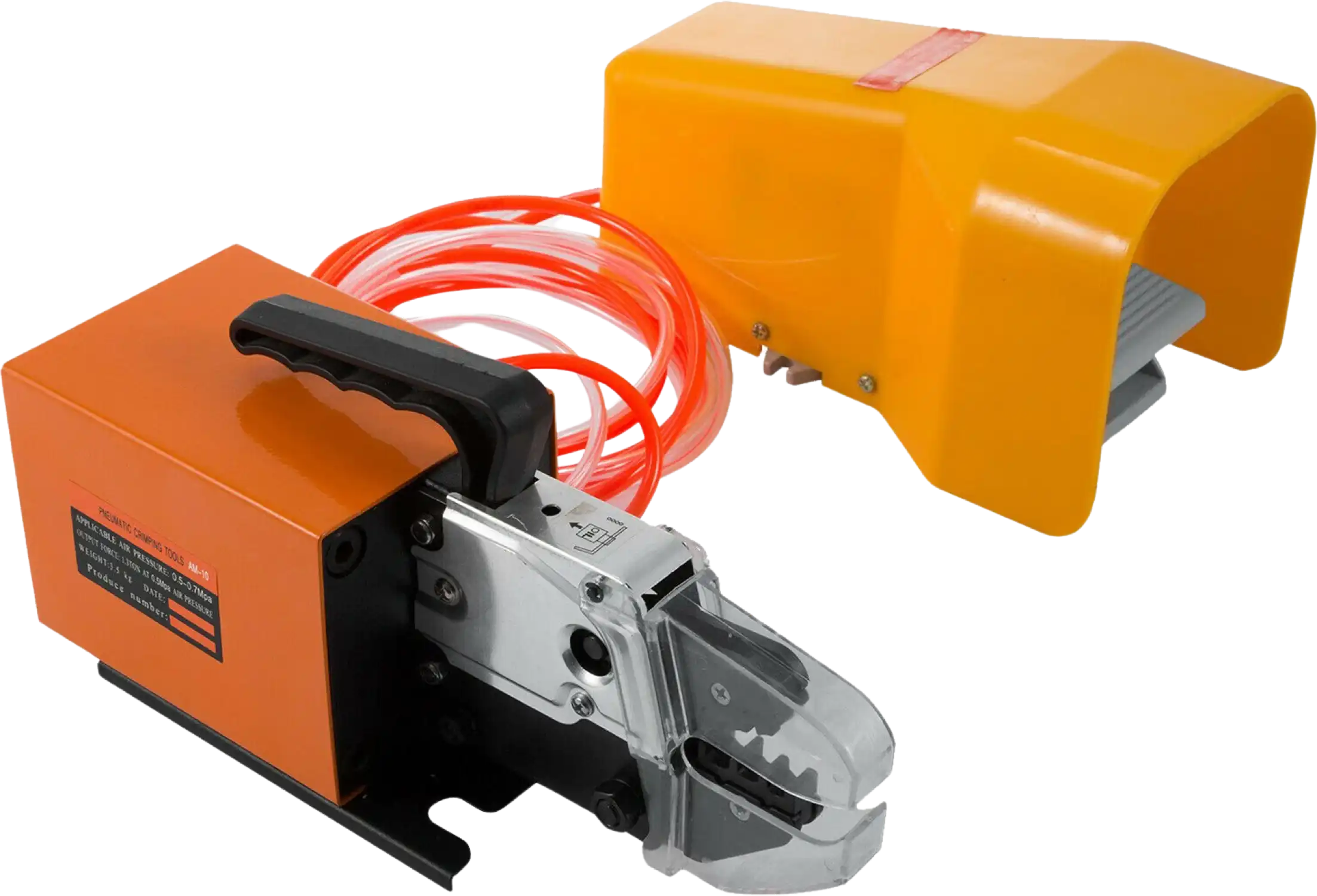

Vevor AM-10 Pneumatic Crimping Tool Air Powered 0.4-1 Mpa Wire Terminal New
Product Overview
The Vevor AM-10 Pneumatic Air Powered Wire Terminal Crimping Tool operates efficiently with a dual-action standard cylinder for high-quality crimping of wire terminals up to 0.025 in² (16 mm²). Built from durable tool steel and CE certified, it ensures reliability and longevity. Featuring a foot-pedal design for effortless operation and a compact handle for portability, it's ideal for crimping insulated and non-insulated cable end sleeves across diverse applications, making it a versatile choice for industrial use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High Efficient: The machine is driven by a dual-action standard cylinder, which has advantages of high efficiency and quality in crimping force and speed. It has a precision die jaws, capable of precision crimping work to meet the needs of modern industry.
- Premium Construction: The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.
- Humanized Design: Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes. (This product only contains one die)
- Simple To Operate: After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain. NOTE: You need to prepare an 8mm (5/16 inch) air hose yourself to connect the air source to the product's foot pedal.
- Wide Applications: The pneumatic crimping tool is suitable for a variety of terminals, crimping insulated and non-insulated cable end sleeves. To replace the mode jaws, the jaws of the protective cover and remove the screw with a tool, to replace the jawline.
Specifications
| Item Model # | AM-10 |
| Material | Tool steel |
| Weight | 7.7 lbs. (3.5 kg) |
| Output Force | 1.3 T (2,866 lbs.) |
| Air Pressure | 0.5-0.7 Mpa |
| Max. Operating Pressure | 1.0 Mpa |
| Non-insulated terminals | ≤ 0.025 in² (16 mm²) |
| Rre-insulated terminals | ≤ 0.0093 in² (6 mm²) |
| Tube terminals | ≤ 0.0543 in² (35 mm²) |
| External Dimension | 9 x 5.6 x 4.6 in. (266 x 142 x 117 mm) |
Package Contents
Vevor AM-10 Pneumatic Crimping Tool Air Powered 0.4-1 Mpa
Die
Foot Air Pedal
(2) Air Pipes
User Manual
Warranty
This item comes with a 1 year factory warranty.
