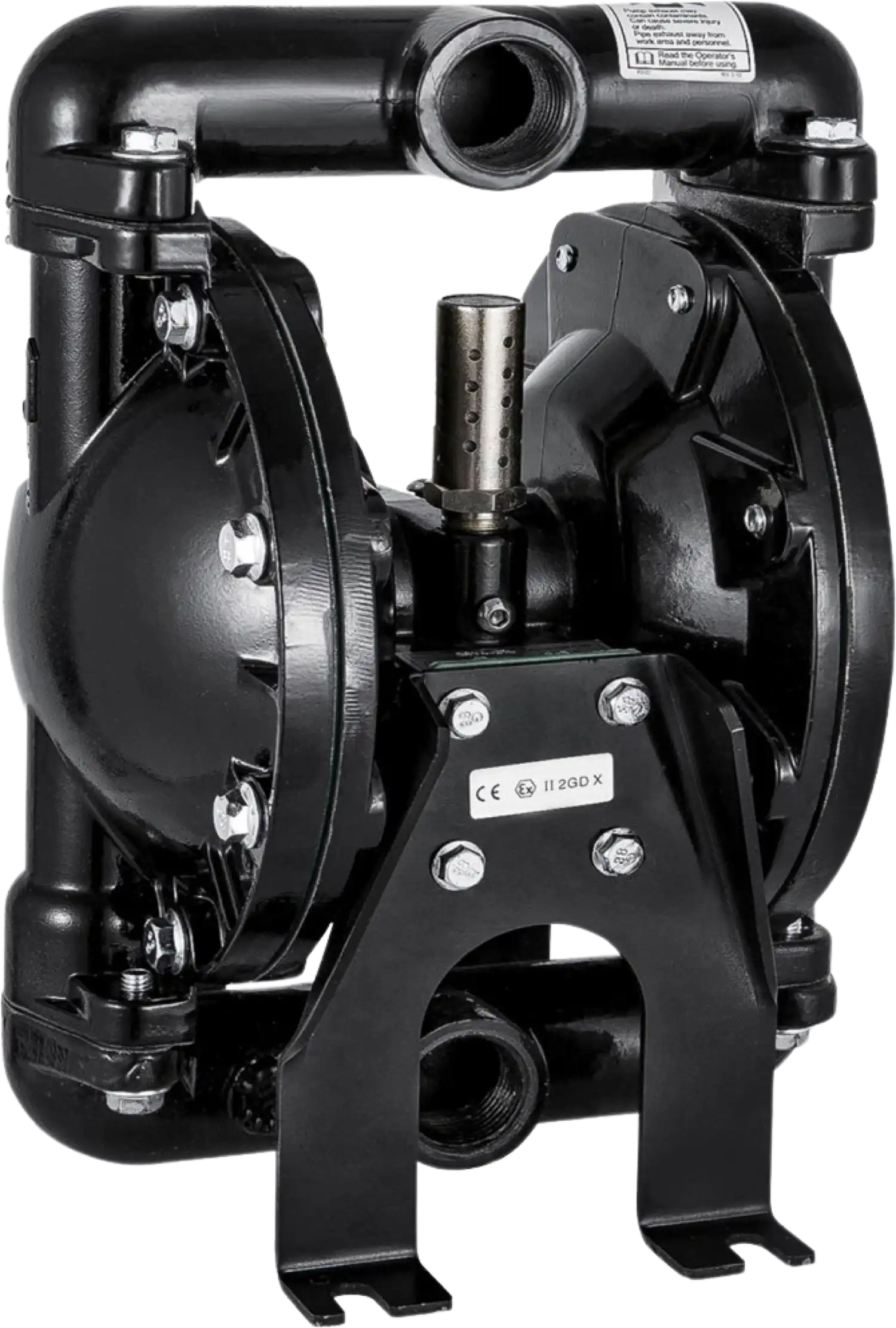

Vevor Air-Operated Double Diaphragm Pump 100 PSI 22 GPM 275.6' Head Lift New
Manufacturer: Vevor
SKU: YBGMBQBY4-25L0001V0
QTY
(888) 999-1522
C
$235.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Air-Operated Double Diaphragm Pump 100 PSI 22 GPM 275.6' Head Lift New
Product Overview
Vevor's Air-Operated Nitrile Double Diaphragm Pump is made of aluminum alloy and has a maximum flow rate of 22 GPM and a maximum of 100 PSI. The sealed ball valves and non-stall operation provide outstanding performance. Ideal for transferring viscous and flammable fluids.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Premium Double Nitrile Diaphragms: This air-operated double diaphragm pump features durable nitrile diaphragms that are corrosion-proof, long-lasting, and can withstand temperatures up to 150 ℉ (66 ℃). It has a maximum pressure of 100 PSI, a maximum flow rate of 22 GPM, and a maximum head lift of 239.5 ft. (73 m±15%).
- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of durable aluminum alloy to prevent leakage, withstand corrosion, and provide long-lasting use.
- Excellent Air-operated Performance: Inlet/Outlet port size: 1 inch; Air inlet size: FNPT 1/2 inch. Features a high-quality gold ring and double-acting sealing to enhance air performance.
- Unique & Professional Designs: The double diaphragm pump features an externally accessible air distribution system. The stainless steel modular air valve ensures low pulsation and smooth changeover, increasing efficiency while reducing downtime.
- Wide Applications: This diaphragm pump is versatile and can handle a wide range of fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, and drinks. It finds applications in various industries, including petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Specifications
| Model | QBY4-25L |
| Type | Air-operated Double diaphragm |
| Diaphragm Material | Nitrile |
| Body Material | Aluminum Alloy |
| Inlet/Outlet Port | 1" (25 mm) |
| Air Inlet Size | NPT 0.5" (12.7 mm) |
| Max. Flow Rate | 22 GPM |
| PSI | 100 |
| Max. Head | 239.5 ft. (73 m±15%) |
| Valve Type | Ball |
| Suction | 0 - 16.4' (0 - 5 m) |
| Max. Suspended Solids | 1/8" (3 mm) |
| Average Air Consumption | 38 CFM |
| Self-Priming Dry | 10' (3 m) |
| Self-Priming Wet | 15' (4.6 m) |
Package Contents
Vevor Air-Operated Double Diaphragm Pump 100 PSI 22 GPM 275.6' Head Lift
Warranty
This item comes with a 1 year factory warranty.
