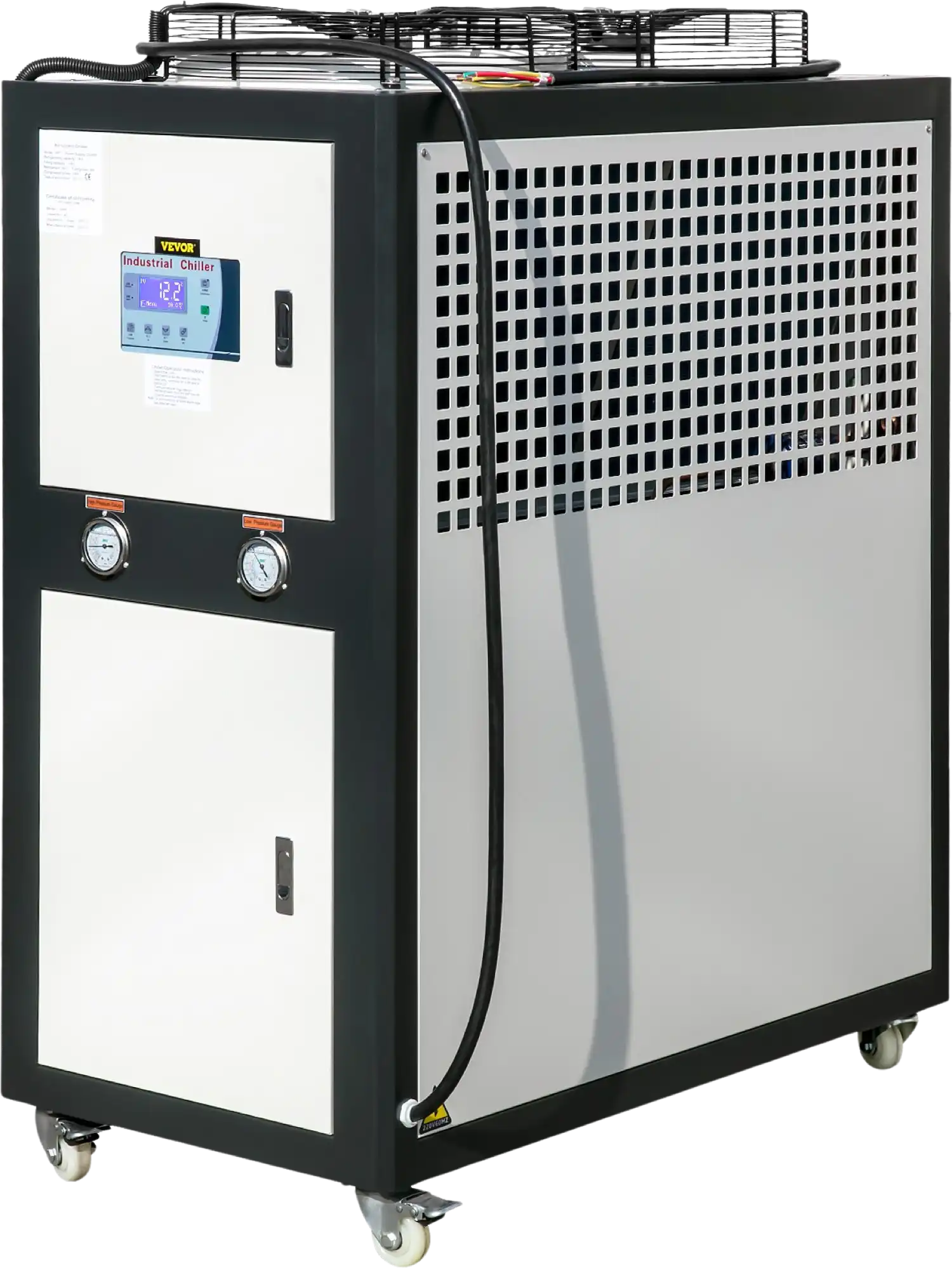

Vevor Air Cooled Chiller 6 Ton Panasonic Compressor 6 HP 53L Built-In Tank Stainless Steel New
Product Overview
The Vevor indoor unit is designed with an internal 0.5 HP pump and a 6 HP compressor motor . The closed-loop industrial chiller with its own internal insulated 14 gal. (53 L) reservoir. This chiller is ideal for indoor climate control conditions from 41°F to 77°F (5℃ to 25℃).
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- High-Performance Compressor: The portable chiller applies a 6 HP Panasonic compressor that ensures the chiller will operate reliably and stably. The water flow is 19.8 GPM (4.5 m³/h), and the pipe diameter is 1 in. (25 mm), with less vibration and noise. Built-in 14 gal. (53 L) stainless steel water tank for your facilitated operation.
- Powerful Cooling: Our water chiller uses standard R407 refrigerant to keep engraving machines up to 18KW cooling during use. Its 4.5 KW compressor can cool up to 15480 Kcal per hour. The 14 gal. (53 L) water tank is enclosed to reduce evaporation and provides long-term service between refills.
- Professional Protection System: Including an overload protector, high and low-pressure switch, electronic alarm prompt functions, and automatic water replenishment. The environmental temperature must be less than or equal to 104°F (40°C).
- Smart Micro-Computer Control: Multi-functional control table includes intelligent LCD, microcomputer control, and power buttons for compressor and condenser. A simple one-key rule makes operation convenient and efficient. The adjustable temperature ranges from 41°F to 77 °F (5°C to 25°C).
- Versatile Application: The easy-setup industrial chiller is widely used in electronics, electroplating, food, machinery, chemical industry, business card printing, and other industries. An air-cooled chiller can accurately control the temperature of a plastic forming mold to shorten the forming cycle and accelerate product setting. It is an essential piece of configuration equipment for modern industries.
Specifications
| Power | 220V / 60Hz / 3P |
| Regulate Temperature | 41°F to 77°F (5°C - 25°C) |
| Condensation Temperature | 113°F (45°C) |
| Compressor Type | Fully Enclosed Vortex |
| Compressor Motor Power | 6 HP / 4.5 KW |
| Tank Capacity | 14 gal. (53 L) |
| Cooling Capacity | 18 KW / 15480 Kcal/h |
| Heat Exchange Tube Material | Copper |
| Coolant Type | R-407 |
| Fan Motor Power | 0.36 KW |
| Pipe Diameter | 0.1 in. (25 mm) |
| Pump Motor Power | 0.5 HP |
| Pump Power | 0.75 KW |
| Item Dimensions | 43.3 x 21.7 x 51.2 in. (110 x 55 x 130 cm) |
| Net Weight | 463 lbs. (280 kg) |
Package Contents
Vevor Air Cooled Chiller 6 Ton
User Manual
Warranty
This item comes with a 1 year factory warranty.
