Vevor Air Cooled Chiller 15 Ton Panasonic Compressor 15 HP 150L Built-In Tank Stainless Steel New
Manufacturer: Vevor
SKU: FLLSJ15DLSJ000001V4
Power Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$7,460.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Vevor Air Cooled Chiller 15 Ton Panasonic Compressor 15 HP 150L Built-In Tank Stainless Steel New
Product Overview
The Vevor indoor unit is designed with an internal 2 HP pump and a 15 HP compressor motor. The closed-loop industrial chiller with its own internal insulated 39 gal. (150 L) reservoir. This chiller is ideal for indoor climate control conditions from 41°F to 77°F (5℃ to 25℃).
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

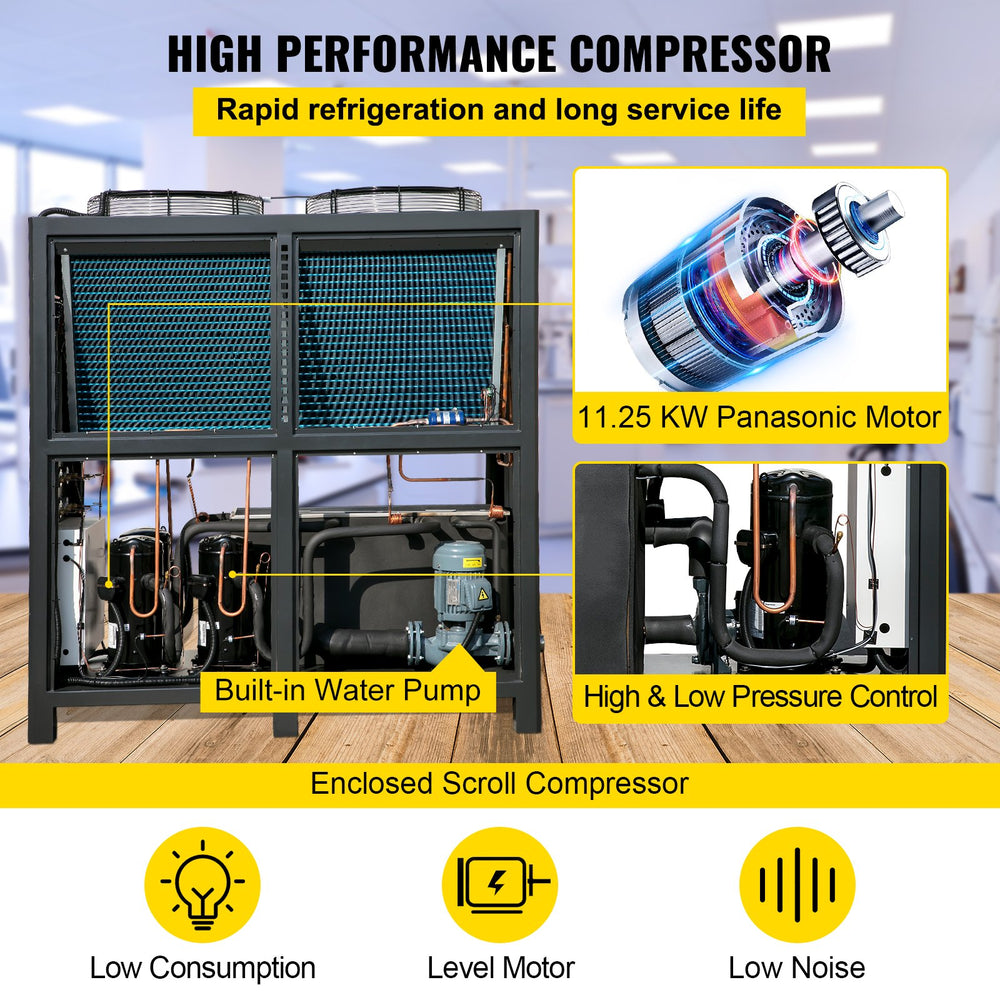

- High-Performance Compressor: The portable chiller applies a 15HP Panasonic compressor that ensures the chiller will operate reliably and stably. Water flow is 7 m3/h, and the nominal diameter of the pipe inlet and outlet is DN50, less vibration and noise. The nominal diameter of the tap water inlet is DN15. Built-in 150L stainless steel water tank for your facilitated operation.

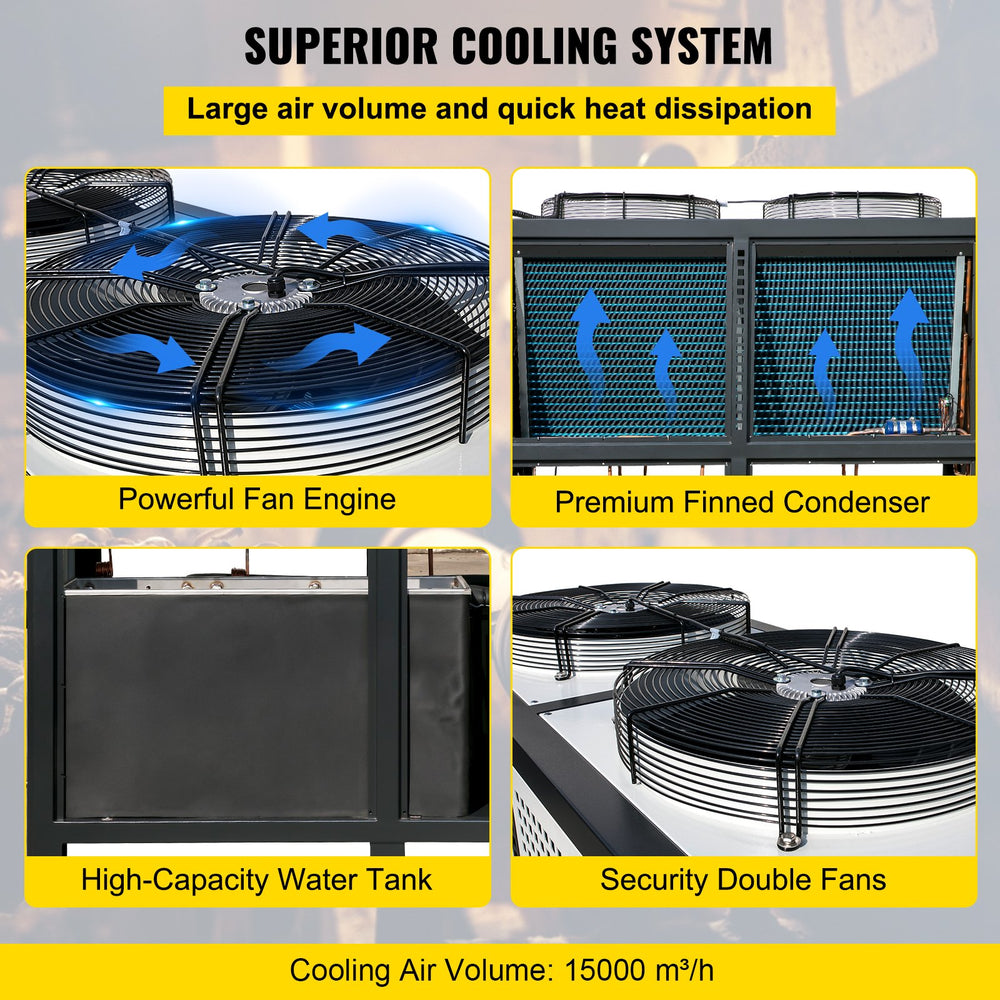

- Powerful Cooling: Our water chiller keep engraving machines up to 45KW cooling during use. Its 11.25 KW compressor can cool up to 38700 Kcal per hour. The 150L water tank is enclosed to reduce evaporation and provides long-term service between refills.

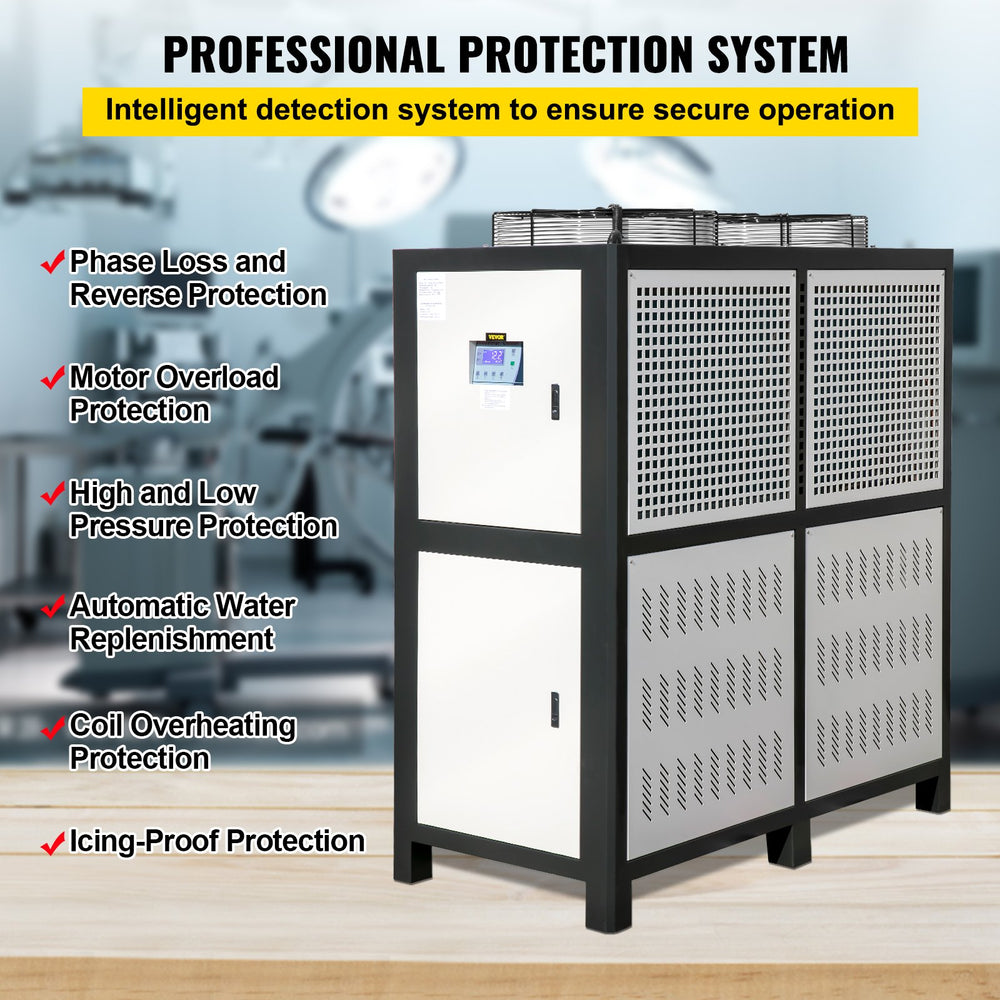

- Professional Protection System: Including an overload protector, high and low-pressure switch, electronic alarm prompt functions, automatic water replenishment. The environmental temperature must be less than or equal to 40℃.

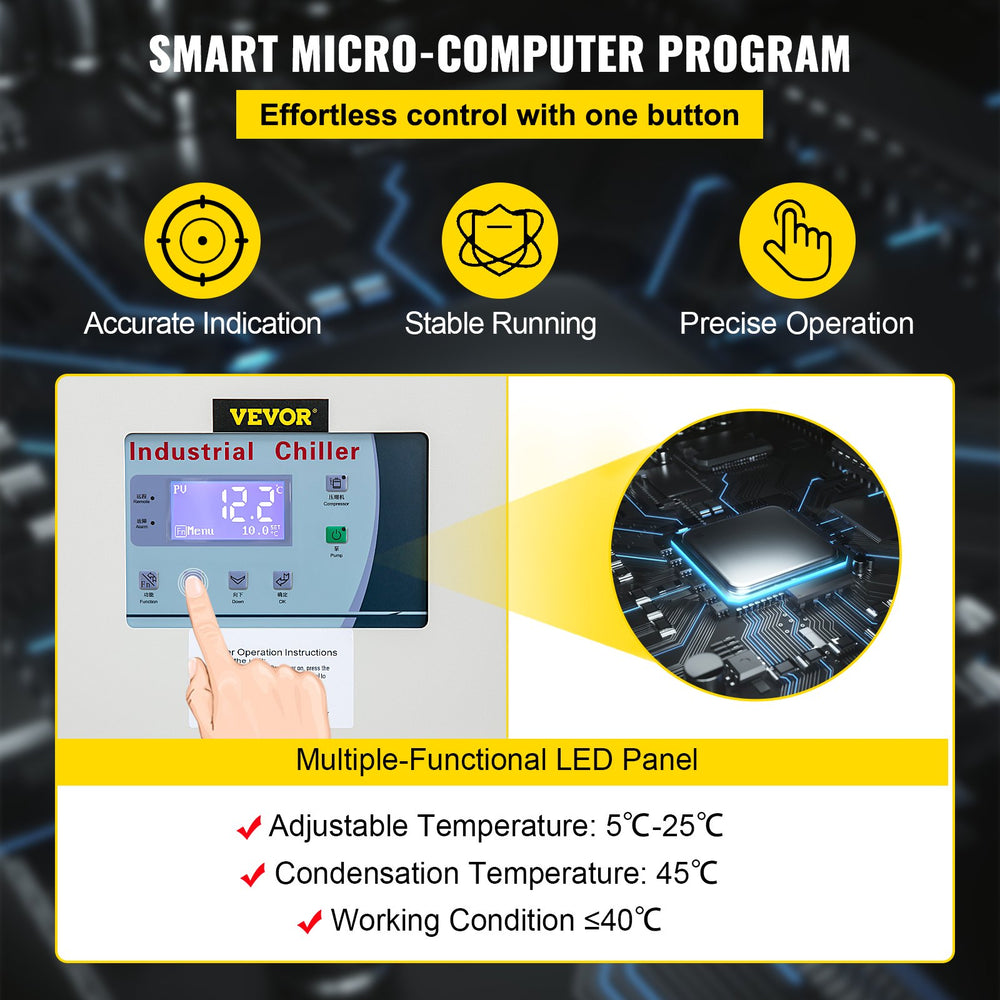

- Smart Micro-Computer Control: Multi-functional control table includes intelligent LCD, microcomputer control, power buttons for compressor and condenser. A simple one-key rule makes operation convenient and efficient. The adjustable temperature ranges from 5℃ to 25℃.

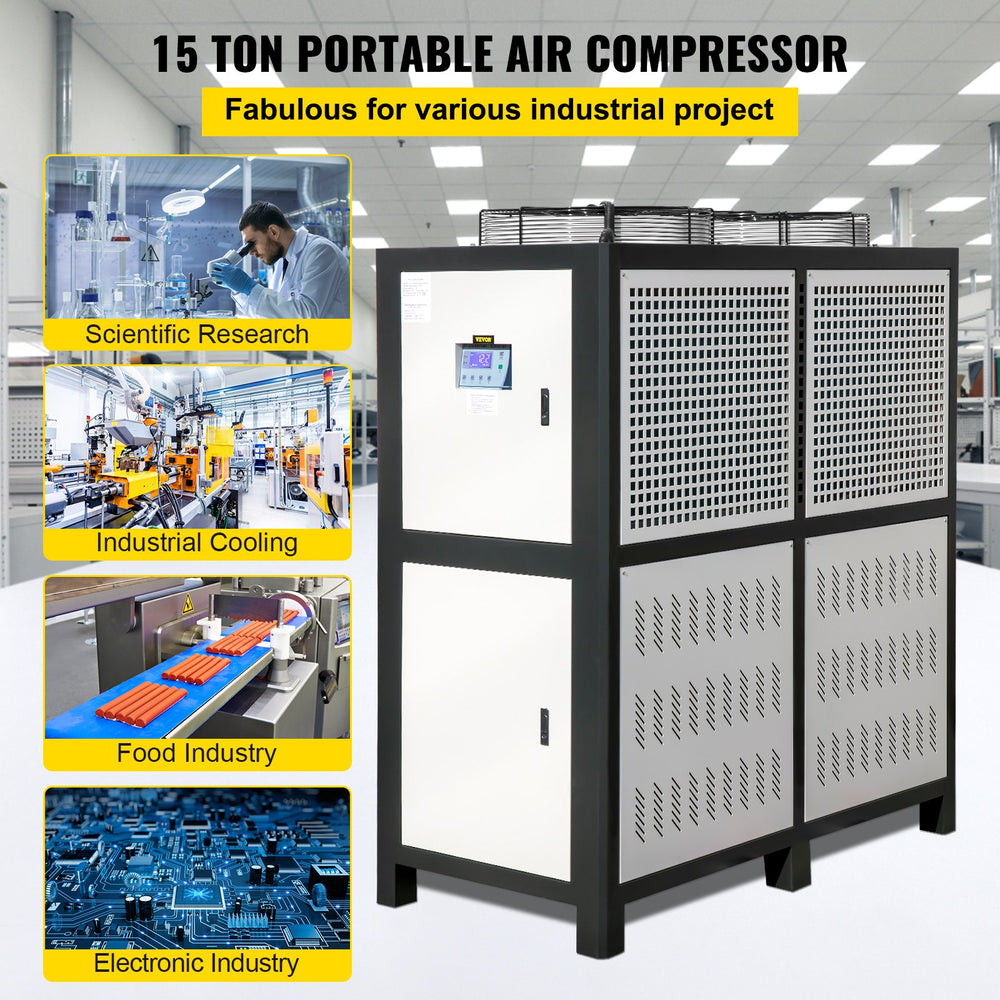

- Versatile Application: The easy setup industrial chiller is widely used in electronics, electroplating, food, machinery, business card printing, and other industries. An air-cooled chiller can accurately control the temperature of a plastic forming mold to shorten the forming cycle and accelerate product setting. It is an essential piece of configuration equipment for modern industries.
Specifications
| Power | 220V / 60Hz / 3P |
|---|---|
| Regulate Temperature | 41°F to 77°F (5°C - 25°C) |
| Condensation Temperature | 113°F (45°C) |
| Compressor Type | Fully Enclosed Vortex |
| Compressor Motor Power | 15 HP / 11.25 KW |
| Tank Capacity | 39.6 gal. (150 L) |
| Cooling Capacity | 45 KW / 38700 Kcal/h |
| Heat Exchange Tube Material | Copper |
| Coolant Type | R-407 |
| Fan Motor Power | 0.64 KW |
| Pipe Diameter | 0.1 in. (25 mm) |
|---|---|
| Pump Motor Power | 2 HP |
| Pump Power | 2.2 KW |
| Item Dimensions | 63 x 30.7 x 67 in. (160 x 78 x 170 cm) |
| Net Weight | 1345 lbs. (610 kg) |
Package Contents
Vevor Air Cooled Chiller 15 Ton
User Manual
Warranty
This item comes with a 1 year factory warranty.
