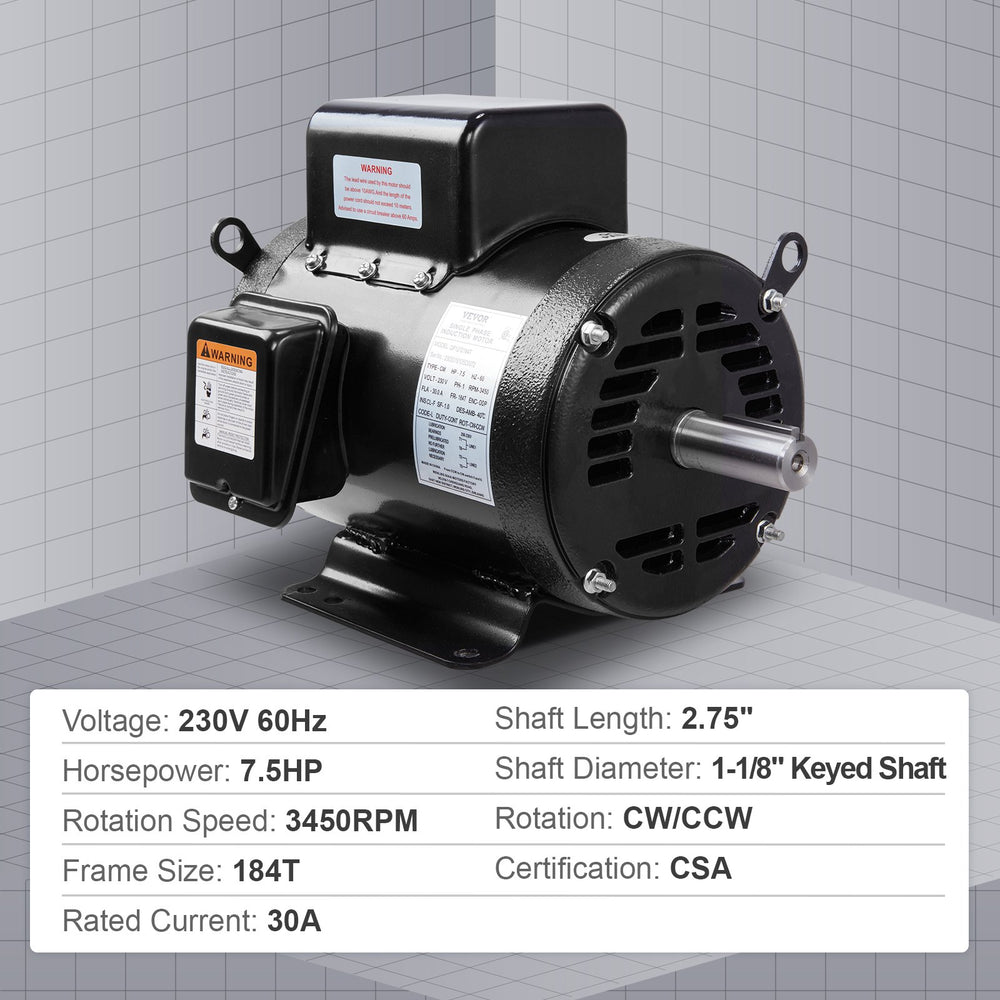

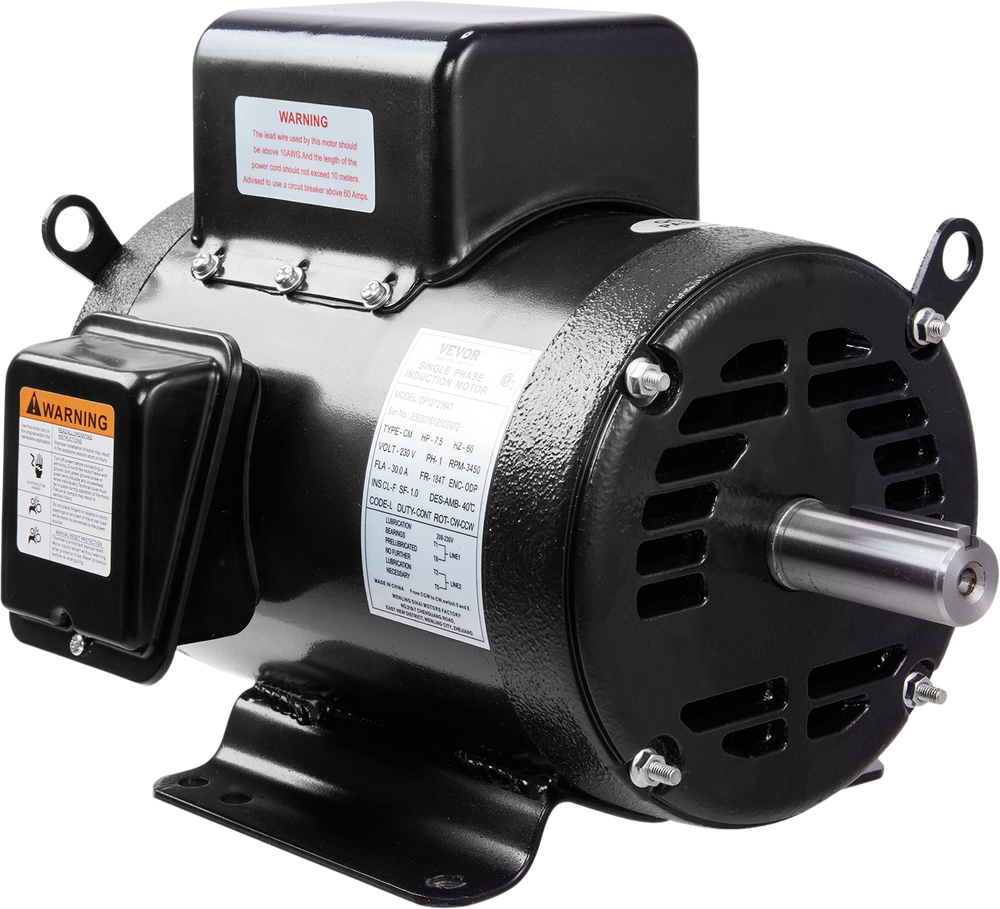

Vevor Air Compressor Motor Electric 7.5HP 1-1/8" Keyed Shaft 2.75" Shaft Length 230V New
Manufacturer: Vevor
SKU: DXKYJDJTODP75XUU7V7
QTY
(888) 999-1522
C
$513.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Vevor Air Compressor Motor Electric 7.5HP 1-1/8" Keyed Shaft 2.75" Shaft Length 230V New
Product Overview
Inject powerful energy into your air compressor with Vevor's 7.5HP compressor motor. This compressor motor features a robust rolled steel shell, and achieves efficient cooling with it's large cooling fan for fast heat dissipation. The motor supports both forward and reverse rotation and is CSA certified.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

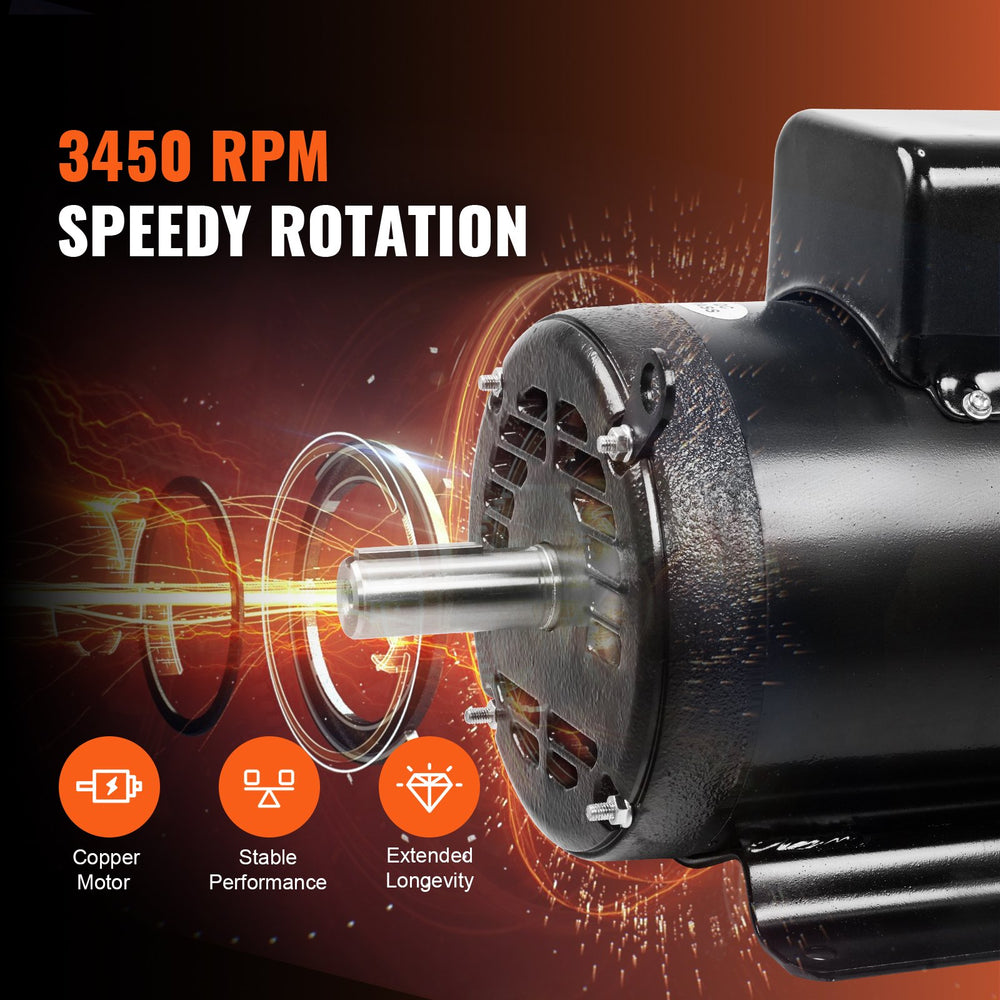

- 7.5HP Air Compressor Motor: 3450 RPM, Single Phase, Full Load Amps: 30A, 230V, 2 Pole, SFA: 1.0.
- Frame Type: 184T Frame, 1-1/8" Keyed Shaft, 2.75" Shaft Length.
- Open Drip-proof: It is suggested to use this motor in clean and dry environments. The housing is made of high-quality steel material.
- Dual Rotation Direction: The motor is reversible for CW/CCW, providing easier wiring operations.
- Safe & Durable: This motor has been tested with CSA certification. It features a rolled steel shell, fast heat dissipation, and compatible keyed shaft for long-term usage.
Specifications
| Voltage | 230V |
| Horsepower | 7.5HP |
| Rotation Speed | 3450 RPM |
| Frame Size | 184T |
| Rated Current | 30A |
| Shaft Length | 2.75" |
| Shaft Diameter | 1-1/8" Keyed Shaft |
| Rotation | CW/CCW |
| Certification | CSA |
| Product Dimensions | 14.8" x 10.4" x 11" |
| Weight | 74 lbs (33.7 kg) |
Package Contents
Vevor 7.5HP Air Compressor Motor
User Manual
Warranty
This item comes with a 1 year factory warranty.
