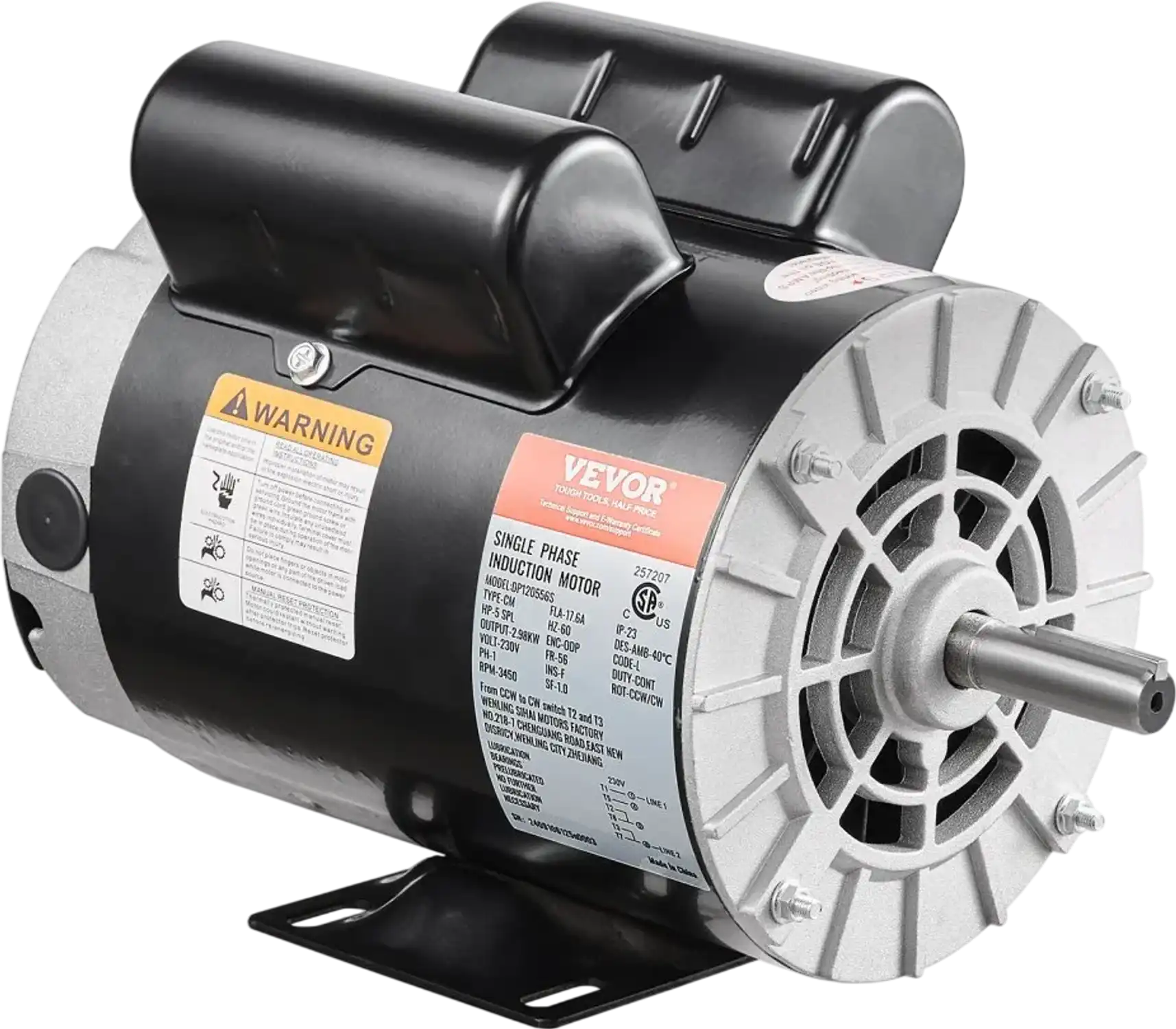

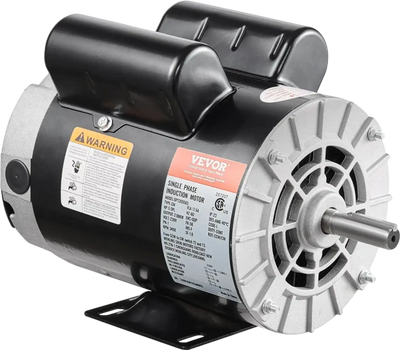

Vevor Air Compressor Motor 5 HP 230V 3450 RPM 56 Frame Single Phase New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High Performance: 5HP SPL, 3450 RPM, Single Phase, Full Load Amps: 17.6Amp, 230V 60Hz, SF: 1.0.
- Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
- Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps.
Specifications
| Item Model Number | DP120556S |
| Product Type | Air Compressor Motor |
| Horsepower | 5 HP |
| Voltage | 230V |
| Frequency | 60Hz |
| Current | 17.6A |
| Rotation Speed | 3450 RPM |
| Phase | Single Phase |
| Service Factor | 1.0 |
| Enclosure | ODP |
| Frame Size | 56 |
| Shaft Diameter | 5/8" keyed shaft |
| Shaft Length | 1.88" |
| Keyway Size | 0.188" |
| Net Weight | 34.5 lbs |
| Dimensions | 56 frame, 5/8" keyed shaft, 1.88" shaft length, 0.188" keyway size |
Warranty
This item comes with a 1 year factory warranty.
