Product Overview

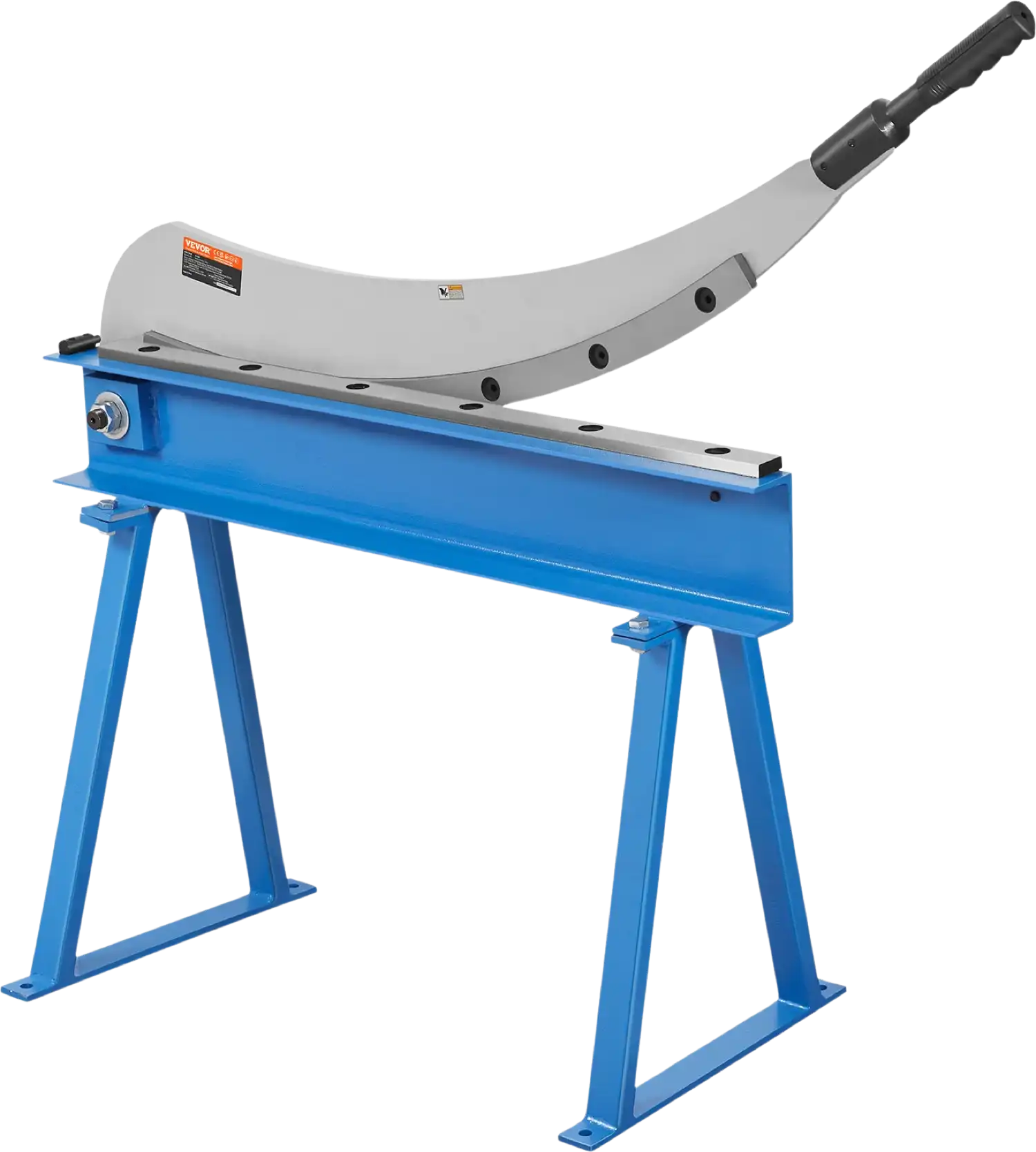

Effortlessly tackle large sheet metal with the Vevor 32 in. plate cutter, saving time and boosting productivity with its single-cut capability. Its durable blade effortlessly slices through materials of varying hardness, maintaining sharpness for consistent results. The ergonomic long handle design minimizes fatigue, allowing you to apply greater force with ease. From thick to hard materials like electro galvanized and color coated steel sheets, this versatile cutter streamlines your workflow for efficient cutting every time.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- 32" Long Blade Steel Plate Cutting Machine: Maximum Cutting Size: Length: 32" / 800mm Thickness: 0.06" / 1.5mm. can cut larger size materials. Can easily cope with cutting large sized sheet metal. Can cut large size material at one time, no need to cut multiple times, which greatly improves your working efficiency.
- Adopt T10 steel blade: Blade hardness: >52HRC; Thickness: 0.47" / 12mm, all kinds of hard metal plates can be easily coped with. For example, mild steel plate, aluminum plate, aluminum alloy plate, electro galvanized plate, tinned plate, composite steel plate, color coated steel plate, this versatility makes it more convenient for you when working.
- Smooth cutting edges: <0.0027"Edge clearance, through the paper cutting test, paper can also cut a completely smooth edge. Cutting steel plate material, more can realize the edge smooth without burr, avoid material is wasted or destroyed.
- Long Handle & Save Power: The long handle design allows you to generate more power with less effort, greatly reducing the difficulty and fatigue of cutting. Whether you need to cut thick or hard materials, this plate cutter makes it easy for you and greatly improves your work efficiency.
- Solid Body: Sturdy steel frame, preventing the use of the process of shaking, stable and safe, so that you have more confidence in cutting materials, do not need to affect their movements because of will be on the machine instability factors.
Specifications
| Item Model # | HS-800 |
|---|---|
| Max. Shearing Length | 31.5 in. (800 mm) |
| Max. Shearing Plate Thickness | 0.06 in. (1.5 mm) |
| Handle Length | 9 in. (230 mm) |
| Blade Clearance | <0.0027 in. (<0.07 mm) Cuts Paper |
| Blade Hardness | >52HRC |
| Blade Thickness | 0.47 in. (12 mm) |
| Blade Length | 34.25 in. (870 mm) |
| Blade Width | 1.38 in. (35 mm) |
| Shear Plate Tensile Strength | ≤235Mpa |
| Frame Material | Q235 |
| Blade Material | T10 |
|---|---|
| Surface Treatment | Painted, Blackened Treatment |
| Surface Color | Blue |
| Operating Method | Floor Bolt Fixation, Manual Cutting |
| Product Dimensions | 53.15 x 8.66 x 41.34 in. (1350 x 220 x 1050 mm) |
| Product Weight | 92.15 lbs. (41.8 kg) |
Package Contents
Vevor 32 in. Manual Plate Shear for Metal Sheet Processing
User Manual
Warranty
This item comes with a 1 year factory warranty.
Manuals & Documentation
Customer Reviews
R
Ron Miller Very disappointed it does not do a clean cut. It bends the sheet metal. I am not getting any help to do a return for a refund. Calls are not being returned for a follow up
S
Sam Spires Nice tool works very good.
