Vevor 3-Jaw Lathe Chuck 10" Self-Centering 6-250mm Clamping Range New
Manufacturer: Vevor
SKU: SZKP10YC3G00YQFFEV0
Chuck Size Options
Jaw Count Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$196.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Electric Concrete Saw 16" Circular Wet Disk 6" Adjustable Cutting Depth 3200W 15A Motor New
-
Vevor Cordless Fan 16" Portable Quiet Personal Floor Fan New
-
Vevor Electric Ratchet Wrench 3/8" Cordless 12V 33 ft-lbs Tool Kit New
-
Vevor Roofing Nailer Professional 15 Degree Pneumatic Coil Nail Gun 3/4" to 1-3/4" New
-
Vevor Demolition Jack Hammer 1400W Electric Concrete Breaker with 2 Chisels New
-
Vevor Pipe Crimping Kit Pro Press Tool Cordless with 3 Jaw Sizes New
-
Vevor Borescope Dual Lens Endoscope Camera with 4.3" Screen 1080P 16.4' Cable New
-
Vevor PVC Pipe Reamer Kit 9-Piece Socket Saver for 1/2" to 4" Pipes New
-
Vevor Impact Wrench Cordless 1/2" 20V High Torque with 2 x 4Ah Batteries New
-
Vevor Belt Grinder Sander 30" x 1" Variable Speed with VFD 5500RPM 550W New
-
Vevor Pipe Crimping Tool 18V Pro Press Kit for 1/2", 3/4" & 1" Copper Tubes New
-
Vevor Concrete Vibrator Handheld 800W 13000 VPM with 6.6' Shaft Rod New
-
Vevor Magnetic Drill 1450W Electric 1.57" Boring Diameter 12500N 850 RPM New
-
Vevor Rotary Hammer Drill 1-9/16" SDS-Max Corded 13A New
-
Vevor Framing Nailer 21 Degree Pneumatic Air Nail Gun 2"-3-1/2" New
-
Vevor Crimping Tool Hydraulic Copper Pipe Press Tool with 8 Jaws New
-
Vevor Belt Sander Adapter Angle Grinder Pipe Polishing Attachment New
-
Vevor Pipe Crimping Press Tool Kit with 6 Jaws New
-
Vevor Clip Fan Portable Rechargeable USB 3-Speed Black New
Vevor 3-Jaw Lathe Chuck 10" Self-Centering 6-250mm Clamping Range New
Product Overview
The 10" 3-jaw lathe chuck is made of high-strength HT300 material with strong compression resistance and long service life. It can be used as internal and external jaws to clamp larger-sized industrial components. The lathe chuck has a self-centering function and a bevel gear to precisely control the accuracy of the clamped workpiece for precise machining. Bearing tolerance ≤ 0.05 mm ensures the lathe chuck's stability and high accuracy. Whether you're in woodworking, metalworking, drilling, or milling, this 3-jaw self-centering lathe chuck can meet your requirements for improved machining efficiencies and increased precision.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
- High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.

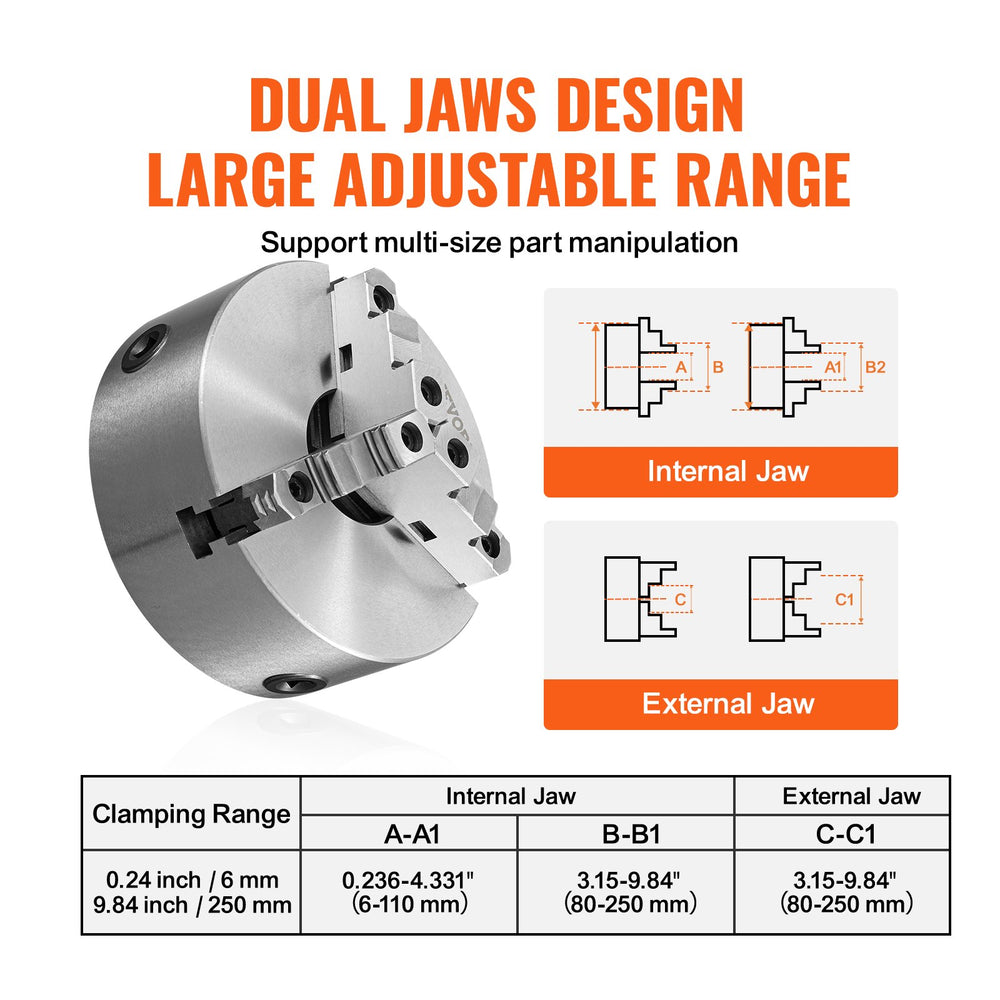

- Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw. The external jaws are capable of clamping larger-sized industrial parts. 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components.
- Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
- Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

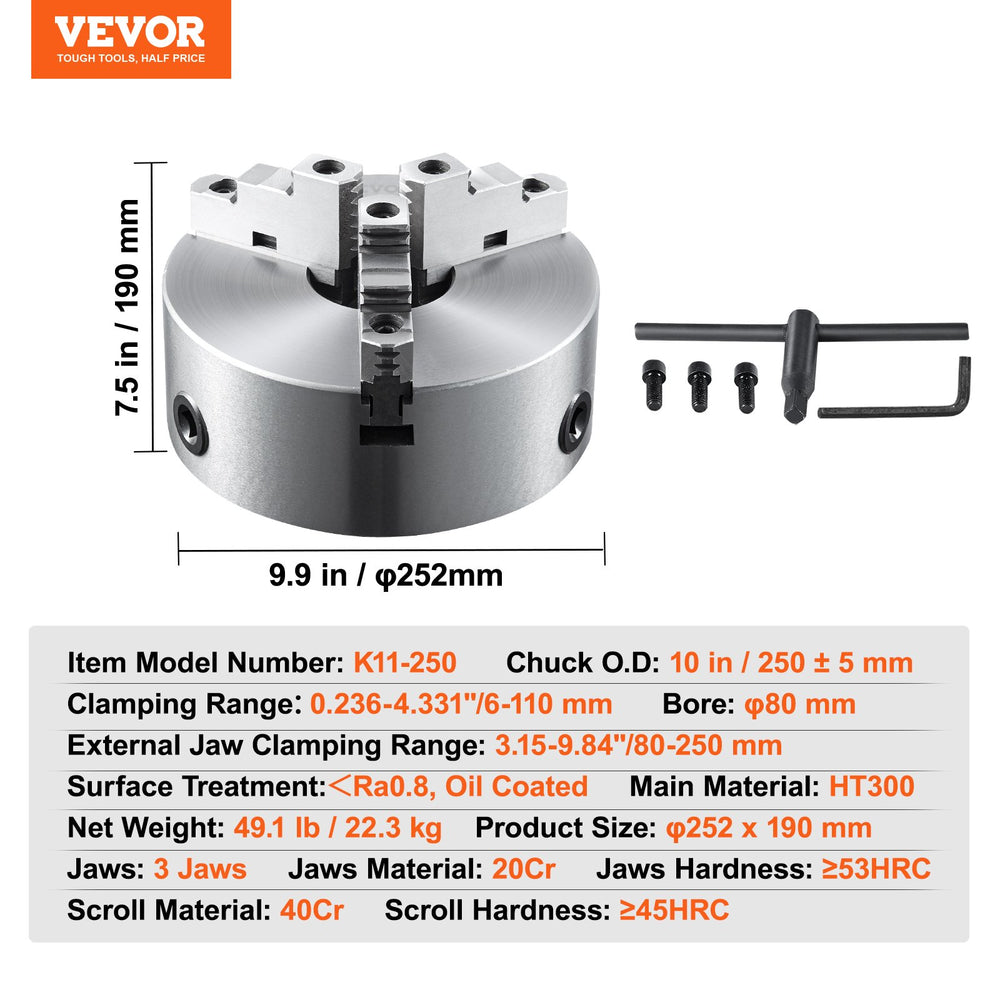

Specifications
| Item Model # | K11-250 |
| Main Material | HT300 |
| Surface Treatment | ＜Ra0.8, Oil Coated |
| Chuck O.D. | 10" / 250mm |
| Clamping Range | 6mm - 110mm |
| External Jaw Clamping Range | 80mm - 250mm |
| Fixed Thread | 3-M10 |
| Bore | φ80 mm |
| Jaw | 20Cr, ≥53HRC |
| Scroll | 40Cr, ≥45HRC |
| Product Dimensions | 9.9" x 7.5" |
| Net Weight | 49.1 lbs (22.3 kg) |

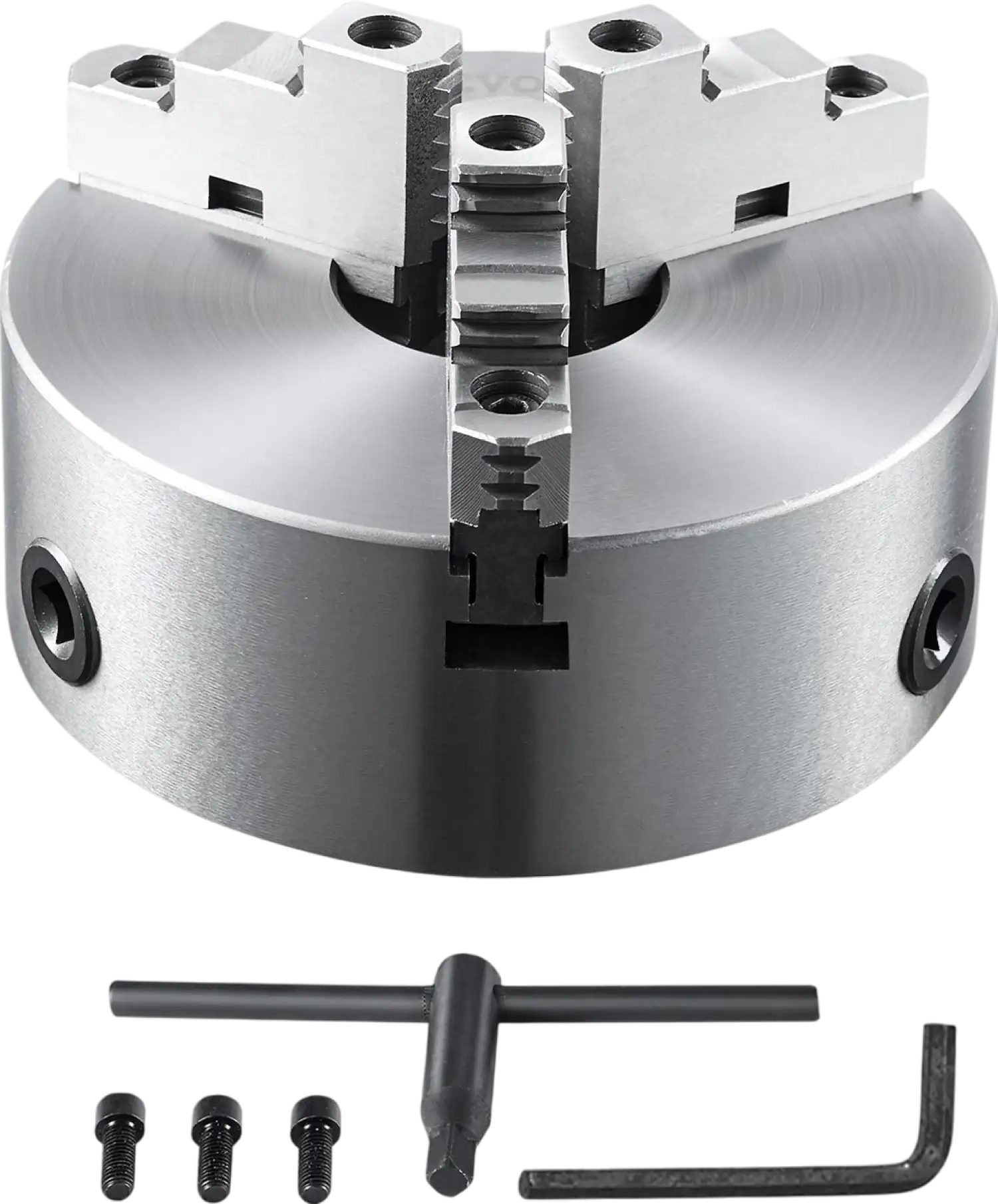

Package Contents
Vevor 3-Jaw Self-Centering Lathe Chuck 10"
T-Key
Hex Wrench
(3) Fixing Screws
User Manual
Warranty
This item comes with a 1 year factory warranty.
