Vevor 10-Branch Radiant Heat Manifold for 1/2" PEX Tubing and Dual Temperature Gauges New
Product Overview

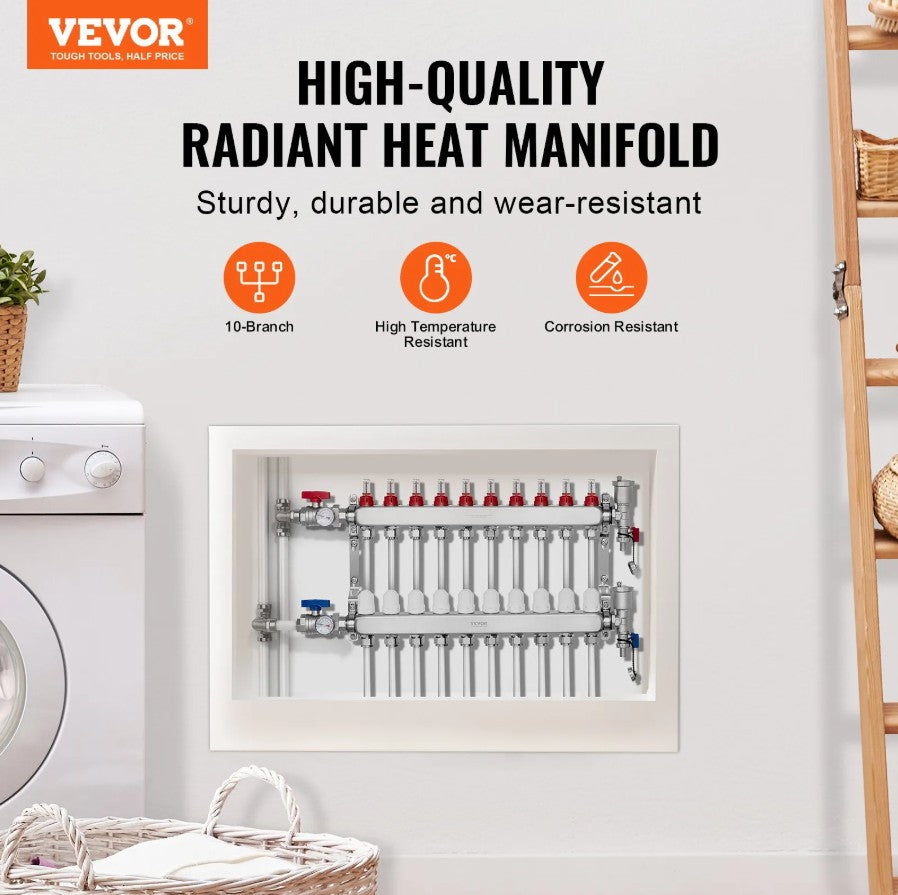

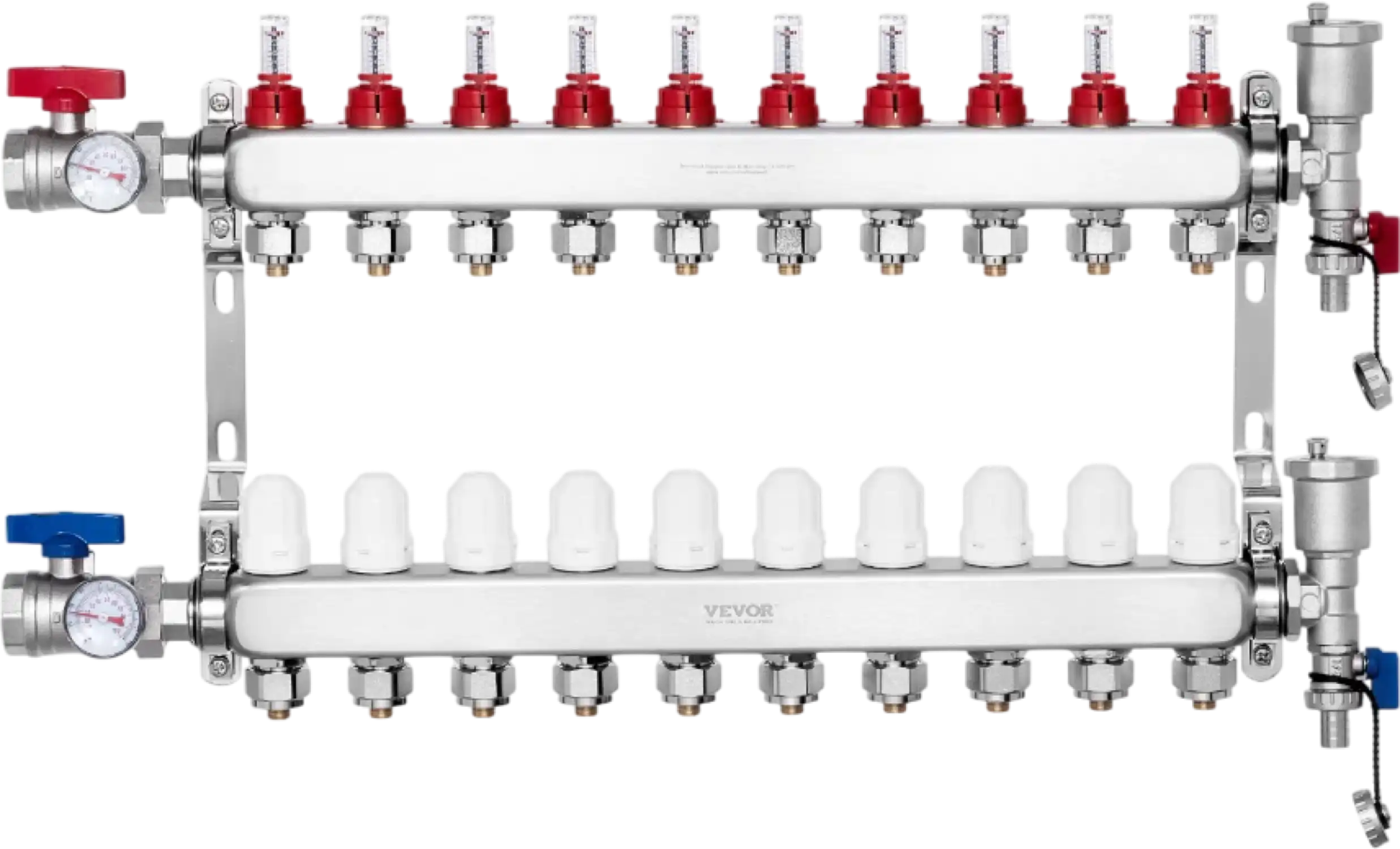

The Vevor Radiant Heat Manifold features 10 branches with 1" NPT supply and return ball valves, 1/2" adapters, and dual temperature gauges for precise monitoring. Built from durable 304 stainless steel, it resists high heat, pressure, and corrosion while ensuring fast, efficient heating. Visual flow meters allow balanced control across each loop, preventing uneven distribution. Complete with mounting brackets and accessories, this manifold is easy to install and delivers consistent, reliable radiant floor heating for residential and commercial spaces.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Product Parameters: This radiant heat manifold features 10 branches, 1-inch NPT supply and return ball valves, and supports a flow rate of up to 5L/min. It includes 1/2-inch adapters and 2 temperature gauges (display both Fahrenheit and Celsius), making it an ideal choice for efficient radiant floor heating systems.
- Built to Last: VEVOR pex tubing manifold is made from durable 304 stainless steel, resistant to high temperatures, corrosion, and pressure. It maintains its shape and integrity over long-term use, offering higher thermal conductivity, faster heating speeds, and quicker insertion of plastic pipes.

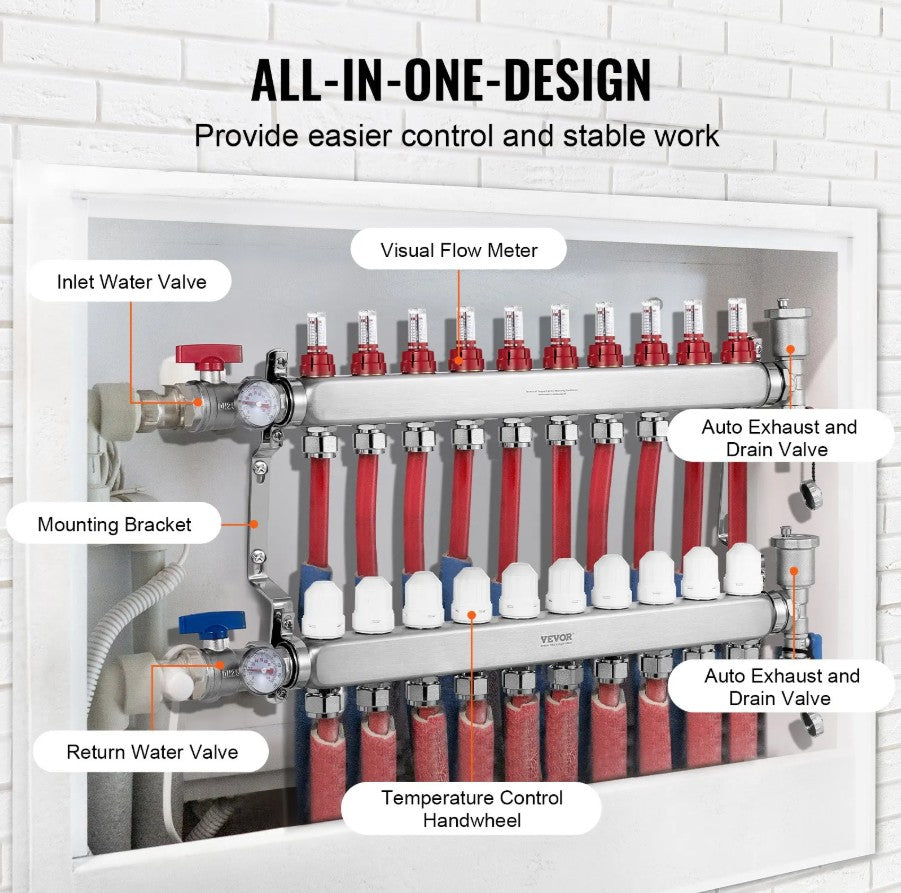

- User-Friendly Design: Featuring visual flow meter shut-off valve on the inlet branch, this radiant floor heating manifold allows for balanced water flow control in each loop, preventing water grabbing. With a flow capacity of up to 5L/min, this hydronic pex radiant manifold provides quick and efficient heating, delivering warm and cozy comfort throughout your space.
- Simple Installation: The pex tubing floor heating manifold comes with all-in-one accessories and clear instructions for an easy installation process. With provided mounting brackets and an intuitive design, the installation process is quick and easy, allowing you to get your heating system up and running in no time.

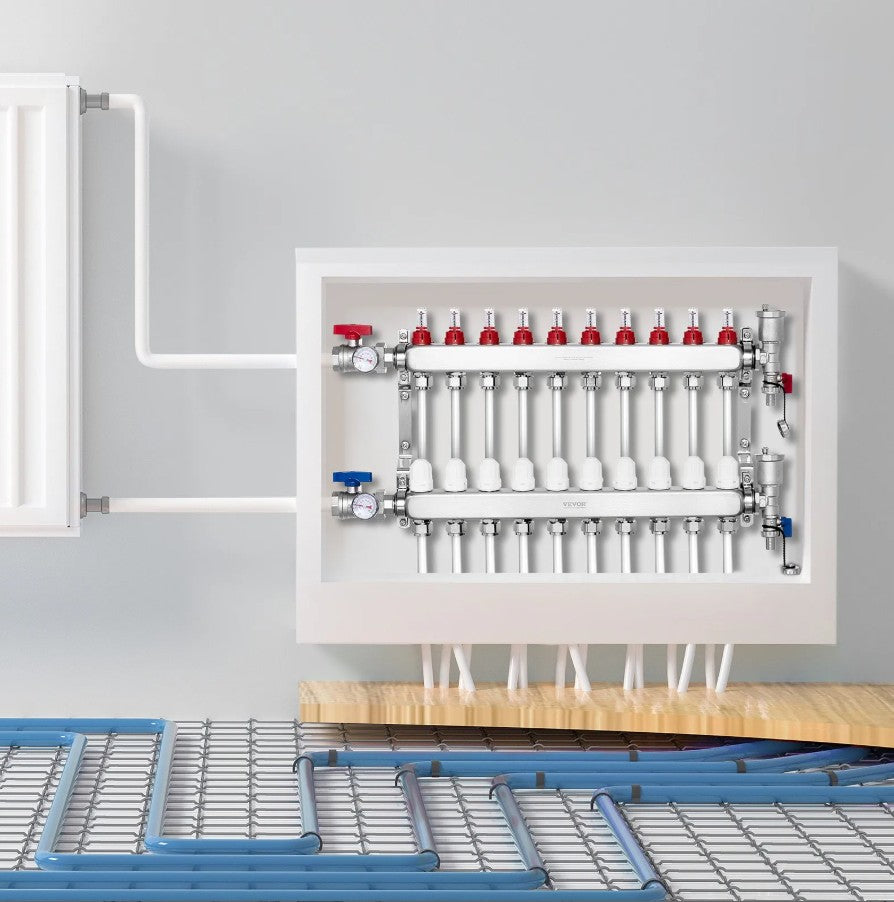

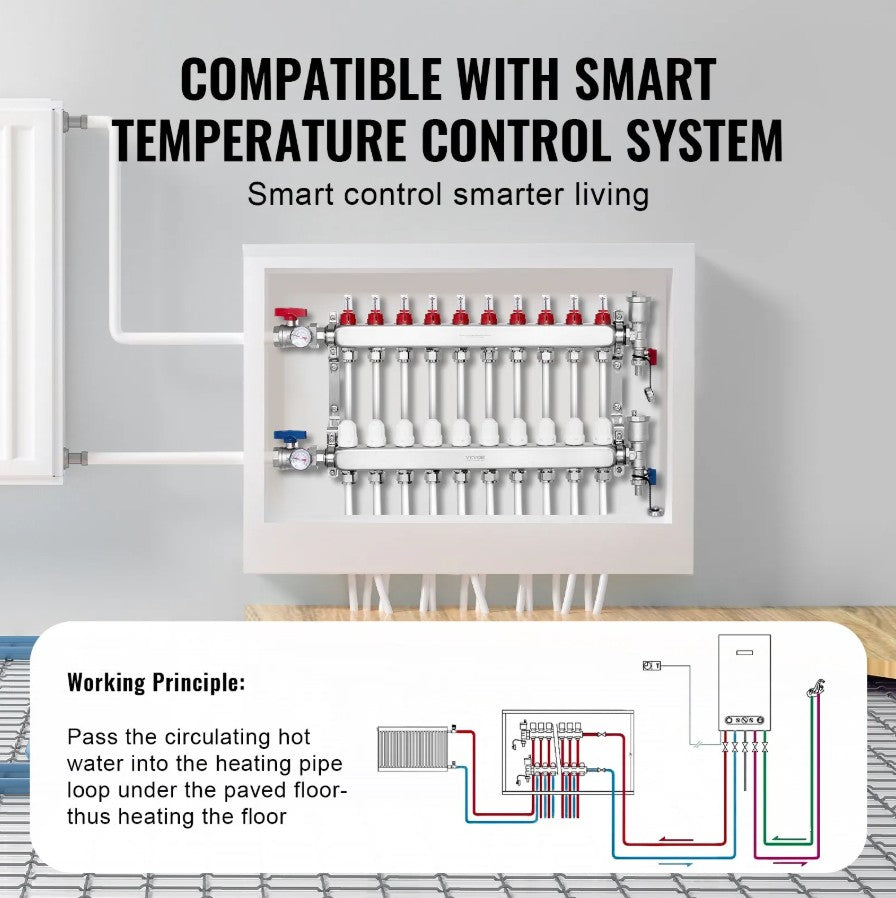

- Efficient Heating Starts Here: Engineered for radiant floor heating systems, this hydronic radiant heat manifold ensures consistent and even heat distribution across your entire space. VEVOR radiant heat pex plumbing manifold is suitable for both residential and commercial applications, delivering dependable performance and optimal heating efficiency.

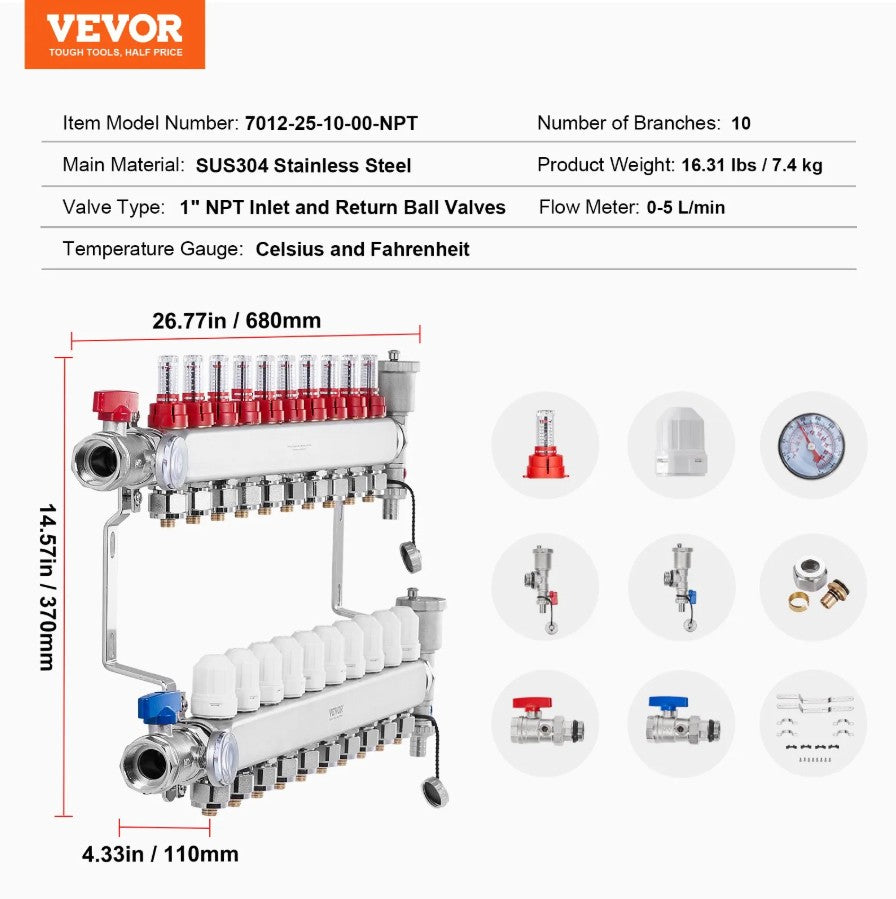

Specifications
| Item Model # | 7012-25-10-00-NPT |
| Number of Branches | 10 |
| Valve Type | 1" NPT Inlet and Return Ball Valves |
| Main Material | SUS304 Stainless Steel |
| Temperature Gauge | Celsius and Fahrenheit |
| Flow Rate | 0-5L/min |
| Product Weight | 16.31 lbs / 7.4 kg |
| Product Dimensions | 26.77 x 14.57 x 4.33 in / 680 x 370 x 110 mm |

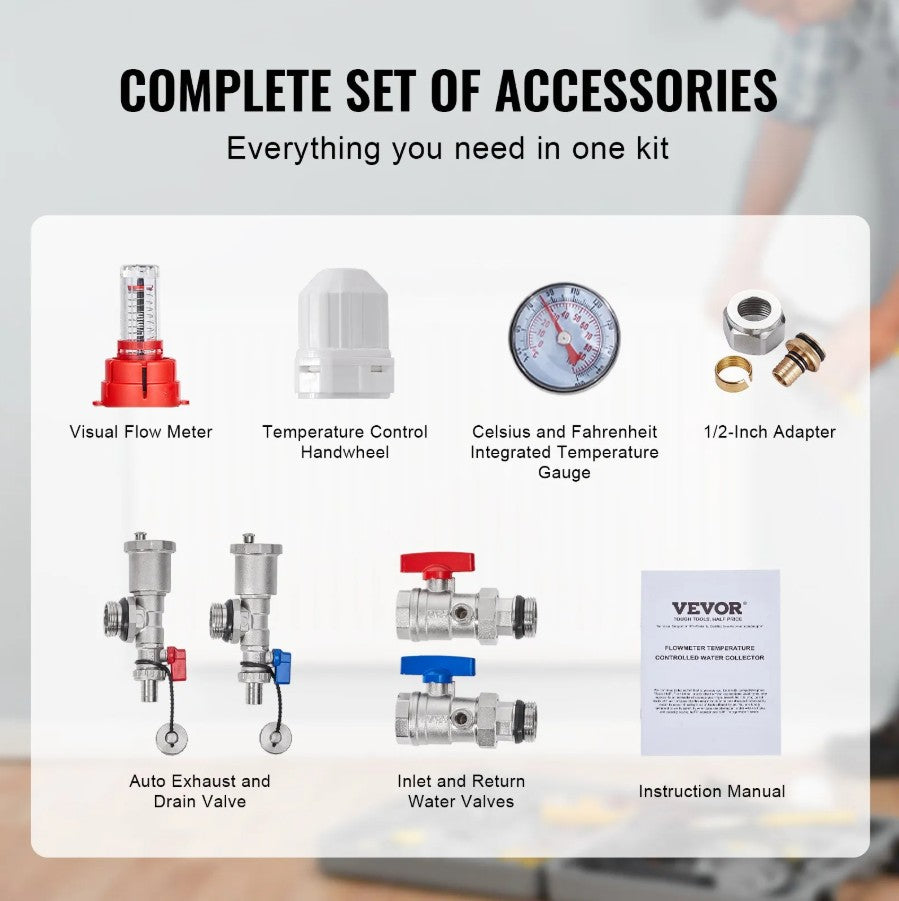

Package Contents
Vevor 10-Branch Radiant Heat Manifold for 1/2" PEX Tubing and Dual Temperature Gauges
Visual Flow Meter
Temperature Control Handwheel
Celsius and Fahrenheit Integrated Temperature Gauge

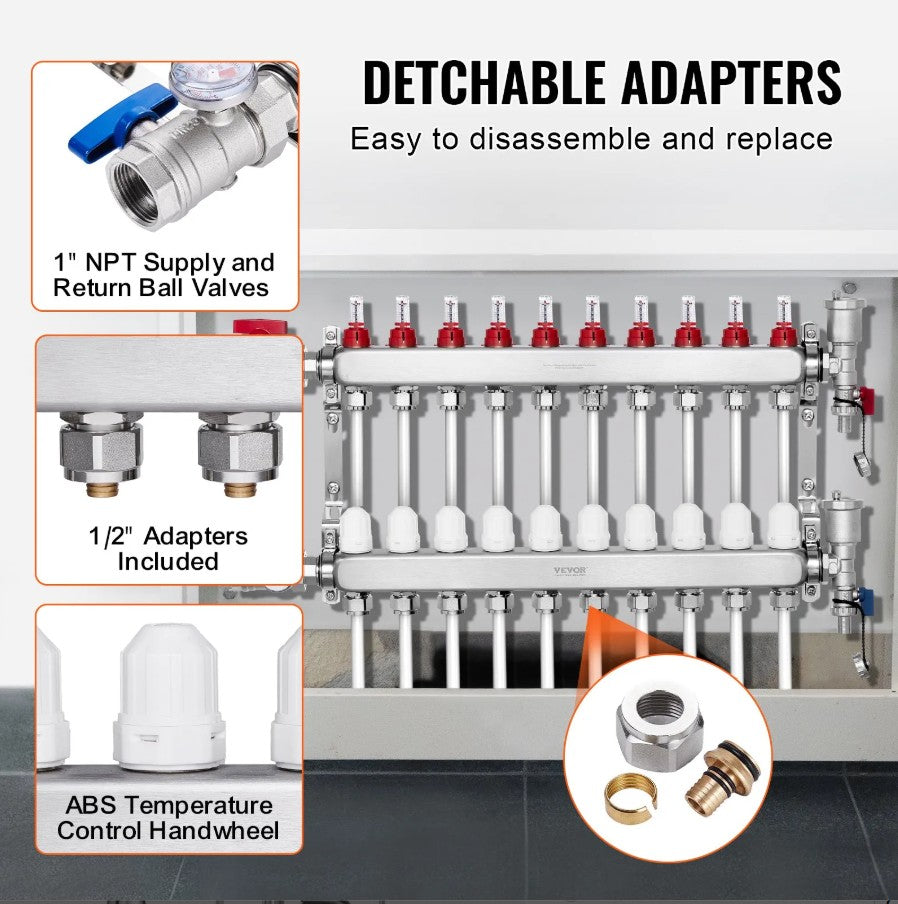

1/2-Inch Adapter
Auto Exhaust and Drain Valve
Inlet and Return Water Valves
User Manual
Warranty
This item comes with a 1 year factory warranty.
