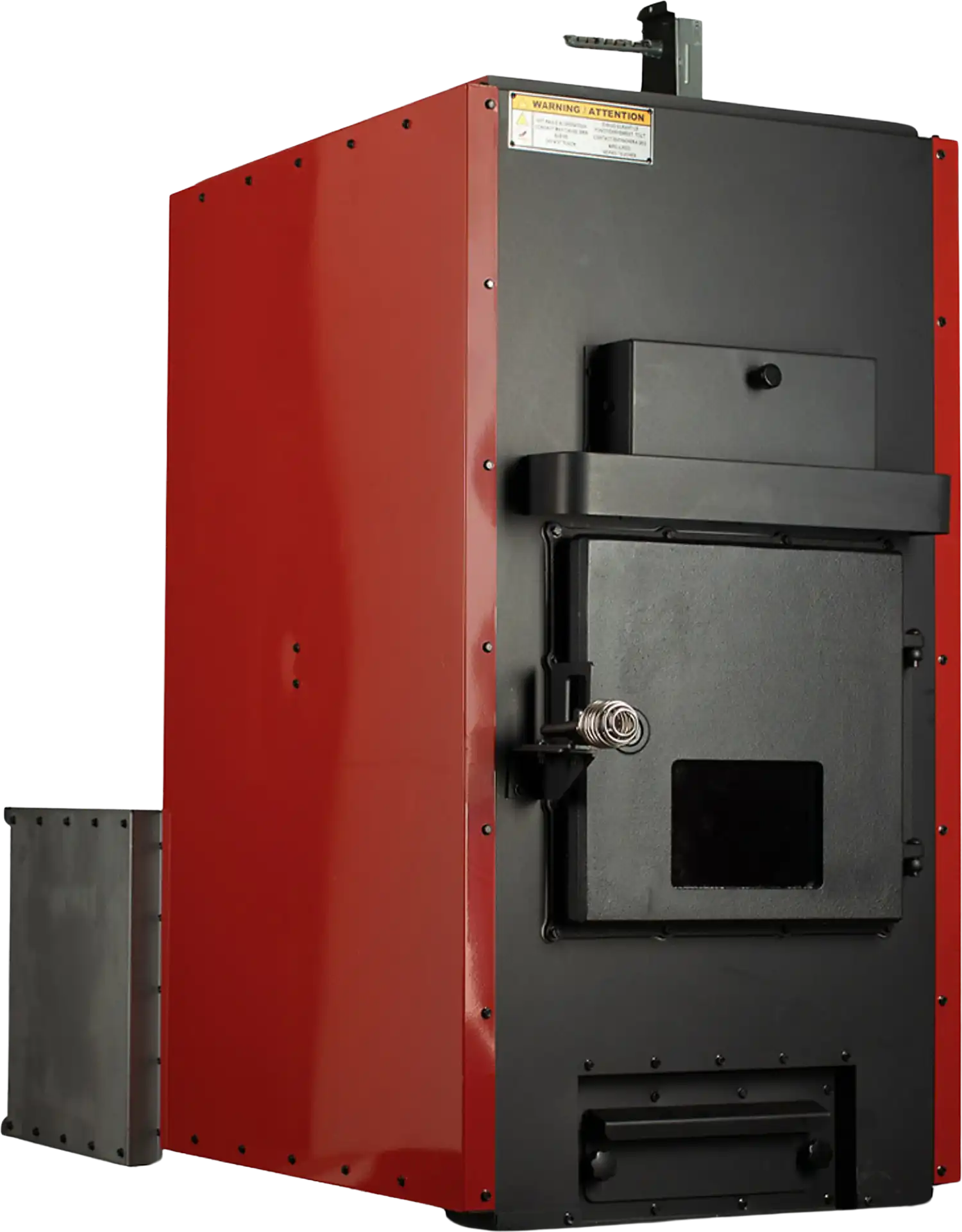

US Stove HB1520 Wood Furnace 3,500 sq. ft. 180,000 BTU New
Product Overview
The Hot Blast HB1520 by US Stove is a wood burning furnace designed to use in conjunction with your existing HVAC ductwork. With twin 500 CFM blowers and up to 180,000 BTUs, it is designed to heat a home up to 3,500 Sq. Ft. Its heavy duty cast-iron door with a glass viewing front gives out the ambience of a flame without compromising efficiency. The open plenum allows for easy installation and with a built in ash-pan and firebrick line combustion chamber, the HB1520 is a great option for heating larger spaces in the furnace category. The Hot Blast HB1520 EPA certified furnace exceeds 75% efficiency.
Perfect for areas up to 3,500 sq. ft.
Brand new in box
1 year warranty
Manufacturer direct shipping from TN
Fast shipping
Authorized Hot Blast dealer
Features
- Produces up to 180,000 BTUs of heat, providing reliable warmth for spaces up to 3,500 square feet
- Large 3.95 cubic feet firebox accepts logs up to 23 inches in length
- Dual 500 CFM blowers to provide maximum heat output and efficiently circulate warm air throughout your home
- 50 CFM combustion blower helps maintain consistent airflow for efficient burning and optimal performance
- Secondary combustion system maximizes heat output while reducing wood consumption and emissions without the use of a catalyst
- Integrated ash pan with built-in ash port allows for quick and easy cleanup (recommended for use with ash bucket model 1508, sold separately)
- Includes filter box (assembly required) for integration with home ductwork; accepts standard 16 × 24 × 1 in. air filters (sold separately)
- Firebrick-lined interior improves combustion efficiency and enhances long-term durability
- Heavy-duty cast iron door with a large viewing window lets you enjoy the fire while providing lasting durability
- Designed for use with a standard 6-inch chimney connector and chimney system (not included)
- Meets all EPA guidelines for wood furnaces
- Recommended installation by NFI Certified Installer (USA) or WETT Certified Installer (Canada)
Specifications
| Combustible | Wood |
|---|---|
| Flue Piper Diameter | 6" |
| Flue Pipe Type | Black or Blued Steel 2100°F Class "A" |
| Minimum Chimney Height | 12 ft. |
| Maximum Log Length | 23" |
| Electrical | 120V, 60 Hz, 6.0 Amps |
| Cooktop | No |
| Vent Location | Rear |
| Removable Water Reservoir | No |
| Temperature Gauge | No |
| Venting Required | Yes |
| Heating Area (ft²) | 3500 |
| Maximum BTU | 180,000 |
| Stove Type | Freestanding |
| Vented Or Vent-Free | Vented |
| Mobile Home Approved | No |
| Firebox Size | 3.95 Cu Ft, 13.75" x 24" |
| Brick-Lined Firebox | Yes |
| Vent Diameter (in) | 6 |
| Pedestal Base Included | No |
| Air Wash System | No |
| Outside Air Kit | No |
| Heater Type | Outlet |
| Ash Drawer | Yes |
| Blower | Yes |
|---|---|
| Catalytic/Non Catalytic | Non Catalytic |
| Auto Ignition | No |
| Maximum BTU | 180,000 |
| CSA Certified | Yes |
| ETL Listed | Yes |
| EPA Approved | Yes |
| UL Listed | No |
| Assembled Depth (in) | 54.75 |
| Assembled Width (in) | 25.38 |
| Assembled Height (in) | 45 |
| Package Depth | 36.5" |
| Package Width | 27.5" |
| Package Height | 50" |
| Package Weight | 585 lbs. |
| Product Manufacturer Warranty | 5 Year Firebox and Grates Limited Warranty, 1 Year Electrical Limited Warranty |
Package Contents
Hot Blast HB1520
Filter box
Honeywell probe
Draft & Distribution blowers
User's Manual
Warranty
This item comes with a 5 Year Firebox and Grates Limited Warranty, 1 Year Electrical Limited Warranty.
