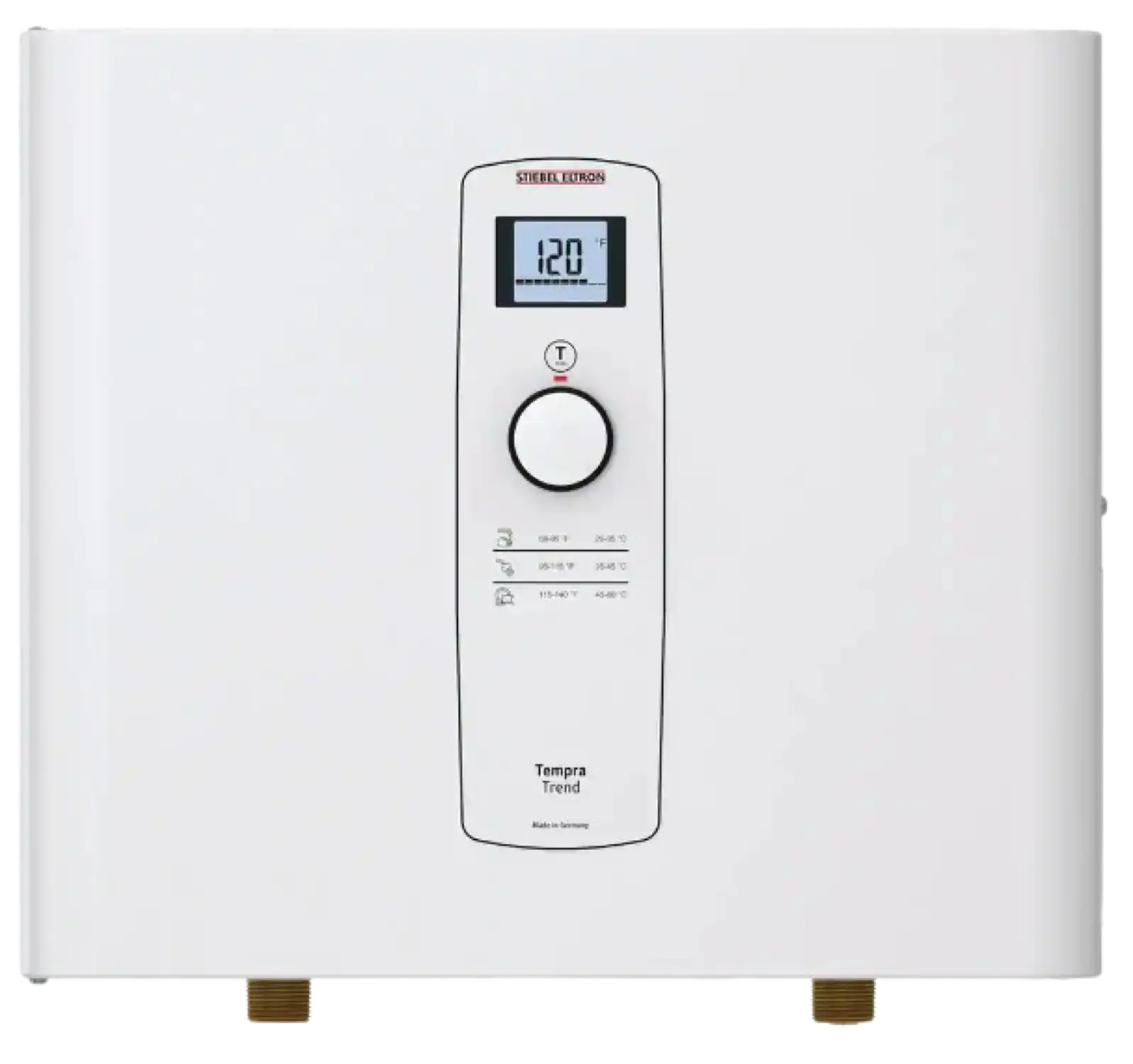

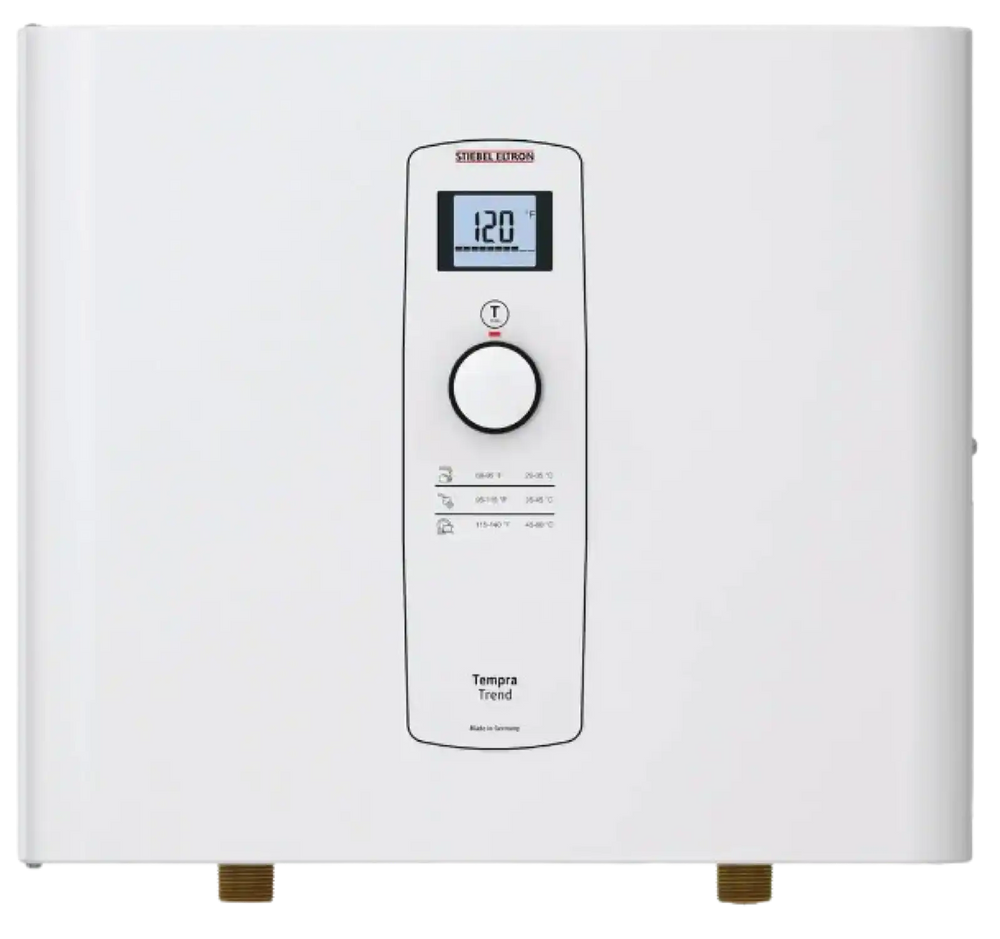

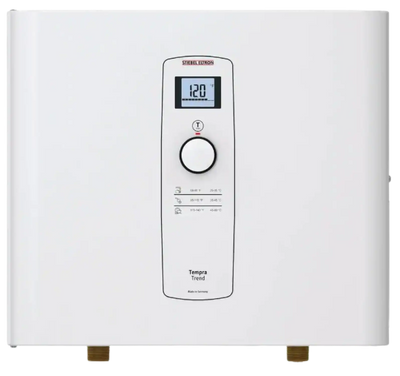

Stiebel Eltron Tempra 29 Trend Self-Modulating 28.8kW 5.66 GPM Tankless Water Heater Manufacturer RFB
Manufacturer: Stiebel Eltron
SKU: 239217R
QTY
C
$867.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Similar Products
Sort:
Filter:
Price
Brand
Flow Rate
Voltage
Condition
Power Source
Indoor/Outdoor
Water Connection
Product Overview
Intelligent self-modulating technology continually ensures the least amount of energy is used to heat the water. Digital temperature display for easy, accurate temperature control and maximum energy efficiency. Tempra 29 Trend provides hot water at a constant temperature for up to 3 bathrooms in warm climates, or 2 or 3 bathrooms in cool climates.
*Manufacturer Refurbished units look brand new. They are items that are returned due to under sizing, shipping damage, or other minor issues. All refurbished units are repaired and tested to insure proper operation. Ships from the manufacturer.
1 year manufacturer warranty
Certified refurbished
Ships directly from Stiebel Eltron out of MA
Authorized Stiebel Eltron dealer
Features
- Tempra 29 Trend has a maximum power draw of 120 Amps via 3 separate dedicated 40 Amp DP breakers and 3 separate runs of 8-Gauge copper wiring, and the electrical service to the residence should be checked to make sure it is sufficient
- Tempra tankless electric water heaters must be correctly sized and you should consult the sizing guide to determine the correct model for you
- Requires 240 Volt or 208 Volt electric service, and has a maximum output of 28,800 Watts at 240 Volts or 21,600 Watts at 208 Volts
- 99% efficient and typically result in savings of 15-20% in comparison with electric tank water heaters
- Supplies endless hot water at a constant and steady temperature from 68 to 140°F (20-60°C) that can be set on the front panel digital display
- Tempra tankless water heaters are about the size of a briefcase and need no venting
- Flow rate you achieve from this or any tankless water heater depends on how powerful the unit is and the temperature difference between the incoming cold water and the hot water being delivered
- Smart microprocessor technology unique to Tempra water heaters delivers steady water temperature even when flow rate vary as taps are adjusted
- Must be installed vertically, water fittings pointing down, with detachable connections such as braided flex connectors to allow periodic filter cleaning and flushing for scale, and an anti-scale filter is recommended if hard water is present
- Professional installation recommended
Specifications
| Minimum Activation Rate (gpm) | 0.77 |
| Minimum Temperature (F) | 68 °F |
| Number of Elements | 3 |
| Number of Showers | 1-2 |
| Power Options | Hardwired |
| Product Weight (lb.) | 19 lb |
| Required Volt Connection | 240 volt |
| Water Heater Features | Overheat Protection, Wall Mounted |
| Wattage (watts) | 28800 W |
| Certifications and Listings | CSA Listed, ETL Listed, UL Certified |
| Product Depth (in.) | 4.625 in |
| Product Height (in.) | 14.5 in |
| Product Width (in.) | 16.625 in |
| Water Connection Size (in.) | 3/4 in NPT |
| Amperage (amps) | 120 A |
| Application Type | Residential |
| Electricity Phase | Single Phase |
| Finish Family | White |
| Flow Rate @ 35°F Rise (gallons/min) | 5.62 gal (US)/min |
| Flow Rate @ 45°F Rise (gallons/min) | 4.37 gal (US)/min |
| Flow Rate @ 55°F Rise (gallons/min) | 3.58 gal (US)/min |
| Flow Rate @ 65°F Rise (gallons/min) | 3.03 gal (US)/min |
| Fuel Type | Electric |
| Indoor/Outdoor | Indoor |
| Maximum Temperature (F) | 140 °F |
Package Contents
Stiebel Eltron Tempra 29 Trend Self-Modulating 28.8 kW 5.66 GPM Tankless Water Heater
User manual
Warranty
This item comes with a 1 year warranty
