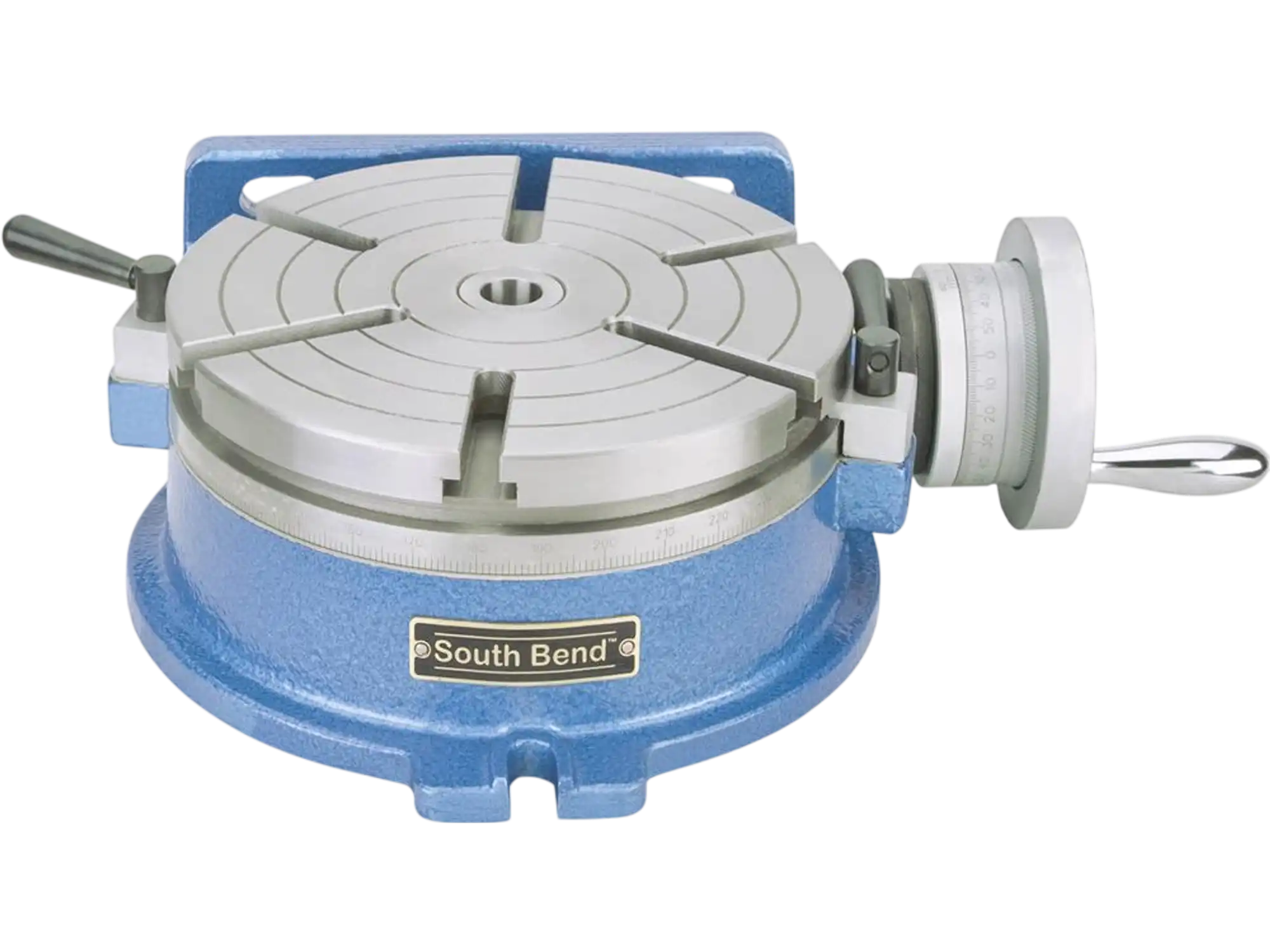

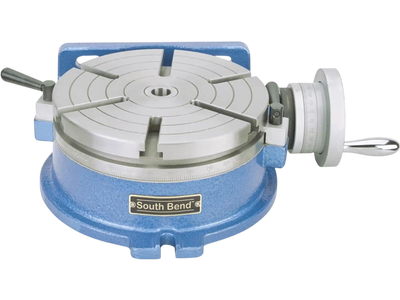

South Bend SB1368 Rotary Table 10" New
Product Overview
The South Bend SB1368 is a 10-inch rotary table built for precise machining and repeatable production work. It helps position a workpiece accurately for cutting circular slots, machining radius corners, and drilling evenly spaced hole patterns.

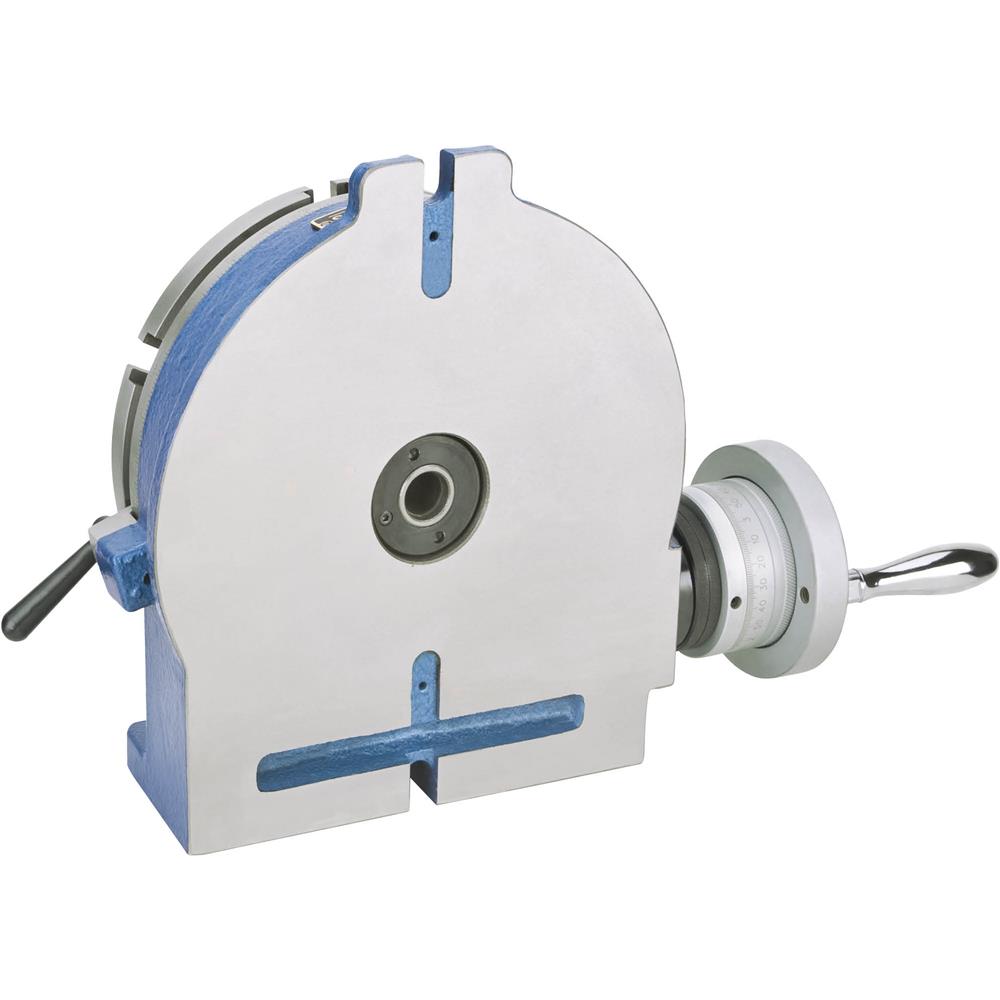

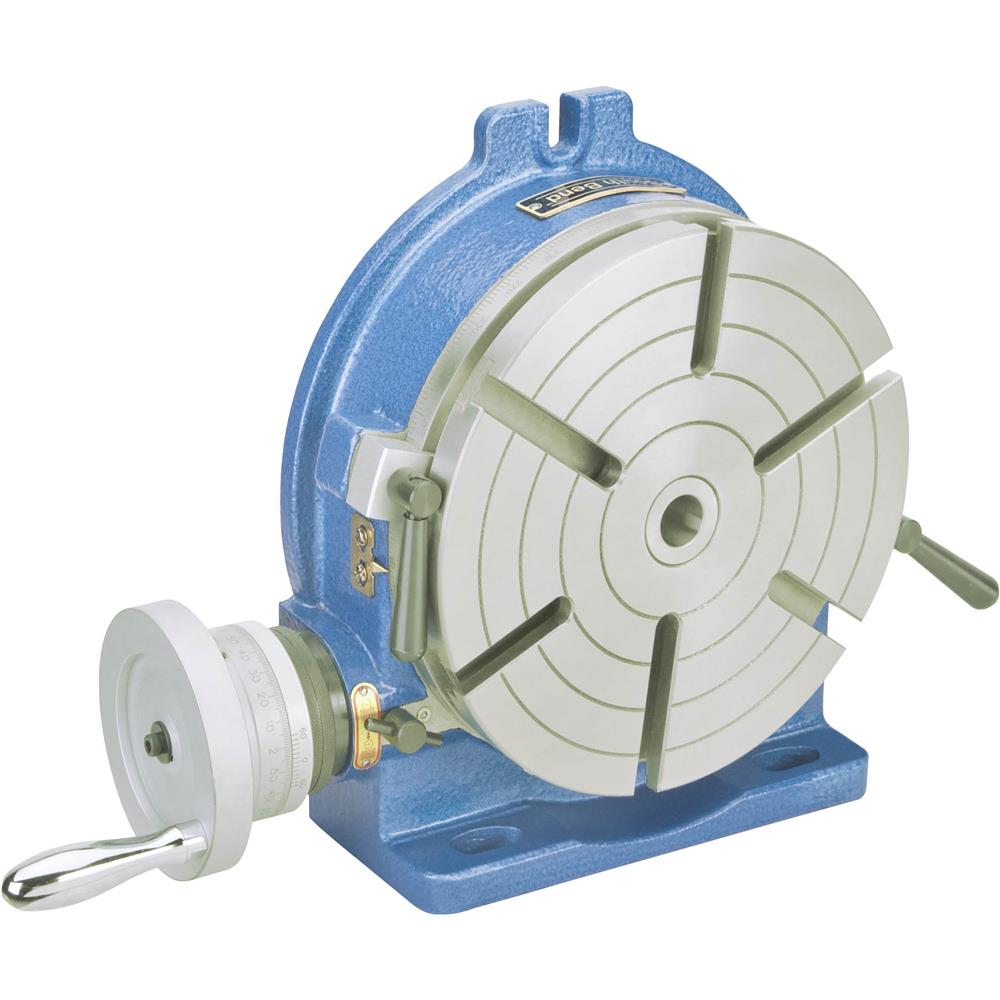

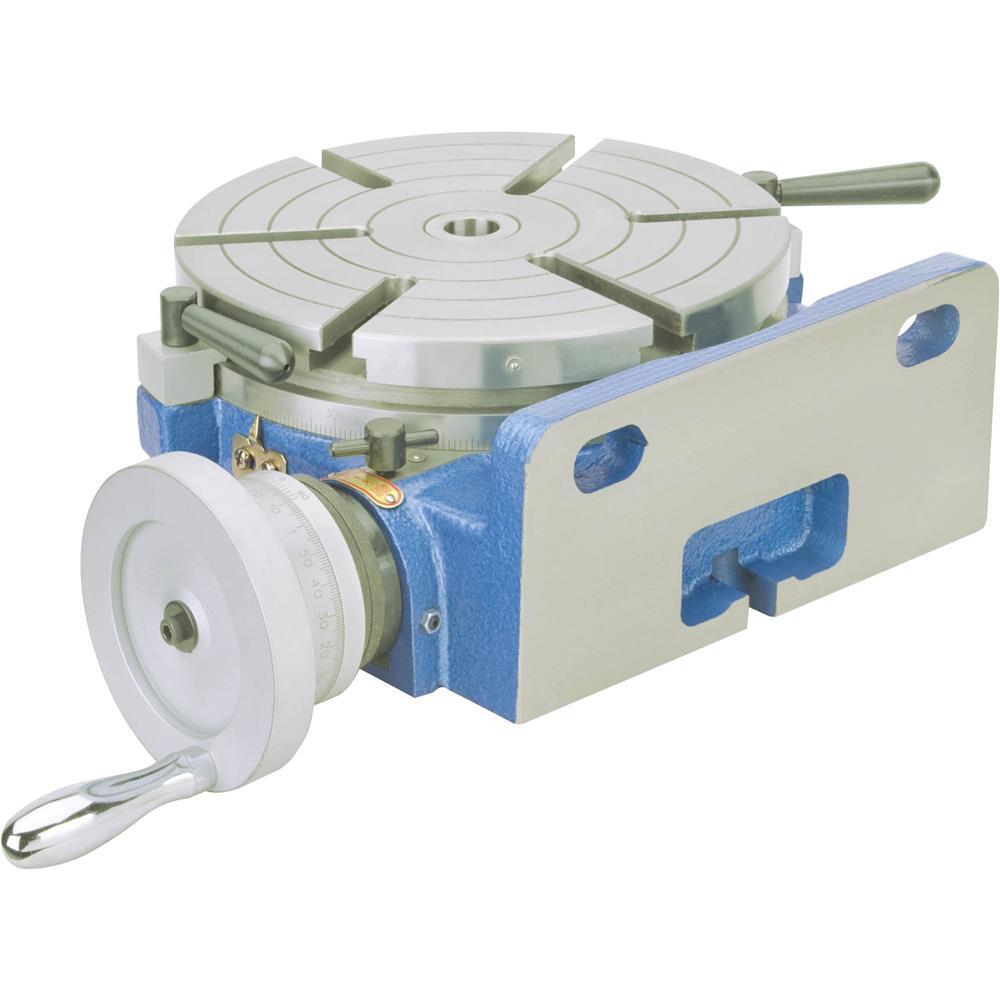

Designed for flexibility, this rotary table can be mounted horizontally or vertically to suit different setups. Its degree scale and 10-second vernier scale allow fine rotational adjustments, while dual table locks and worm gear backlash adjustment help maintain stable, controlled operation.
With a 10-inch table diameter, MT#3 Morse taper, and six T-slots for secure fixturing, this model is well suited for machinists, toolrooms, and small production environments that need accurate indexing and dependable positioning.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Vernier scale is calibrated to 10 seconds
- Worm gear lash adjustment and lock
- Horizontal or vertical mountable
- Degree scale on table edge
- MT #3 socket Morse taper
- Dual table locks
Specifications
| Clamping surface flatness (concave) | 0.0008" |
| Spindle bore concentricity | 0.0008" |
| Surface to base parallelism | 0.0008" |
| Surface to angle squareness | 0.0008" |
| Overall height (horizontal) | 3.30" |
| Overall horizontal height | 4.50" |
| Height to center of spindle bore | 6.38" |
| T-Slot widths (6 each) | 0.512" |
| Table diameter | 10.00" |
| Approximate shipping weight | 98 lbs. |
Warranty
This item comes with a 1 year factory warranty.
