South Bend SB1271 Taper Attachment for 18" and 21" Lathes New
Product Overview

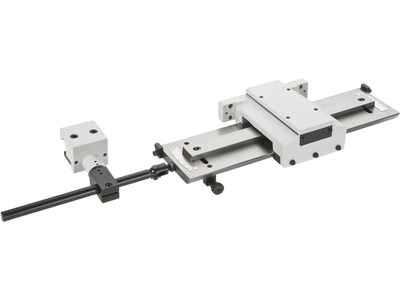

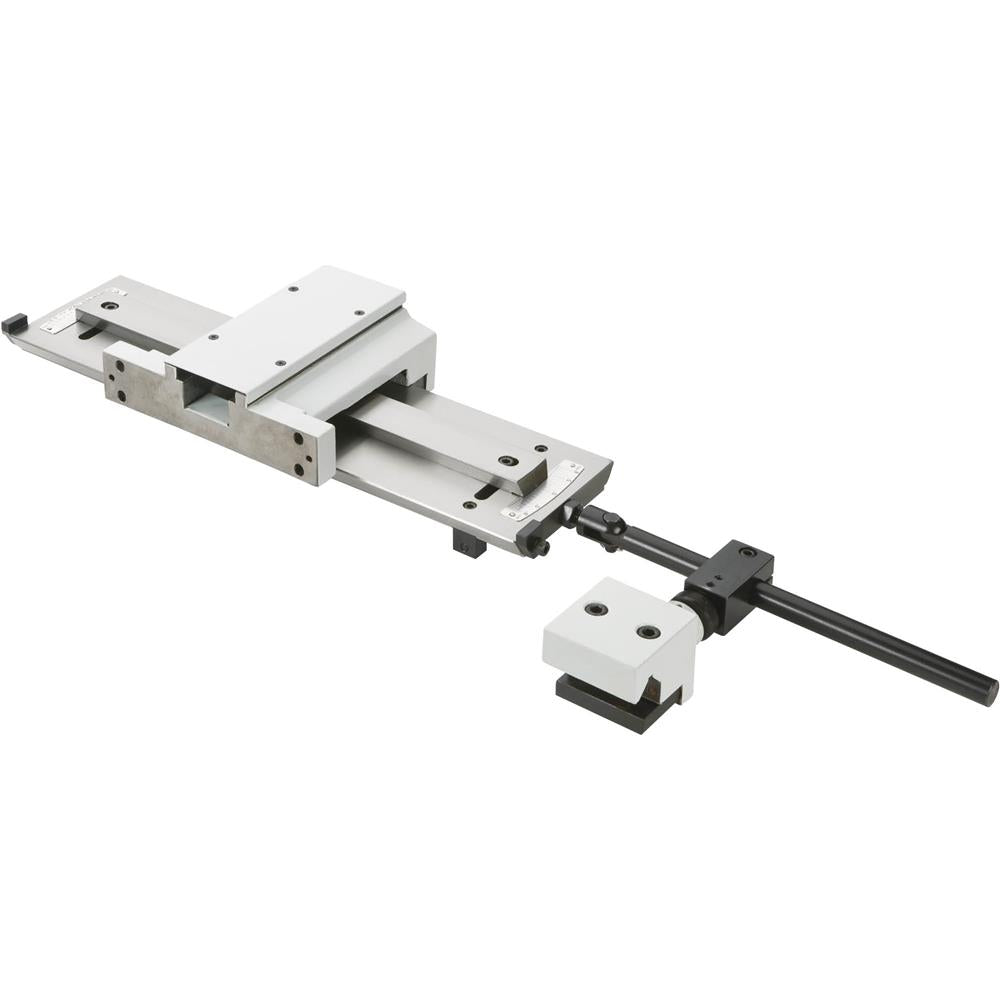

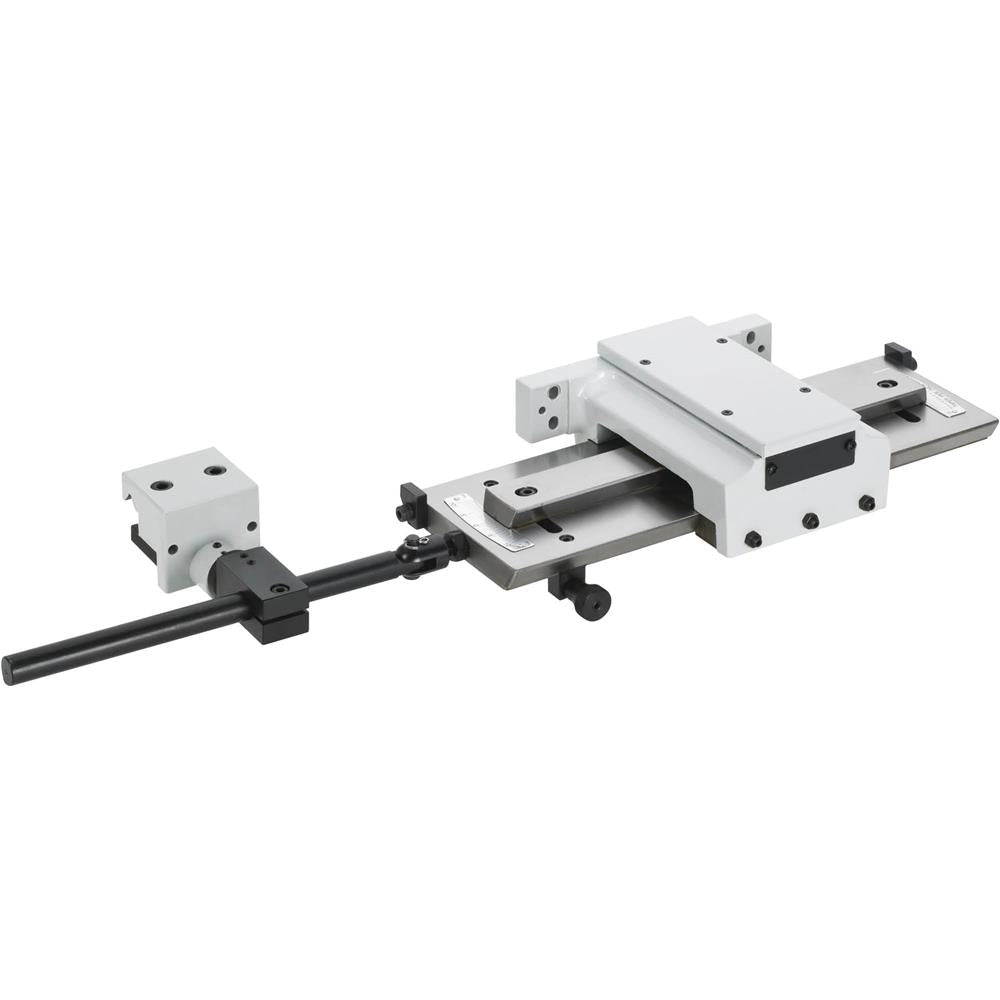

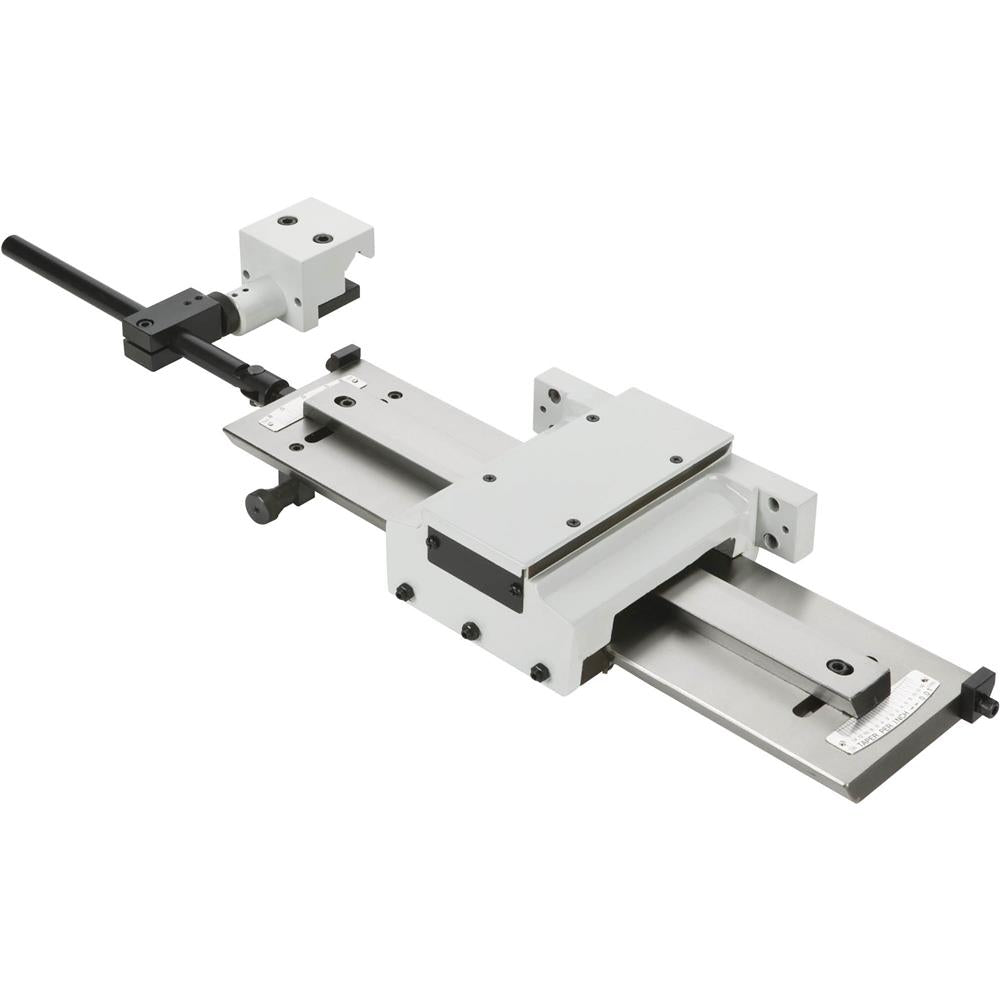

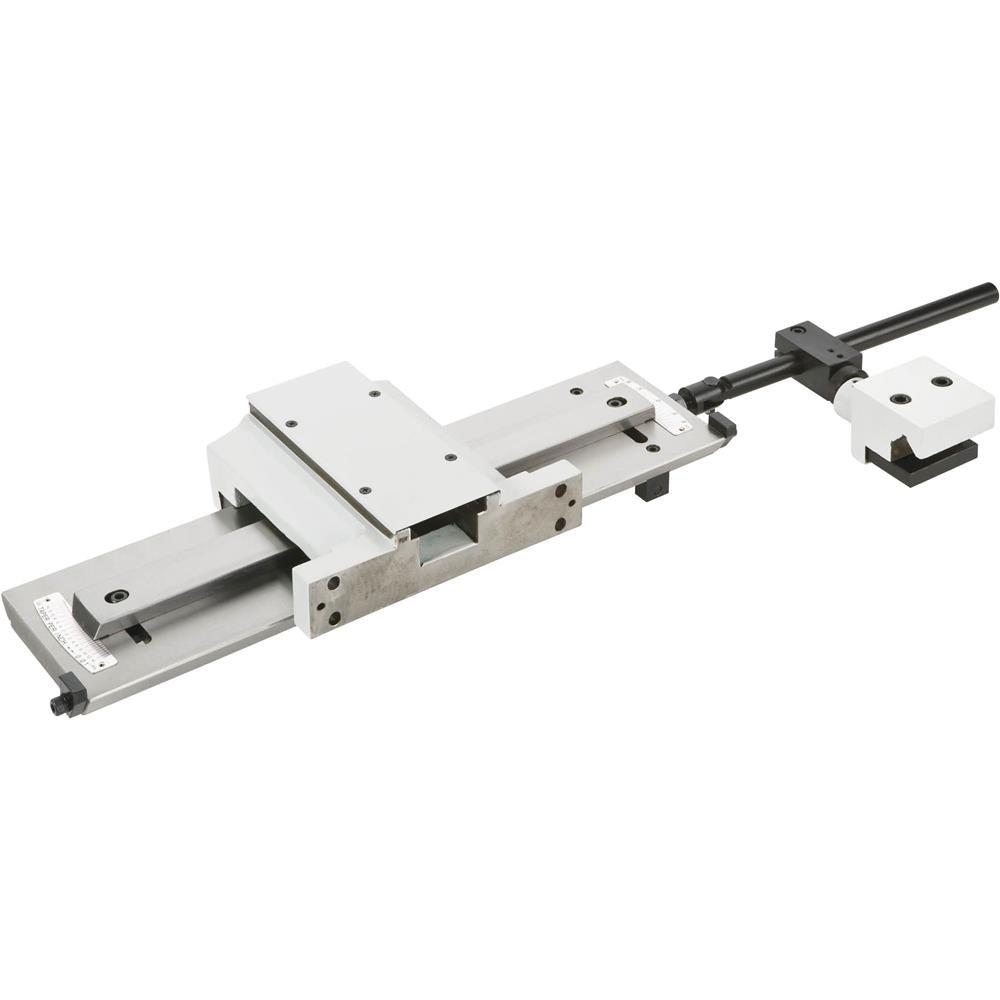

The South Bend SB1271 Taper Attachment is a lathe accessory designed for cutting accurate tapers on compatible 18-inch and 21-inch lathes. It mounts to the rear bed way and lets you machine tapers without offsetting the tailstock, making setup faster and more repeatable for precision turning work.

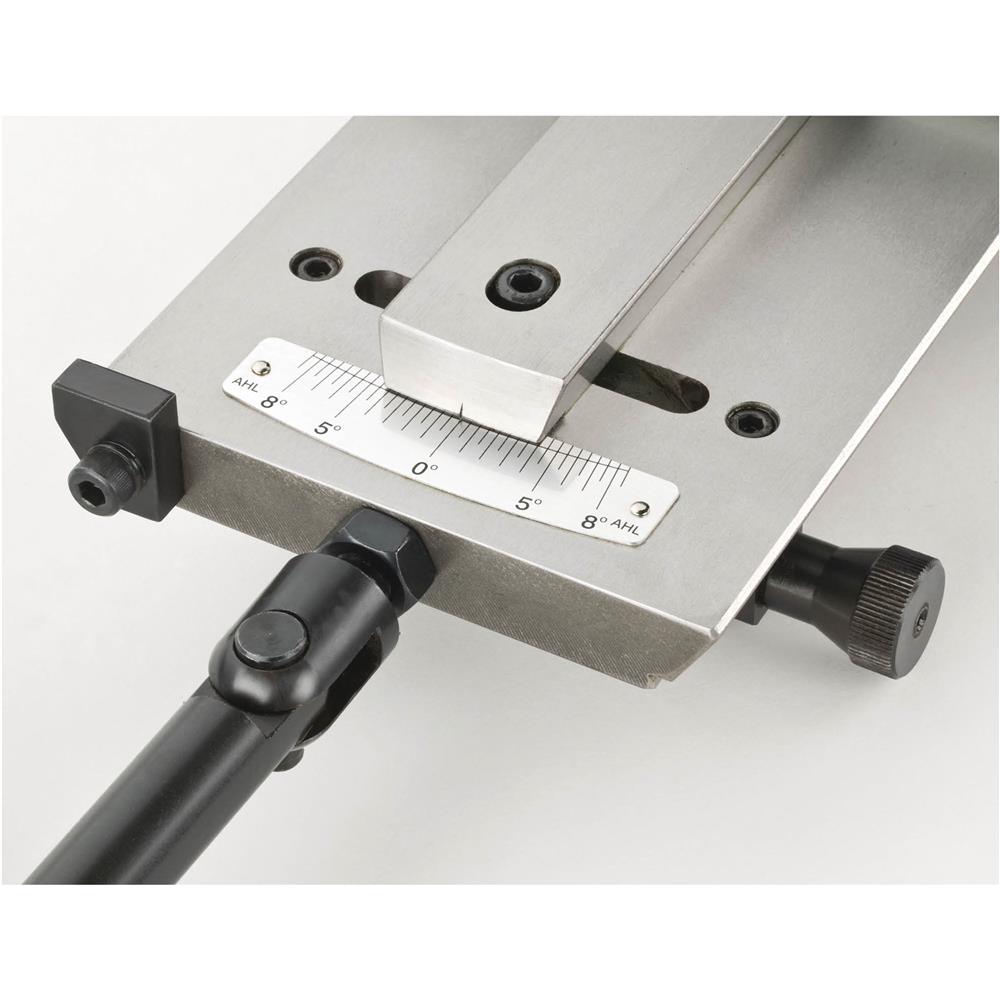

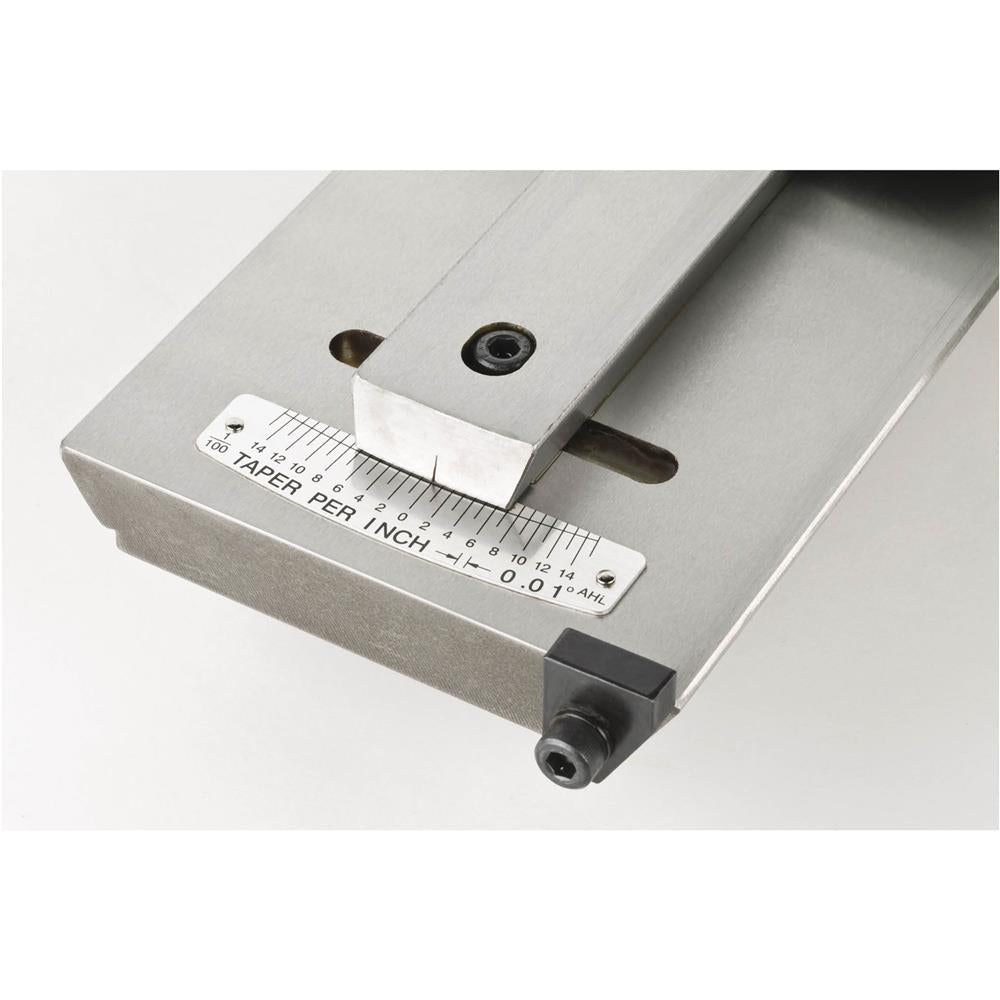

This attachment offers a taper-per-inch range from 0.00 to 15.00 inches, a taper angle range from 0° to 8.5°, and a maximum taper length of 14-1/2 inches. Dual inch and degree scales, along with a fine-thread angle adjusting knob, give the operator precise control when dialing in taper settings.
Built with a fine-grain cast-iron body and a three-way adjustable external gib, it is well suited for machinists, toolrooms, and serious metalworking shops that need dependable taper-cutting capability on supported South Bend lathe models.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Fine-grain cast-iron body
- Dual inch and degree scales
- Fine screw taper adjustment knob
- Three-way adjustable external gib
Specifications
| Taper per inch | 0.00" to 15.00" |
| Max taper length | 14-1/2" |
| Minor inch scale divisions | 0.01" |
| Major inch scale divisions | 0.02" |
| Taper angle range | 0° to 8.5° |
| Minor angle scale divisions | 1/2° |
| Major angle scale divisions | 1° |
| Approximate shipping weight | 85 lbs. |
Warranty
This item comes with a 1 year factory warranty.
