South Bend SB1115 Metal Drill Press 21" Variable-Speed Gearhead Drill Press New
Manufacturer: South Bend
SKU: SB1115
QTY
or
(888) 999-1522
C
$7,488.00
Exceptional Customer Service
Authorized Dealer

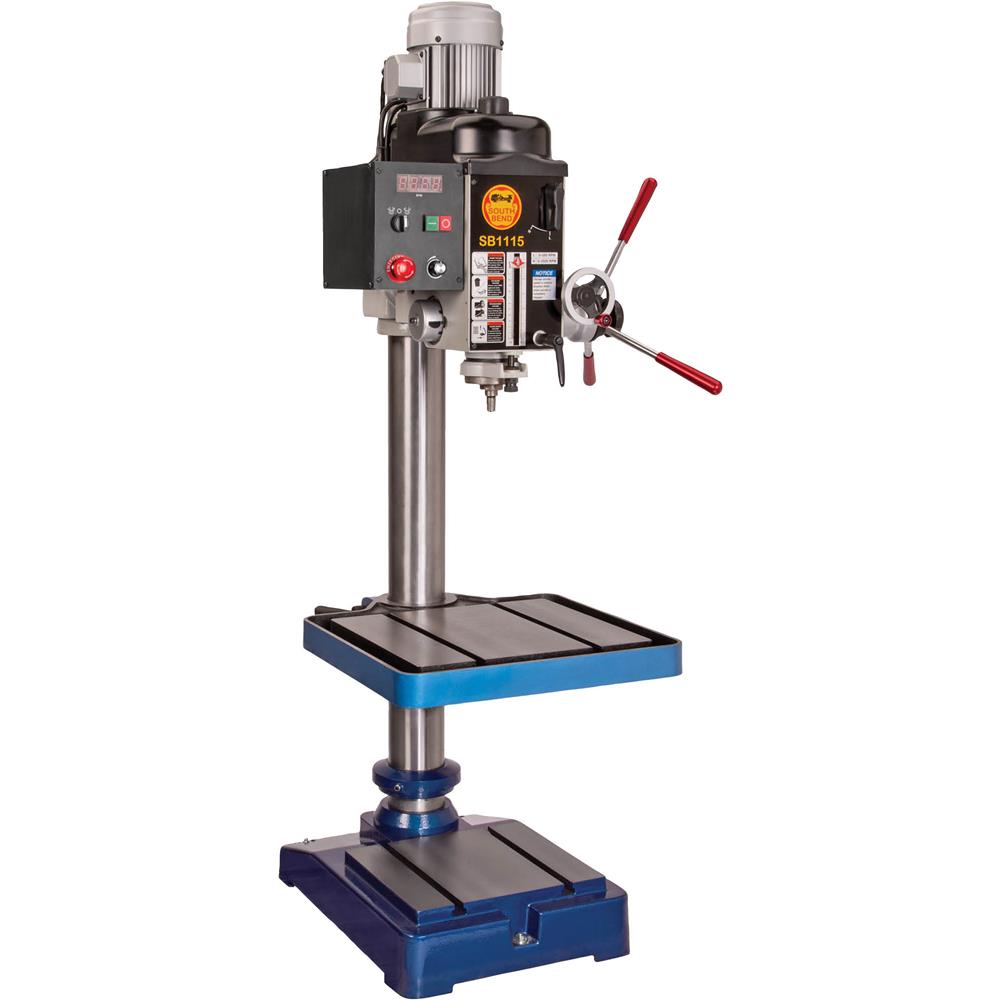

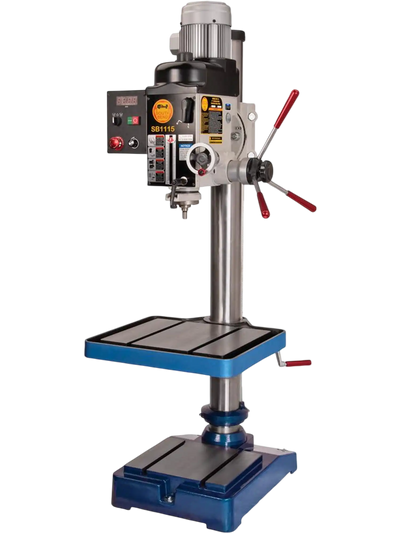

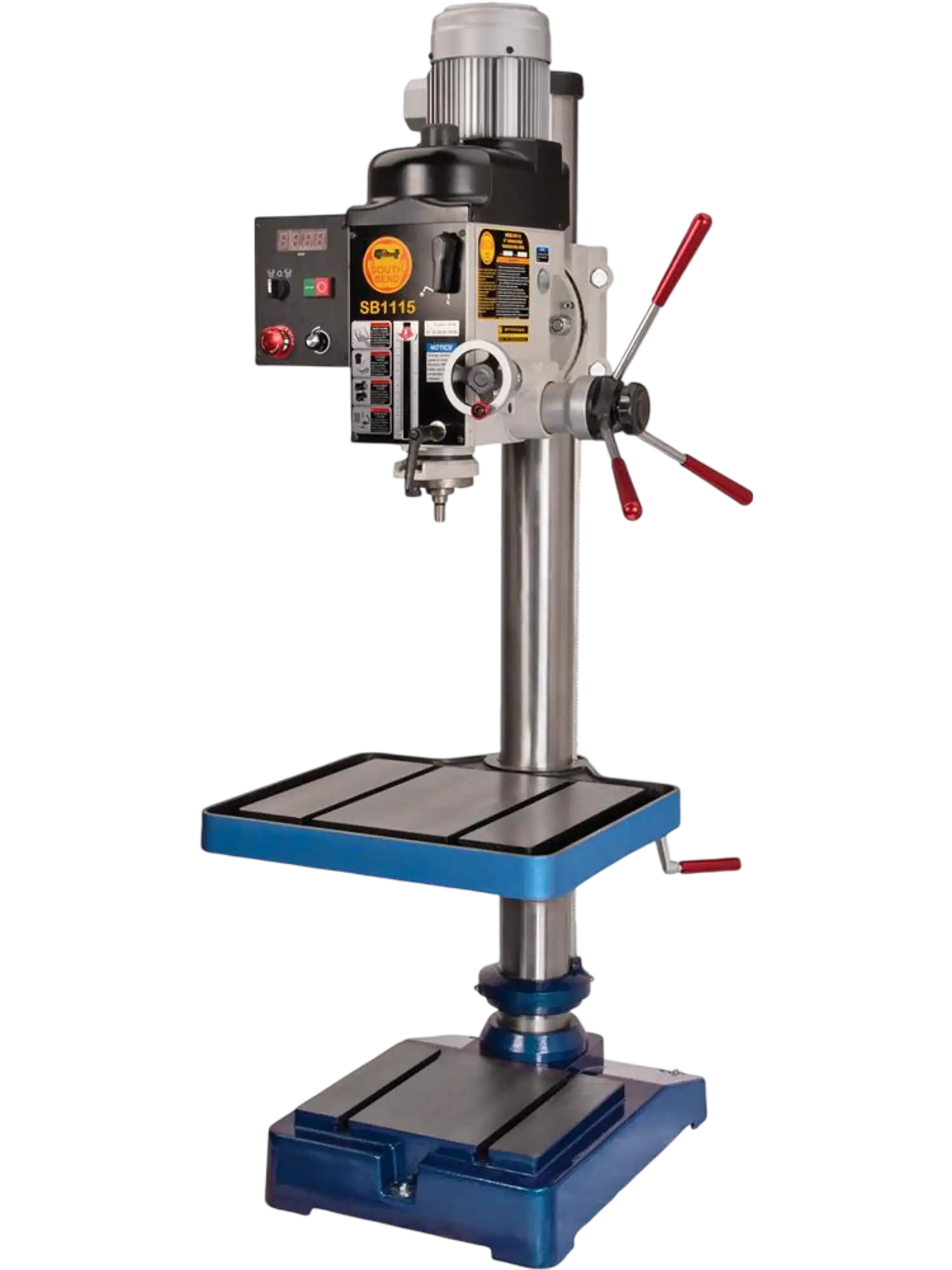

South Bend SB1115 Metal Drill Press 21" Variable-Speed Gearhead Drill Press New
Product Overview
The South Bend SB1115 is a 21-inch variable-speed gearhead drill press built for demanding metalworking and production drilling. With a 1-1/2 HP motor, gearhead design, and variable speed ranges from low-RPM torque for metal up to 2500 RPM, it is made to handle larger holes with strong, consistent performance.
This machine offers precise control for accurate, repeatable results, including coarse and fine downfeed, a depth stop, forward and reverse spindle operation, and a digital speed display. The gear-driven head, MT#3 spindle, and 5-inch spindle travel help it tackle tougher drilling jobs in steel and cast iron with confidence.
Designed for professional shops, fabrication work, and serious industrial users, it also features a large cast-iron table, 360-degree table and head positioning, and powered or hand-crank table elevation for flexible setup. It is a strong choice for machinists and metalworkers who need power, precision, and versatility in one floor-standing drill press.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

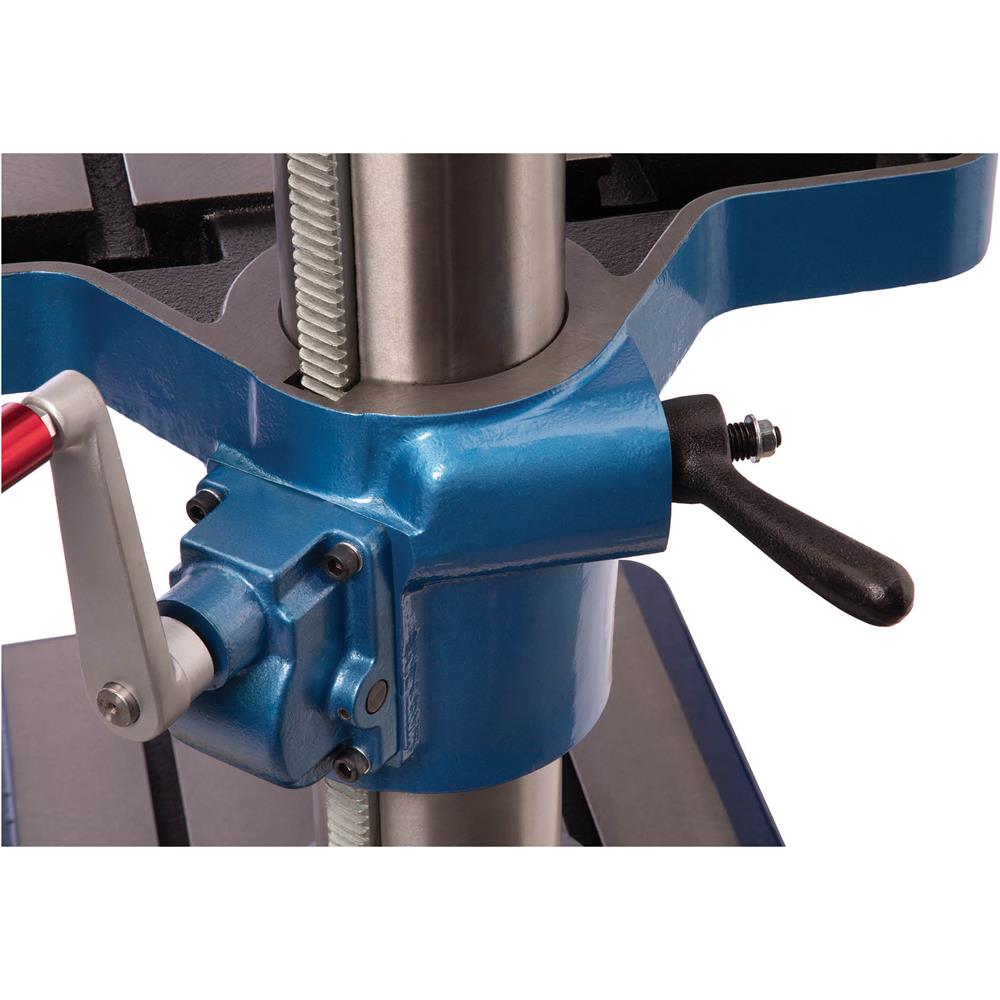

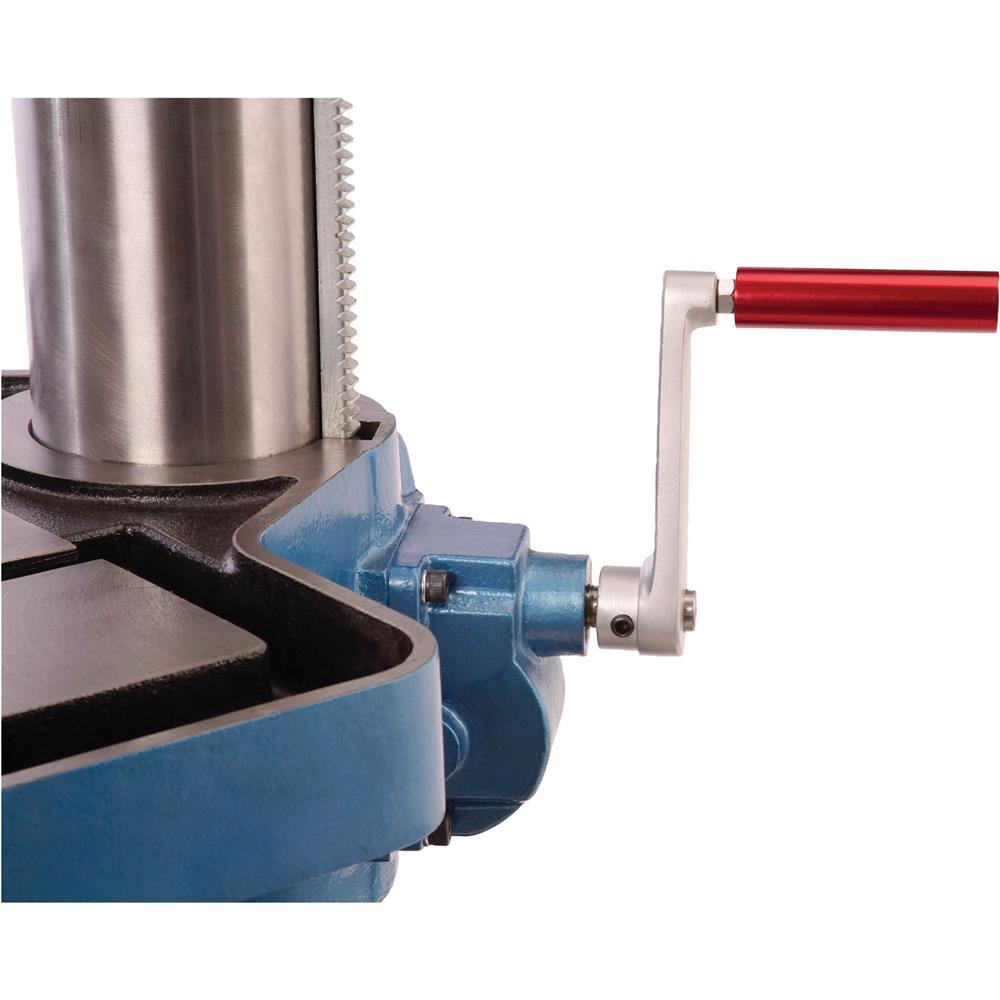

- Powered or hand crank-enabled rack-and-pinion table elevation
- Coarse and fine downfeed controls
- Red anodized spindle stroke and table elevation handles
- Cast-iron base with two 1/2" T-slots, 8-7/8" on center
- 360° table and head positioning around column

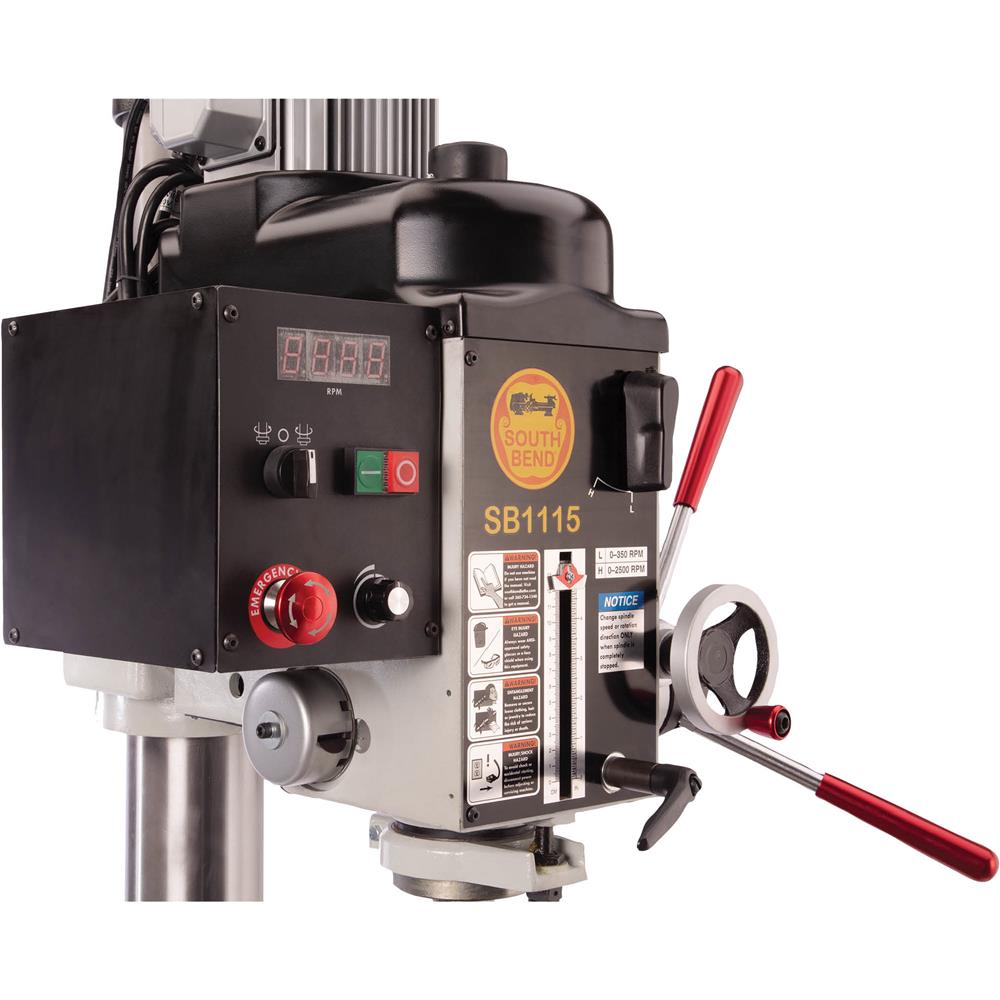

- Digital speed display
- Front-mounted emergency stop button
- Forward/reverse spindle switch
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
|---|---|
| Spindle motor | 1-1/2 HP, 220V |
| Spindle taper | MT#3 |
| Spindle speed | Variable, 0–350 RPM (Low) and 0–2500 RPM (High) |
| Spindle travel | 5" |
| Maximum distance spindle to column | 10-7/16" |
| Maximum distance spindle to table | 17-3/8" |
| Cross travel | 7" |
| Drilling capacity | 1-1/2" steel and cast iron |
| Head travel | 13-3/8" |
| Head tilt | 30° Right / 90° Left |
|---|---|
| Table size | 21-3/4" W x 19-1/2" D x 2-1/4" T |
| Table T-slots | 2 @ 1/2" |
| Drill chuck type and size | JT6 key chuck, 1/64"–5/8" |
| Footprint | 26" x 18-1/2" |
| Overall dimensions | 42" W x 35" D x 69" H |
| Approximate shipping weight | 683 lbs. |
Warranty
This item comes with a 2 year factory warranty.
