South Bend SB1112 Hydraulic Press Dual-Station HC-60T/24T New
Manufacturer: South Bend
SKU: SB1112
QTY
or
(888) 999-1522
C
$18,218.00
Exceptional Customer Service
Authorized Dealer

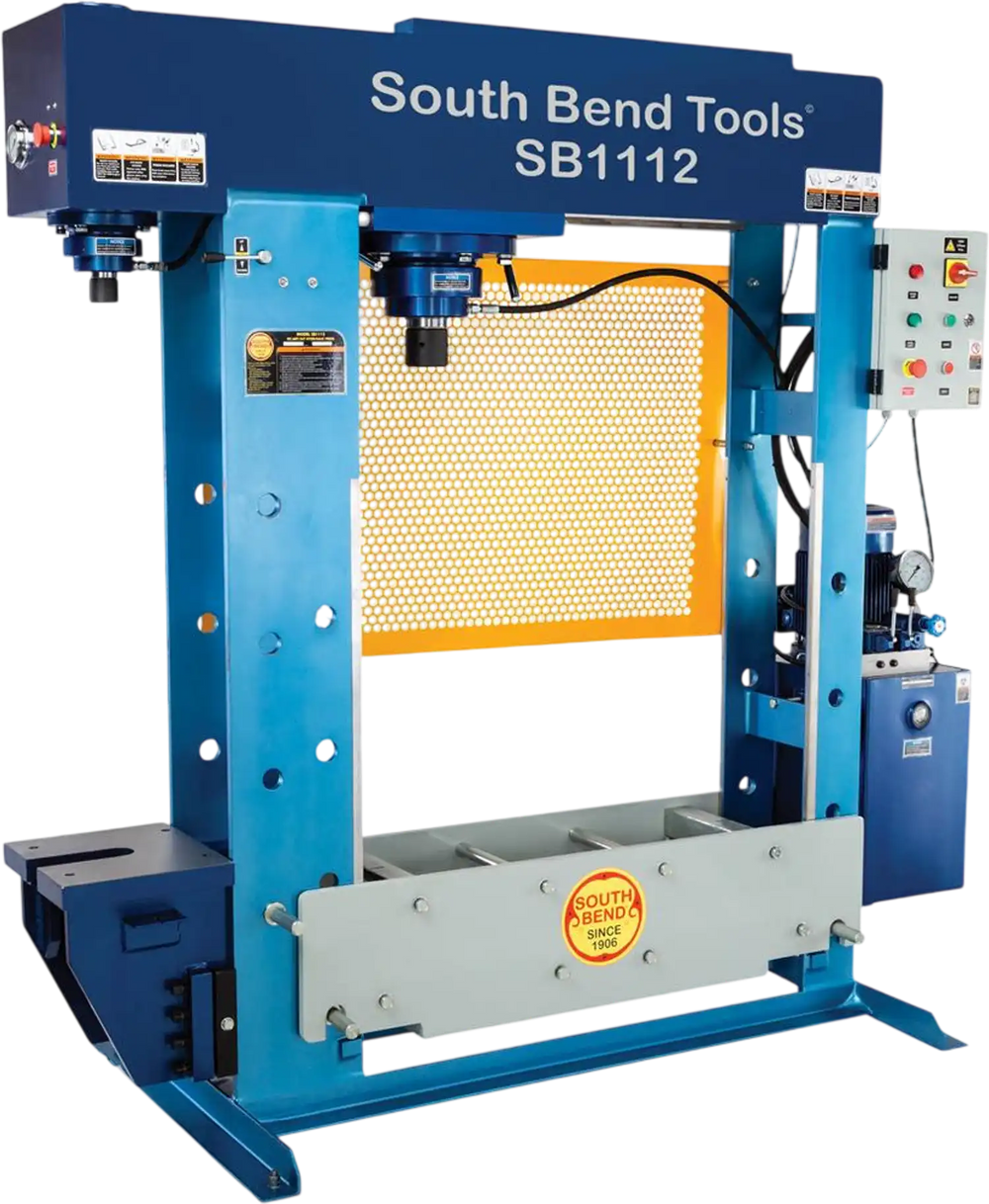

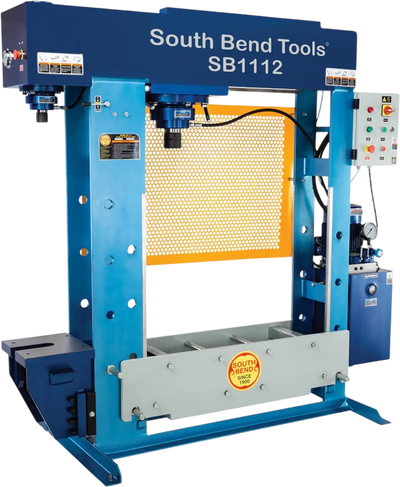

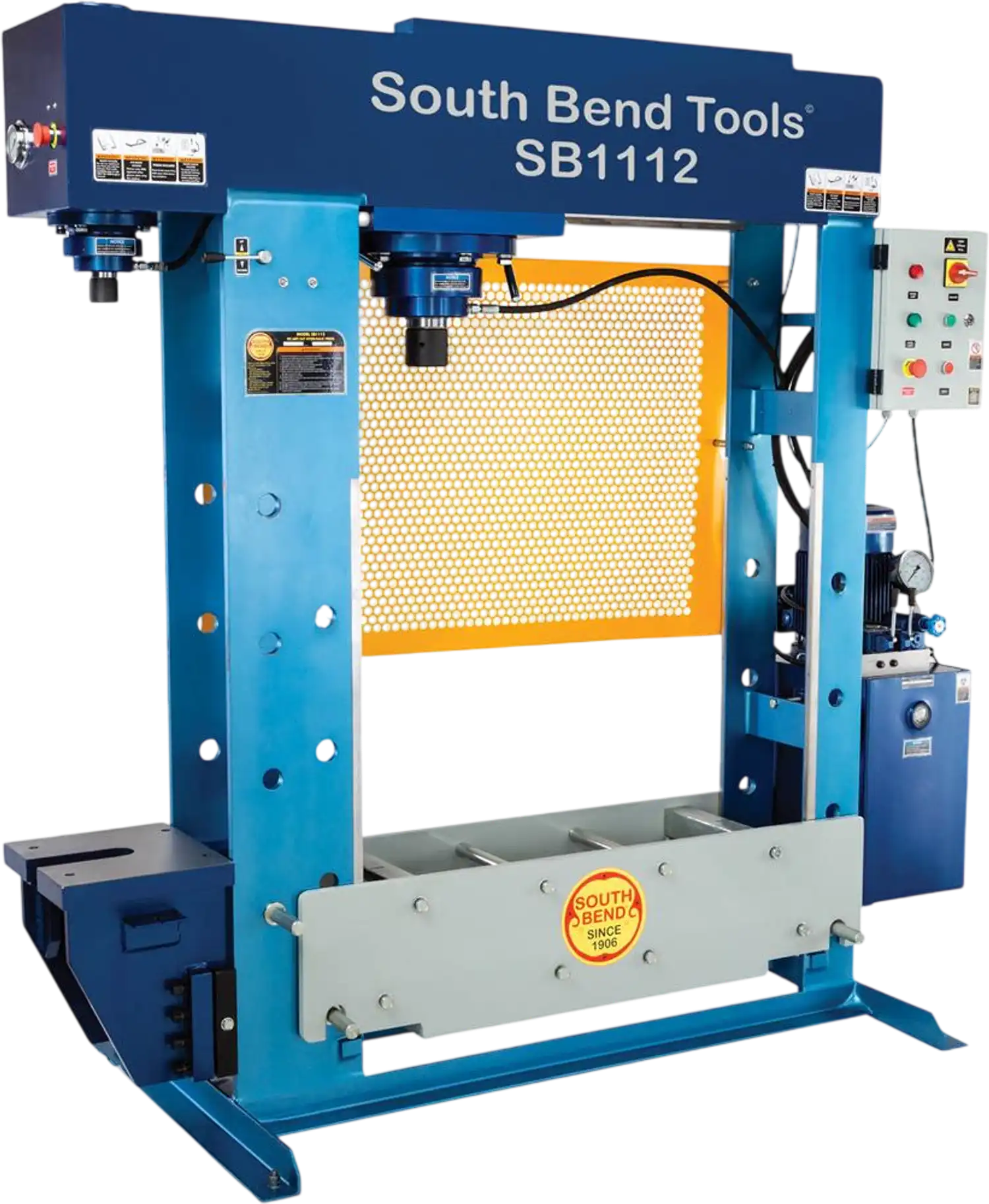

South Bend SB1112 Hydraulic Press Dual-Station HC-60T/24T New
Product Overview
The South Bend SB1112 is a heavy-duty dual-station hydraulic press built for industrial manufacturing, fabrication, and repair work. It combines a 60-ton H-frame main station with a 24-ton C-frame side station, giving shops two capable pressing areas for different setups and workflows.
Motor-driven hydraulic operation delivers the force needed for tasks like pressing gears on and off shafts, straightening, punching, metal forming, transfer molding, and compressing. A sliding head on the main station helps handle off-center workpieces, while the built-in pressure gauge and multiple table height positions support accurate, repeatable results.
With its welded steel frame, large working capacity, and industrial 220V 3-phase power requirement, this machine is designed for serious production environments. It is a strong fit for machine shops, maintenance departments, and manufacturers that need versatile pressing power in one footprint.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Two workstations
- Welded steel frame

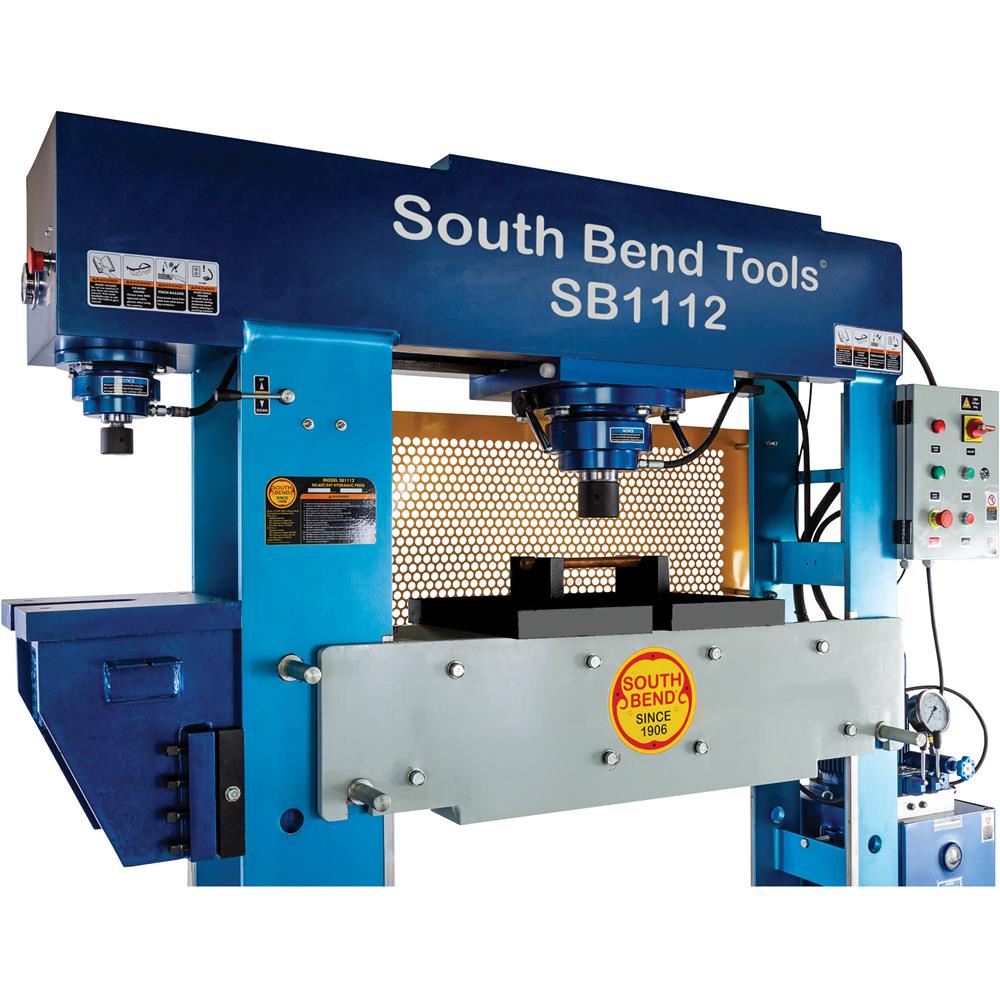

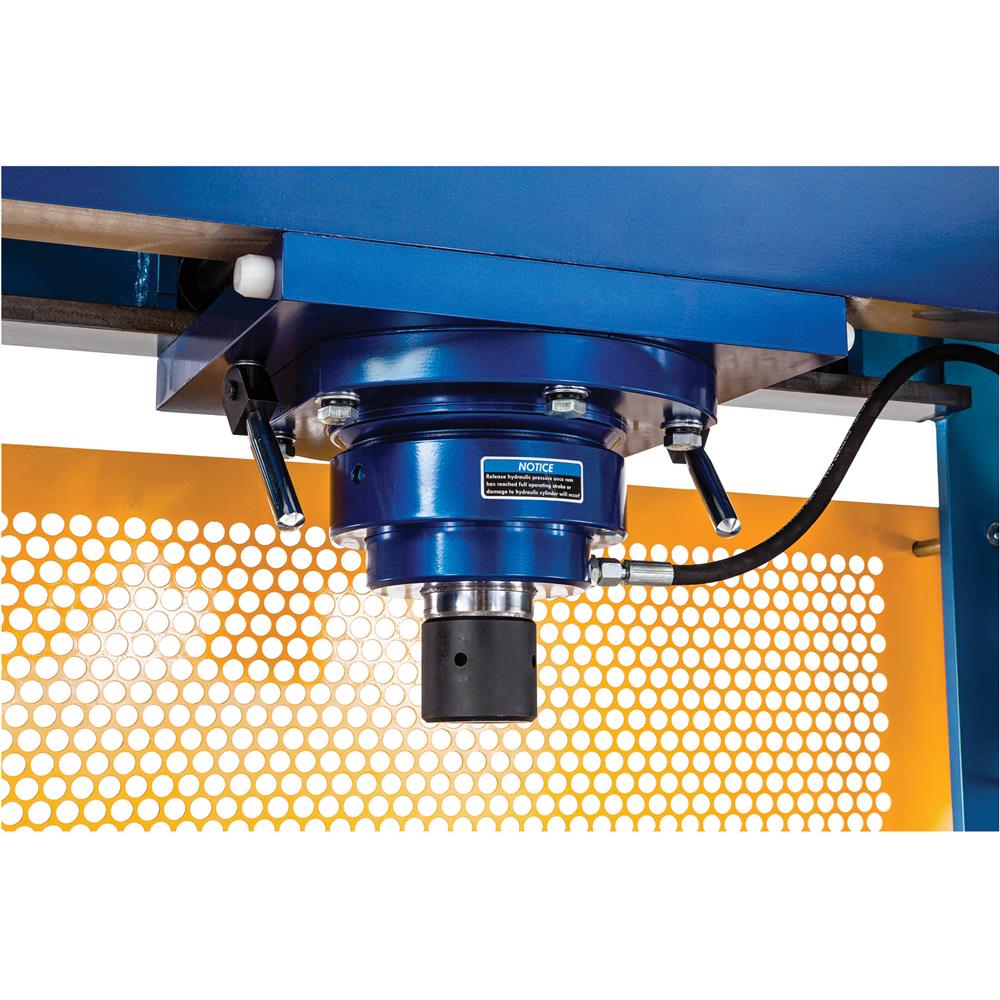

- Sliding head press for off-center workpieces on H-frame main station

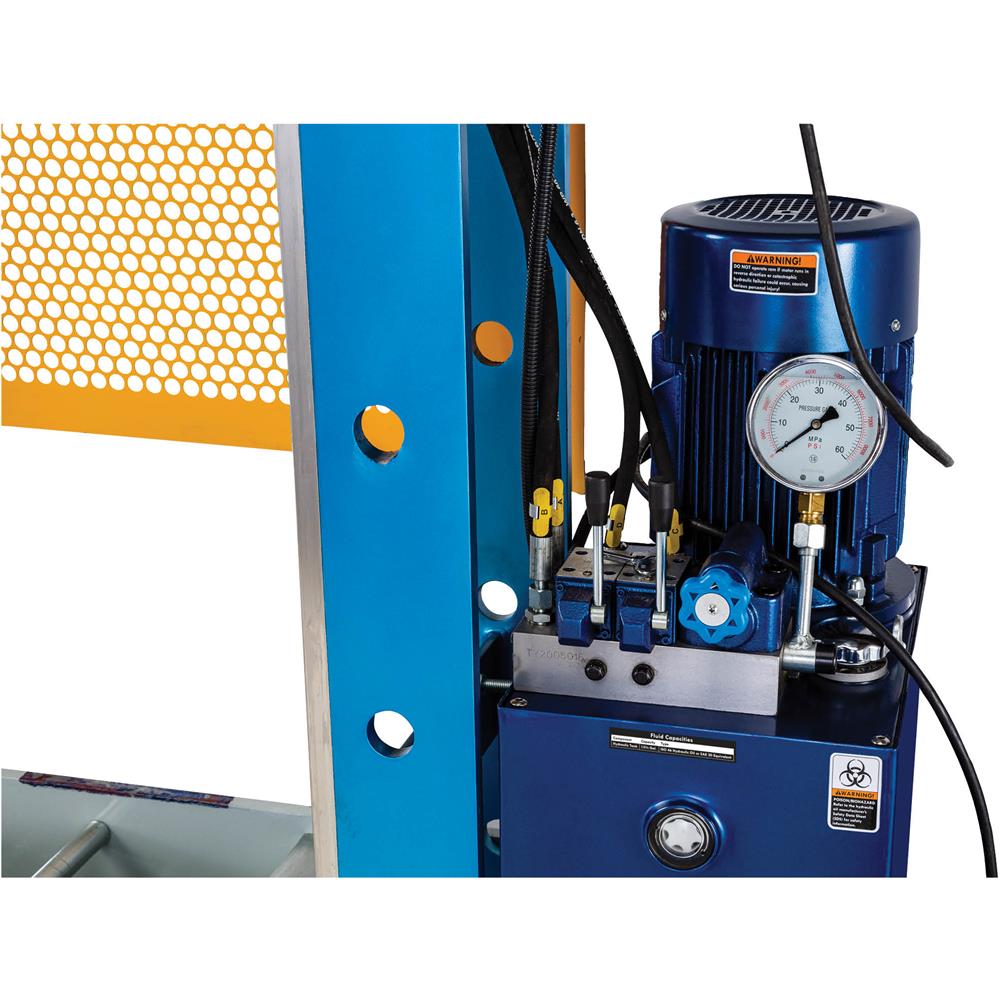

- Motor-driven hydraulic operation

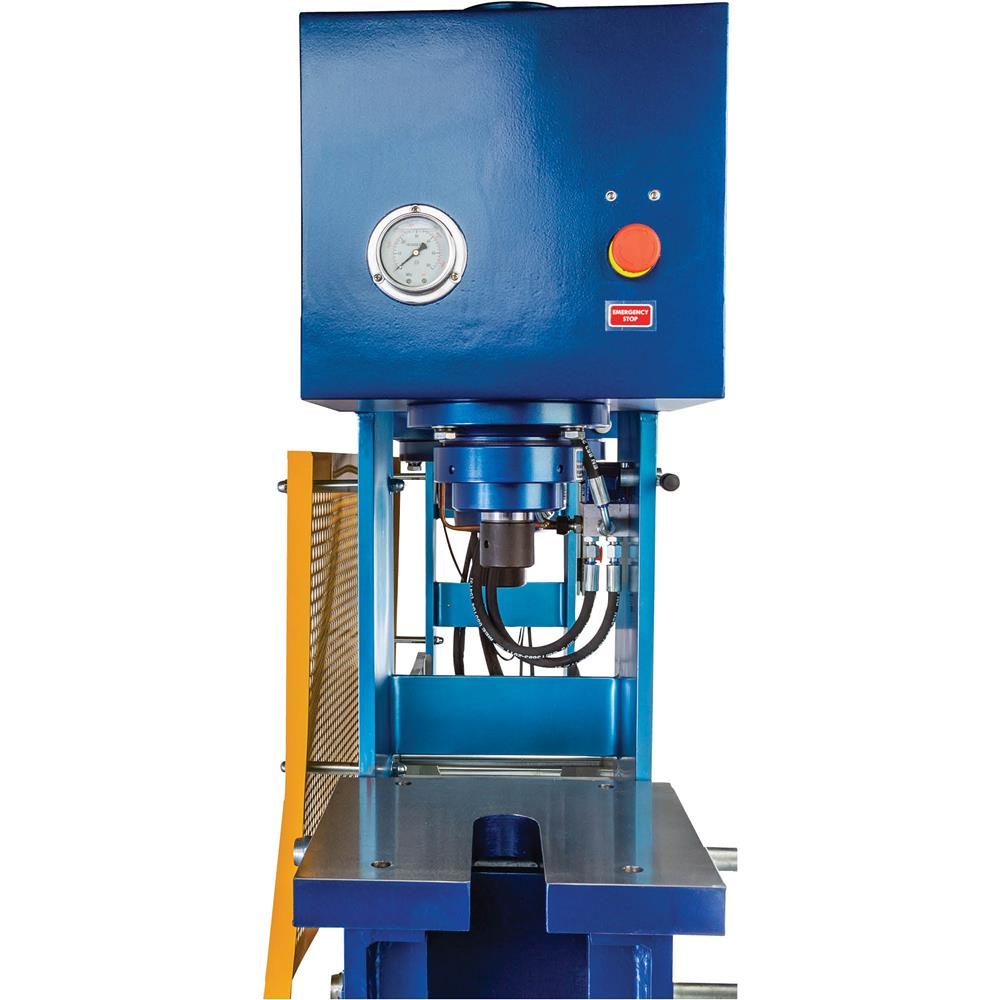

- Built-in pressure gauge
- Protective rear shielding
- Four table height positions for main and side presses
- US-based customer service and technical support
Specifications
| Required power supply | 220V, 3-phase, min. 20A circuit |
|---|---|
| Hydraulic motor | 5-1/3 HP, 220V, 3-phase, 15.2A |
| Footprint | 35-1/2" x 63" |
| Overall dimensions | 83" W x 35-1/2" D x 82" H |
| Approximate shipping weight | 3241 lbs. |
|---|
Warranty
This item comes with a 2 year factory warranty.
