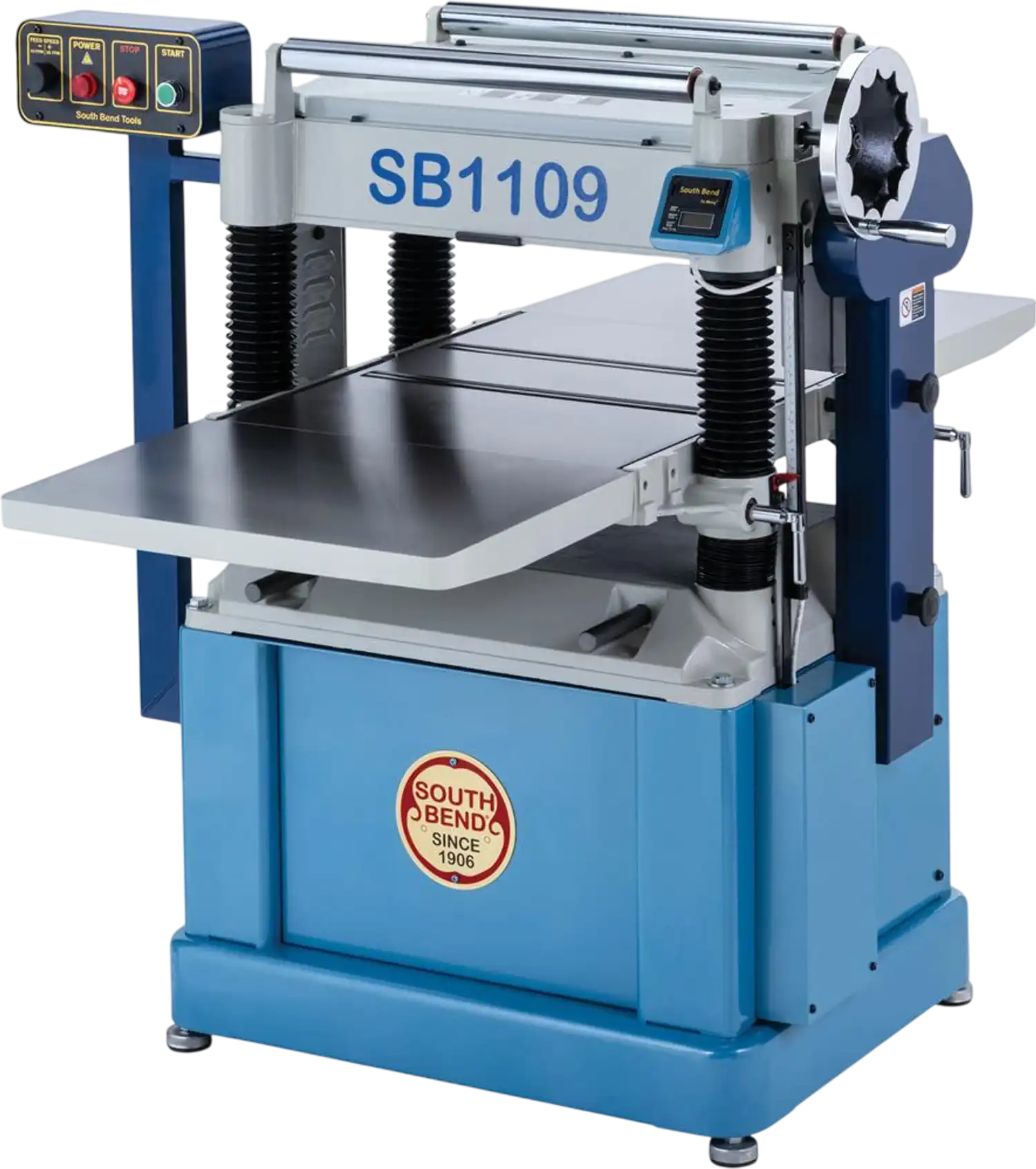

South Bend SB1109 Planer 20" Variable-Speed Helical Cutterhead New
Product Overview

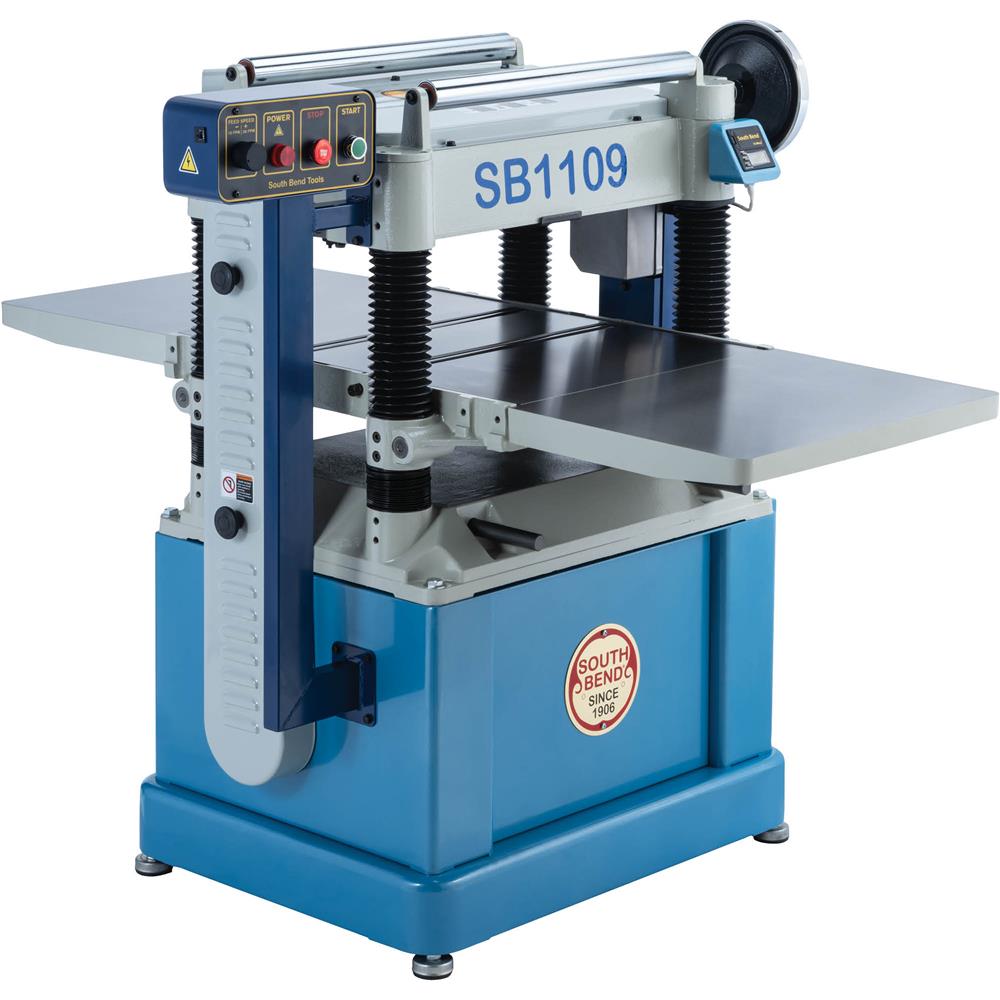

The South Bend SB1109 is a 20-inch variable-speed planer built for serious woodworking shops that need accurate thicknessing, dependable performance, and a clean surface finish. Its 5 HP single-phase motor, heavy cast-iron table, and robust four-column design make it well suited for handling demanding planing tasks on wide stock.

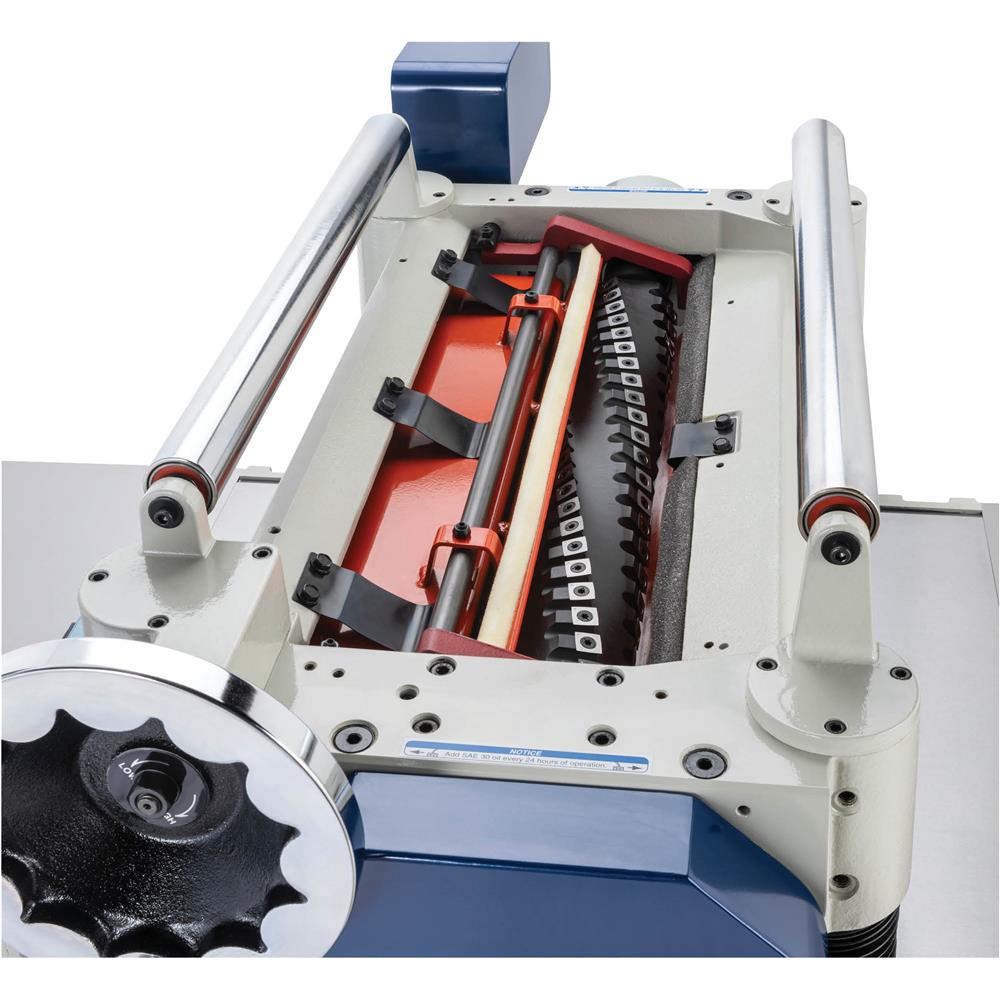

A 4-row helical cutterhead with 92 indexable carbide inserts uses a shearing cut to produce smooth results with less tearout, especially on figured and difficult hardwoods. Variable feed speeds from 10 to 28 FPM let you slow down for fine finish work or increase throughput for production runs, while the digital table height scale helps deliver precise, repeatable thickness settings.
With a maximum planing width of 20 inches, stock capacity up to 8 inches thick, and features like anti-kickback fingers, oil-bath drive gears, and triple-belt power transfer, this machine is designed for cabinetmakers, furniture builders, and professional woodworkers who want control, capacity, and refined finish quality in one planer.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features

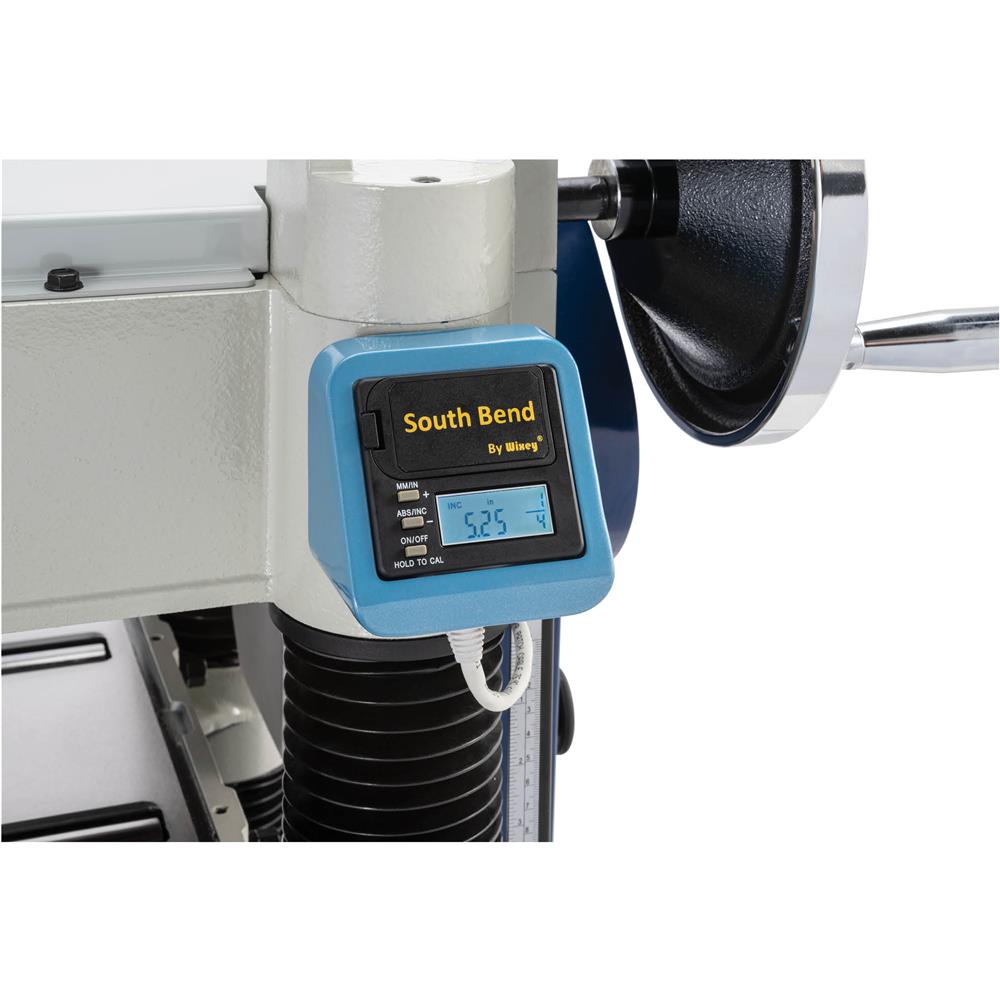

- Digital table height scale

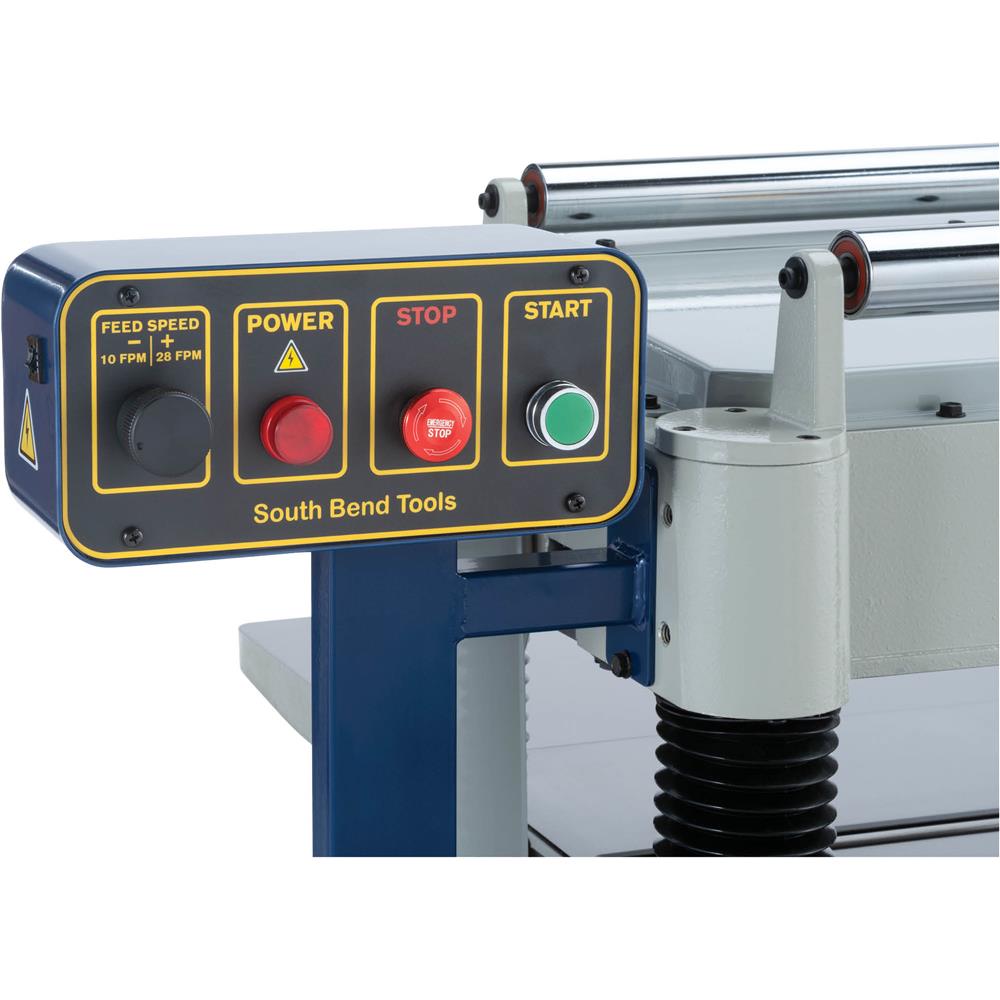

- Variable feed speed dial on control pedestal
- Extra-large ball bearing return rollers

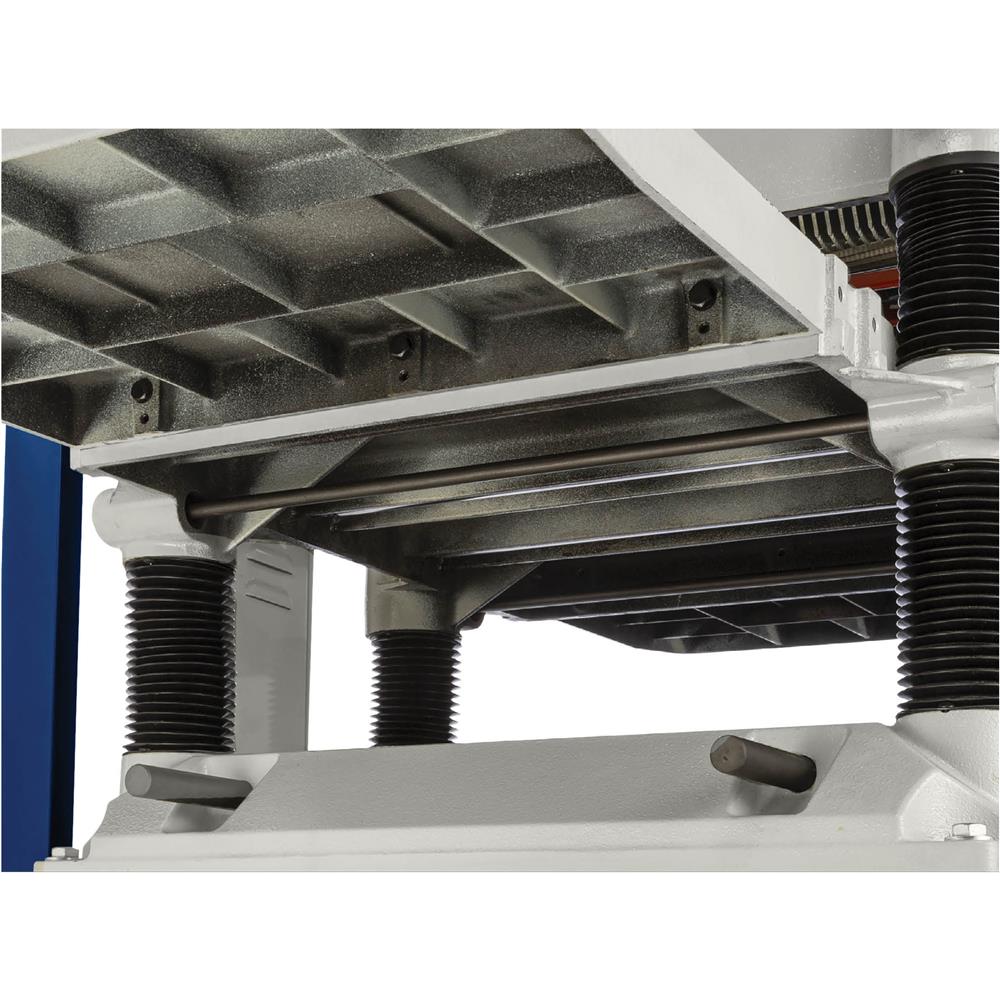

- Heavy-duty precision-ground cast-iron table
- Pedestal-mounted controls with magnetic switch and thermal overload protection

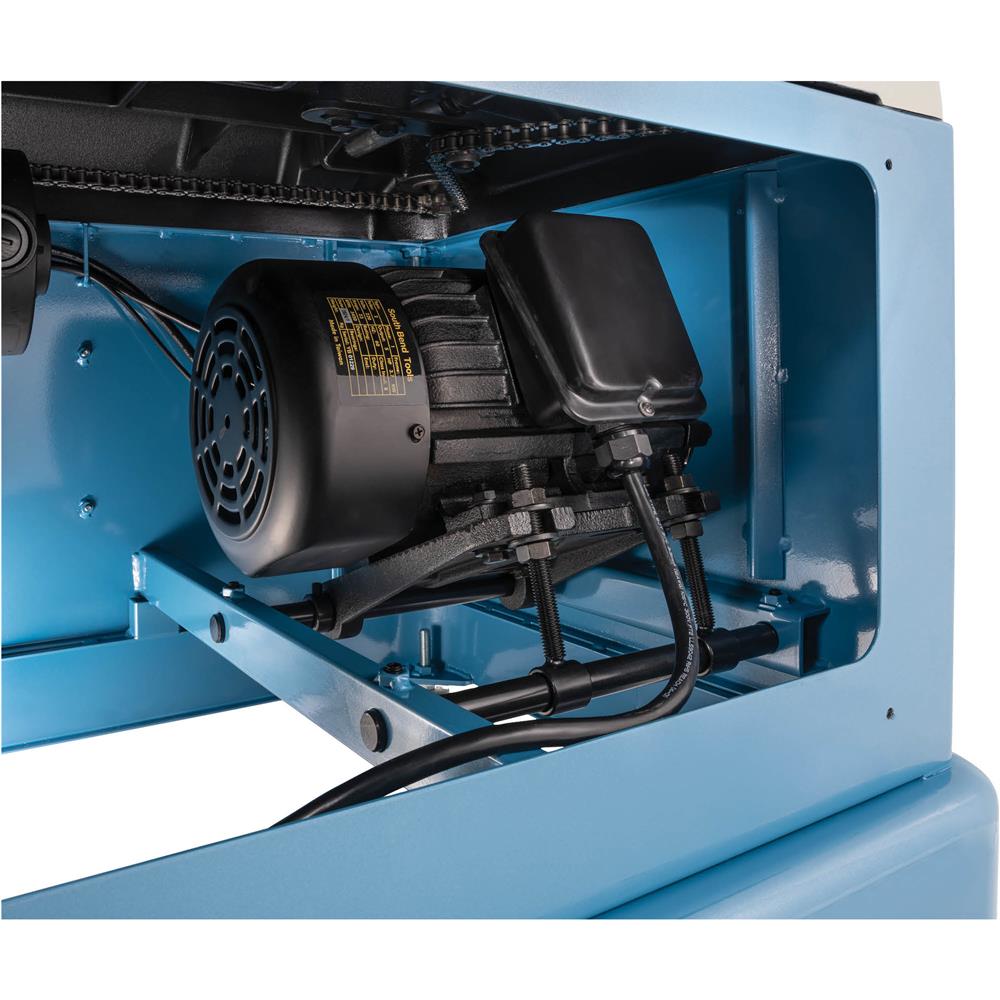

- Internally mounted motor
- Four heavy-duty support columns

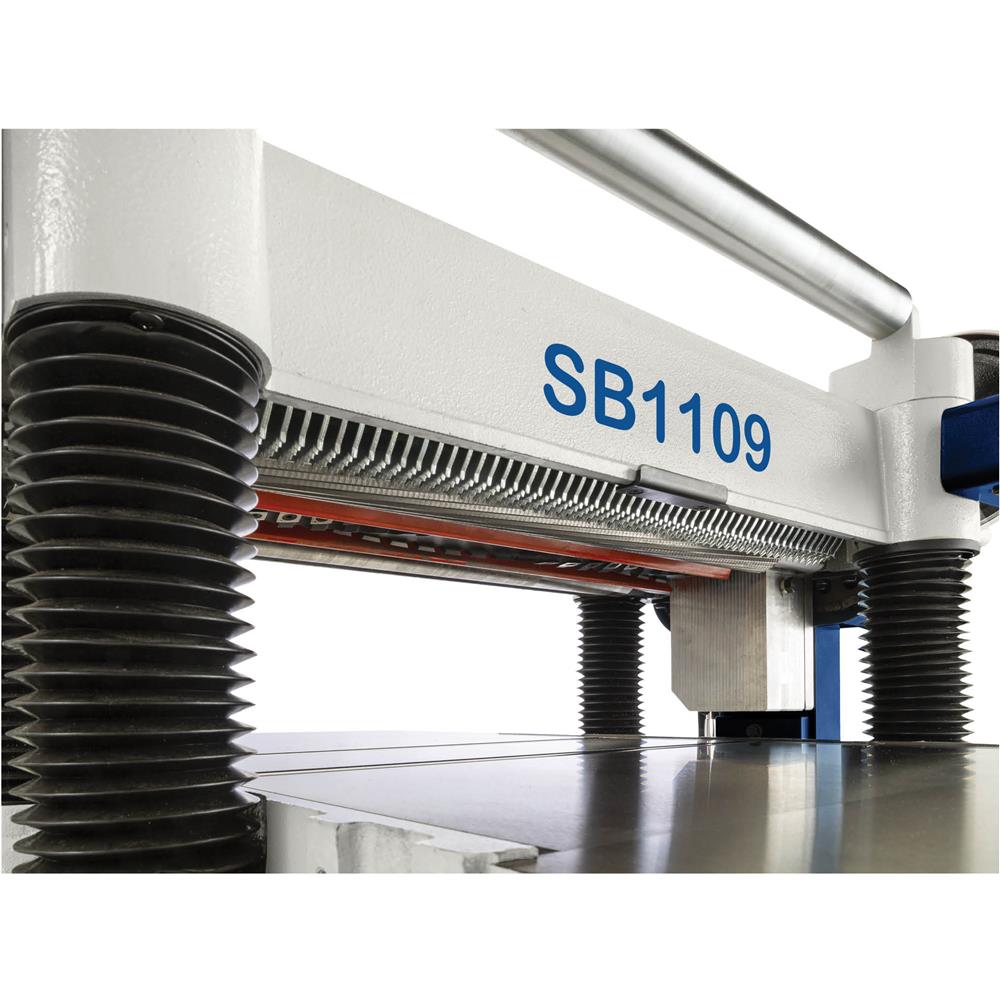

- Anti-kickback fingers

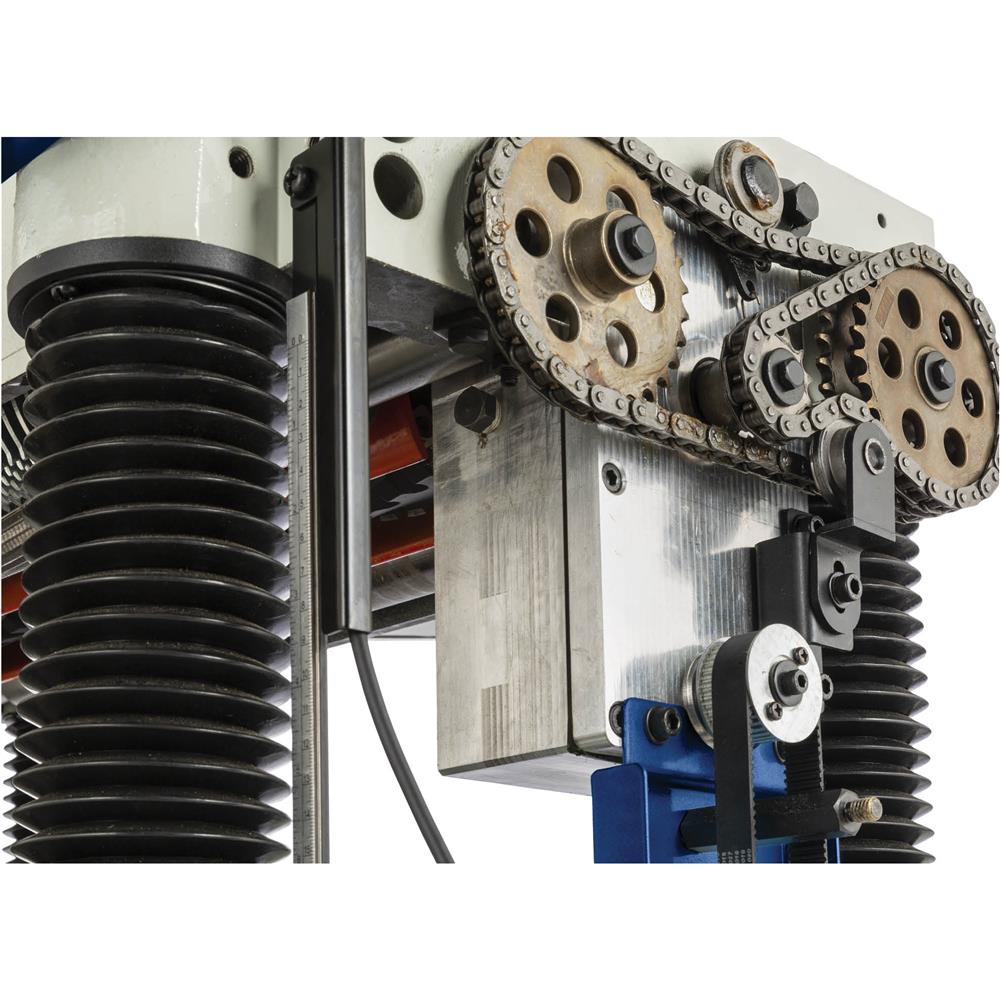

- Drive gears run in oil bath
- Triple belt drive inside housing
- U.S.-based customer service and technical support
Specifications
| Motor | 5 HP, 220V, single-phase, 23A |
| Maximum stock width | 20" |
| Maximum stock thickness | 8" |
| Minimum stock thickness | 1/4" |
| Minimum stock length | 7" |
| Maximum cutting depth | 1/8" |
| Cutterhead diameter | 3-1/4" |
| Cutterhead type | 4-Row helical with 92 inserts |
| Insert size, type | 15 x 15 x 2.5mm, indexable carbide |
| Feed rate | Variable, 10–28 FPM |
| Table size | 56" x 20" |
| Table wings size | 15" x 21-1/4" |

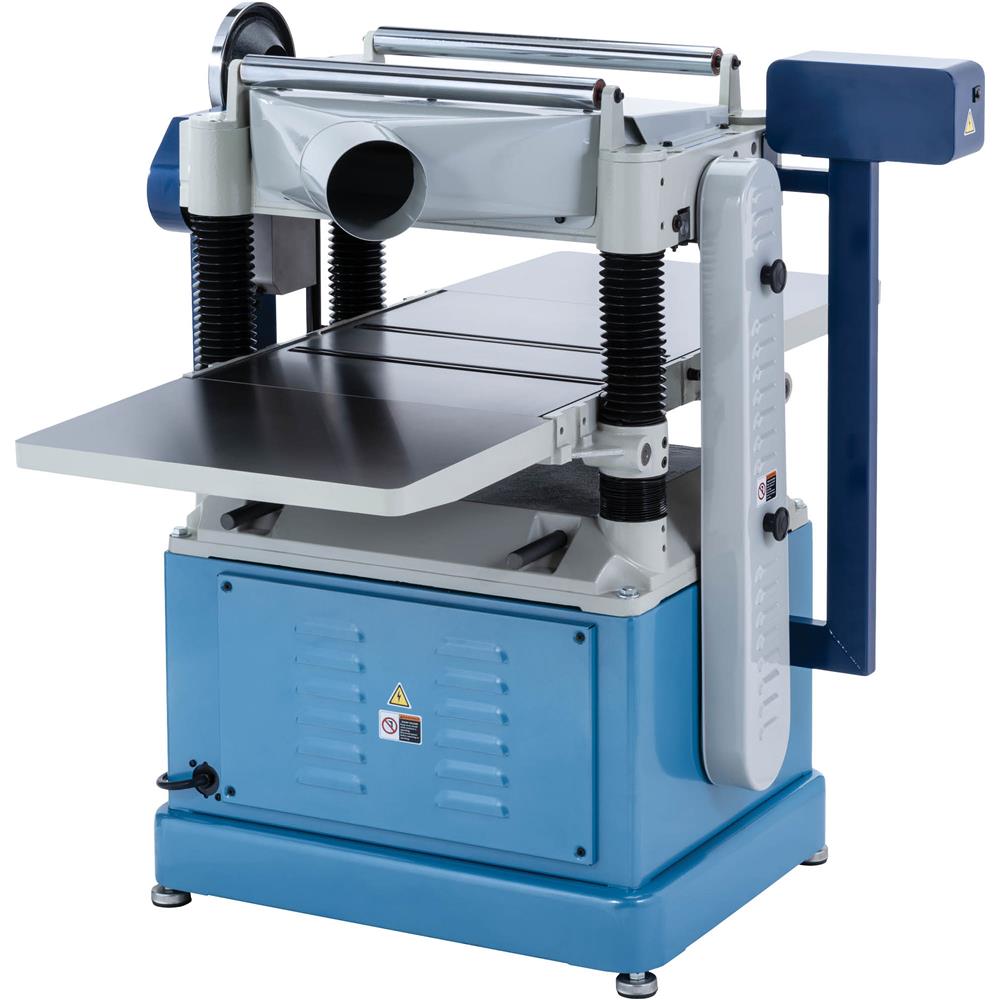

| Dust port size | 5" |
| Footprint | 23-1/2" x 29-1/2" |
| Overall dimensions | 46-1/2" W x 56" D x 46" H |
| Approximate shipping weight | 820 lbs. |
Warranty
This item comes with a 2 year factory warranty.
