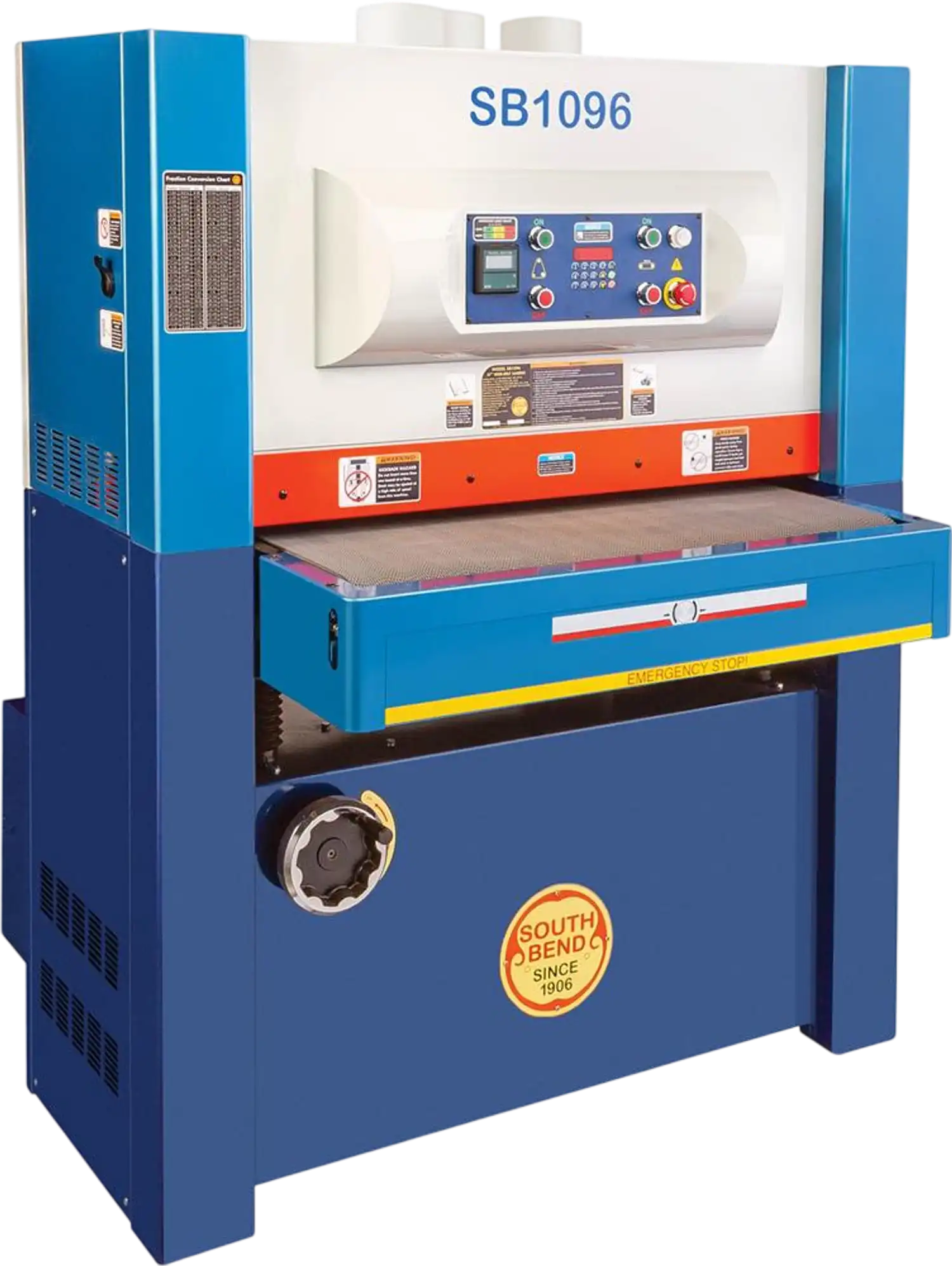

South Bend SB1096 Wide-Belt Sander 37" 15 HP 3-Phase New
Product Overview

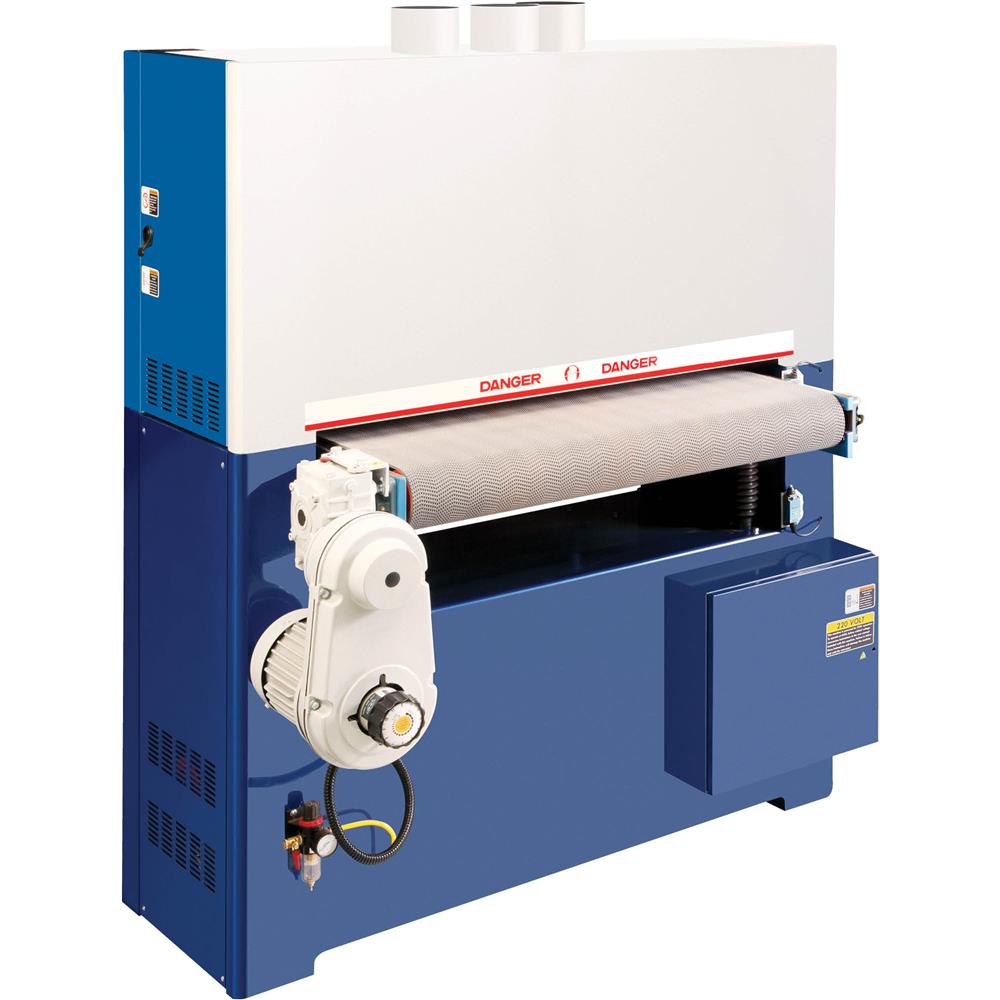

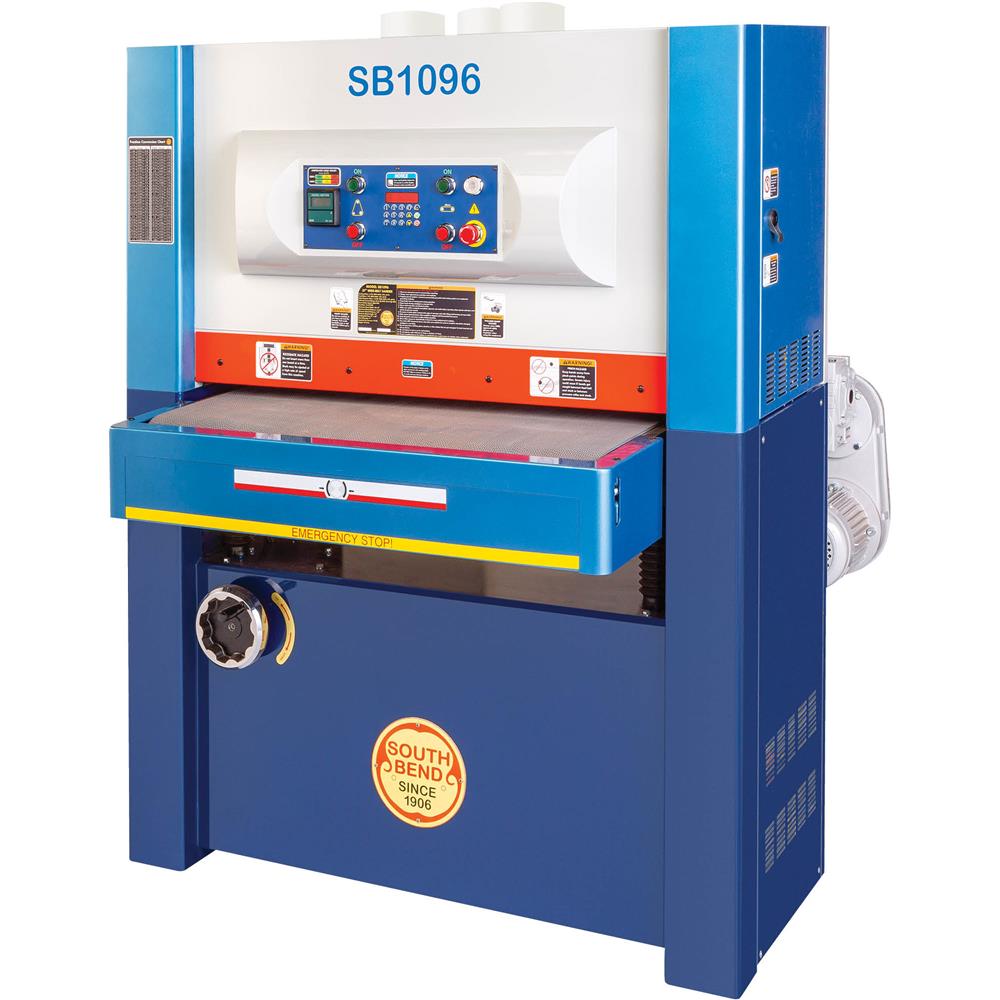

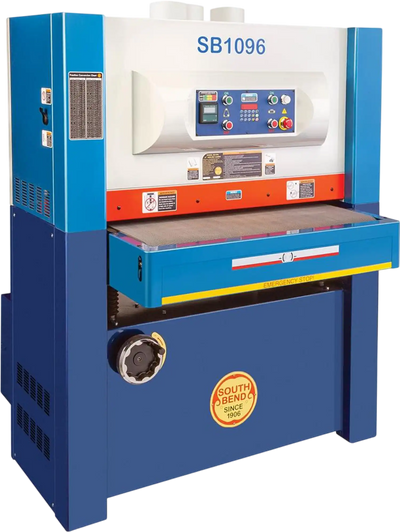

The South Bend SB1096 is a 37-inch wide-belt sander built for industrial production sanding in professional woodworking shops. Powered by a 15 HP 3-phase motor, it is designed to handle everything from thin stock to large panels, tables, and slabs with consistent material removal and smooth results.
Independent controls for the sanding drum, table elevation, and conveyor speed let operators fine-tune the machine for different materials and finishes. A digital table readout, adjustable belt oscillation, and micro-adjustable platen help deliver precise sanding performance, while the automatic side-to-side belt movement promotes even wear and reliable results during continuous use.
This machine is well suited for cabinet shops, furniture makers, millwork operations, and other high-output environments that need capacity, control, and dependable throughput. With a maximum sanding width of 36 inches, variable conveyor speed, and heavy-duty construction, it is a strong fit for businesses processing large workpieces on a regular basis.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Independent motor controls for sanding drum, table elevation, and feed conveyor

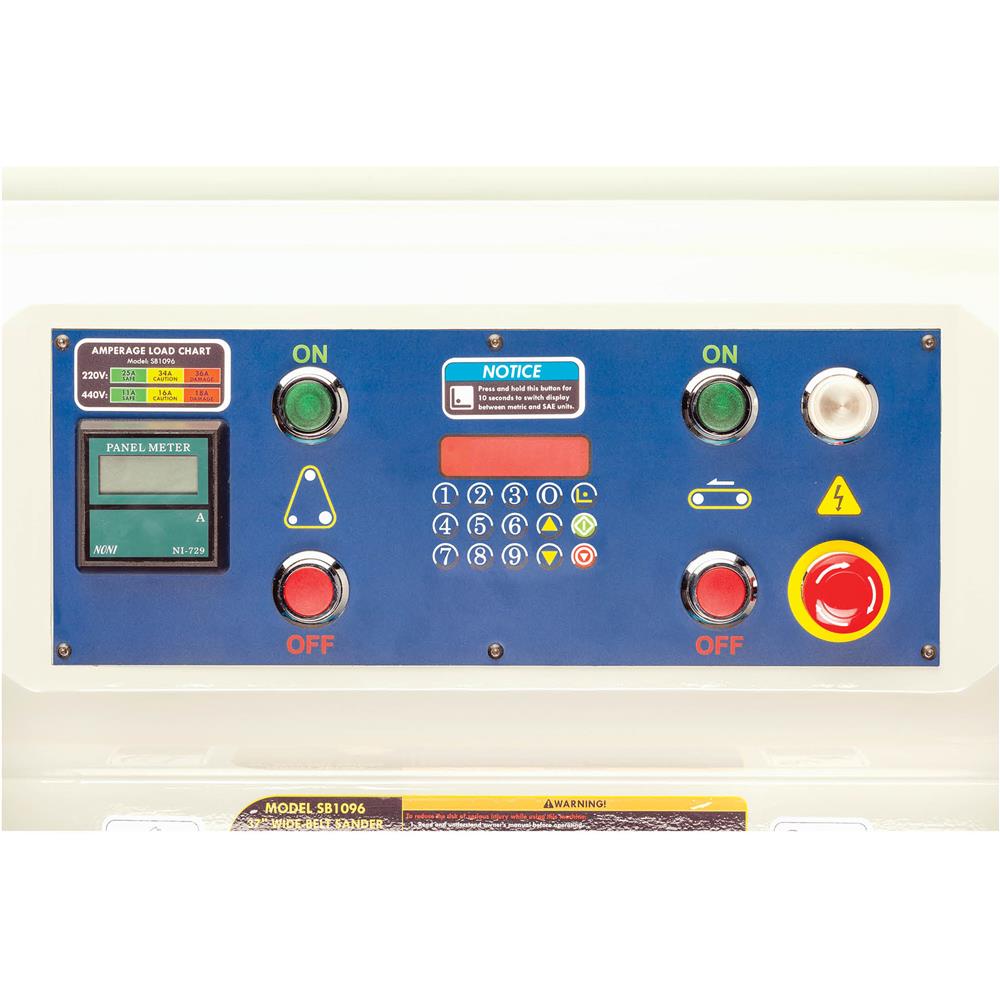

- Keypad controls for table elevation with digital readout accurate to 0.005"
- Adjustable sanding belt oscillation speed
- Micro-adjustable graphite/felt platen
- Amp/load meter
- Built-in air regulator/water separator

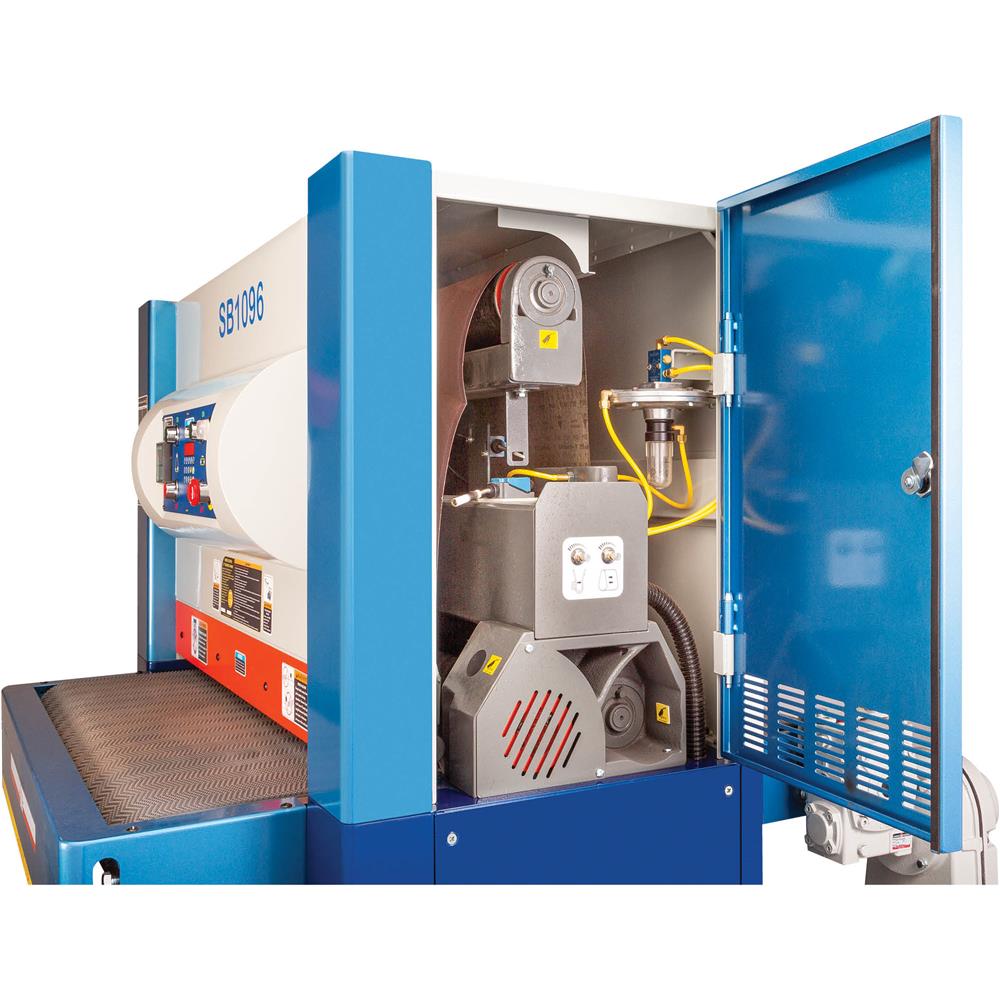

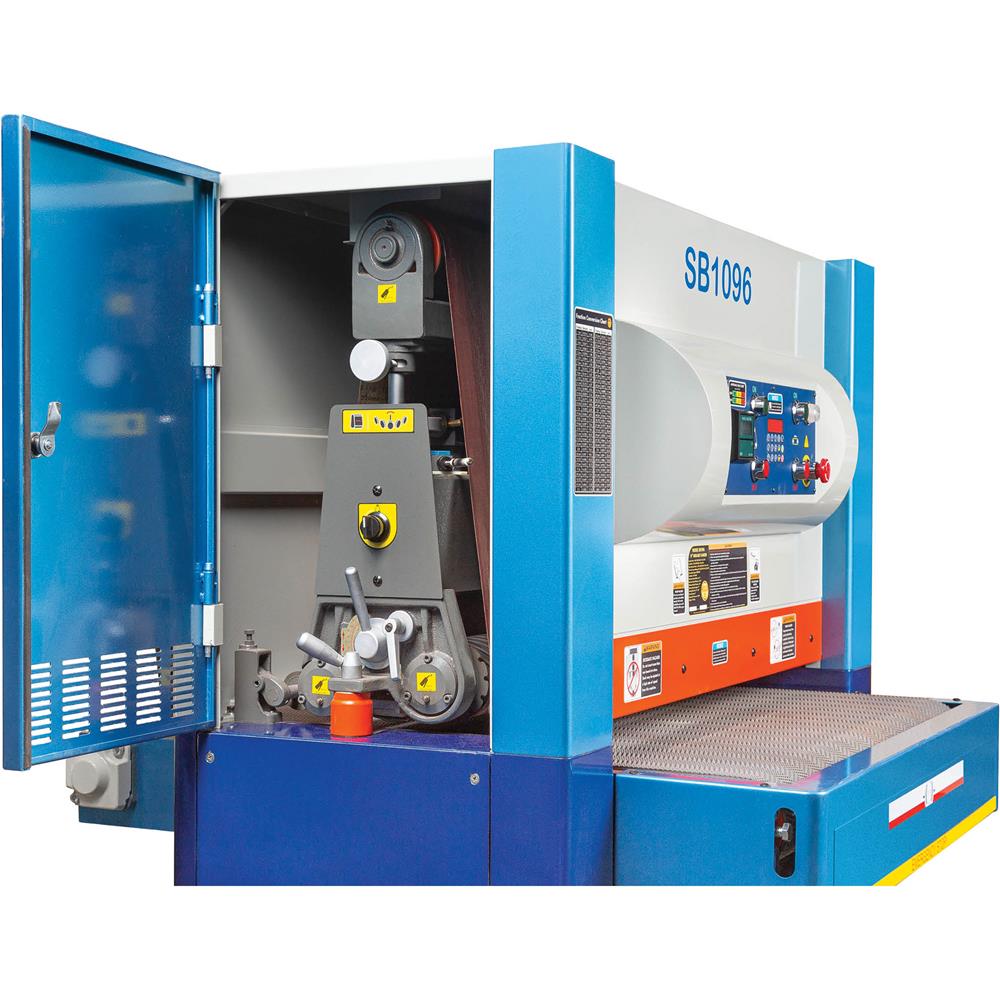

- Pneumatic belt tensioning
- Rubber infeed and outfeed pressure rollers

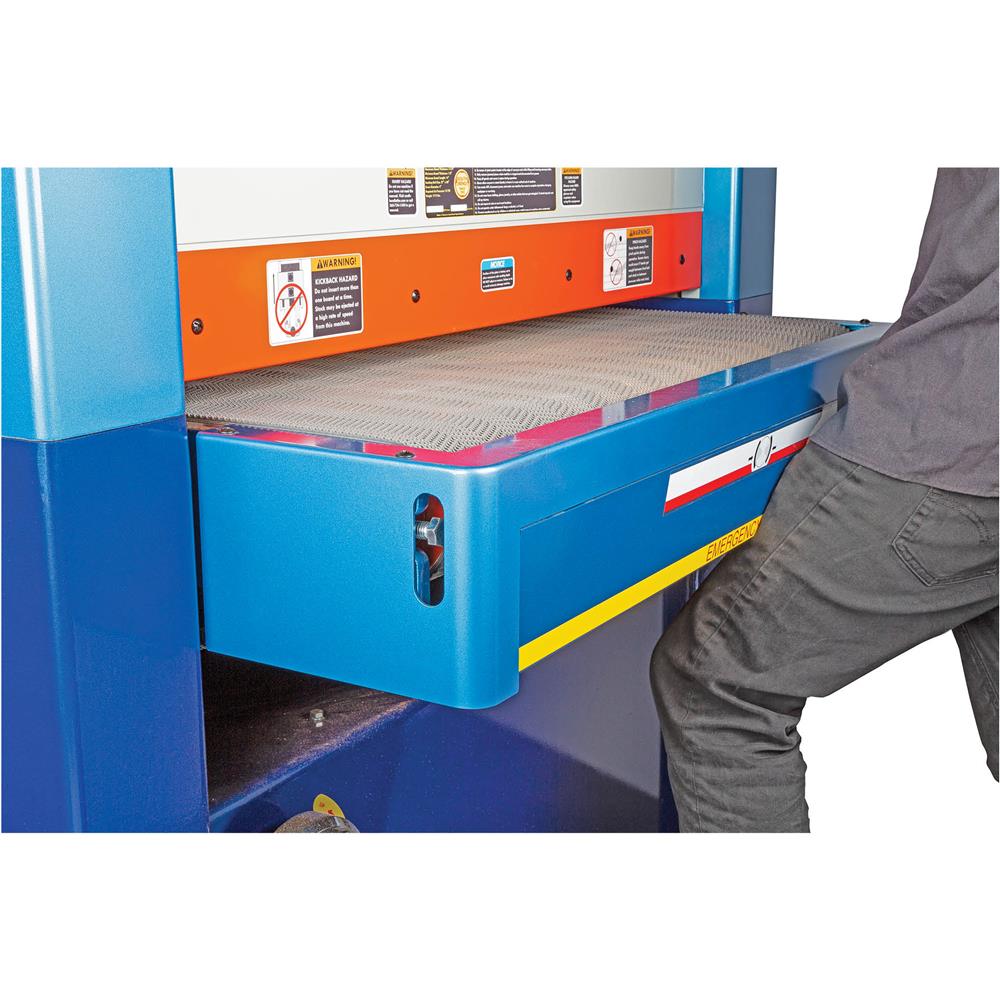

- Emergency stop panel and disc brake
- 2-year limited warranty
Specifications
| Motor | 15 HP, 220V/440V* (prewired 220V), 3-phase, 36.7A/18.4A |
| Conveyor feed motor | 1 HP, 3.4A/1.7A |
| Elevation motor | 1/4 HP, 1.2A/0.6A |
| Minimum circuit size | 50A @ 220V, 30A @ 440V |
| Max. stock size | 36" W x 5-3/4" T |
| Min. stock size | 14" L x 1/8" T |
| Sanding belt size | 37" x 60" |
| Sanding belt speed | 2600 FPM |

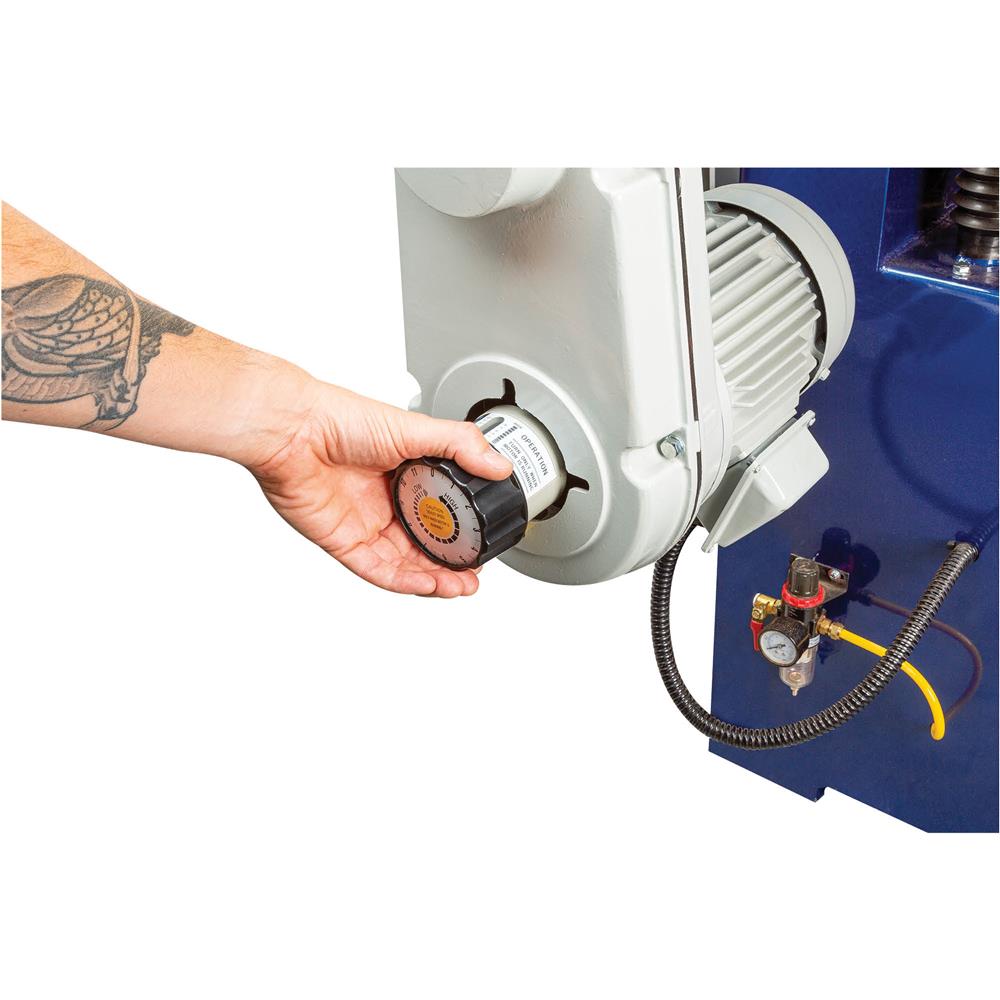

| Sanding belt stroke | Variable, 5/16"-5/8" |
| Platen size | 3-1/2" x 37-3/4" |
| Conveyor speed | Variable, 15-49 FPM |

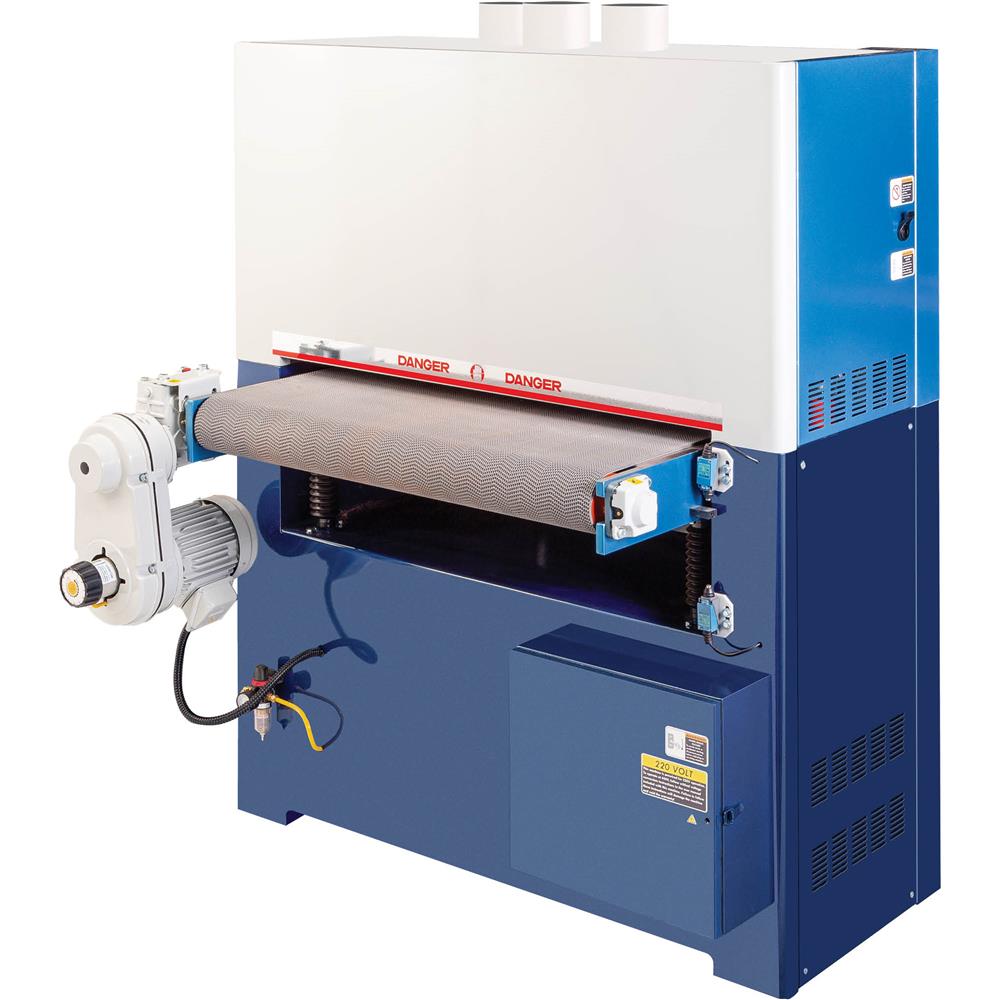

| Number of dust ports | 3 |
| Dust port size | 5" |
| Air requirement | 75 PSI |
| Footprint | 21-1/2" x 51-1/2" |
| Dimensions | 81" W x 50" D x 66-1/2" H |
| Approximate shipping weight | 1826 lbs. |
Warranty
This item comes with a 2 year factory warranty.
