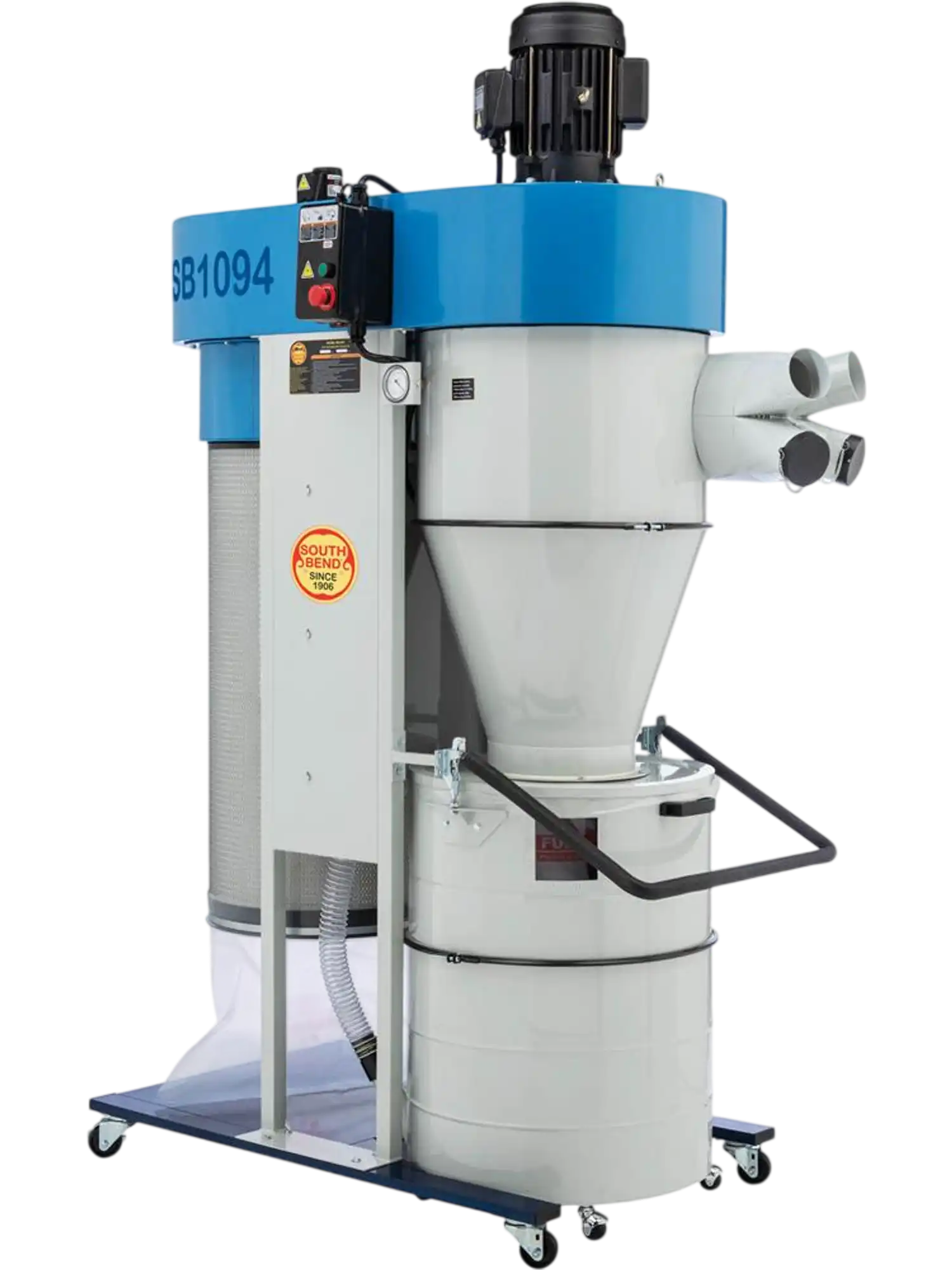

South Bend SB1094 Cyclone Dust Collector 5 HP New
Product Overview

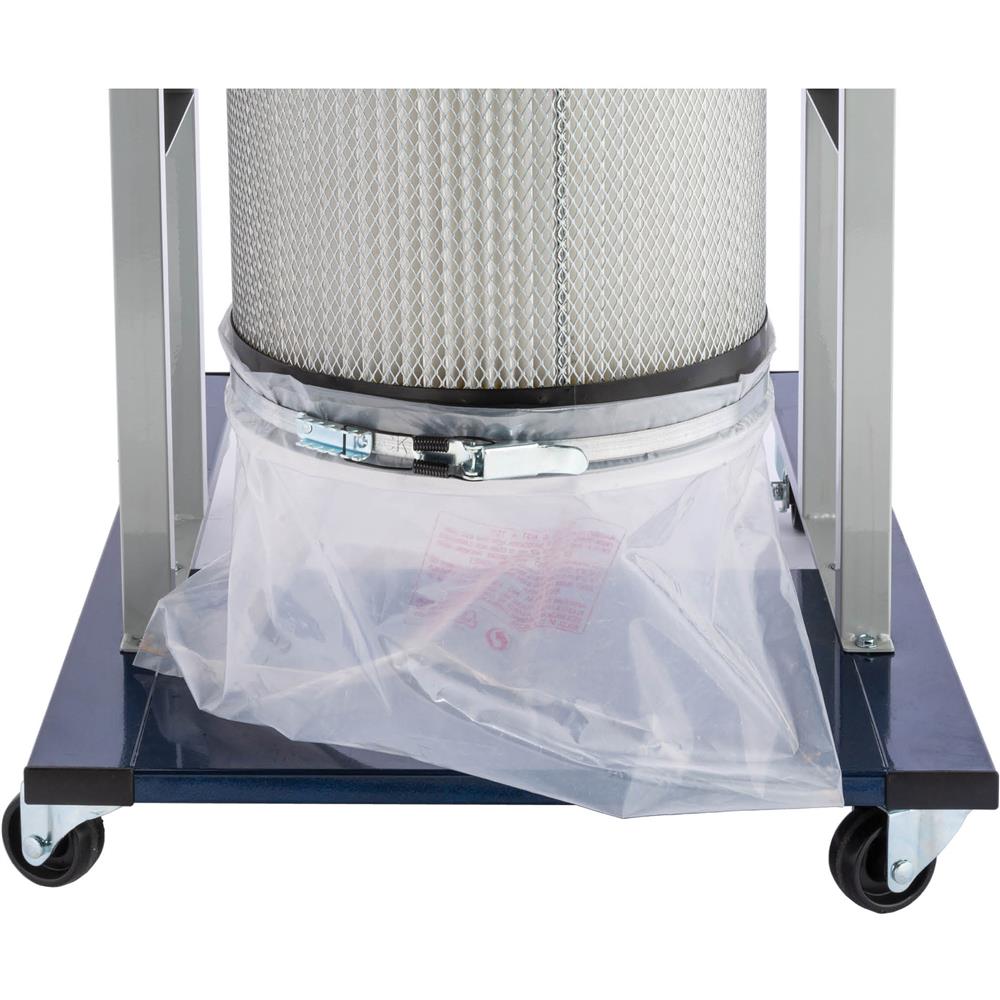

The South Bend SB1094 Cyclone Dust Collector is a 5 HP, two-stage dust collection system built to handle serious shop cleanup with strong airflow and efficient fine-dust separation. It can collect from up to four machines at once, pulling larger chips into a 60-gallon drum while directing finer particles into a 1-micron pleated filter.

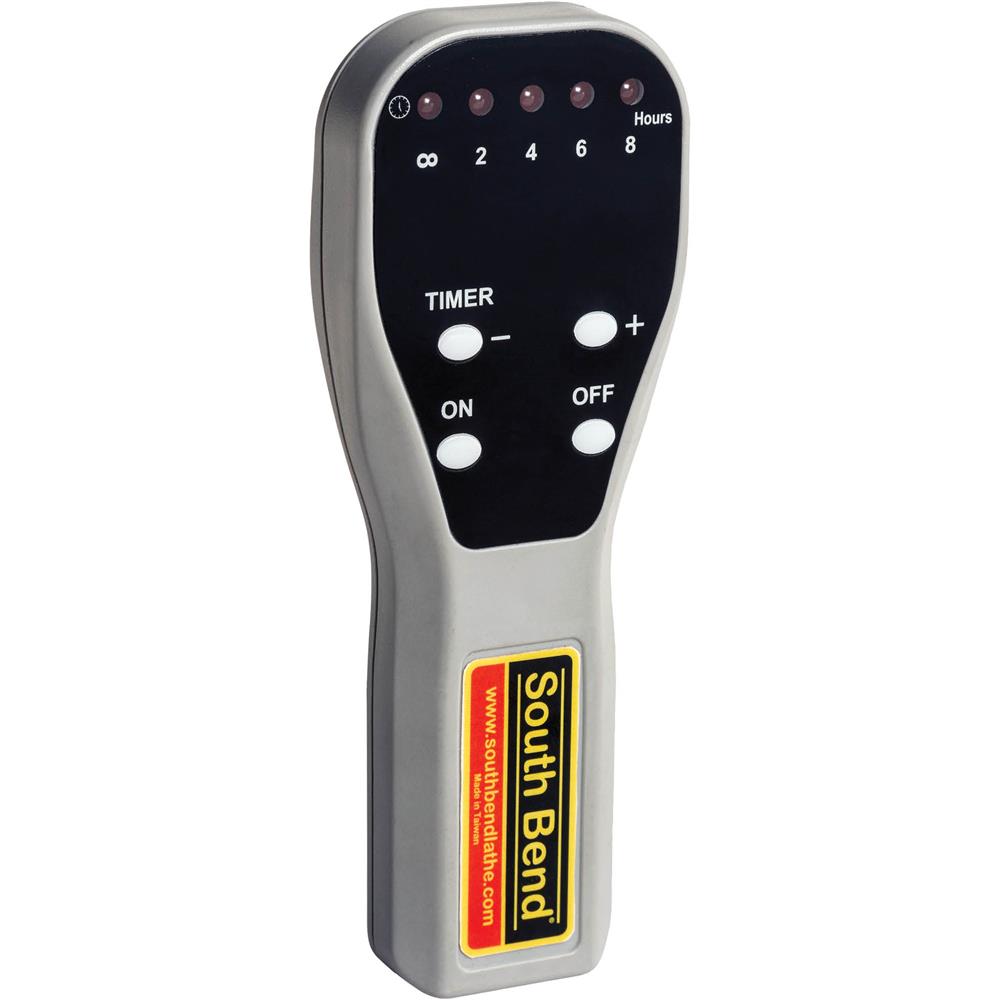

Designed for convenient day-to-day use, this unit features a wireless remote for starting it from anywhere in the shop, timer settings for automatic shutoff, and a built-in pressure gauge to help track filter performance. An automatic paddle brush cleaning system helps maintain airflow, while the balanced steel impeller and built-in muffler help keep noise levels more manageable.
With a steel stand, swivel casters, and a rolling collection drum, it is well suited for woodworkers who need powerful dust control with flexible positioning. This model is a strong choice for small professional shops, larger home workshops, and anyone running multiple woodworking machines in the same space.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features

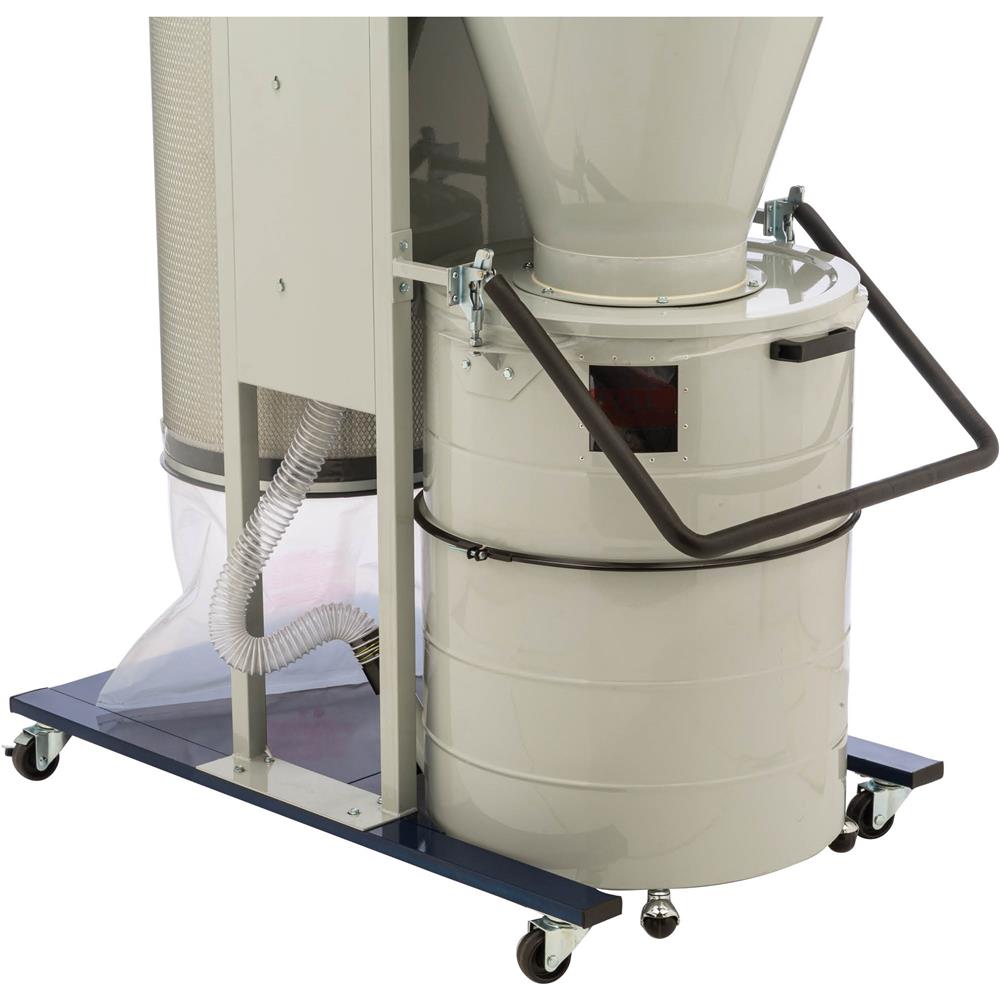

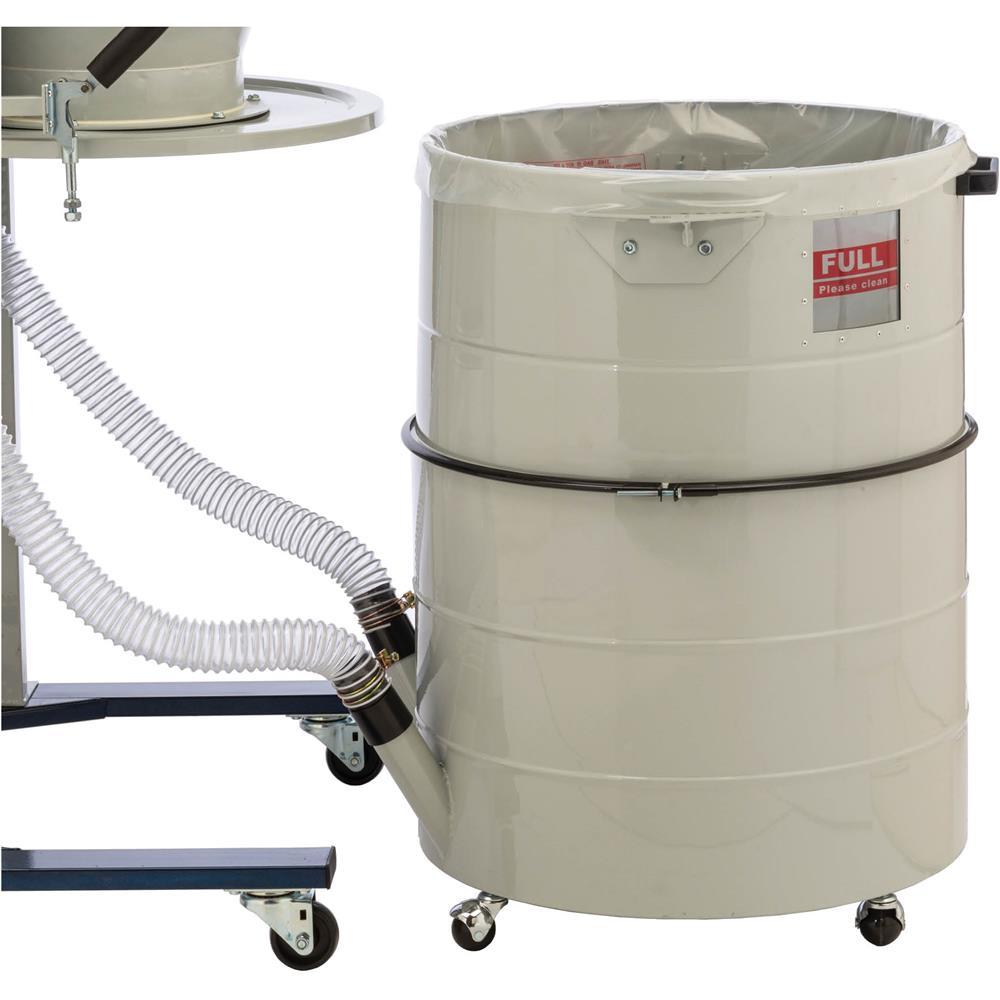

- Rolling collection drum with quick-release lift handle for easy sawdust disposal
- Collect dust from up to 4 machines running simultaneously
- Automatic filter paddle brush for easy cleaning

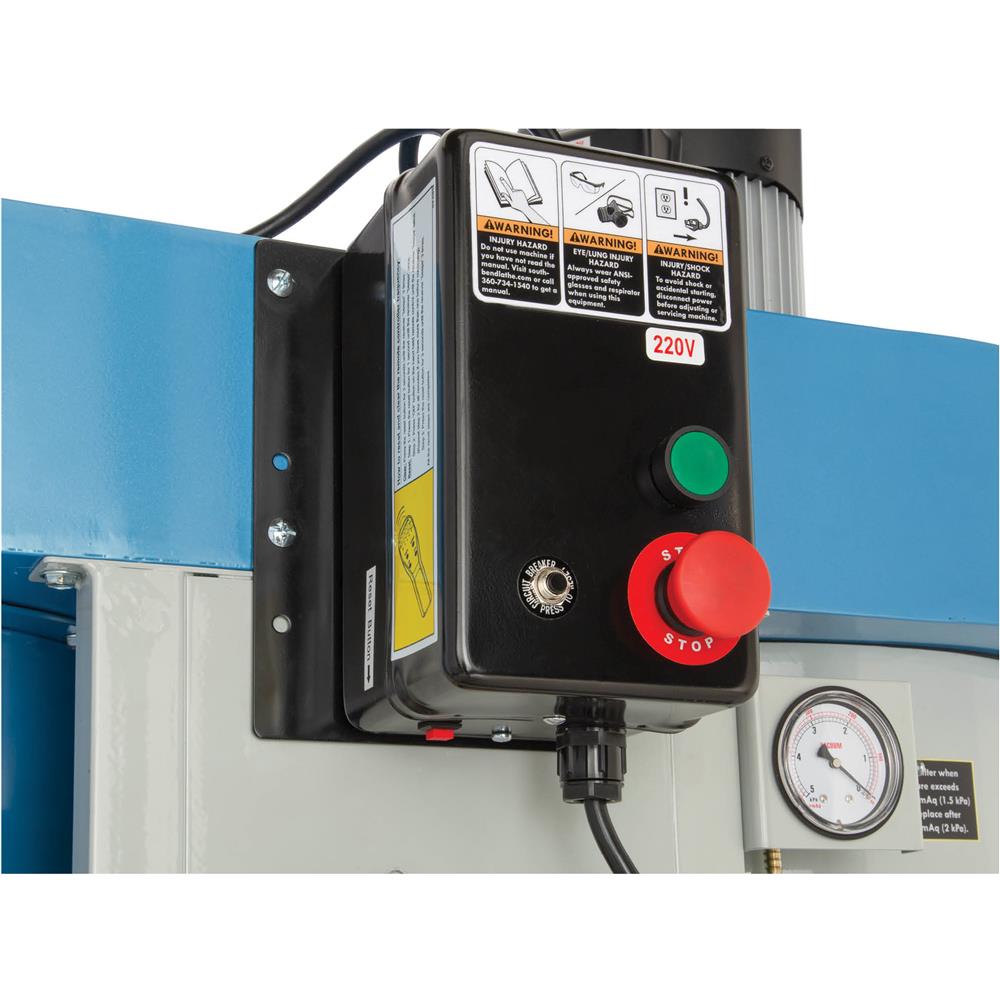

- Remote controlled magnetic switch
- Vacuum equalizer built into collection drum for use with collection bags

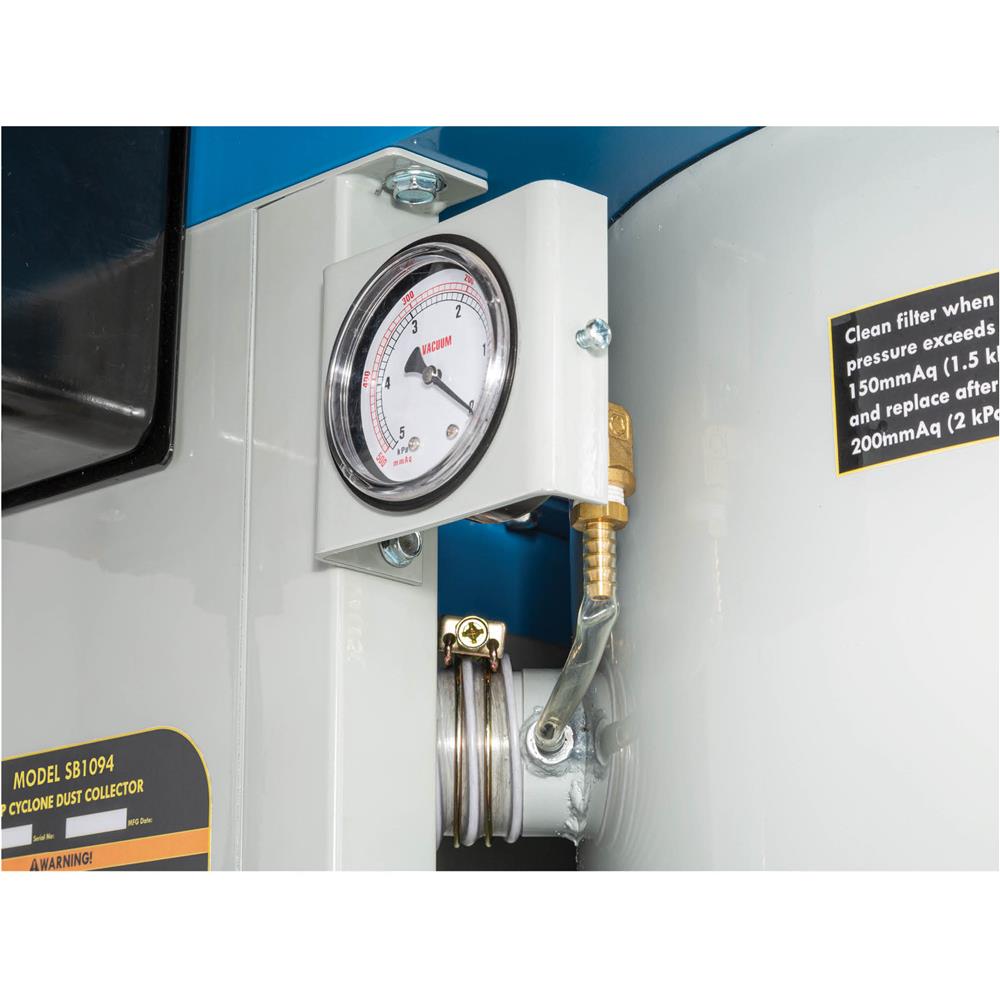

- Built-in pressure gauge
- Built-in sound muffler
- Steel stand with casters for mobility
Specifications
| Motor | 5 HP, 220V, single-phase, 34A |
| Main inlet size | 10" |
| Impeller | 15-5/8", radial fin |
| Airflow capacity | 2399 CFM @ 2.12" SP |
| Maximum static pressure | 11.4" |
| Filtration rating | 1-micron |
| Filter surface area | 90 sq. ft. |
| Collection drum size | 60 gallons |
| Sound rating | 84–86dB |
| Footprint | 33" x 50" |
| Overall dimensions | 59" W x 38" D x 93-1/2" H |
| Approximate shipping weight | 560 lbs. |
Warranty
This item comes with a 2 year factory warranty.
