South Bend SB1092 Cyclone Dust Collector 2 HP New
Product Overview

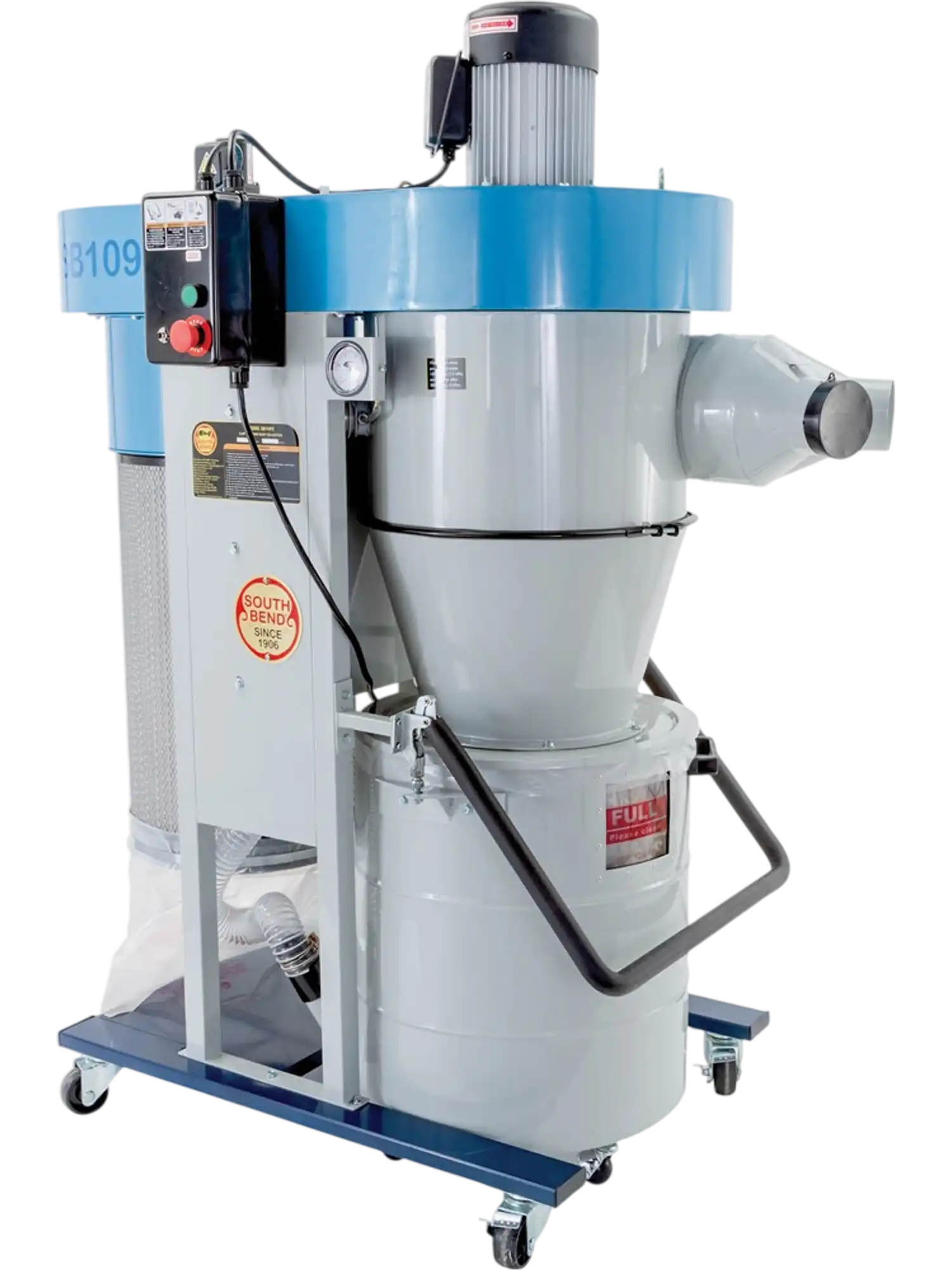

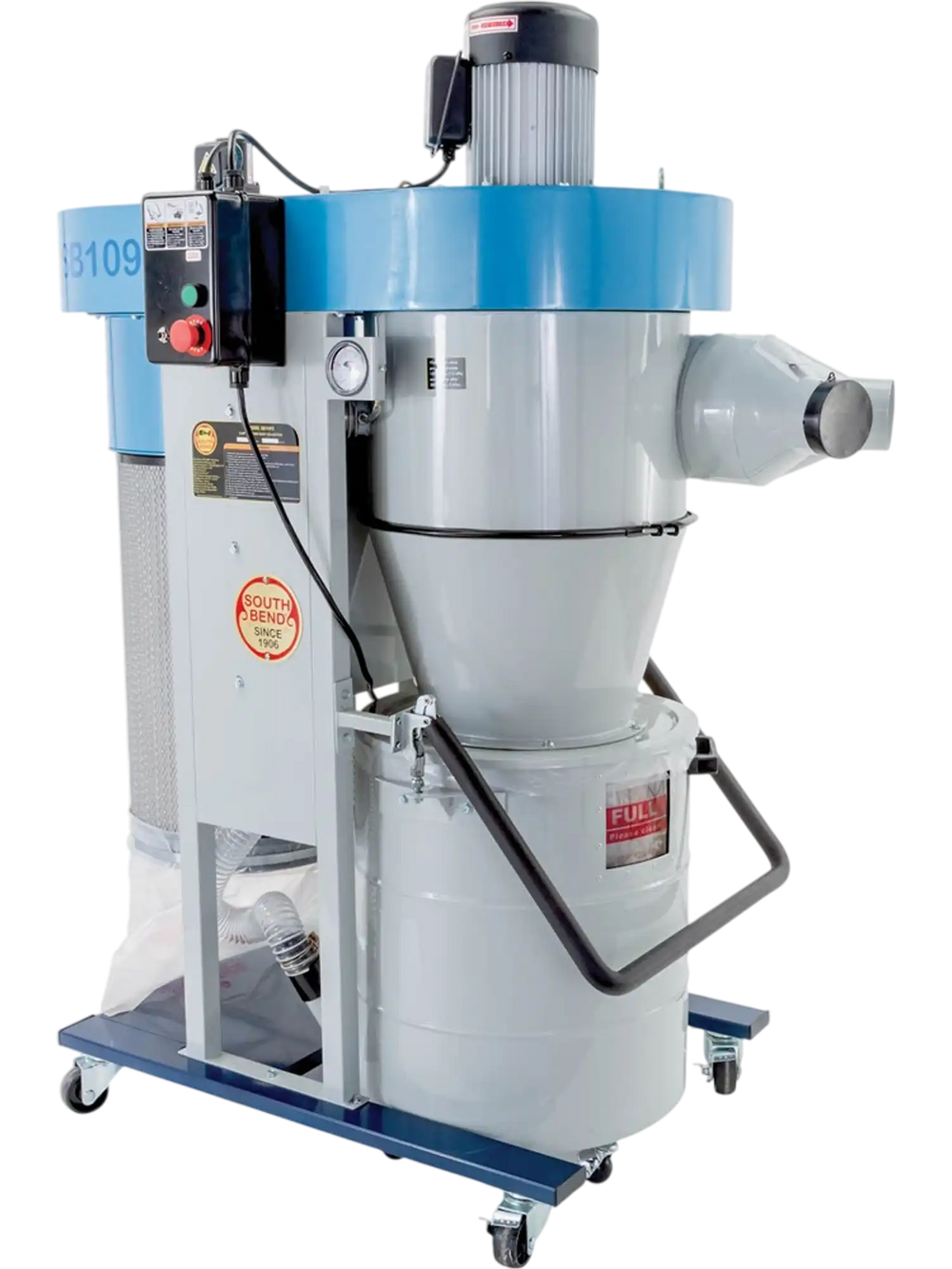

The South Bend SB1092 Cyclone Dust Collector is a compact 2 HP, two-stage dust collection system built for serious woodworking shops that need strong airflow without taking up excessive space. It separates larger chips and debris into a 28-gallon drum, while fine dust is captured through a 1-micron pleated filter for cleaner air and more efficient collection.

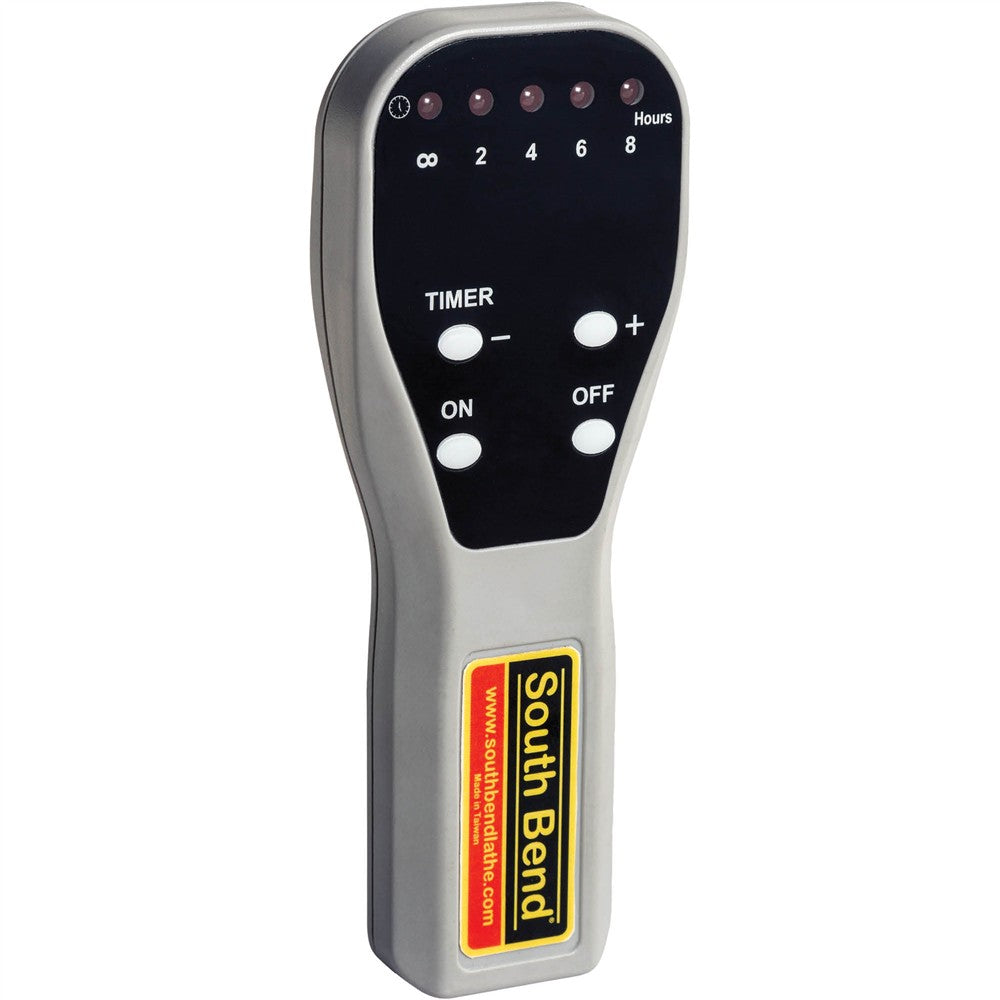

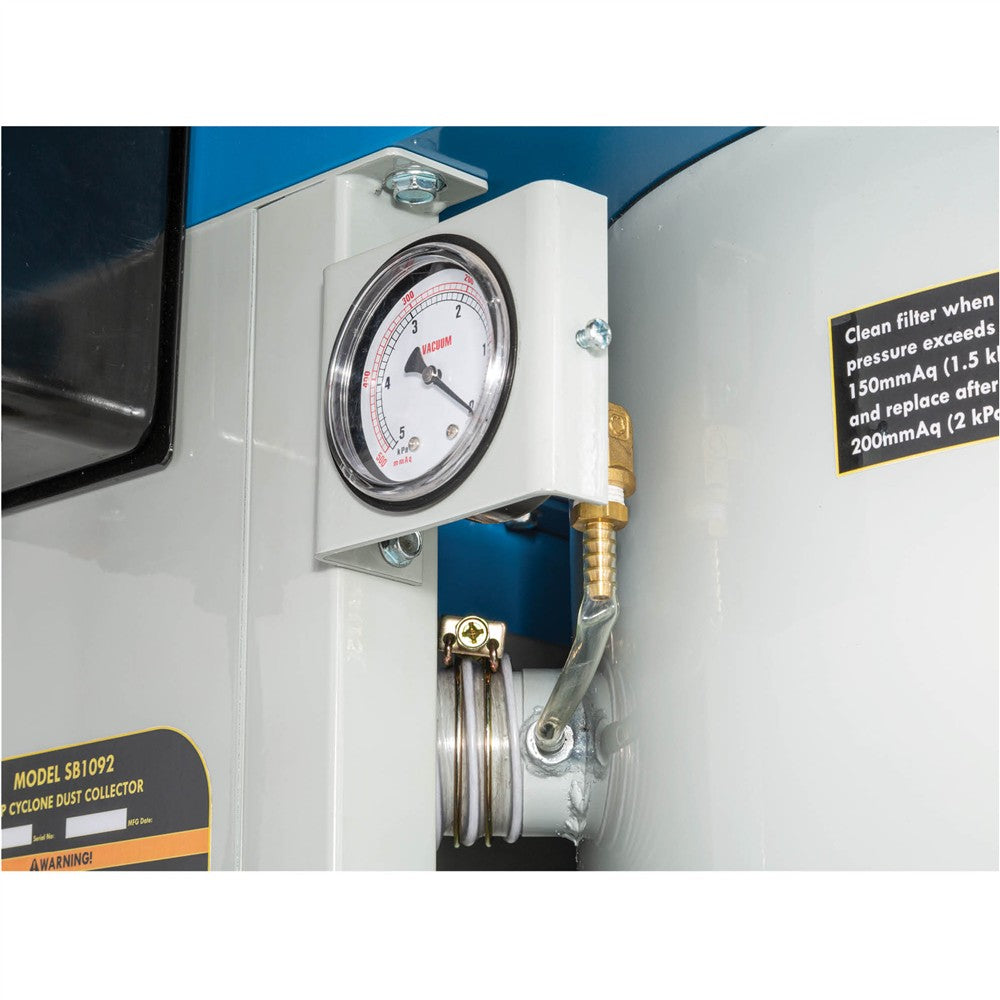

With airflow up to 1132 CFM, this unit can be set up for a single machine or connected to two machines using the included dual-inlet adapter. A wireless remote with timer-based shutoff makes it easy to control from around the shop, while the built-in gauge helps monitor filter condition and overall performance.
Designed for woodworkers who value convenience as much as power, it also features automatic filter-cleaning brushes, a quick-release drum lid, rolling casters, and a low 64-inch height for easier placement. This is a practical choice for demanding home shops and small professional workspaces looking to improve dust control and workflow.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Steel stand with built-in casters

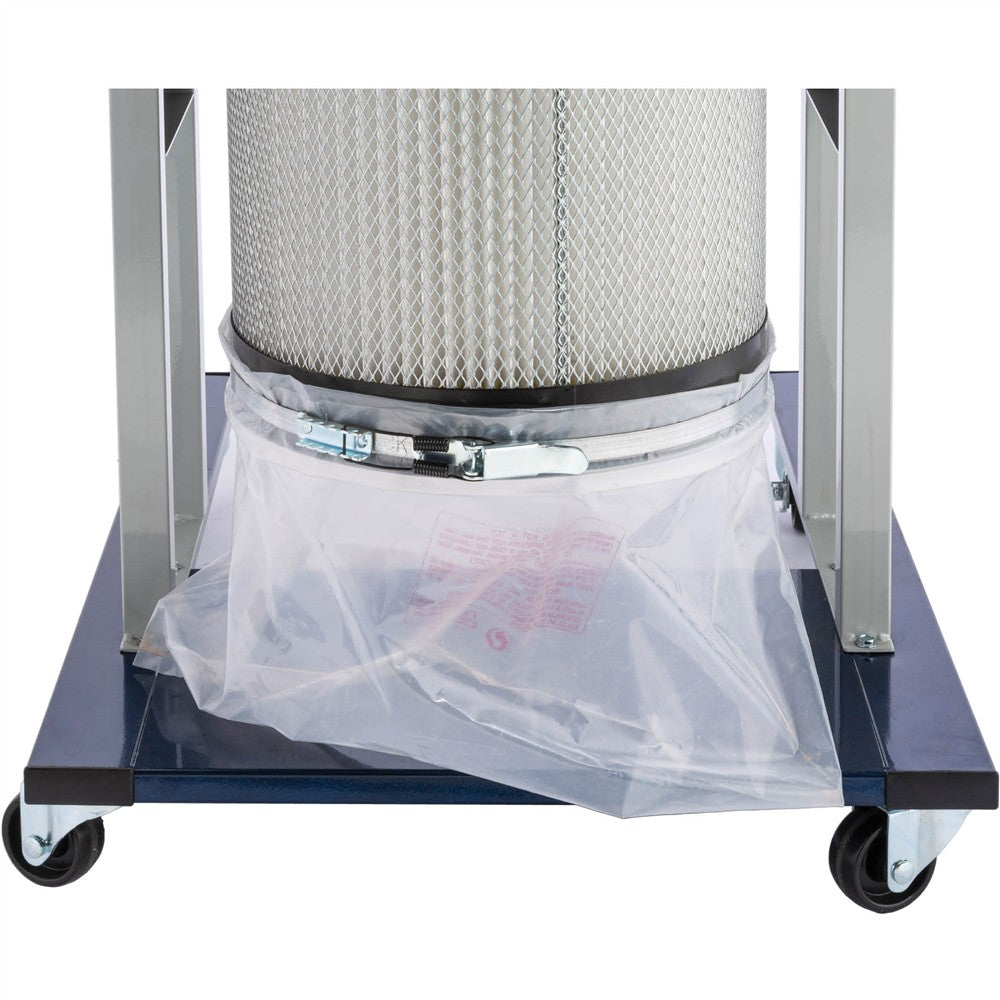

- Clear disposable plastic collection bags
- Automatic filter paddle brush for easy cleaning
- Compact with a low overall height of 64"

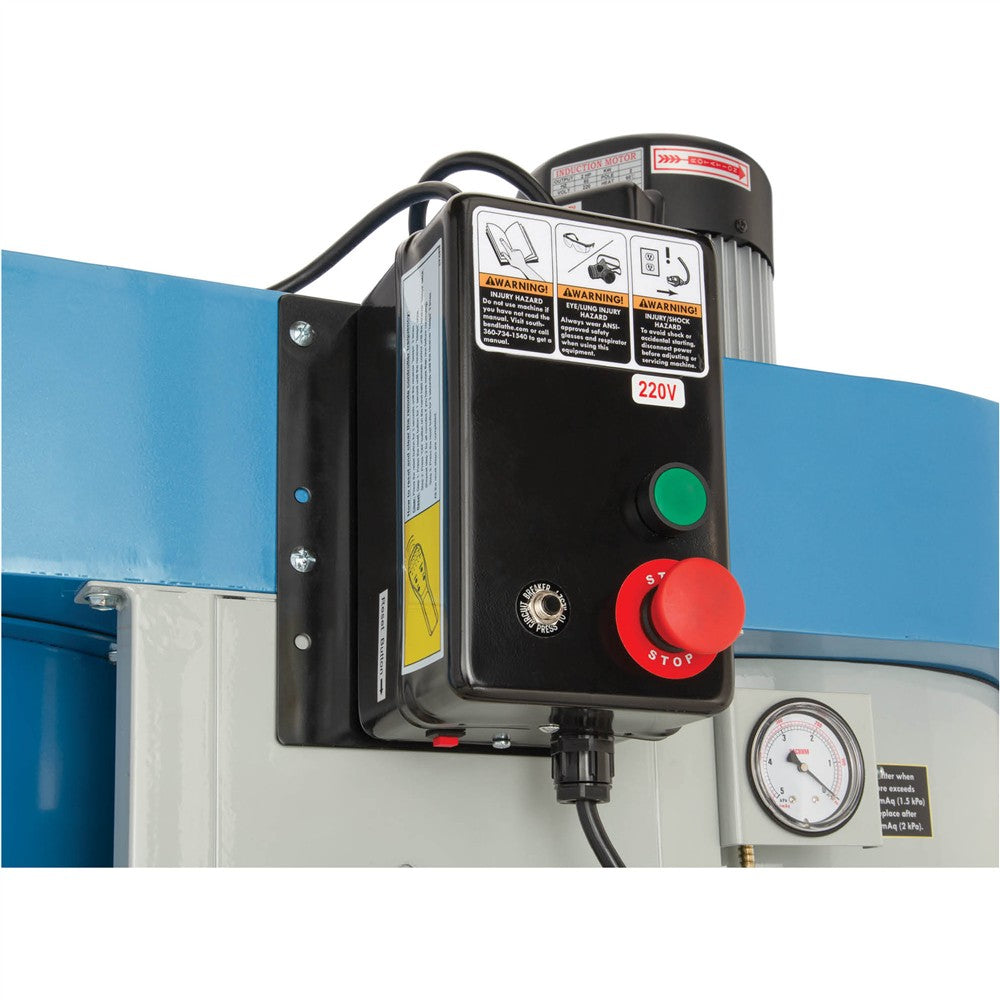

- Remote controlled magnetic switch
- Reinforced motor mount
- Timed shutoff settings

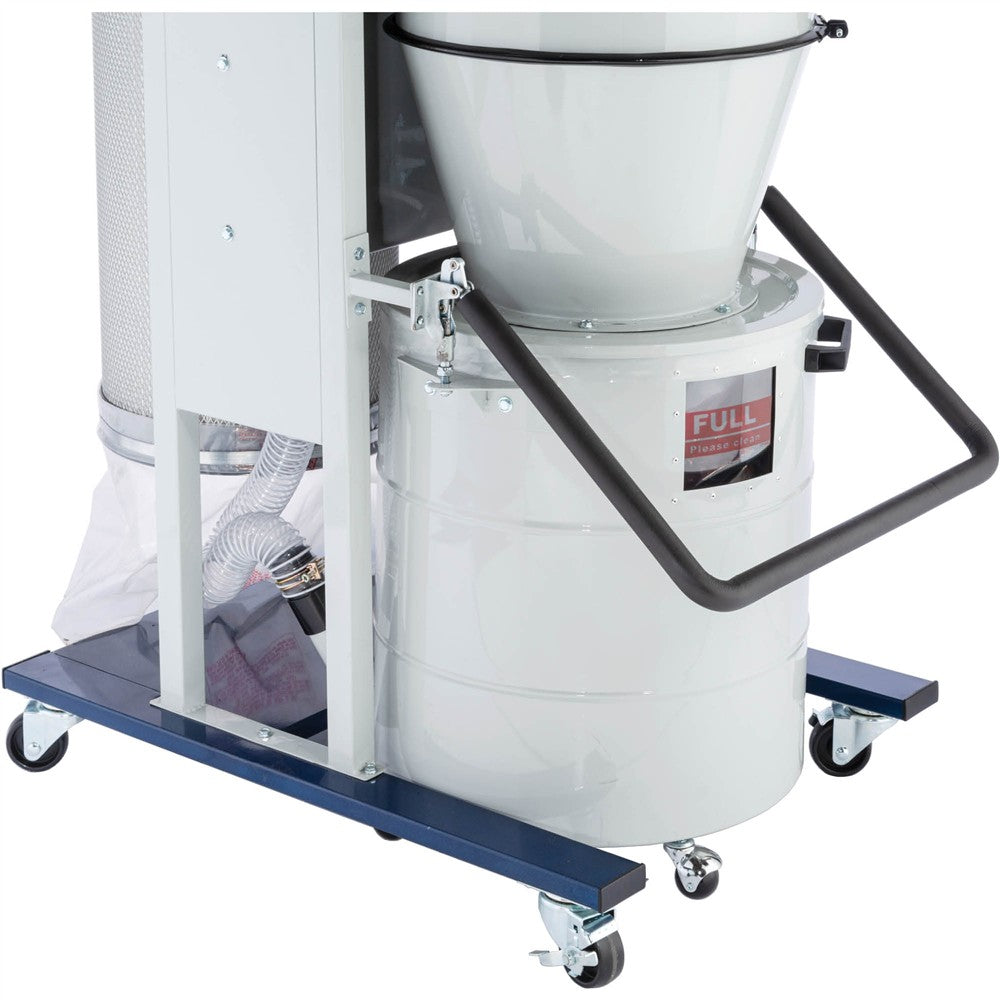

- Rolling collection drum with quick-release lift handle
- Vacuum equalizer built into collection drum for use with collection bags
- Built-in sound muffler
- U.S.-based customer service and technical support
Specifications
| Motor | 2 HP, 220V, single-phase, 9A |
| Main inlet size | 8", with two 4" adapter inlets |
| Airflow capacity | 1132 CFM @ 1.1" SP |
| Maximum static pressure | 11.5" @ 0 CFM |
| Filtration rating | 1-Micron |
| Filter surface area | 29 sq. ft. |
| Impeller | 14-1/2" Radial fin |
| Collection drum size | 28 Gallons |
| Sound rating | 77–79 dB |
| Switch | Remote-controlled magnetic with thermal overload protection |
| Overall dimensions | 51" W x 31" D x 64" H |
| Approximate shipping weight | 330 lbs. |
Warranty
This item comes with a 2 year factory warranty.
