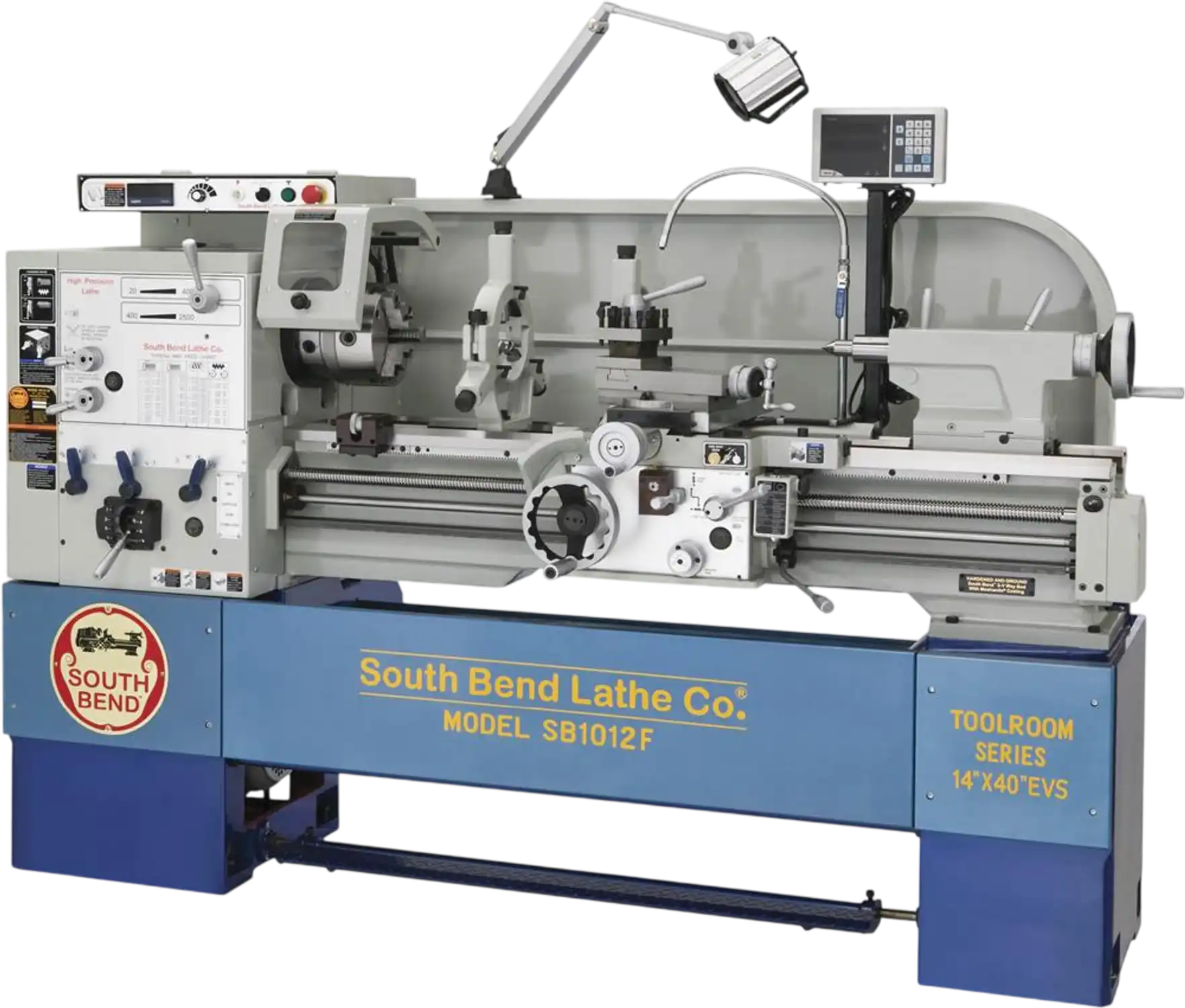

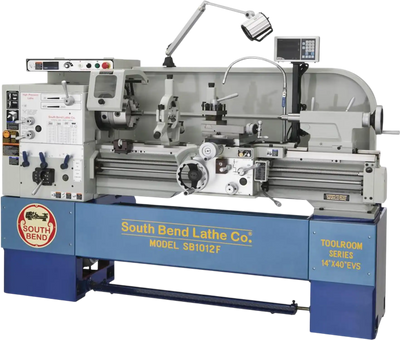

South Bend SB1012F Metal Lathe 14" x 40" Electronic Variable-Speed with FAGOR DRO New
Product Overview
The South Bend SB1012F is a 14" x 40" toolroom metal lathe built for precision turning, threading, and fabrication work. Its electronic variable-speed spindle gives you quick, accurate speed control from 20 to 2500 RPM, while the 5 HP motor and 2.0625" spindle bore support a wide range of machining tasks.

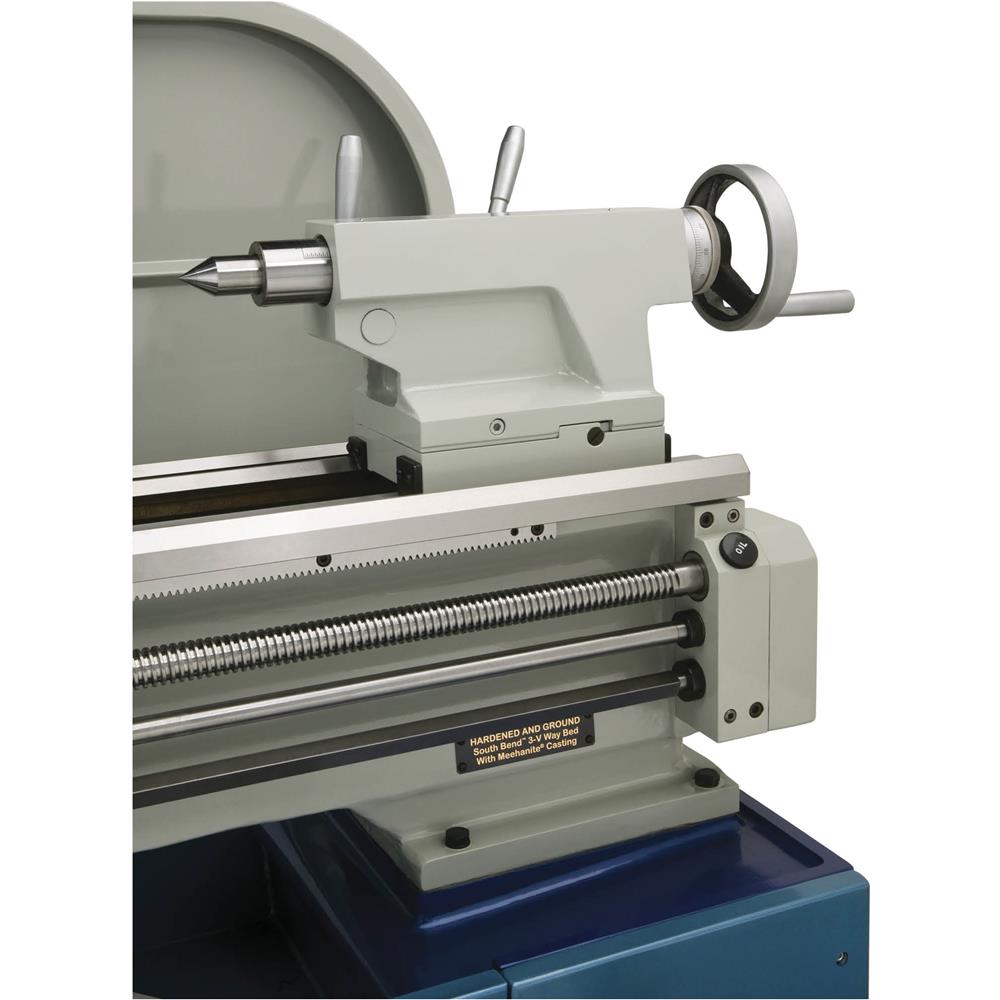

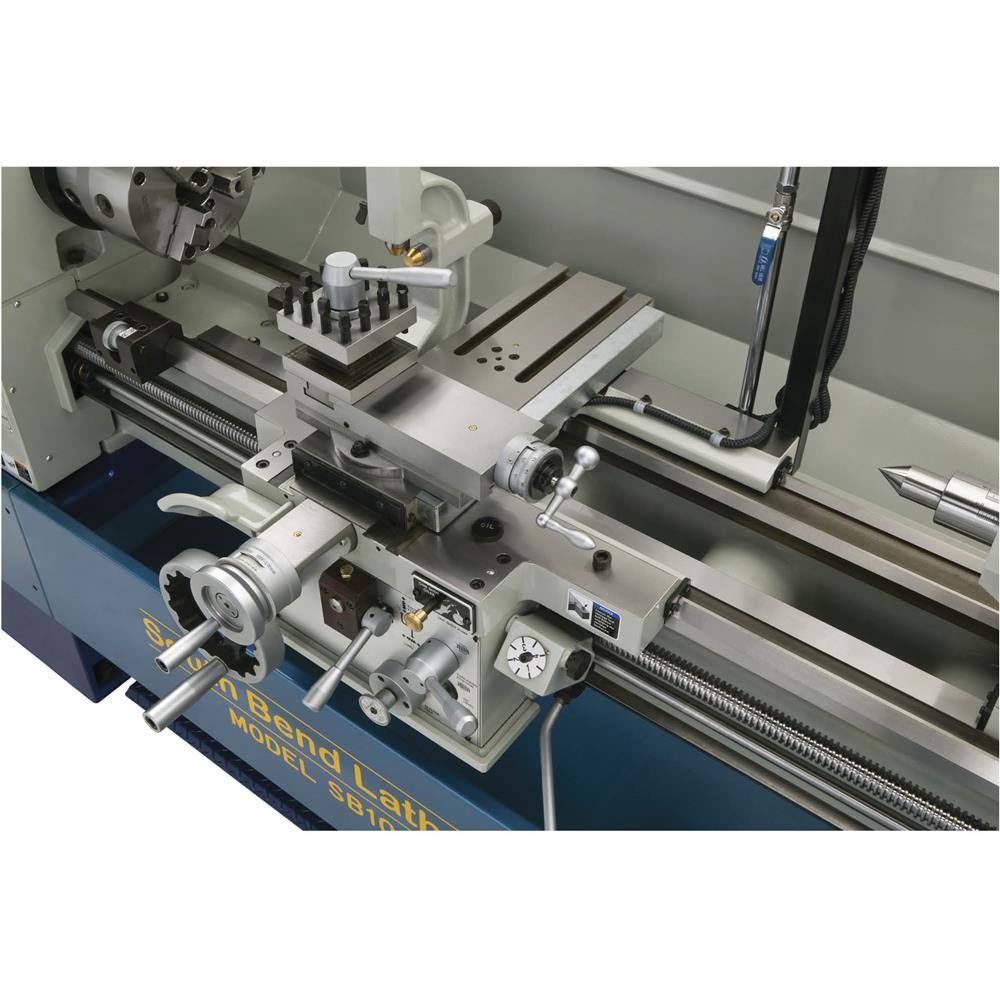

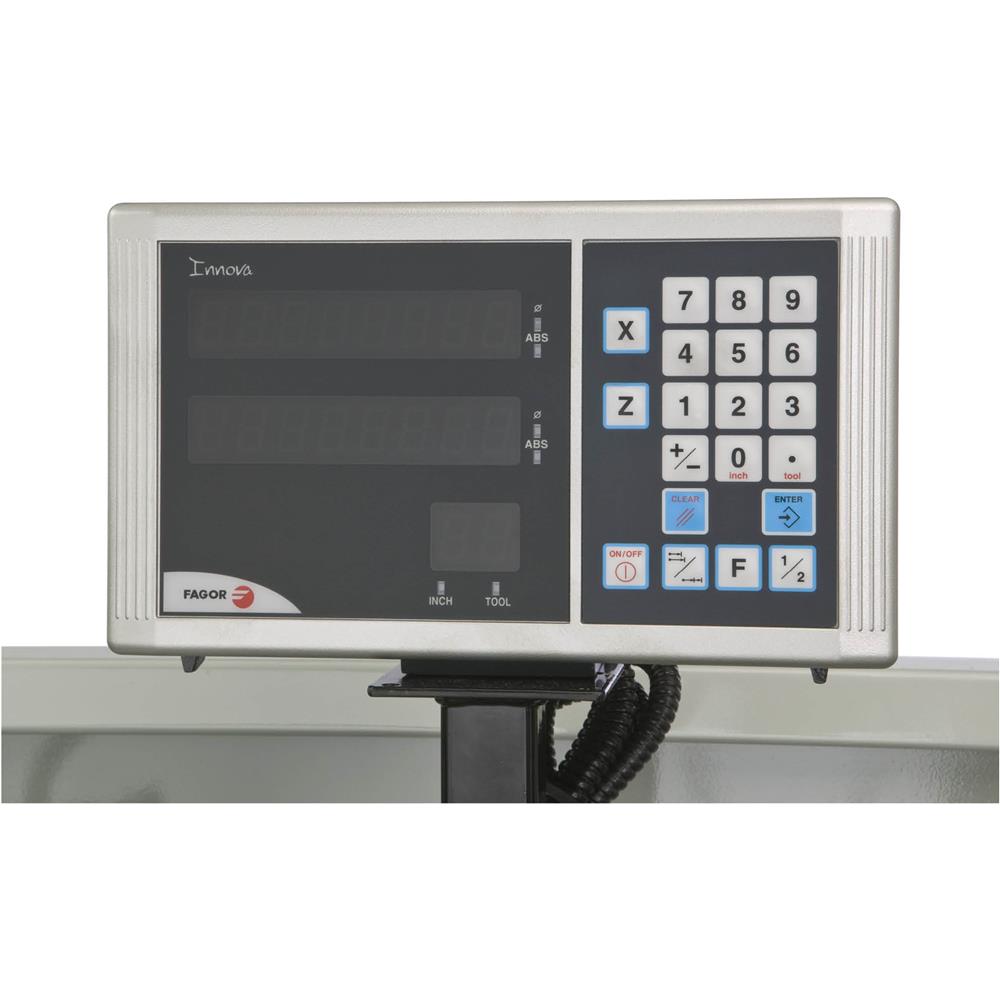

A 2-axis FAGOR DRO helps you track apron and cross slide position for more confident, repeatable results. The induction-hardened and ground Meehanite cast bed, precision spindle bearings, coolant system, and included chucks and faceplate make this a capable machine for producing dies, fine tools, jigs, fixtures, and general shop parts.
With 14" swing over bed, 40" between centers, and broad inch and metric threading ranges, this lathe is well suited for toolrooms, machine shops, and experienced metalworkers who need versatility and accuracy in a full-size manual lathe.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- 2-year limited warranty
- Fagor 2-axis DRO
- Meehanite® casting

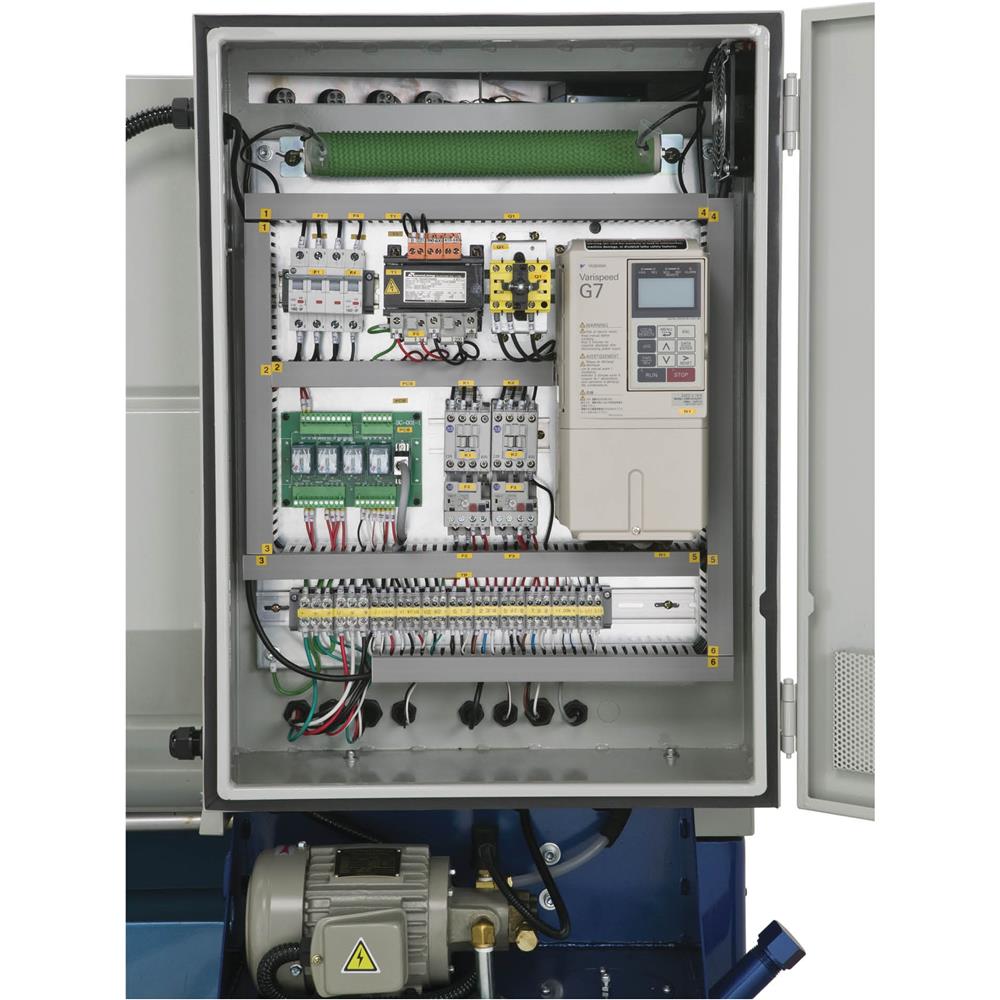

- Allen-Bradley® controls
- Safety chuck guard w/ micro-switch shut-off
- Complete recycling coolant system
- Micrometer carriage stop
- Japanese spindle bearings
- 8" 3-Jaw scroll chuck w/ D1-6 plate
- 10" 4-Jaw ind. chuck D1-6
- 12" faceplate
Specifications
| Required power source | 220V, 3-phase, min. 20A circuit |
| Spindle motor | 5 HP, 220V |
| Oil pump motor | 1/4 HP |
| Coolant Pump Motor | 1/8 HP |
| Swing over bed | 14.17" |
| Swing over gap | 20.98" |
| Swing over cross slide | 8.38" |
| Cross slide travel | 9.25" |
| Compound travel 5.10" | |
| Distance between centers | 40.00" |
| Spindle bore | 2.0625" |
| Spindle speeds | Variable, 20–2500 RPM |
| Spindle taper | MT#6 |
| Tailstock taper | MT#4 |
| Tailstock quill travel | 6.00" |
| Inch threads | (45) 2 to 72 TPI |
| Metric threads | (39) 0.20 to 14.00mm |
| Modular pitches | (18) 0.30 to 3.5 MP |
| Diametral pitches | (21) 8 to 44.00 DP |
| Longitudinal range | (17) 0.002 to 0.067 IPR |
| Cross range | (17) 0.001 to 0.034 IPR |
| Footprint | 82" x 19-1/2" |
| Overall dimensions | 91-1/2" W x 39-1/2" D x 59" H |
| Approximate shipping weight | 3086 pounds |
Warranty
This item comes with a 2 year factory warranty.
