SoftStartRV Advanced Soft Starter for RV Air Conditioners 115-240V New
Manufacturer: SoftStartRV
SKU: SSRV
QTY
(888) 999-1522
C
$383.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 7 left in stock
Ships same business day from San Antonio, TX
If ordered by 2 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 3 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year limited warranty.
$57.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$86.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$129.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
SoftStartRV Advanced Soft Starter for RV Air Conditioners 115-240V New
Product Overview

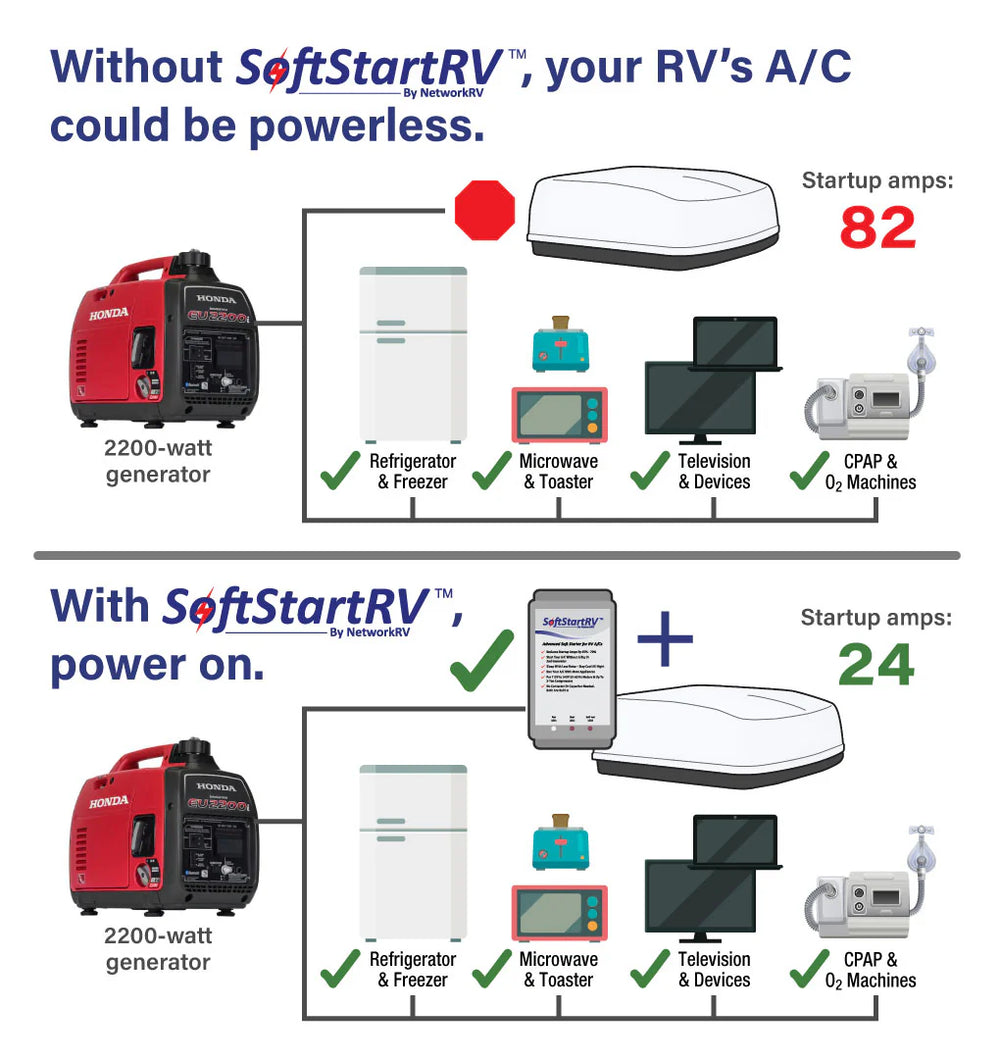

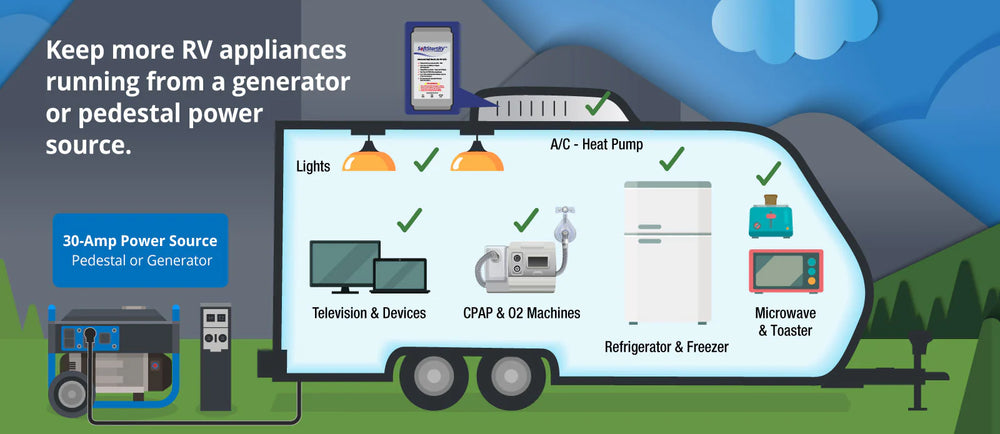

SoftStartRV is an advanced soft starter that reduces the startup surge of RV A/Cs and other motor-driven appliances. By decreasing inrush currents by up to 70%, it protects the power supply, prevents voltage drops, and extends the lifespan of compressors. This allows RV owners to run their A/C on smaller generators, limited shore power, or even multiple appliances simultaneously without overloading the system. Designed for durability, SoftStartRV is compact, weather-resistant, and ensures smooth, reliable operation in any environment.
Brand new in box
3 year limited warranty
Ships from TX
Authorized SoftStartRV dealer
Features
- Inrush Current Reduction: Reduces startup surge by 70%, preventing damage to compressors and other equipment.
- Power Efficiency: Enables efficient startup with minimal power required.
- Compact Design: Up to 52% smaller than other models.
- Weatherproof: Waterproof housing suitable for outdoor environments.
- Easy Installation: Quick installation with no cutting or splicing.
- Protection: Auto-restart after a brief power failure.
- Start 2 A/Cs on a 30-amp hookup (requires one SoftStartRV on each A/C unit)
- Fits where other soft starters can’t – especially in the tight space of new rooftop A/Cs.
- Complete Installation Kit included that customers love. It saves time from trying to locate and buy the proper wiring connectors – it’s all provided!
Specifications
| Model | SSRV |
| Nominal Working Voltage | 110VAC (90-135VAC) & 240VAC (187-266VAC), 1 Phase |
| Power Consumption | Less than 3W |
| Protection Restart Time Interval | 3 minutes |
| Max Continuous Working Voltage | 135VAC/266VAC |
| Max Continuous Working Current | 18A |
| Over-current Limit | 30A/1 minute Maximum non-repetitive inrush current: 170A (<20 ms) |
| Max Surge Current | 120A (<350 ms) |
| Soft Start-up Time | 1+0.5s |
| Current Consumption | 48mA |
| Operation Hours | More than 45,000 hours |
| Effective Soft Start On/Off Service | >100,000 times (soft-start interval not less than 3 minutes) |
| Withstand voltage between housing and chassis | 3000VAC in 1 minute |
| Shock Resistance | More than 200m/s2 and 11ms |
| Anti-Vibration | 10-55mm (double amplitude, 1.5mm) |
| Working Temperature | -40°F to 185°F |

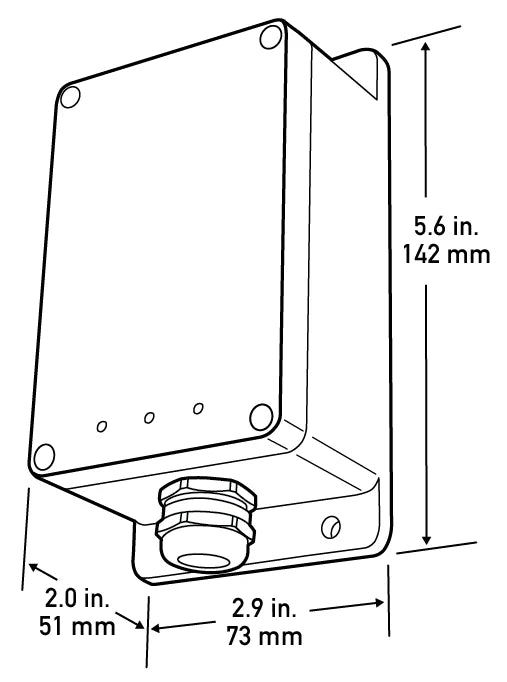

| Dimensions | 5.6" x 2.9" x 2" |
| Weight | 1 lb. 5 oz. |
Package Contents
SSRV Soft Starter
Universal Accessory Kit
Instruction Guide
Warranty
This item comes with a 3 year limited warranty.
