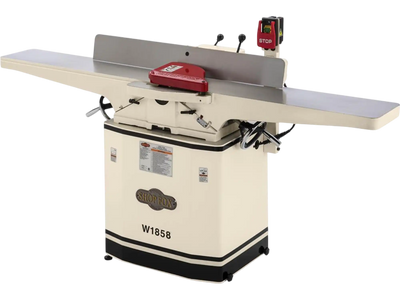

Shop Fox W1858 Jointer 8" x 72" Dovetail Helical Cutterhead Mobile Base New
Manufacturer: Shop Fox
SKU: W1858
QTY
or
(888) 999-1522
C
$3,674.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
$345.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$417.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$504.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

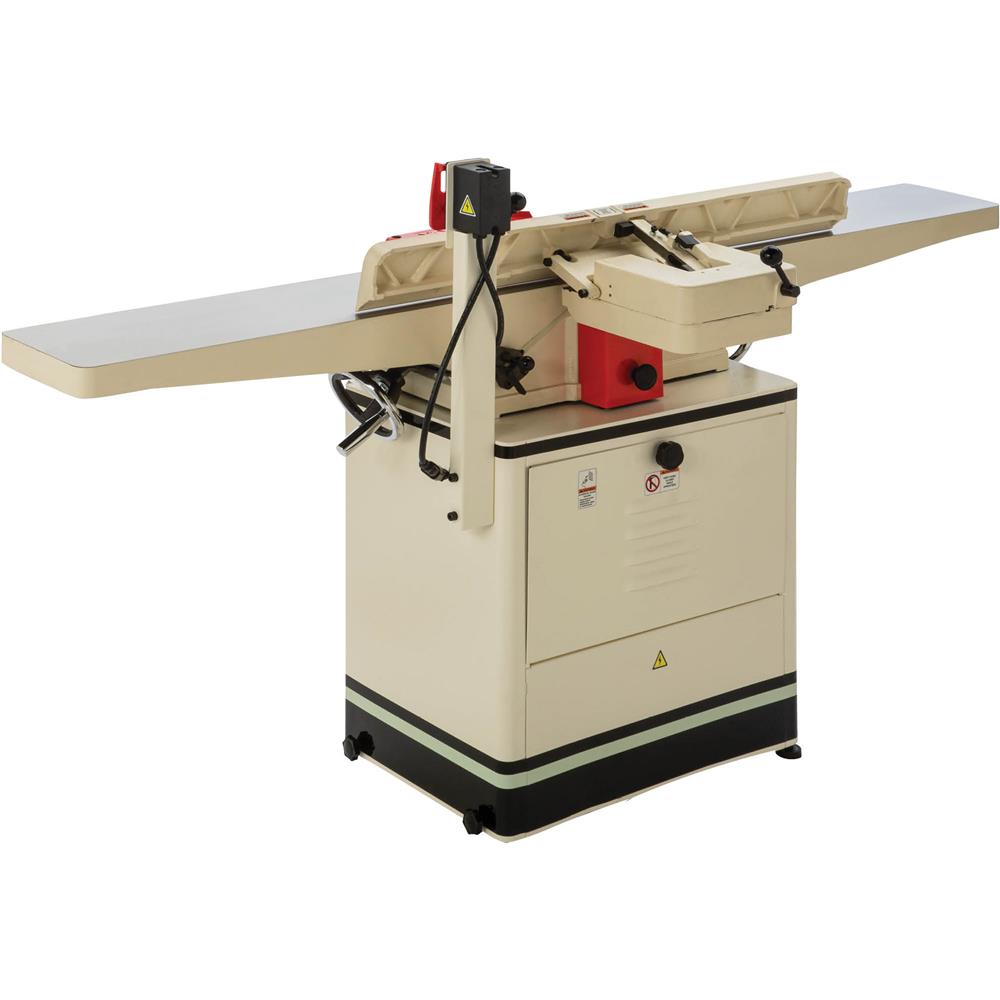

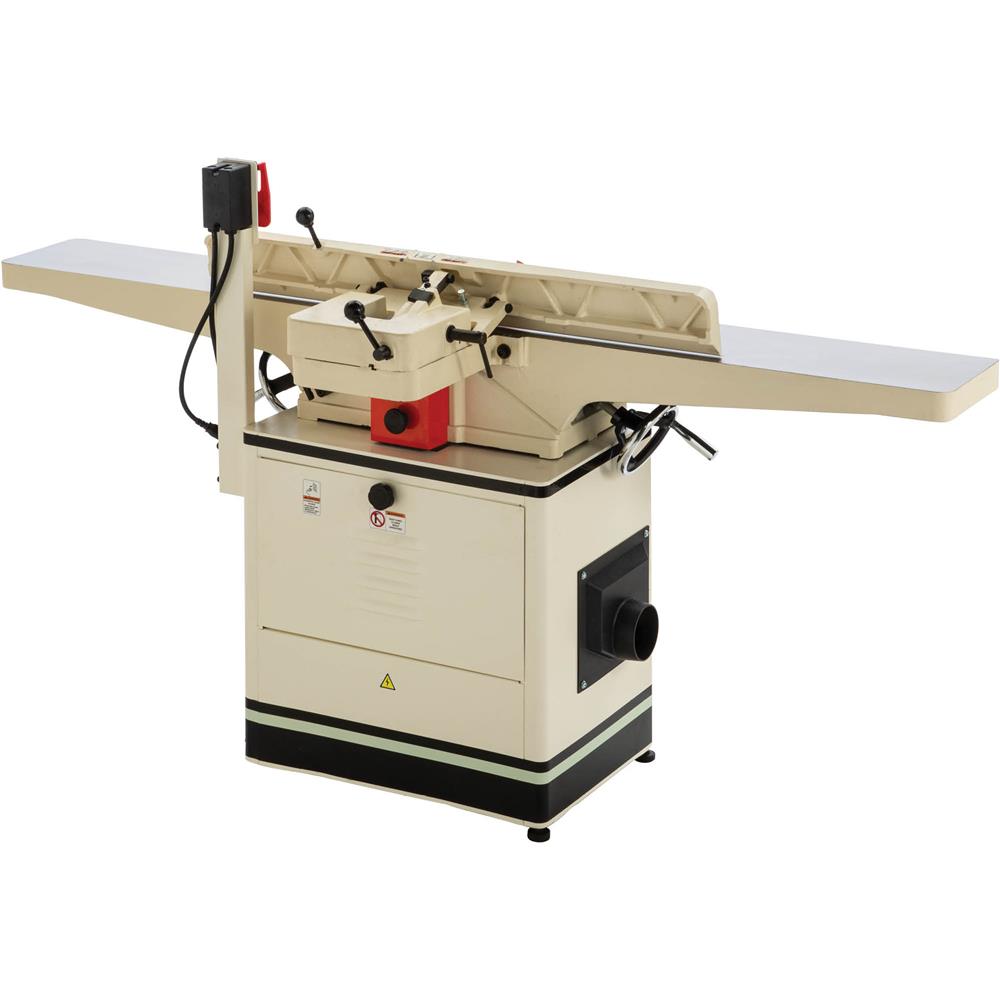

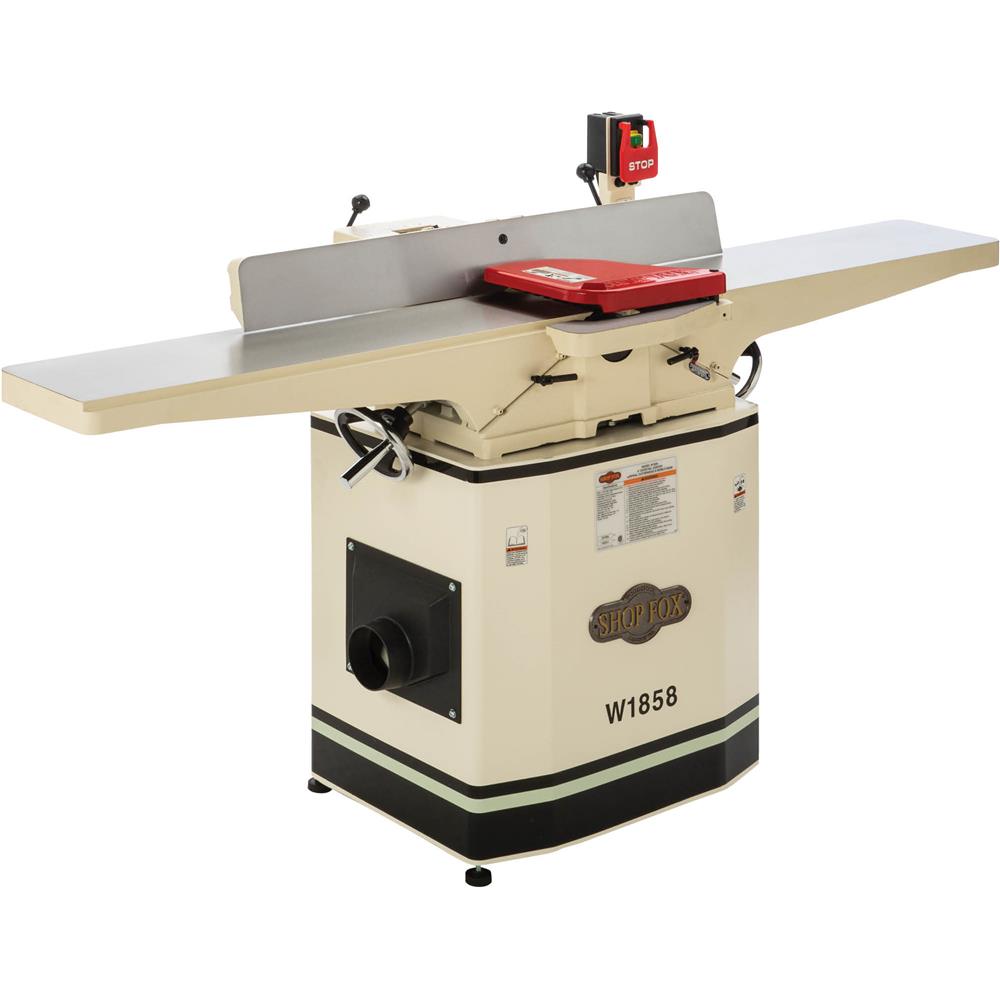

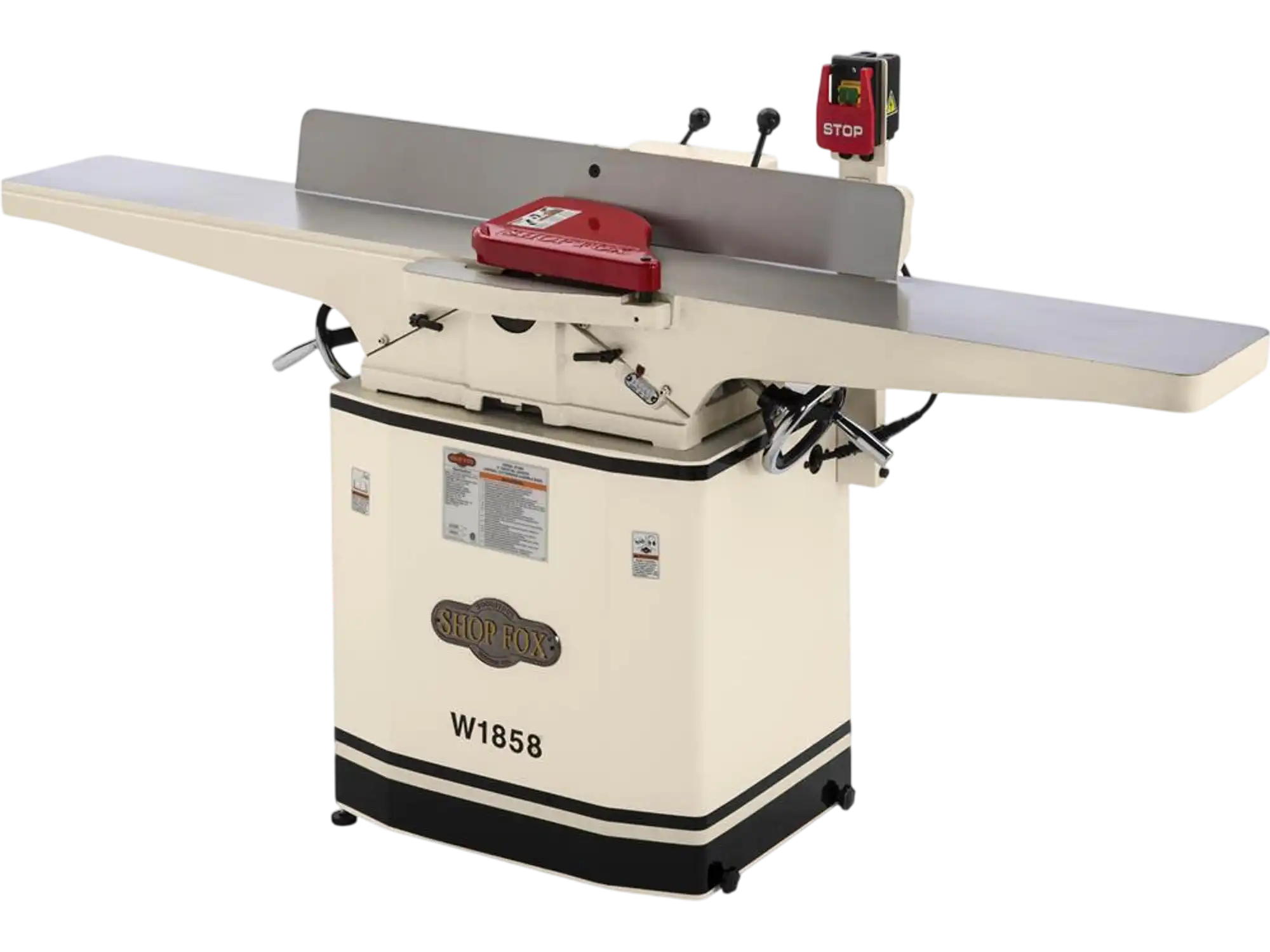

Shop Fox W1858 Jointer 8" x 72" Dovetail Helical Cutterhead Mobile Base New
Product Overview

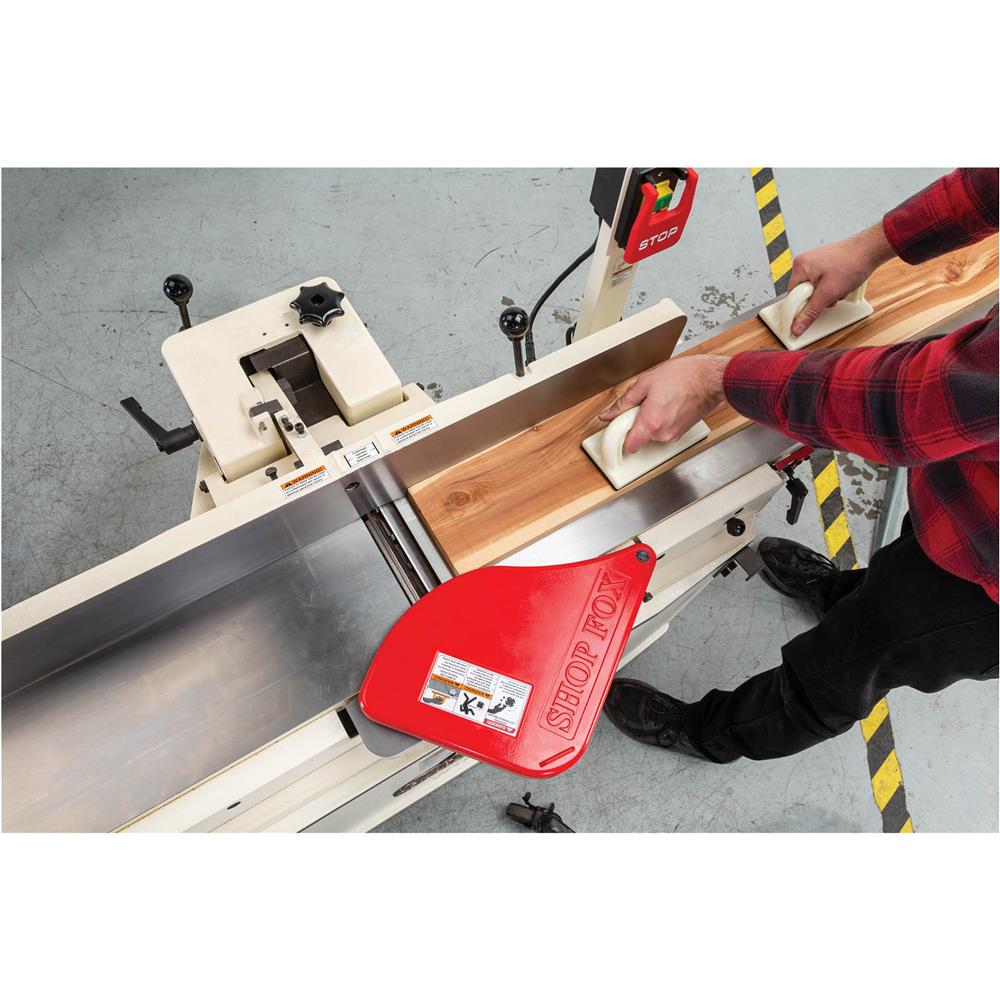

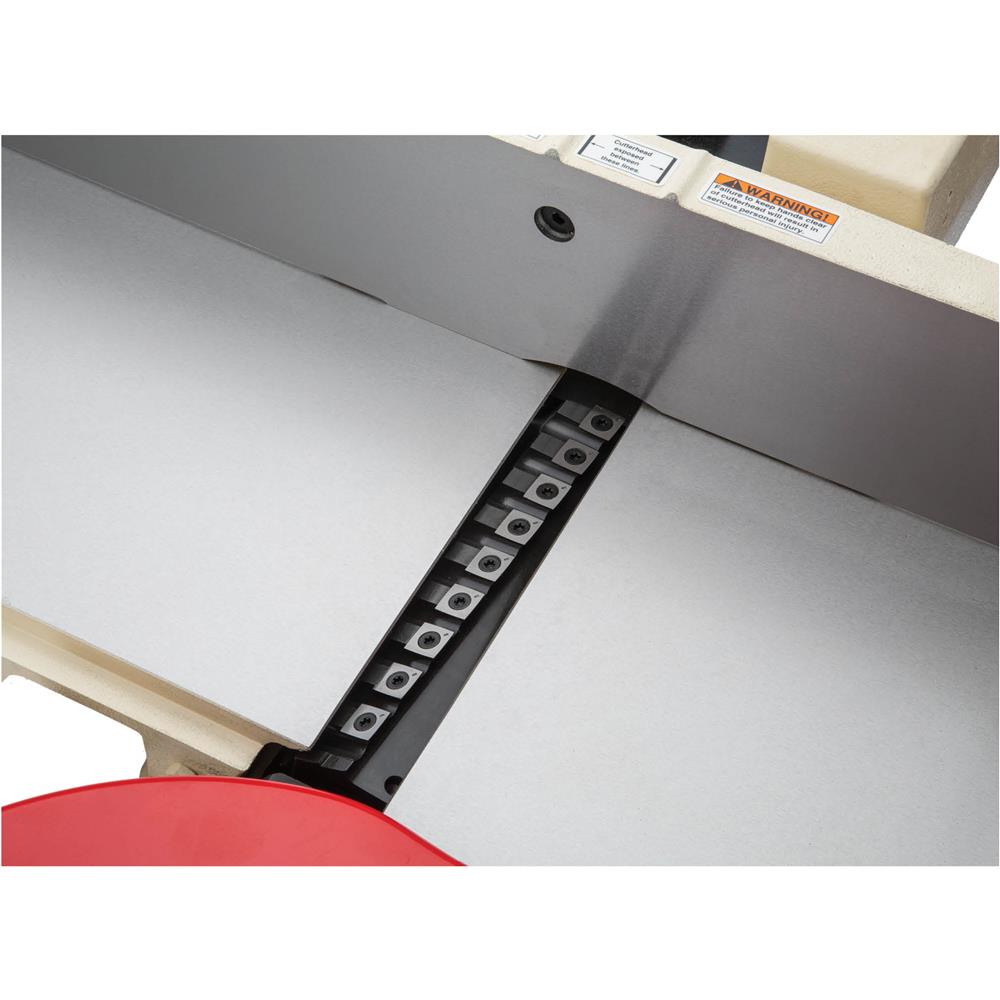

The Shop Fox W1858 is an 8-inch jointer built for accurately flattening faces, straightening edges, beveling, and squaring stock. Its 4-row helical cutterhead with 36 indexable carbide inserts cuts at an angle for smoother results, quieter operation, and reduced tear-out compared to traditional straight-knife designs.

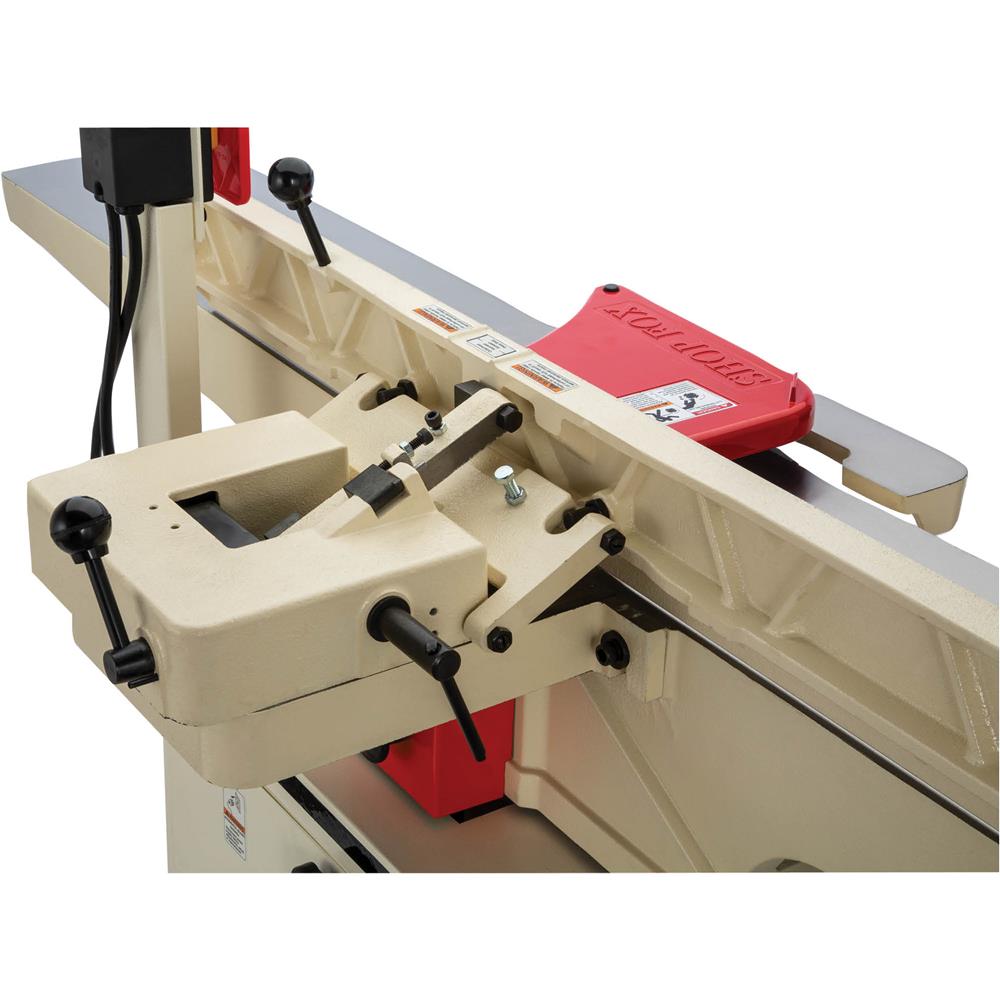

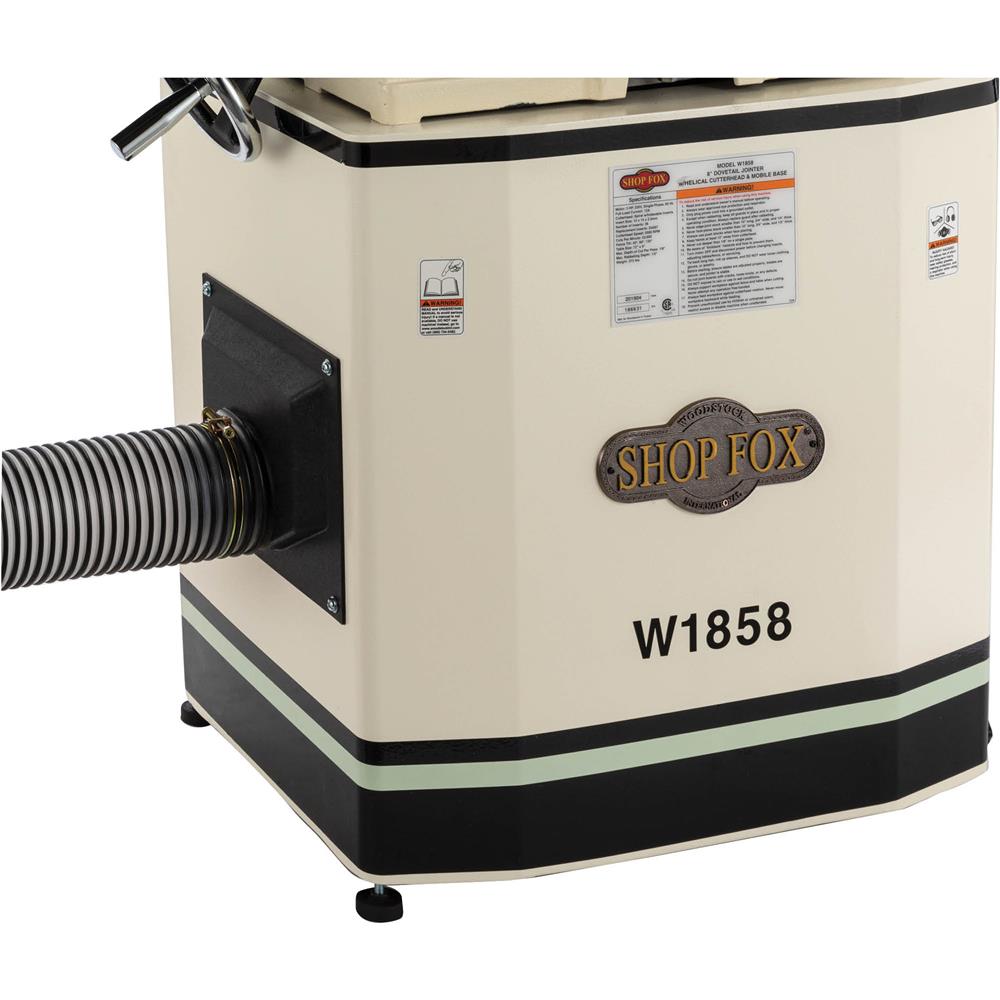

A long 72-inch precision-ground cast-iron table provides solid support for working with longer boards, while dovetail ways and handwheel table adjustments help deliver precise control. The fence includes positive stops at 45°, 90°, and 135° for quick setup, and the machine also features a rabbeting table, 4-inch dust port, and a built-in mobile base for easier positioning in the shop.

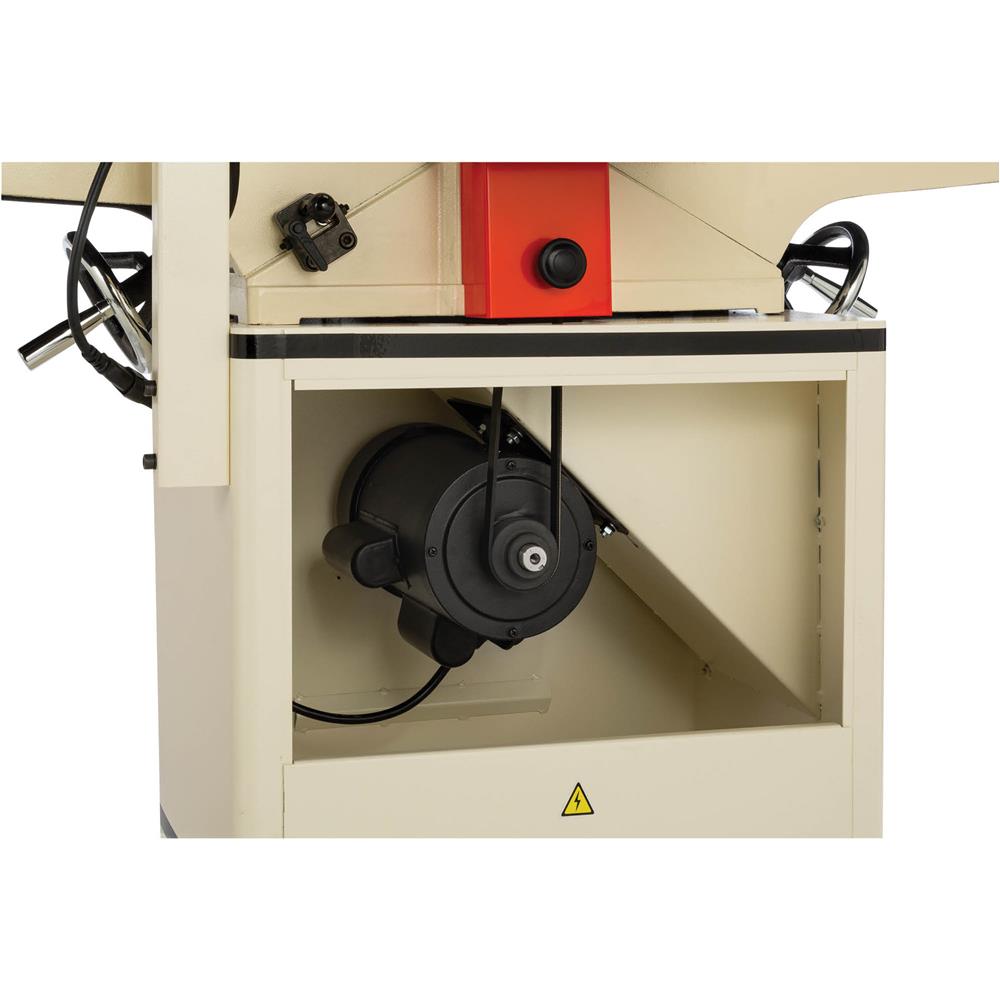

With a 3 HP, 230V single-phase motor and 5,500 RPM cutterhead speed, this jointer is well suited for serious hobbyists, furniture makers, and small professional woodshops that need clean, consistent results on rough lumber and finish stock.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Two-year warranty!!
- Super long 6' table
- Center mounted fence
- Built-in mobile base with internally-mounted, non-directional casters
- Beds slide on dovetailed ways
- Rabbeting table
- Handwheel-adjustable tables with depth gauge
- Built-in mobile base
Specifications
| Motor | 3HP, 230V, single phase, 12A |
| Maximum width of cut | 8" |
| Maximum depth of cut | 1/8" |
| Maximum rabbeting depth | 1/2" |
| Minimum stock length | 10" |
| Minimum stock thickness | 1/2" |
| Cutterhead diameter | 3-1/16" |
| Insert size | 15 x 15 x 2.5 mm |
| Cutterhead speed | 5500 RPM |
| Total table size | 9" x 72" |
| Fence size | 4-5/8" x 38" |
| Fence system | positive stops |
| Overall dimensions | 72-1/2" W x 25-1/2" D x 42" H |
| Approximate shipping weight | 373 lbs. |
