Shop Fox W1685 Dust Collector 1-1/2 HP Wood New
Product Overview

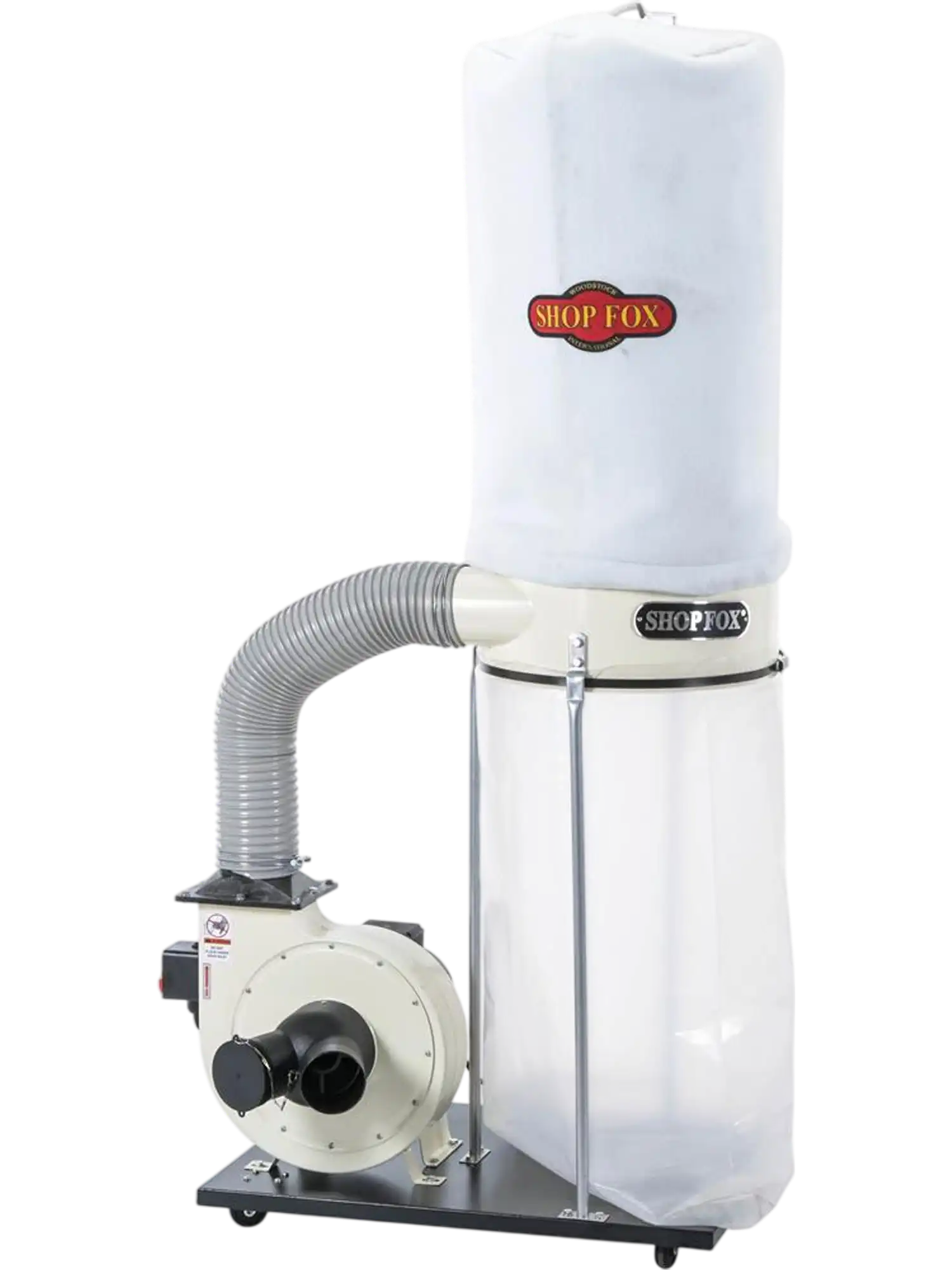

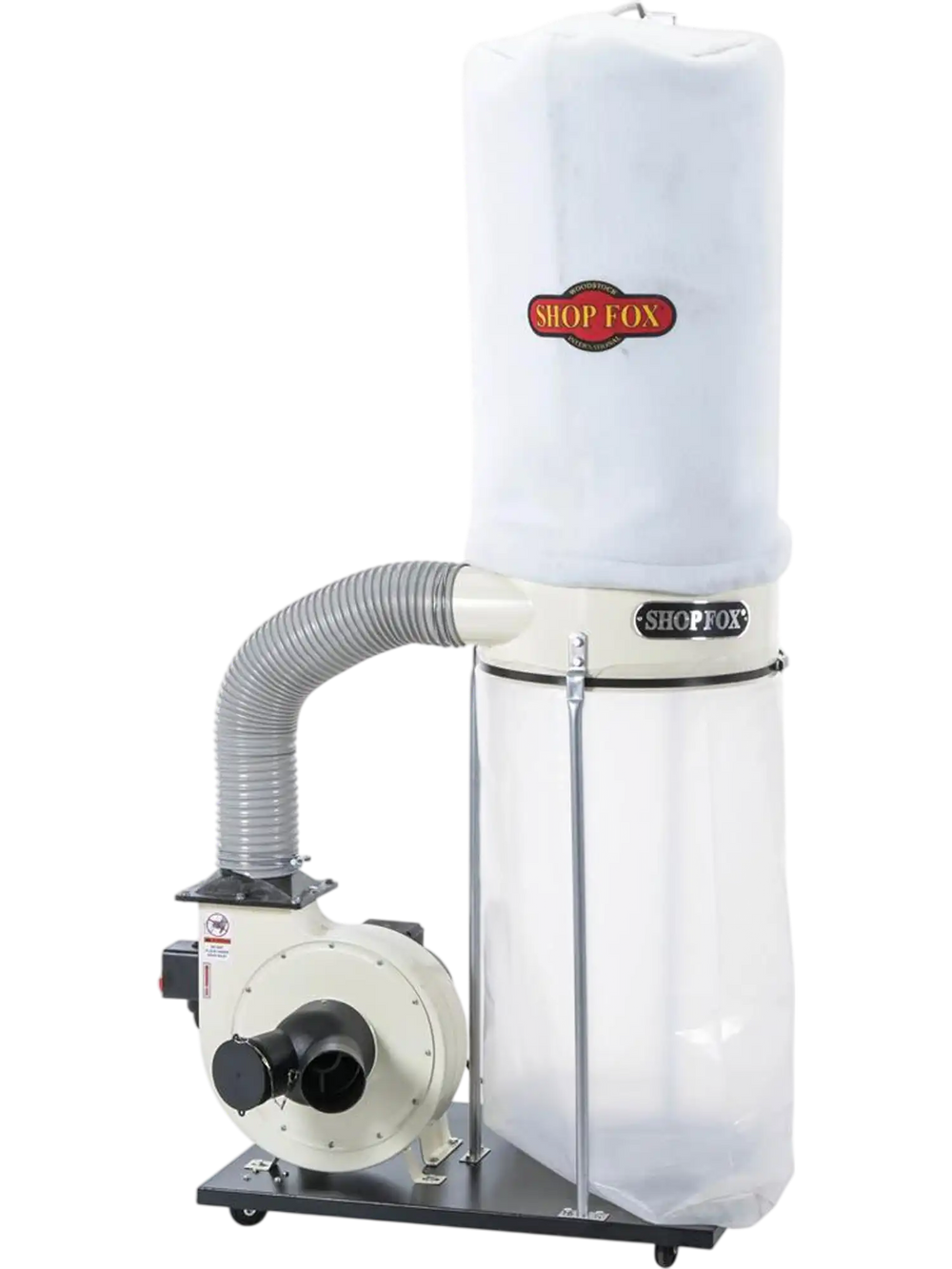

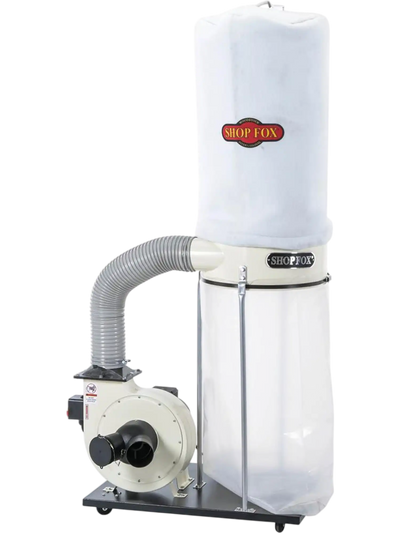

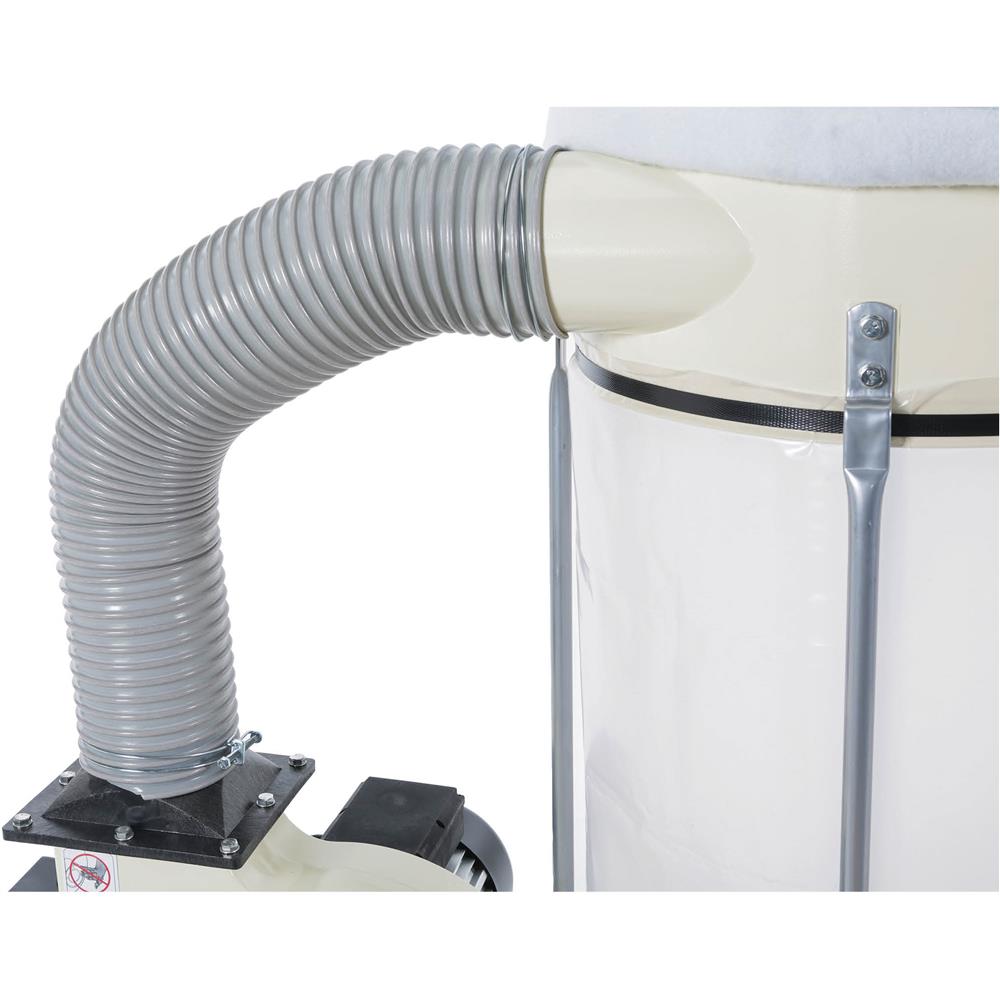

The Shop Fox W1685 is a 1-1/2 HP dust collector designed to capture wood dust, chips, and debris from a wide range of woodworking machines. With 1280 CFM air suction, 10.1 inches of static pressure, and a 12-inch balanced steel impeller, it delivers strong airflow for keeping work areas cleaner and more efficient.
Its portable design with a steel base and casters makes it easy to move around the shop, while the 40-gallon collection capacity helps handle longer work sessions. The 6-inch inlet includes a removable Y-fitting with two 4-inch openings, making it adaptable for use with sanders, router tables, jobsite table saws, benchtop jointers, planers, and similar equipment.
This model is a practical choice for hobbyist woodworkers, small professional shops, and anyone who wants more effective dust collection without moving to a larger stationary system. The powder-coated finish adds durability for regular shop use.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Two-year warranty!!
- Powder coated finish

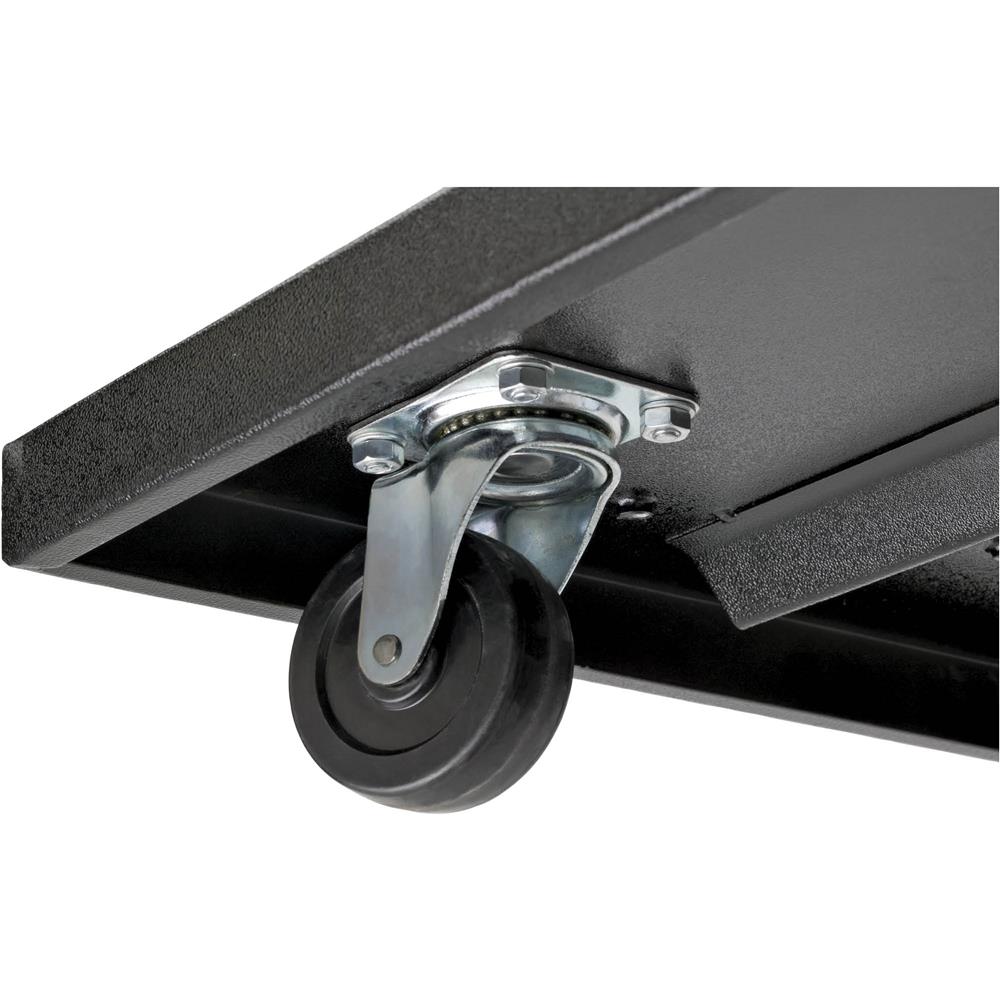

- Steel base with casters

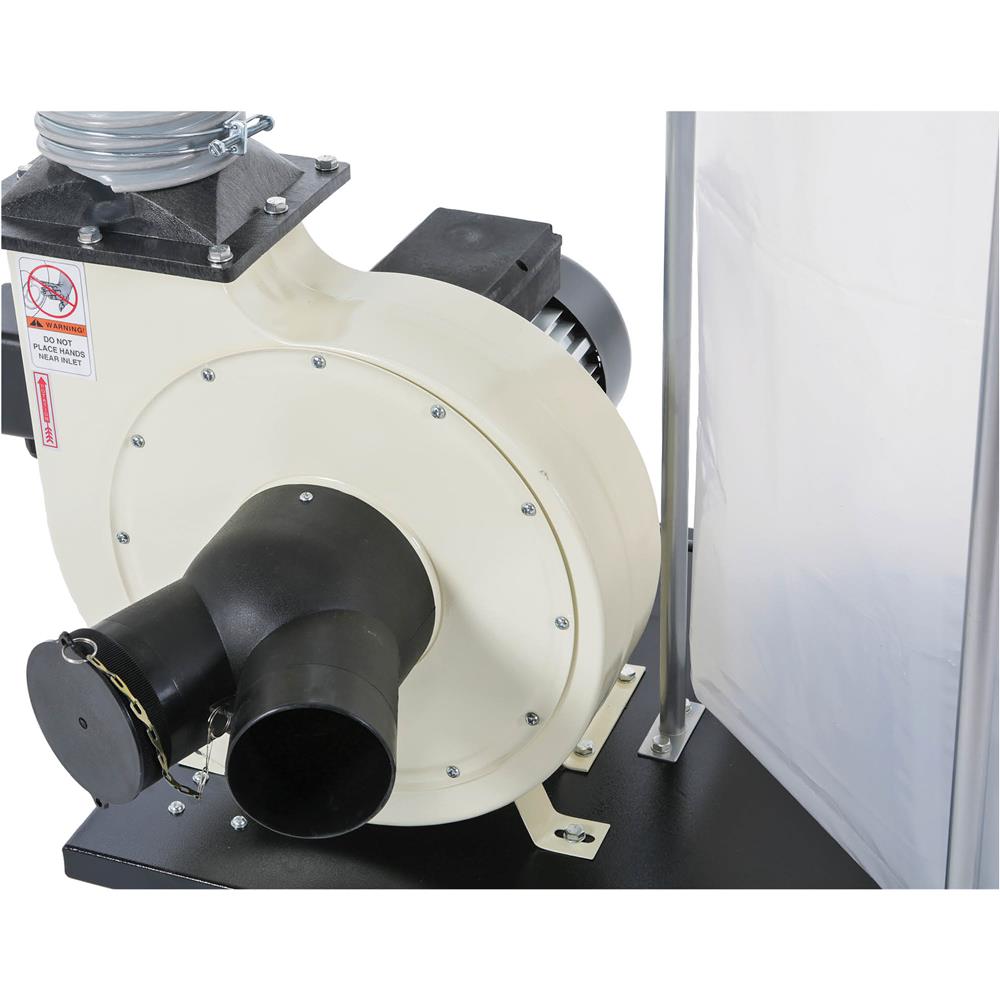

- 6" inlet has a removable "Y" fitting with two 4" openings
Specifications

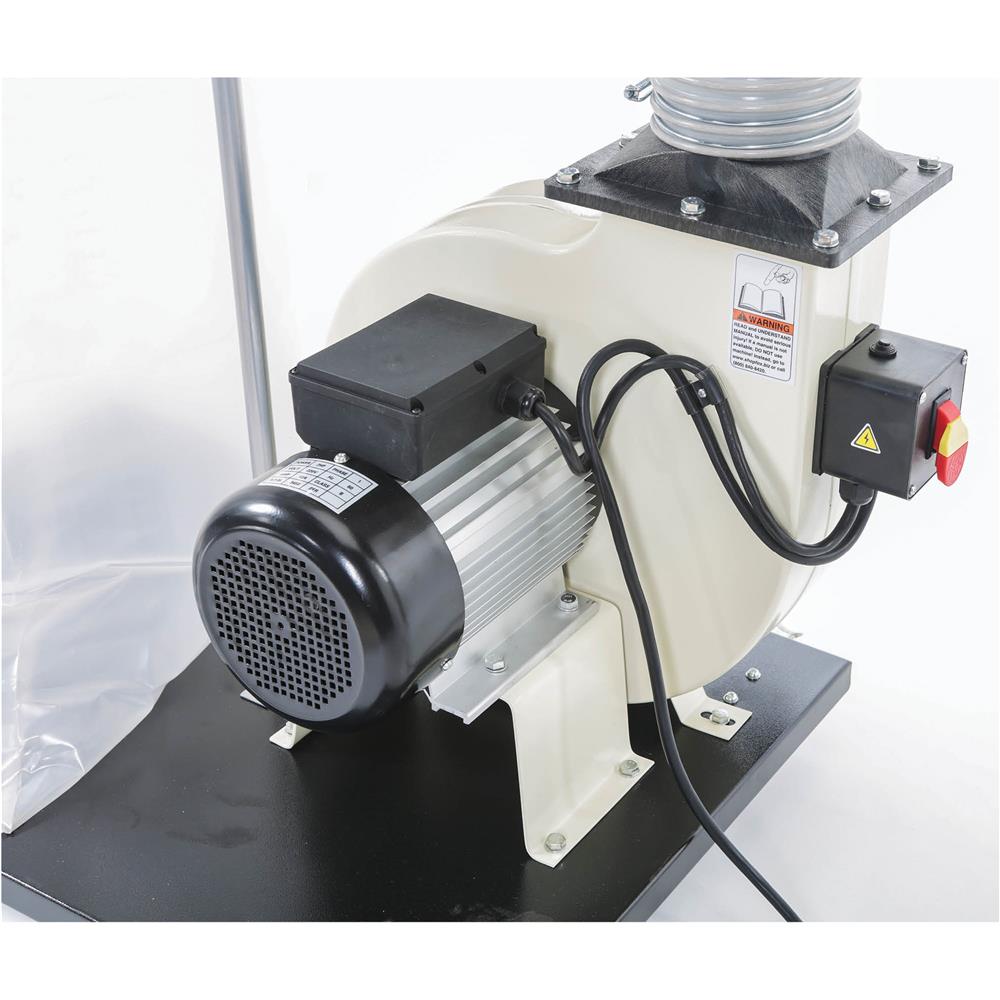

| Motor | 1-1/2 HP, 110V, single phase, 16A |
| Air suction capacity | 1280 CFM |
| Static pressure | 10.1" |
| Intake hole size | 6" |

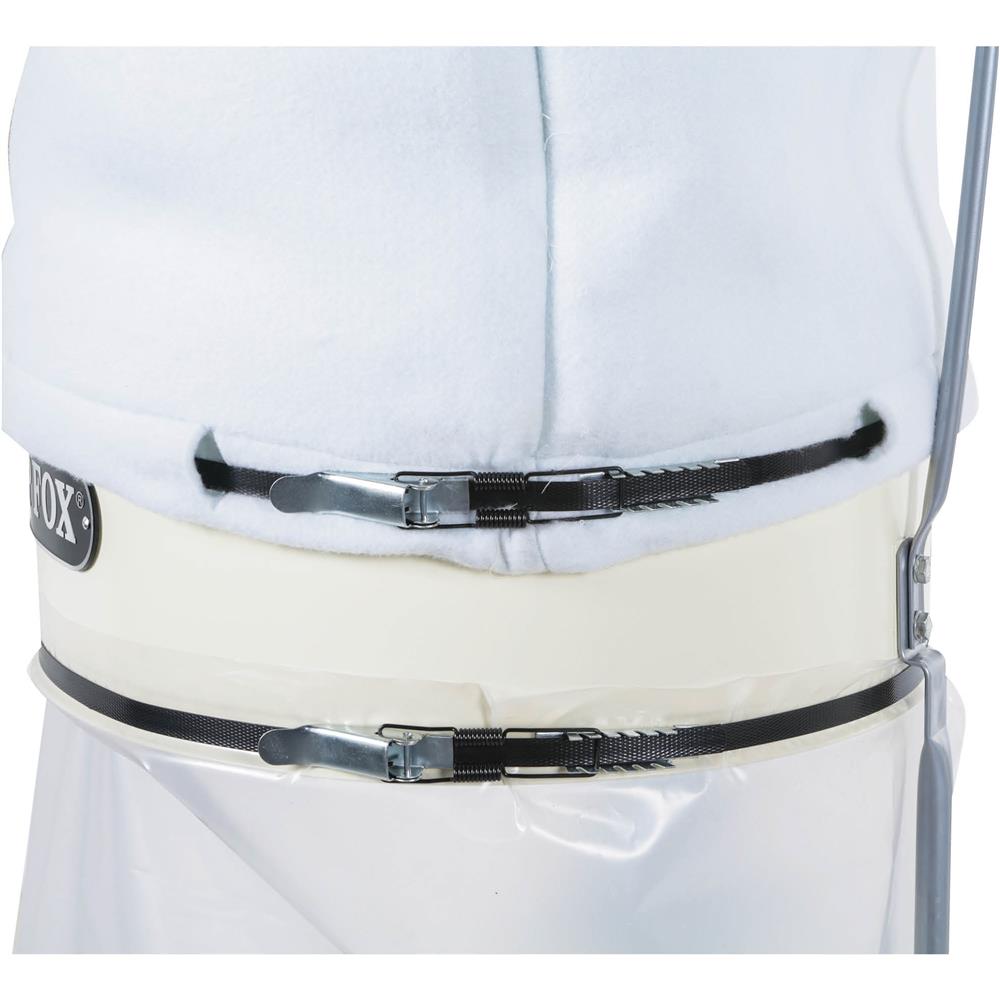

| Bag sizes (diameter x length) | 19" x 33" |
| Bag filtration | 2.5-Micron |
| Collection capacity | 40 Gallons |
| Impeller | 12" Balanced steel, radial fin |
| Footprint | 33-1/2" x 21-1/2" |
| Overall dimensions | 33-1/2" W x 21-1/2" D x 78" H |
| Approximate shipping weight | 94 lbs. |
