Shop Fox W1676 Belt-Disc Sander 6" Belt 10" Disc Combo Sander New
Product Overview

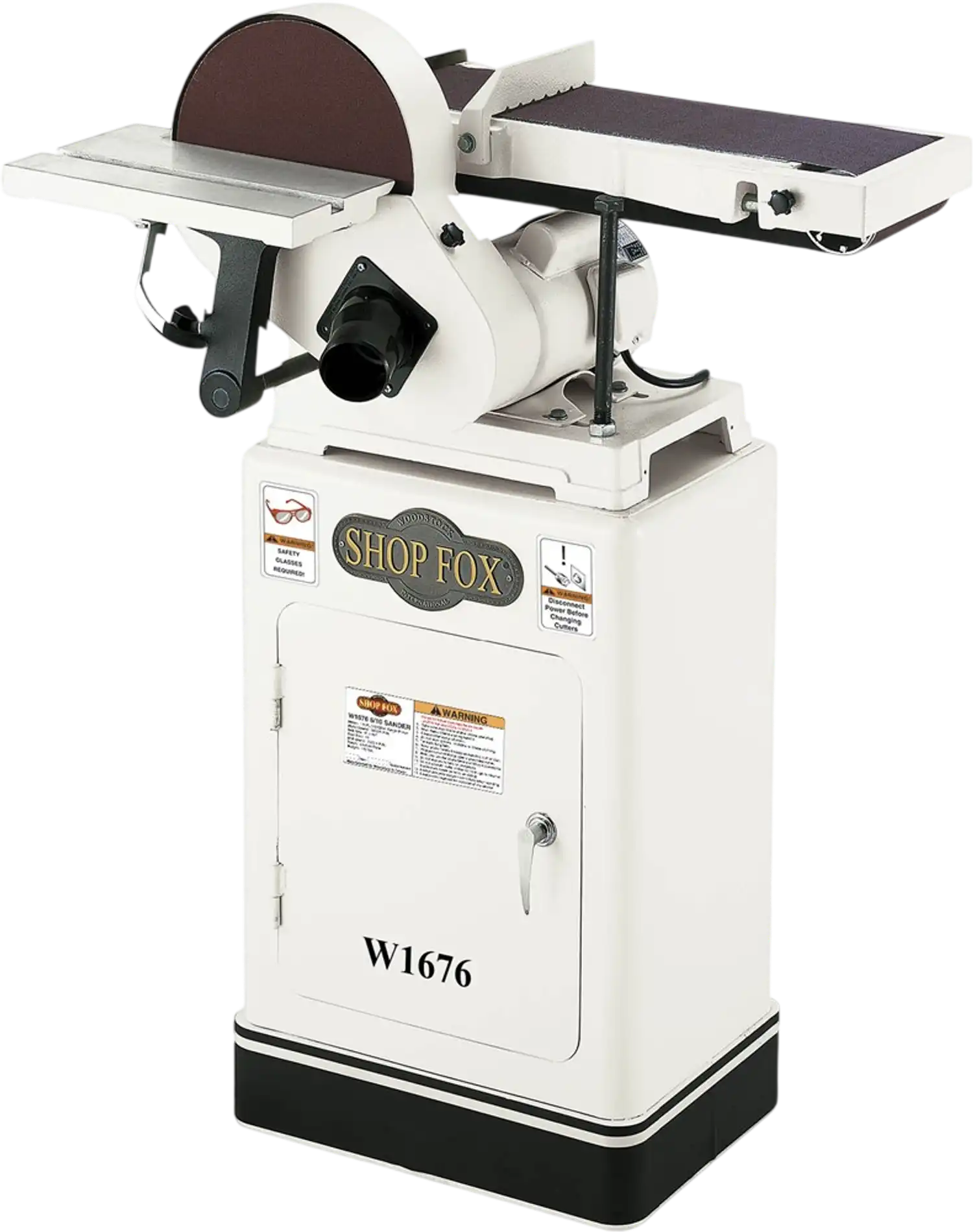

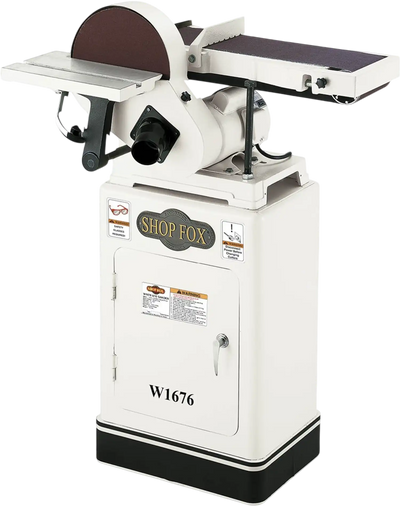

The Shop Fox W1676 is a floor-standing combination sander designed for shaping, smoothing, and finishing wood and similar shop materials. It pairs a 6" x 48" belt with a 10" disc, giving you the flexibility to handle edge sanding, face sanding, bevel work, and general stock cleanup with one machine.

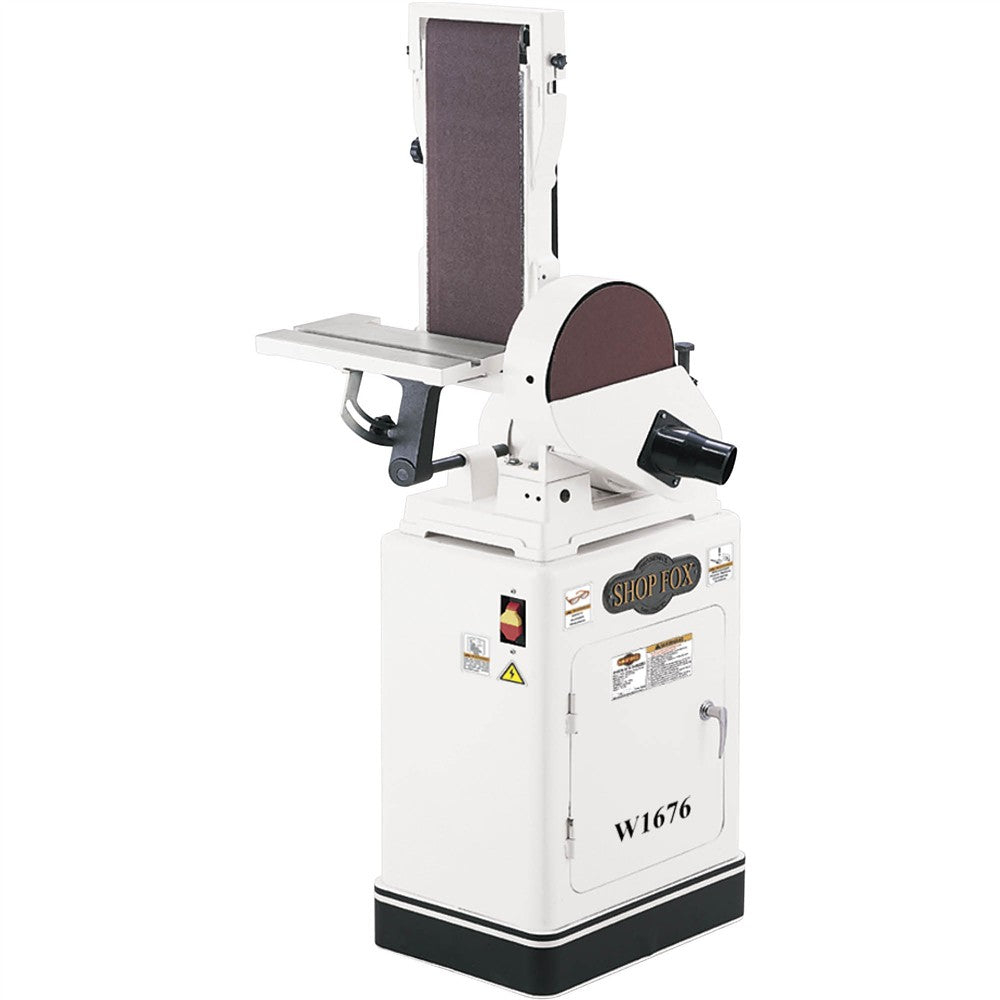

The belt sanding head tilts from horizontal to vertical and anywhere in between, making it easy to adapt to different workpieces and sanding angles. A cast-iron worktable for the disc tilts from 0° to 45°, while the computer-balanced cast-iron disc, graphite-coated platen, and ball bearing construction help deliver stable, consistent performance.
With a 1 HP motor, quick-change belt release, cabinet-style stand, and dual dust ports, this sander is built for serious home workshops, furniture makers, and small professional shops that need more capacity than a benchtop unit without stepping up to a larger industrial machine.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Two-year warranty!!
- 10" computer-balanced cast-iron disc
- Precision-ground cast-iron table
- Cast-iron base
- Quick-change belt release
- Cabinet-style stand with powder-coated finish
- Heavy-duty miter gauge
- Graphite-coated platen
- Ball bearing construction
- 2" and 2-1/2" Dust ports
Specifications
| Motor | 1 HP, 110V/220V, prewired 110V, single-phase, 14A/7A |
|---|---|
| Sanding belt size | 6" x 48" |
| Sanding belt speed | 1900 FPM |
| Belt sanding head tilt | 0–90° |
| Platen size | 6-1/4" x 17" |
| Sanding disc diameter | 10" |
| Sanding disc speed | 2420 RPM |
| Sanding disc type | PSA |
| Disc sanding table size | 6" W x 12-1/4" L |
| Disc sanding table tilt | 0°–45° |
| Number of dust ports | 2 |
| Dust port sizes | 2" and 2-1/2" |
|---|---|
| Footprint | 15" x 16-1/2" |
| Overall size | 30" W x 24" D x 56" H |
| Approximate shipping weight | 168 lbs. |
Package Contents
W1676 Belt-Disc Sander
Sanding Disc
Sanding Belt
Hardware Bag
Warranty
This item comes with a 2 year factory warranty.
