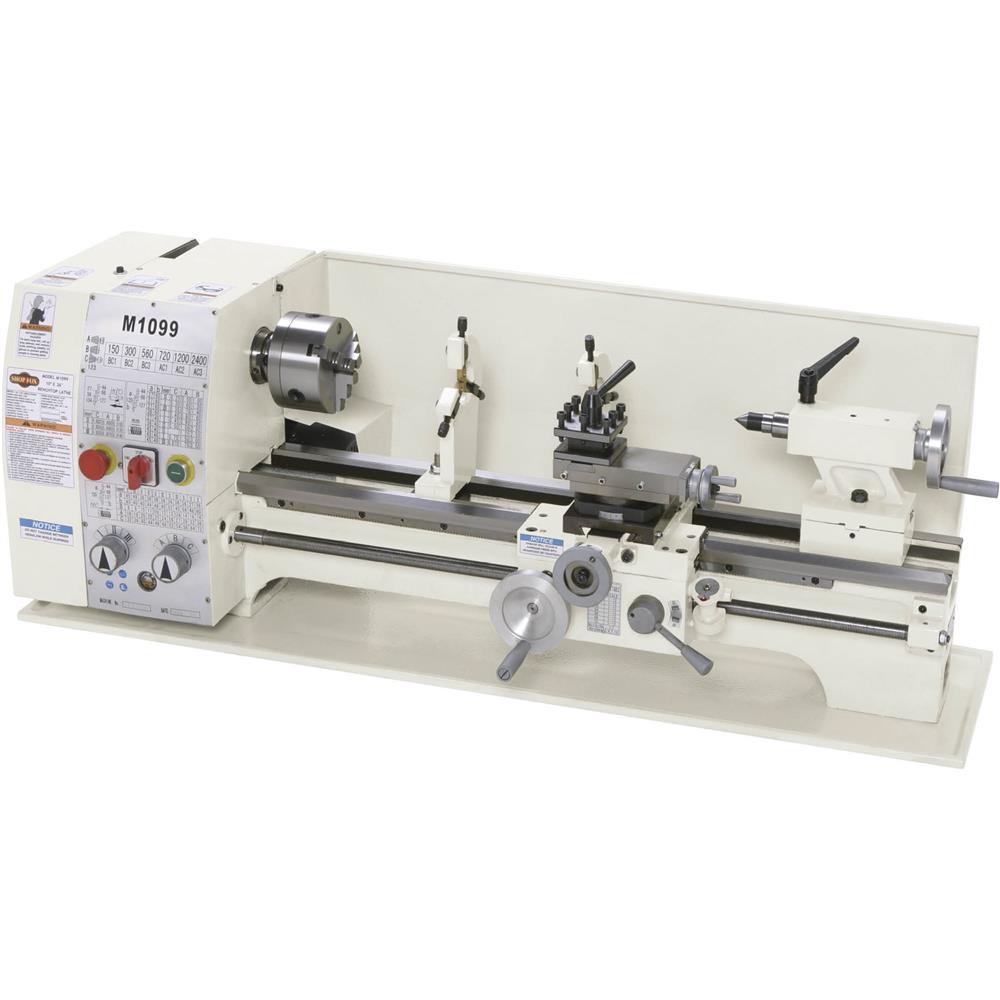

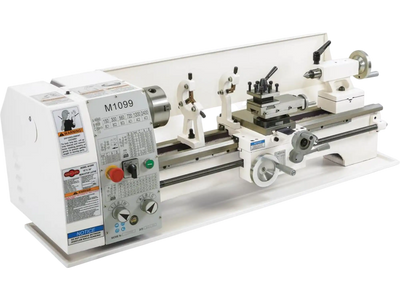

Shop Fox M1099 Bench Metal Lathe 10" x 26" New
Product Overview

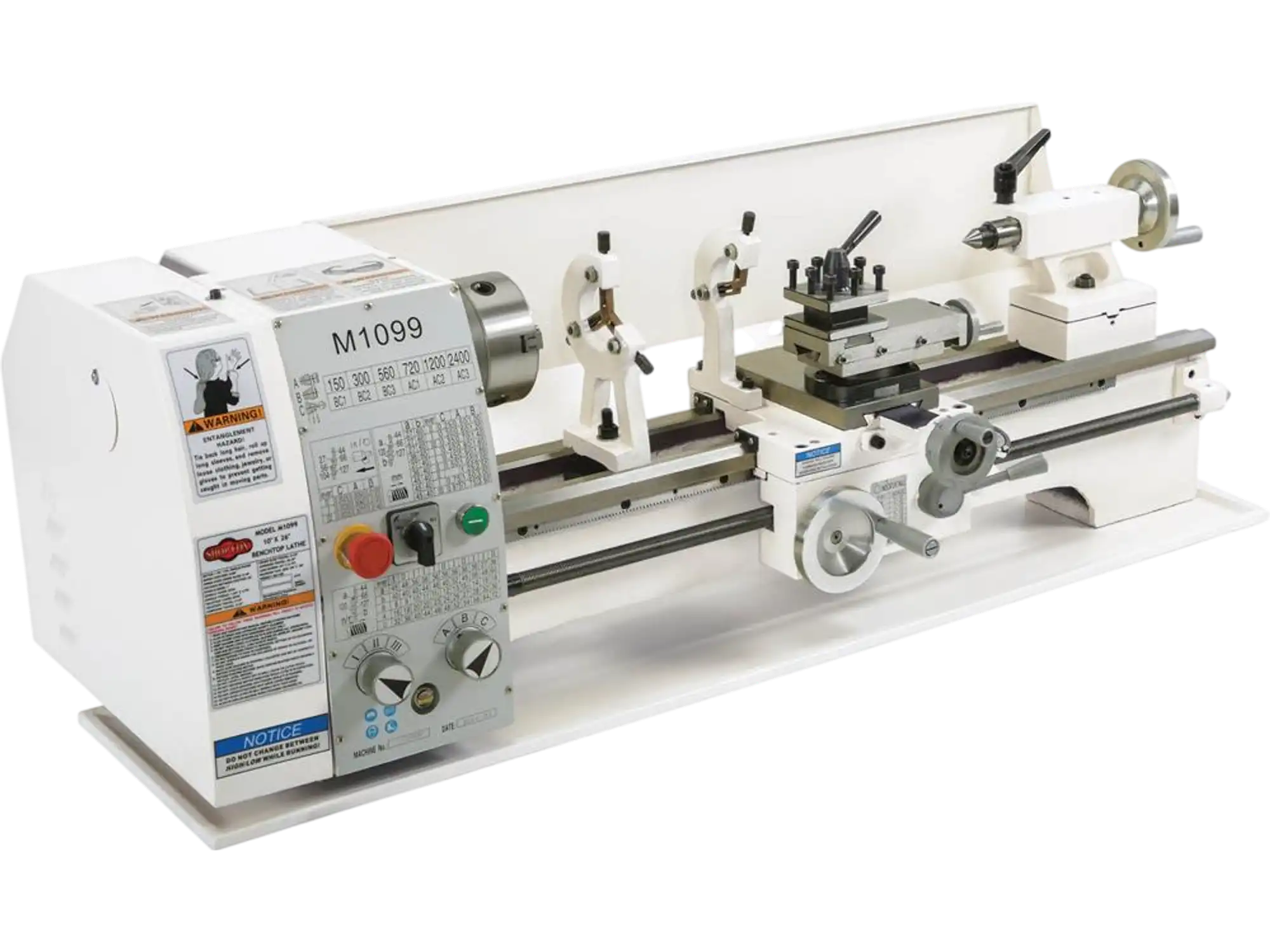

The Shop Fox M1099 is a benchtop metal lathe built for precision turning, threading, and general machining in small shops, garages, and serious hobby workspaces. With a 1 HP motor, 10-inch class swing, and 26 inches between centers, it delivers the capability of a larger machine in a space-saving format.

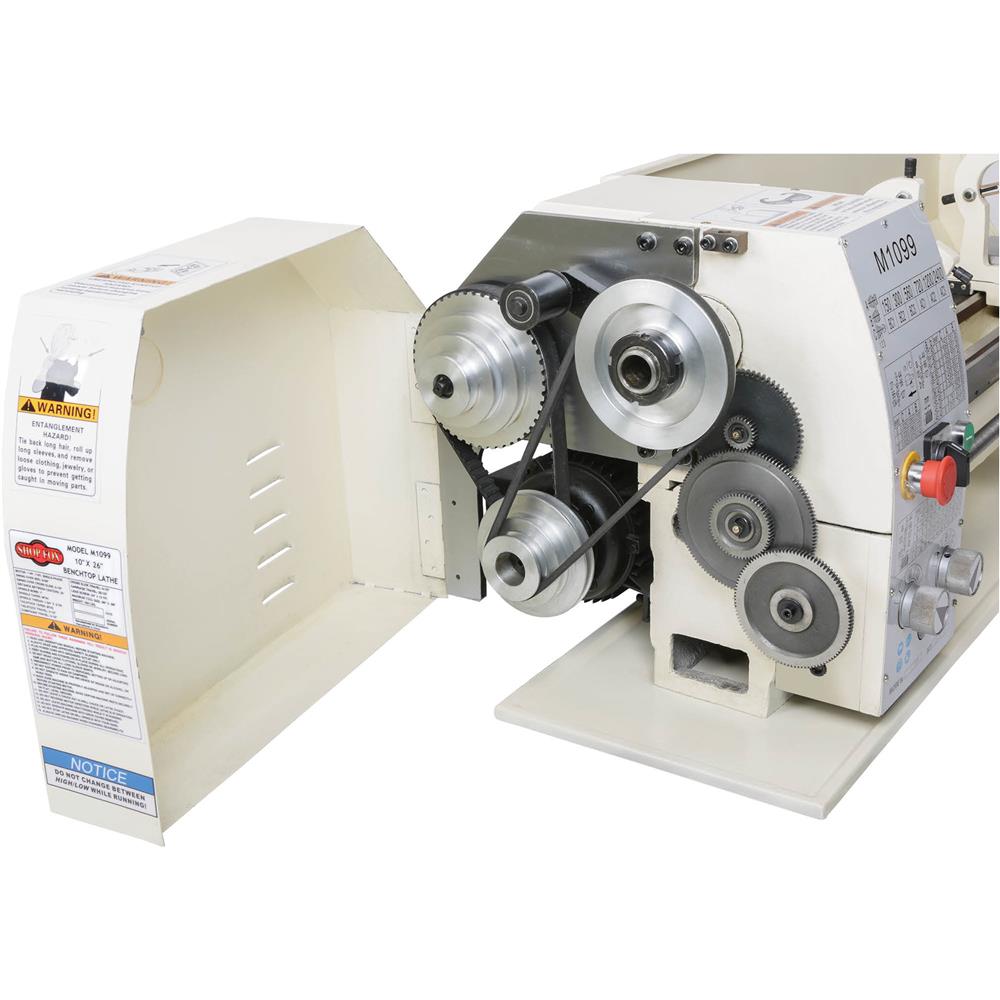

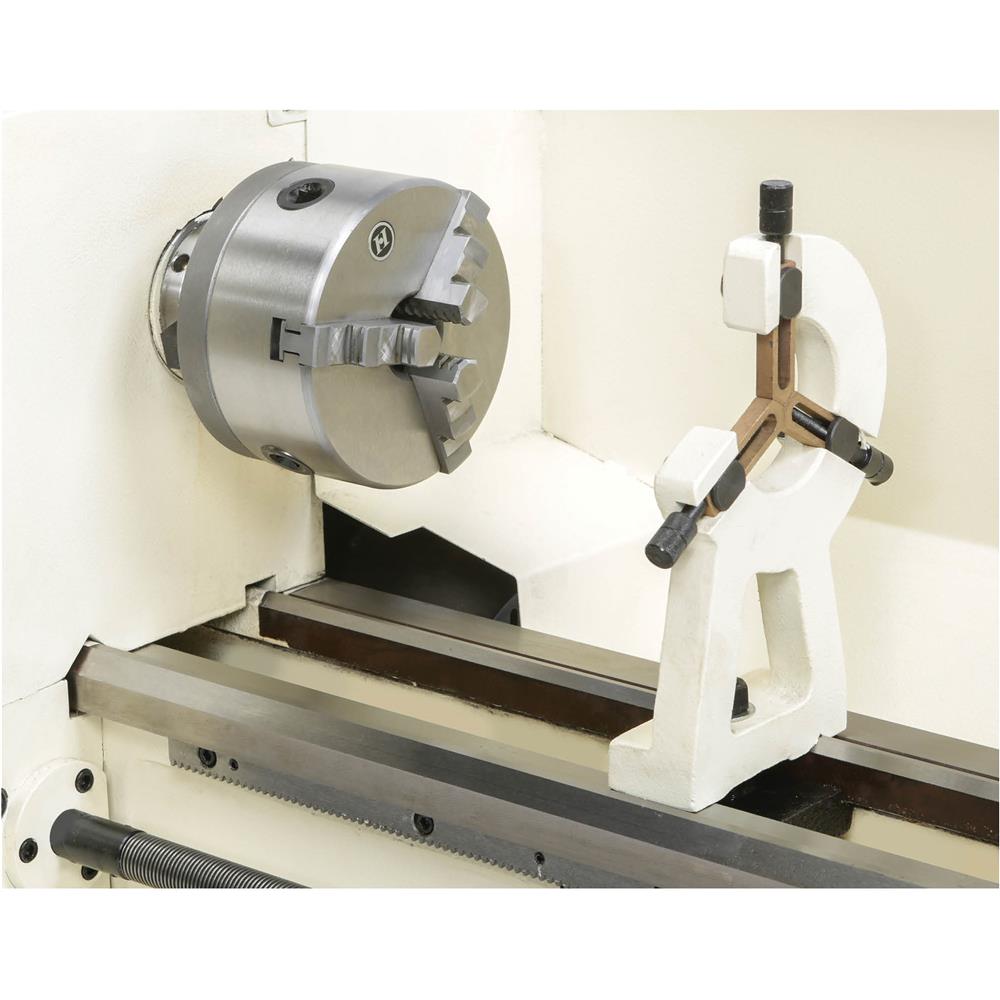

This six-speed lathe offers spindle speeds from 150 to 2400 RPM, a gearbox for quick thread changes, and a hardened, ground bed for accurate cuts and smooth operation. Its 5-inch self-centering 3-jaw chuck, 6-1/2-inch independent 4-jaw chuck, quick-change style tool holding, and 25mm spindle bore make it well suited for both routine turning and more detailed threading work.

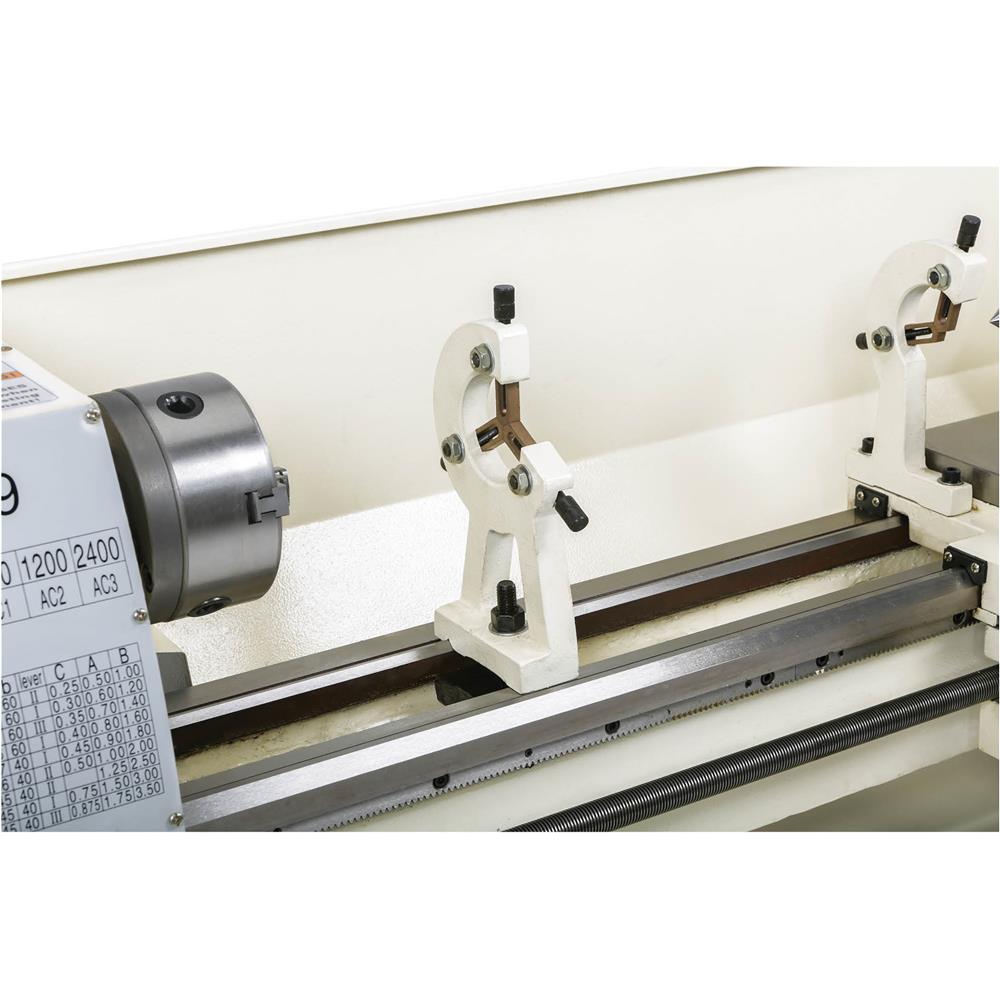

Designed for machinists who need versatility and repeatable results, it also includes useful shop essentials such as a faceplate, steady rest, follow rest, and change gears. The extended bedways and full-featured carriage and apron assemblies help support clean finishes and confident control on a wide range of small metalworking projects.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Two-year warranty!!

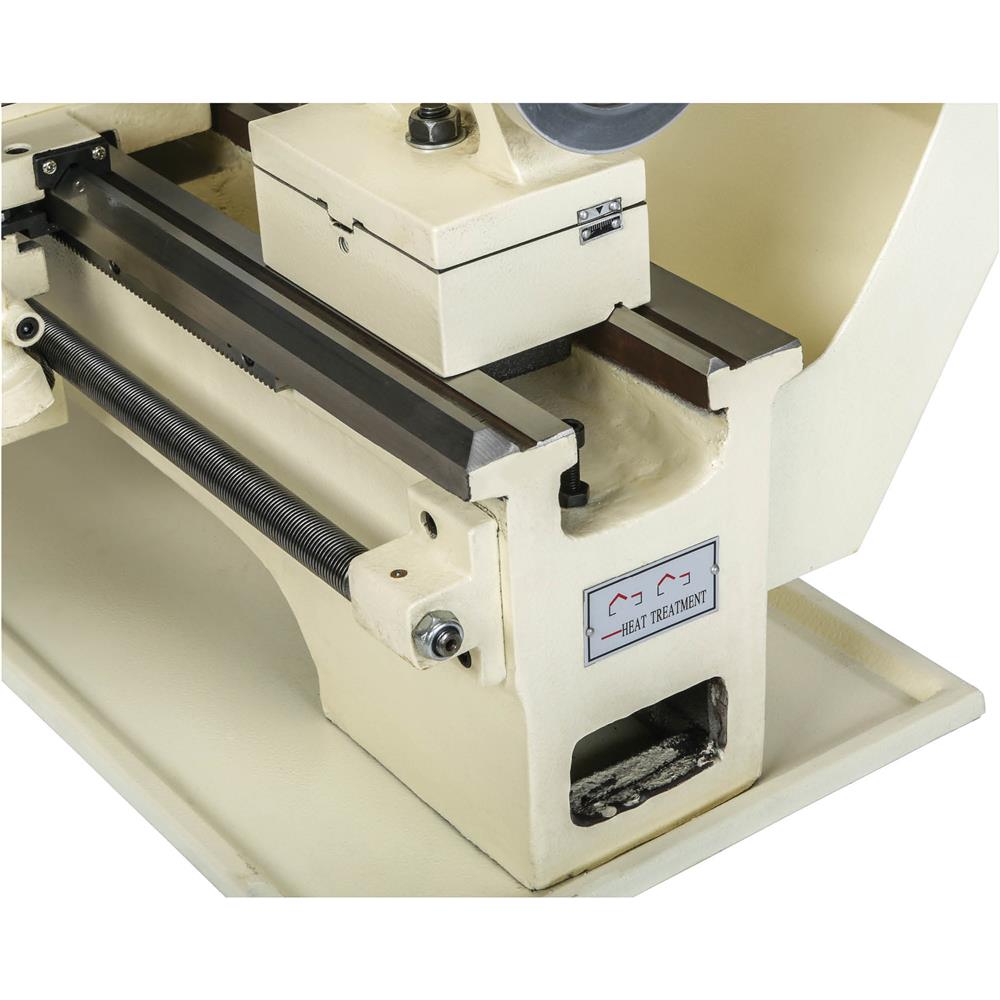

- Hardened and ground V-ways
- Chip tray
- Back splash

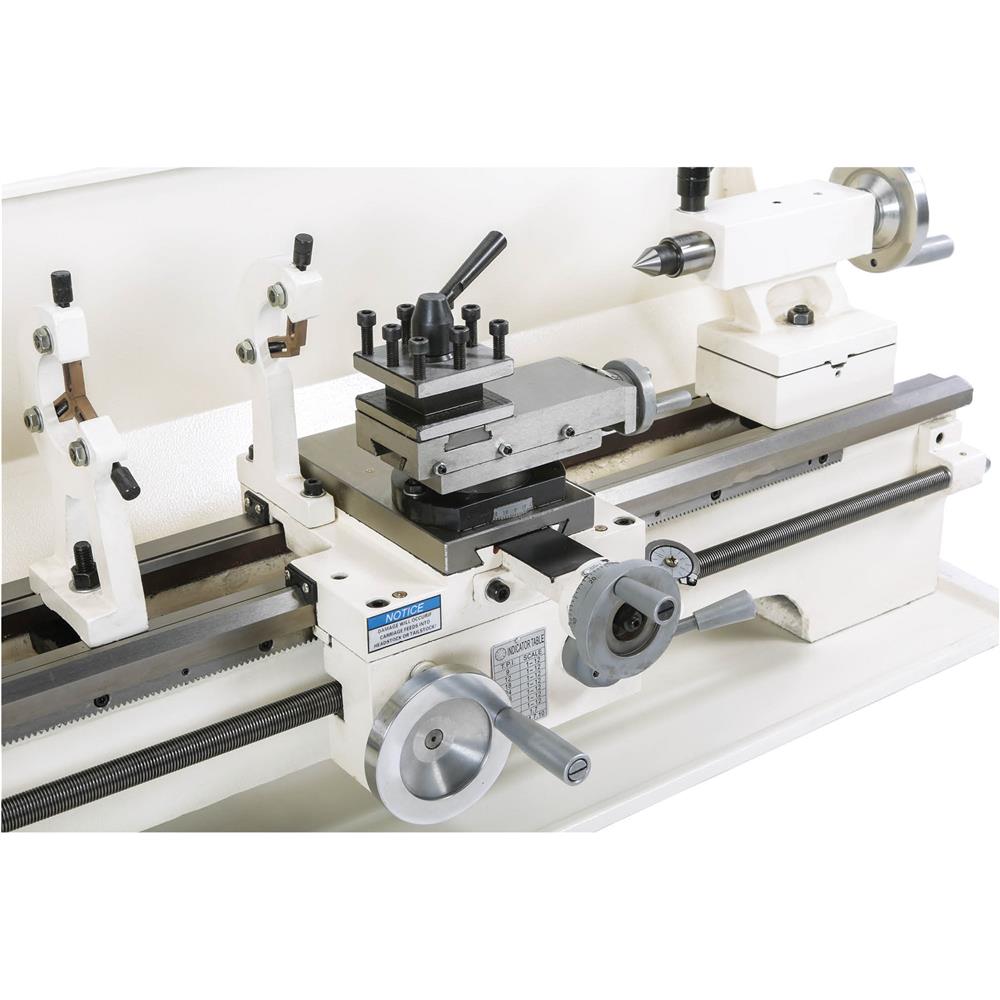

- Full-featured carriage and apron assemblies provide super accurate cuts and finishes
- Long bed accommodates 26" between cuts
Specifications

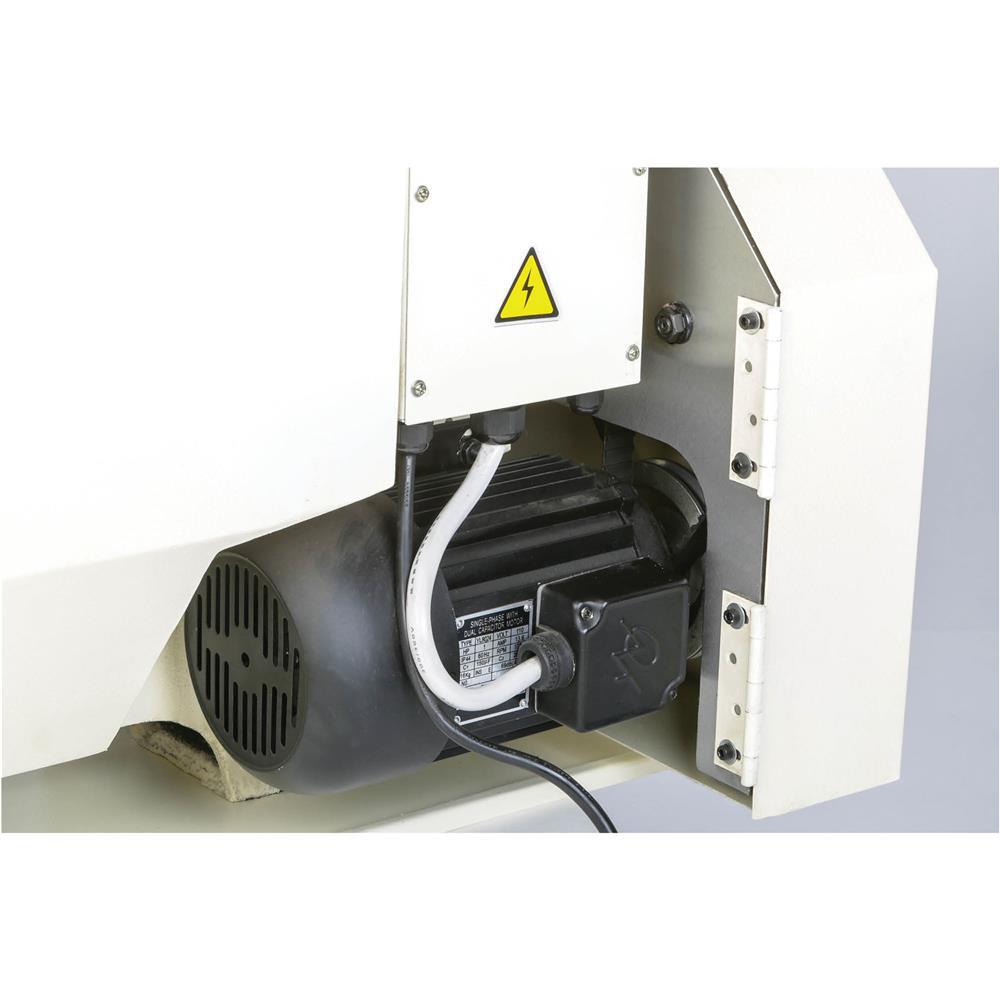

| Motor | 1 HP, 110V, single-phase, 13.6A |
| Swing over bed | 9-5/8" |
| Distance between centers | 26" |
| Swing over cross slide | 6-1/8" |
| Swing over saddle | 6-3/8" |
| Cross slide travel | 6-1/2" |
| Compound travel | 3-1/2" |
| Carriage travel | 22-1/2" |
| Spindle speeds | 6, 150–2400 RPM |
| Spindle bore | 25mm |
| Spindle thread | 1-3/4" x 8 TPI |
| Spindle taper | MT#4 |
| Bed width | 6-1/8" |

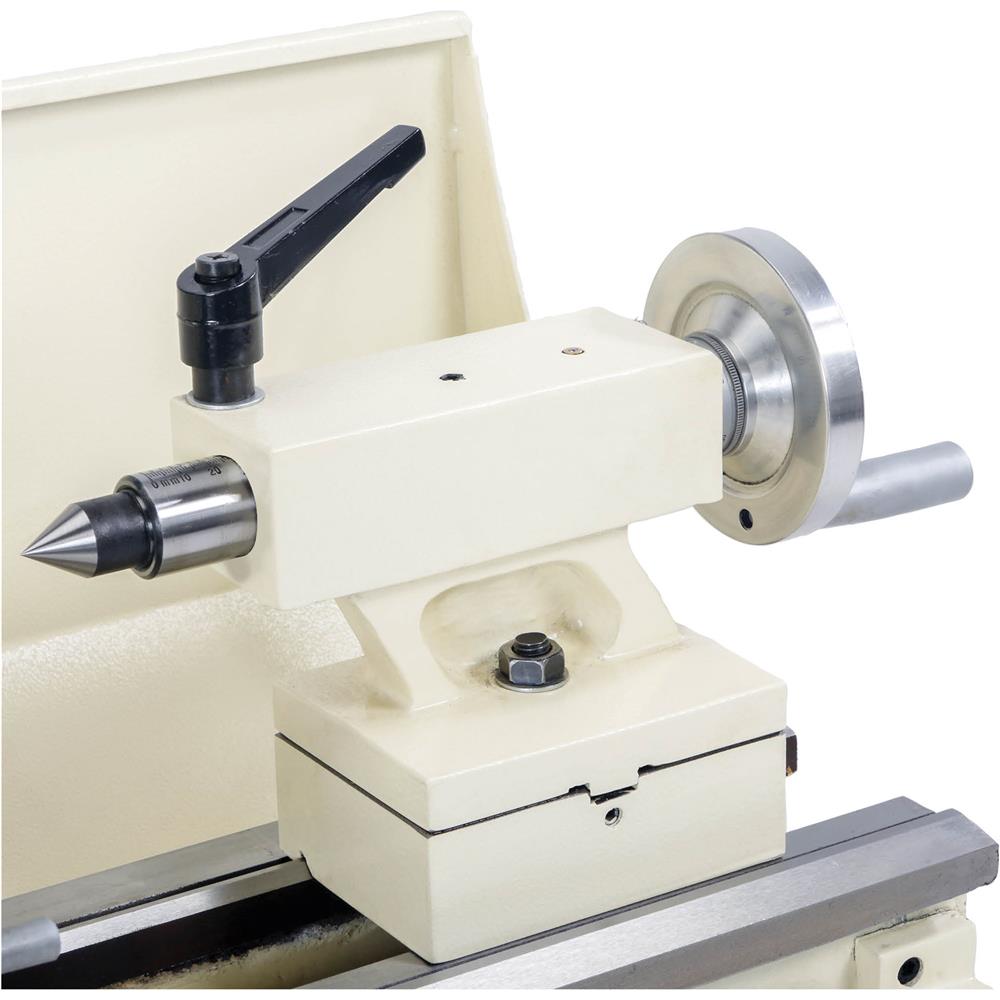

| Tailstock barrel taper | MT#3 |
| Tailstock barrel travel | 2-1/2" |
| Leadscrew | 3/4"-12 TPI |
| Longitudinal feed range | 9, 0.0025"–0.0140" |
| Thread range (inch) | 33, 8–72 TPI |
| Thread range (metric) | 26, 0.25–3.5 mm |
| Max. tool size | 1/2" |
| Overall size | 50" W x 22" D x 16-5/8" H |
| Approximate shipping weight | 470 lbs. |
Warranty
This item comes with a 2 year factory warranty.
