Shop Fox M1039 Floor Drill Press 20" New
Product Overview

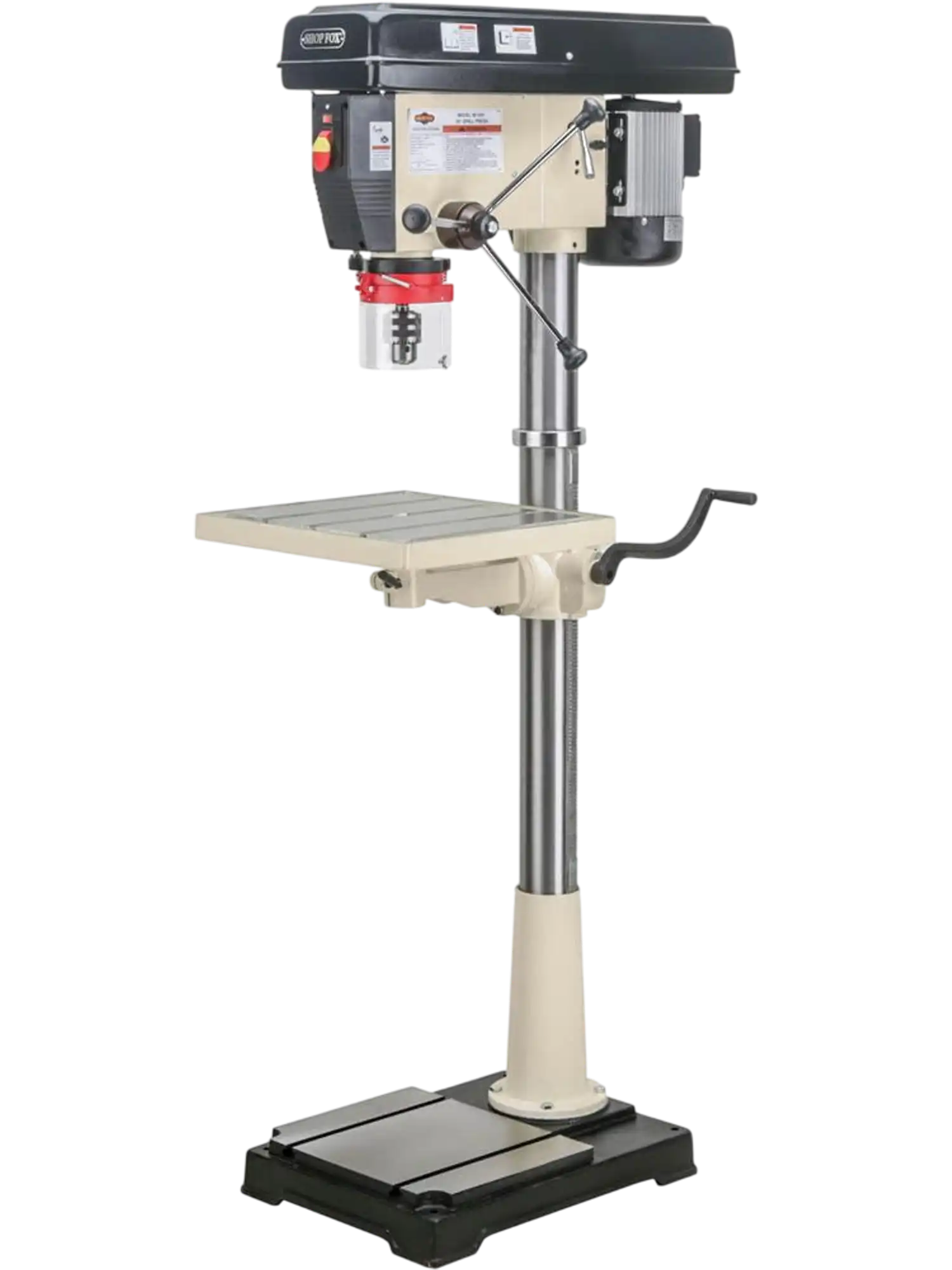

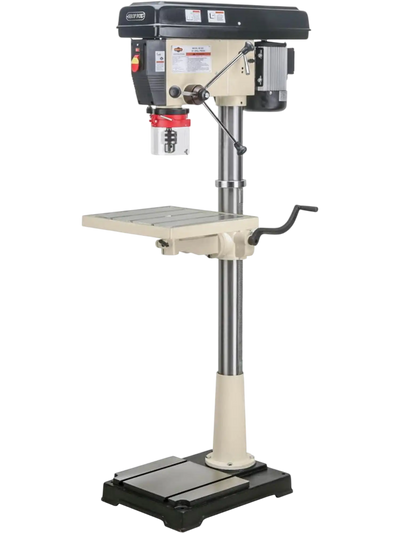

The Shop Fox M1039 is a 20-inch floor drill press built for demanding woodworking and metalworking tasks. Powered by a 1-1/2 HP motor, it delivers 12 spindle speeds from 180 to 3240 RPM for handling everything from slower metal drilling to faster drilling in wood and other shop materials.

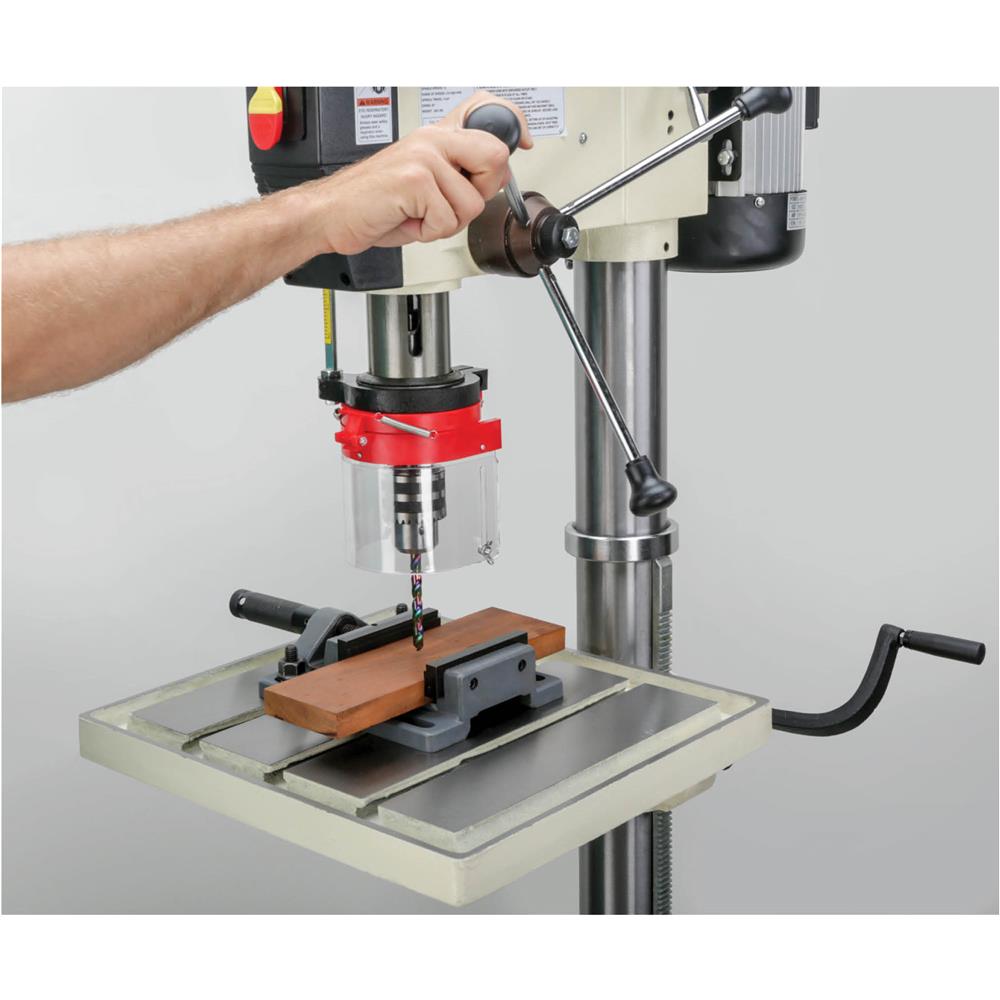

A large 18-3/4 inch by 16-3/4 inch table gives you plenty of support for bigger workpieces, while T-slots and a coolant channel make it easier to use clamps, vises, and cutting fluids. The table swivels 360 degrees and tilts 90 degrees left or right for angled drilling, and the 4-3/4 inch spindle travel with adjustable depth stop helps with repeatable, accurate results.
This machine is a strong fit for serious hobbyists, custom fabricators, and professional shops that need capacity, flexibility, and control in one stationary drill press. With a 5/8 inch chuck and drilling capacity up to 1-1/4 inch in mild steel, it is designed for users who want a versatile shop workhorse for a wide range of projects.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Two-year warranty!!
- Features table T-slots and coolant channel

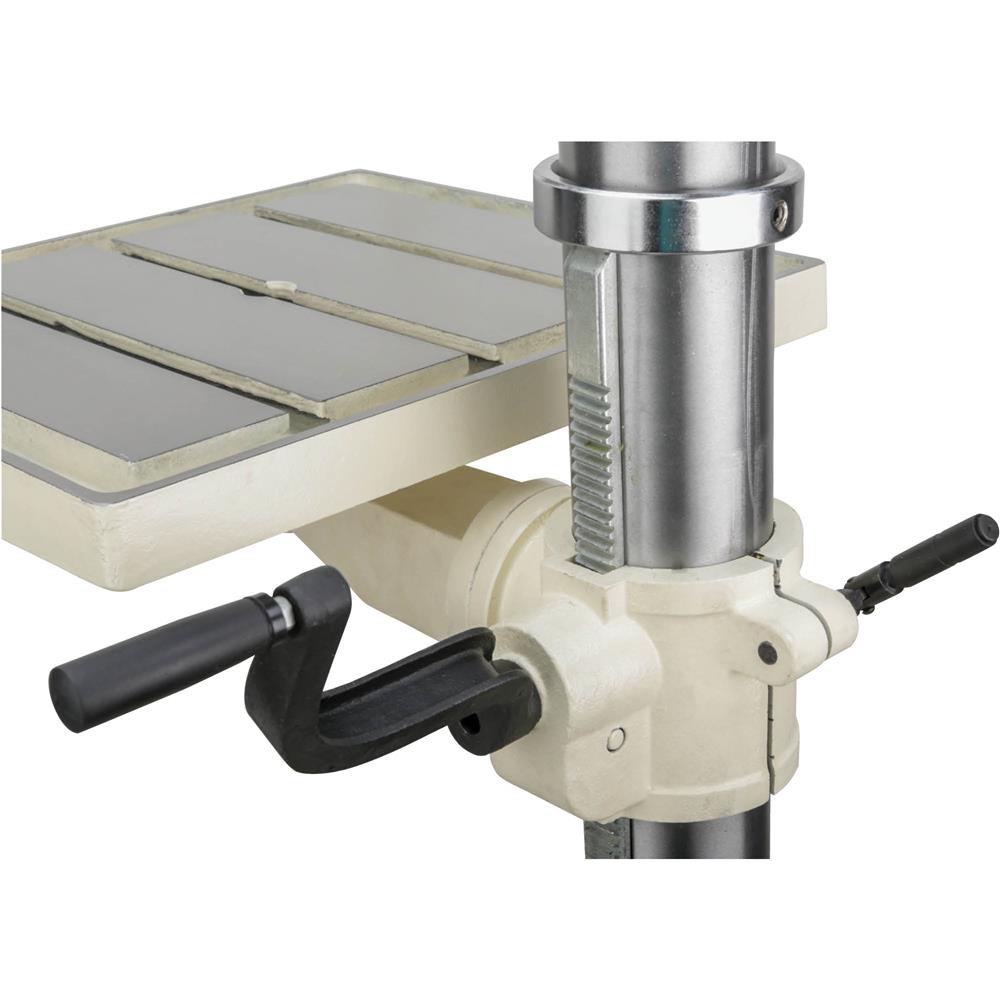

- Crank handle operated rack-and-pinion vertical table movement

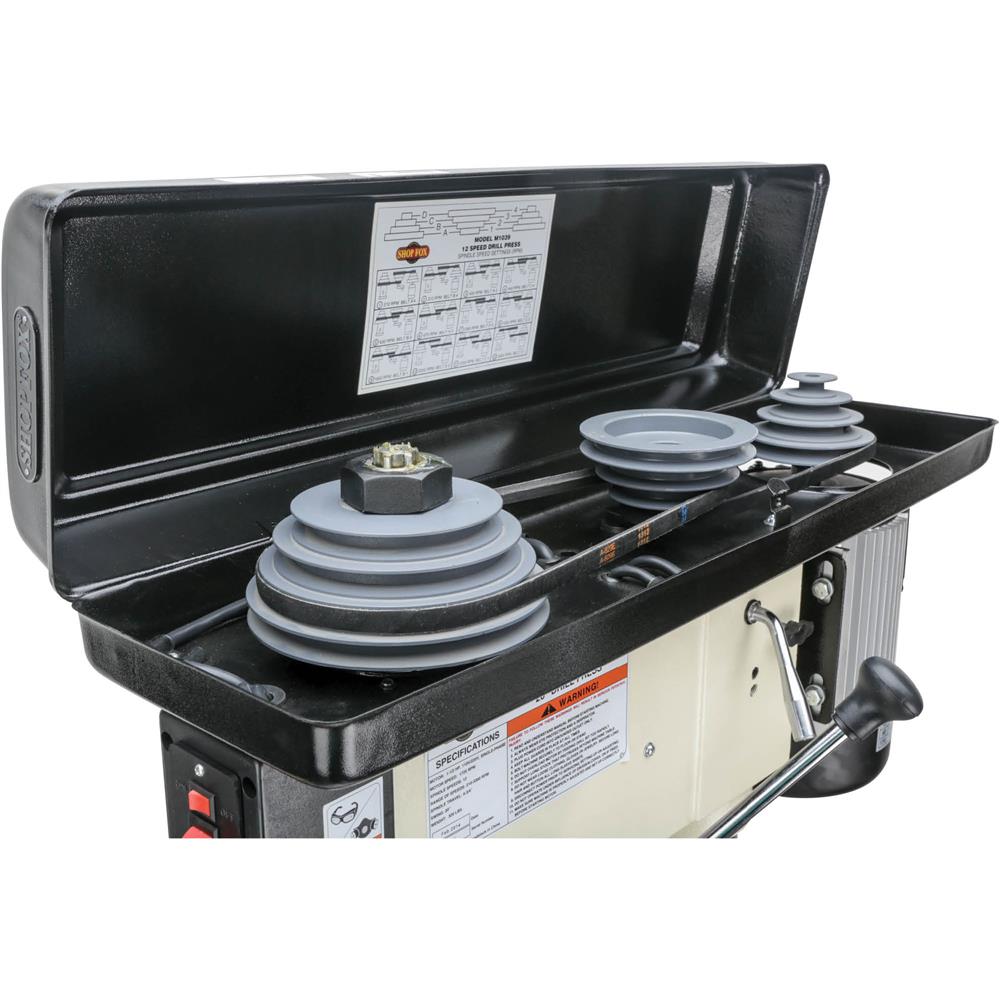

- 12 Speeds

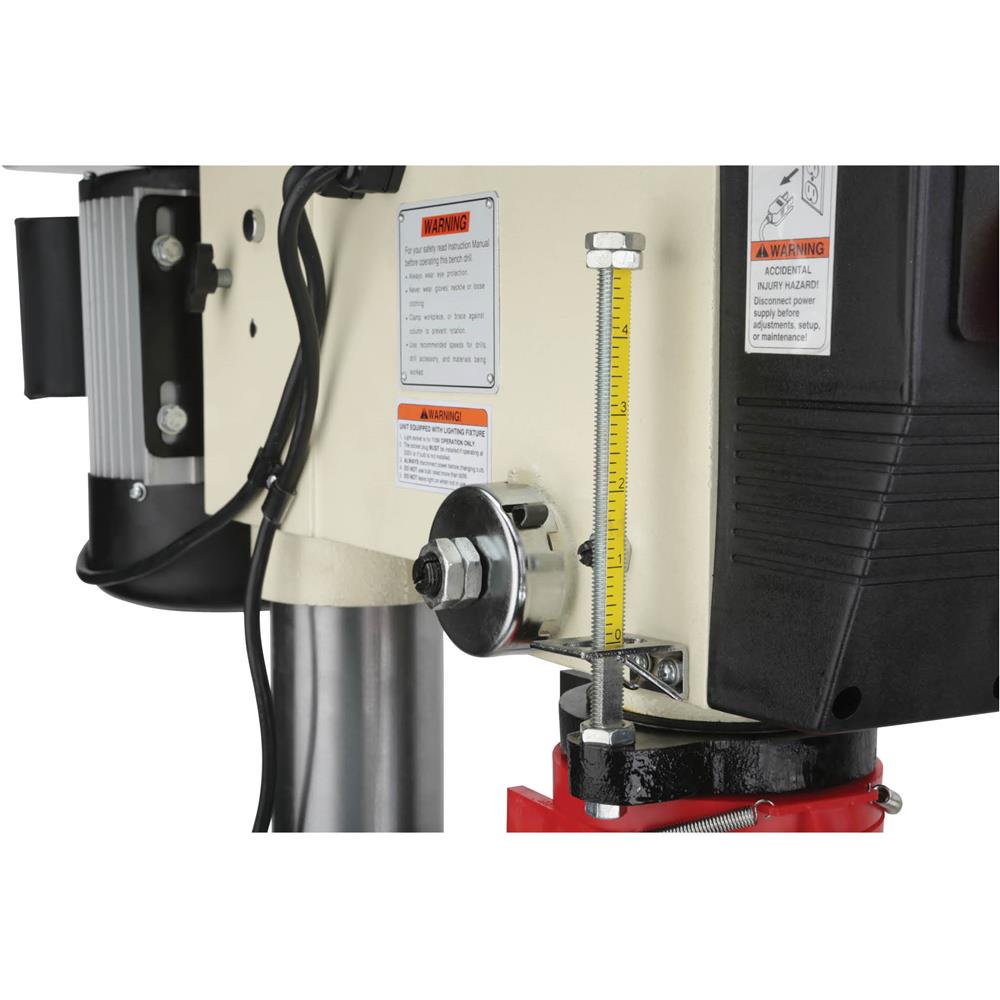

- Threaded depth stop
- Built-in light (120V Only)
- 4-3/4 in. Spindle travel
Specifications

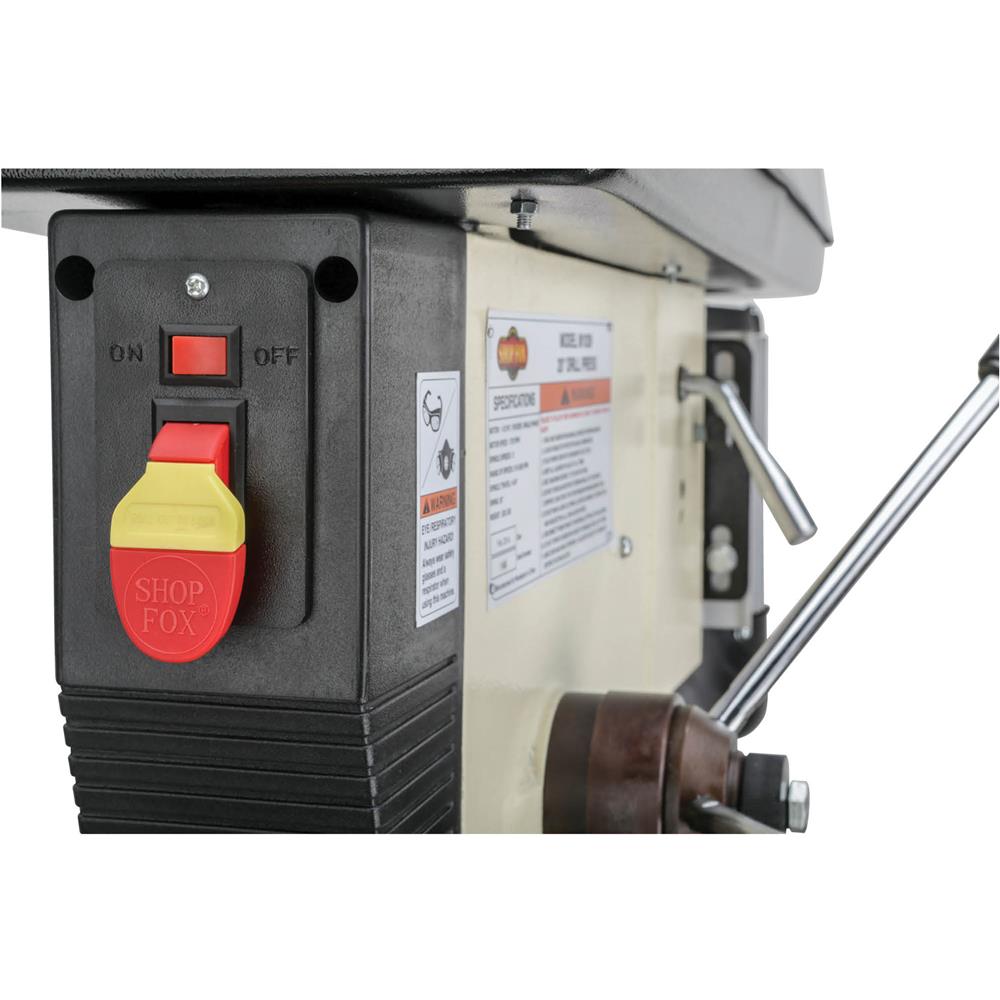

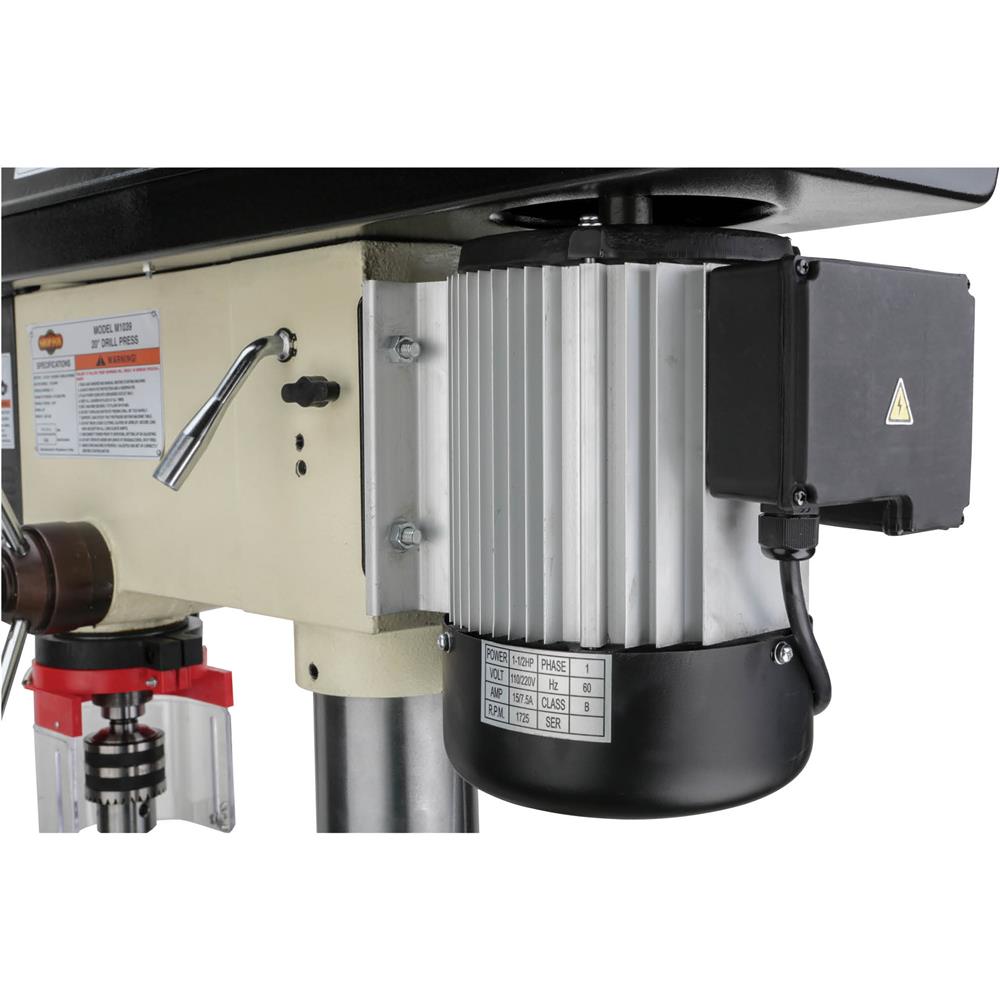

| Motor | 1-1/2 HP, 120V/240V (prewired for 120V), single-phase, 18A/9.4A |
| Swing | 20" |

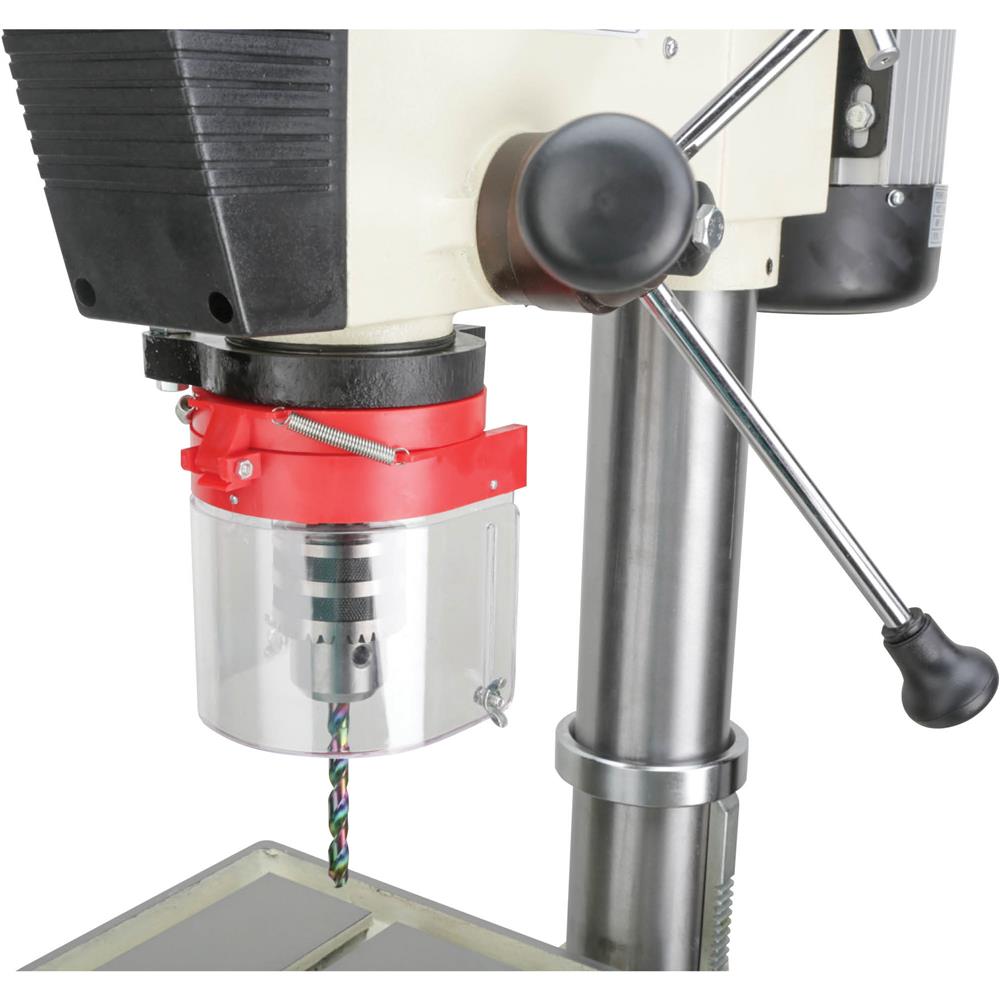

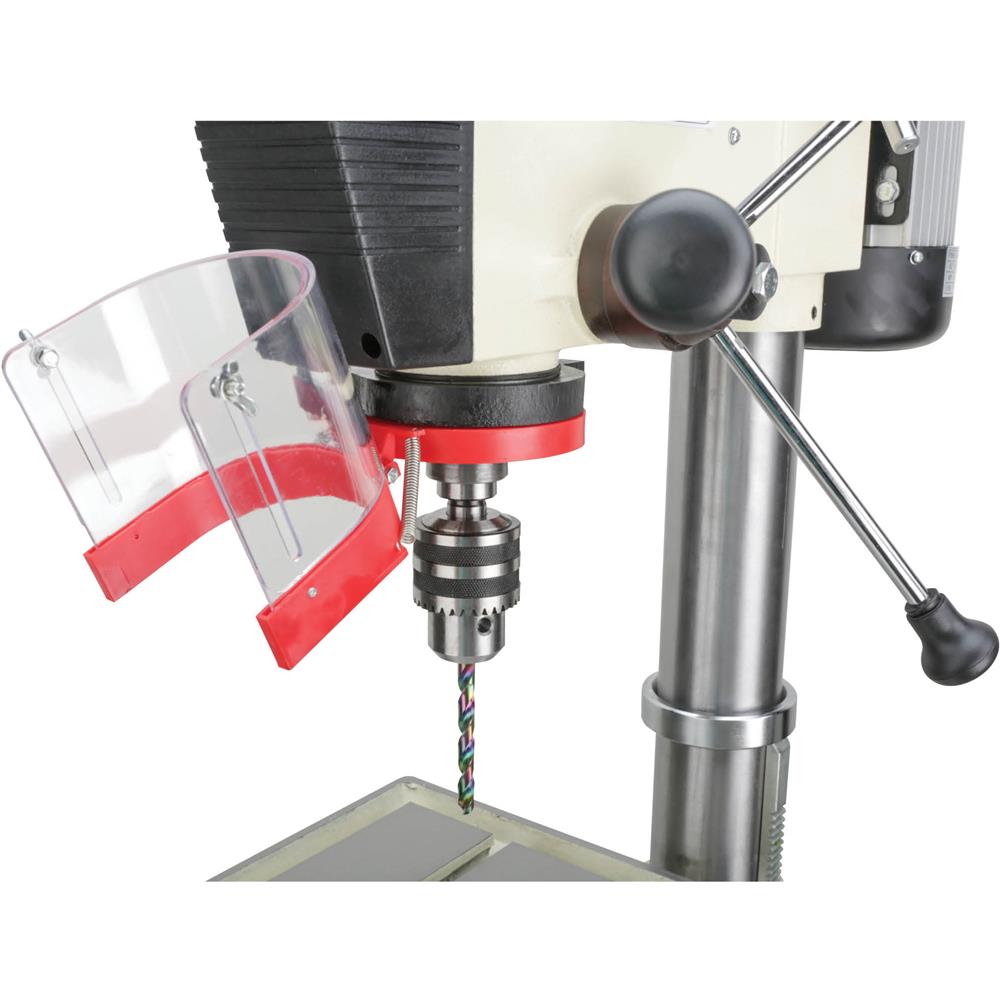

| Drill chuck | 5/8" |
| Drilling capacity | 1-1/4" mild steel |
| Arbor | JT-3 |
| Spindle speed | 12, 180–3240 RPM |
| Spindle travel | 4-3/4" |
| Table size | 16-3/4" W x 18-3/4" L |
| Table swing | 360 degrees |
| Table tilt | 90° left/right |

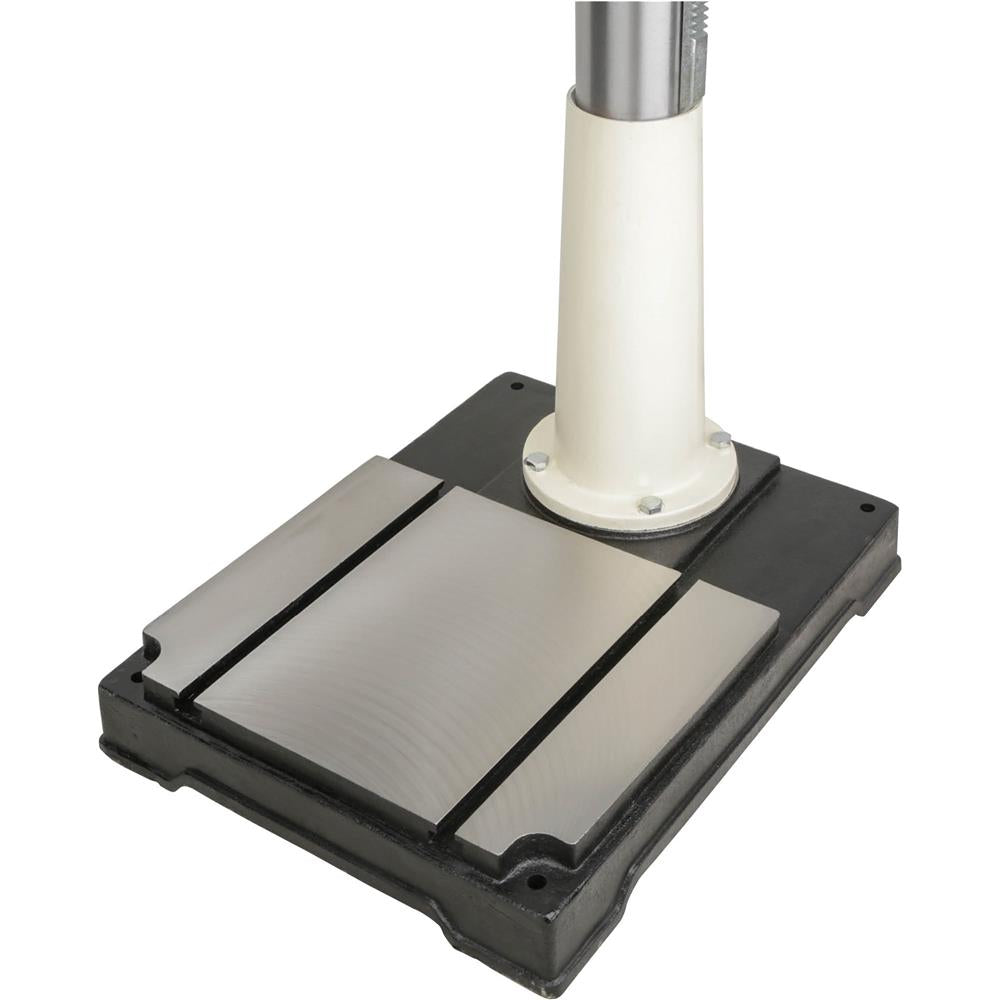

| Footprint | 18" W x 23" L |
| Overall dimensions | 21" W x 34-3/4" L x 70-3/4" H |
| Approximate shipping weight | 317 lbs. |
Warranty
This item comes with a 2 year factory warranty.
