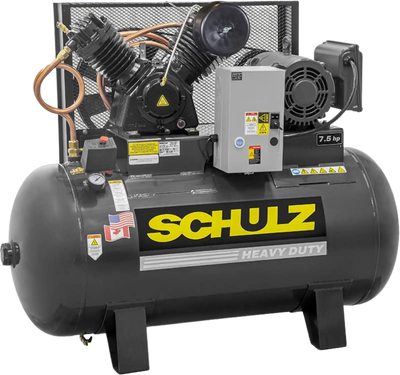

Schulz V-Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Horizontal 7580HV30X-3 New
Manufacturer: Schulz
SKU: 932.9348-0
Phase
Horizontal or Vertical
Series
QTY
or
(888) 999-1522
$6,648.00
C
$5,003.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year on the product and 2 year warranty on the pump.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year on the product and 2 year warranty on the pump.
$457.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$557.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$685.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

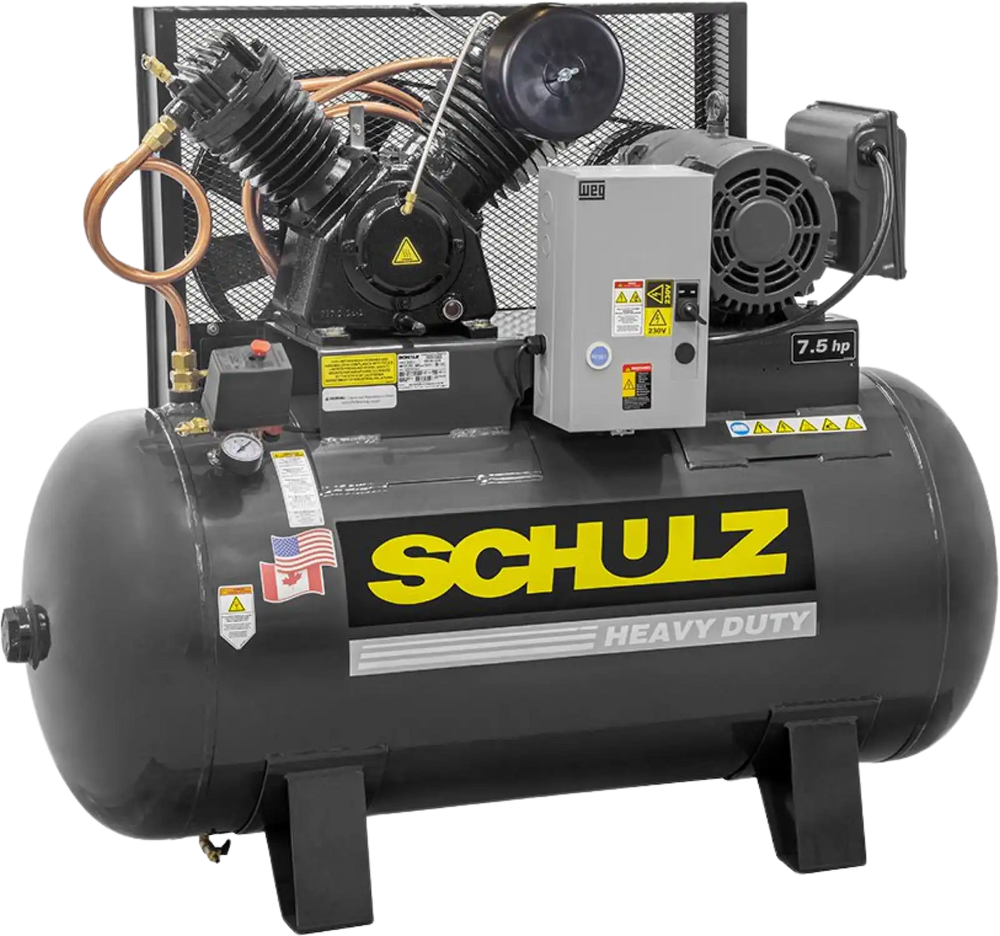

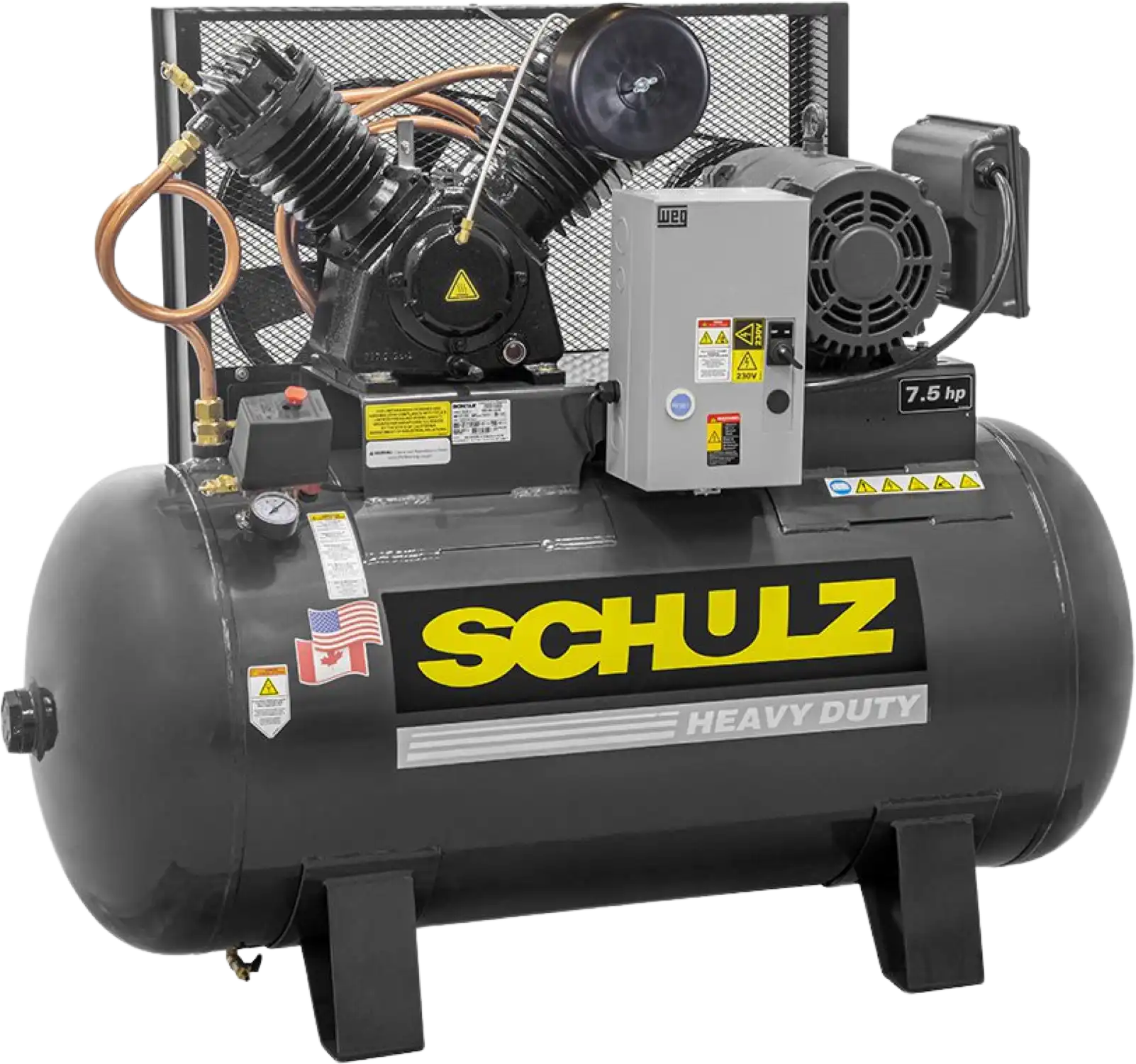

Schulz V-Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Horizontal 7580HV30X-3 New
Product Overview
The V-series compressors are strong and durable equipment. With horizontal tank design, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Cast iron construction
- Low RPM two piston in-line design
- Magnetic starters mounted
- Auto start/stop pressure switch operation
- Powder coated ASME receivers
- Enclosed metal belt guard
- Easy access to adjust belt tension
- Balanced drive pulleys
- Oversized check valves
- ASME safety relief valves
- Pressure gauge
- Manual condensate drain
Specifications
| Item Number | 932.9348-0 |
| Model | 7580HV30X-3 |
| Product Category | Air Compressor - Stationary |
| Power Type | Electric |
| Engine HP | 7.5 |
| Voltage | 208-230 Volt AC |
| Phase | 3-Phase |
| Magnetic Starter | Yes |
| CFM | 20.1 |
| CFM Rated @ | 175 PSI |
| Pump | MSV-30MAX |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-Off | No |
| Tank Size | 80 Gallons |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Length | 56 Inches |
| Product Width | 23 Inches |
| Product Height | 45 Inches |
| Weight | 553 lbs. |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
Package Contents
Schulz V-Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase
User Manual
Warranty
This item comes with a 1 year on the product and 2 year warranty on the pump.
