Schulz Refrigerated Air Dryer 350 scfm 460V 3-Phase SACT350-UR New
Manufacturer: Schulz
SKU: SACT350-UR
QTY
or
(888) 999-1522
C
$10,869.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 5 left in stock
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year warranty.
$1,031.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$1,149.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$1,253.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

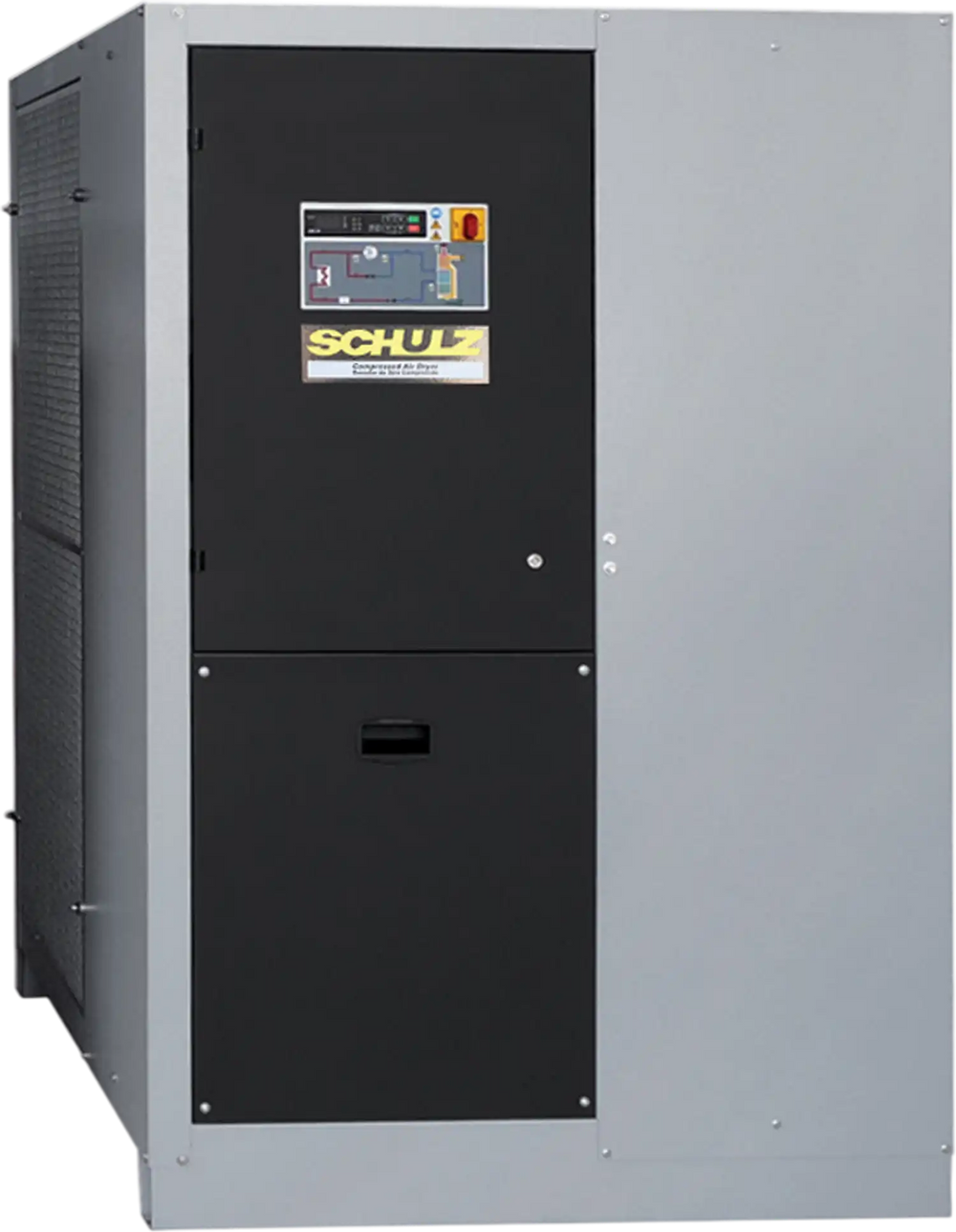

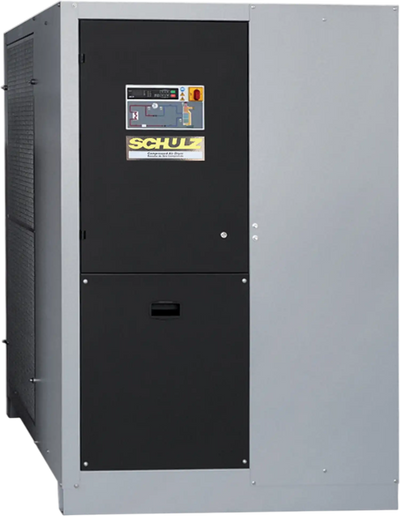

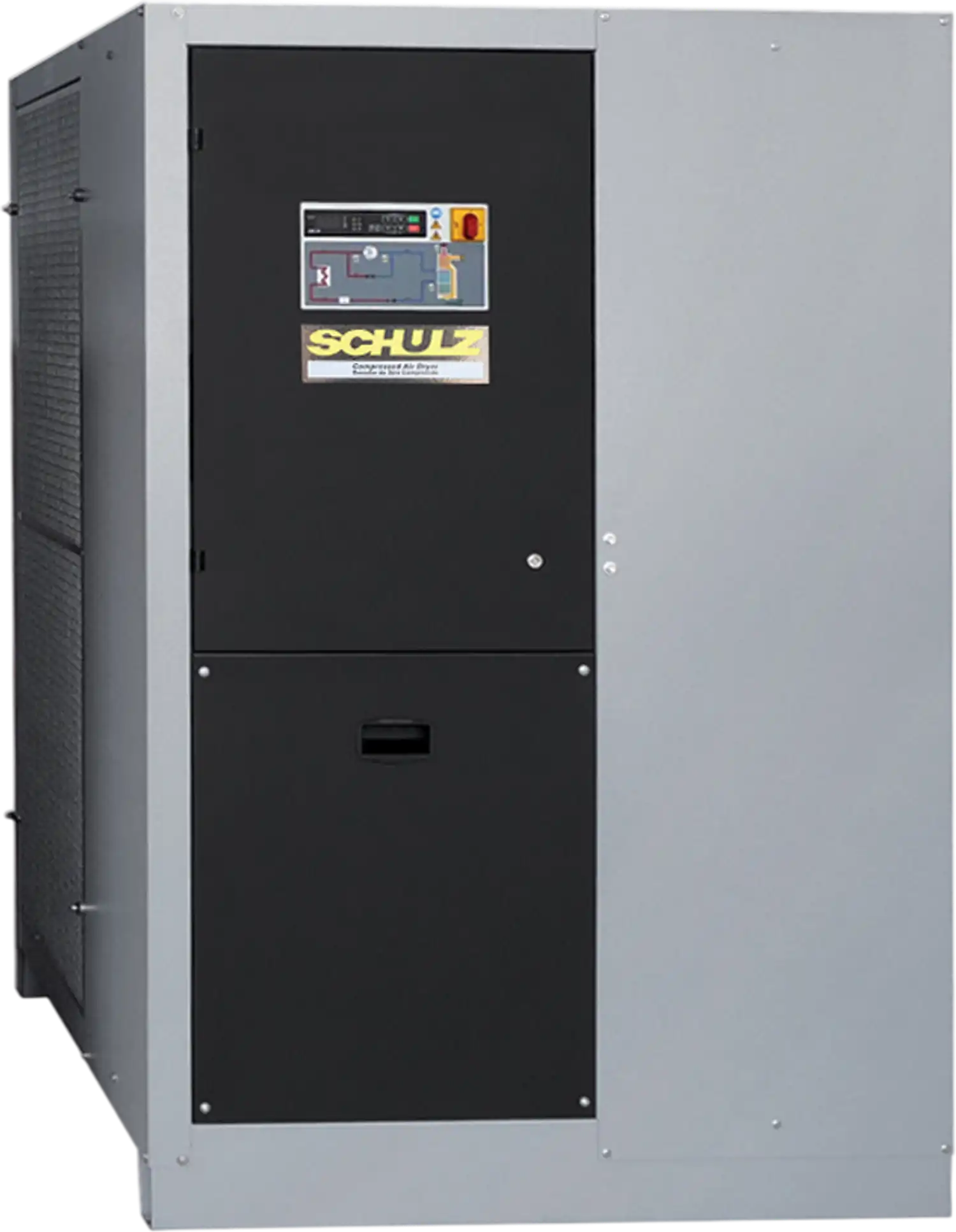

Schulz Refrigerated Air Dryer 350 scfm 460V 3-Phase SACT350-UR New
Product Overview
Schulz high-capacity dryers have been developed for applications requiring airflow above 500 cfm and inlet temperature up to 160 °F and room temperature up to 120 °F. The cooling system of this dryer uses aluminum to increase its performance. The digital controller, innovative hot gas by-pass valve and zero loss system ensure stable dew point under different load conditions. Removable panels facilitate easy and quick access to internal components and the scheduled management function for maintenance operations provides greater user convenience.
The large sections of air flow through the dryer enable extremely low load losses which, combined with the scroll compressor, emit less noise and reduce the system’s power consumption. Select the best option for your company.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- High-capacity refrigerated air dryer designed for applications requiring more than 500 CFM of airflow
- Handles inlet air temperatures up to 160°F and ambient temperatures up to 120°F for demanding operating conditions
- High-performance aluminum cooling system helps improve heat transfer and dryer efficiency
- Digital controller helps maintain reliable operation and easy system monitoring
- Innovative hot gas bypass valve helps deliver a stable dew point under varying load conditions
- Zero-loss drain system helps remove condensate without wasting compressed air
- Removable access panels allow faster, easier access to internal components for service
- Scheduled maintenance management function adds convenience for routine service planning
- Large internal air passages help minimize pressure drop for more efficient airflow
- Low pressure loss design helps improve overall compressed air system performance
- Scroll compressor design helps reduce operating noise
- Energy-efficient operation helps lower overall power consumption
- Environmentally conscious construction uses recyclable materials and carefully selected refrigeration components
Specifications
| Model | SACT350-UR |
|---|---|
| Dryer Type | Refrigerated Air Dryer |
| Air Flow | 350 scfm |
| Inlet/Outlet Connection | 2 in. NPT |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Refrigerant | R513a |
| Drain Type | BM |
| Width | 28-1/8 in. |
|---|---|
| Depth | 28-9/16 in. |
| Height | 45-1/2 in. |
| Weight | 419 lb |
| Maximum Inlet Air Temperature | 160 °F |
| Maximum Ambient Temperature | 120 °F |
Warranty
This item comes with a 1 year warranty.
