Schulz Refrigerated Air Dryer 2000 scfm 460V 3-Phase SACT2000-UR New
Manufacturer: Schulz
SKU: SACT2000-UR
QTY
or
(888) 999-1522
C
$40,687.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

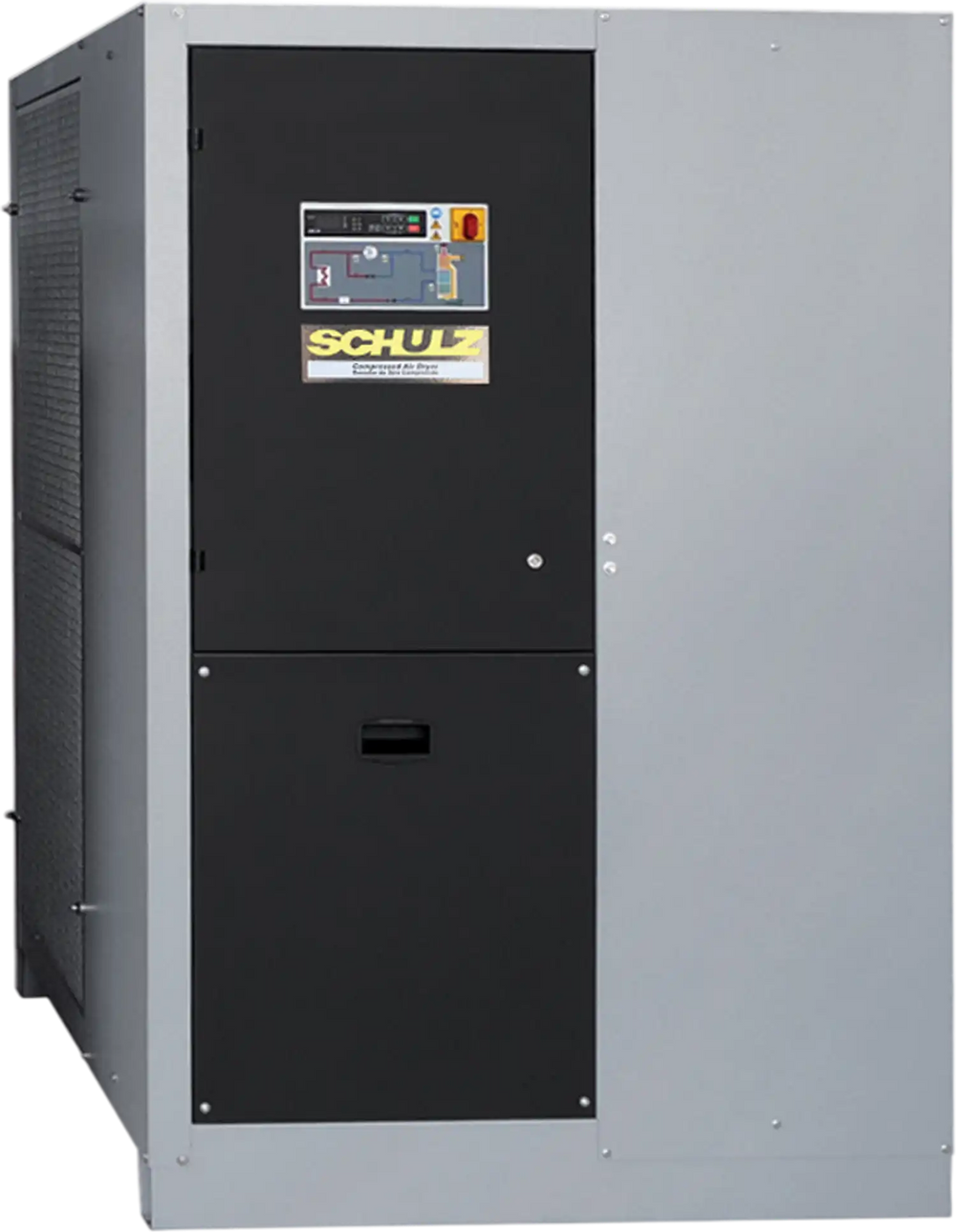

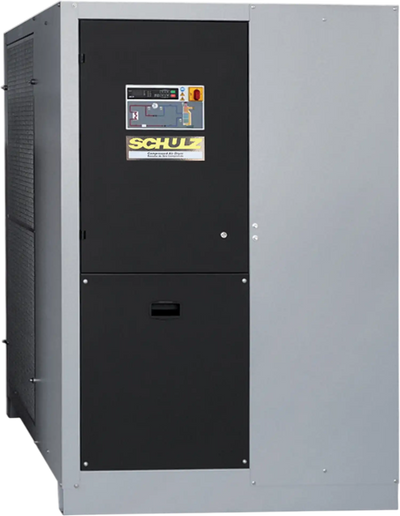

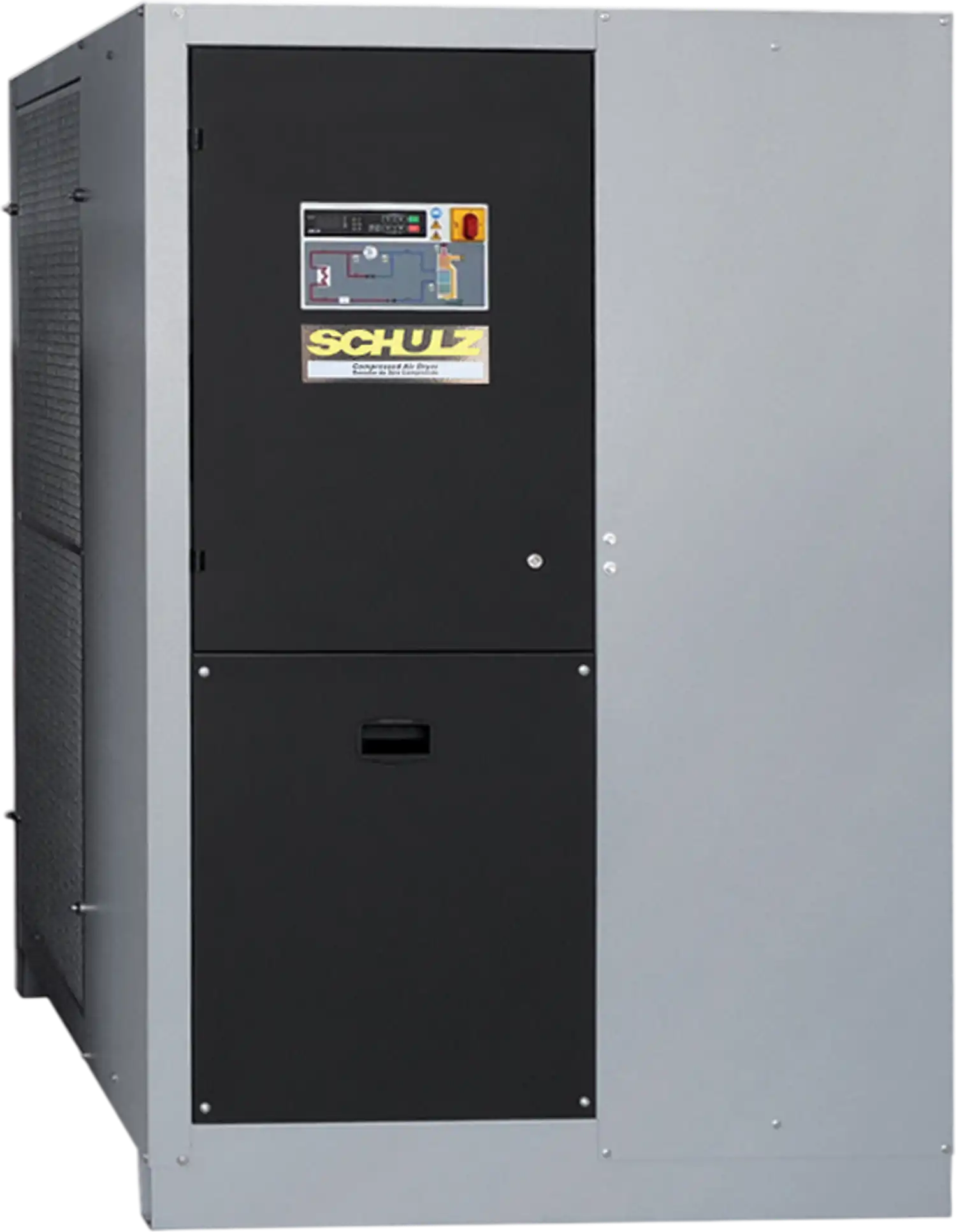

Schulz Refrigerated Air Dryer 2000 scfm 460V 3-Phase SACT2000-UR New
Product Overview
Schulz high-capacity dryers have been developed for applications requiring airflow above 500 cfm and inlet temperature up to 160 °F and room temperature up to 120 °F. The cooling system of this dryer uses aluminum to increase its performance. The digital controller, innovative hot gas by-pass valve and zero loss system ensure stable dew point under different load conditions. Removable panels facilitate easy and quick access to internal components and the scheduled management function for maintenance operations provides greater user convenience. The large sections of air flow through the dryer enable extremely low load losses which, combined with the scroll compressor, emit less noise and reduce the system’s power consumption. Select the best option for your company.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Designed for high-capacity compressed air applications requiring airflow above 500 cfm.
- Handles inlet air temperatures up to 160°F for demanding operating conditions.
- Operates in ambient temperatures up to 120°F for reliable performance in warm equipment rooms.
- High-performance aluminum cooling system helps improve heat transfer and dryer efficiency.
- Digital controller helps maintain stable operation and makes monitoring easier.
- Innovative hot gas bypass valve supports a stable pressure dew point under varying load conditions.
- Zero-loss condensate drain system helps reduce wasted compressed air.
- Removable panels allow quick, convenient access to internal components for faster service.
- Scheduled maintenance management function improves service planning and user convenience.
- Large internal air passages help minimize pressure drop through the dryer.
- Low-noise scroll compressor design helps reduce sound levels during operation.
- Energy-efficient operation helps lower overall system power consumption.
- Environmentally conscious design uses recyclable materials and carefully selected refrigeration components.
Specifications
| Model | SACT2000-UR |
|---|---|
| Dryer Type | Refrigerated Air Dryer |
| Air Flow | 2000 scfm |
| Connection Size | ANSI 4 in flange |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Refrigerant | R513a |
| Drain Type | BM |
| Maximum Inlet Air Temperature | 160°F |
| Maximum Ambient Temperature | 120°F |
|---|---|
| Minimum Operating Temperature | 33.8°F |
| Length | 49-13/16 in |
| Width | 44-11/16 in |
| Height | 68-7/8 in |
| Weight | 1307 lb |
Warranty
This item comes with a 1 year warranty.
