Schulz Premium Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Vertical P7580VL30X-3 New
Manufacturer: Schulz
SKU: 932.9322-P
Phase
Horizontal or Vertical
Series
QTY
or
(888) 999-1522
$11,167.00
C
$8,574.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
$642.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$743.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$857.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

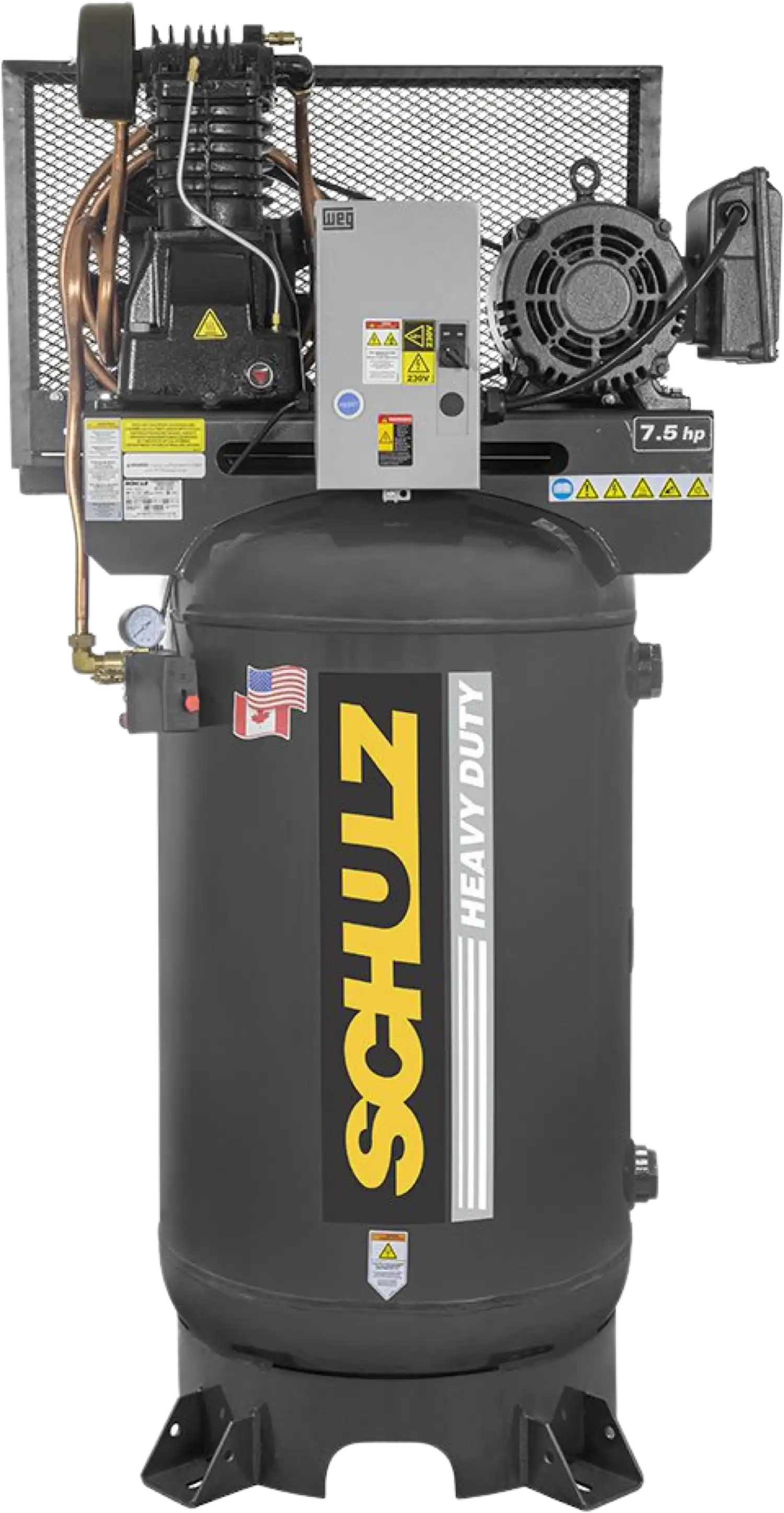

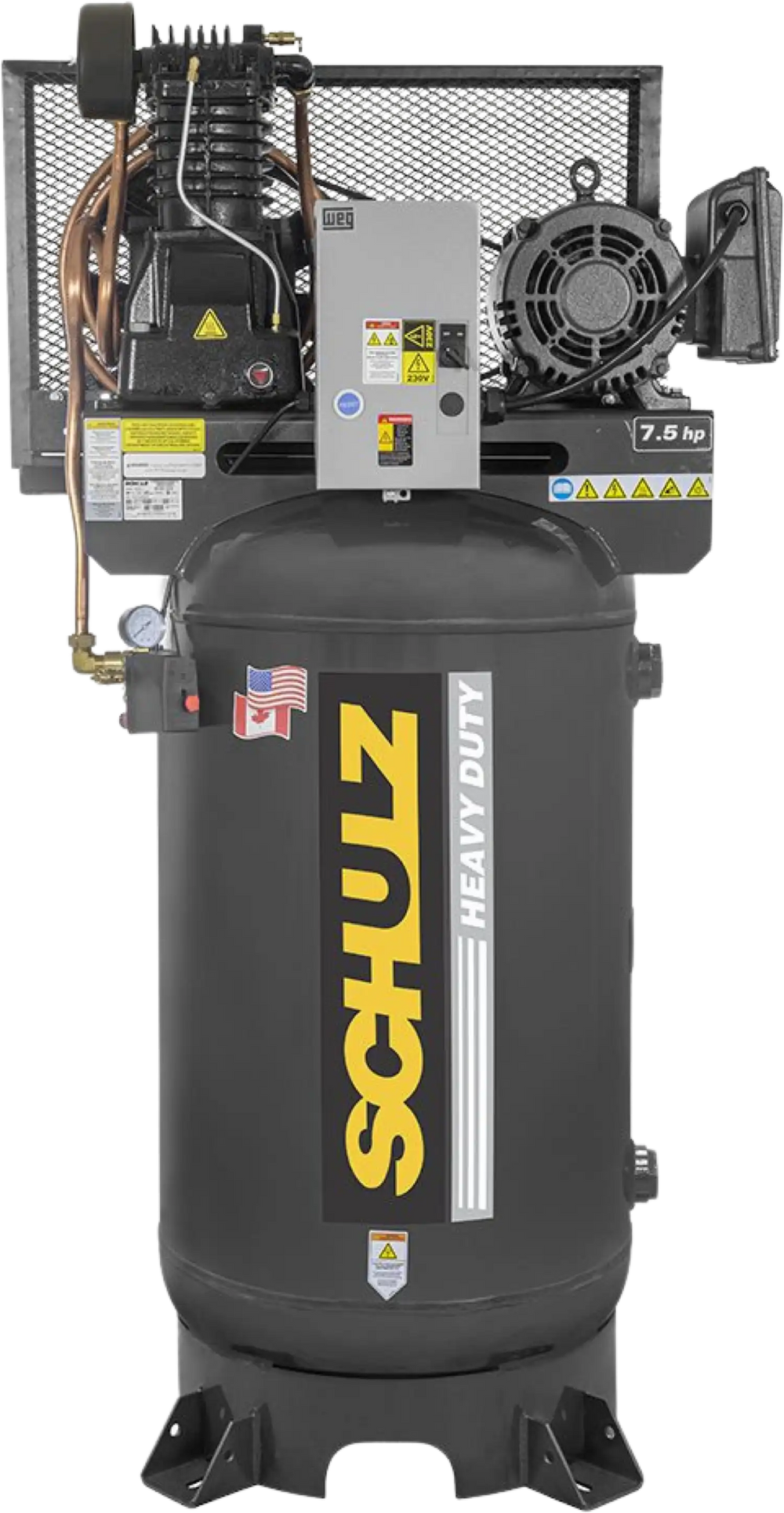

Schulz Premium Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Vertical P7580VL30X-3 New
Product Overview
Premium Line compressors offer quality compressed air with convenience and safety. Due to the use of a mounted belt guard after cooler, the tank’s outlet temperature is lower, reducing costs relative to the installation of air dryers. The presence of oil level sensors and an automatic tank moisture drain ensure high quality and reliable downstream system performance. The ASME certified tank and UL certified starter components also ensures also the safety of the air compressor.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Mounted and wired magnetic starter
- Large metal intake filter
- Tank discharge valve
- Belt guard aftercooler
- Low oil shutdown
- Vibration pads
- Electronic timed auto drain
Specifications
| Item Number | 932.9322-P |
| Model | P7580VL30X-3 |
| Product Category | Air Compressor - Stationary |
| Power Type | Electric |
| Engine HP | 7.5 |
| Voltage | 208-230 Volt AC |
| Phase | 3-Phase |
| Magnetic Starter | Yes |
| CFM | 21.6 |
| CFM Rated @ | 175 PSI |
| Pump | MSL-30MAX |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-Off | Yes |
| Tank Size | 80 Gallons |
| Electronic Drain Valve | Yes |
| Tank Orientation | Vertical |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Length | 33.8 Inches |
| Product Width | 25.2 Inches |
| Product Height | 78.7 Inches |
| Weight | 578 lbs. |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
Package Contents
Schulz Premium Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase
User Manual
