Schulz Oil Less Air Compressor 5 HP 60 gal. 2-Stage 230V 1-Phase Vertical 560VV20-1 New
Manufacturer: Schulz
SKU: 932.7538-0
QTY
or
(888) 999-1522
C
$4,115.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 4 left in stock
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- Schulz compressors include a 1-year warranty on the compressor pump and all other components.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- Schulz compressors include a 1-year warranty on the compressor pump and all other components.
$353.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$427.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$515.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

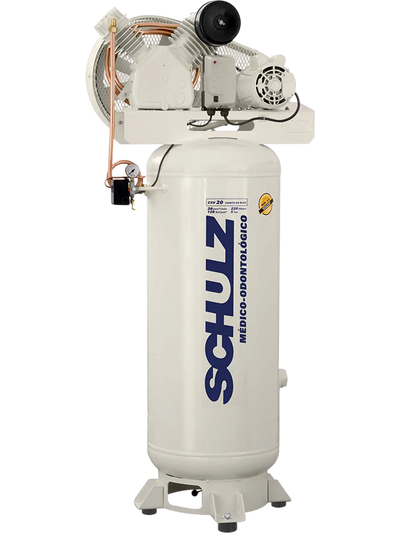

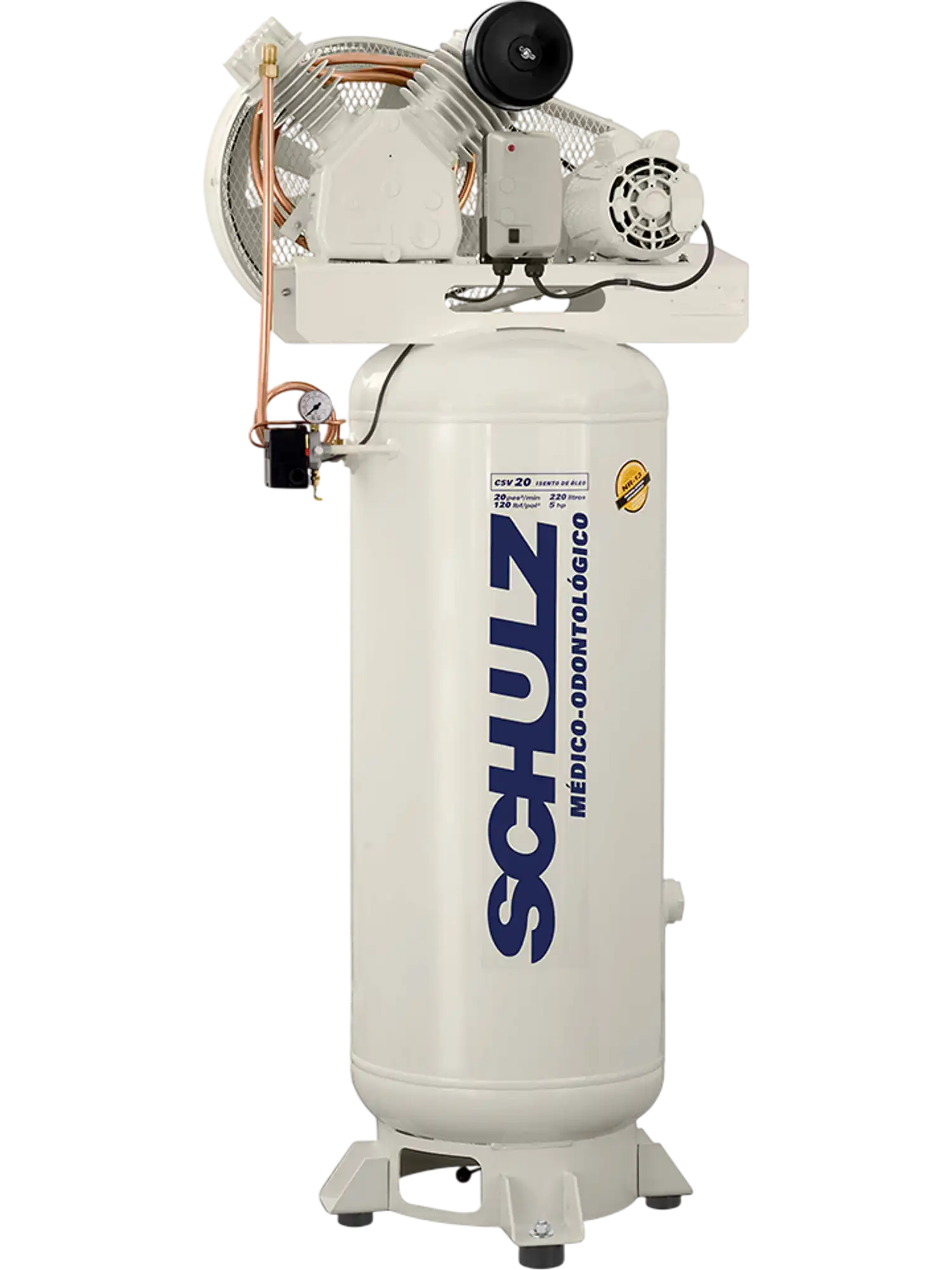

Schulz Oil Less Air Compressor 5 HP 60 gal. 2-Stage 230V 1-Phase Vertical 560VV20-1 New
Product Overview
The Schulz 560VV20-1 oil-less air compressor delivers reliable performance and enhanced safety for applications where clean air matters, including clinics, offices, and critical industrial processes. Its oil-free design helps reduce maintenance while supporting higher air quality standards, and the tank features an internal antibacterial powder coating for added protection.
Designed for durability, this 5 HP compressor includes a space-saving 60-gallon vertical tank, 120 PSI maximum operating pressure, and strong air delivery for demanding day-to-day use. It is a dependable choice for businesses that need consistent compressed air performance with cleaner operation.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Oil-less compressor design helps deliver cleaner air with less maintenance.
- Built for performance and safety in clinics, offices, and critical industrial applications.
- Internal antibacterial powder coating on the air tank supports higher air quality standards.
- Durable construction designed for long-lasting operation in demanding environments.
- 60-gallon vertical tank design saves floor space while providing ample air storage.
Specifications
| Air Displacement (CFM) | 20 |
|---|---|
| Theoretical Displacement (L/min) | 566 |
| Number of Poles | 2 |
| Motor Power (hp) | 5 |
| Motor Power (kW) | 3.7 |
| Maximum Operating Pressure (bar) | 8.3 |
| Maximum Operating Pressure (PSI) | 120 |
| Minimum Operating Pressure (bar) | 5.5 |
| Minimum Operating Pressure (PSI) | 80 |
| Voltage (V) | 230 |
| Phase | Single |
| Pump RPM | 1050 |
| Pump Model | 560VV20-1 |
|---|---|
| Compressor Pump Stages | Two Stages |
| Compressor Pump Pistons | 2-V |
| Tank Size (gal) | 60 |
| Tank Orientation | Vertical |
| Dimensions (L x W x H) | 32 x 17 x 73 in |
| Weight (lb) | 465 |
| FAD (CFM) at Max Pressure | 13.3 |
Warranty
Schulz compressors include a 1-year warranty on the compressor pump and all other components.
