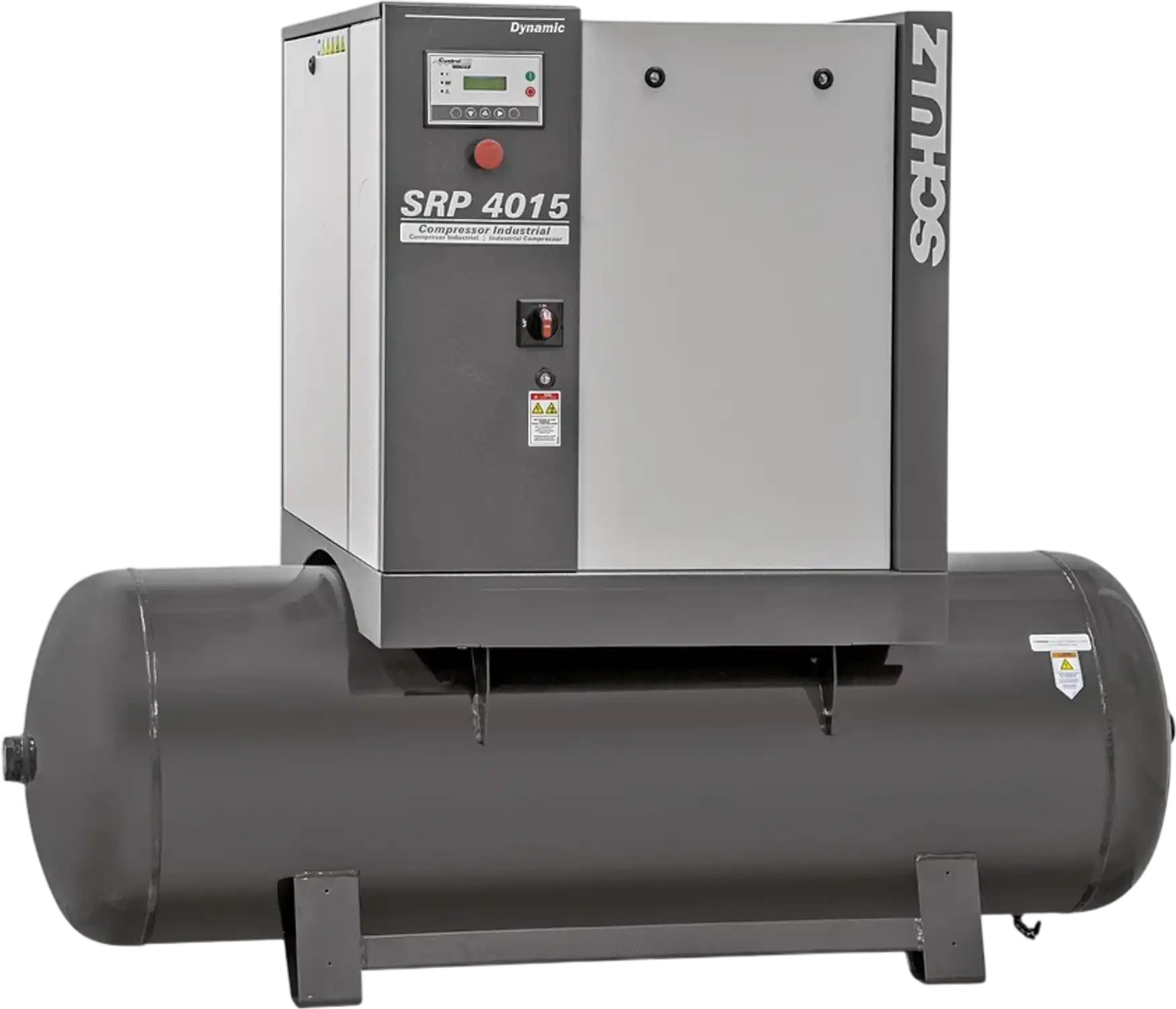

Schulz Dynamic Rotary Screw Air Compressor 15 HP 120 gal. 208-230V 3-Phase 51 CFM 125 PSI SRP 4015 R DYNAMIC New
Product Overview
The Schulz SRP 4015 R Dynamic is a 15 hp belt-driven rotary screw air compressor engineered for high performance, quiet operation, and continuous-duty reliability. Designed to run 24 hours a day in ambient temperatures up to 113°F, it is an excellent choice for demanding applications where steady compressed air supply and low noise are equally important. Its compact design also makes it well suited for installations in tight spaces or areas with difficult access.
This model features a three-phase IP55 totally enclosed electric motor, a high-efficiency intake filter that helps improve compressed air quality, and an intelligent microprocessor controller for constant system monitoring. The control panel provides operating readouts, adjustable parameters, fault indication, and local/remote operation capability, helping simplify operation while supporting long-term durability and productivity.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Designed for continuous 24/7 operation in ambient temperatures up to 113°F.
- Quiet-running design ideal for workplaces where low noise is essential.
- Belt-driven rotary screw compressor built for dependable performance and long service life.
- IP55 totally enclosed three-phase electric motor helps protect against dust and moisture in demanding environments.
- Microprocessor control panel provides constant operating readouts for easy monitoring.
- Adjustable operating parameters allow the compressor to be configured for your application.
- Built-in troubleshooting and fault indication help simplify maintenance and reduce downtime.
- High-efficiency air filter helps improve compressed air quality.
- Compact footprint suits installations with limited space or difficult access.
- Optional vehicular double filter available for added filtration in challenging environments.
Specifications
| Model | SRP 4015 R DYNAMIC |
|---|---|
| Compressor Type | Rotary Screw Air Compressor |
| Drive Type | Belt Driven |
| Maximum Pressure (psi) | 125 |
| Working Pressure (bar) | 8.6 |
| Motor Power (hp) | 15 |
| Motor Power (kW) | 11 |
| Voltage (V) | 208-230 |
| Phase | Three |
| Motor Enclosure | IP55 Totally Enclosed |
| Free Air Delivery (CFM) | 51 |
| Free Air Delivery (L/min) | 1444 |
|---|---|
| Air Outlet Connection (in) | 3/4 |
| Noise Level (dBA) | 69 |
| Tank Capacity (gal) | 120 |
| Dimensions (H x W x D) | 39.8 x 58.5 x 27.6 in |
| Weight (lb) | 639 |
| Duty Cycle | Continuous 24/7 |
| Maximum Ambient Temperature | 113°F |
Warranty
Schulz compressors include a 2-year warranty on the compressor pump and a 1-year warranty on all other components.
