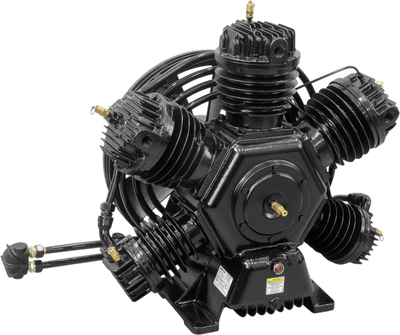

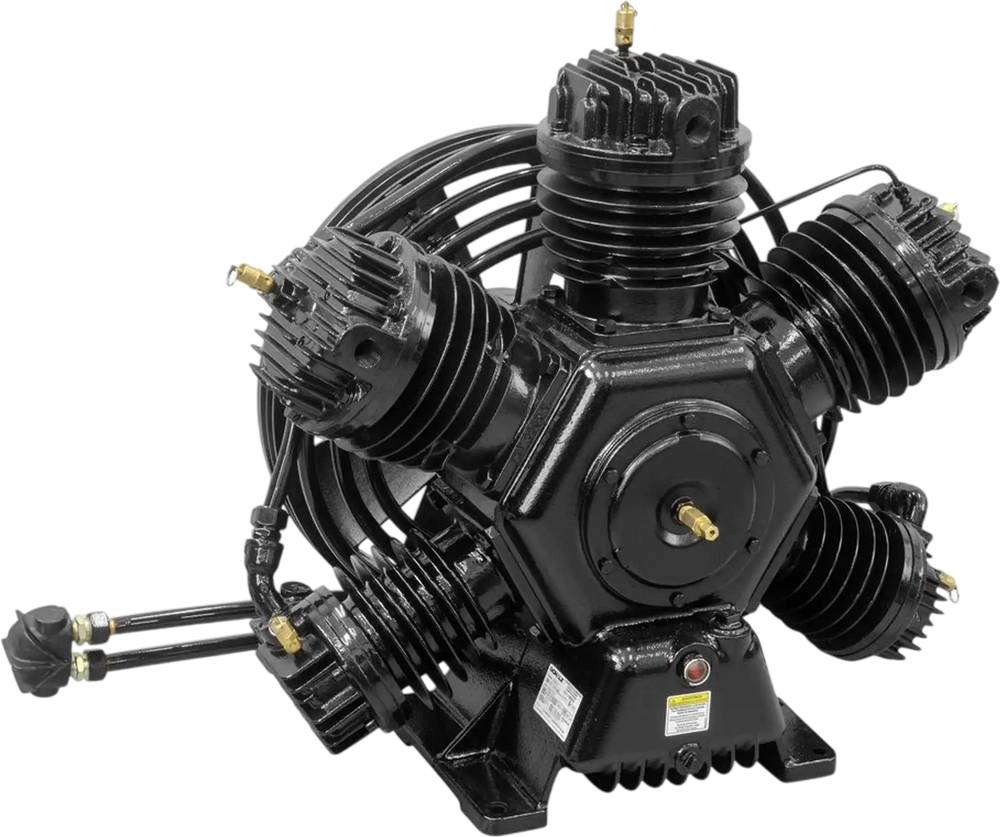

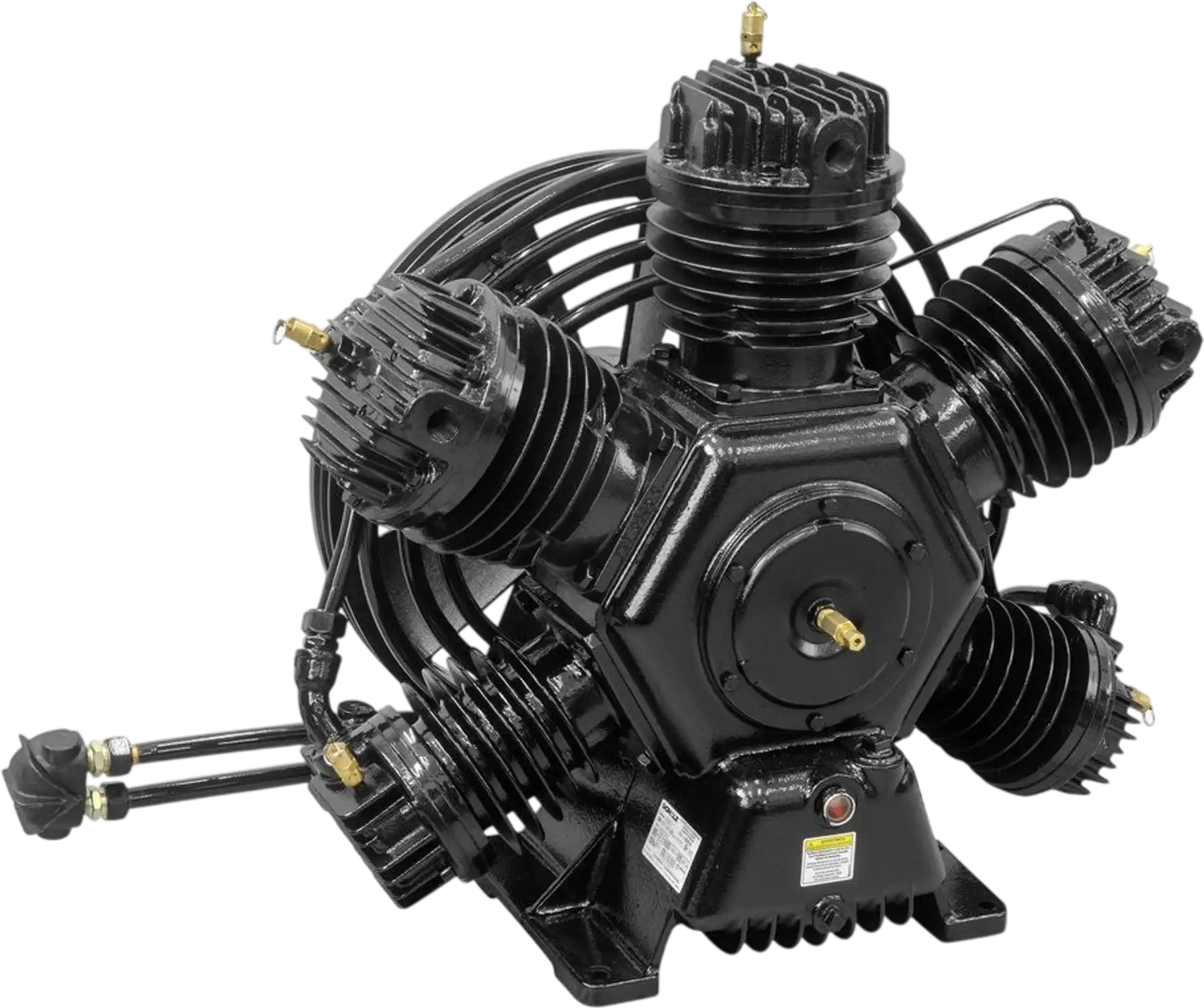

Schulz Air Compressor Pump 20 HP 2-Stage 80 CFM 175 PSI MSWV 80MAX New
Product Overview
Schulz lubricated air compressor pumps are versatile, heavy-duty units built for professional and industrial applications. The MSWV 80MAX features solid cast iron construction for excellent strength and durability, and its slotted base design allows it to be mounted on air tanks or used as a replacement pump for various compressor brands.
This five-cylinder, two-stage WV pump is splash lubricated and designed for high air delivery with efficient operation up to 175 PSI. Large stainless steel reed valves, a centrifugal unloader, and a slow-running design help promote reliable performance and long service life. For easier installation, the pump is supplied with flywheel and motor pulley.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Solid cast iron pump construction for long-lasting strength and durability in professional and industrial use
- Splash-lubricated pump design helps provide dependable operation and straightforward maintenance
- Large Swedish stainless steel reed valves support efficient airflow and reliable performance
- Built-in centrifugal unloader assists with smoother compressor operation
- Five-cylinder WV pump design delivers high-volume air output
- Large, slow-running pump helps reduce wear for extended service life
- Two-stage compression design improves efficiency and high-pressure performance
Specifications
| Pump Model | MSWV 80MAX |
|---|---|
| Motor Power (hp) | 20 |
| Motor Power (kW) | 15 |
| Air Displacement (CFM) | 80 |
| Air Displacement (L/min) | 2264 |
| Free Air Delivery at Max Pressure (CFM) | 58.4 |
| Maximum Operating Pressure (bar) | 12 |
| Maximum Operating Pressure (PSI) | 175 |
| Minimum Operating Pressure (bar) | 9.3 |
| Minimum Operating Pressure (PSI) | 135 |
| Compressor Stages | 2 |
| Number of Cylinders | 5 |
| Pump Configuration | WV |
| Cylinder Size (in) | 2.5 / 3.543 / (3x) 4.75 |
| Stroke (in) | 2.755 |
| Pump Speed (RPM) | 910 |
| Weight (lb) | 366 |
| Flywheel Size (mm) | 540 |
| Flywheel Size (in) | 21.26 |
| Belt Quantity | 2 |
|---|---|
| Belt Section | B |
| Dimension A (mm) | 244 |
| Dimension A (in) | 9.606 |
| Dimension B (mm) | 344 |
| Dimension B (in) | 13.543 |
| Dimension C (mm) | 14 |
| Dimension C (in) | 0.551 |
| Dimension D (mm) | 650 |
| Dimension D (in) | 25.591 |
| Dimension E (mm) | 960 |
| Dimension E (in) | 37.795 |
| Dimension F (mm) | 780 |
| Dimension F (in) | 30.709 |
| Dimension G (mm) | 120 |
| Dimension G (in) | 4.724 |
Warranty
Schulz compressors include a 2-year warranty on the compressor pump and a 1-year warranty on all other components.
